Pedestrian Alert Control Module (PACM): Removal
WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear seat. Refer to: Rear Seat .

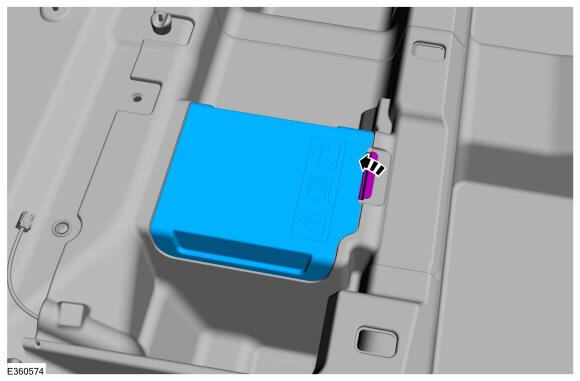

- Remove the battery cover.

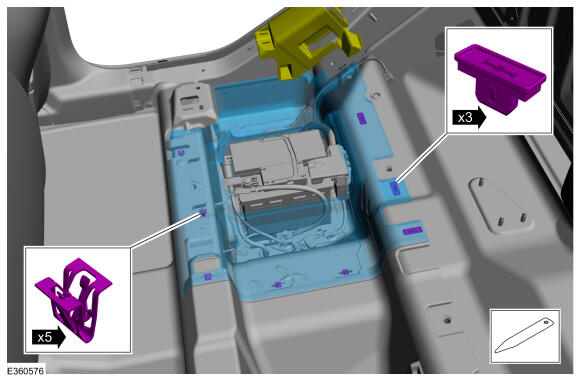

- Release the clips and remove the RH interior scuff plate. Remove the General Equipment: Interior Trim Remover

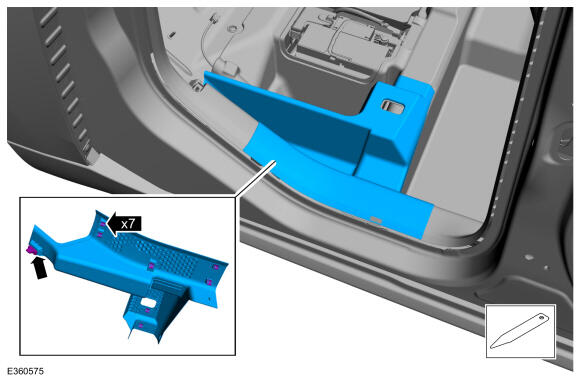

- Release the clips and remove the RH storage bin. Remove the General Equipment: Interior Trim Remover

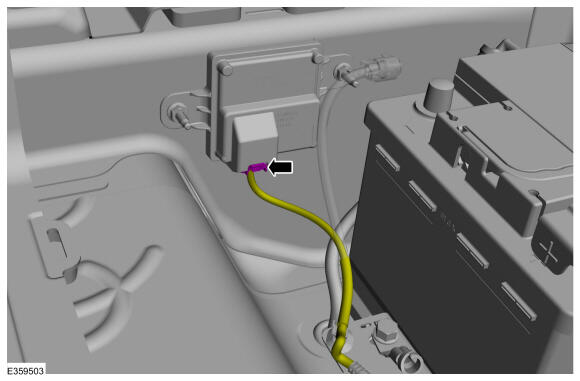

- Disconnect the electrical connector.

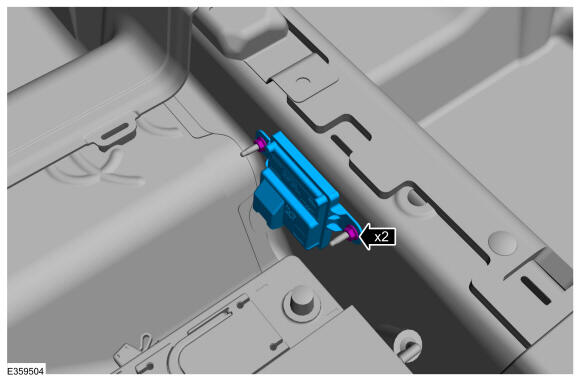

- Remove the nuts and the PACM.
Torque: 8 Nm
