Cylinder Block Core Plug Replacement

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Lint-Free Towel

Materials

Name	Specification
Thread Locking Adhesive	-
Brake Cleaner	-

Repair

NOTE: Cylinder block core plug shown, cylinder head core plug similar.

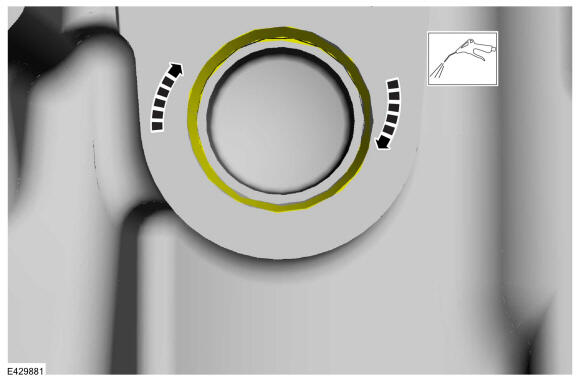

Clean the cup plug contour using air.

Courtesy of FORD MOTOR COMPANY

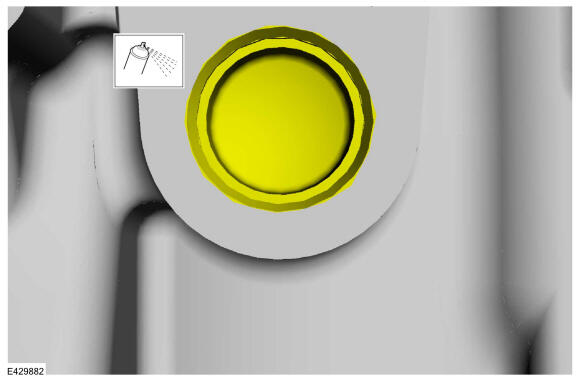

Clean the surface area shown with brake cleaner and air dry.
Material

: Brake Cleaner

Courtesy of FORD MOTOR COMPANY
NOTE: Do not touch the metal surface with the tip of the bottle.

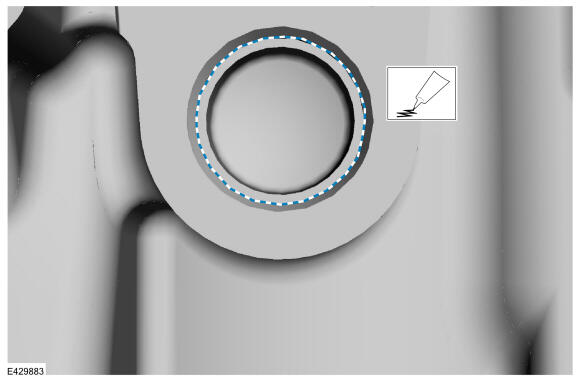

Apply loctite around the interface between the cup plug and housing.

Material

: Thread Locking Adhesive

Courtesy of FORD MOTOR COMPANY

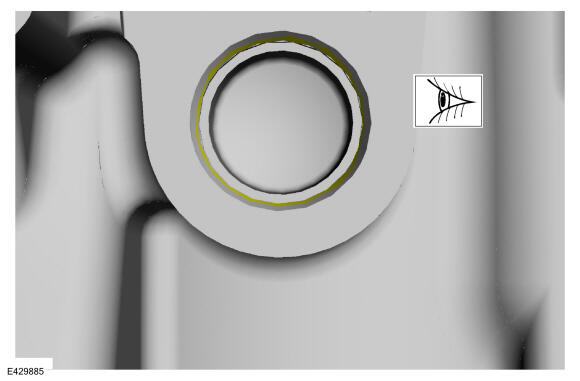

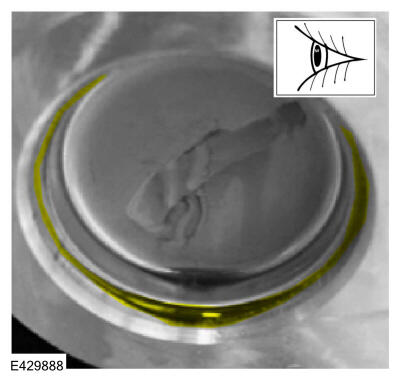

Loctite must be seen all around the cup plug circumference.

Courtesy of FORD MOTOR COMPANY

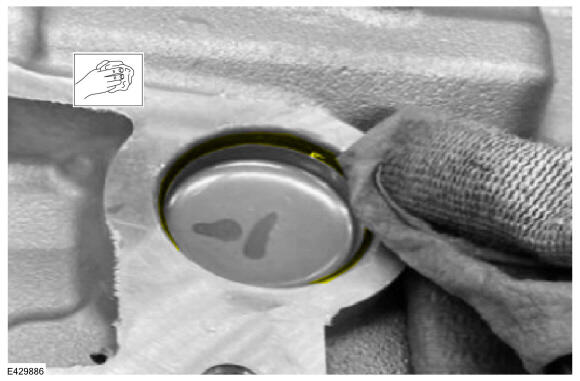

Using a lint free towel remove any excess or spot faces found without removing the loctite from the cup plug.Use the General Equipment: Lint-Free Towel

Courtesy of FORD MOTOR COMPANY

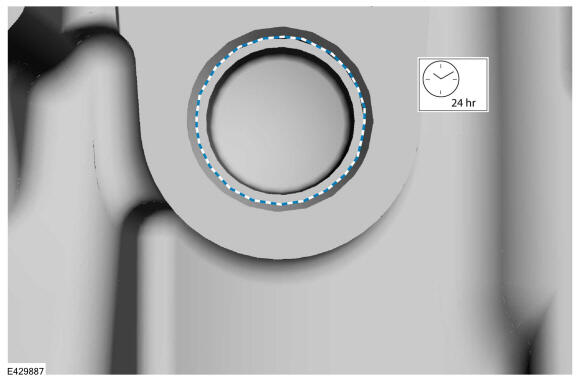

Let the loctite cure for 24 hours without engine operation.

Courtesy of FORD MOTOR COMPANY
Start the vehicle and inspect for leaks.

Courtesy of FORD MOTOR COMPANY

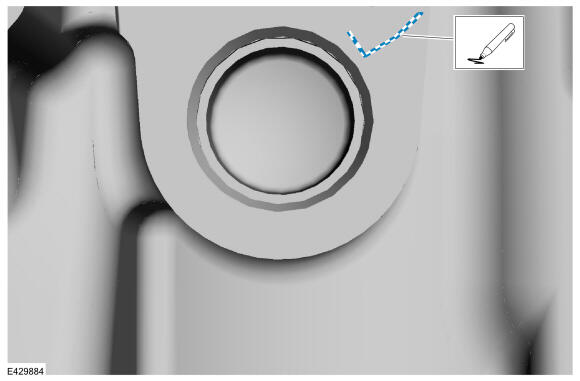

If no leaks detected and the cup plug is sealed successfully mark above the cup plug.
