Connector Repair Procedures

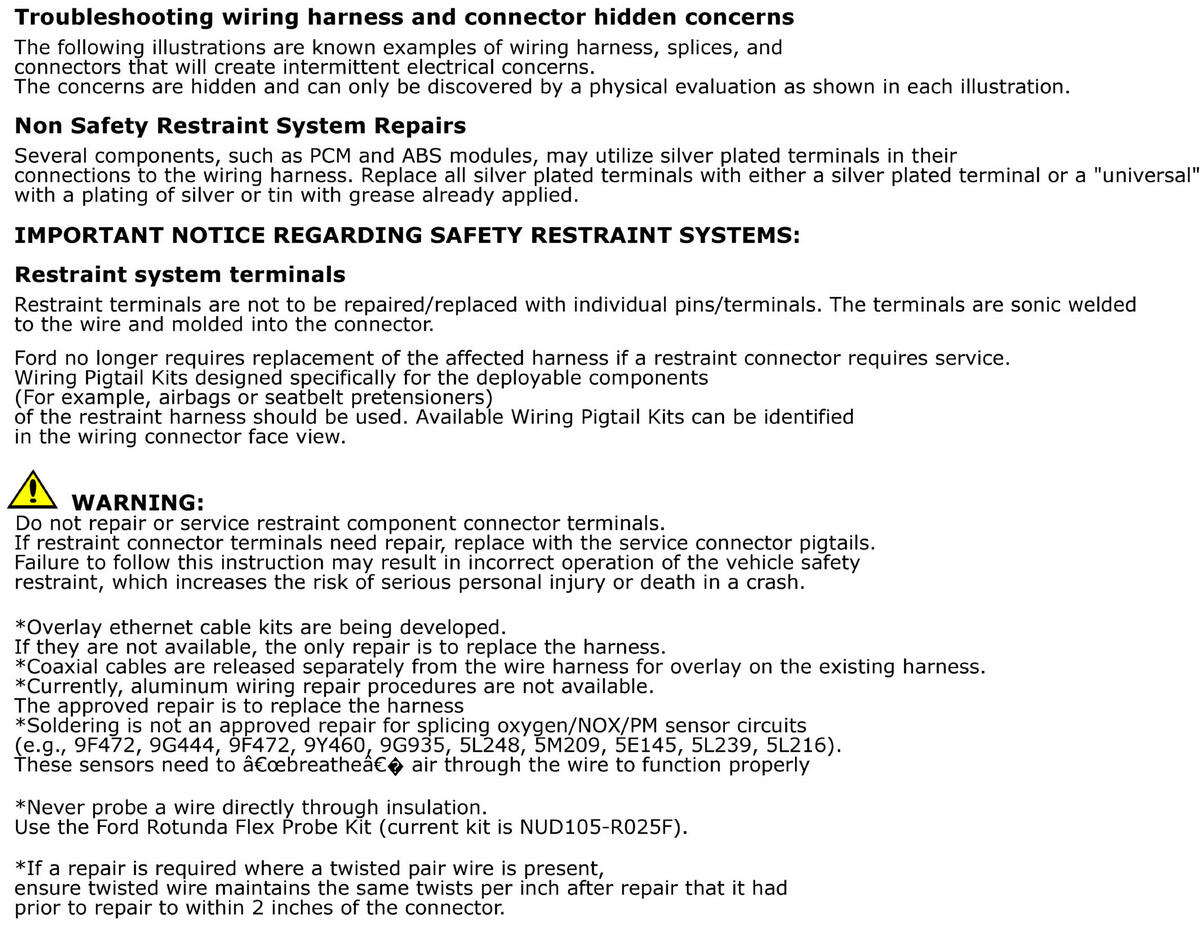

GFDWR238894Courtesy of FORD MOTOR COMPANY

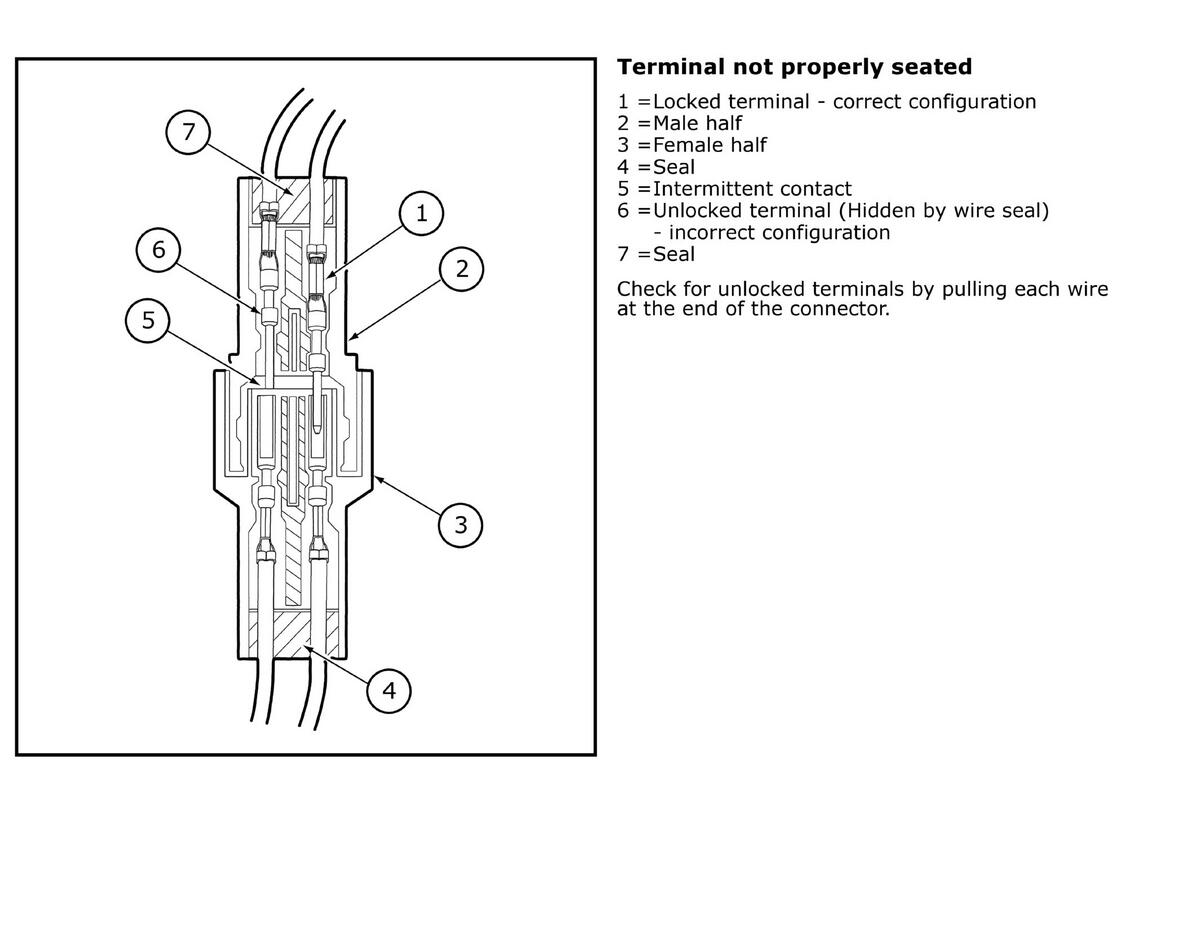

GFDWR238895Courtesy of FORD MOTOR COMPANY

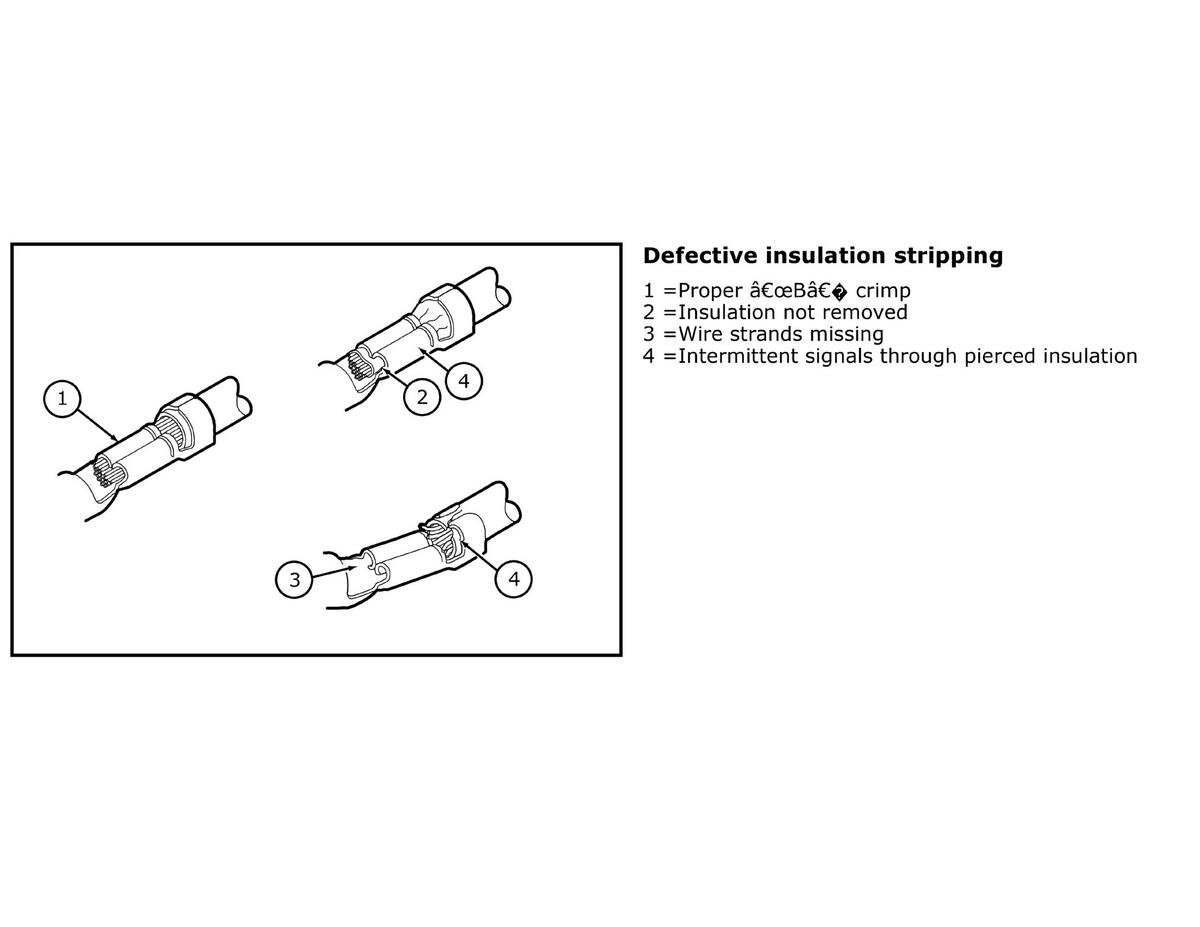

GFDWR238896Courtesy of FORD MOTOR COMPANY

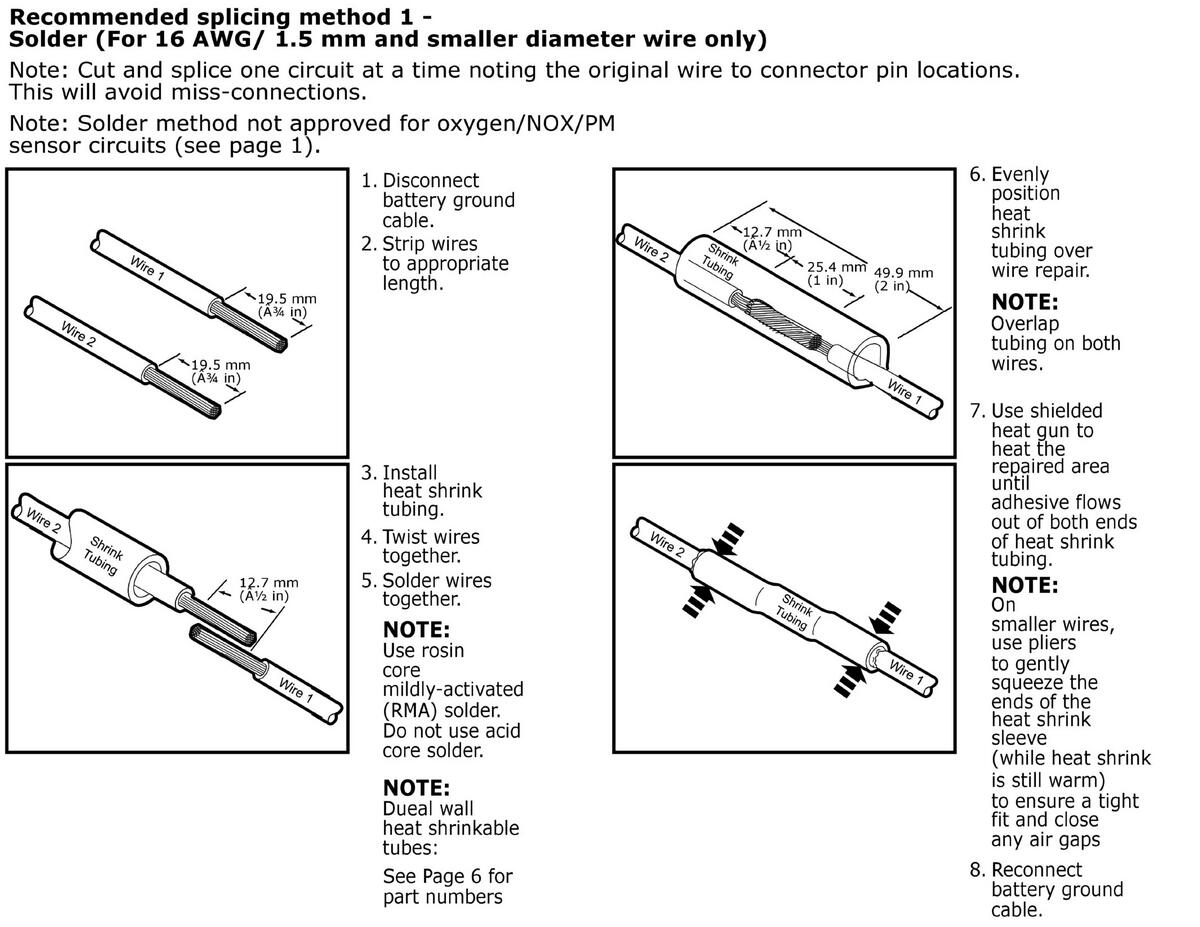

GFDWR238898Courtesy of FORD MOTOR COMPANY

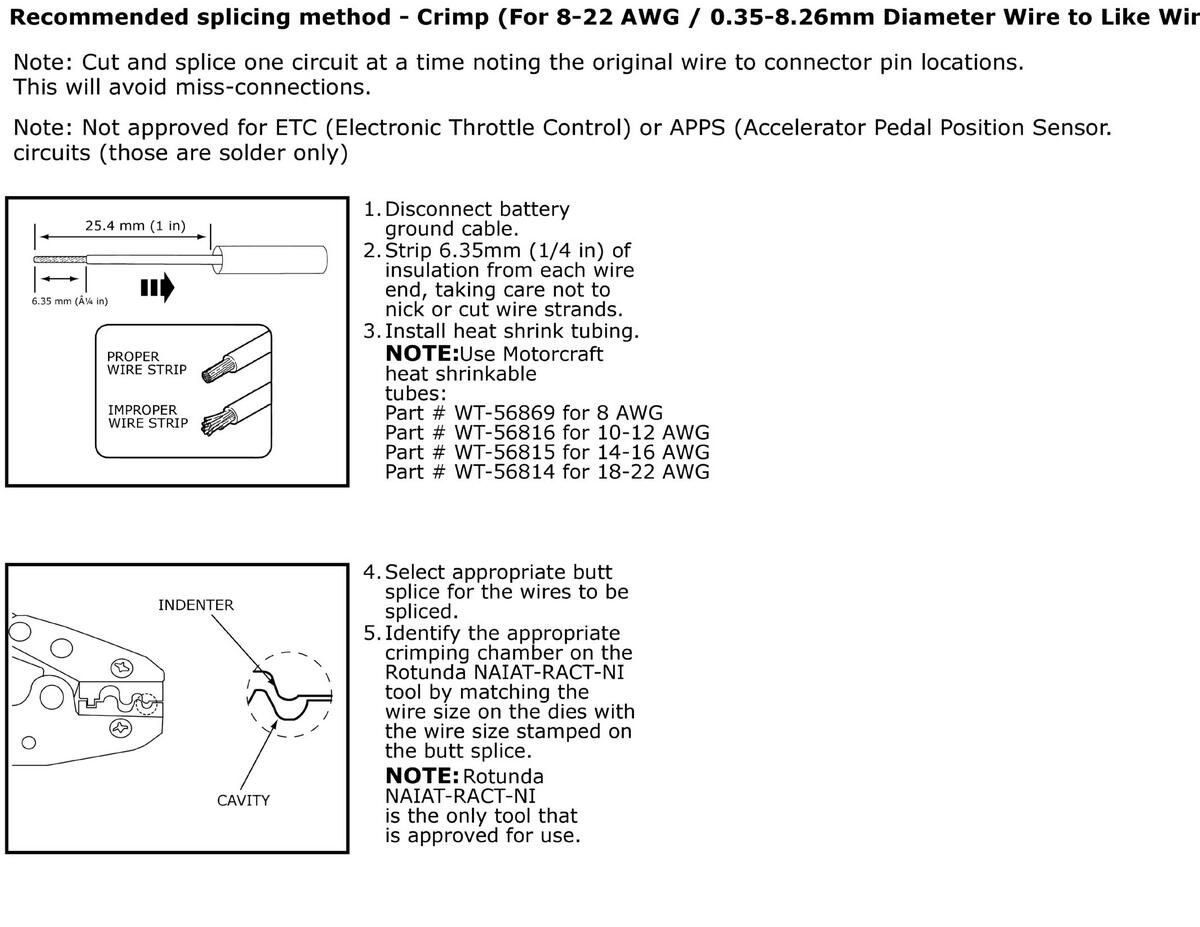

GFDWR238899Courtesy of FORD MOTOR COMPANY

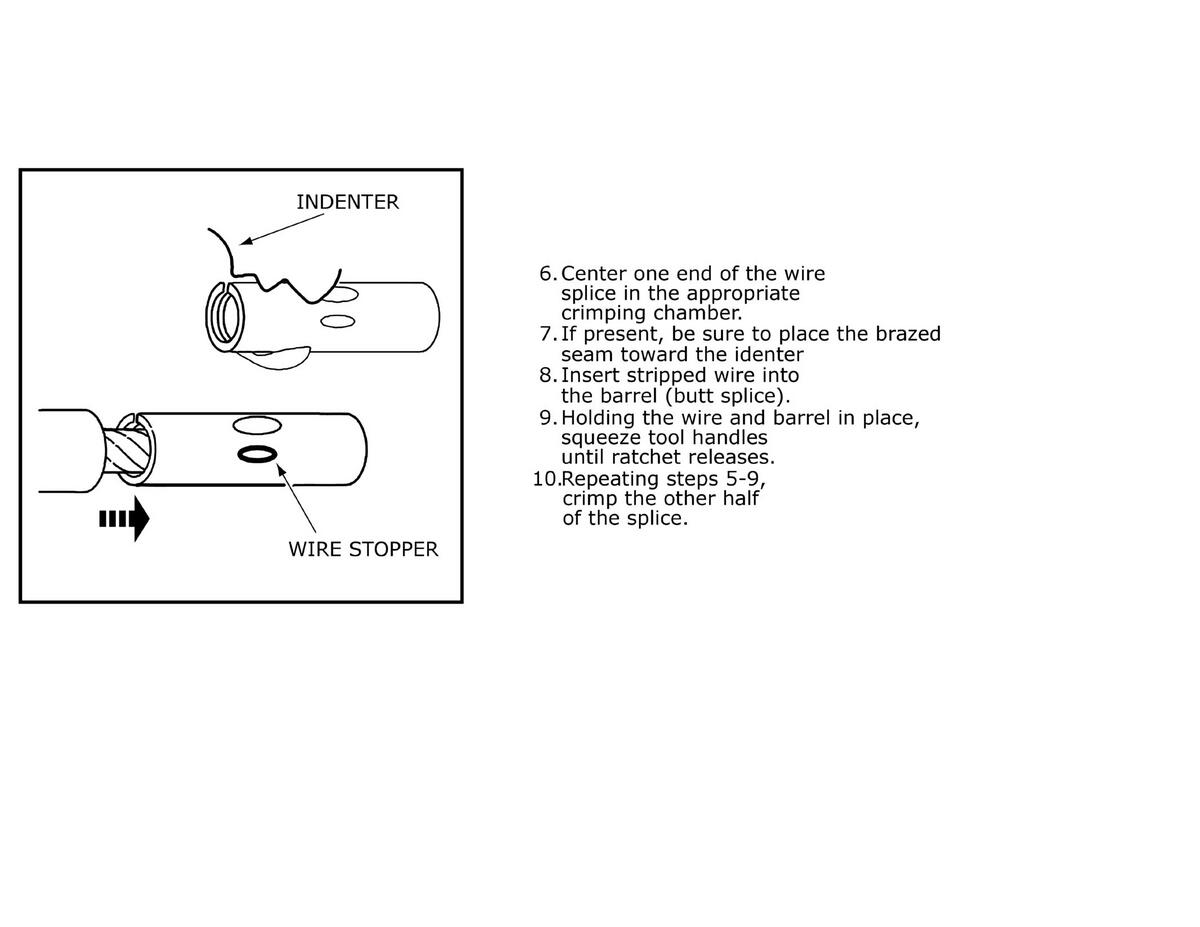

GFDWR238900Courtesy of FORD MOTOR COMPANY

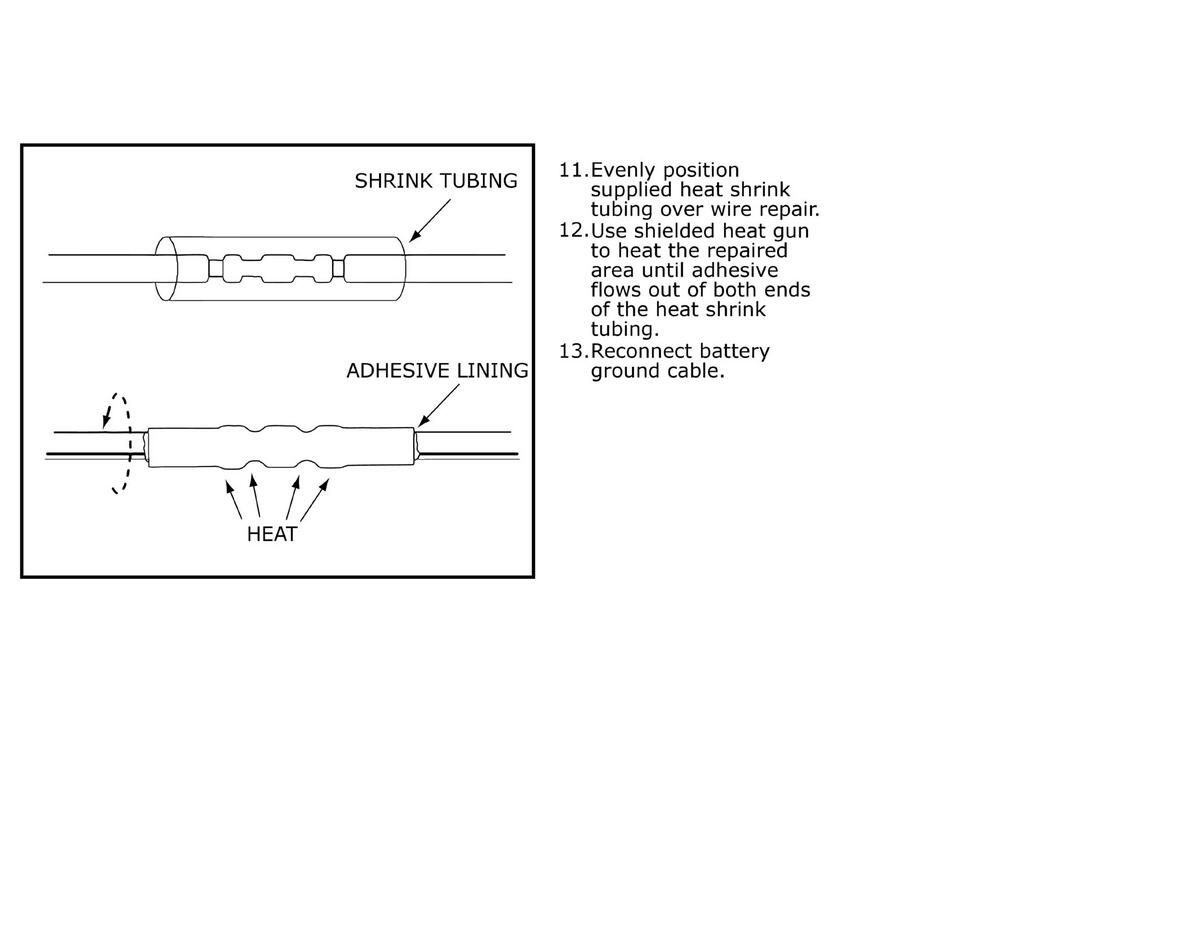

GFDWR238901Courtesy of FORD MOTOR COMPANY

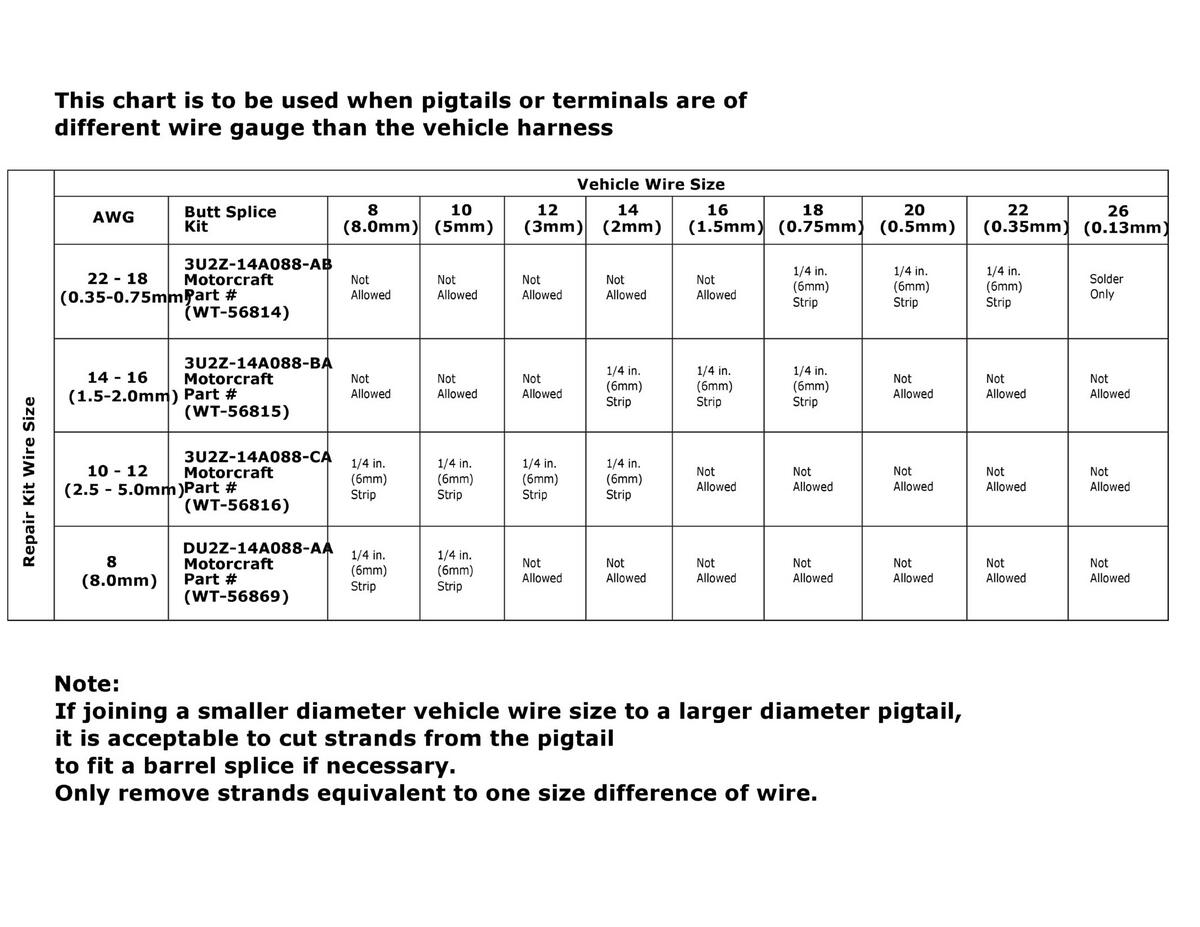

GFDWR238902Courtesy of FORD MOTOR COMPANY
