OEM Ground Distribution: Grounds

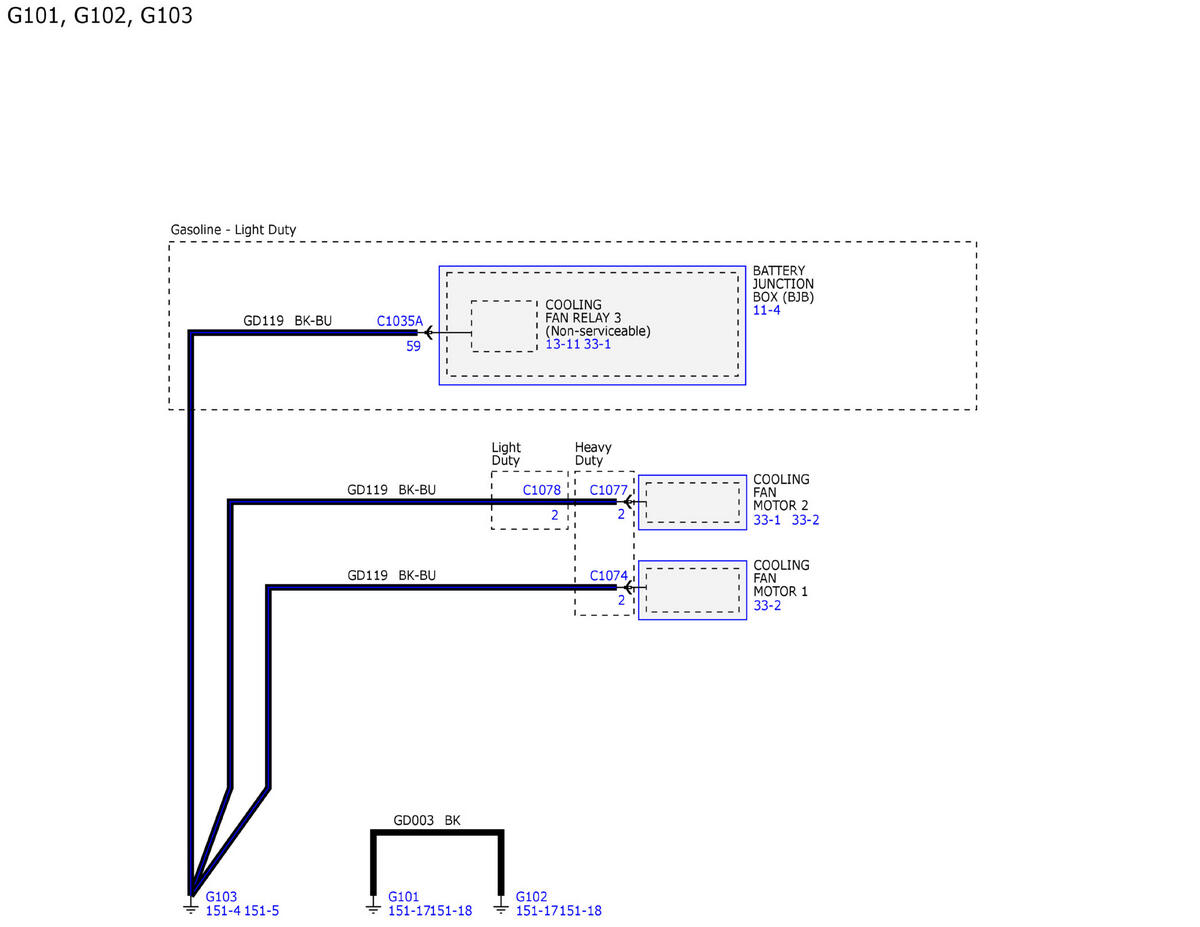

GFDWR238920Courtesy of FORD MOTOR COMPANY

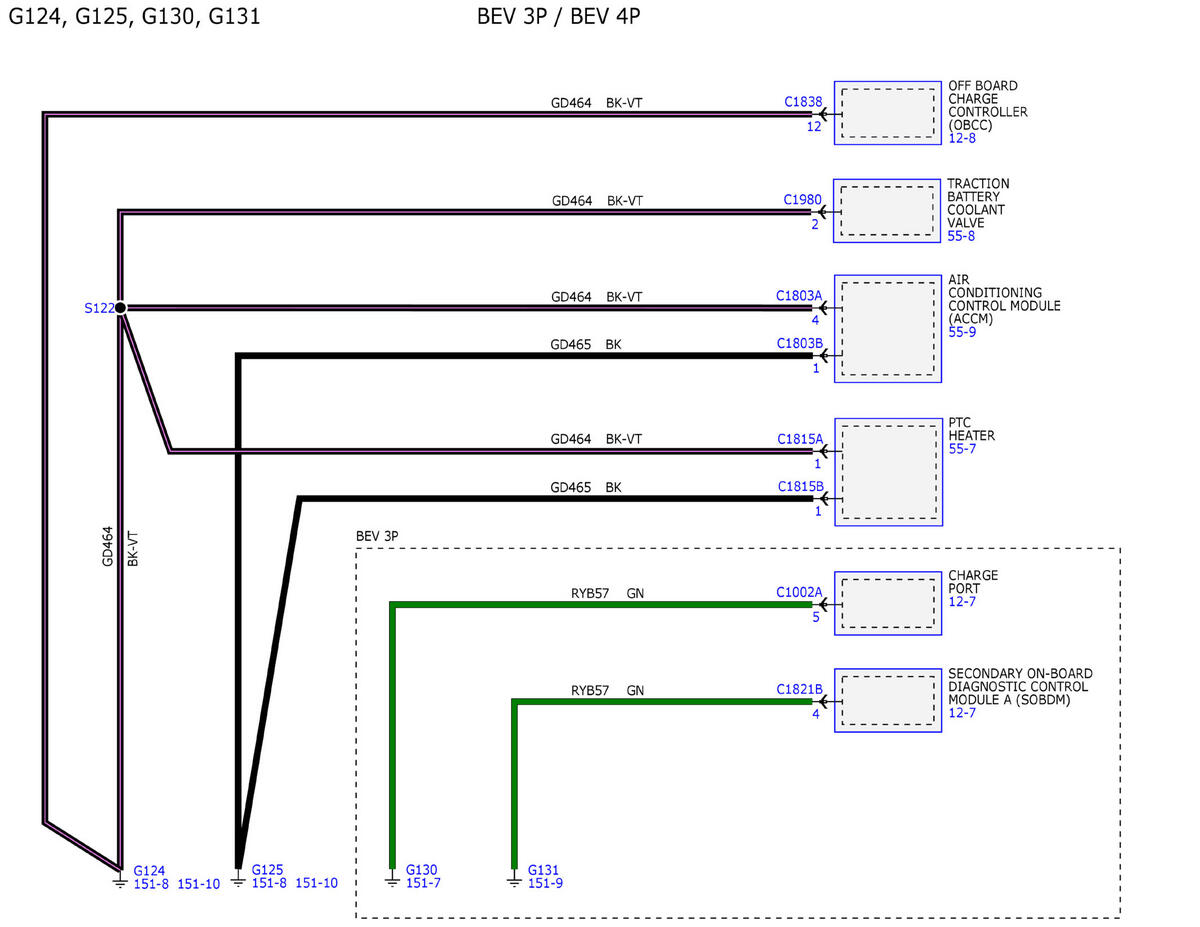

GFDWR238921Courtesy of FORD MOTOR COMPANY

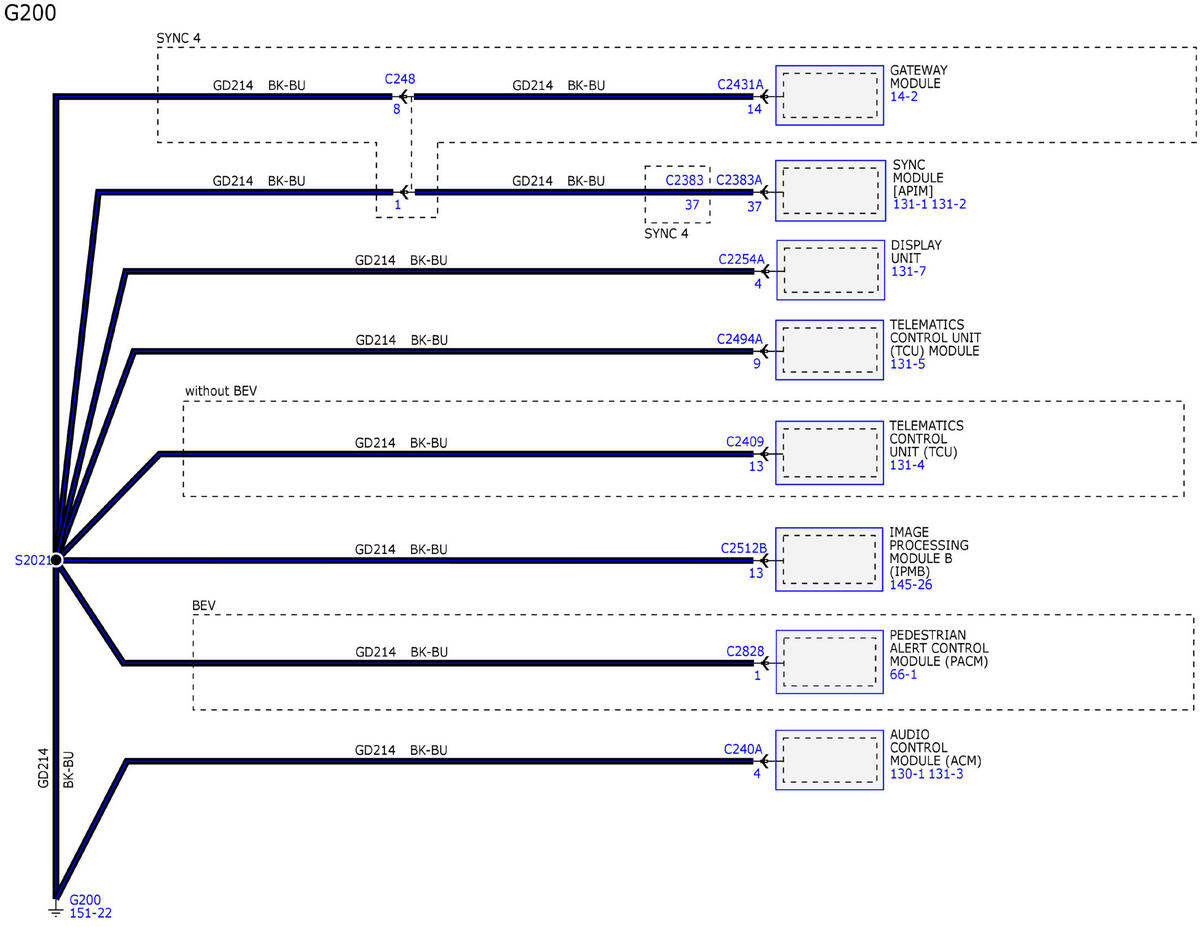

GFDWR238922Courtesy of FORD MOTOR COMPANY

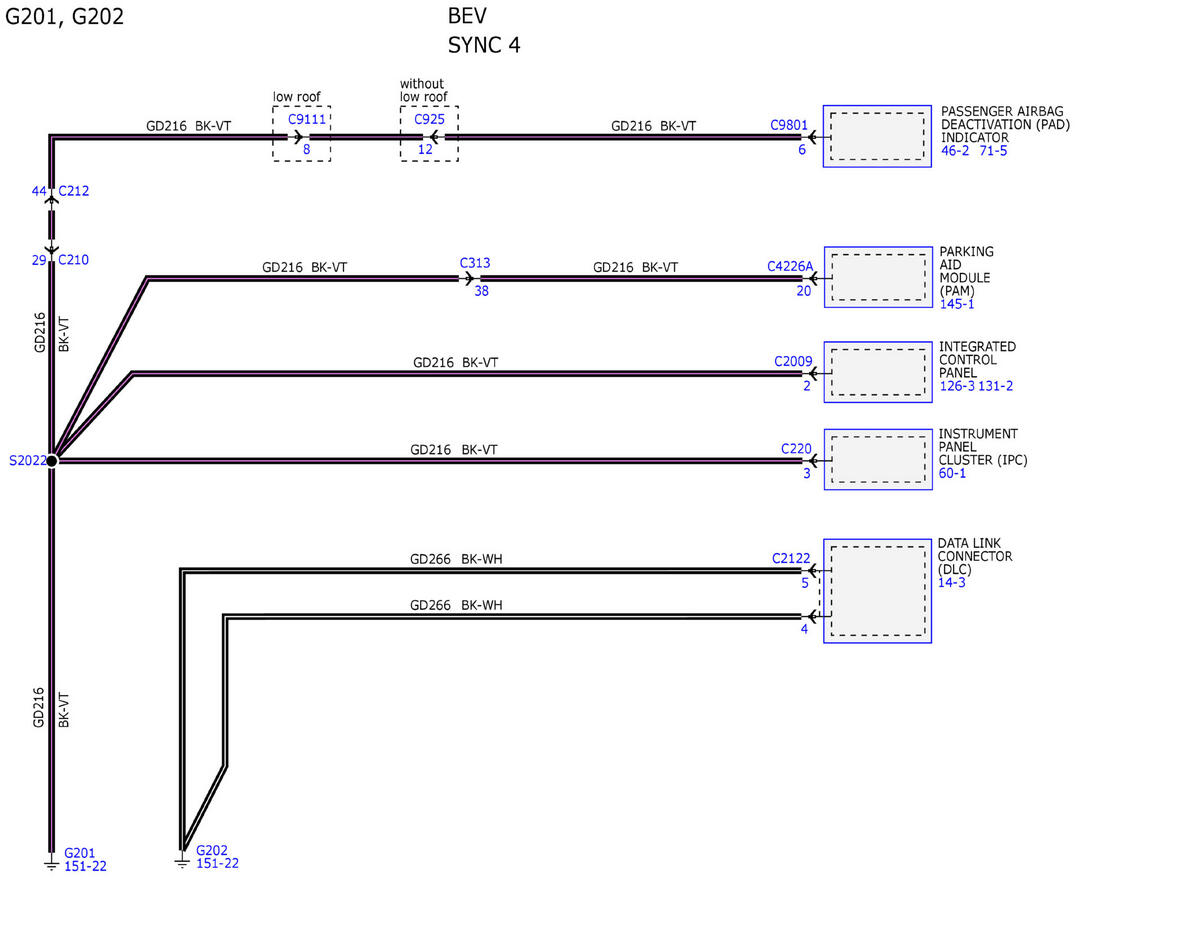

GFDWR238923Courtesy of FORD MOTOR COMPANY

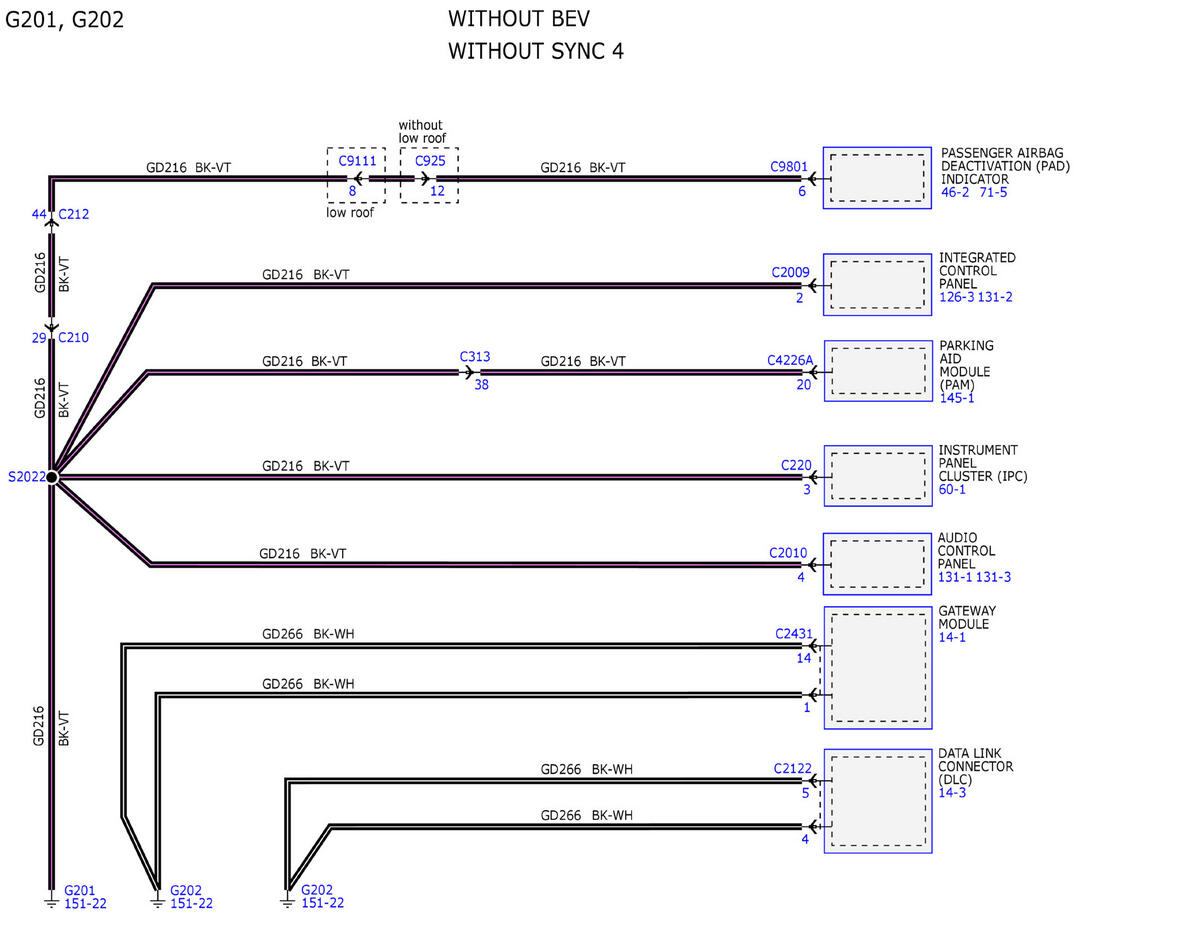

GFDWR238924Courtesy of FORD MOTOR COMPANY

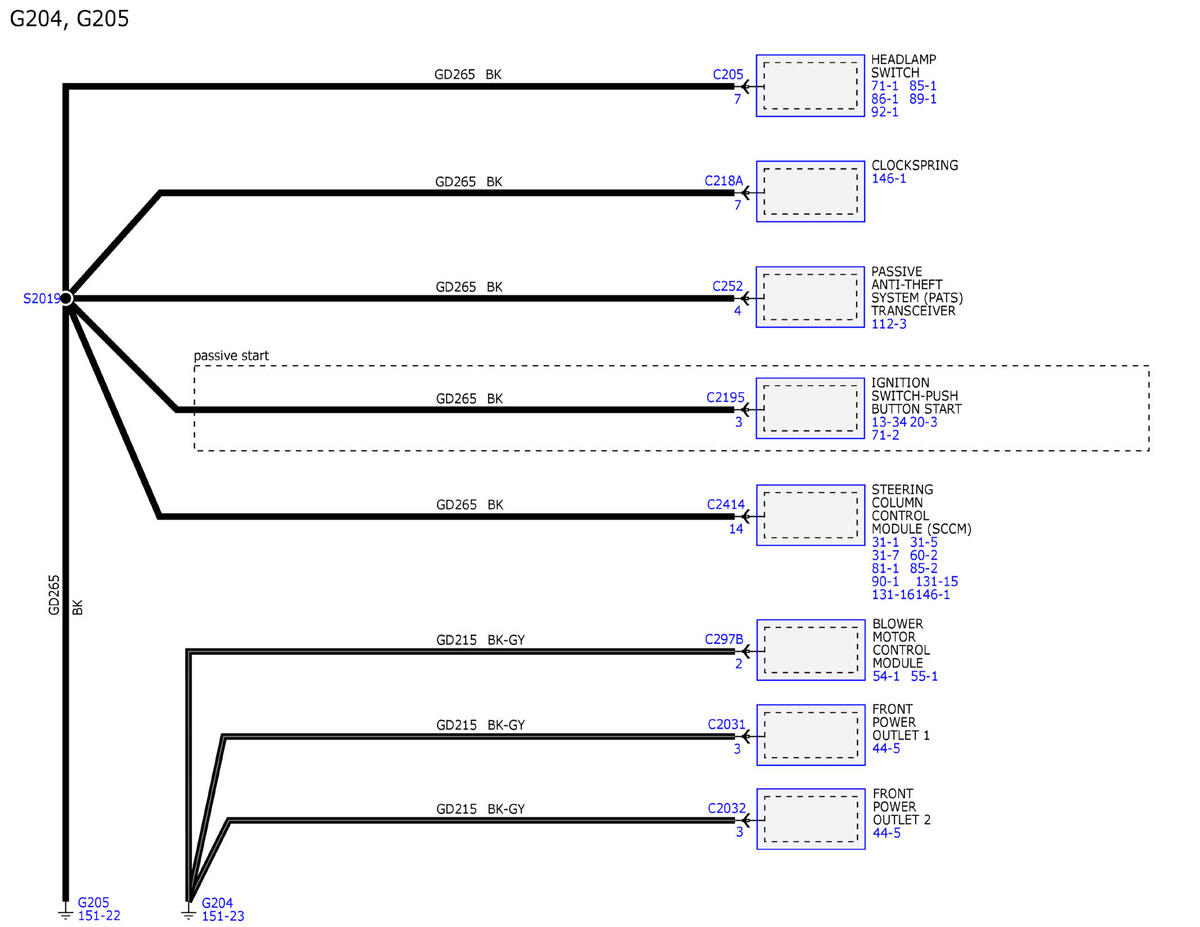

GFDWR238925Courtesy of FORD MOTOR COMPANY

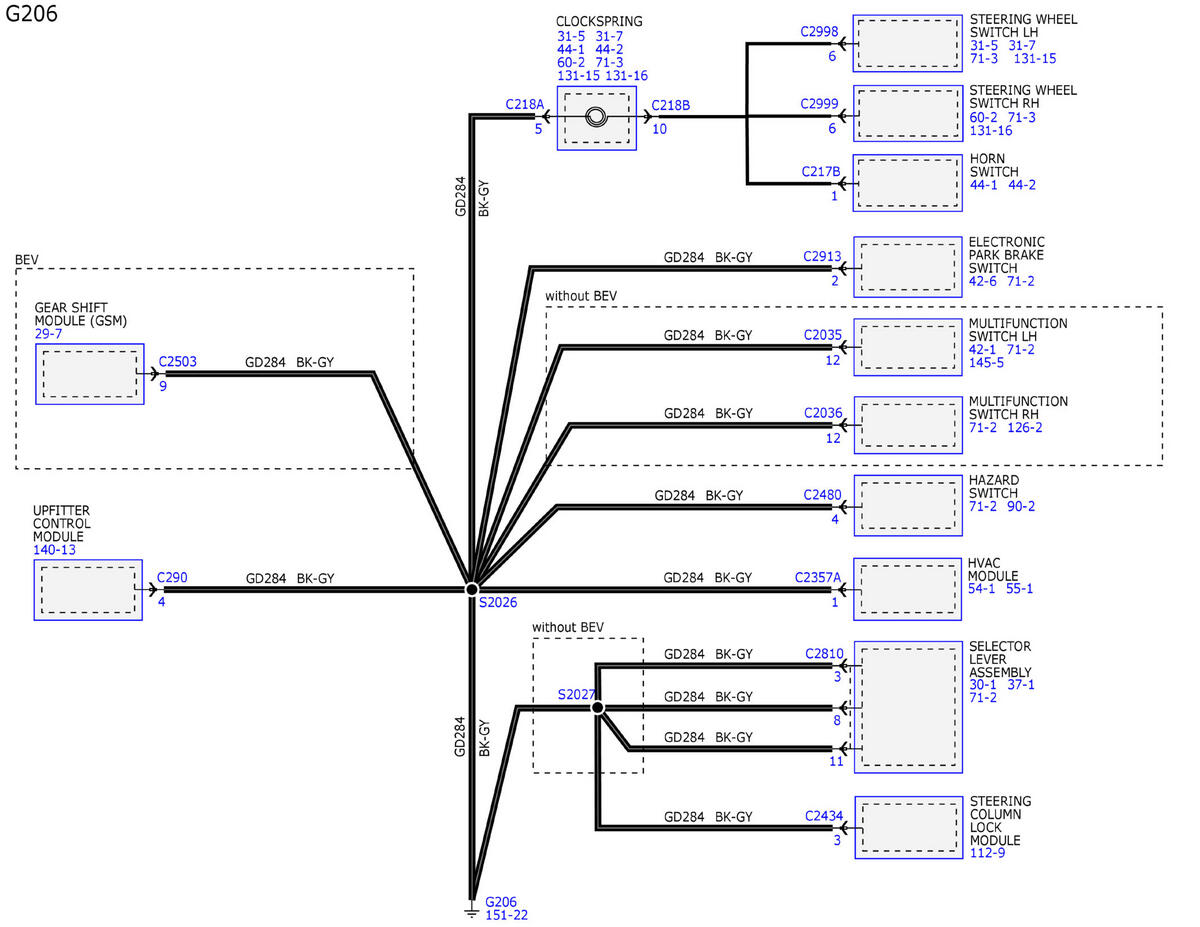

GFDWR238926Courtesy of FORD MOTOR COMPANY

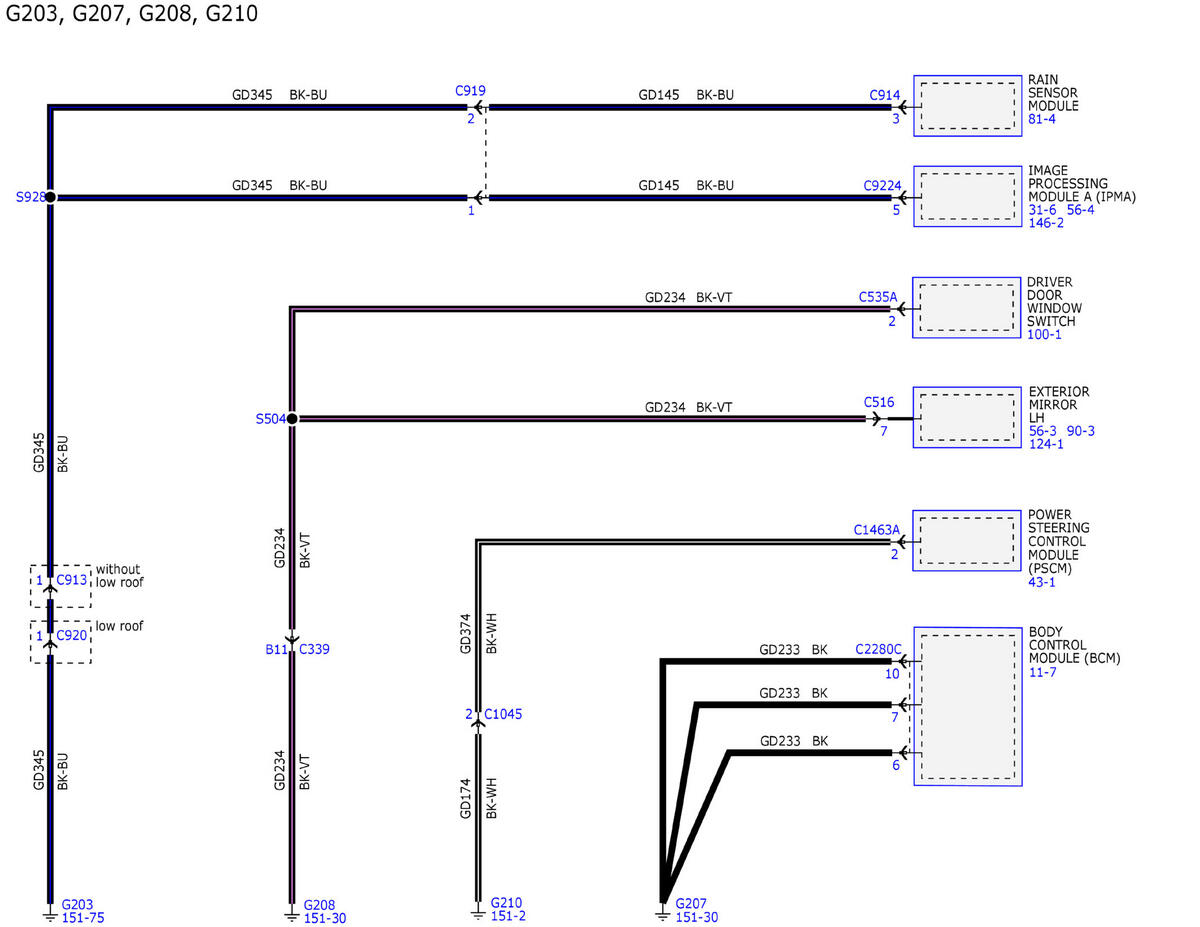

GFDWR238927Courtesy of FORD MOTOR COMPANY

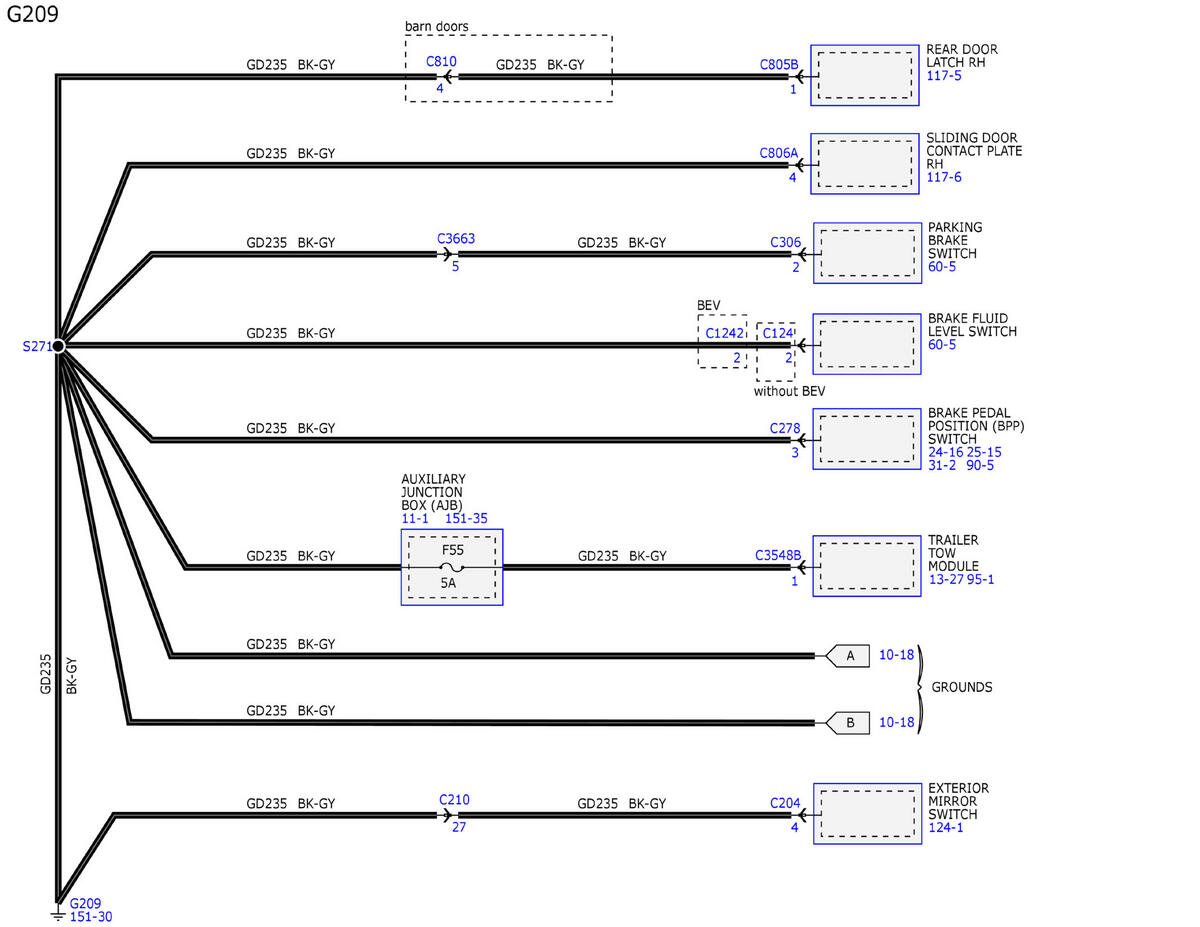

GFDWR238928Courtesy of FORD MOTOR COMPANY

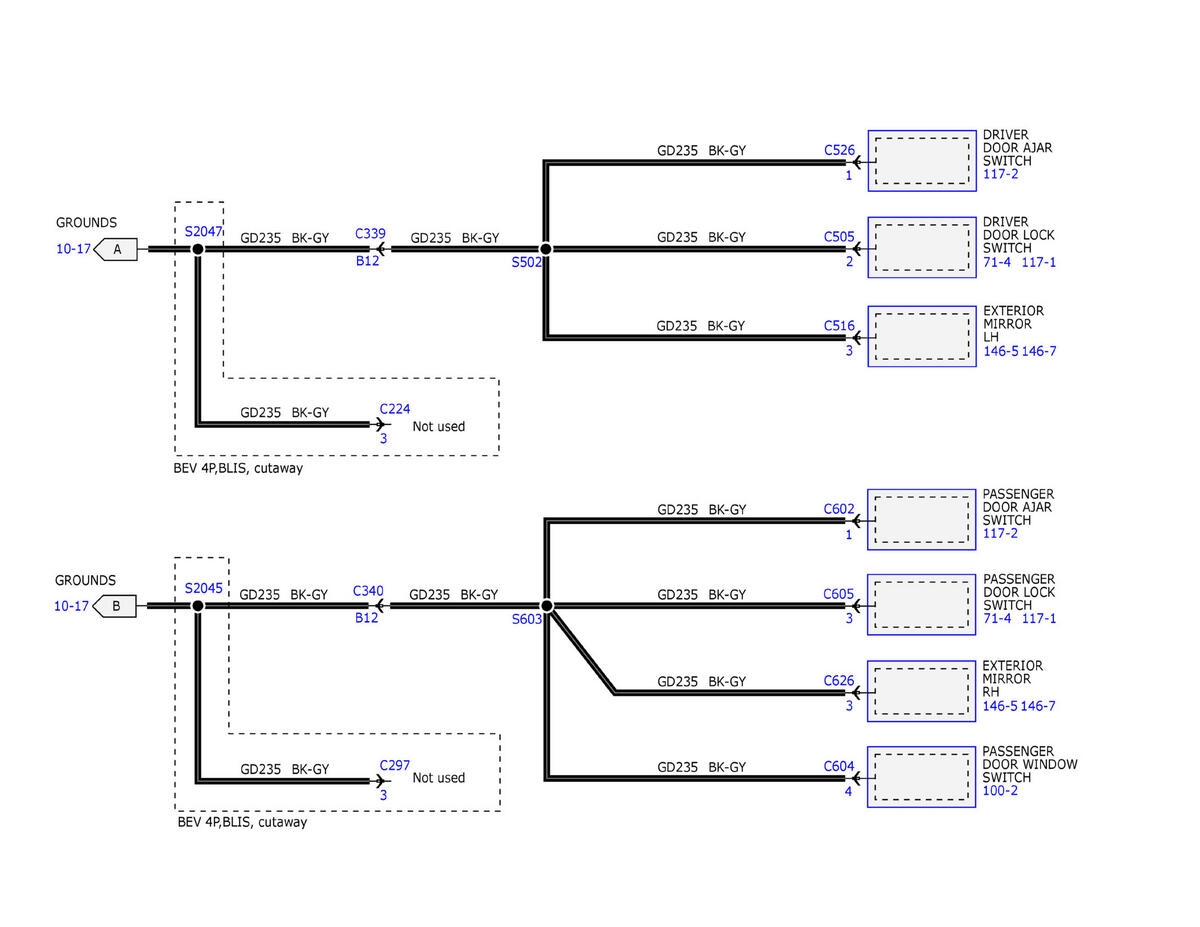

GFDWR238929Courtesy of FORD MOTOR COMPANY

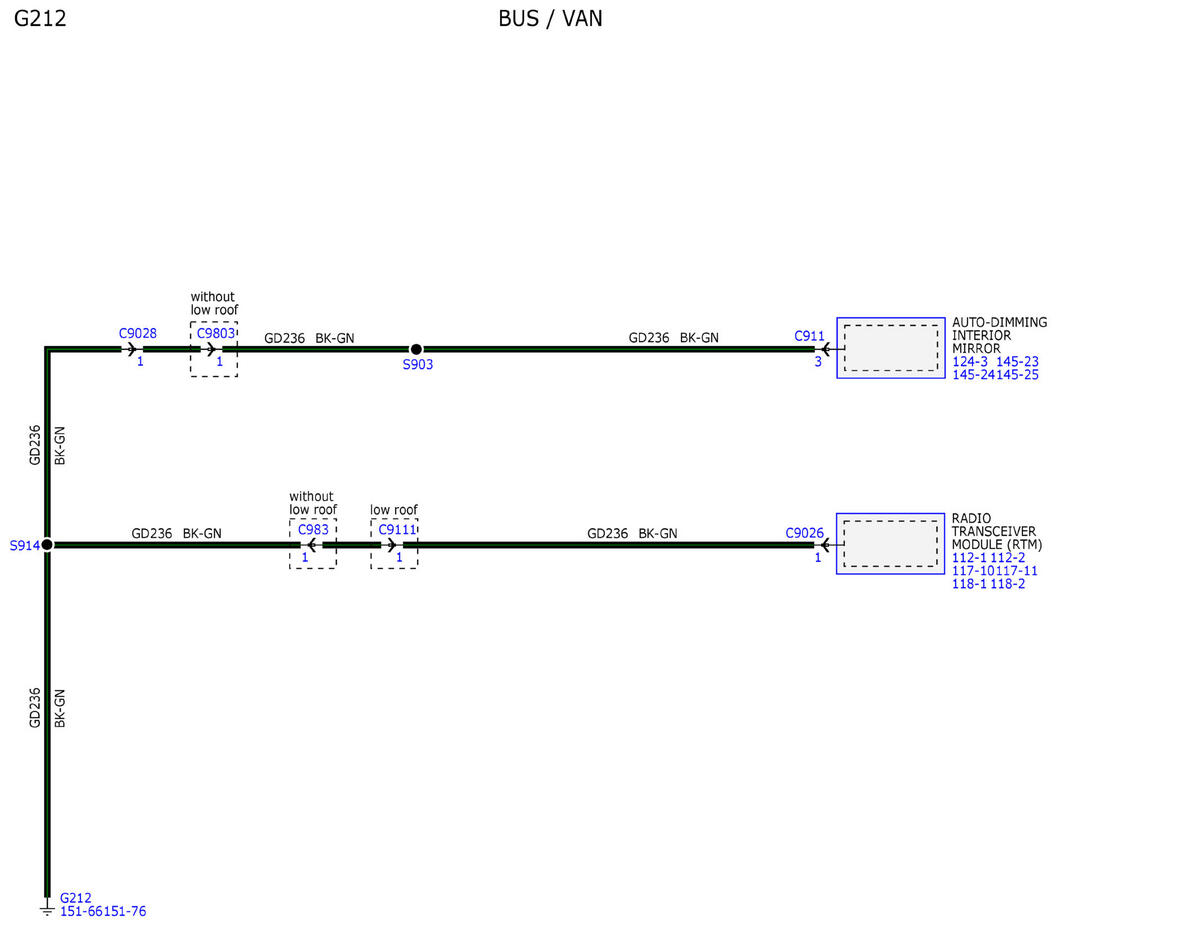

GFDWR238930Courtesy of FORD MOTOR COMPANY

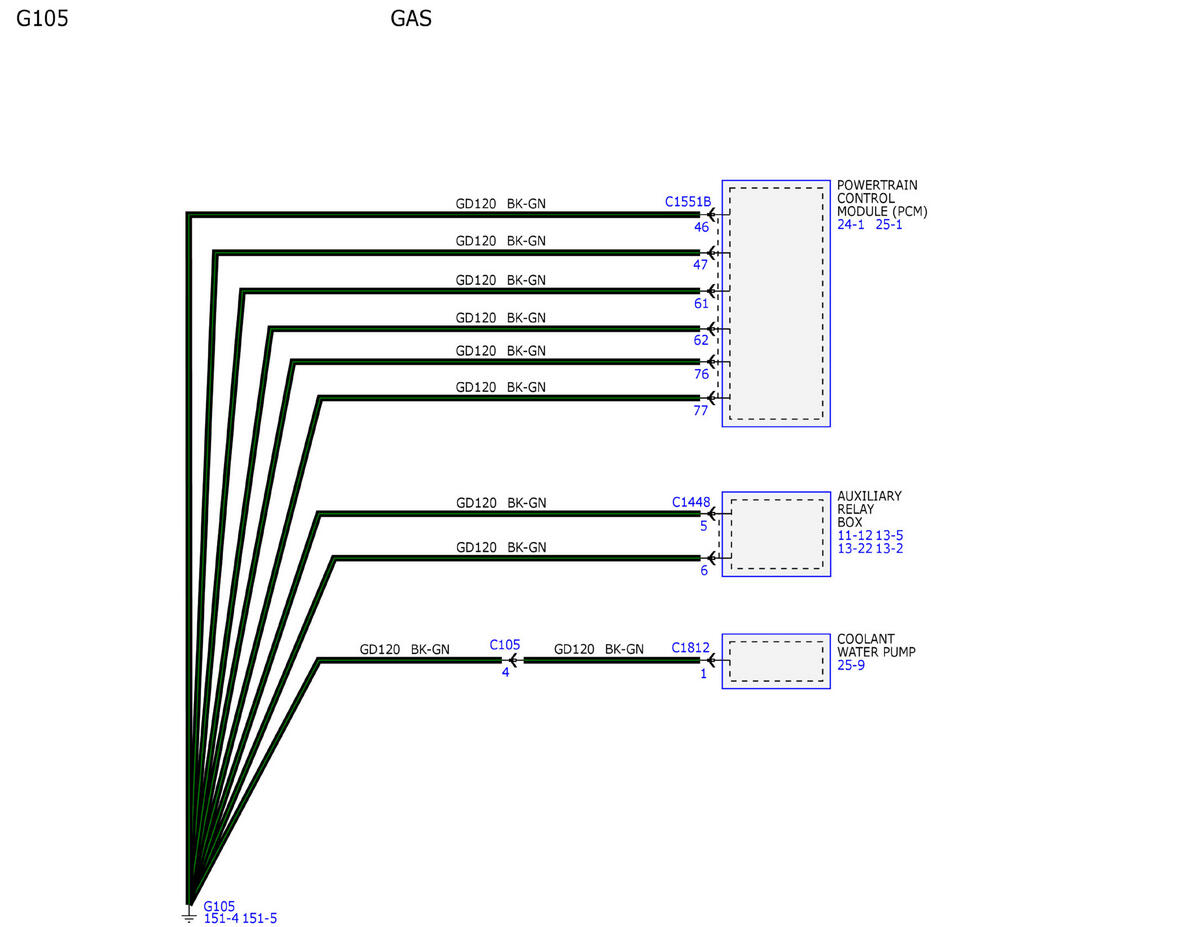

GFDWR238931Courtesy of FORD MOTOR COMPANY

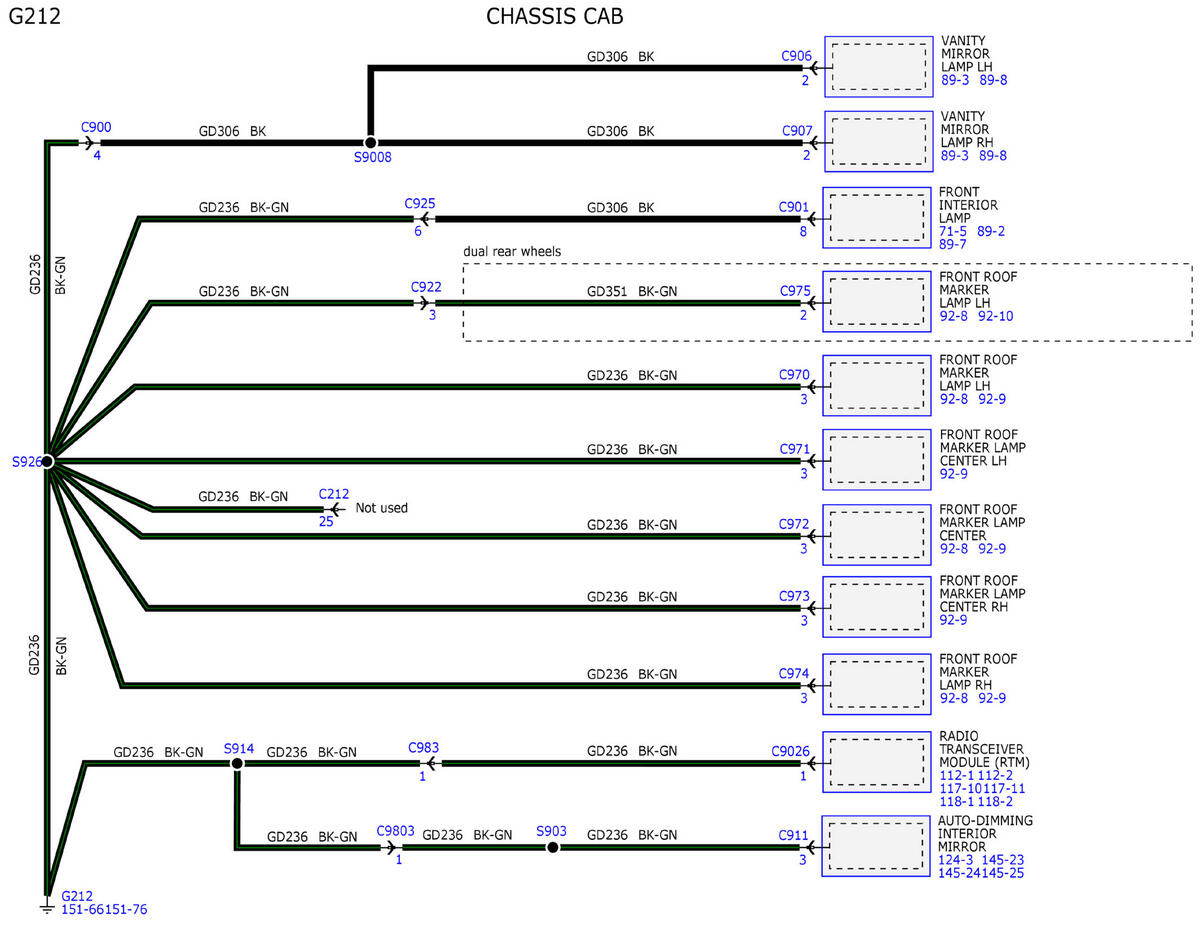

GFDWR238932Courtesy of FORD MOTOR COMPANY

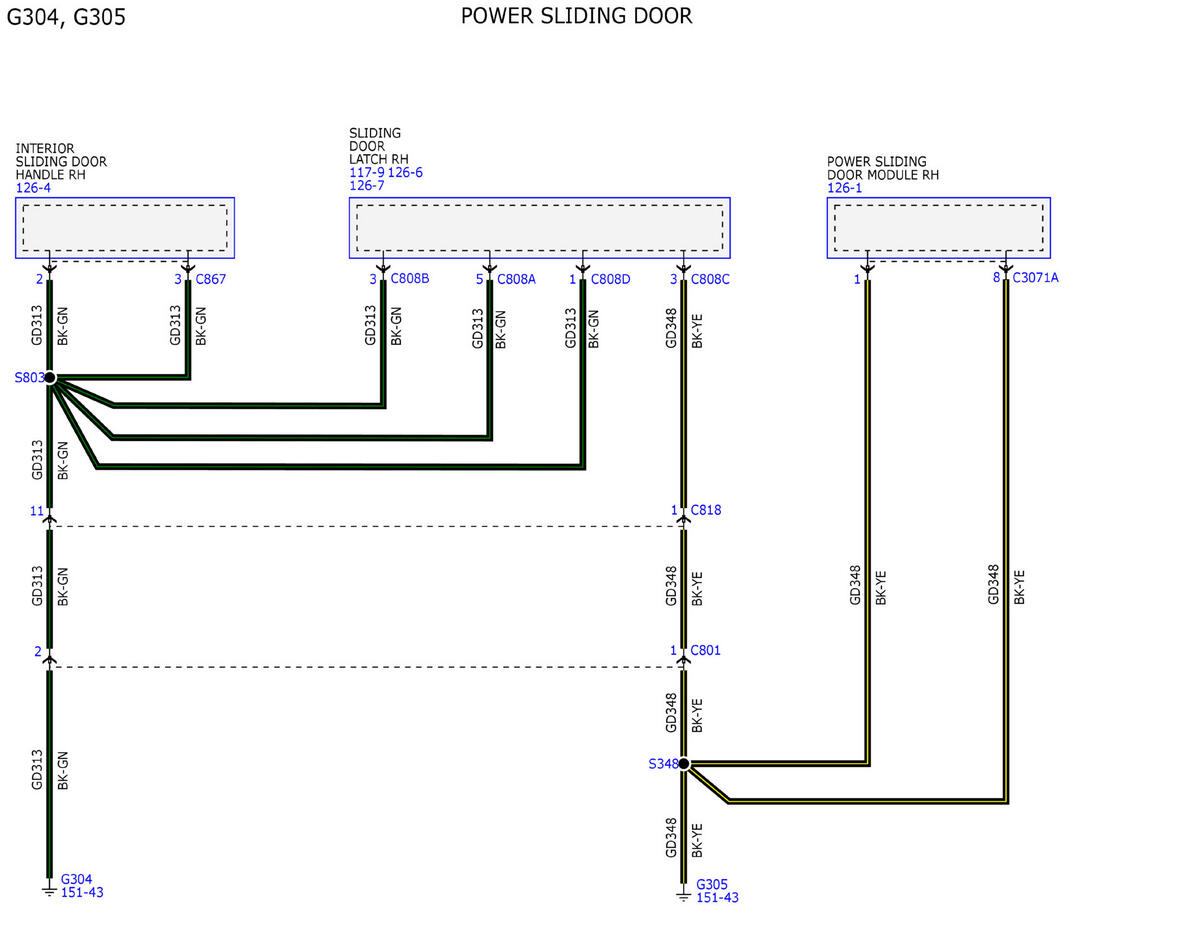

GFDWR238933Courtesy of FORD MOTOR COMPANY

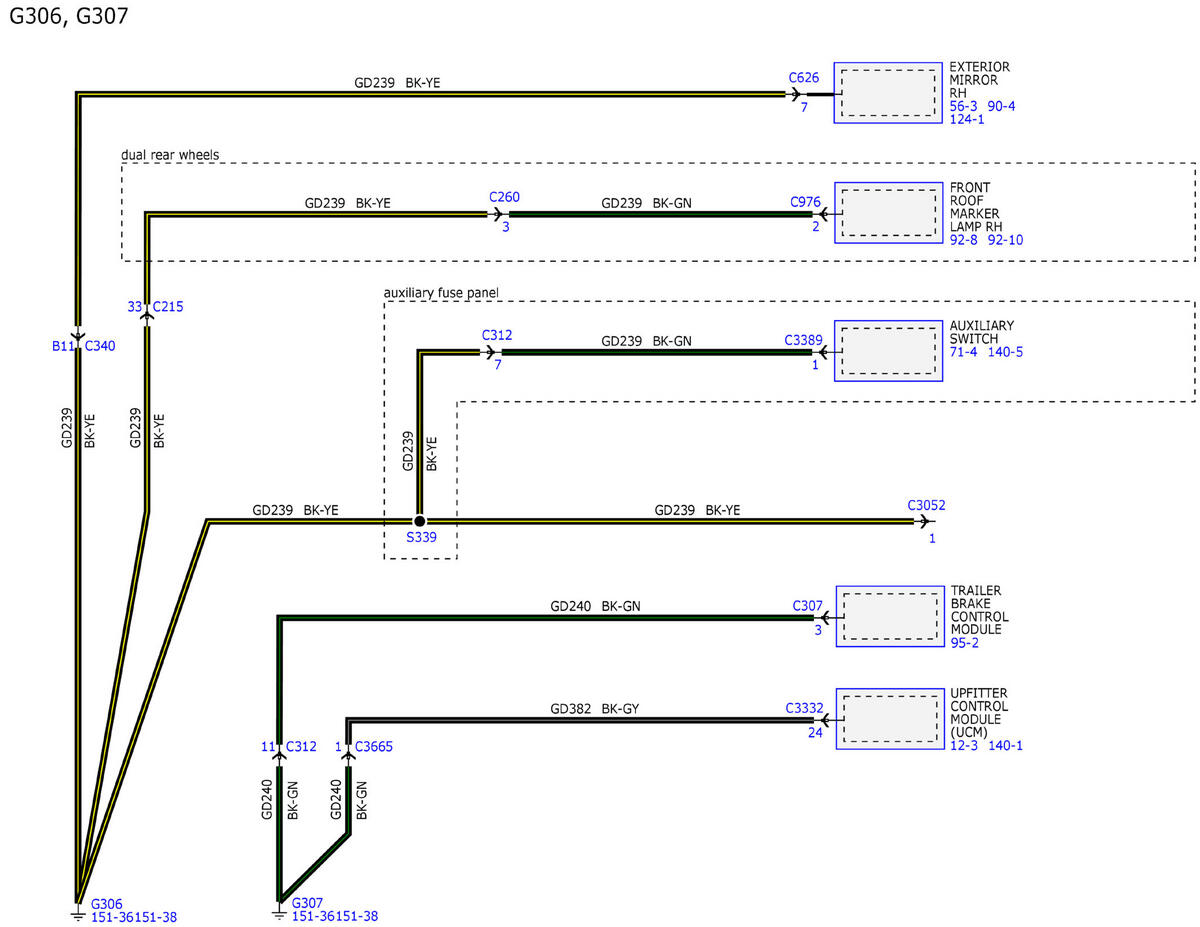

GFDWR238934Courtesy of FORD MOTOR COMPANY

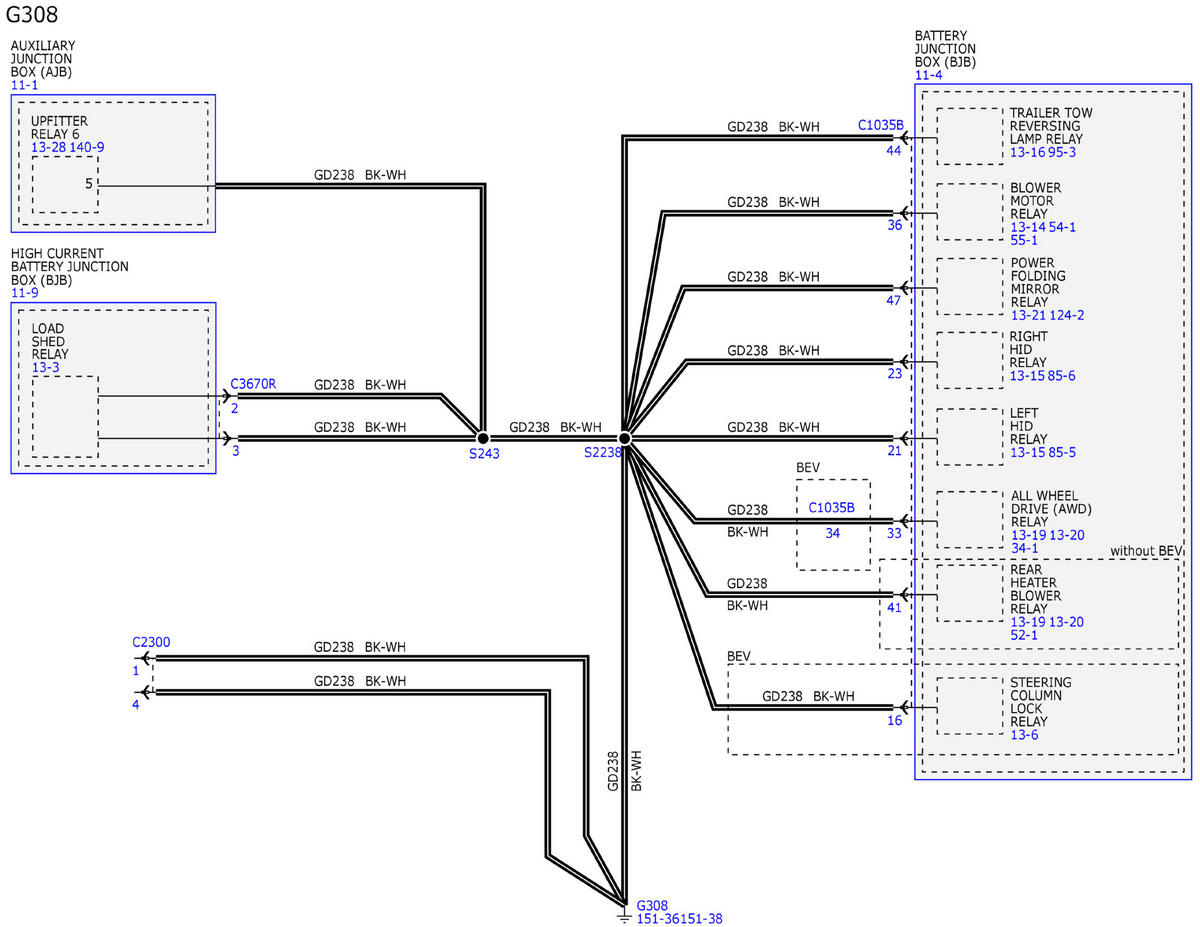

GFDWR238935Courtesy of FORD MOTOR COMPANY

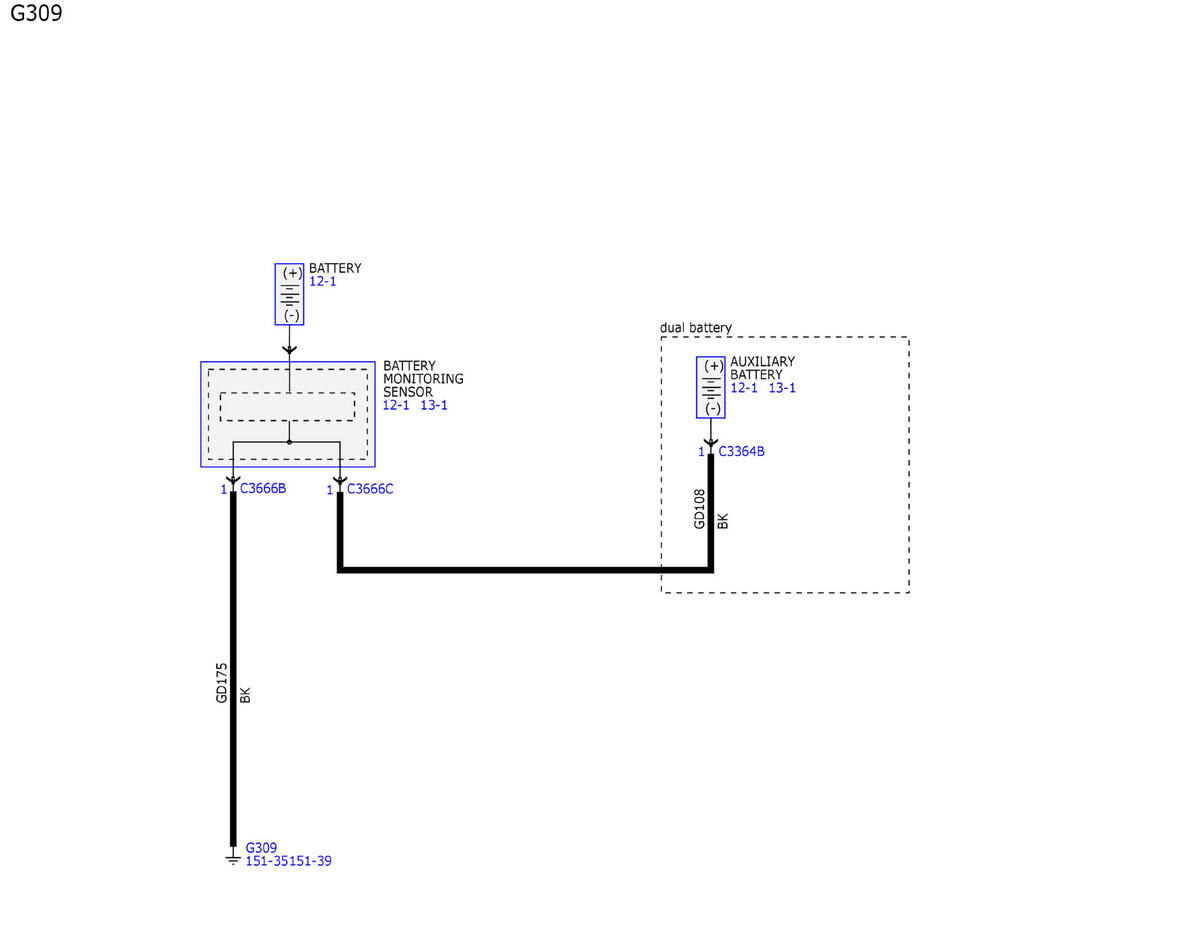

GFDWR238936Courtesy of FORD MOTOR COMPANY

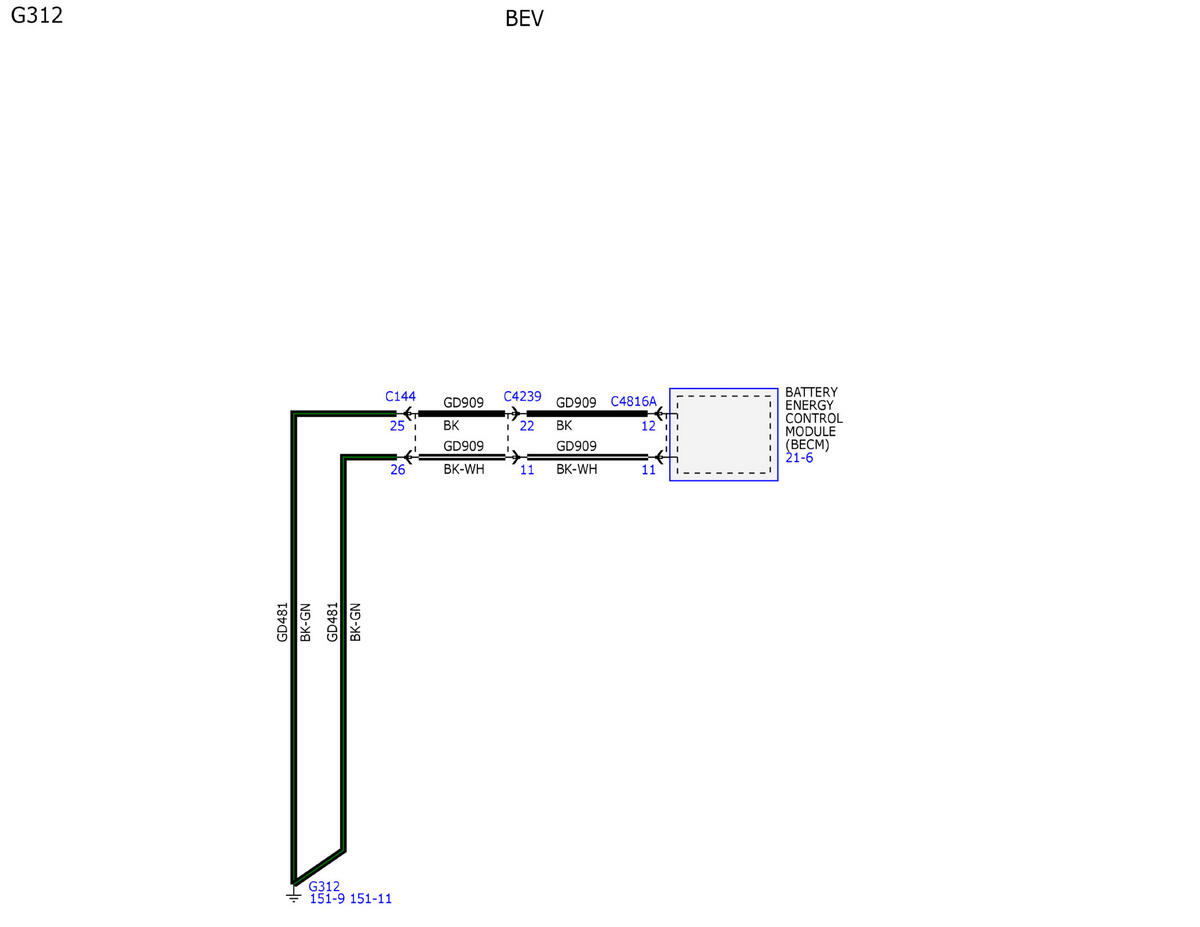

GFDWR238937Courtesy of FORD MOTOR COMPANY

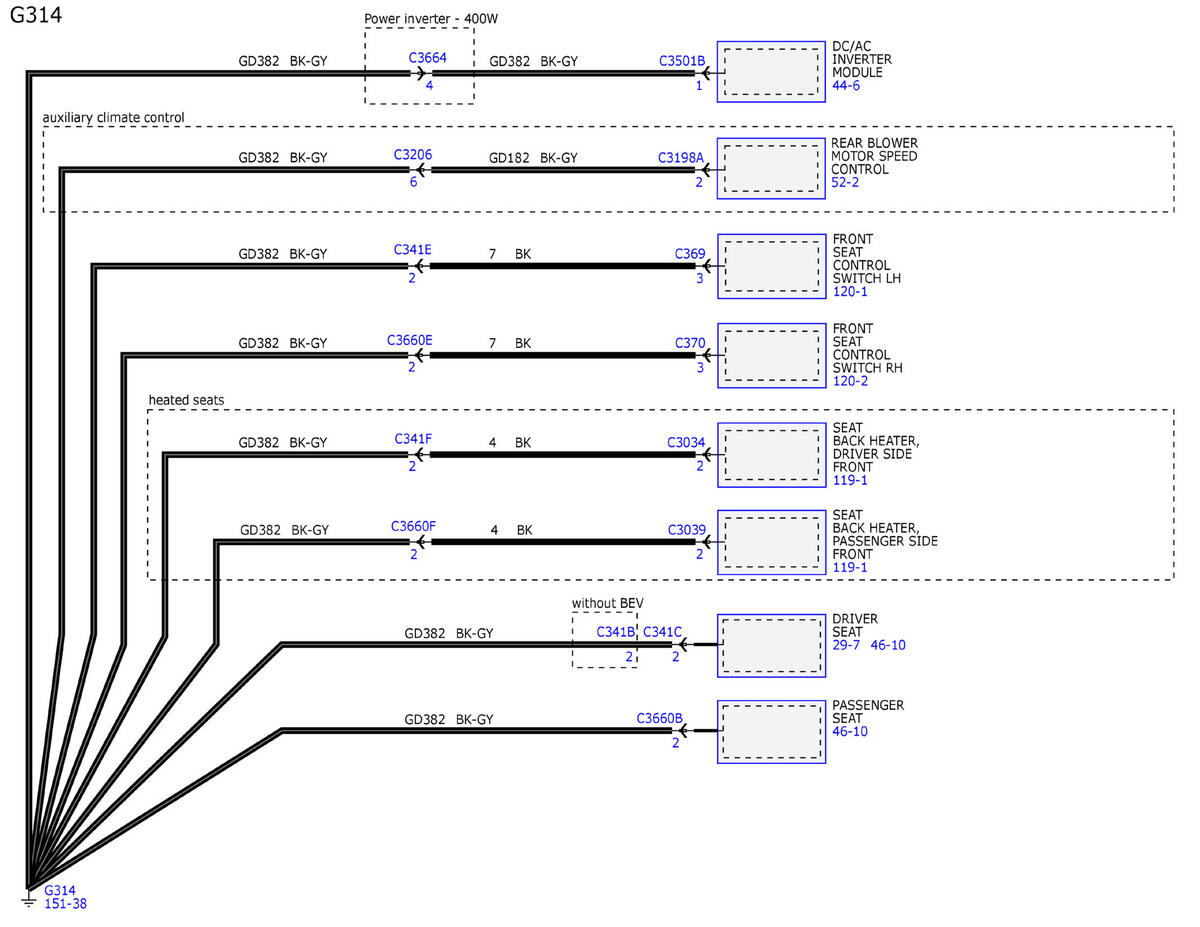

GFDWR238938Courtesy of FORD MOTOR COMPANY

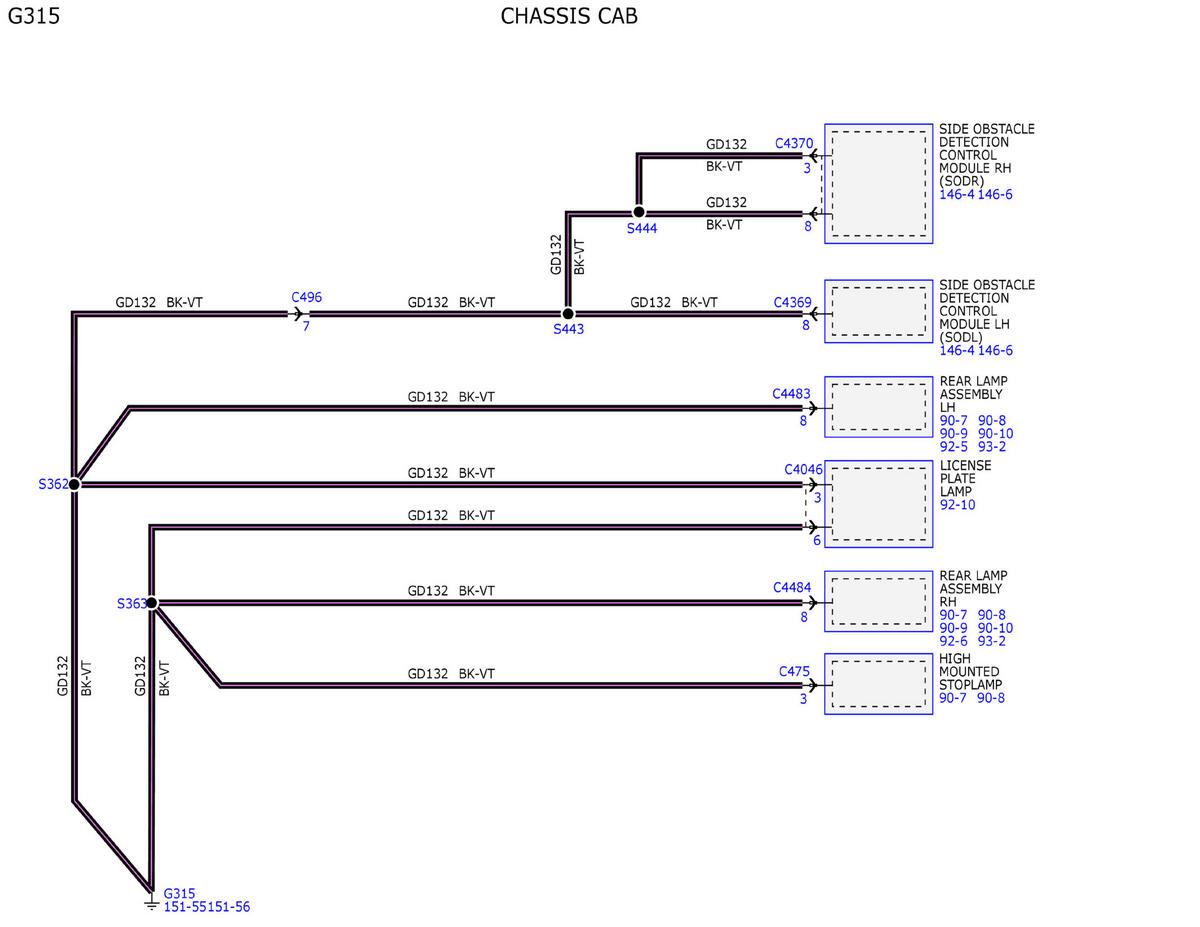

GFDWR238939Courtesy of FORD MOTOR COMPANY

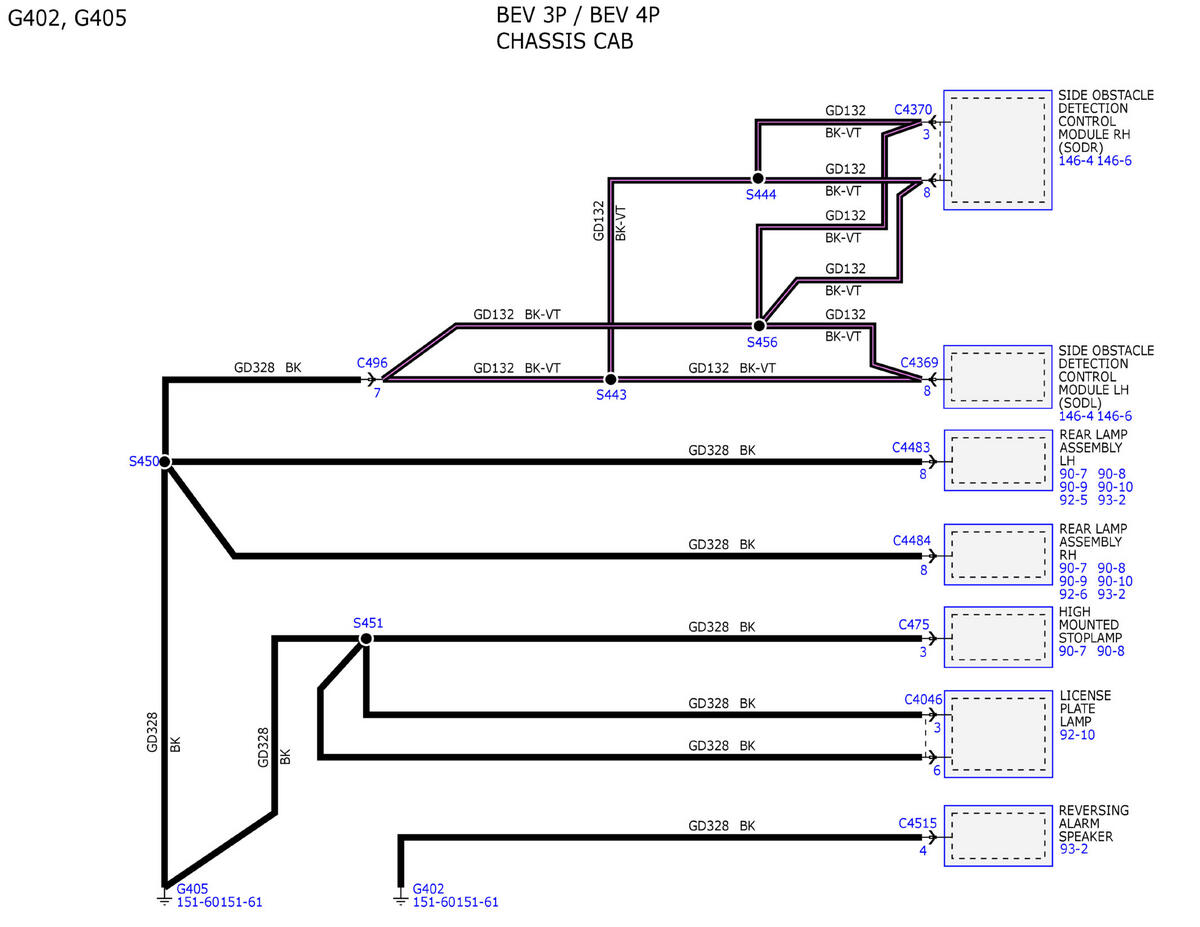

GFDWR238940Courtesy of FORD MOTOR COMPANY

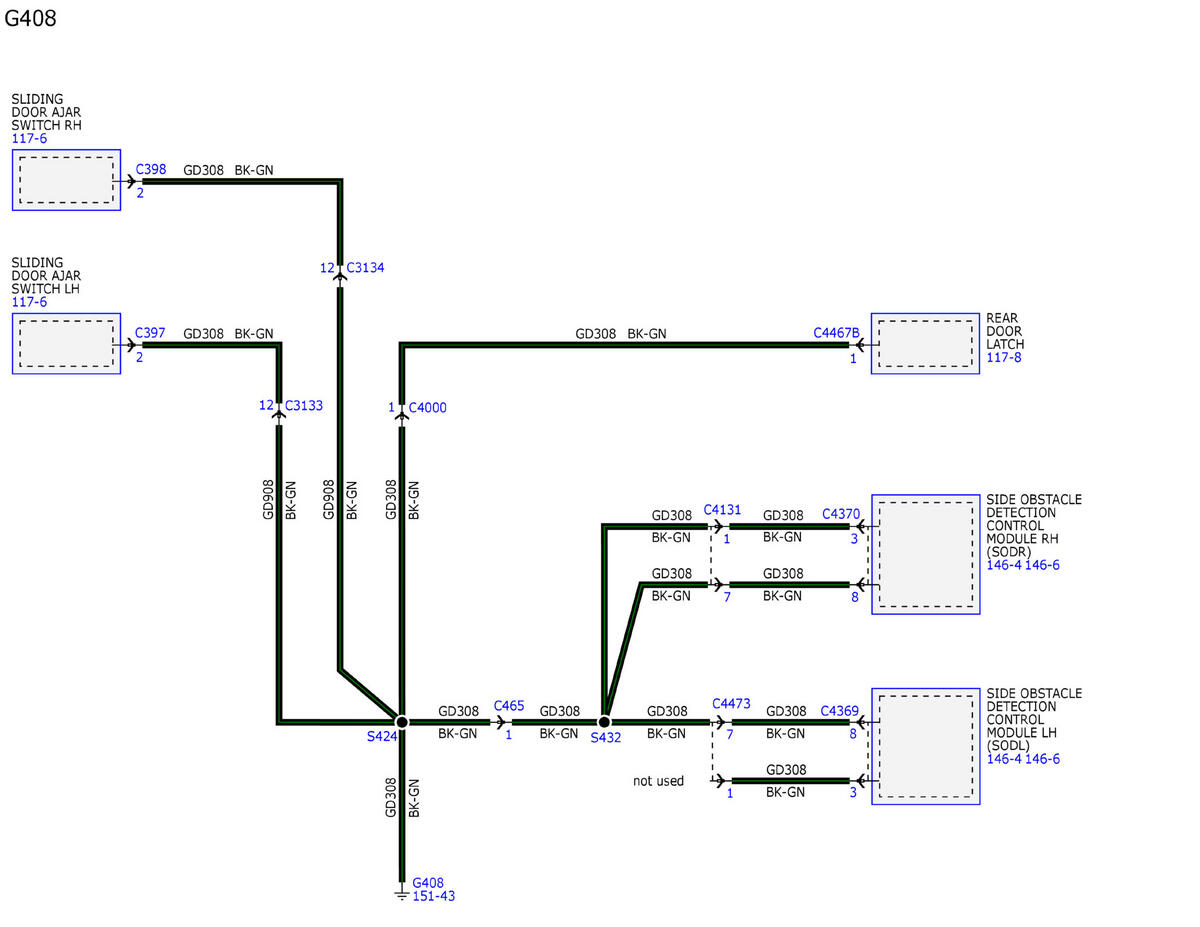

GFDWR238941Courtesy of FORD MOTOR COMPANY

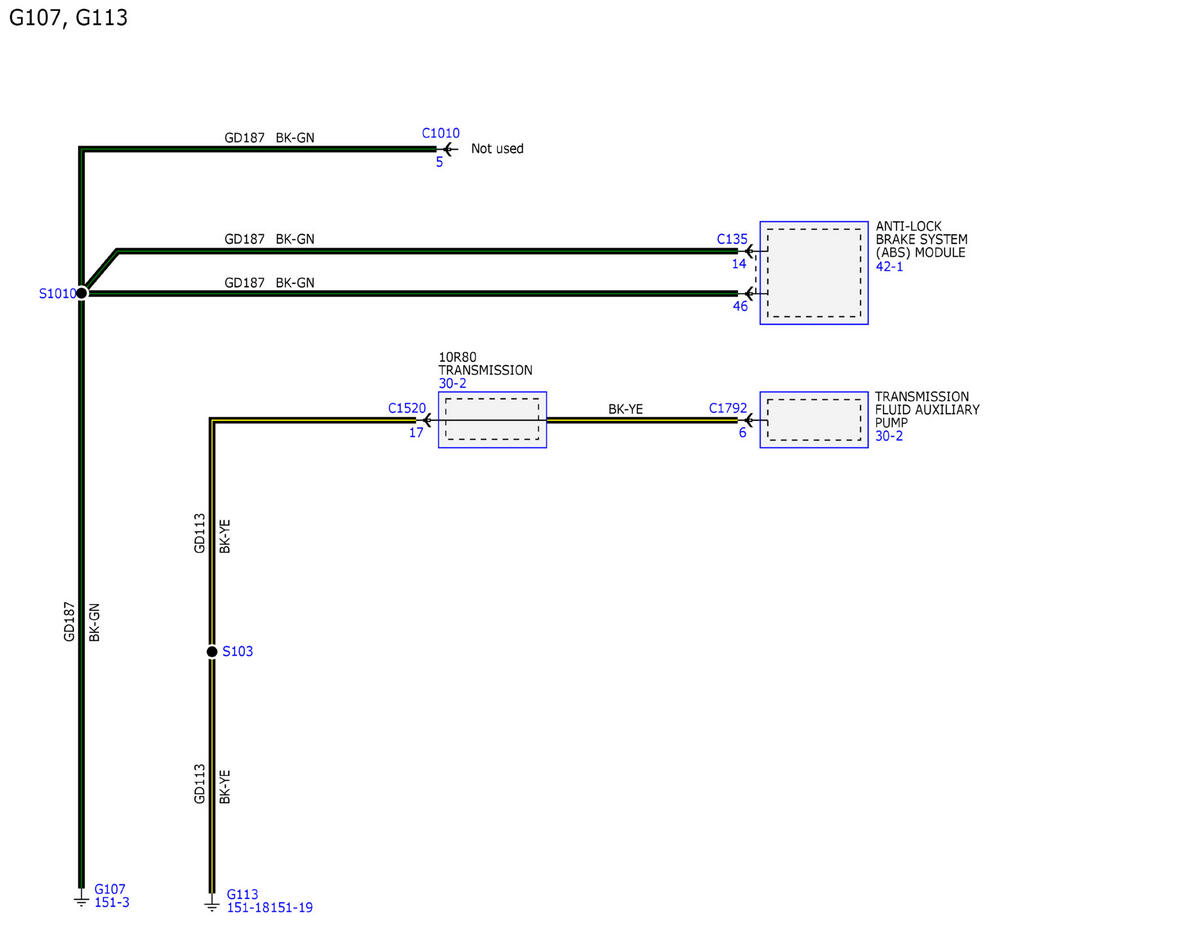

GFDWR238942Courtesy of FORD MOTOR COMPANY

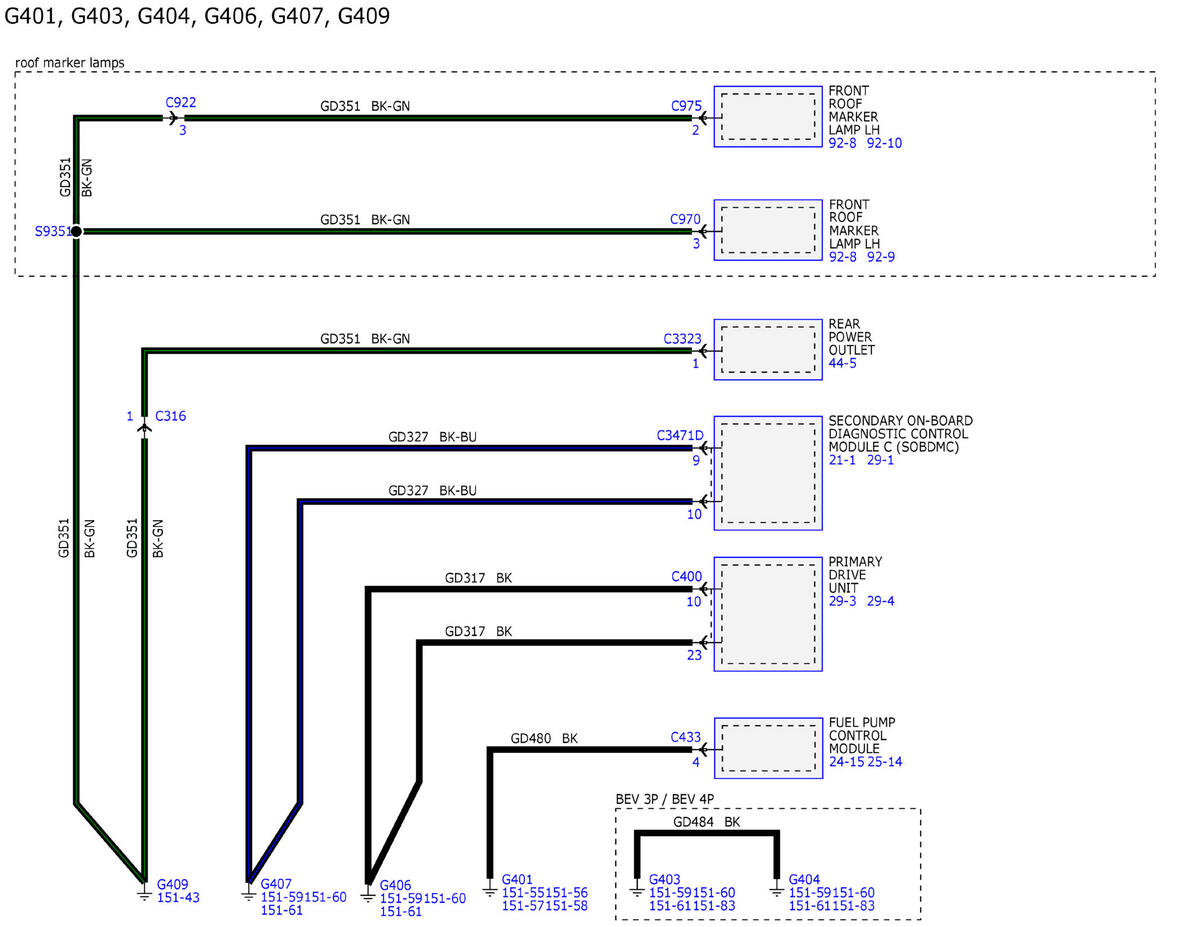

GFDWR238943Courtesy of FORD MOTOR COMPANY

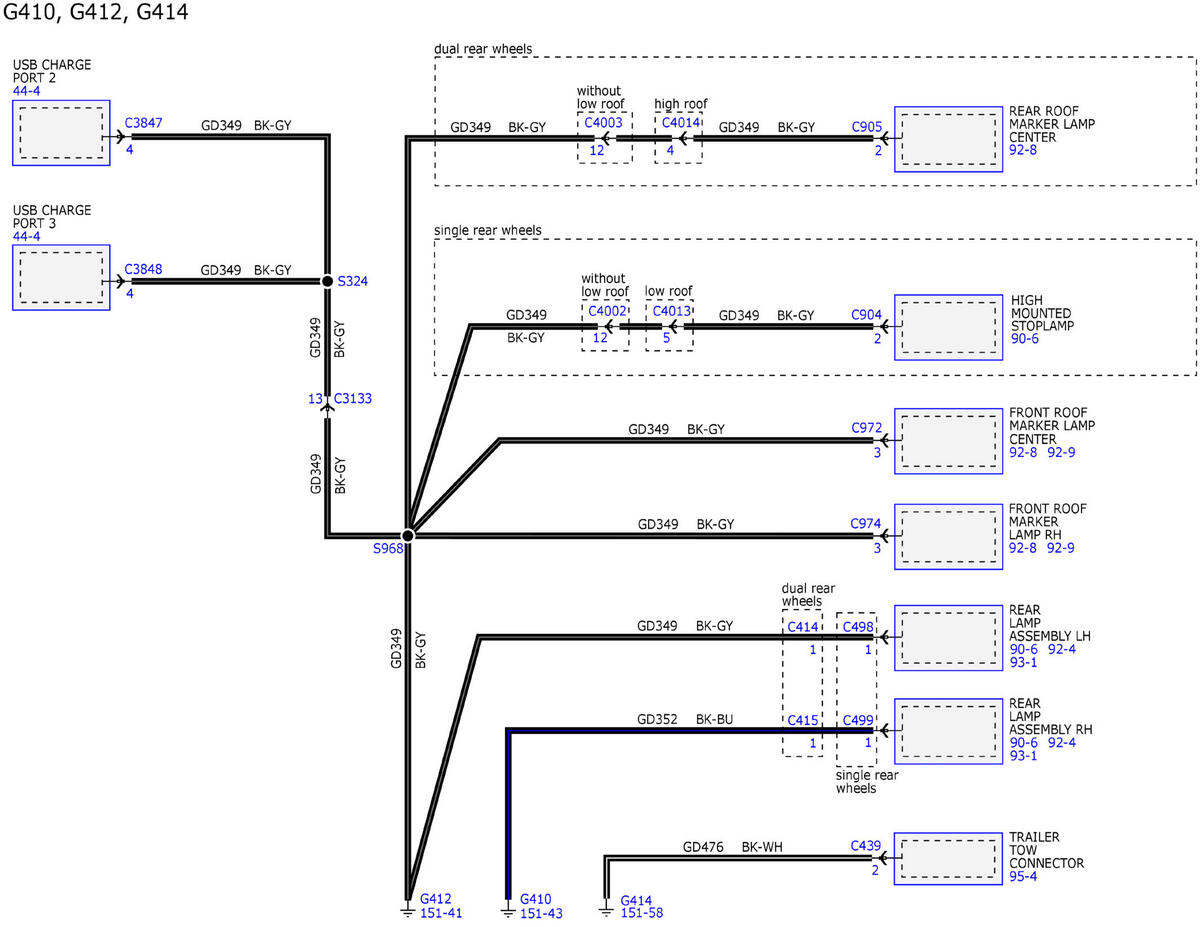

GFDWR238944Courtesy of FORD MOTOR COMPANY

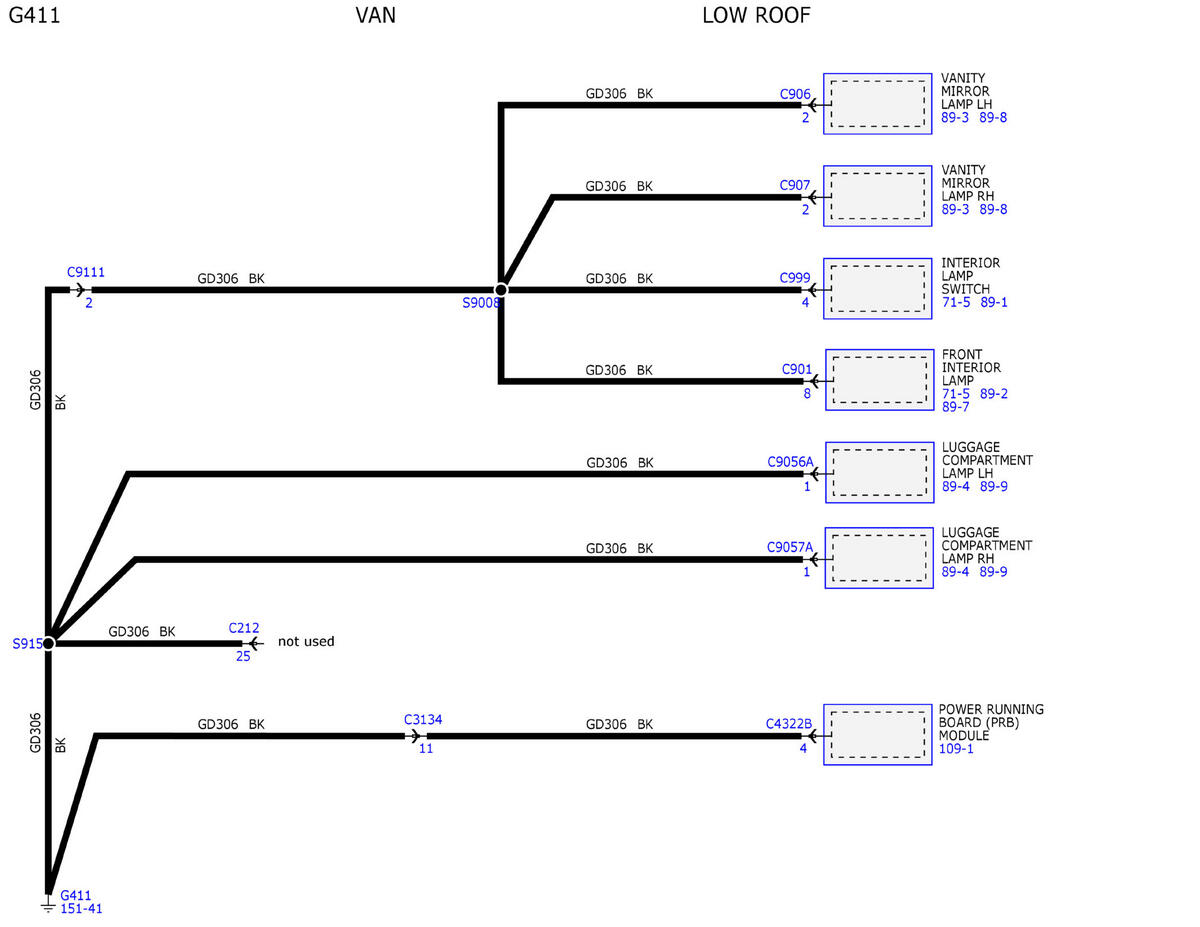

GFDWR238945Courtesy of FORD MOTOR COMPANY

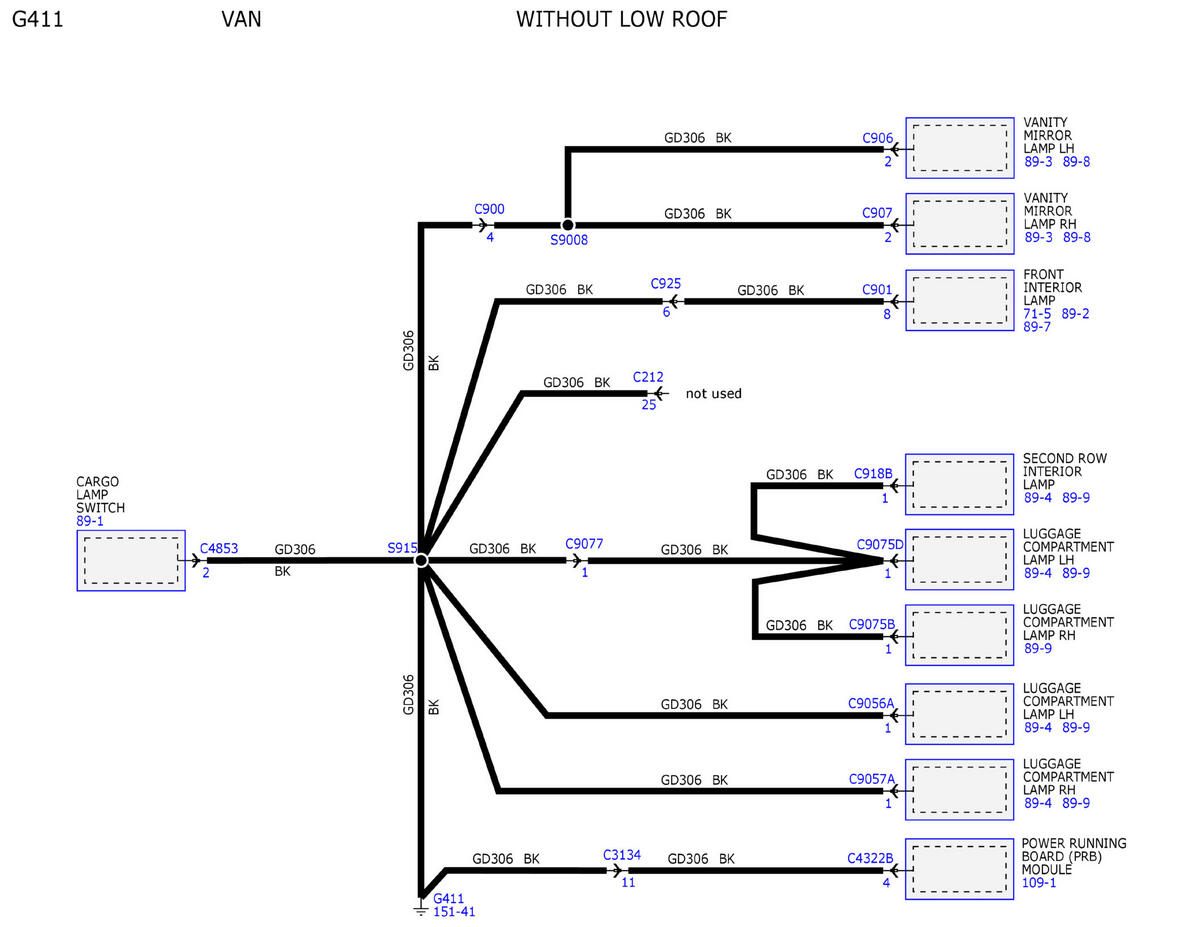

GFDWR238946Courtesy of FORD MOTOR COMPANY

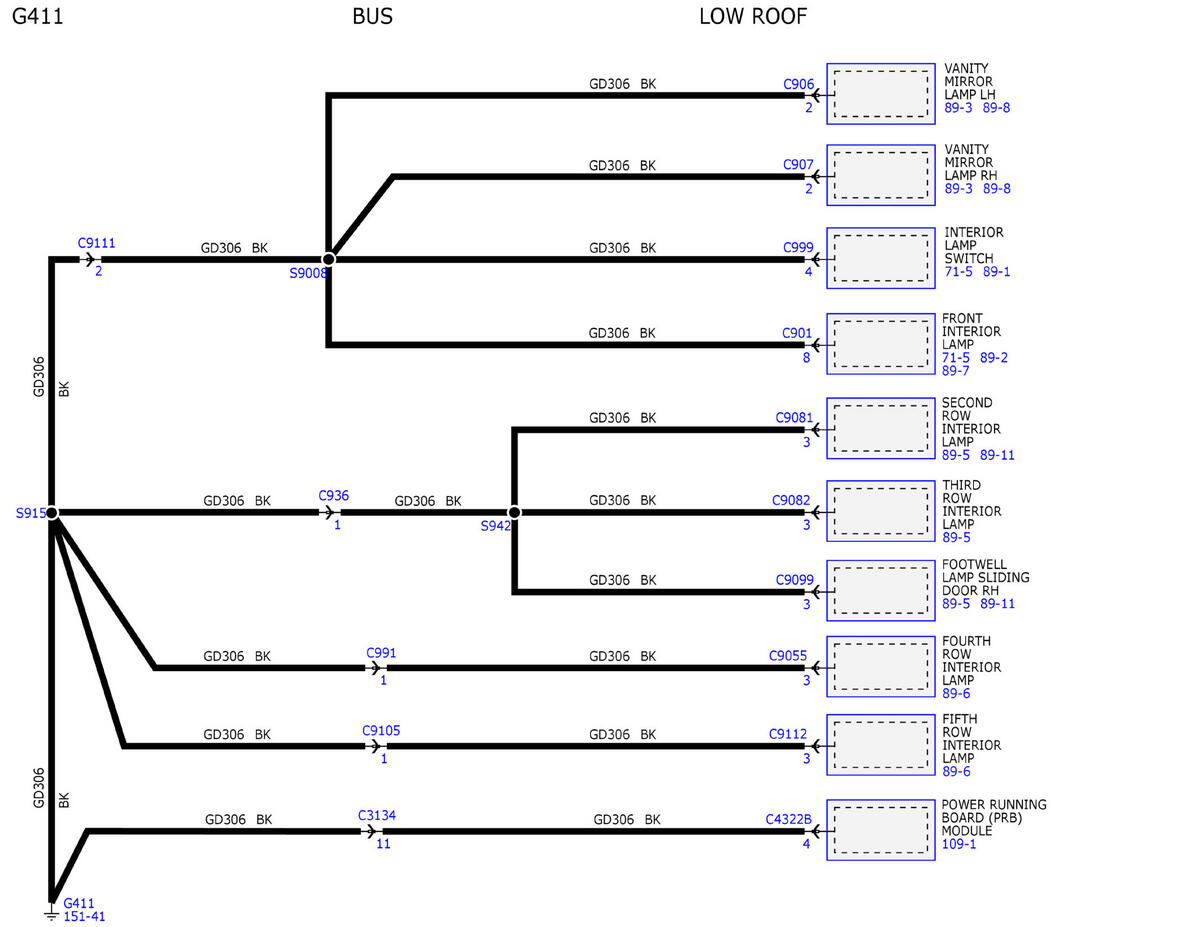

GFDWR238947Courtesy of FORD MOTOR COMPANY

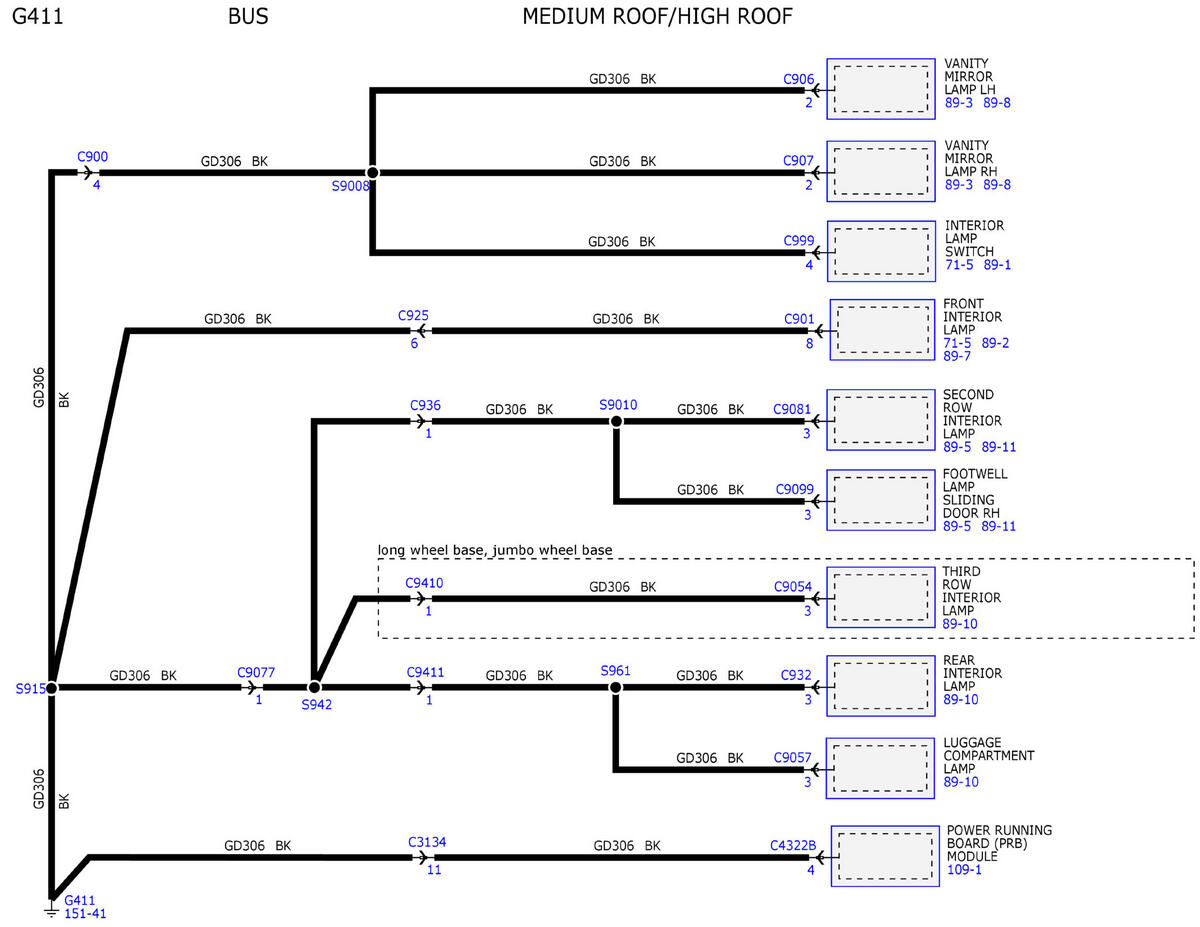

GFDWR238948Courtesy of FORD MOTOR COMPANY

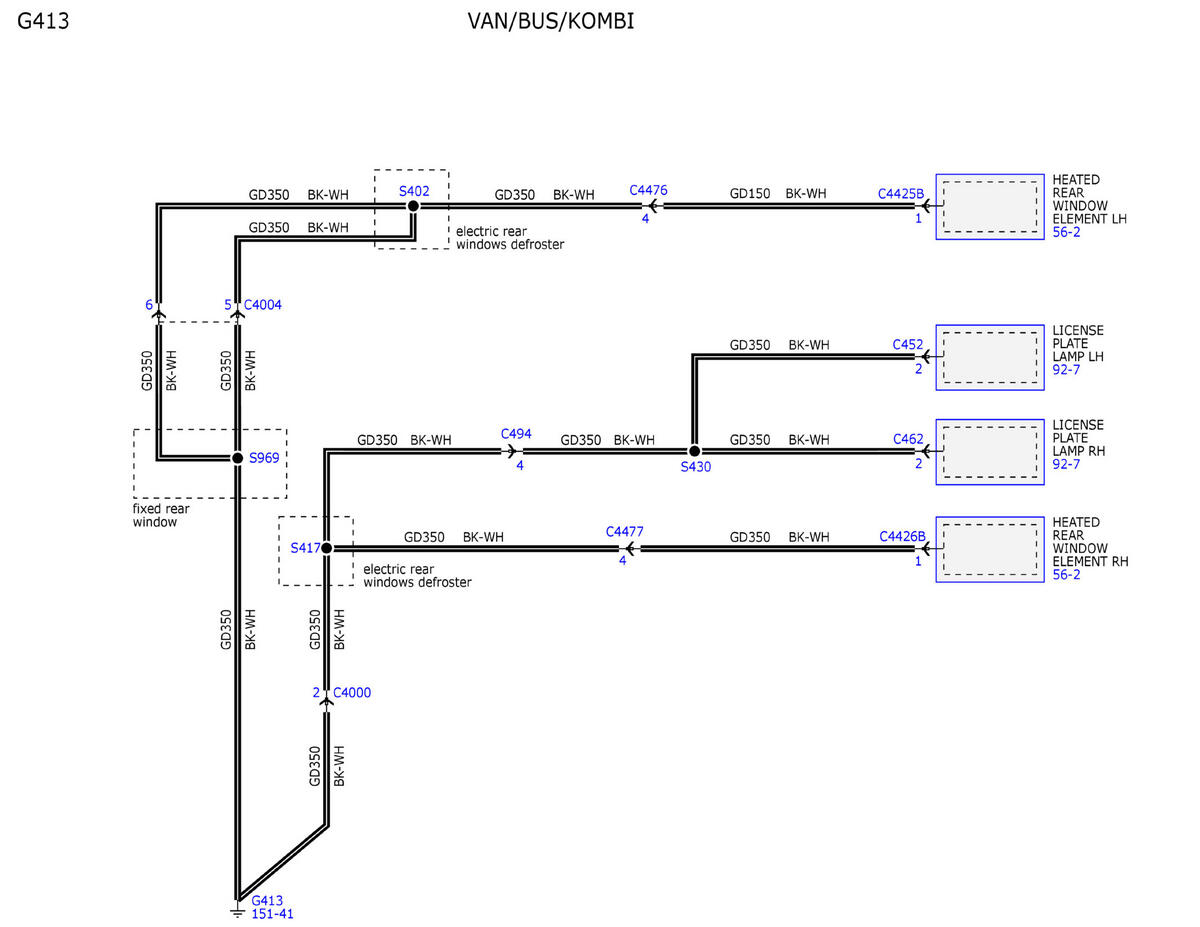

GFDWR238949Courtesy of FORD MOTOR COMPANY

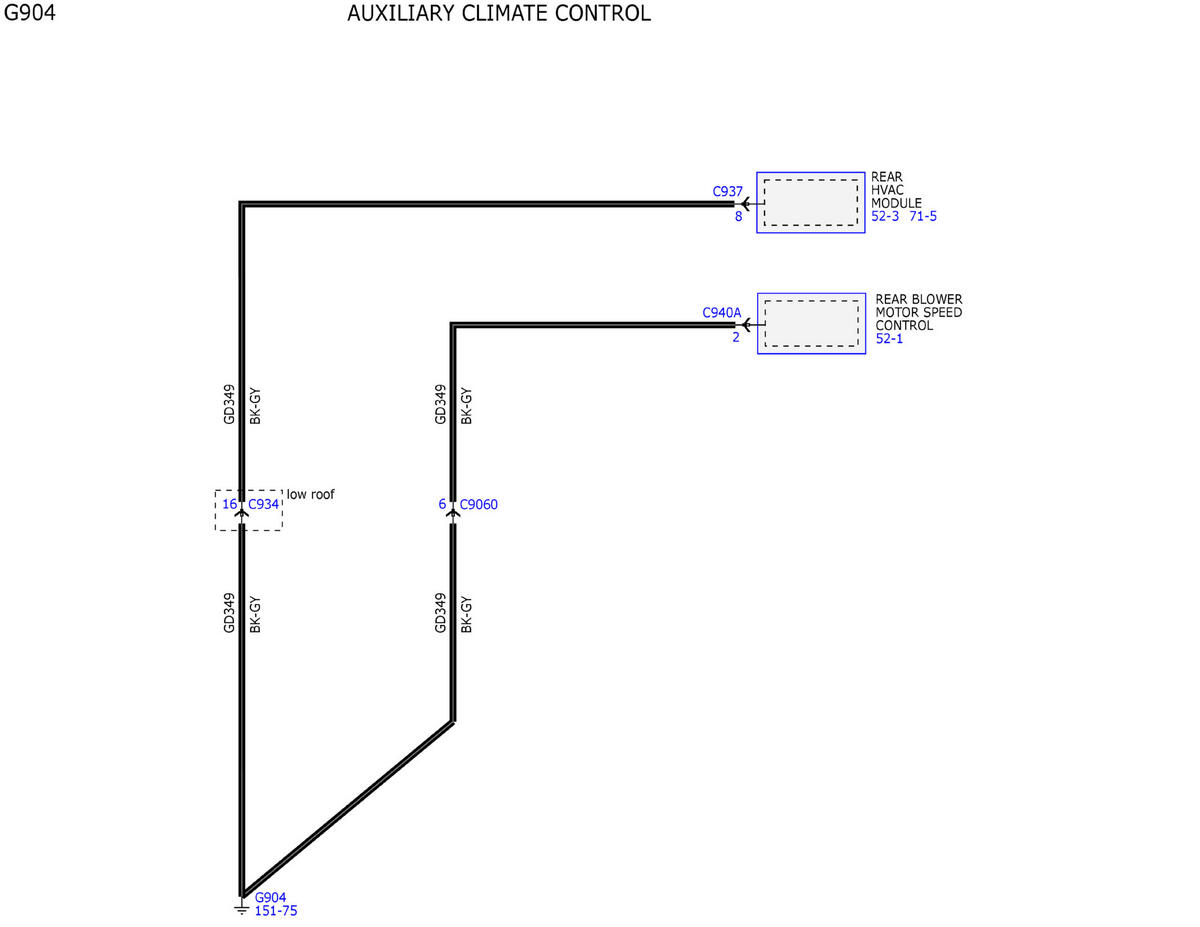

GFDWR238950Courtesy of FORD MOTOR COMPANY

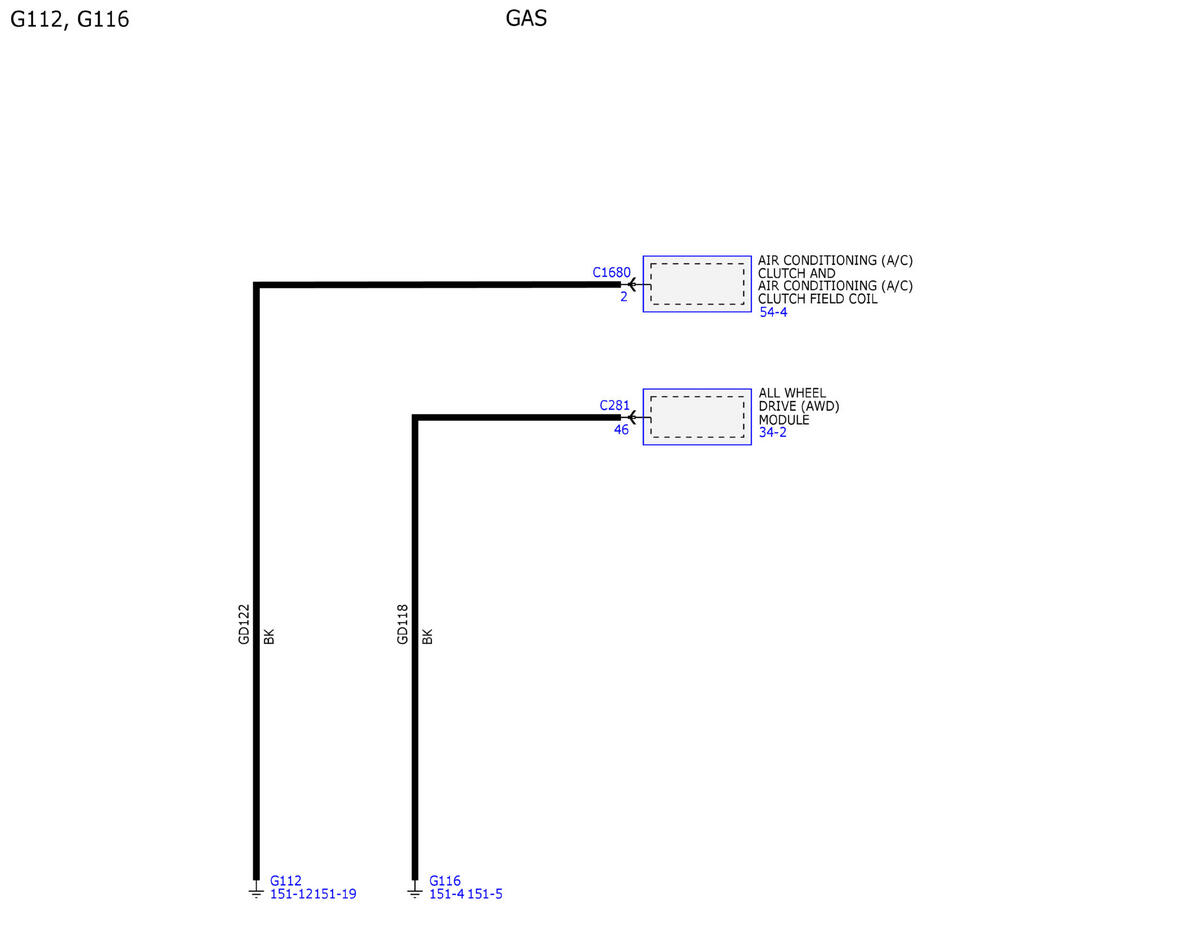

GFDWR238951Courtesy of FORD MOTOR COMPANY

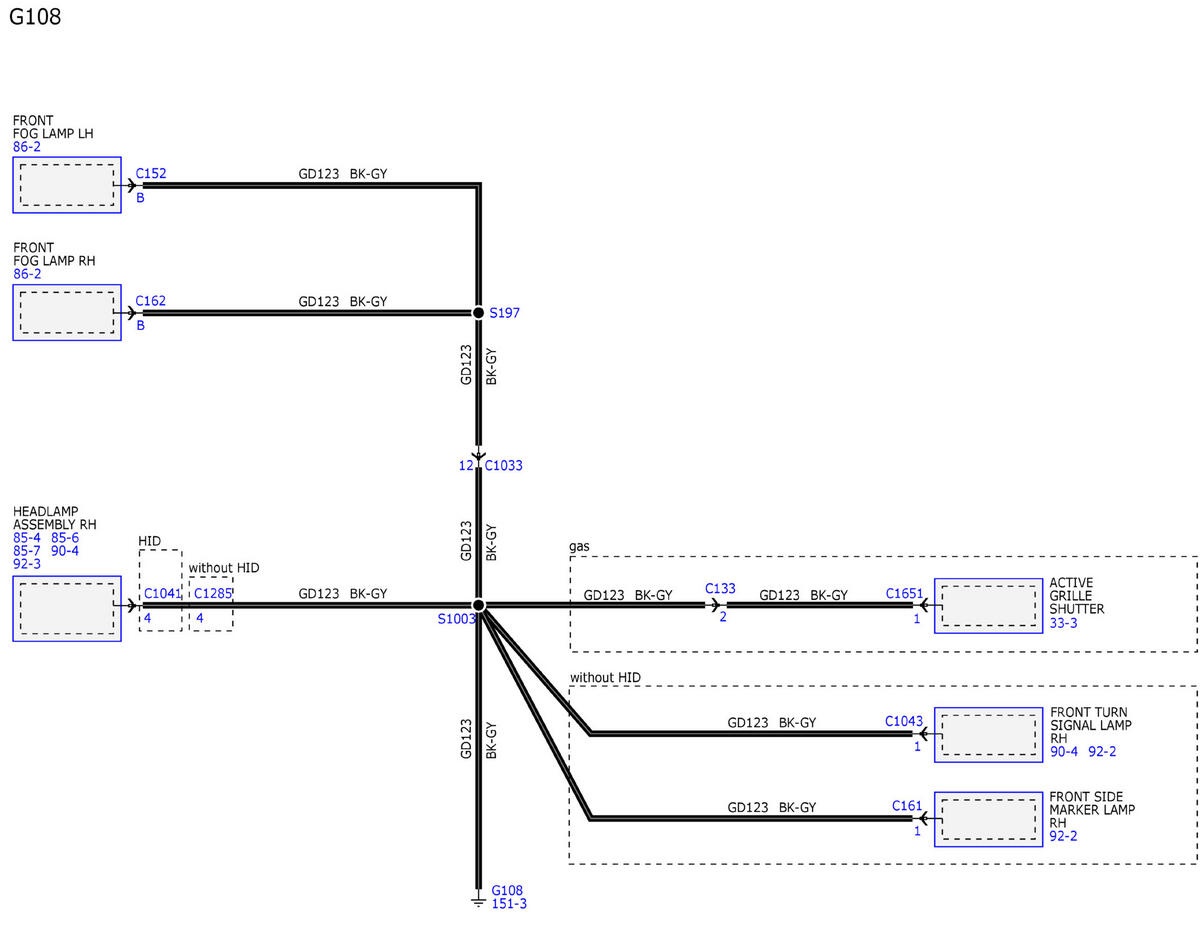

GFDWR238952Courtesy of FORD MOTOR COMPANY

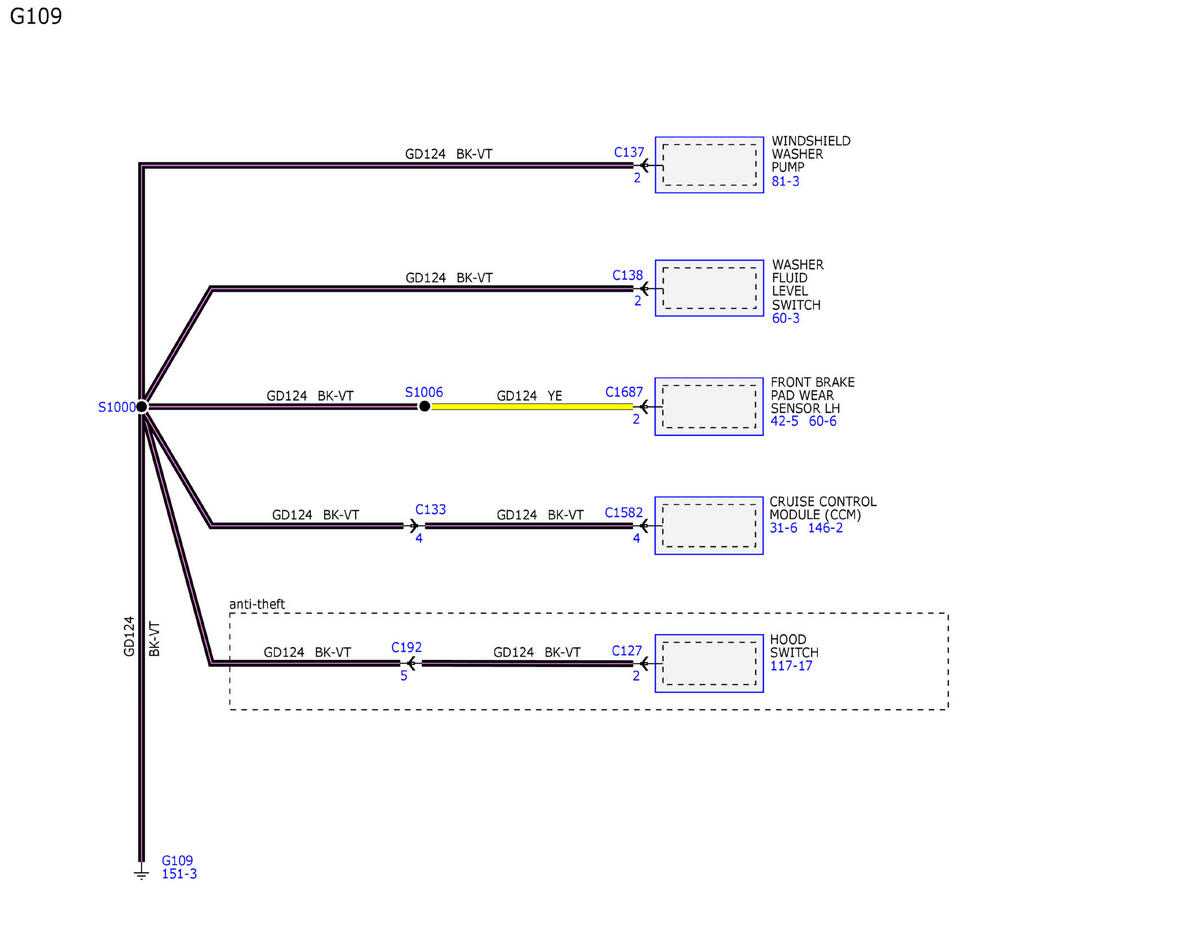

GFDWR238953Courtesy of FORD MOTOR COMPANY

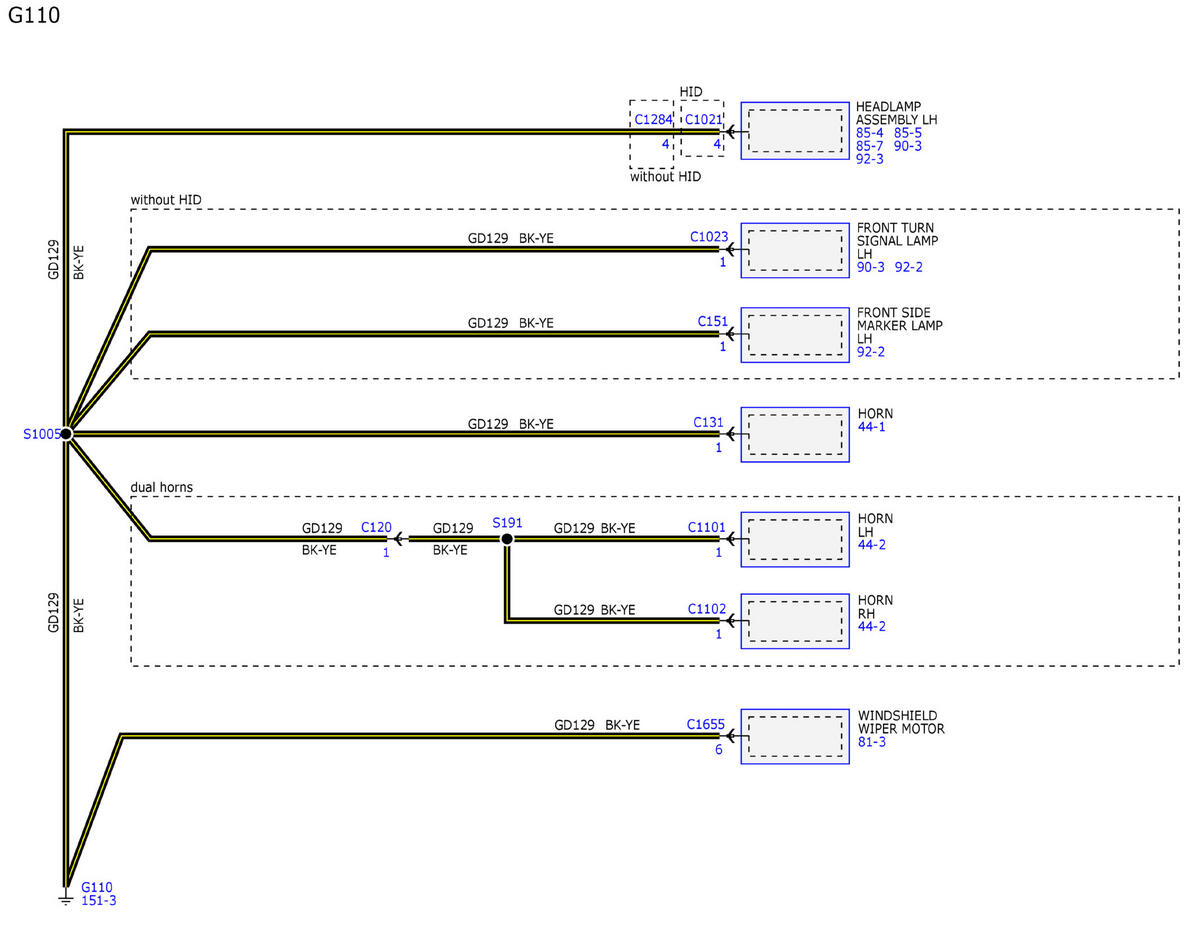

GFDWR238954Courtesy of FORD MOTOR COMPANY

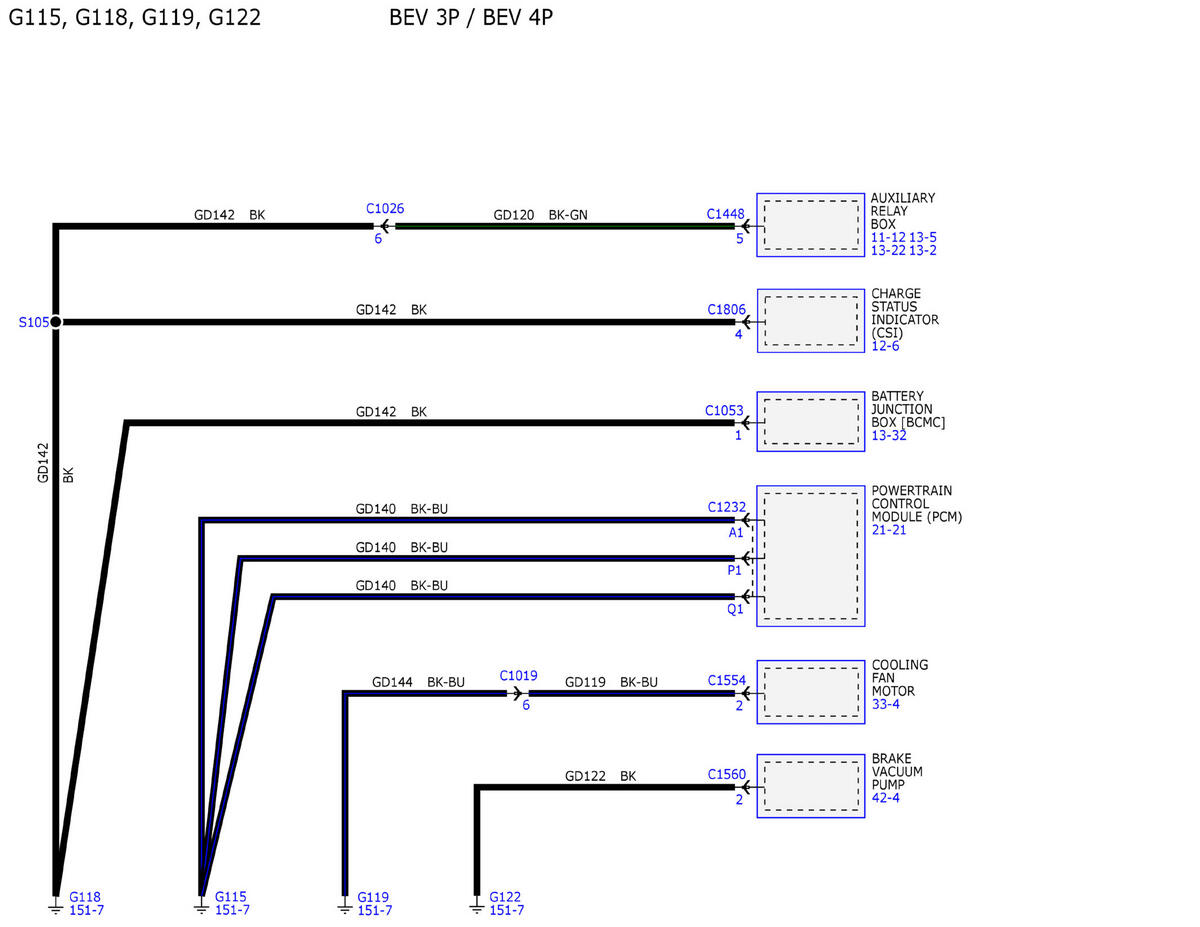

GFDWR238955Courtesy of FORD MOTOR COMPANY

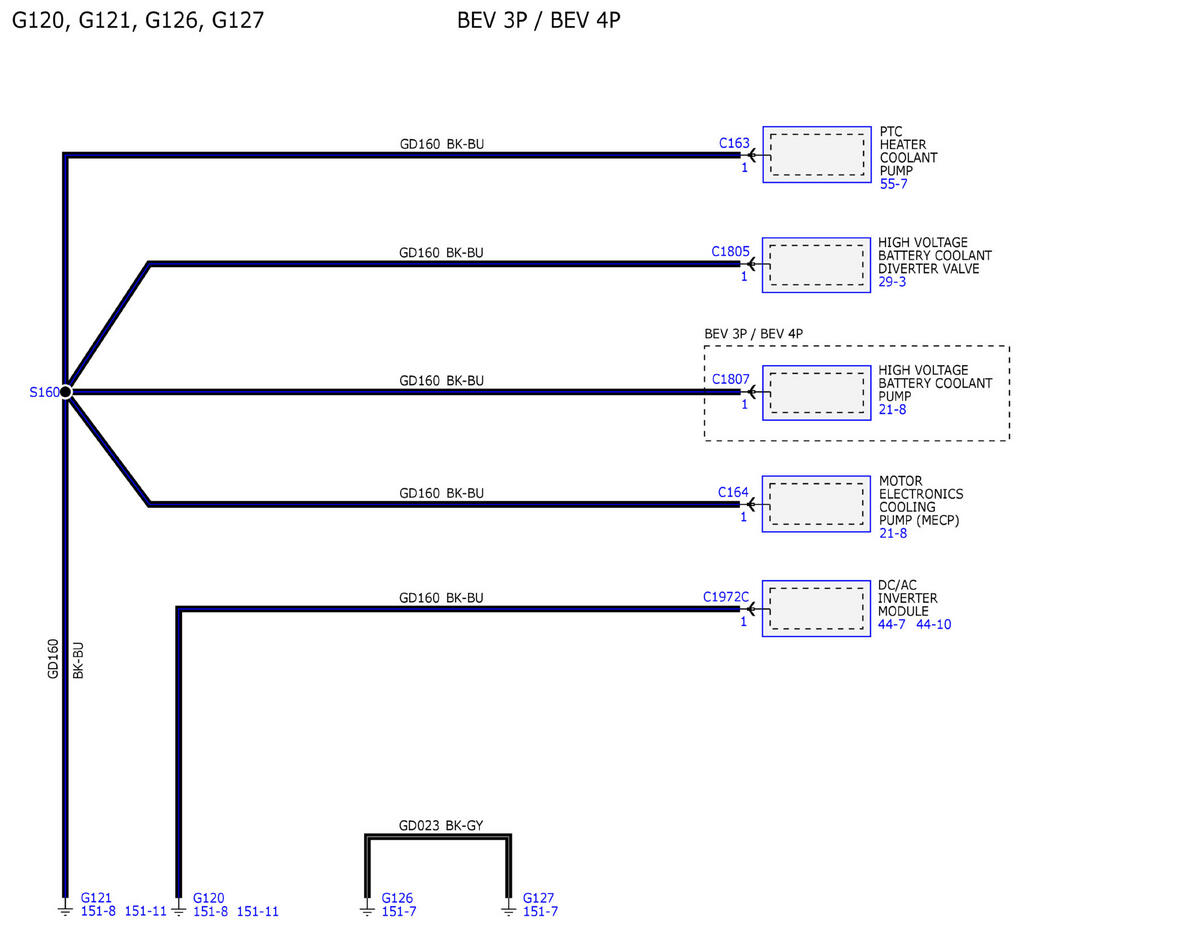

GFDWR238956Courtesy of FORD MOTOR COMPANY
