Steering Wheel: Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: DRIVER AIRBAG
NOTE: Make sure that the steering column lock is engaged.

NOTE: Make sure that the road wheels are in the straight ahead position.

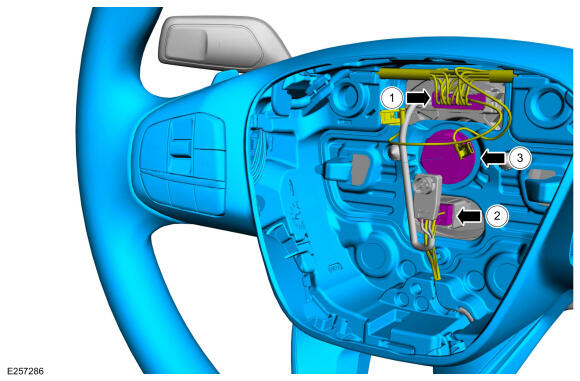

Courtesy of FORD MOTOR COMPANY
If equipped.
NOTE: Make sure a new bolt is installed.

Torque: 48 Nm

Courtesy of FORD MOTOR COMPANY

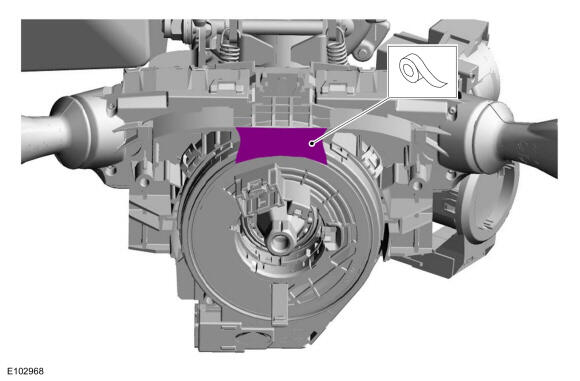

NOTE: Make sure that the clockspring rotor does not rotate.

Courtesy of FORD MOTOR COMPANY
