AWD Module

The AWD module is the logic module for the AWD system. Multiple modules/system inputs are used for the AWD system to determine the percentage of torque to be transferred to the front.

Courtesy of FORD MOTOR COMPANY

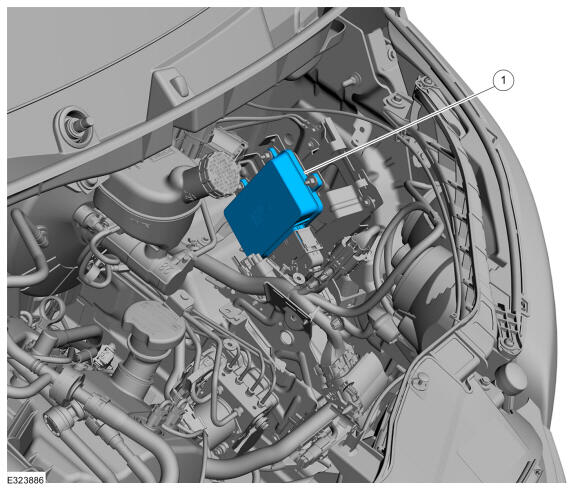

The AWD module located driver's side on the drivers side quarter panel close to the bulkhead.
