External Controls: Overview
External Controls - Component Location

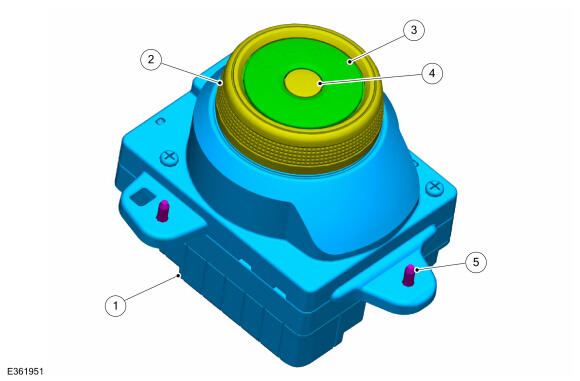

Transmission Gear Shift Module (GSM)
| Item | Description |
|---|---|
| 1 | GSM |
| 2 | Rotary dial |
| 3 | Rotary dial gear display |
| 4 | Low range selection button |
| 5 | GSM retaining screws (3) |
External Controls - Overview
Overview
The shift by wire system uses a rotary dial mounted on top of the GSM to command the Secondary On-Board Diagnostic Control Module C SOBDMC. The GSM controls gear selection.
Gear selection is as follows: Park, Reverse, Neutral and Drive. There is a Low Range button in the center of the gear selection dial for when more powertrain braking or lower gearing is required.
