Front Seat: Removal

WARNING: The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.

NOTE: Power driver seat shown in illustration, all others similar.

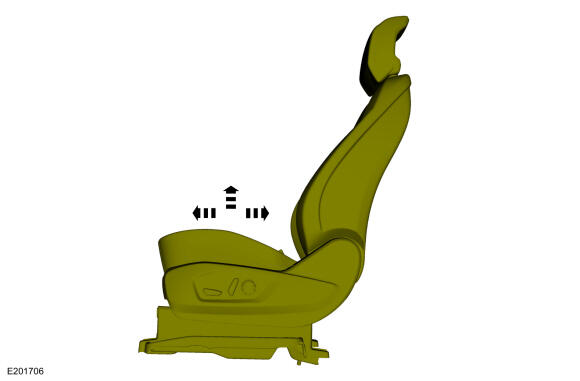

Position the seat to access the front seat bolts.
- If a power seat cannot be positioned horizontally to access the front seat bolts, diagnose the inoperative horizontal seat track motor. Refer to: Front Seat .
Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING

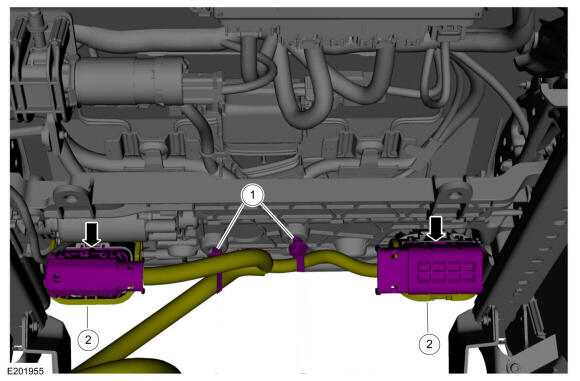

Disconnect the seat harness electrical connector(s).
1. Detach the wire harness pin-type retainer(s).
2. Release the locking tab(s) and rotate the position assurance lever(s).
Courtesy of FORD MOTOR COMPANY

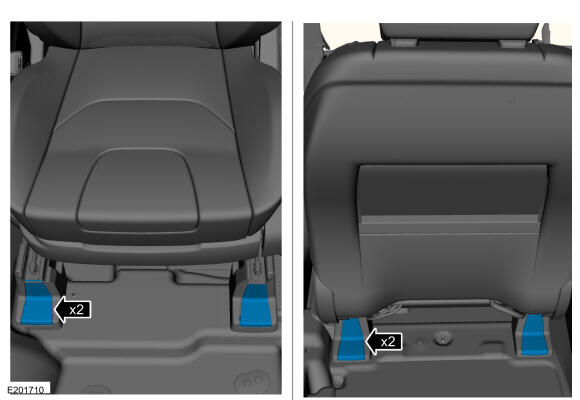

Remove the front seat shield bolt caps.

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphics for this step in the installation.

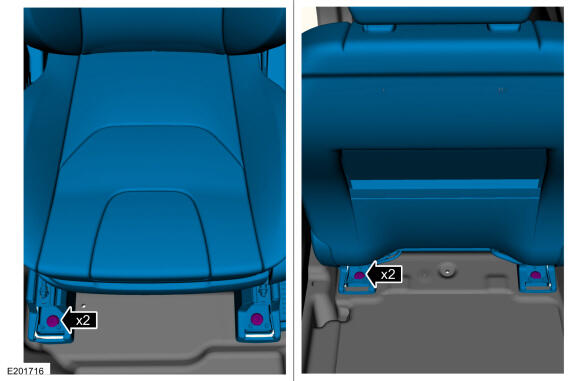

Remove the bolts and the front seat.

Courtesy of FORD MOTOR COMPANY
