Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

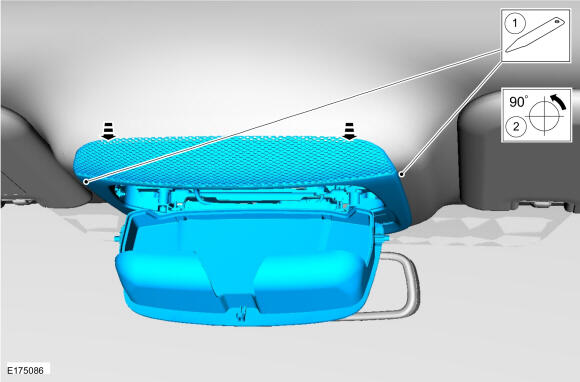

    1. Insert trim tool in location(s) shown.
    2. Rotate the tool 90 degrees to release the overhead console rear retainers.
    GFD815449Courtesy of FORD MOTOR COMPANY

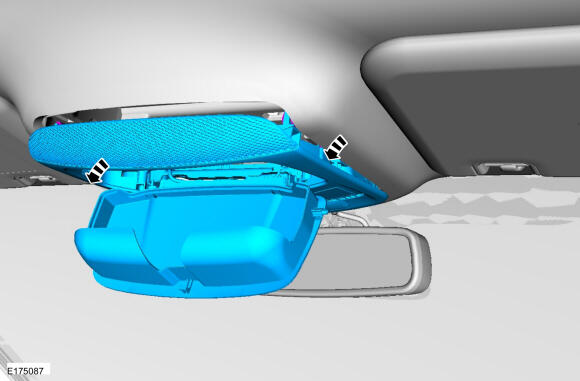

  2. Working from the rear to the front along each side release the overhead console retainers.
    GFD815450Courtesy of FORD MOTOR COMPANY

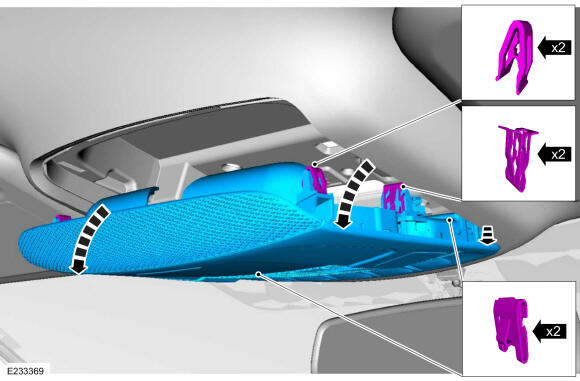

  3. Rotate and remove the overhead console.
    GFD815451Courtesy of FORD MOTOR COMPANY

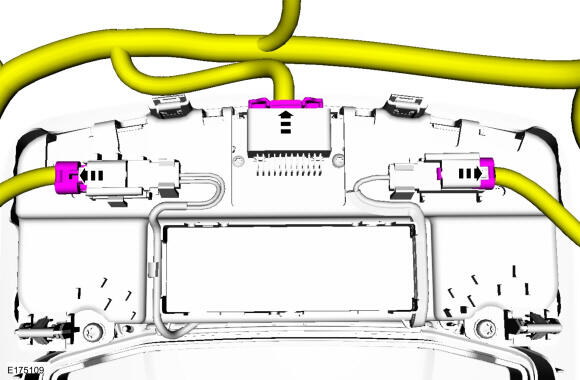

  4. Disconnect the electrical retainers.
GFD815452Courtesy of FORD MOTOR COMPANY
