Removal And Installation: Horn: Removal
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the LH fender splash shield. Refer to: Fender Splash Shield
.
Vehicles with single horn

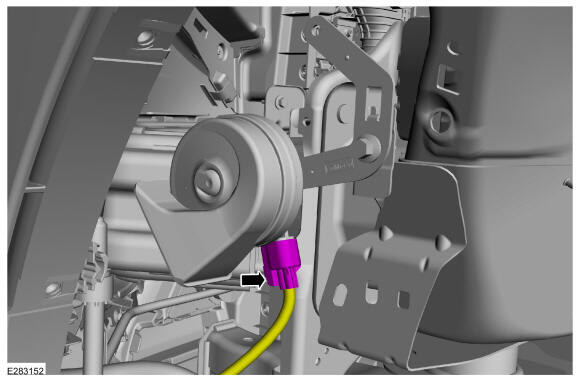

- Disconnect the electrical connector.

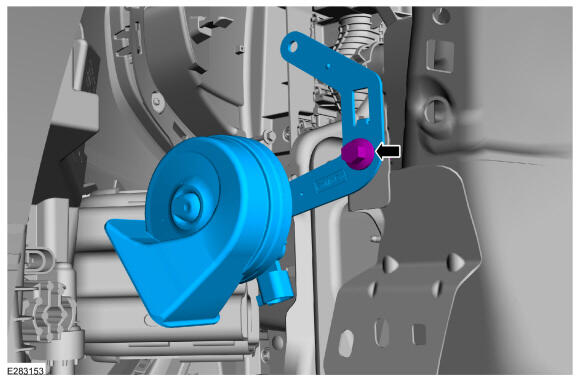

- Remove the bolt and the horn.
Torque
: 12 Nm

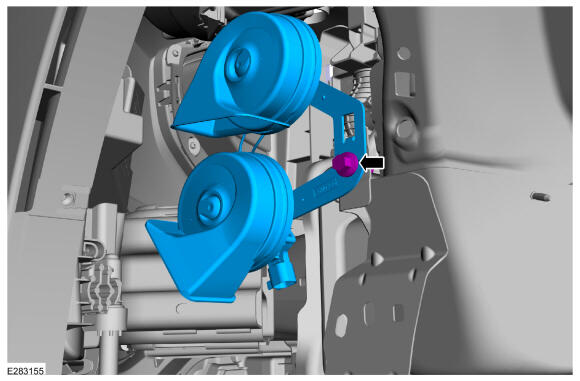

Vehicles with dual horn

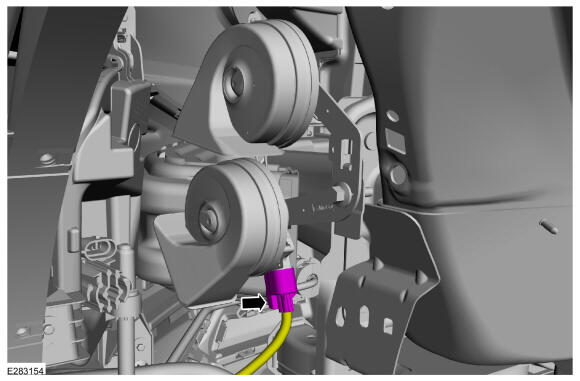

- Disconnect the electrical connector.
- Remove the bolt and the horns.
Torque
: 12 Nm
