Fuel Pump Driver Module (FPDM): Installation

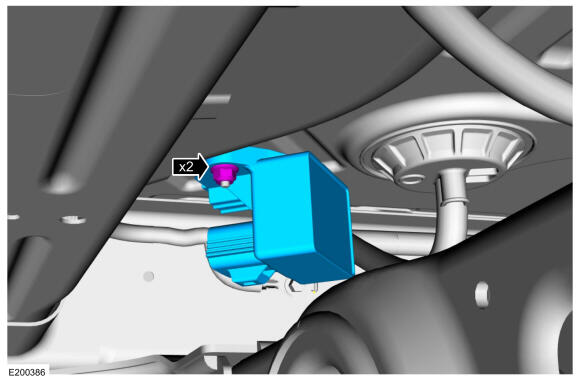

  1. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.

    Torque: 4.1 Nm

    GFD812734Courtesy of FORD MOTOR COMPANY

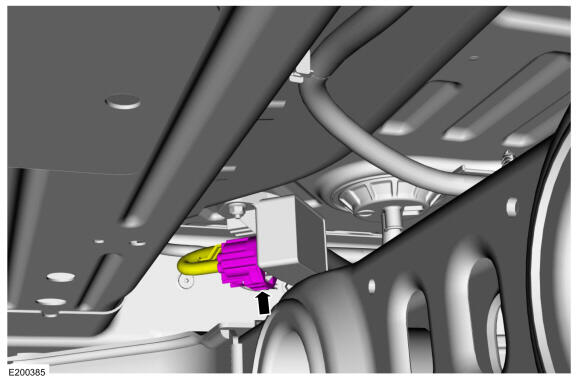

  2. Connect the fuel pump driver module electrical connector.
GFD812733Courtesy of FORD MOTOR COMPANY
