OEM Electrical Wiring Diagram Introduction: Introduction

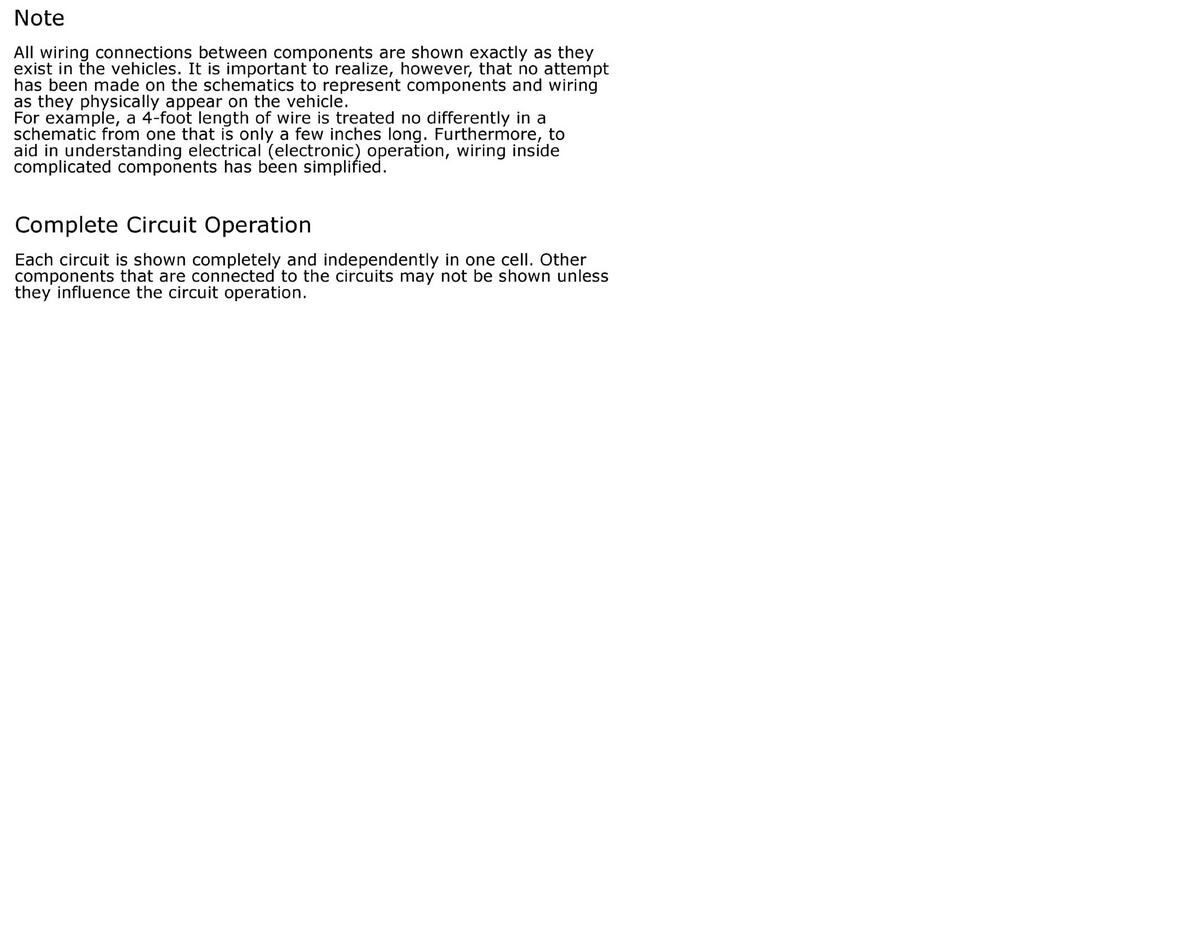

GFDWR221156Courtesy of FORD MOTOR COMPANY

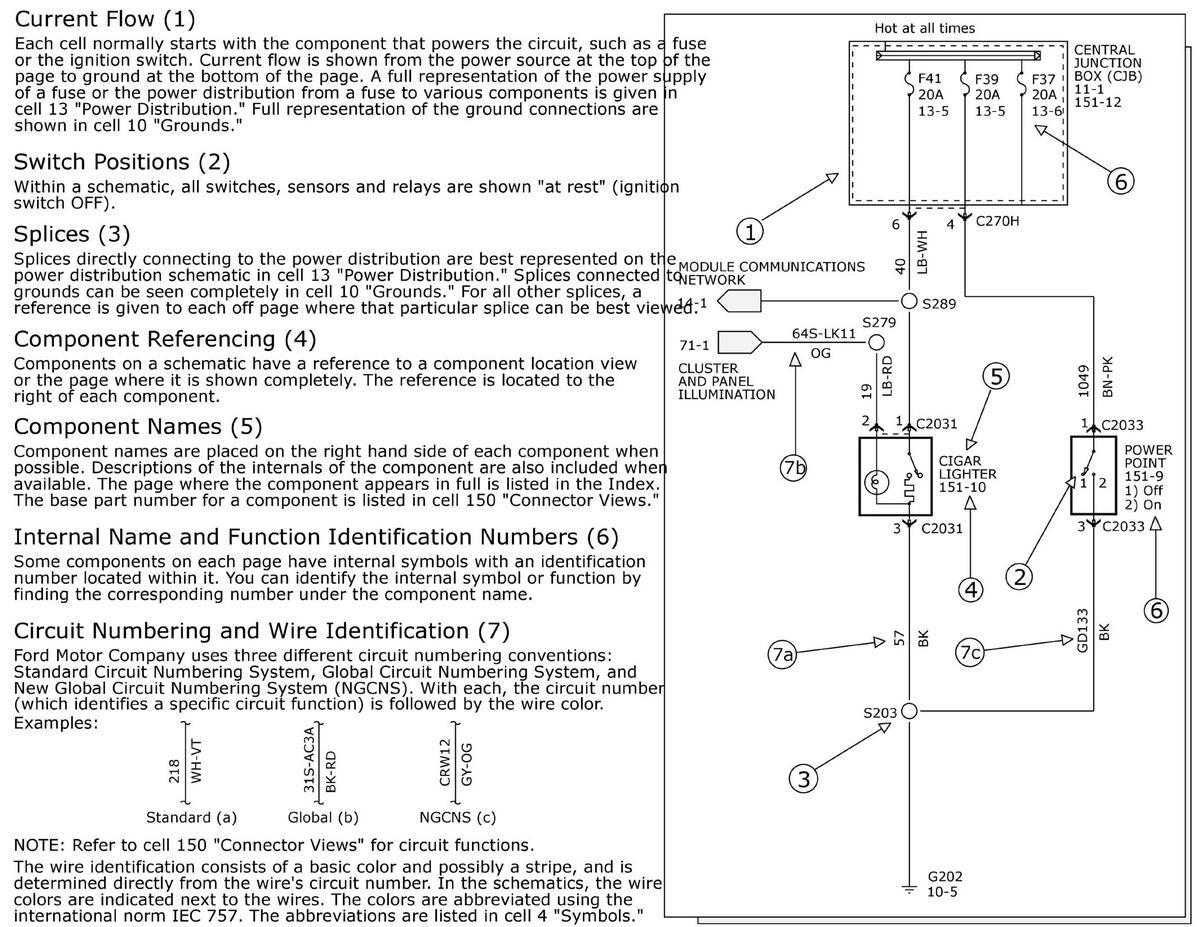

GFDWR221157Courtesy of FORD MOTOR COMPANY

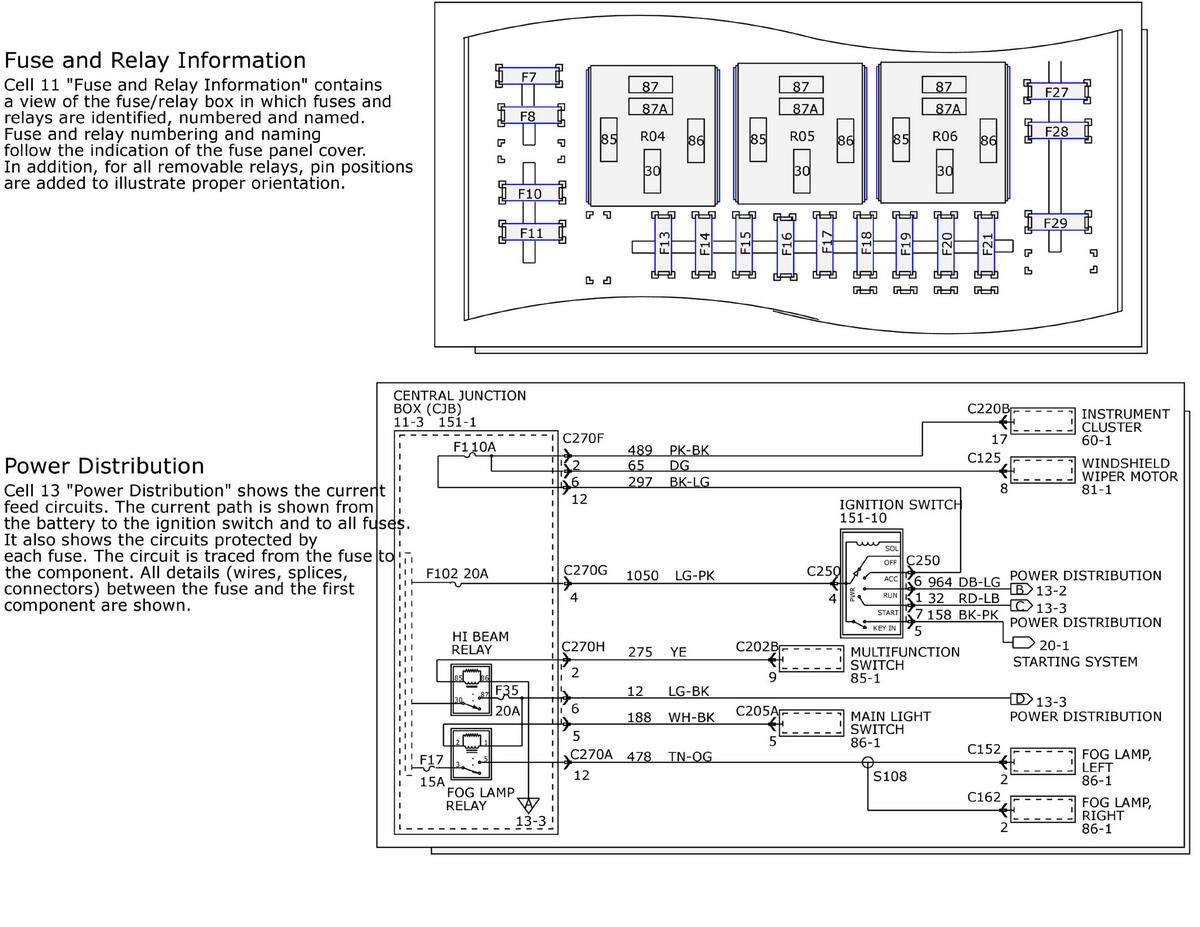

GFDWR221158Courtesy of FORD MOTOR COMPANY

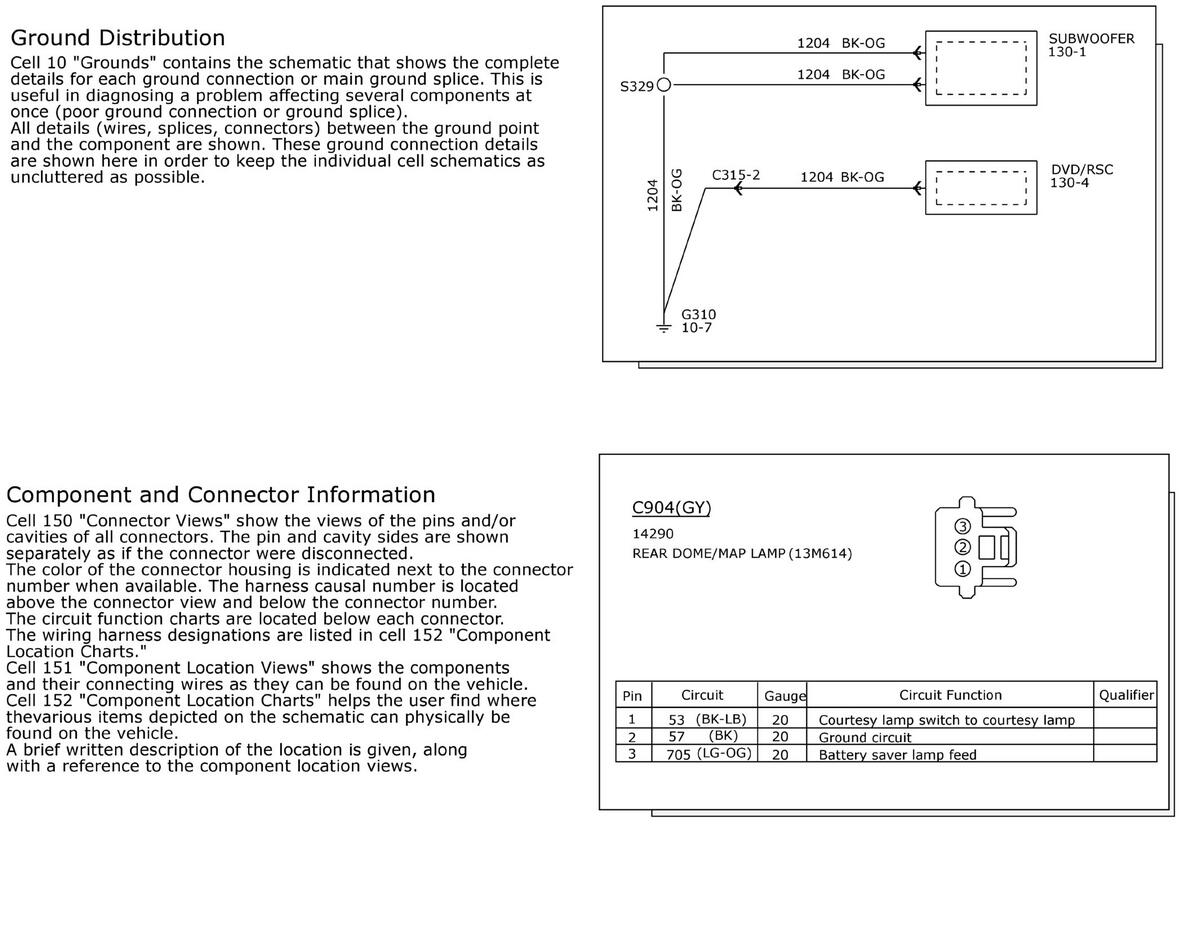

GFDWR221159Courtesy of FORD MOTOR COMPANY

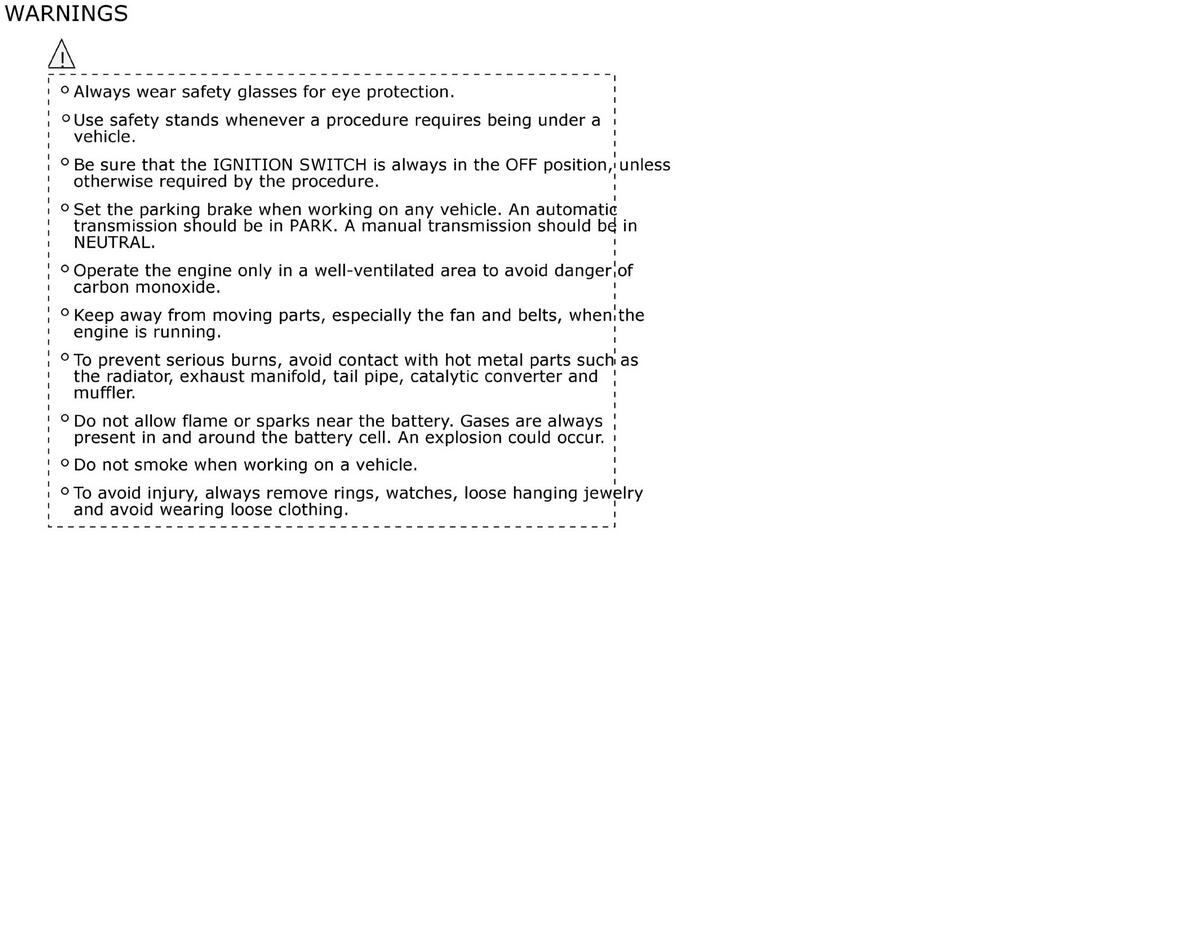

GFDWR221160Courtesy of FORD MOTOR COMPANY
