Component Testing

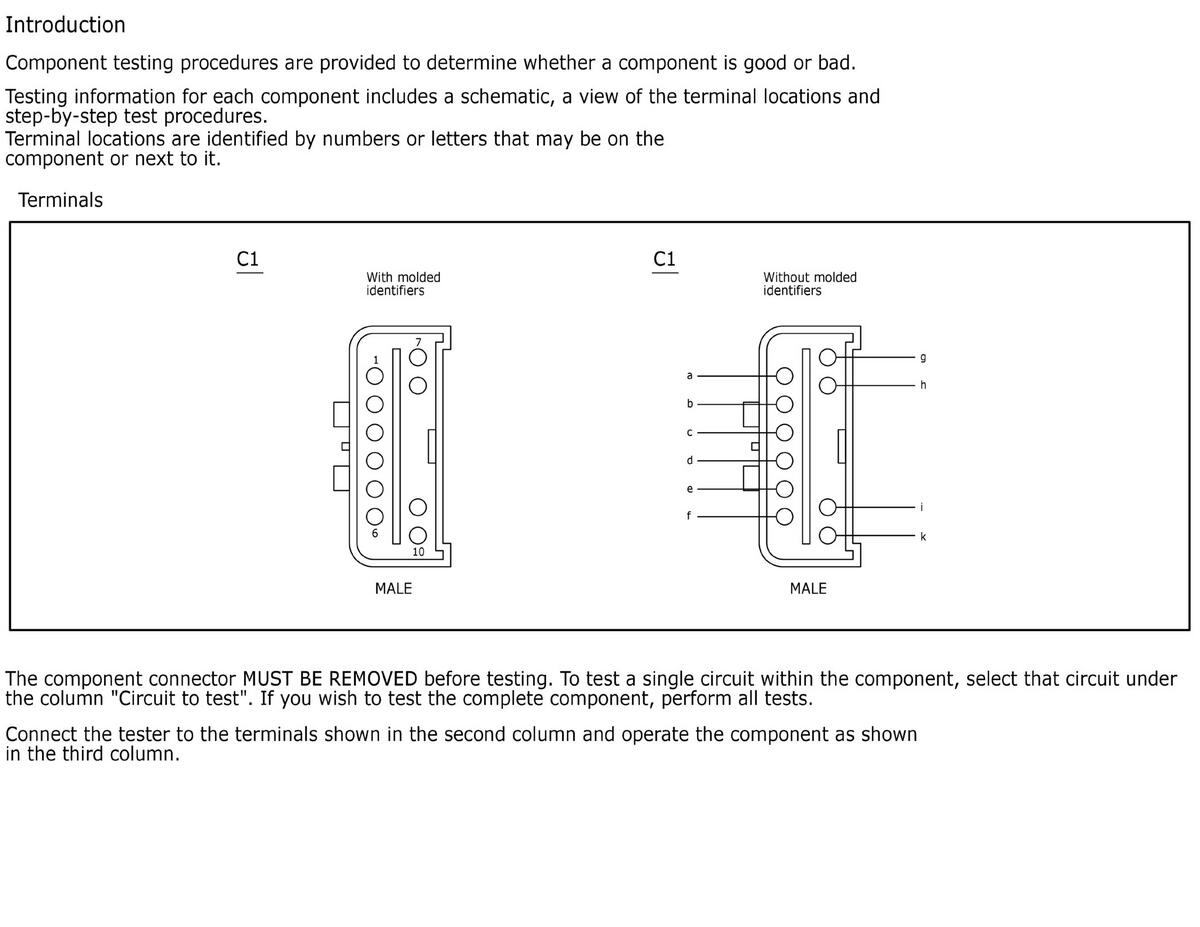

GFDWR221492Courtesy of FORD MOTOR COMPANY

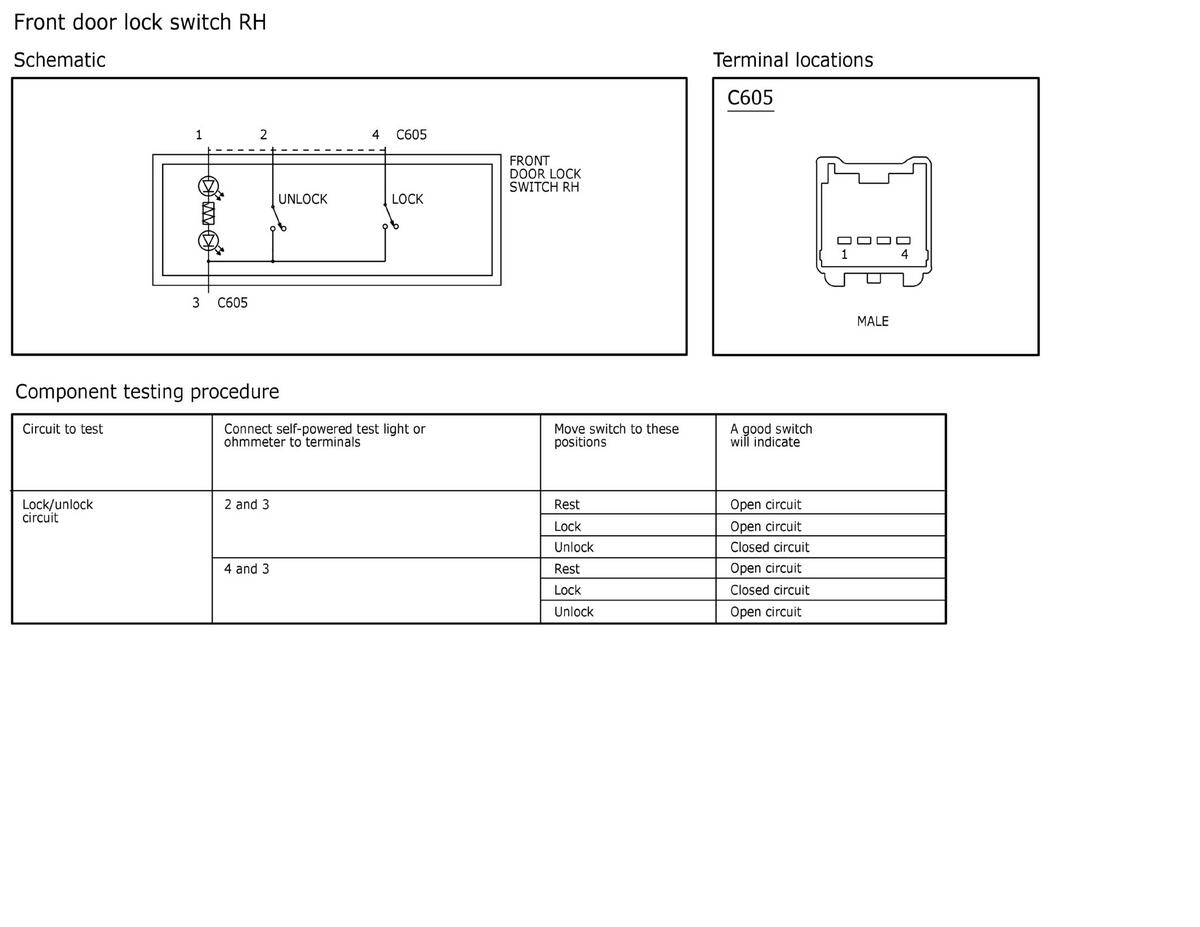

Fig 1: Front Door Lock Switch RH
GFDWR221493Courtesy of FORD MOTOR COMPANY

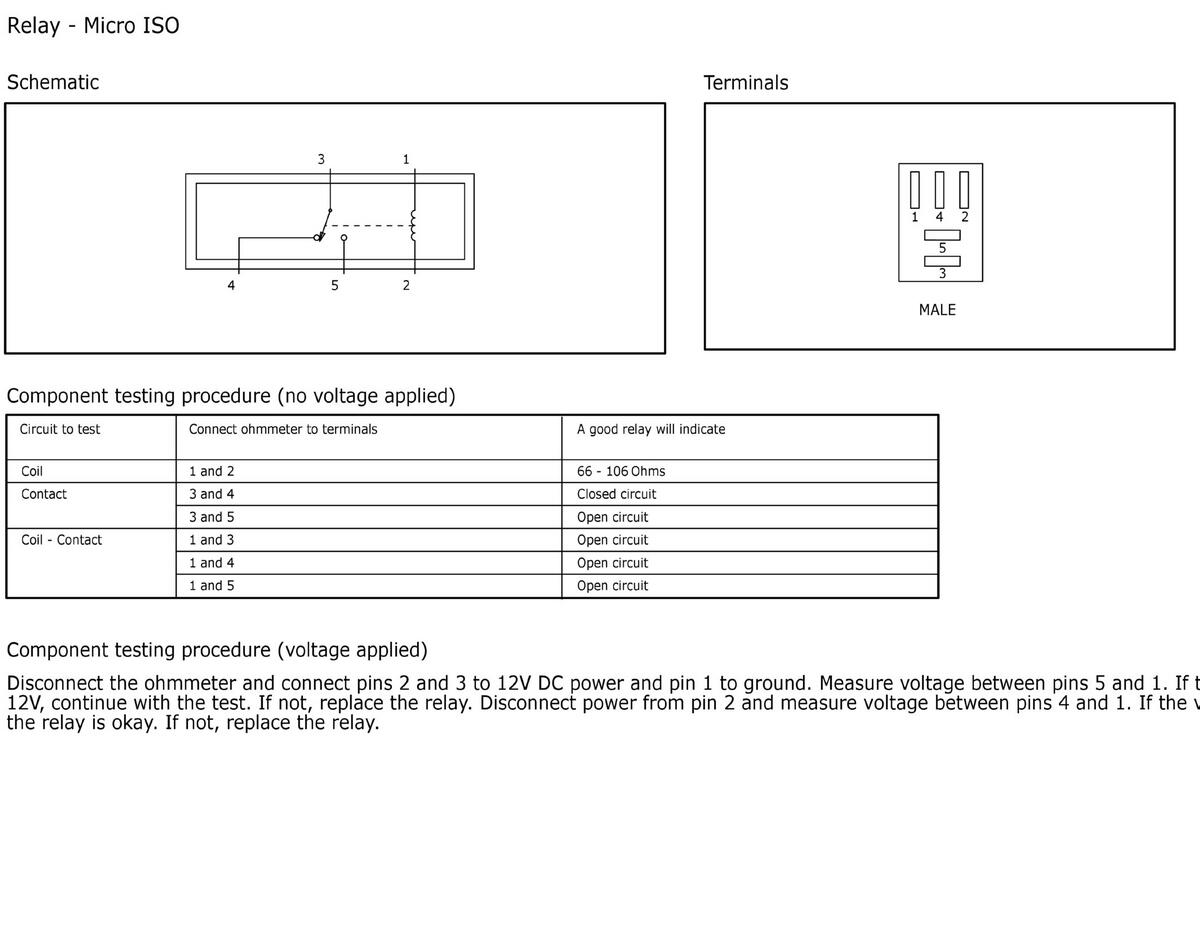

Fig 2: Relay - Micro ISO
GFDWR221494Courtesy of FORD MOTOR COMPANY

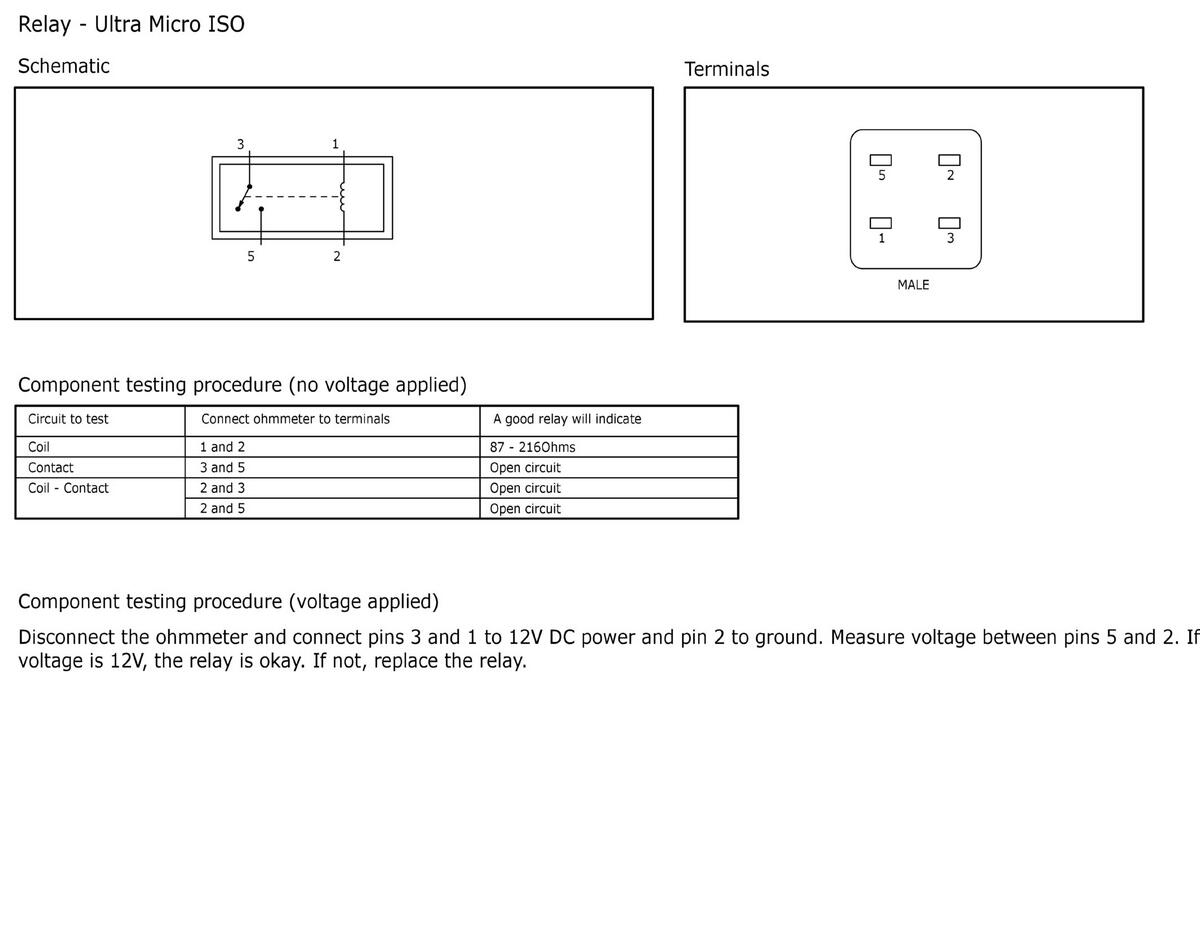

Fig 3: Relay - Ultra Micro ISO
GFDWR221495Courtesy of FORD MOTOR COMPANY

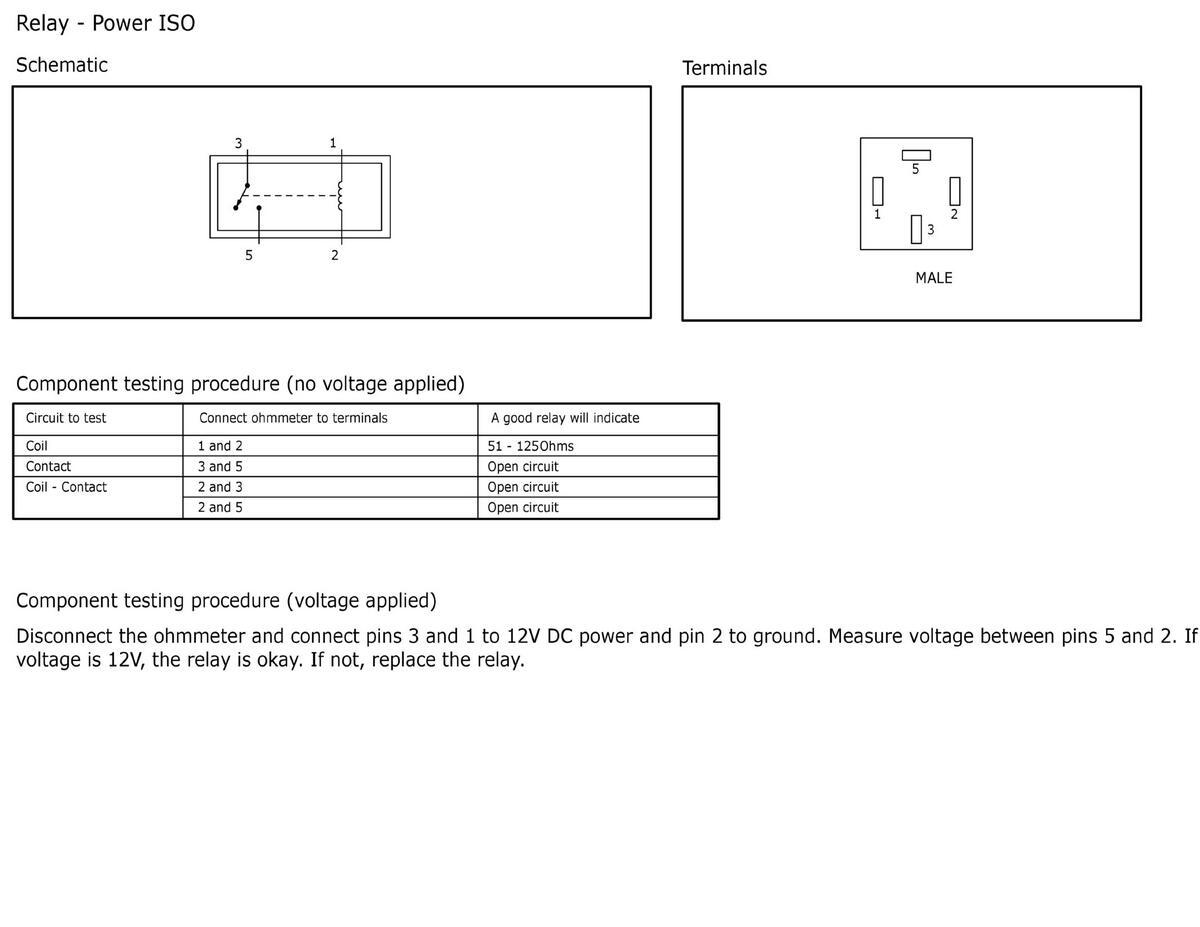

Fig 4: Relay - Power ISO
GFDWR221496Courtesy of FORD MOTOR COMPANY

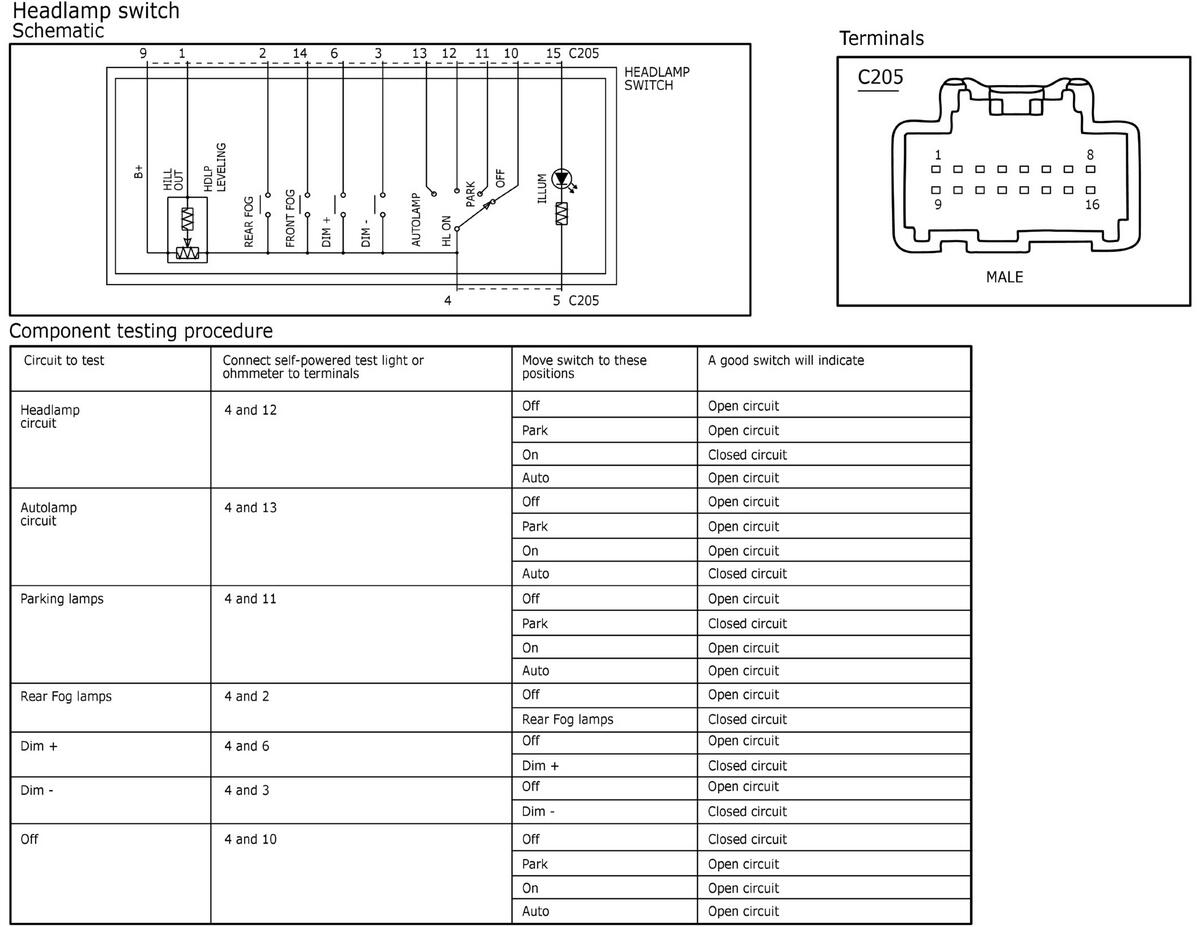

Fig 5: Headlamp Switch
GFDWR221497Courtesy of FORD MOTOR COMPANY

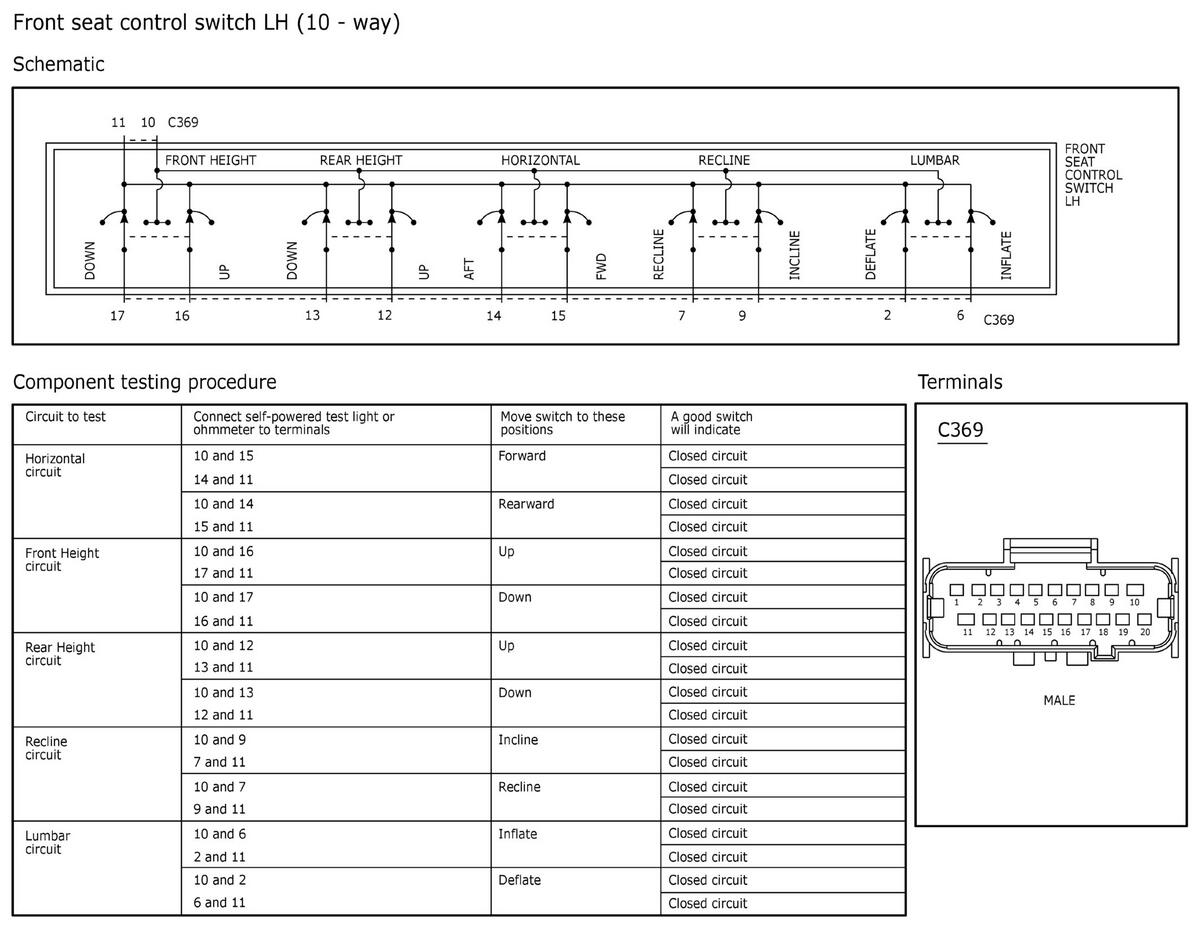

Fig 6: Front Seat Control Switch LH (10 - Way)
GFDWR221498Courtesy of FORD MOTOR COMPANY

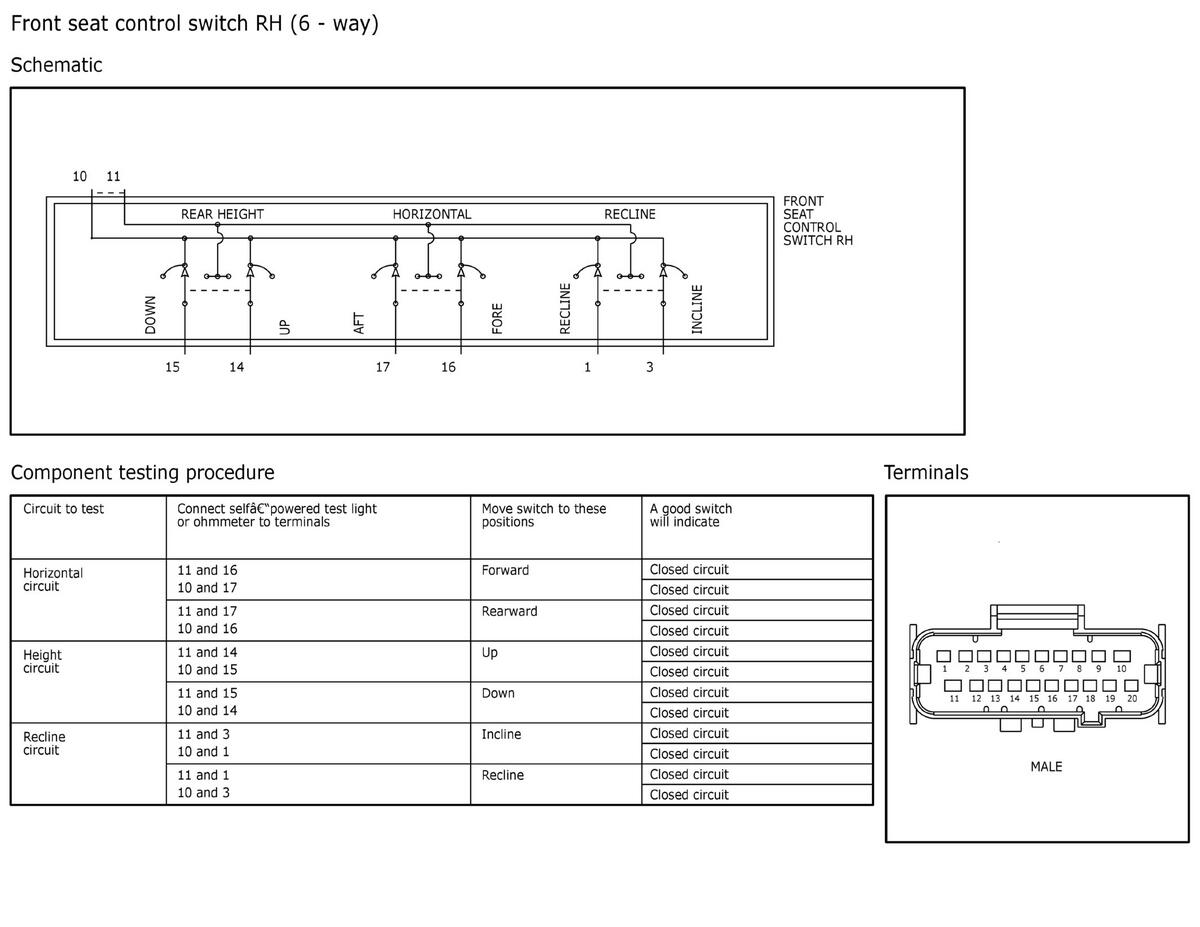

Fig 7: Front Seat Control Switch RH (6 - Way)
GFDWR221499Courtesy of FORD MOTOR COMPANY

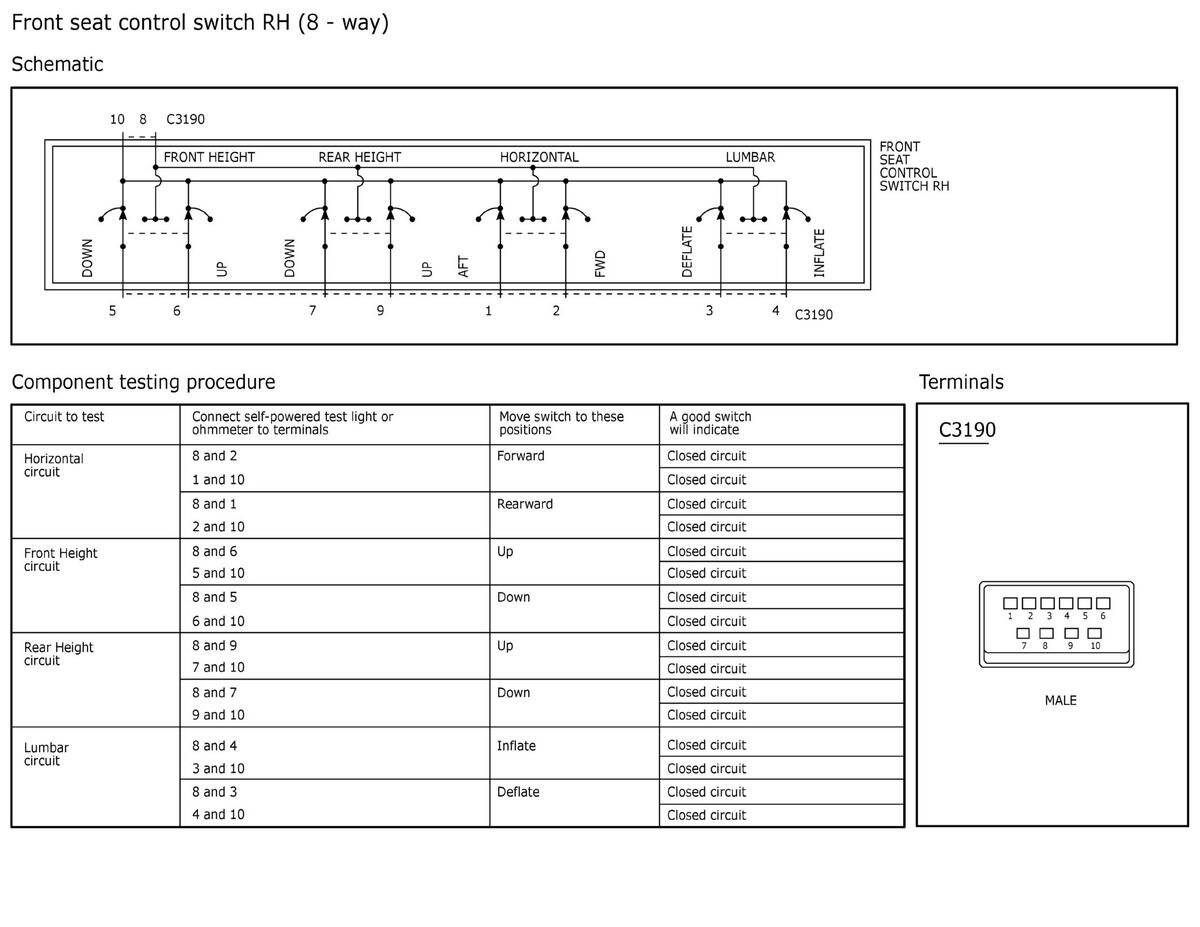

Fig 8: Front Seat Control Switch RH (8 - Way)
GFDWR221500Courtesy of FORD MOTOR COMPANY

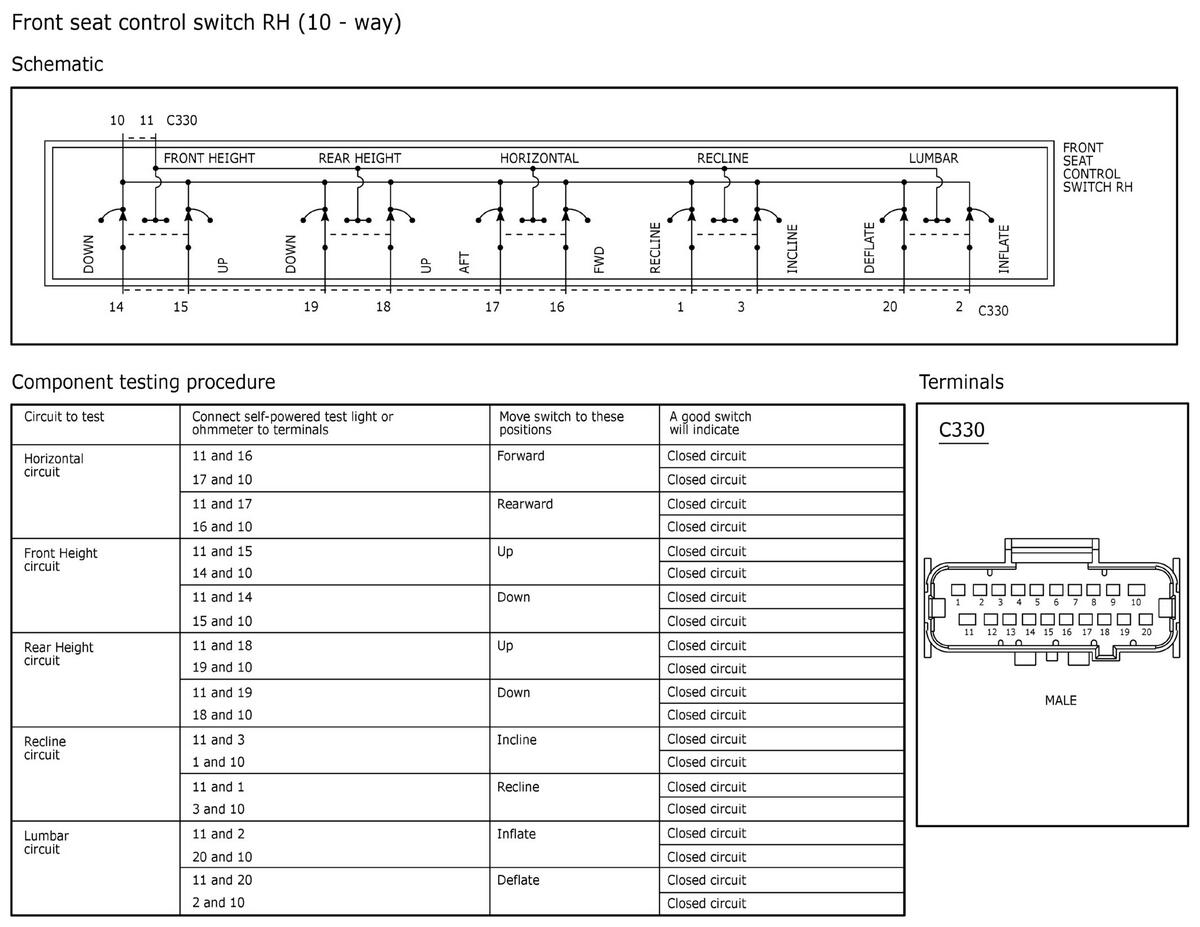

Fig 9: Front Seat Control Switch RH (10 - Way)
GFDWR221501Courtesy of FORD MOTOR COMPANY

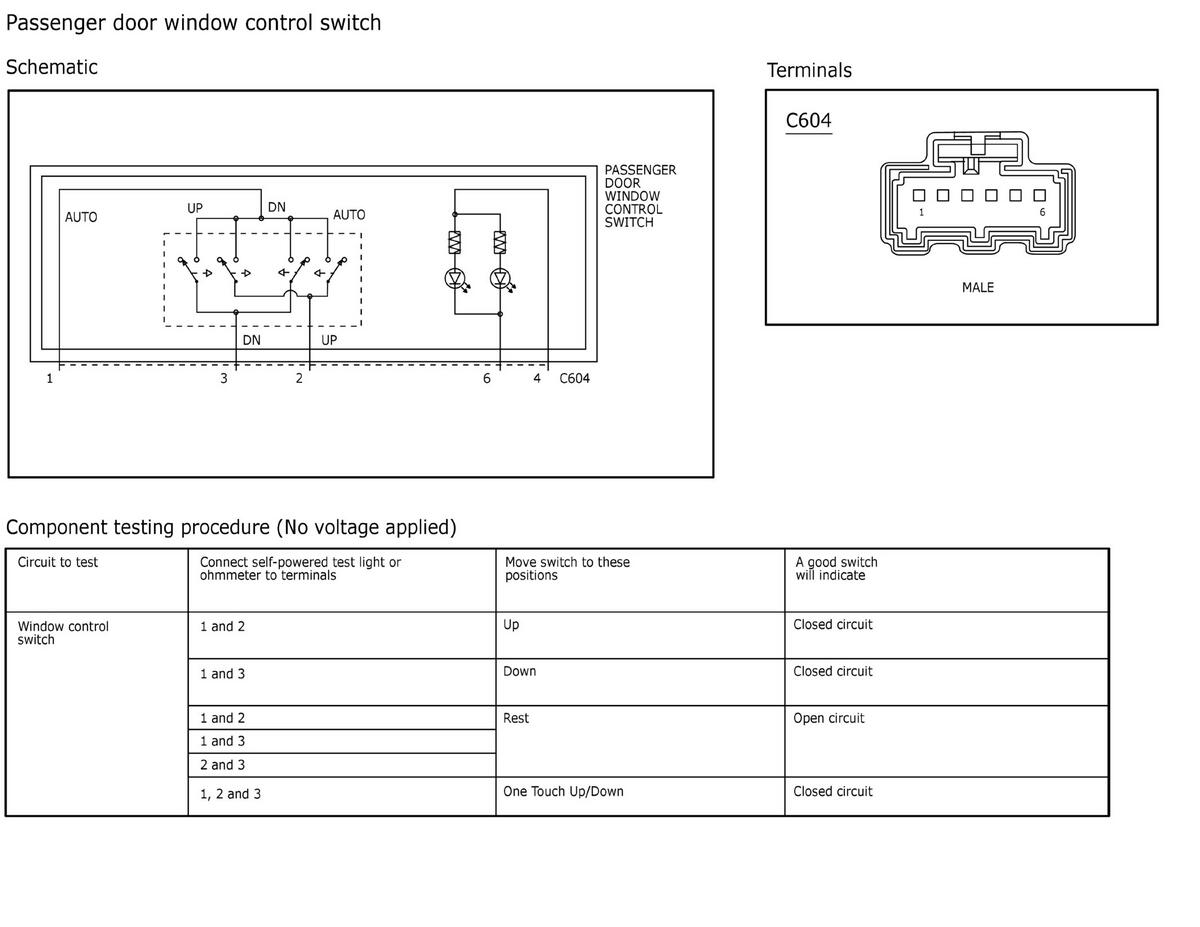

Fig 10: Passenger Door Window Control Switch
GFDWR221502Courtesy of FORD MOTOR COMPANY

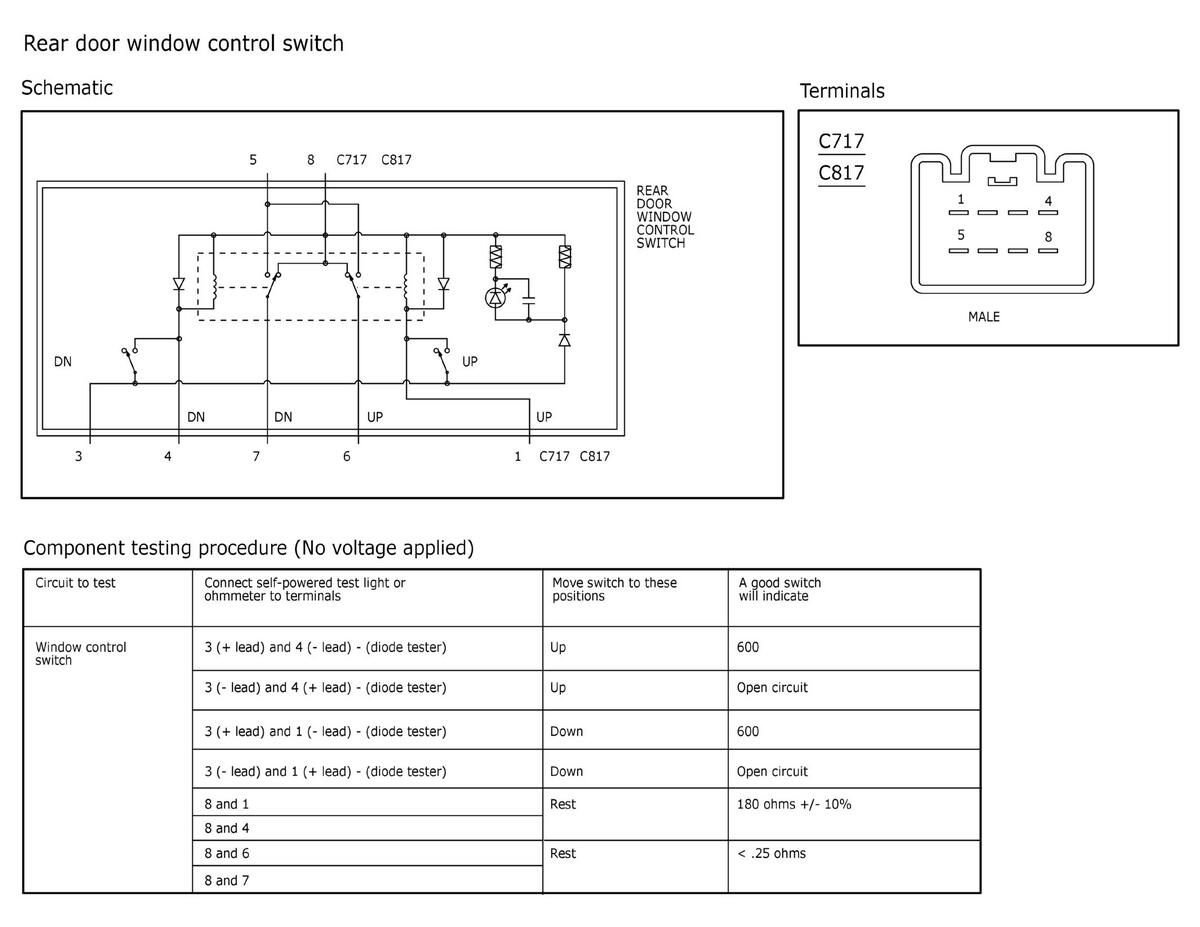

Fig 11: Rear Door Window Control Switch
GFDWR221503Courtesy of FORD MOTOR COMPANY

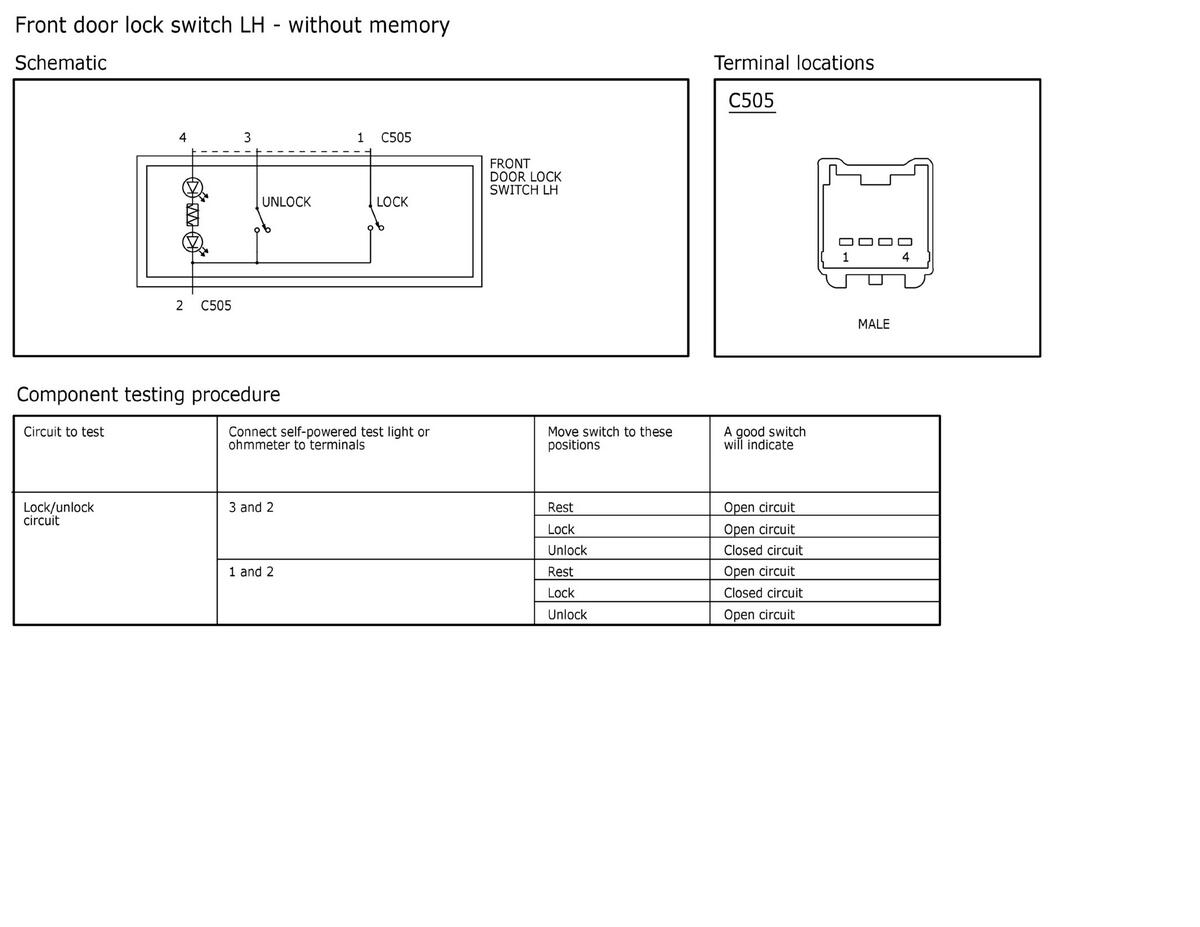

Fig 12: Front Door Lock Switch LH - Without Memory
GFDWR221504Courtesy of FORD MOTOR COMPANY

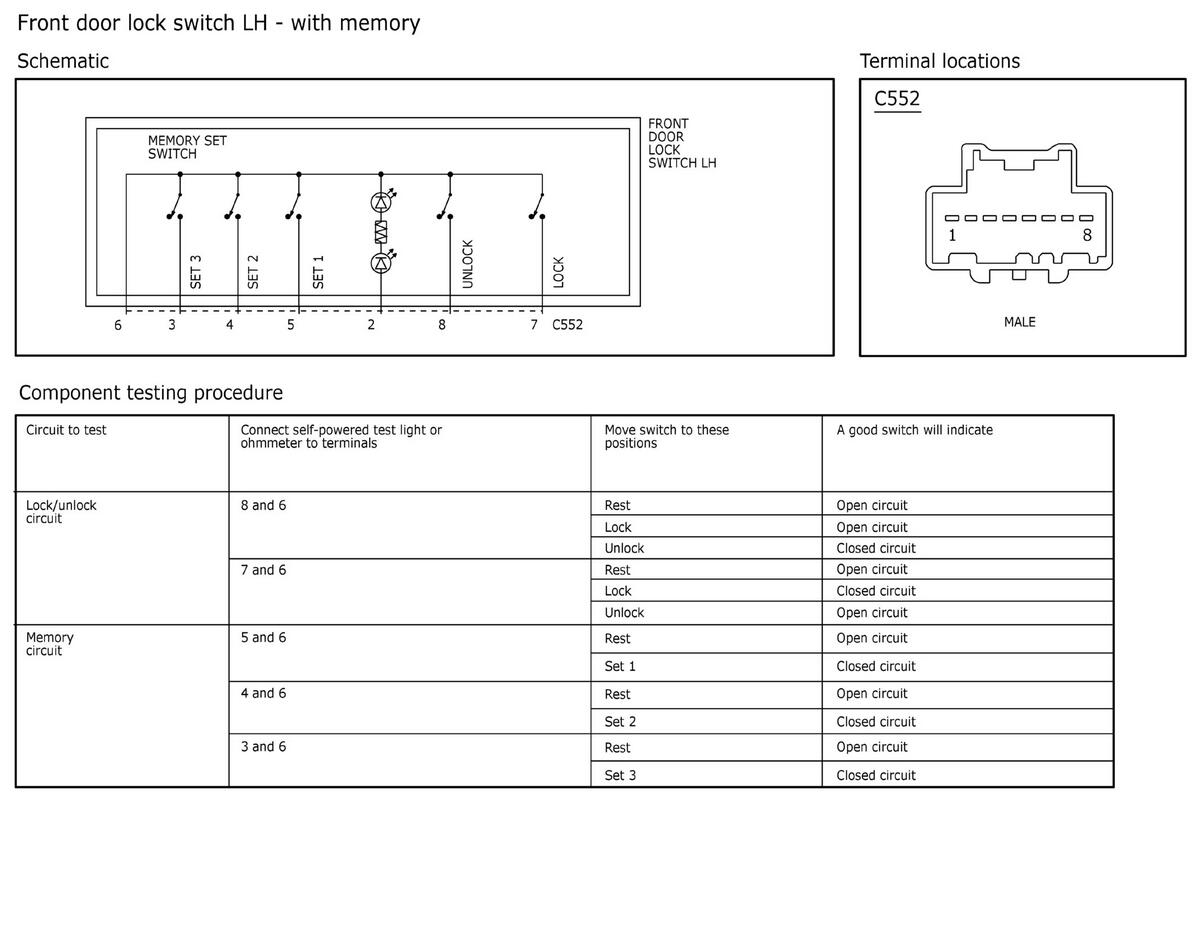

Fig 13: Front Door Lock Switch LH - With Memory
GFDWR221505Courtesy of FORD MOTOR COMPANY
