Auto-Start-Stop System

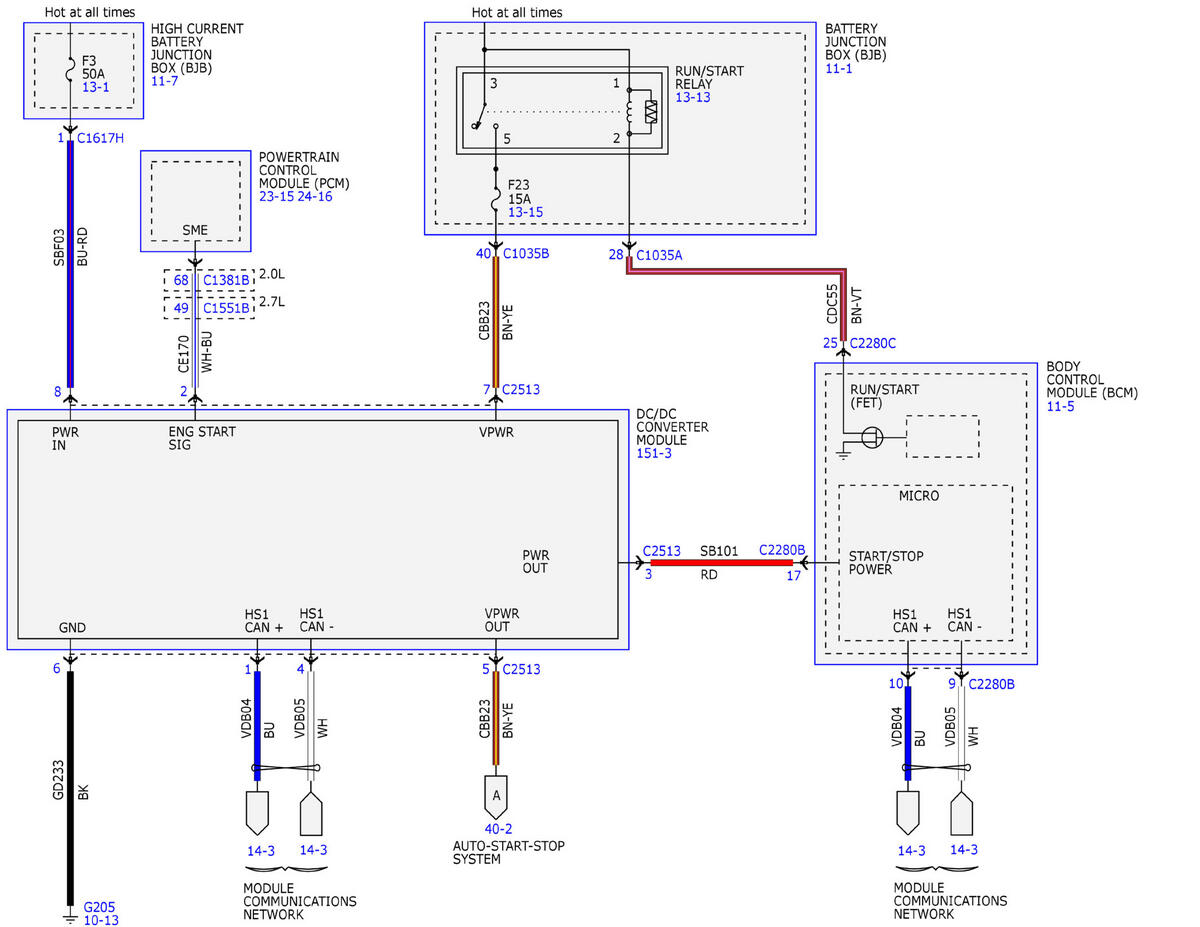

Fig 1: Auto-Start-Stop System Wiring Diagram (1 of 3)
GFDWR221225Courtesy of FORD MOTOR COMPANY

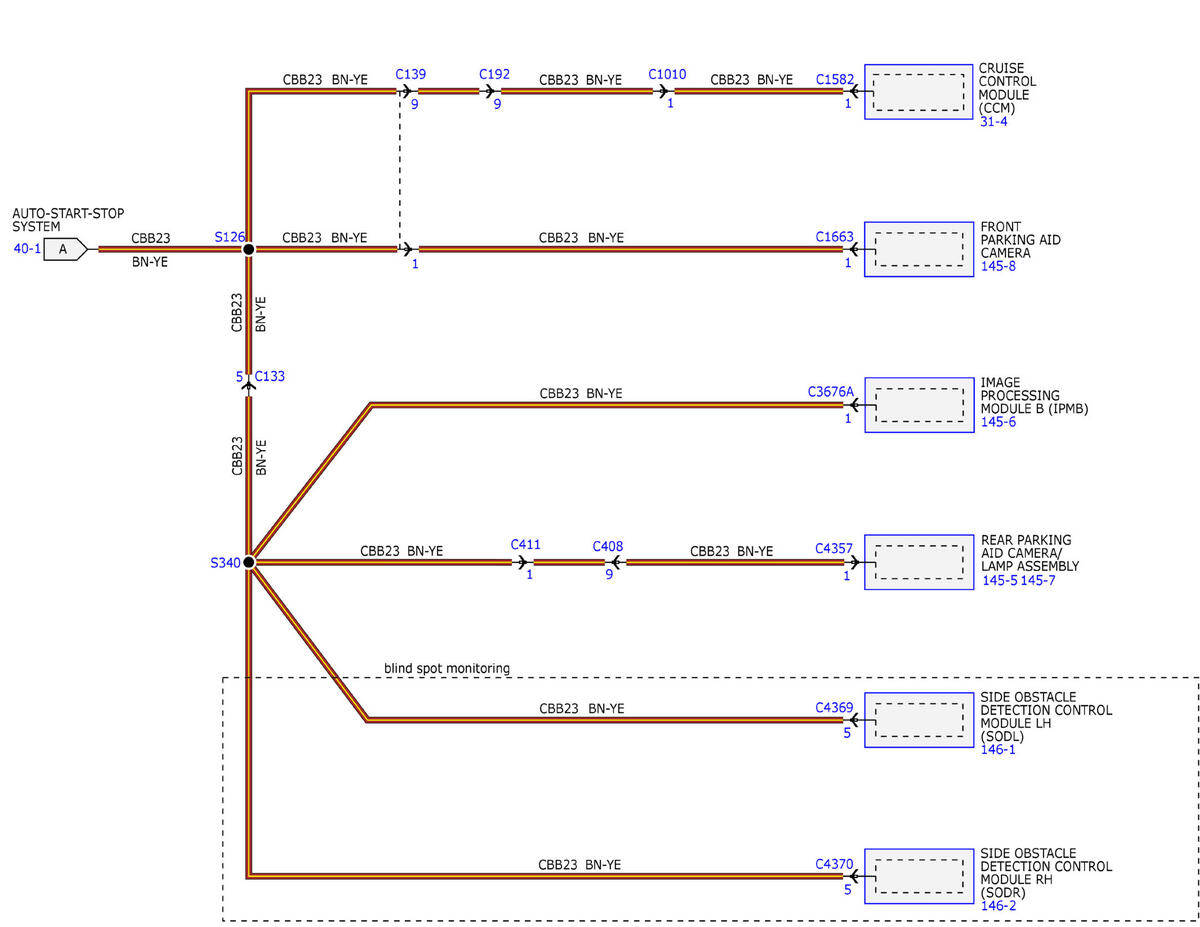

Fig 2: Auto-Start-Stop System Wiring Diagram (2 of 3)
GFDWR221226Courtesy of FORD MOTOR COMPANY

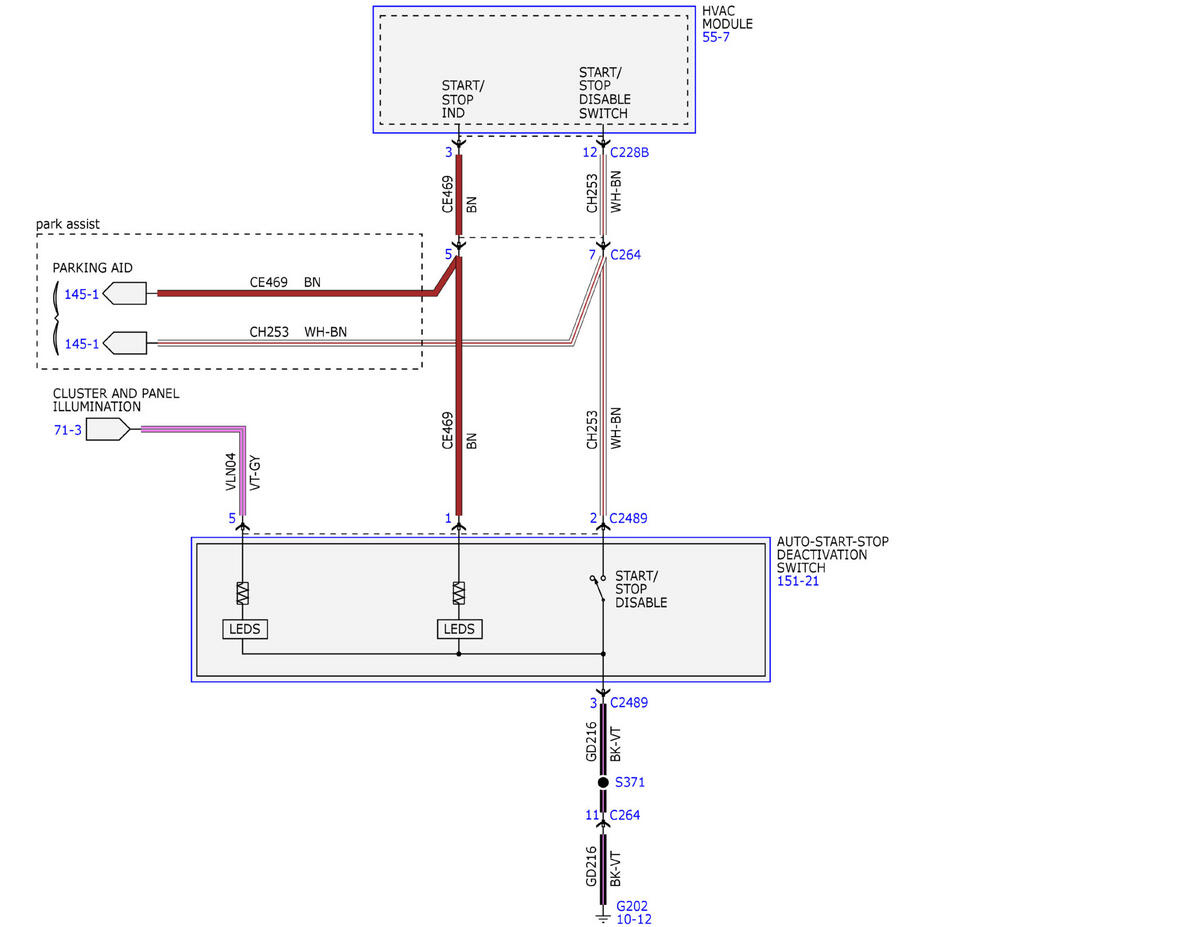

Fig 3: Auto-Start-Stop System Wiring Diagram (3 of 3)
GFDWR221227Courtesy of FORD MOTOR COMPANY
