Automatic Climate Control System

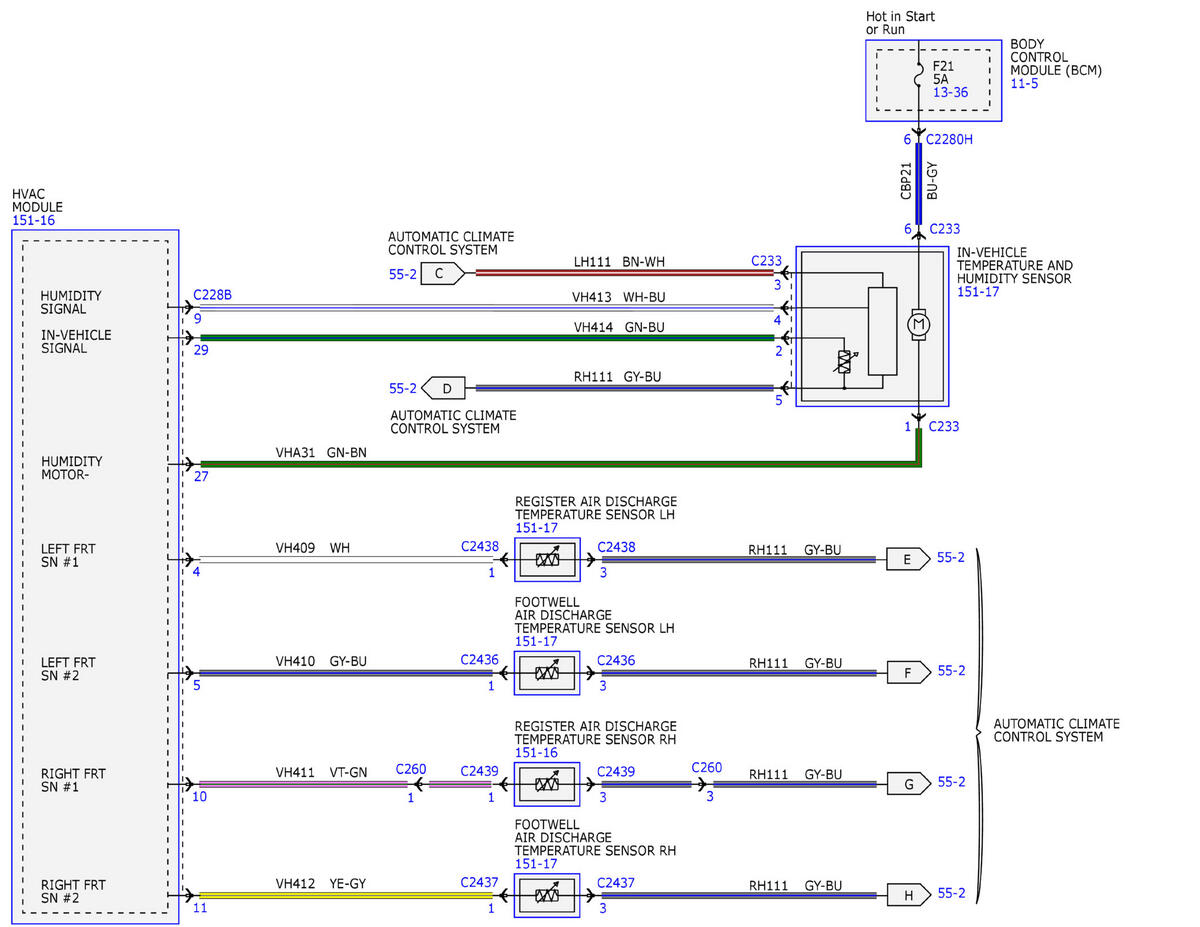

Fig 1: Automatic Climate Control System Wiring Diagram (1 of 8)

Courtesy of FORD MOTOR COMPANY

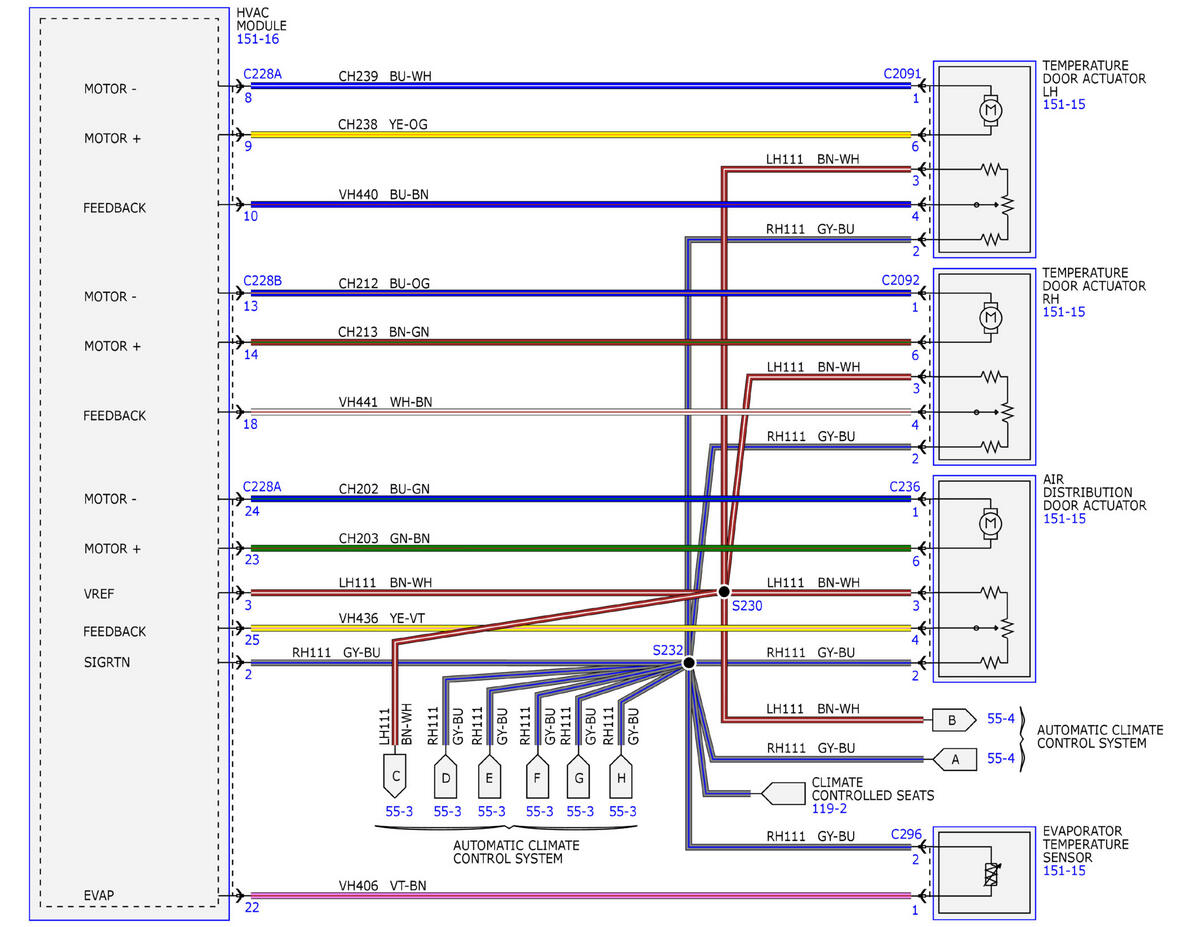

Fig 2: Automatic Climate Control System Wiring Diagram (2 of 8)

Courtesy of FORD MOTOR COMPANY

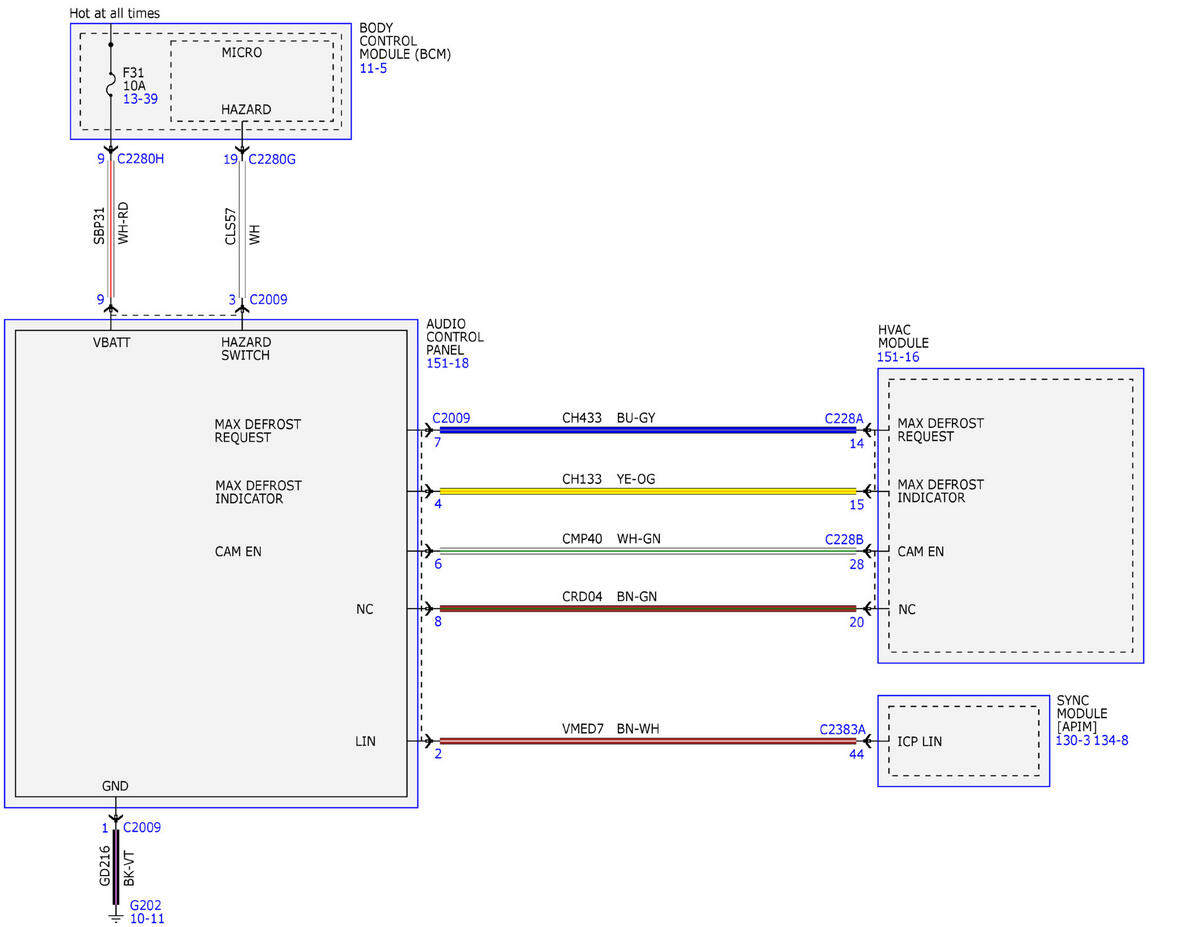

Fig 3: Automatic Climate Control System Wiring Diagram (3 of 8)

Courtesy of FORD MOTOR COMPANY

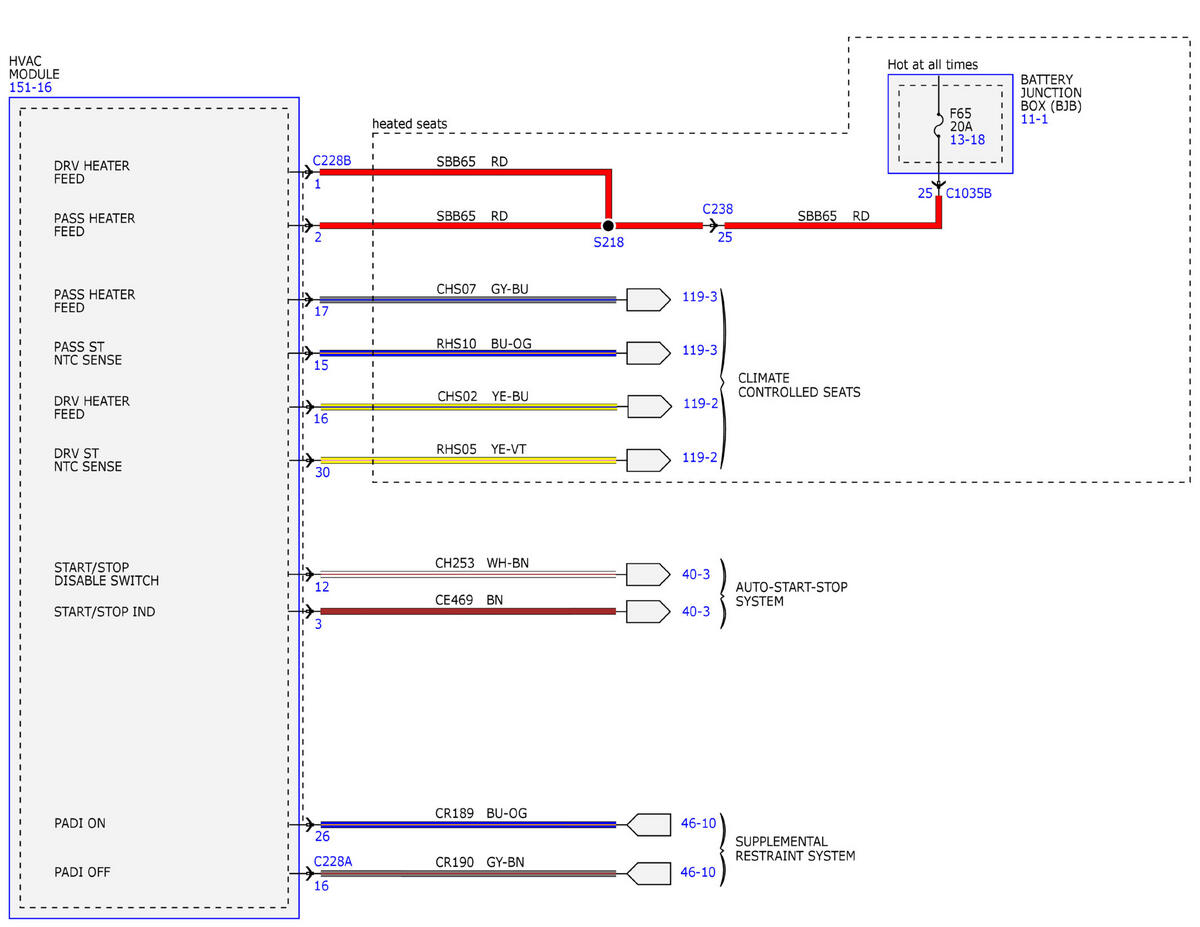

Fig 4: Automatic Climate Control System Wiring Diagram (4 of 8)

Courtesy of FORD MOTOR COMPANY

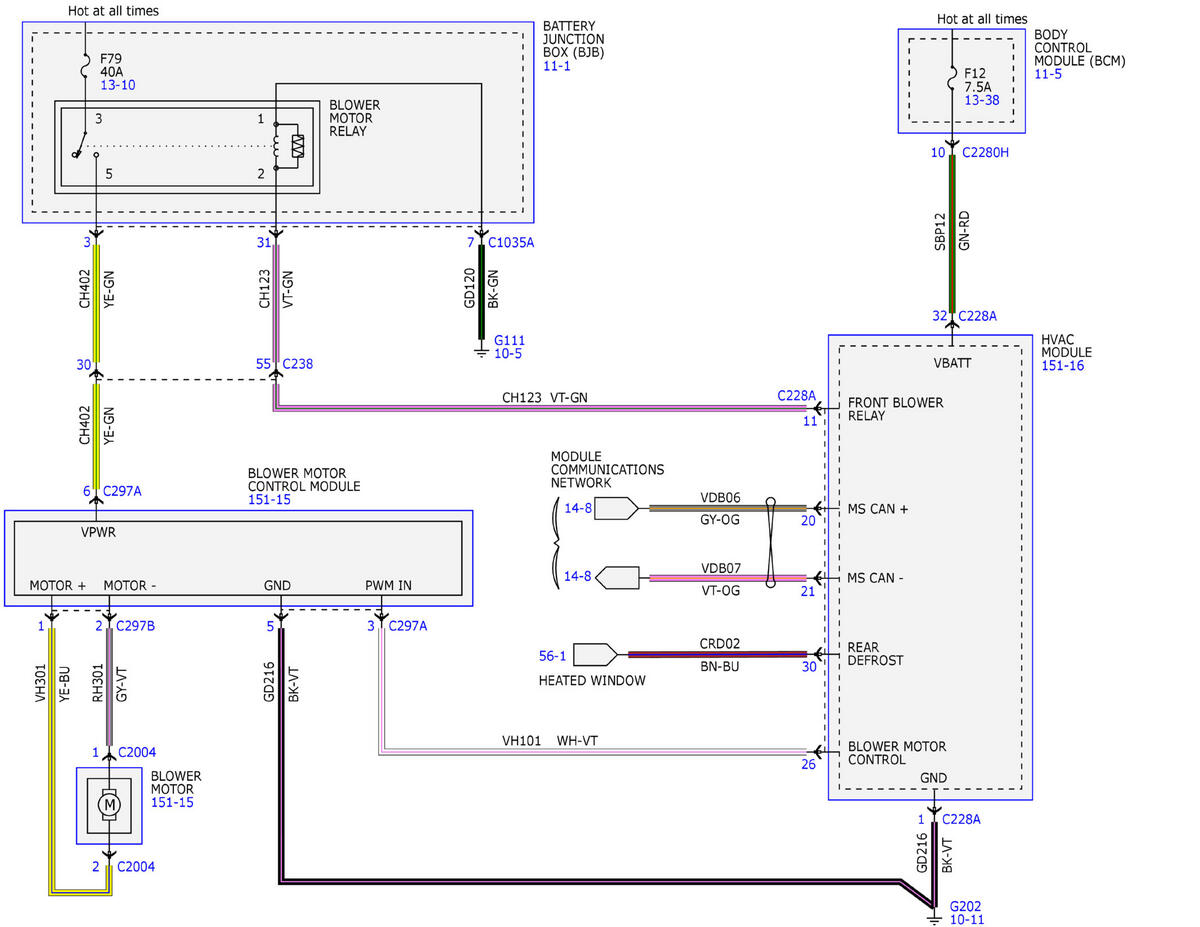

Fig 5: Automatic Climate Control System Wiring Diagram (5 of 8)

Courtesy of FORD MOTOR COMPANY

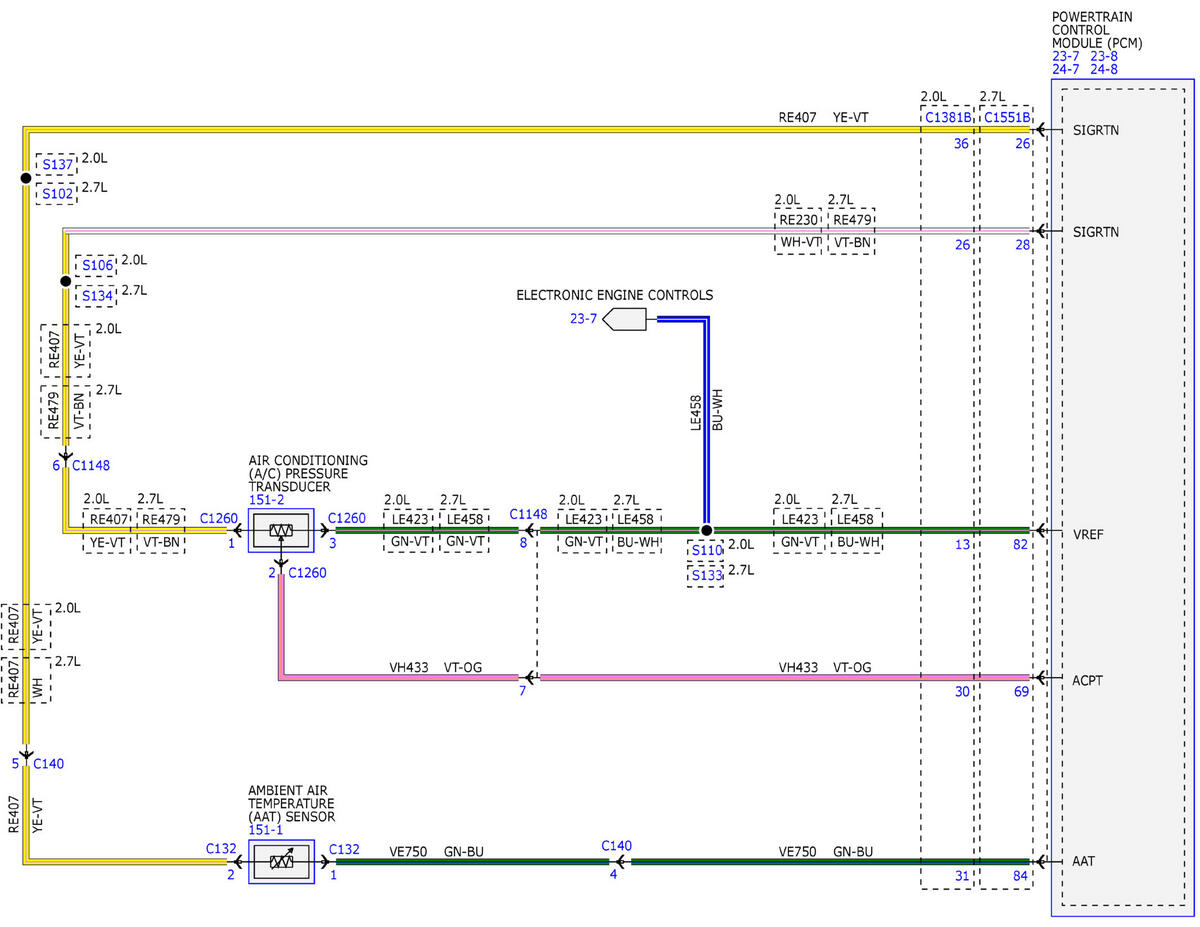

Fig 6: Automatic Climate Control System Wiring Diagram (6 of 8)

Courtesy of FORD MOTOR COMPANY

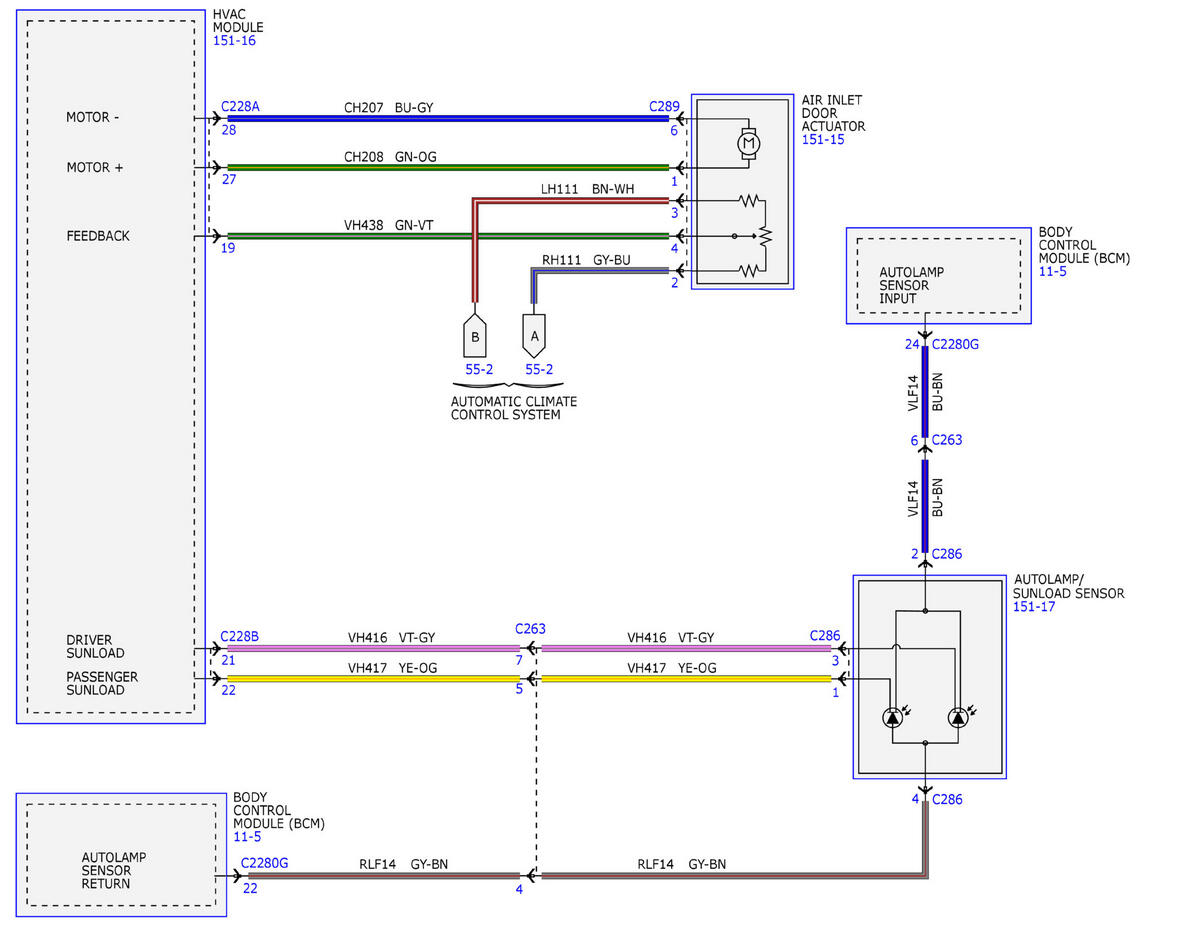

Fig 7: Automatic Climate Control System Wiring Diagram (7 of 8)

Courtesy of FORD MOTOR COMPANY

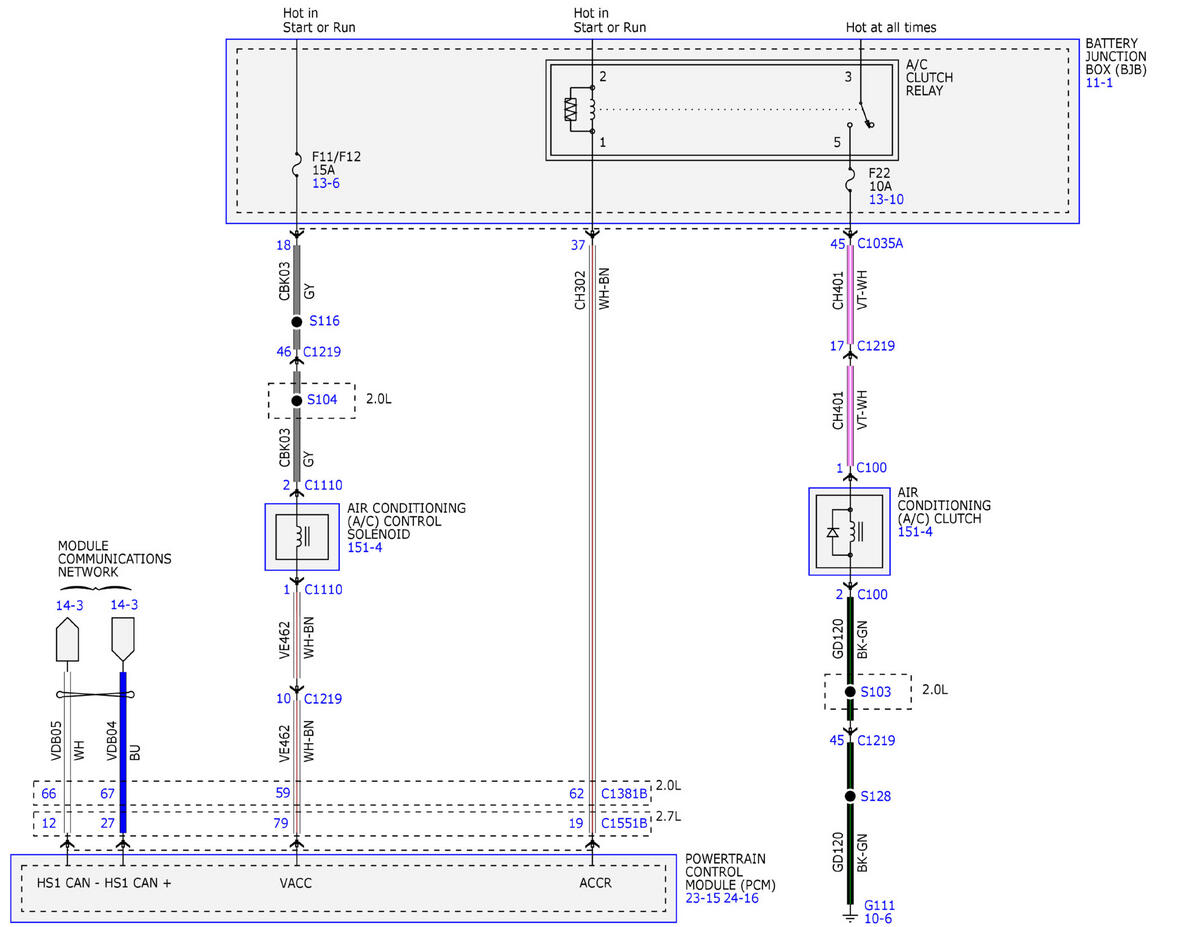

Fig 8: Automatic Climate Control System Wiring Diagram (8 of 8)

Courtesy of FORD MOTOR COMPANY
