Cruise Control

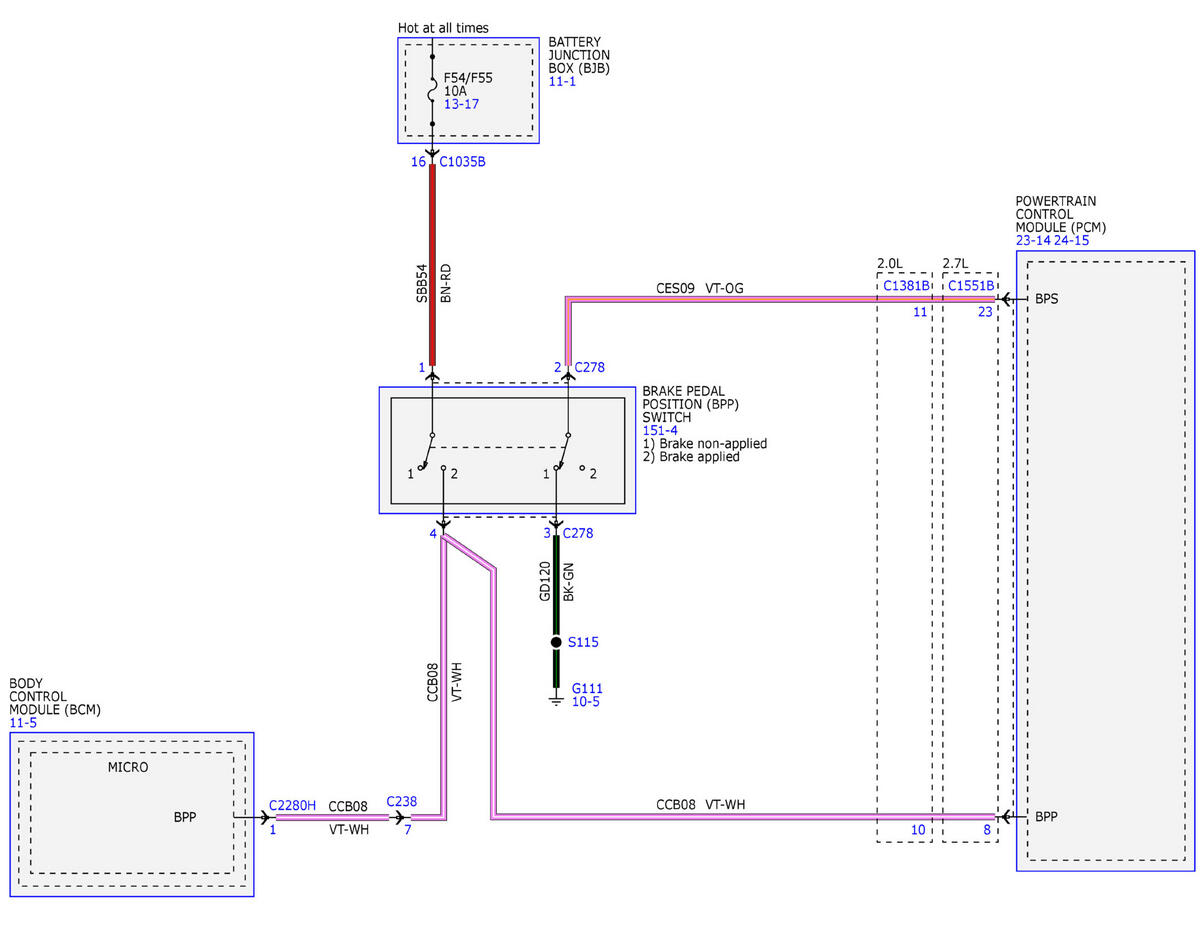

Fig 1: Cruise Control Wiring Diagram (1 of 8)

GFDWR221257

Courtesy of FORD MOTOR COMPANY

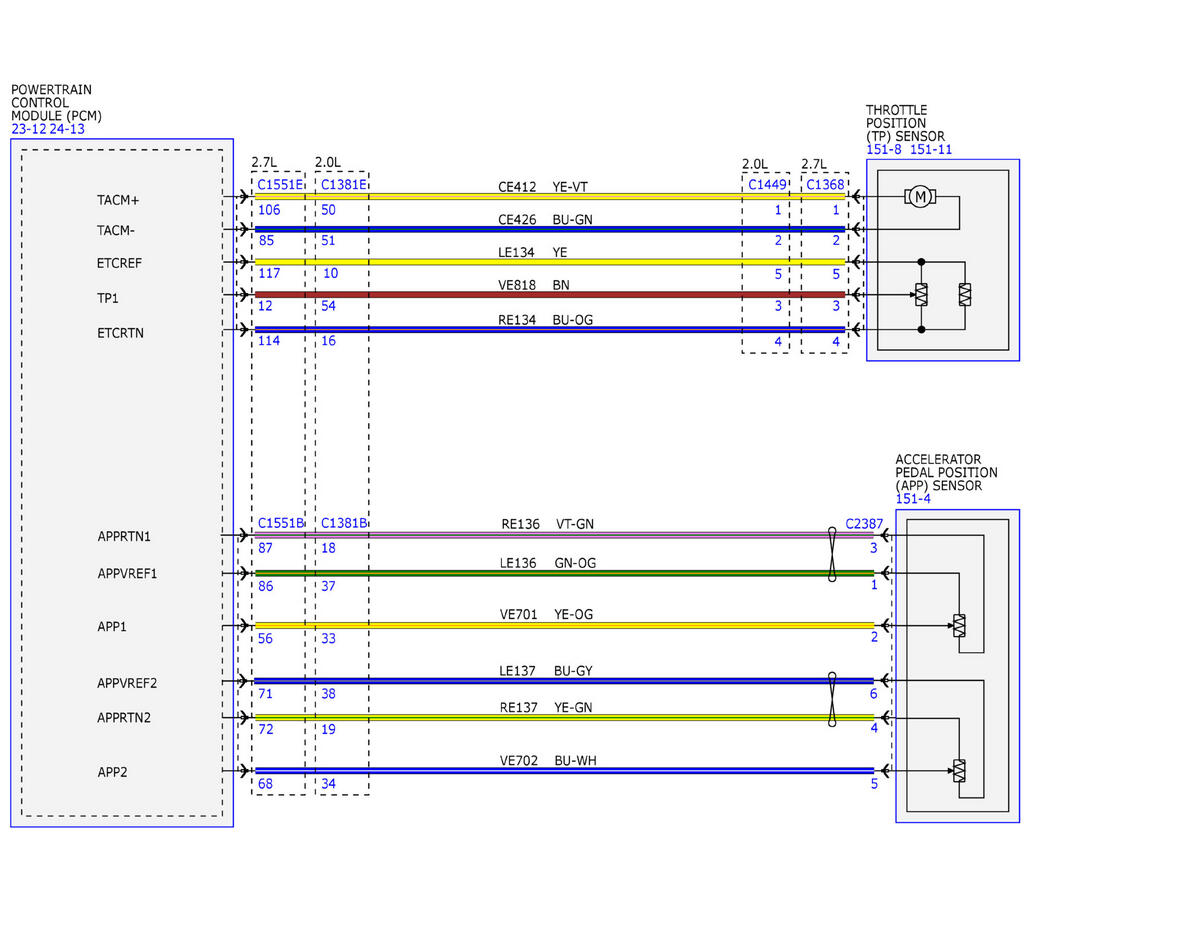

Fig 2: Cruise Control Wiring Diagram (2 of 8)

GFDWR221258

Courtesy of FORD MOTOR COMPANY

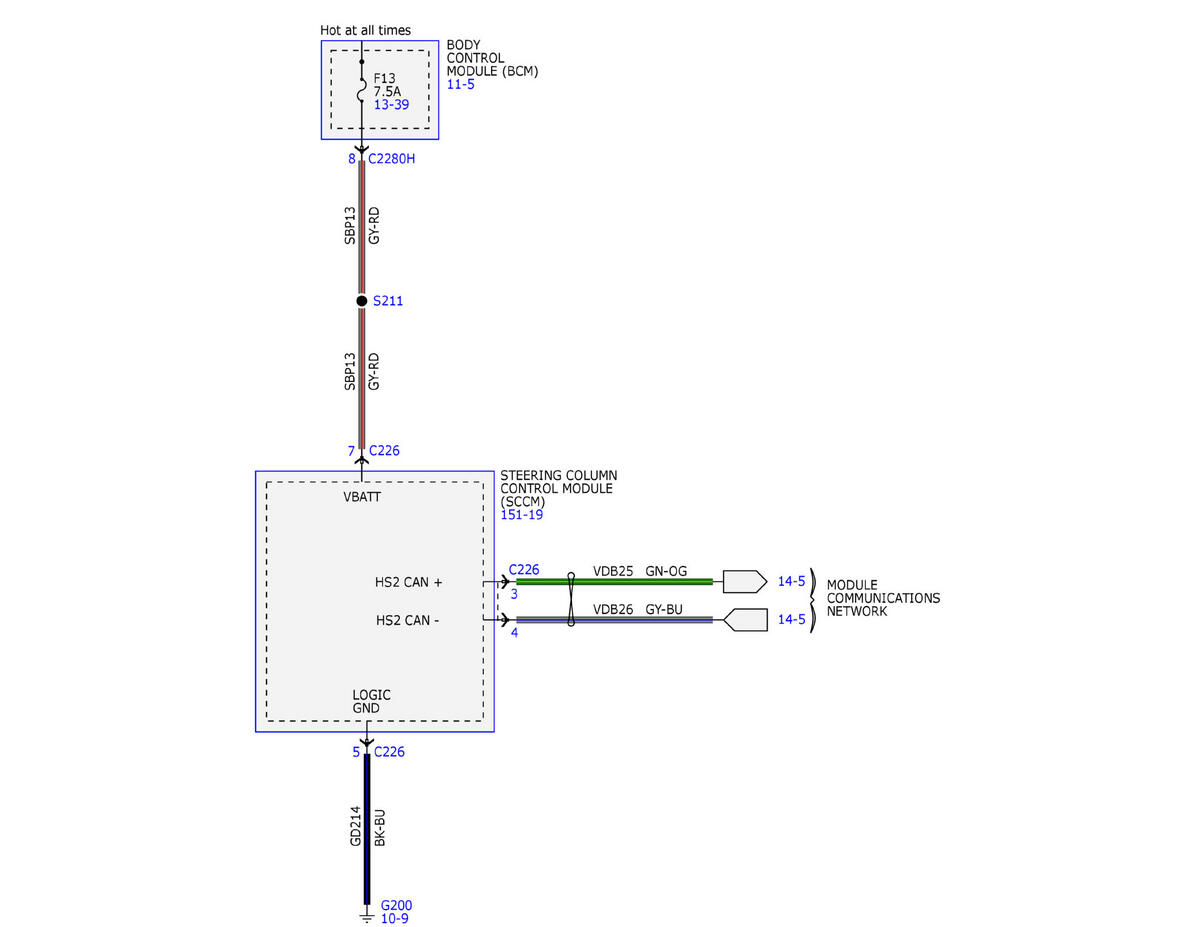

Fig 3: Cruise Control Wiring Diagram (3 of 8)

GFDWR221259

Courtesy of FORD MOTOR COMPANY

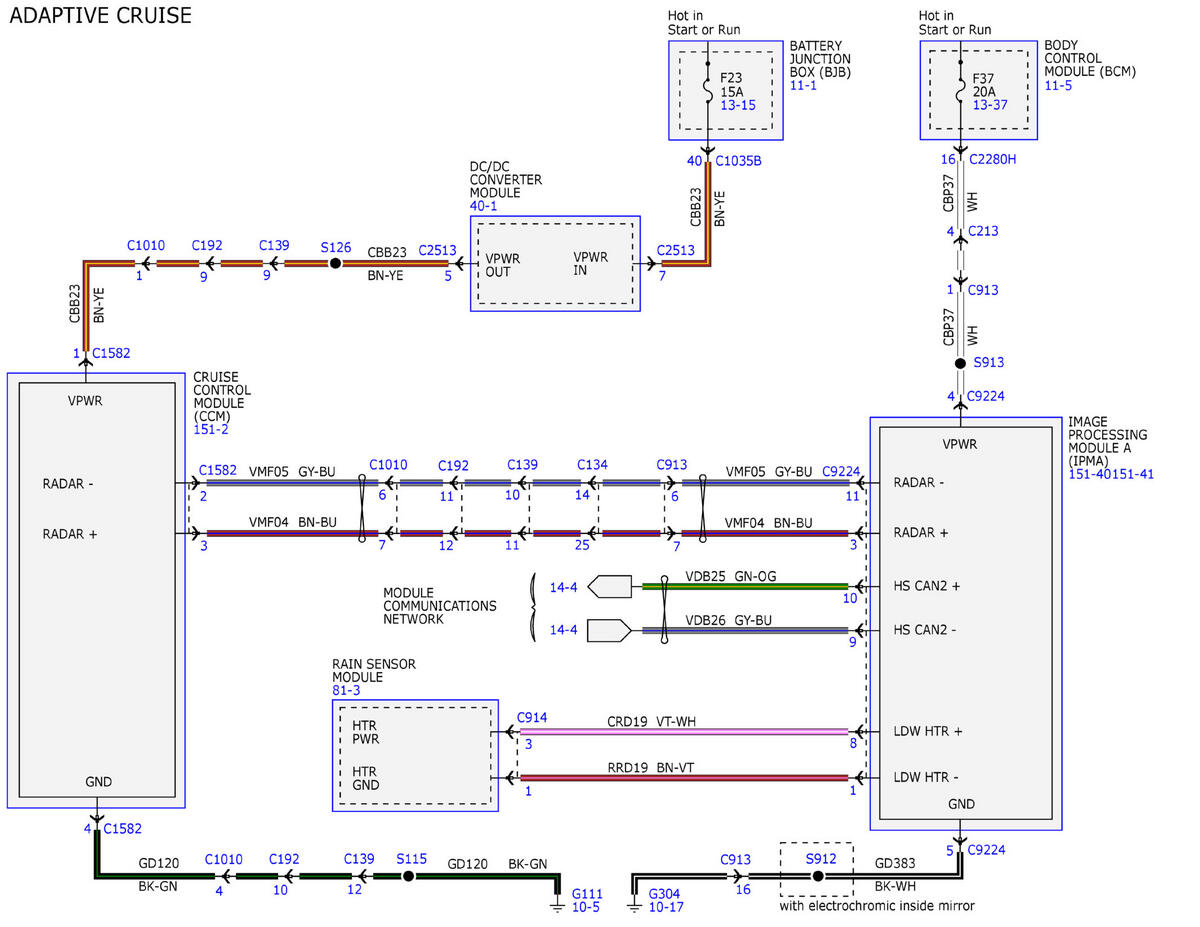

Fig 4: Cruise Control Wiring Diagram (4 of 8)

GFDWR221260

Courtesy of FORD MOTOR COMPANY

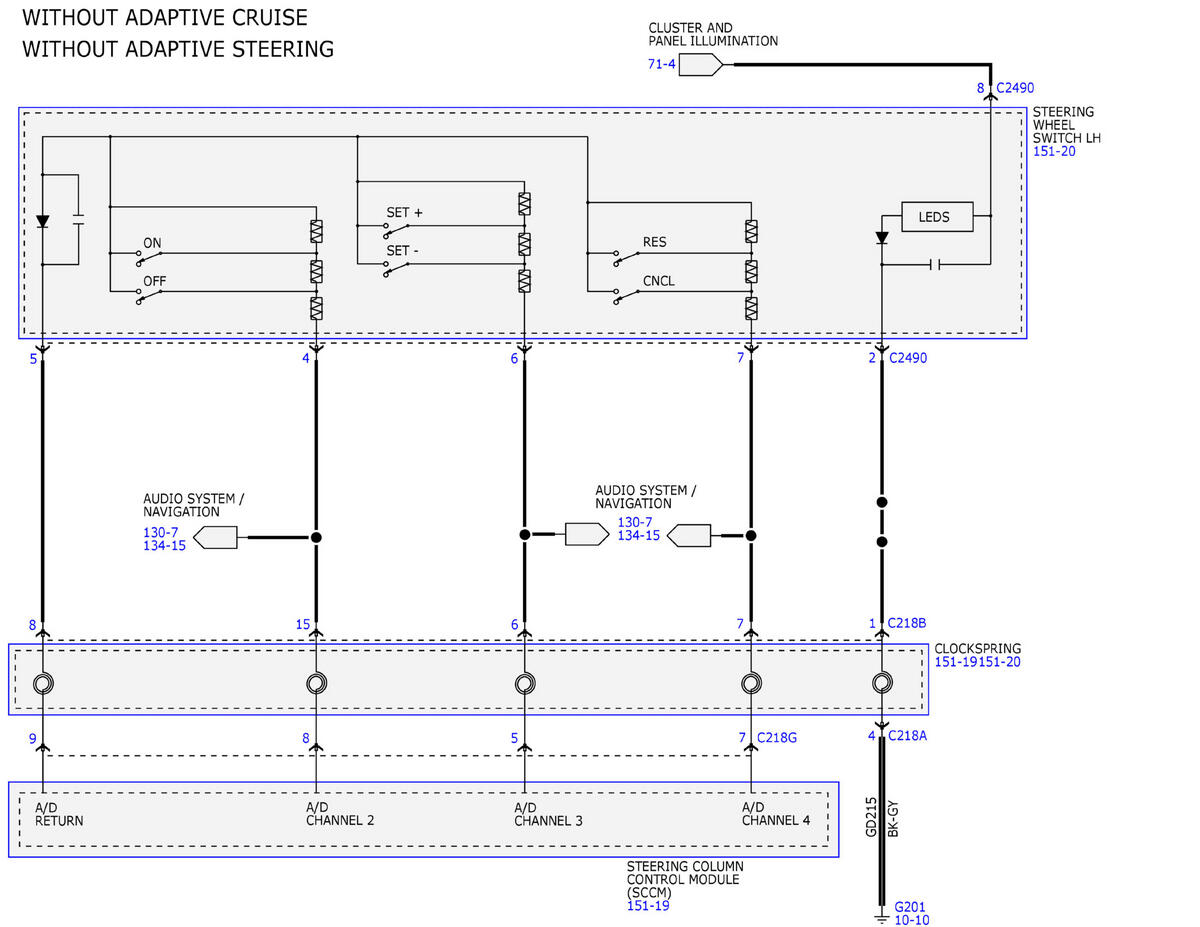

Fig 5: Cruise Control Wiring Diagram (5 of 8)

GFDWR221261

Courtesy of FORD MOTOR COMPANY

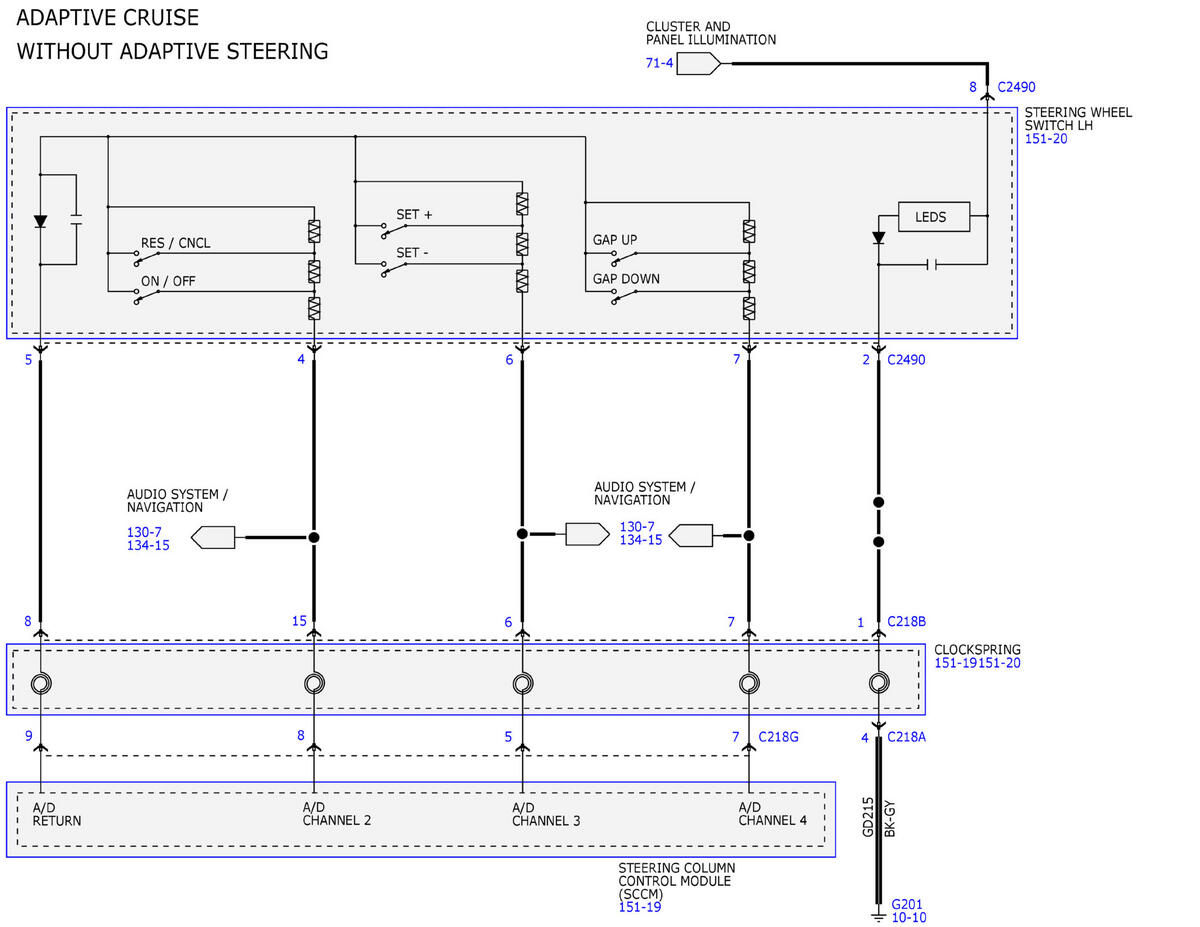

Fig 6: Cruise Control Wiring Diagram (6 of 8)

GFDWR221262

Courtesy of FORD MOTOR COMPANY

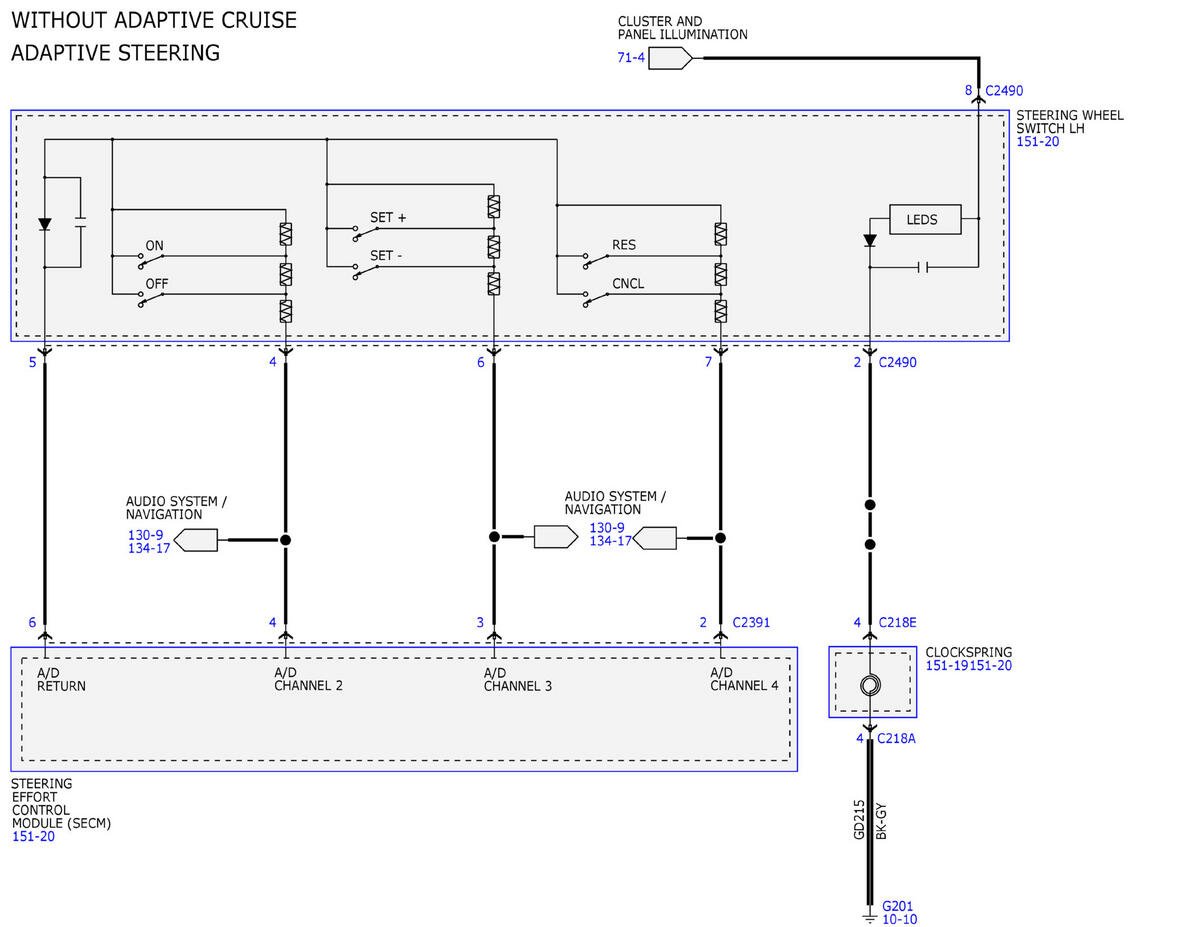

Fig 7: Cruise Control Wiring Diagram (7 of 8)

GFDWR221263

Courtesy of FORD MOTOR COMPANY

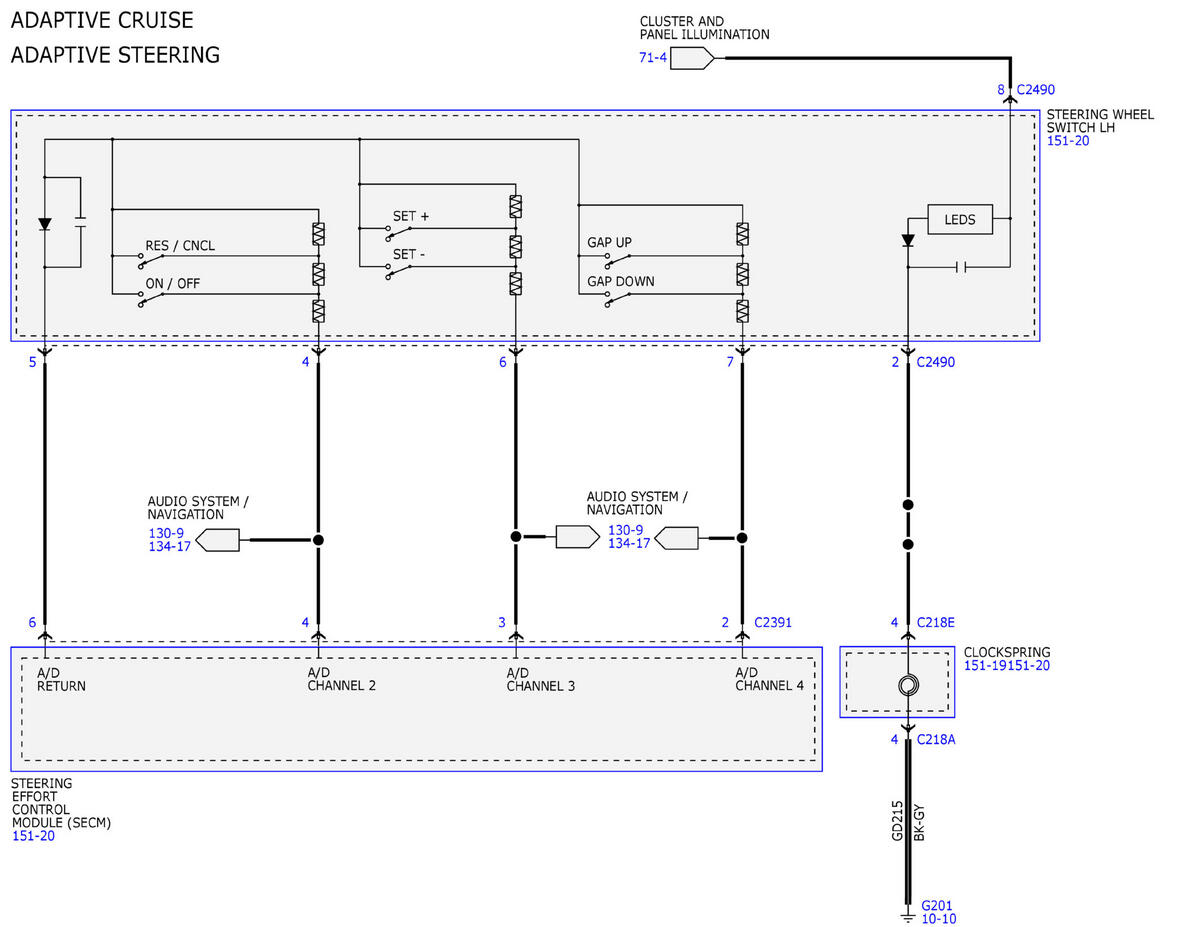

Fig 8: Cruise Control Wiring Diagram (8 of 8)

GFDWR221264

Courtesy of FORD MOTOR COMPANY
