Power Windows

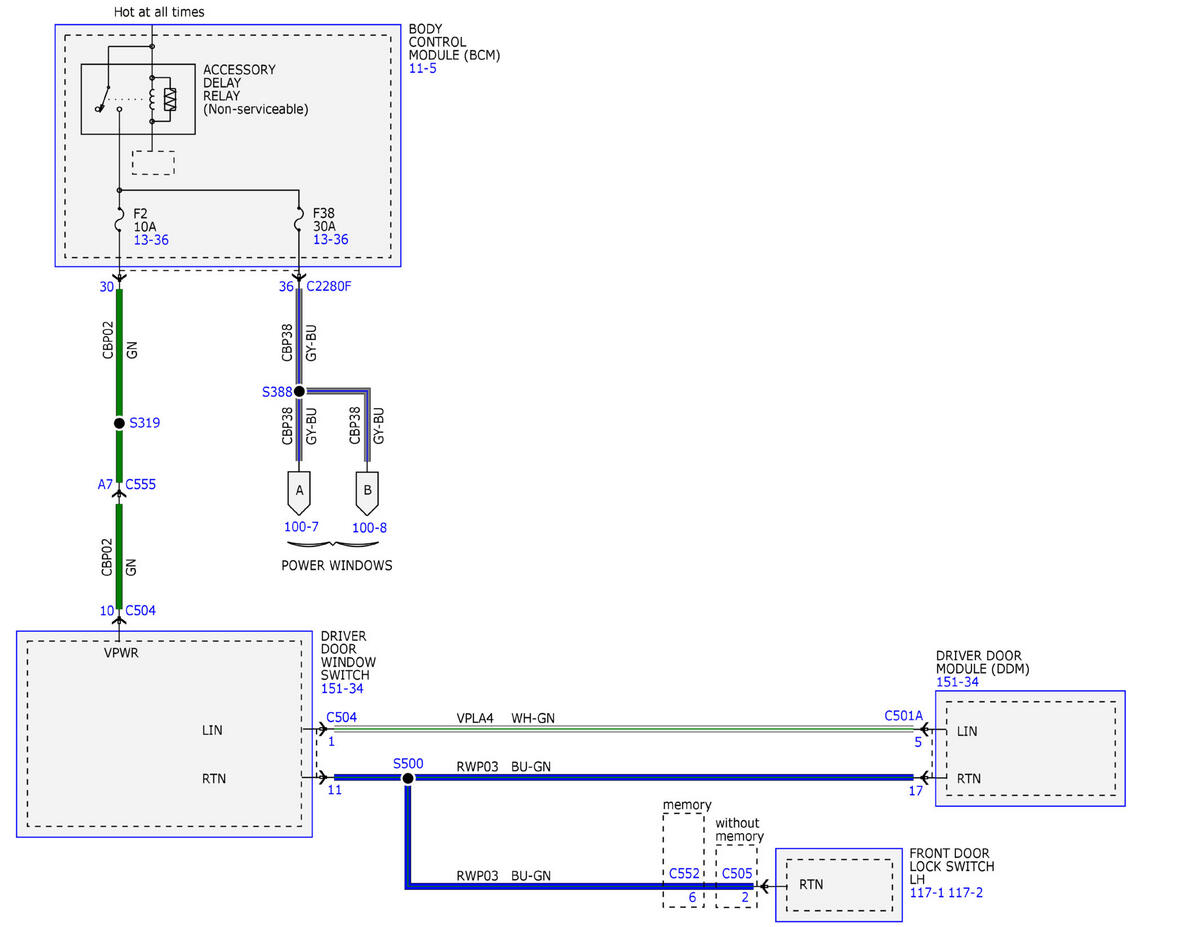

Fig 1: Power Windows Wiring Diagram (1 Of 8)

GFDWR221424

Courtesy of FORD MOTOR COMPANY

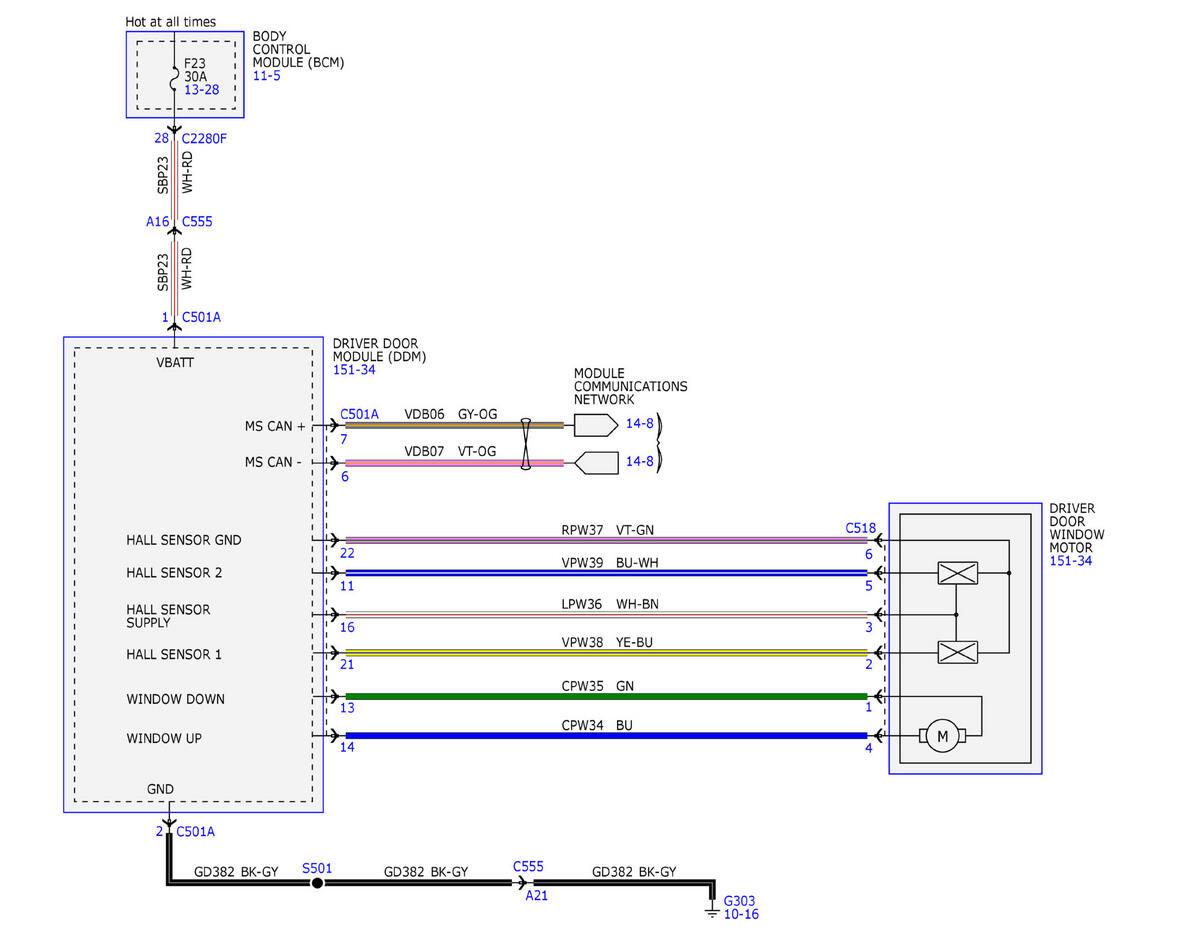

Fig 2: Power Windows Wiring Diagram (2 Of 8)

GFDWR221425

Courtesy of FORD MOTOR COMPANY

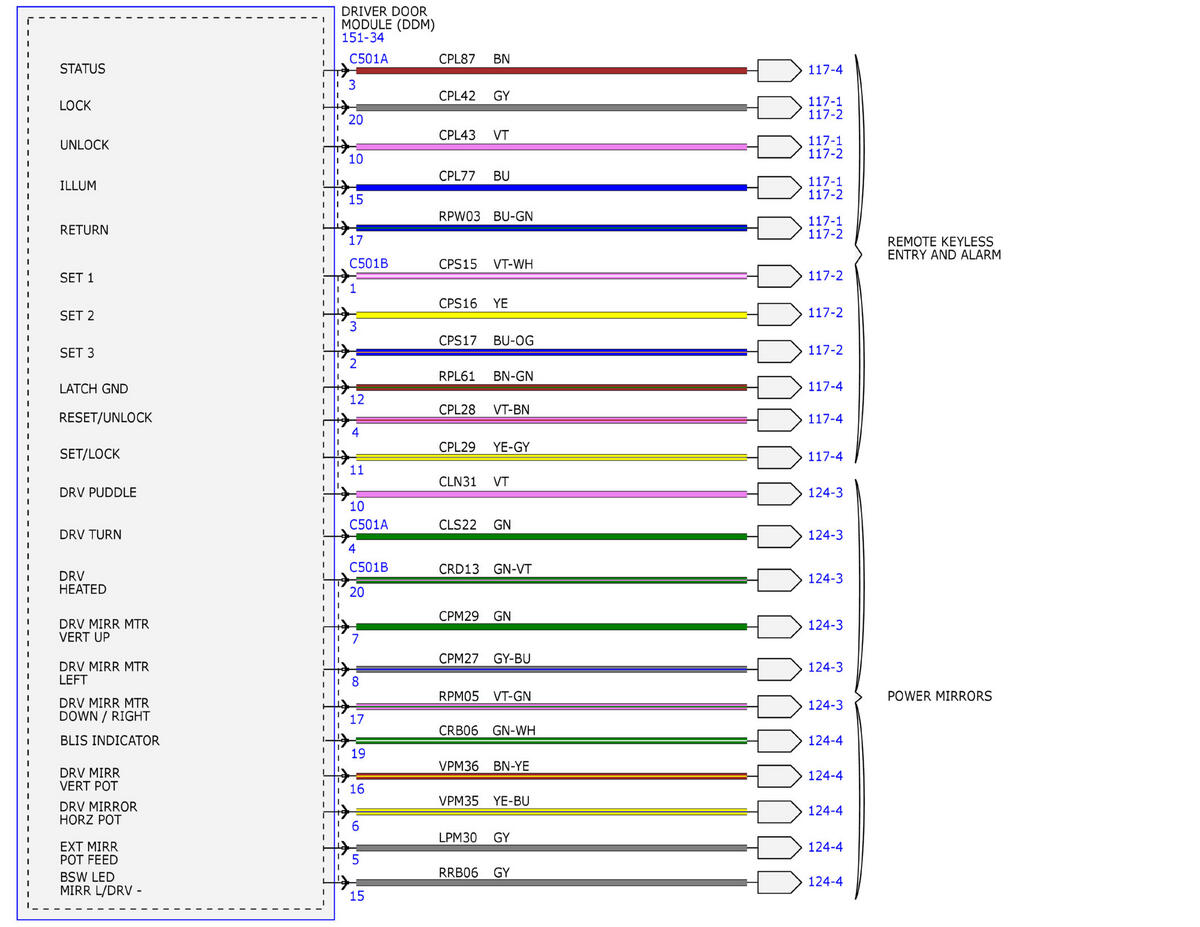

Fig 3: Power Windows Wiring Diagram (3 Of 8)

GFDWR221426

Courtesy of FORD MOTOR COMPANY

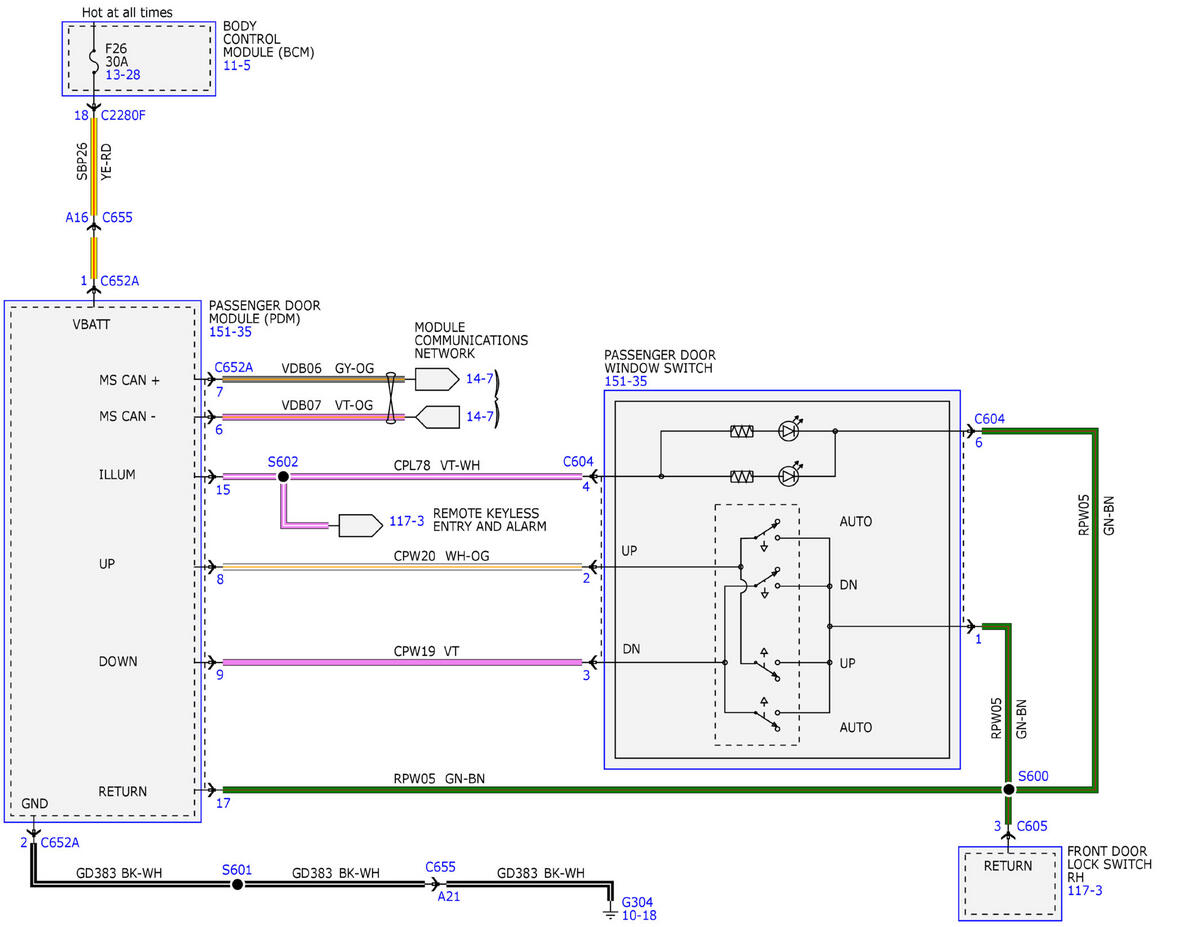

Fig 4: Power Windows Wiring Diagram (4 Of 8)

GFDWR221427

Courtesy of FORD MOTOR COMPANY

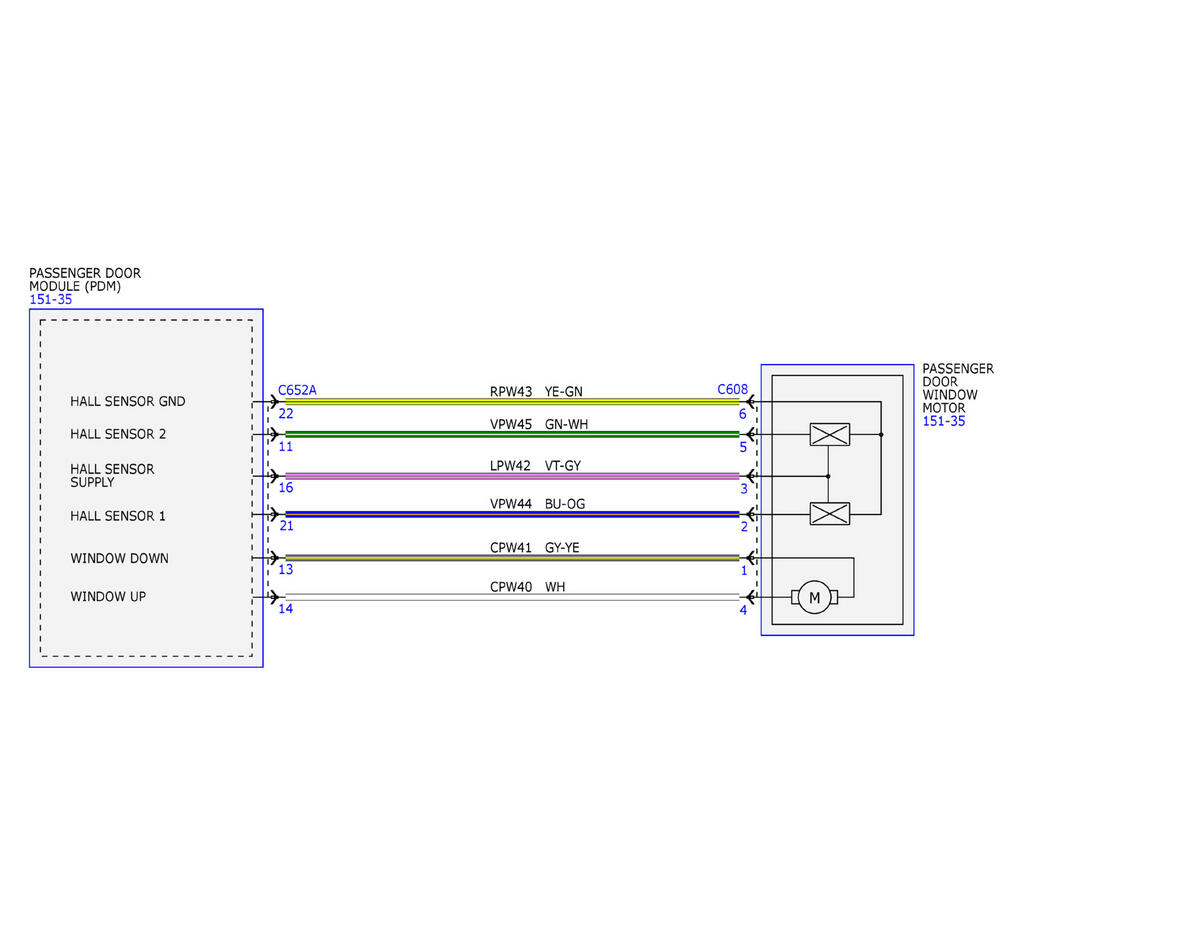

Fig 5: Power Windows Wiring Diagram (5 Of 8)

GFDWR221428

Courtesy of FORD MOTOR COMPANY

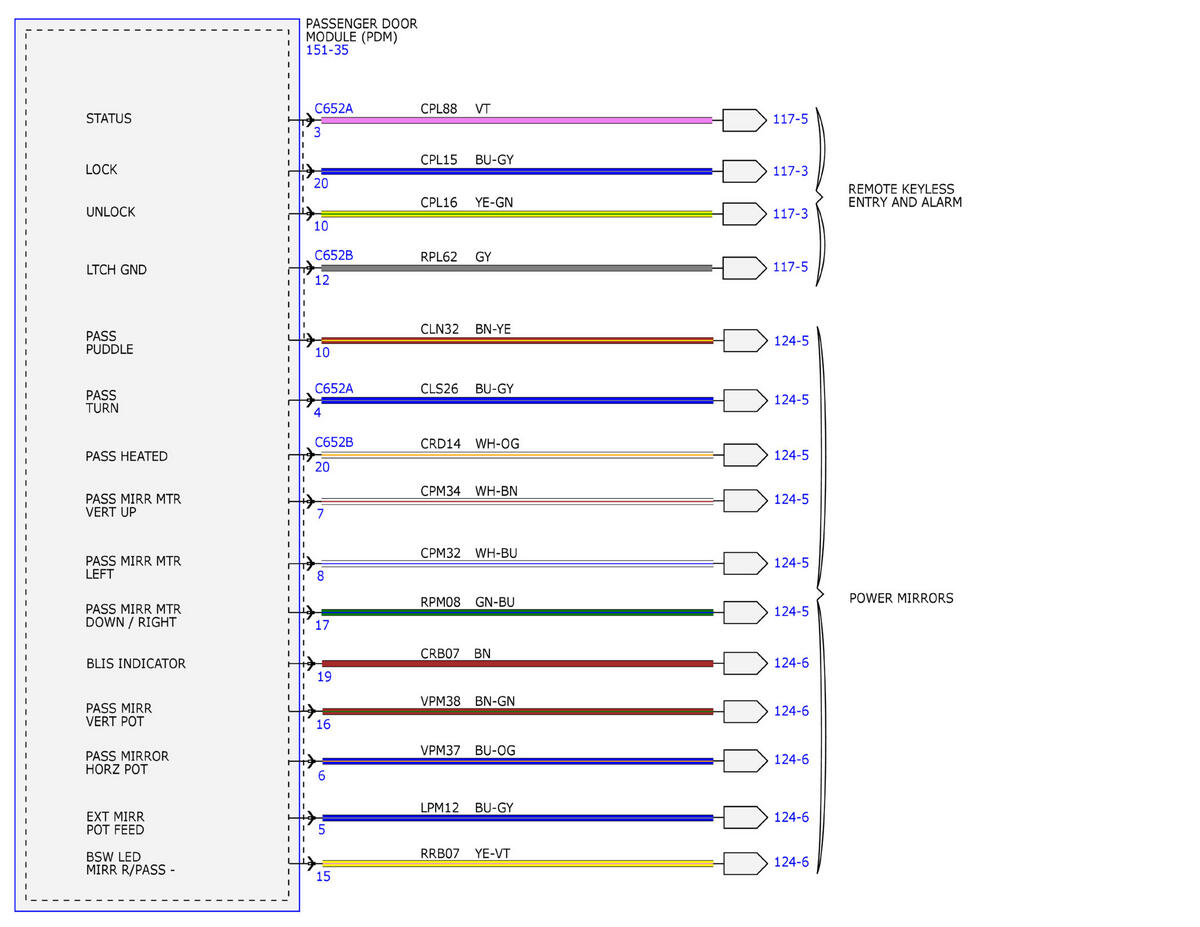

Fig 6: Power Windows Wiring Diagram (6 Of 8)

GFDWR221429

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Windows Wiring Diagram (7 Of 8)

GFDWR221430

Courtesy of FORD MOTOR COMPANY

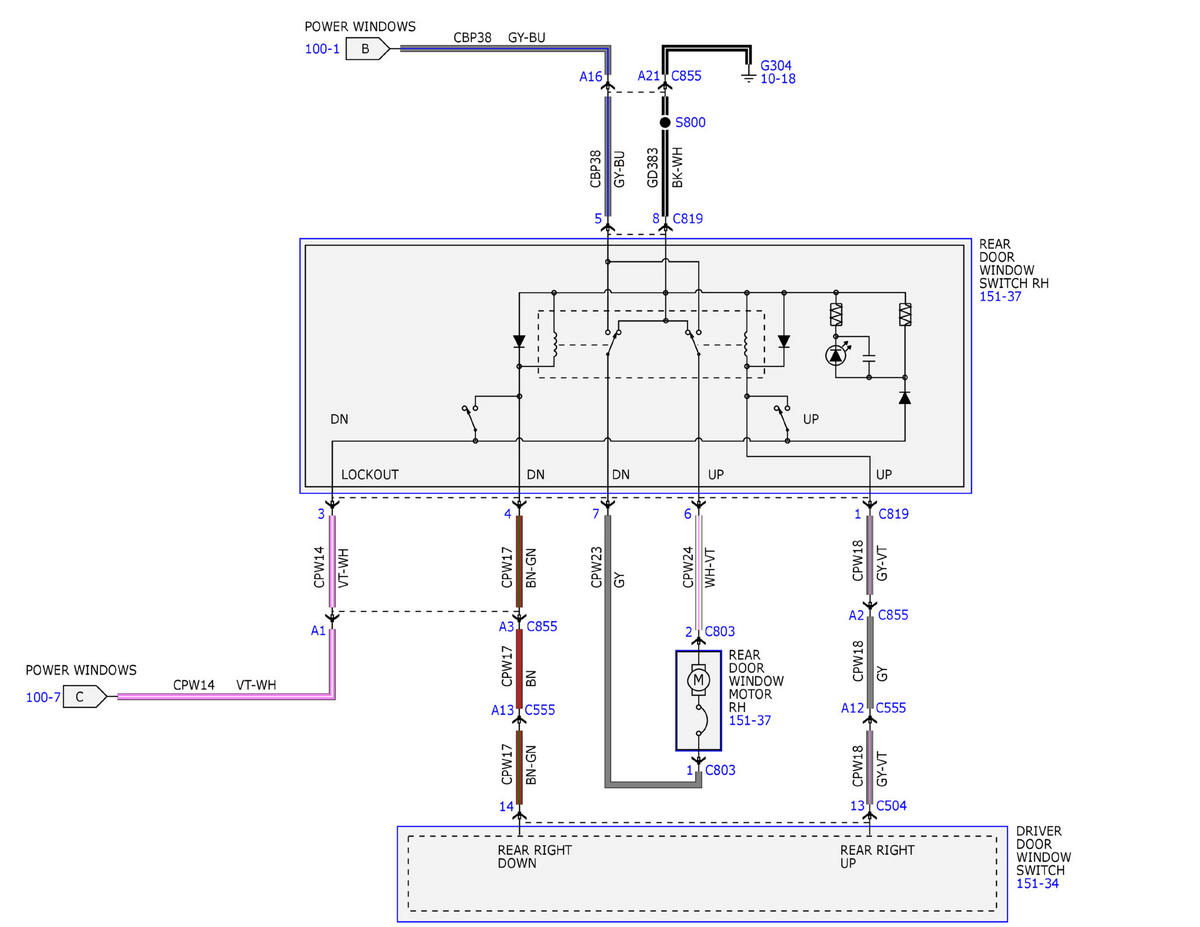

Fig 8: Power Windows Wiring Diagram (8 Of 8)

GFDWR221431

Courtesy of FORD MOTOR COMPANY
