Quick Release Coupling

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

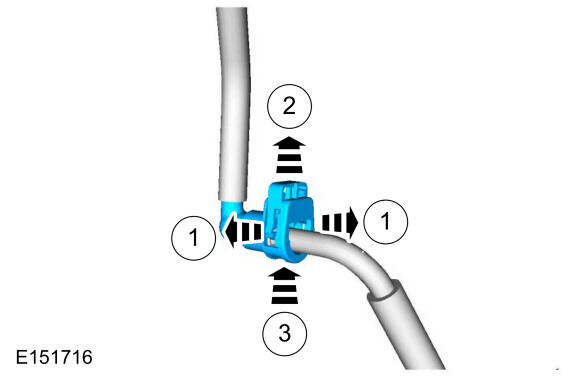

    GFD814425Courtesy of FORD MOTOR COMPANY
    GFD814426Courtesy of FORD MOTOR COMPANY

    Connect

  3. Push the quick release coupling onto the tube.
    GFD814427Courtesy of FORD MOTOR COMPANY

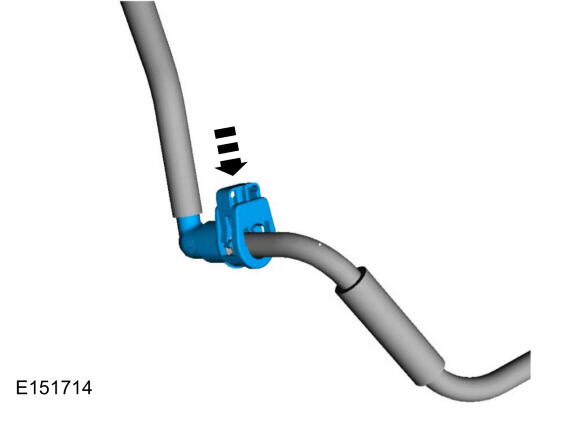

  4. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

    GFD814428Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 2
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  7. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814429Courtesy of FORD MOTOR COMPANY
    GFD814430Courtesy of FORD MOTOR COMPANY

    Connect

    GFD814431Courtesy of FORD MOTOR COMPANY
    GFD814432Courtesy of FORD MOTOR COMPANY
  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 3
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814433Courtesy of FORD MOTOR COMPANY

    Connect

    GFD814434Courtesy of FORD MOTOR COMPANY
    GFD814435Courtesy of FORD MOTOR COMPANY
  11. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 4
  12. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  13. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

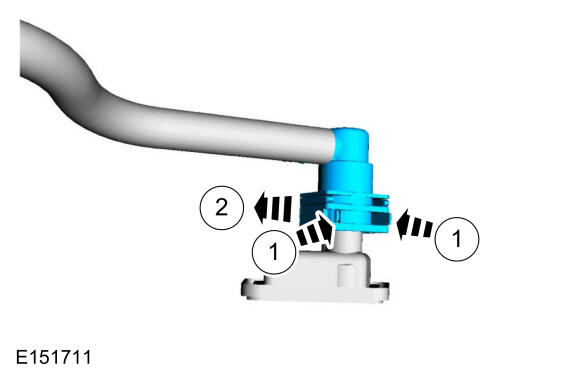

    GFD814436Courtesy of FORD MOTOR COMPANY
    GFD814437Courtesy of FORD MOTOR COMPANY

    Connect

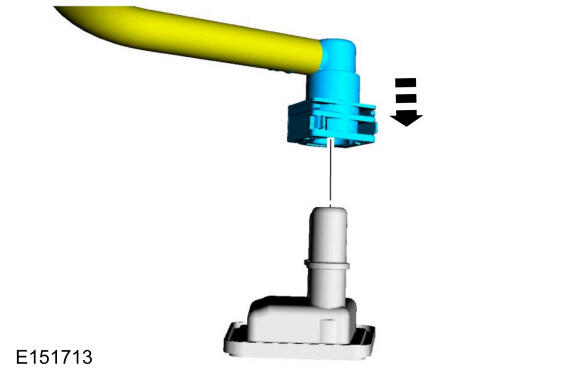

    GFD814438Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 5
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  3. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814439Courtesy of FORD MOTOR COMPANY
    GFD814440Courtesy of FORD MOTOR COMPANY

    Connect

    GFD814441Courtesy of FORD MOTOR COMPANY
  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 6
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  6. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
  7. Press the tabs of the rear retainer clip and pull it to the outward position.
    GFD814442Courtesy of FORD MOTOR COMPANY
    GFD814443Courtesy of FORD MOTOR COMPANY

    Connect

  8. Pull on the quick release coupling to make sure it is securely fastened.
    GFD814444Courtesy of FORD MOTOR COMPANY
  9. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 7
  10. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  11. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814445Courtesy of FORD MOTOR COMPANY
    GFD814446Courtesy of FORD MOTOR COMPANY

    Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD814447Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 8
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814439Courtesy of FORD MOTOR COMPANY
    GFD814440Courtesy of FORD MOTOR COMPANY

    Connect

    GFD814441Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 9
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  7. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

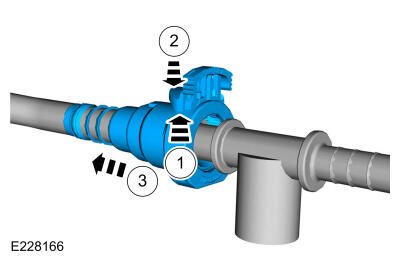

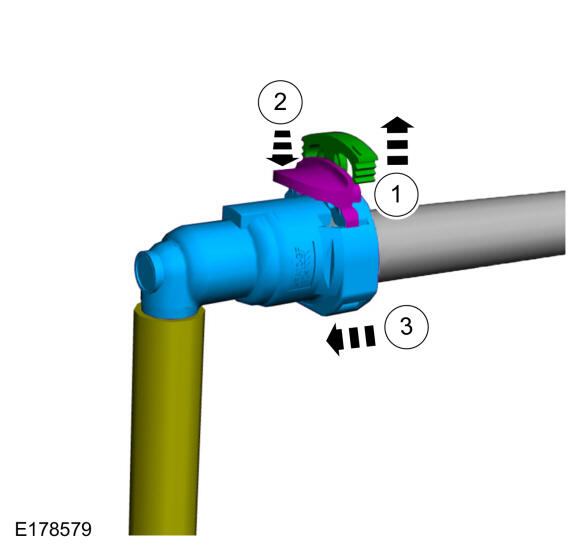

    1. Release the secondary locking tab.
    2. Press the primary locking tab.
    3. Separate the quick release coupling from the tube.
    GFD814448Courtesy of FORD MOTOR COMPANY

    Connect

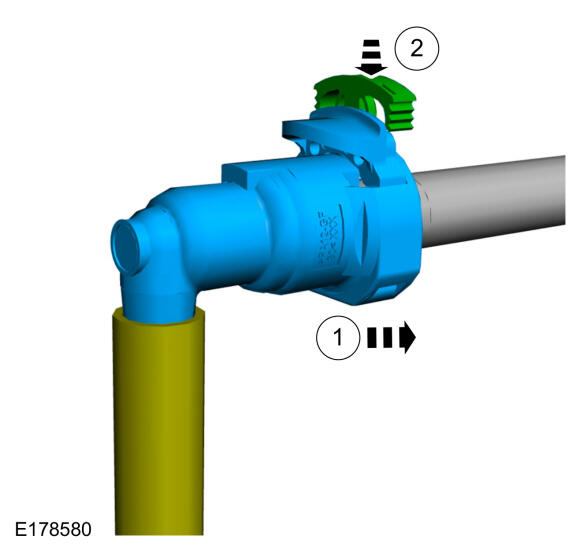

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

    GFD814449Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 10
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

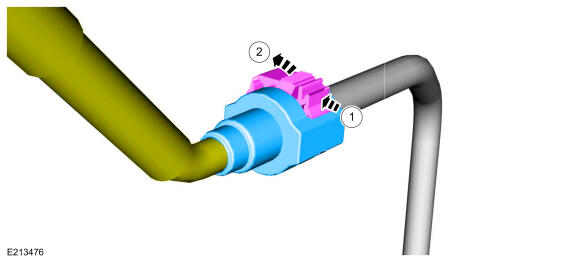

    1. Push on the locking tab.
    2. Lift the clip.
    GFD814450Courtesy of FORD MOTOR COMPANY

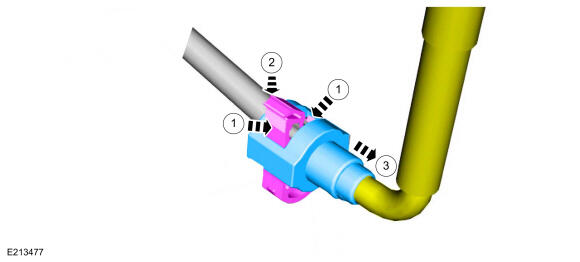

    1. Press the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.
    GFD814451Courtesy of FORD MOTOR COMPANY

    Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

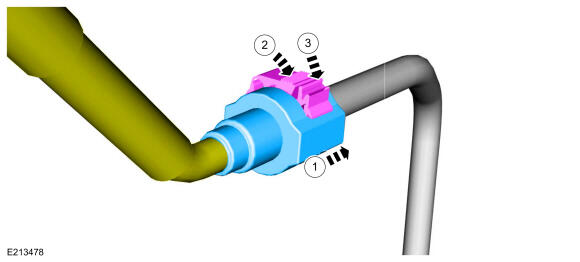

    GFD814452Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 11
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

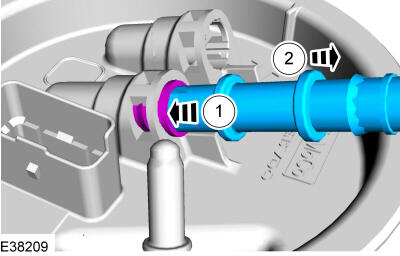

    GFD814453Courtesy of FORD MOTOR COMPANY

    Connect

  3. GFD814453Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 12
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814454Courtesy of FORD MOTOR COMPANY
    GFD814455Courtesy of FORD MOTOR COMPANY

    Connect

  2. GFD814456Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 13
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814457Courtesy of FORD MOTOR COMPANY

    Connect

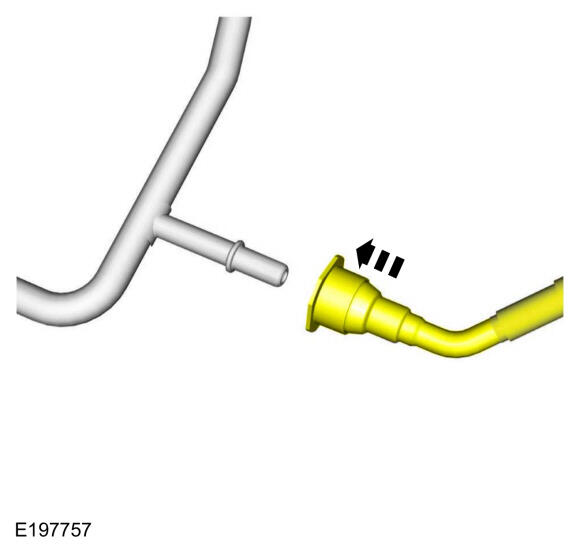

  6. GFD814458Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  7. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 14
  8. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  9. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814459Courtesy of FORD MOTOR COMPANY

    Connect

    GFD814460Courtesy of FORD MOTOR COMPANY
  10. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.

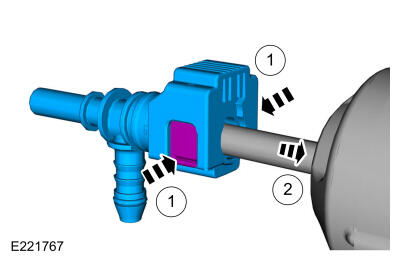

  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.
    GFD814461Courtesy of FORD MOTOR COMPANY

    Connect

  1. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD814462Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 16
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

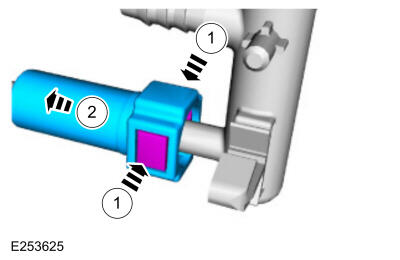

    GFD814463Courtesy of FORD MOTOR COMPANY

    Connect

  5. GFD814463Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  6. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814464Courtesy of FORD MOTOR COMPANY

    Connect

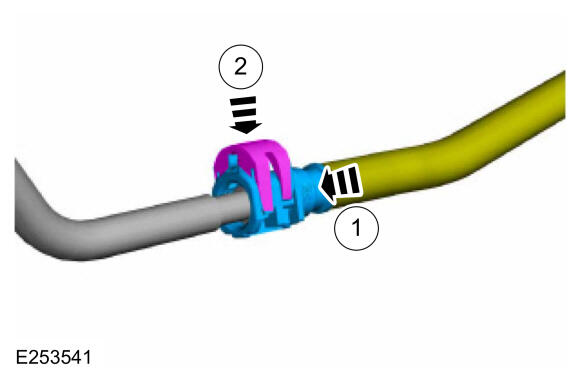

  1. GFD814465Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 18
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables - 3.0L EcoBoost).

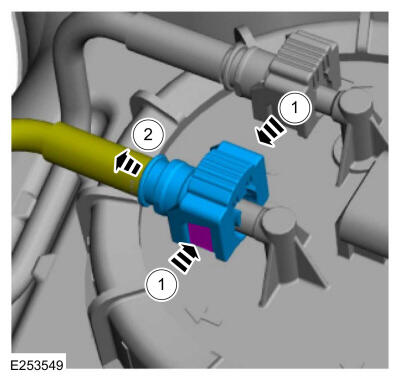

    GFD814466Courtesy of FORD MOTOR COMPANY

    Connect

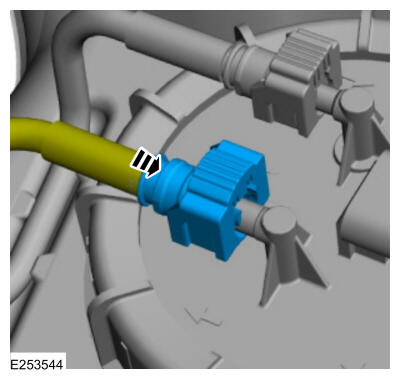

  4. GFD814467Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

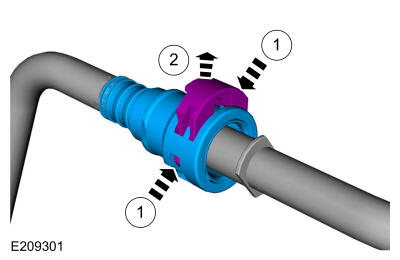

    GFD814468Courtesy of FORD MOTOR COMPANY

    Connect

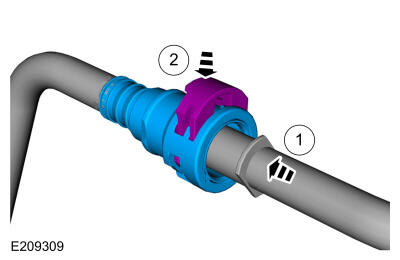

  3. GFD814469Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 20
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  6. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814470Courtesy of FORD MOTOR COMPANY

    Connect

  7. GFD814471Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 21
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

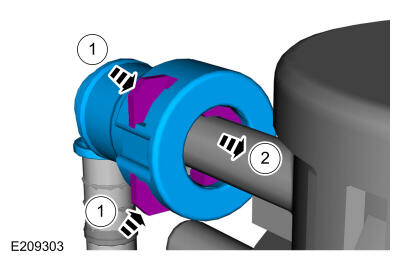

    GFD814472Courtesy of FORD MOTOR COMPANY

    Connect

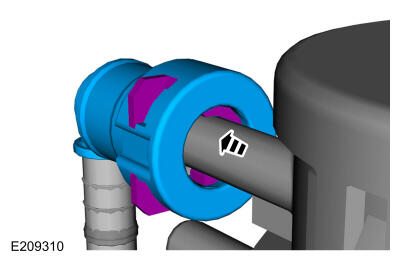

  1. GFD814473Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 22
  3. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  4. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

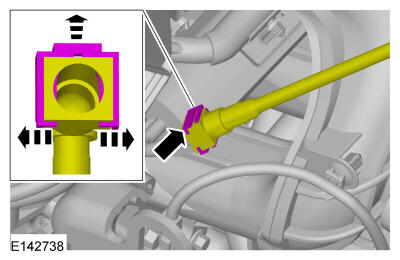

    GFD814474Courtesy of FORD MOTOR COMPANY

    Connect

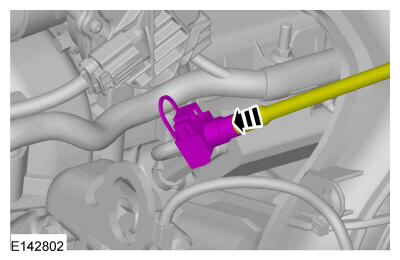

    GFD814475Courtesy of FORD MOTOR COMPANY

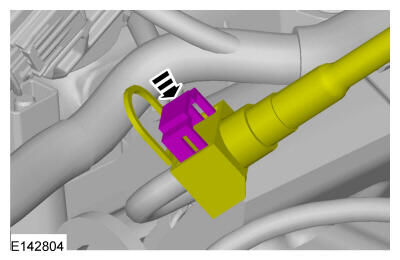

  1. GFD814476Courtesy of FORD MOTOR COMPANY
  2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

    Snap the locking tab into place.

  3. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only necessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

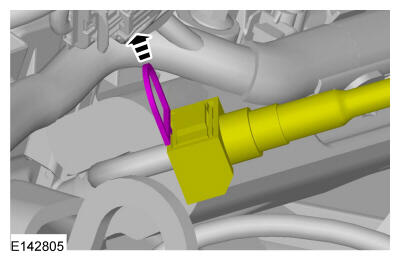

    GFD814477Courtesy of FORD MOTOR COMPANY
  4. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 23
  5. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814478Courtesy of FORD MOTOR COMPANY

    Connect

  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD814479Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    GFD814480Courtesy of FORD MOTOR COMPANY

    Connect

  2. GFD814481Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 25
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
    1. Press the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.

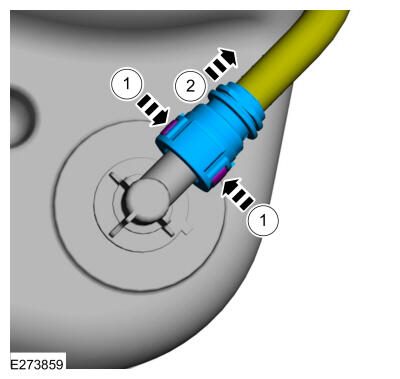

    GFD814482Courtesy of FORD MOTOR COMPANY

    Connect

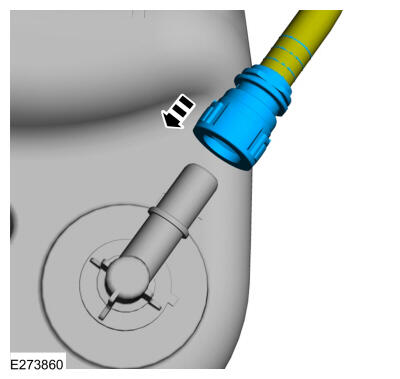

  7. GFD814483Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  8. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 26
  9. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  10. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

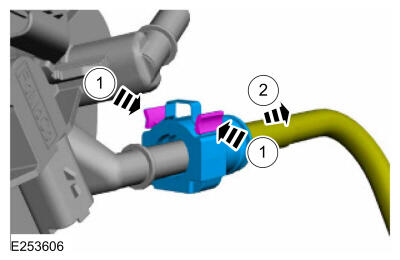

  1. GFD814484Courtesy of FORD MOTOR COMPANY

    Connect

    1. Remove the quick release coupling from the tube.

  2. GFD814485Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Type 27
  4. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  5. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

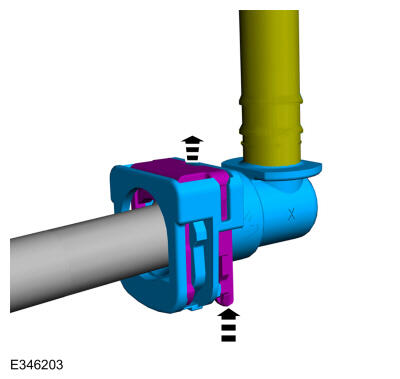

    GFD814486Courtesy of FORD MOTOR COMPANY
  1. Remove the quick release coupling from the tube.

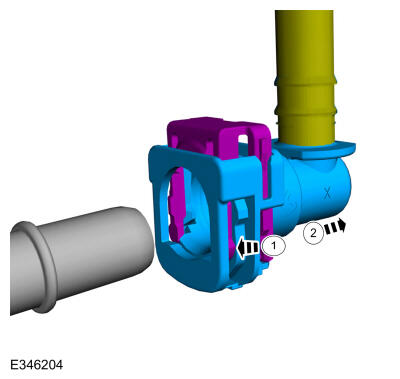

    GFD814487Courtesy of FORD MOTOR COMPANY

    Connect

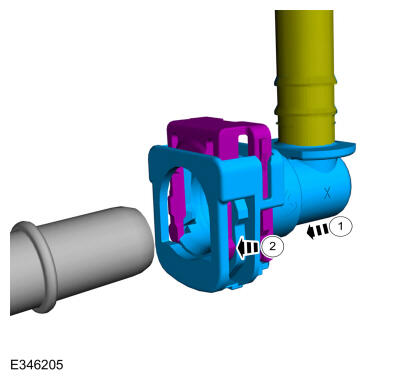

  1. GFD814488Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components, which may cause fuel leaks.
    NOTE: Quick connect retainer clip is a serviceable part and can be replaced if it is lost during assembly.
    NOTE: Type 28
  2. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  1. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

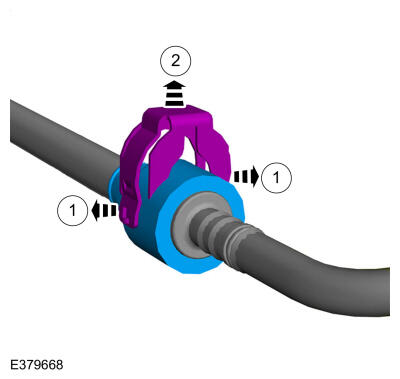

  2. Dislodge the clip.
  3. Pulling out the clip upward.
  1. GFD814489Courtesy of FORD MOTOR COMPANY

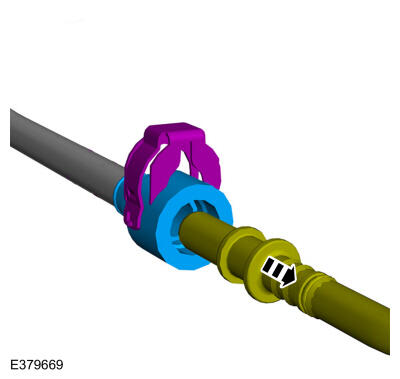

  2. Remove the tube.
    GFD814490Courtesy of FORD MOTOR COMPANY

    Connect

  3. Insert the tube.

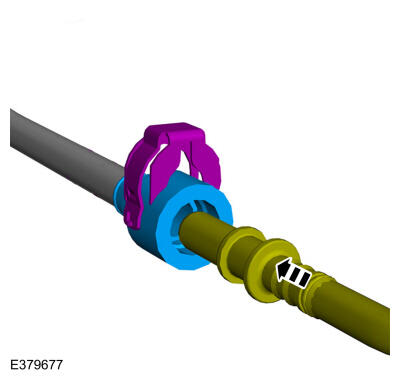

    GFD814491Courtesy of FORD MOTOR COMPANY
  4. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

    GFD814492Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

    Disconnect

    NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
    NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
    NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
    NOTE: Quick connect retainer clip is a serviceable part and can be replaced if it is lost during assembly.
    NOTE: Type 29
  6. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  7. Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .

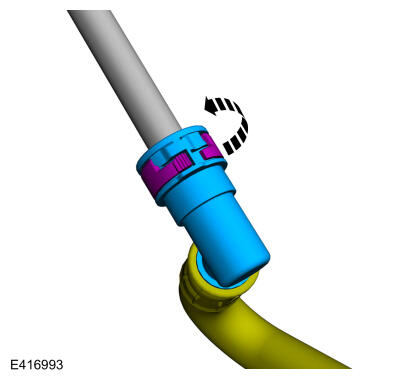

  1. Detach the retainer and then rotate counter-clockwise.
    GFD814493Courtesy of FORD MOTOR COMPANY
  1. Remove the tube.

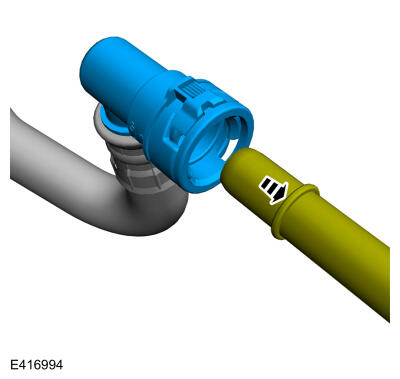

    GFD814494Courtesy of FORD MOTOR COMPANY

    Connect

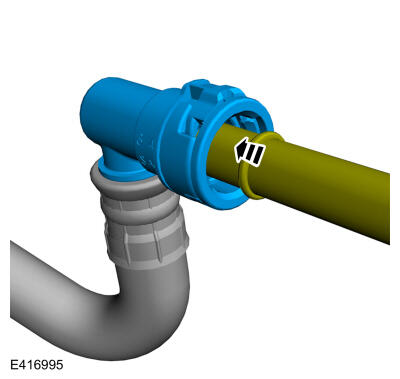

  2. Insert the tube.
    GFD814495Courtesy of FORD MOTOR COMPANY
  3. Rotate the retainer clockwise into the quick release coupling and then position aside the original position.

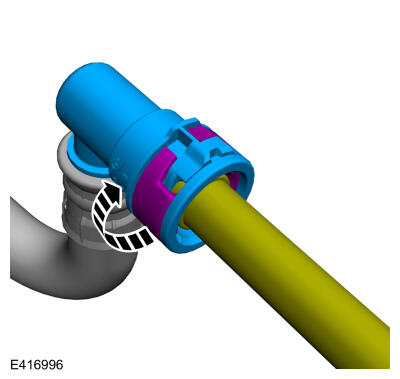

    GFD814496Courtesy of FORD MOTOR COMPANY

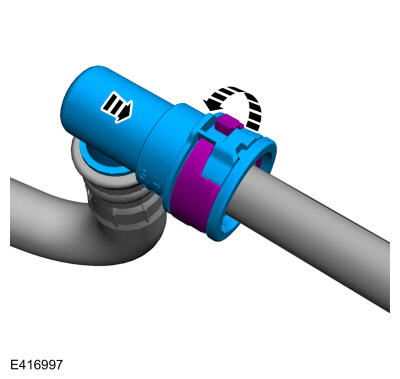

  4. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the quick release coupling body and rotate the retainer counter- clockwise until the tabs are locked in place.

    GFD814497Courtesy of FORD MOTOR COMPANY
  1. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
About FixVault
