Ethernet Module Communications Network - Component Location

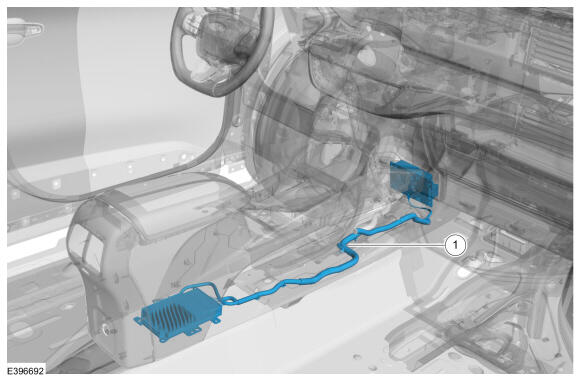

GFD830903Courtesy of FORD MOTOR COMPANY
Item Description
1 TCU Ethernet cable routing

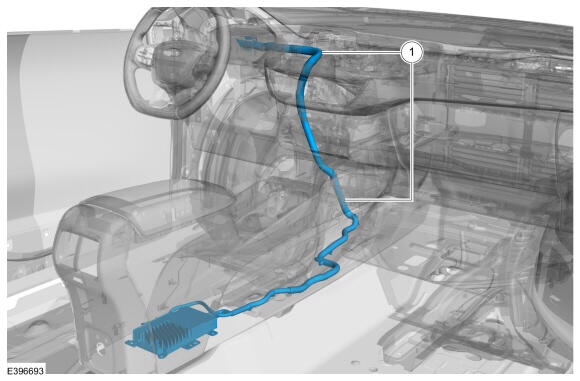

GFD830904Courtesy of FORD MOTOR COMPANY
Item Description
1 IPC Ethernet cable routing

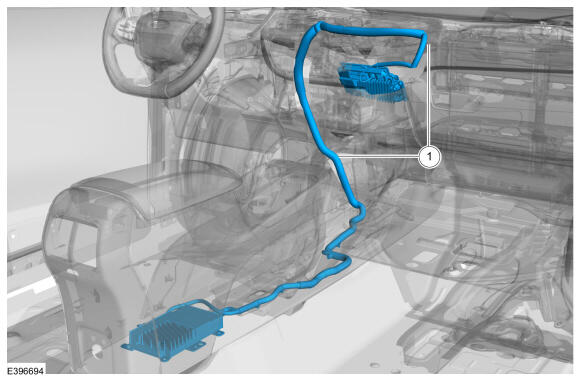

GFD830905Courtesy of FORD MOTOR COMPANY
Item Description
1 APIM Ethernet cable routing

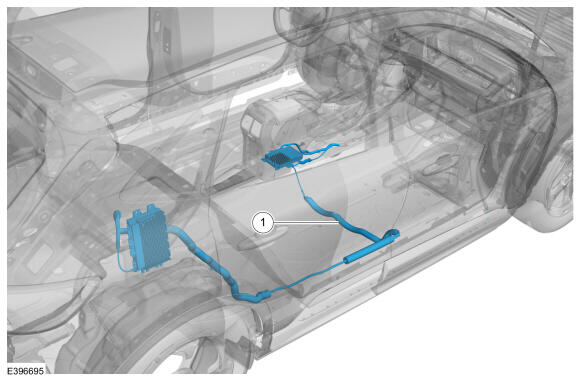

GFD830906Courtesy of FORD MOTOR COMPANY
Item Description
1 IPMA Ethernet cable routing
