Front Door Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Inspection

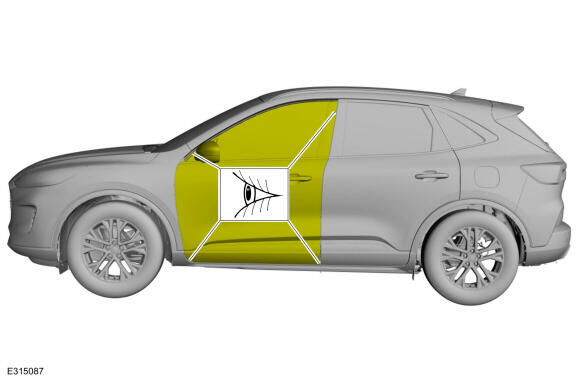

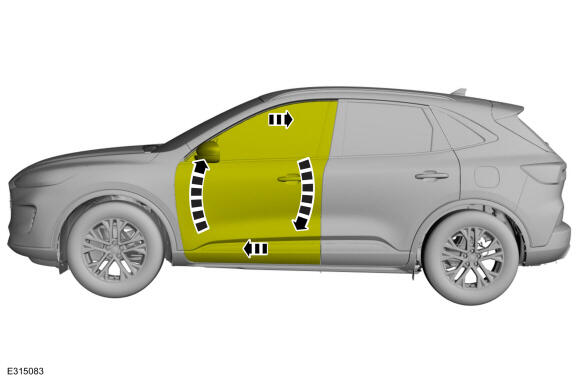

1. Inspect the front door-to-body dimensions.

   Courtesy of FORD MOTOR COMPANY

   Adjustment

   NOTE: Removal steps in this procedure may contain installation details.
   NOTE: LH side shown, RH side similar.

   All alignments

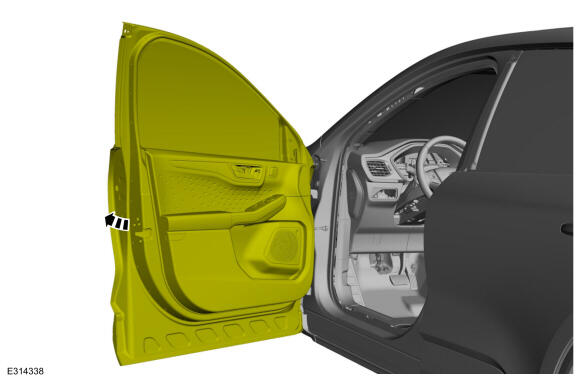

2. Open the door.

   Courtesy of FORD MOTOR COMPANY

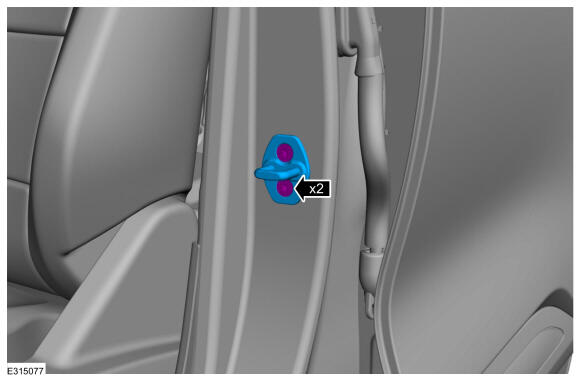

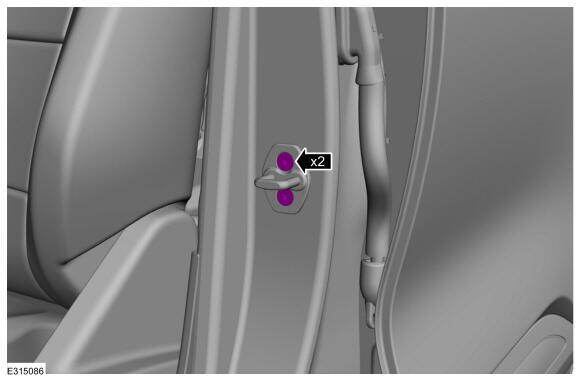

3. Remove the bolts and the striker assembly.

   Courtesy of FORD MOTOR COMPANY

   Front door in and out, up and down alignment

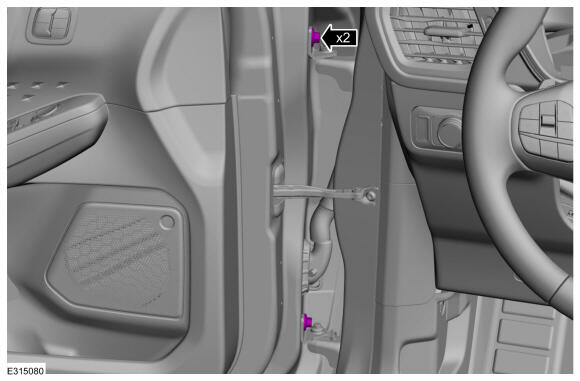

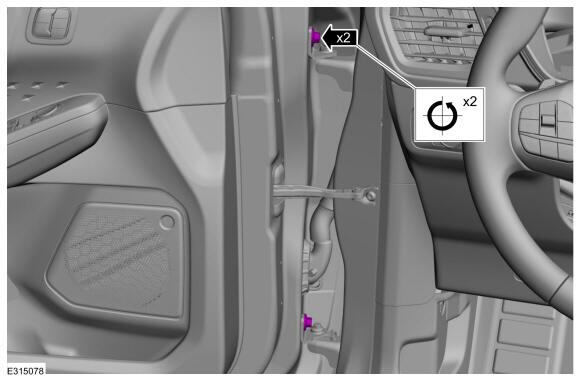

4. Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

5. Adjust door to specification. Refer to: BODY AND FRAME .

   Courtesy of FORD MOTOR COMPANY

6. Tighten the bolts.

   Torque : 48 Nm

   Courtesy of FORD MOTOR COMPANY

   Front door fore, aft and tilt alignment

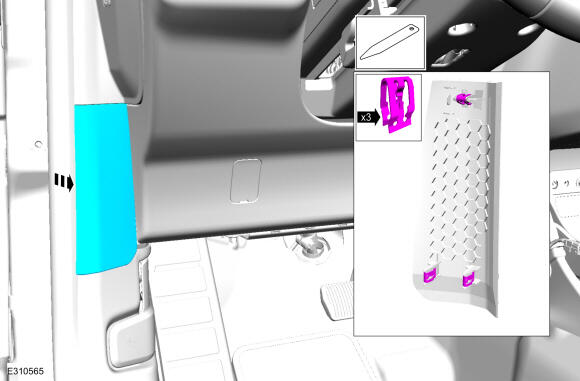

7. On driver side. Release the clips and remove the LH instrument panel end cap. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

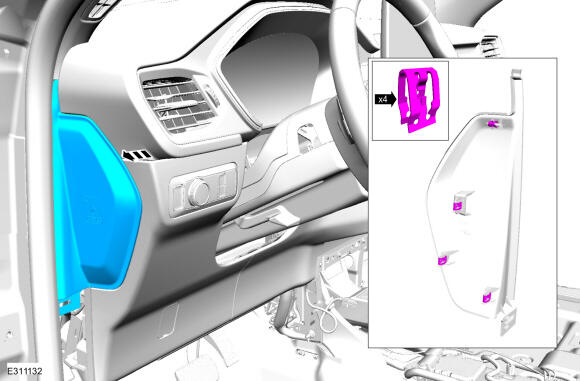

8. On driver side. Release the clips and remove the LH instrument panel end cap.

   Courtesy of FORD MOTOR COMPANY

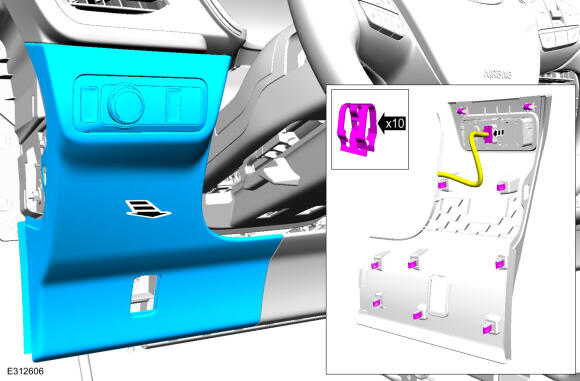

9. On driver side. 1. Release the clips and remove the LH trim panel. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

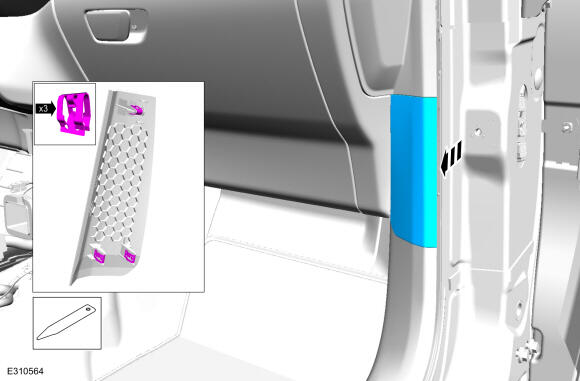

10. On passenger side. Position the front door weatherstrip aside, release the clips and remove the instrument finish panel. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

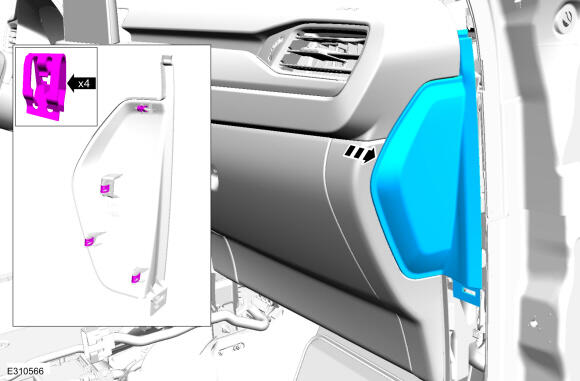

11. On passenger side. Release the clips and remove the RH instrument panel end cap.

    Courtesy of FORD MOTOR COMPANY

12. On passenger side.

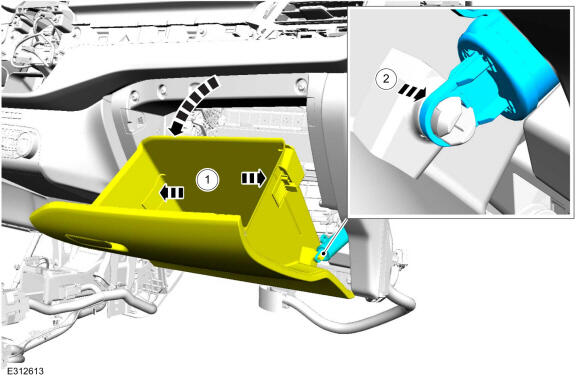

    1. Release the stop and fully lower the glove compartment.
    2. Remove the glove compartment check strap.

    Courtesy of FORD MOTOR COMPANY

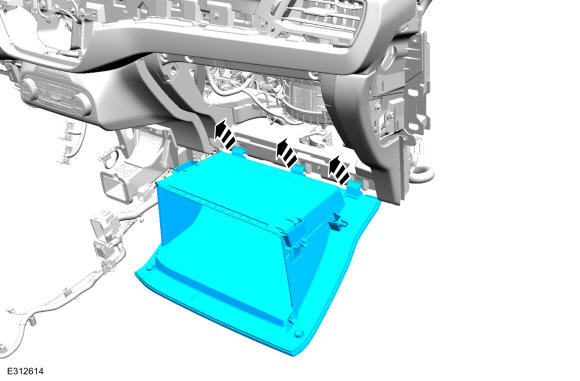

13. On passenger side. Lift the glove compartment off the hinges remove.

    Courtesy of FORD MOTOR COMPANY

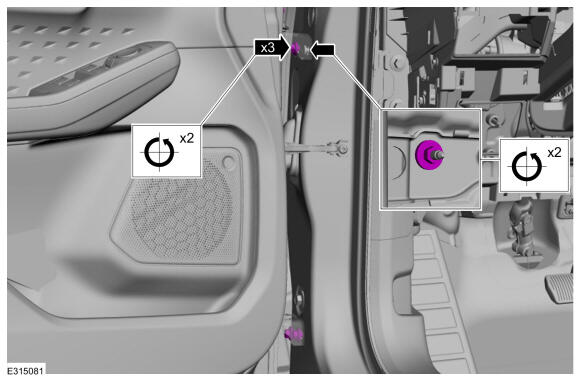

14. NOTE: Driver side shown, passenger side similar.
    • Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
    • Loosen the nut and washer to permit movement of the door. Loosen: : 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

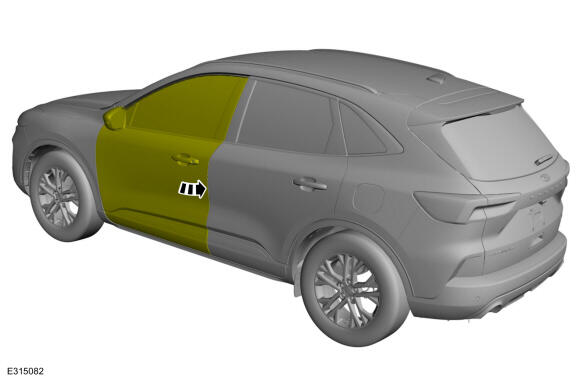

15. Carefully close the door.

    Courtesy of FORD MOTOR COMPANY

16. Adjust the door as required.

    Courtesy of FORD MOTOR COMPANY

17. Carefully open the door.

    Courtesy of FORD MOTOR COMPANY

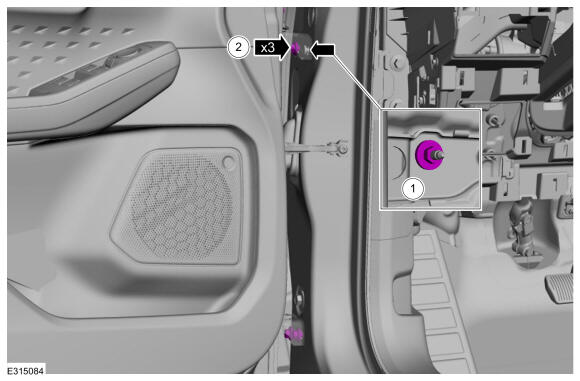

18. 1. Tighten the fastener.

       Torque : 30 Nm

    2. Tighten the fasteners.

       Torque : 30 Nm

    Courtesy of FORD MOTOR COMPANY

    All alignments

19. Install the striker assembly.

    Courtesy of FORD MOTOR COMPANY

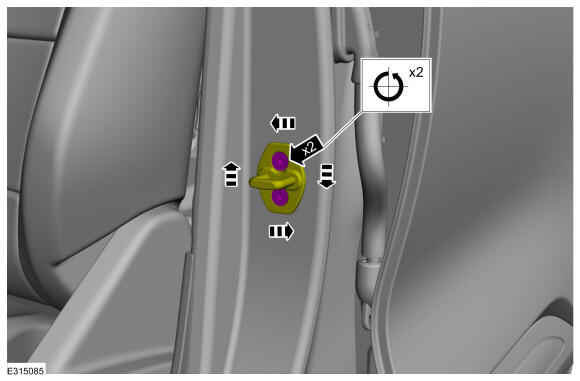

20. Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

21. Tighten the fasteners.

    Torque : 25 Nm

    Courtesy of FORD MOTOR COMPANY

22. Inspect the body-to-front door dimensions.

Courtesy of FORD MOTOR COMPANY
