Liftgate Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Inspection

1. Inspect the body-to-liftgate door dimensions.

   Courtesy of FORD MOTOR COMPANY

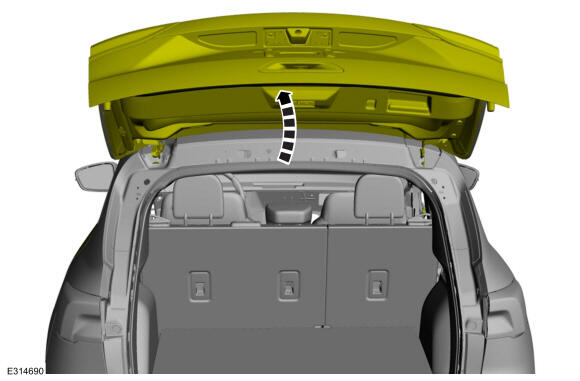

2. Open the liftgate.

   Courtesy of FORD MOTOR COMPANY

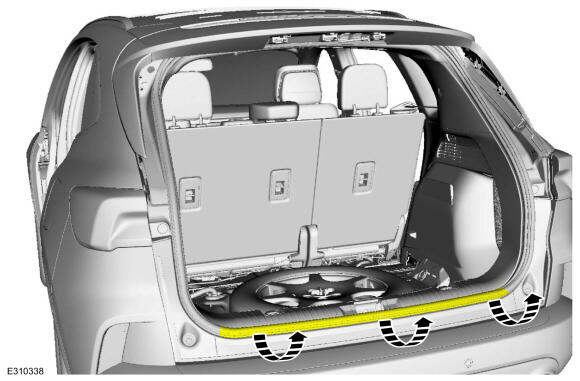

3. Position the liftgate opening weather strip aside.

   Courtesy of FORD MOTOR COMPANY

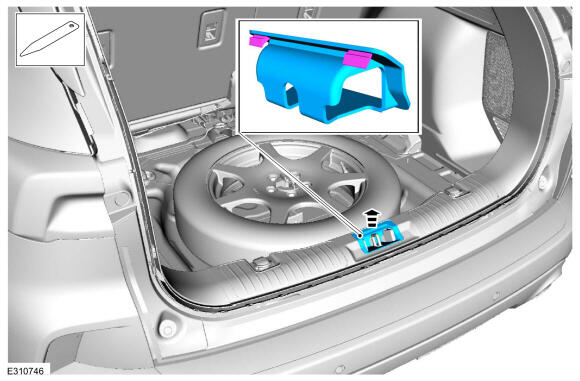

4. Release the tabs and remove the liftgate striker cover. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

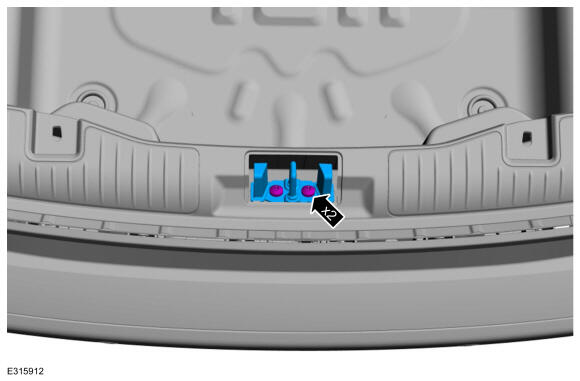

5. Remove the fasteners and liftgate striker.

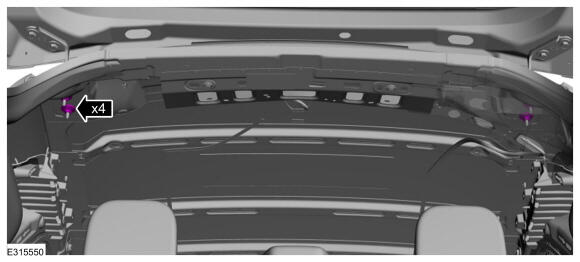

   Torque : 25 Nm

   Courtesy of FORD MOTOR COMPANY

   Liftgate left and right, up and down alignment

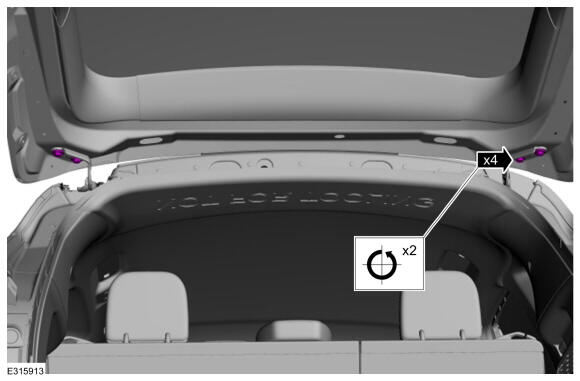

6. Loosen the bolts to permit movement of the liftgate. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

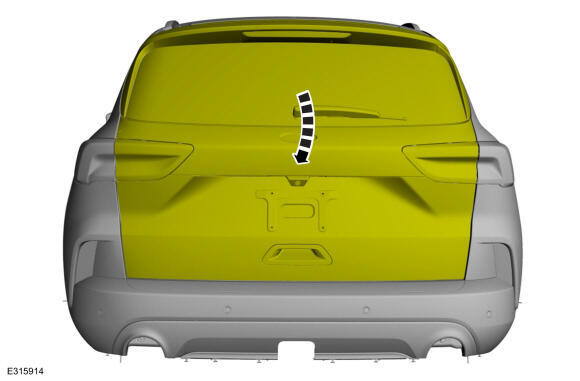

7. Carefully close the liftgate.

   Courtesy of FORD MOTOR COMPANY

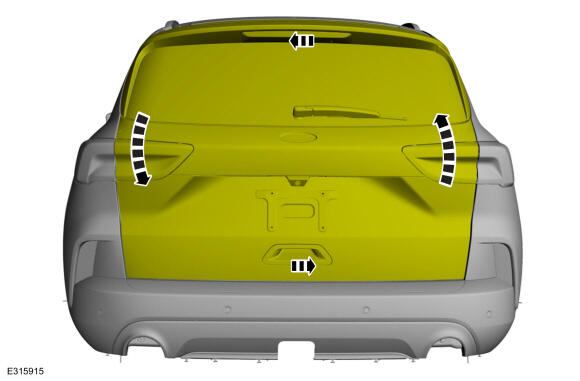

8. Adjust the liftgate as required.

   Courtesy of FORD MOTOR COMPANY

9. Carefully open the liftgate.

   Courtesy of FORD MOTOR COMPANY

10. Tighten the fasteners.

    Torque : 30 Nm

    Courtesy of FORD MOTOR COMPANY

    Liftgate in and out alignment

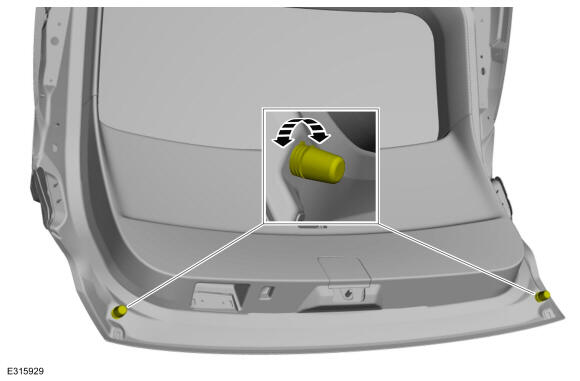

11. Adjust the stops.

    Courtesy of FORD MOTOR COMPANY

12. Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel

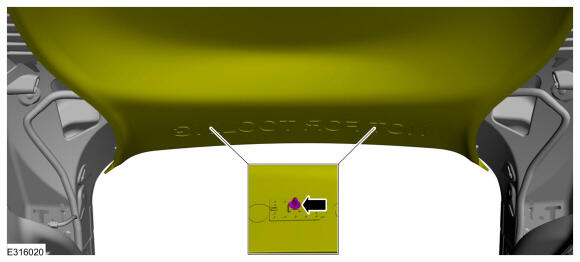

13. 1. Release the clips.
    2. Lower the rear headliner.

    Courtesy of FORD MOTOR COMPANY

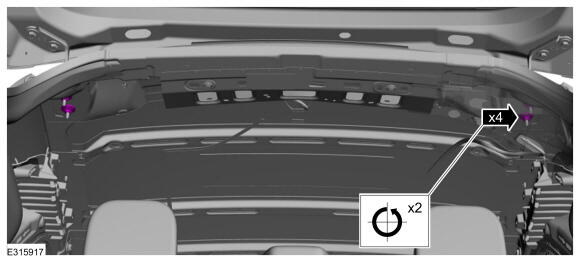

14. Loosen the bolts to permit movement of the liftgate. Loosen: : 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

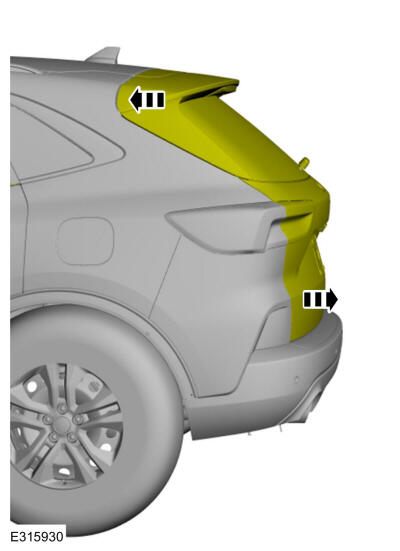

15. Adjust the liftgate as required.

    Courtesy of FORD MOTOR COMPANY

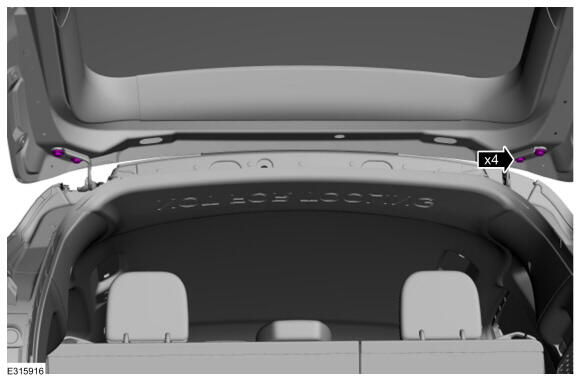

16. Tighten the fasteners.

    Torque : 30 Nm

    Courtesy of FORD MOTOR COMPANY

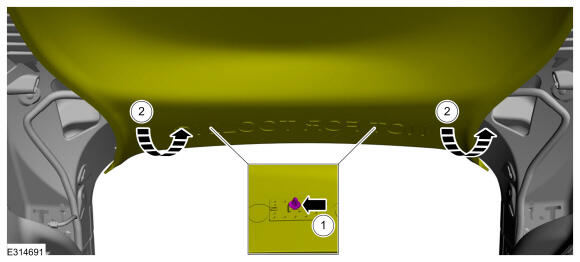

17. 1. Attach the clips.
    2. Position back the rear headliner.

    Courtesy of FORD MOTOR COMPANY

18. Install the C-pillar trim panel. Refer to: C-Pillar Trim Panel

    All alignments

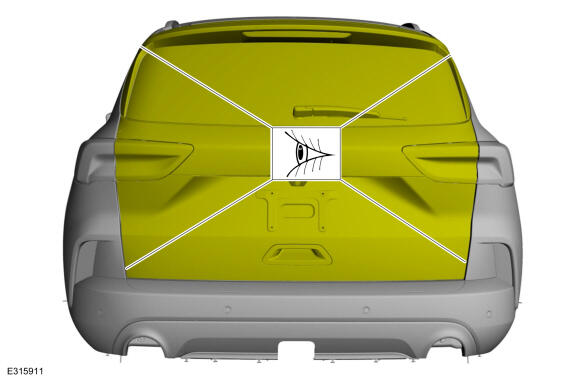

19. Inspect the liftgate dimensions.

    Courtesy of FORD MOTOR COMPANY

20. If equipped with power liftgate, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
