Component Testing
›
Relay - Ultra Micro ISO
Relay - Ultra Micro ISO

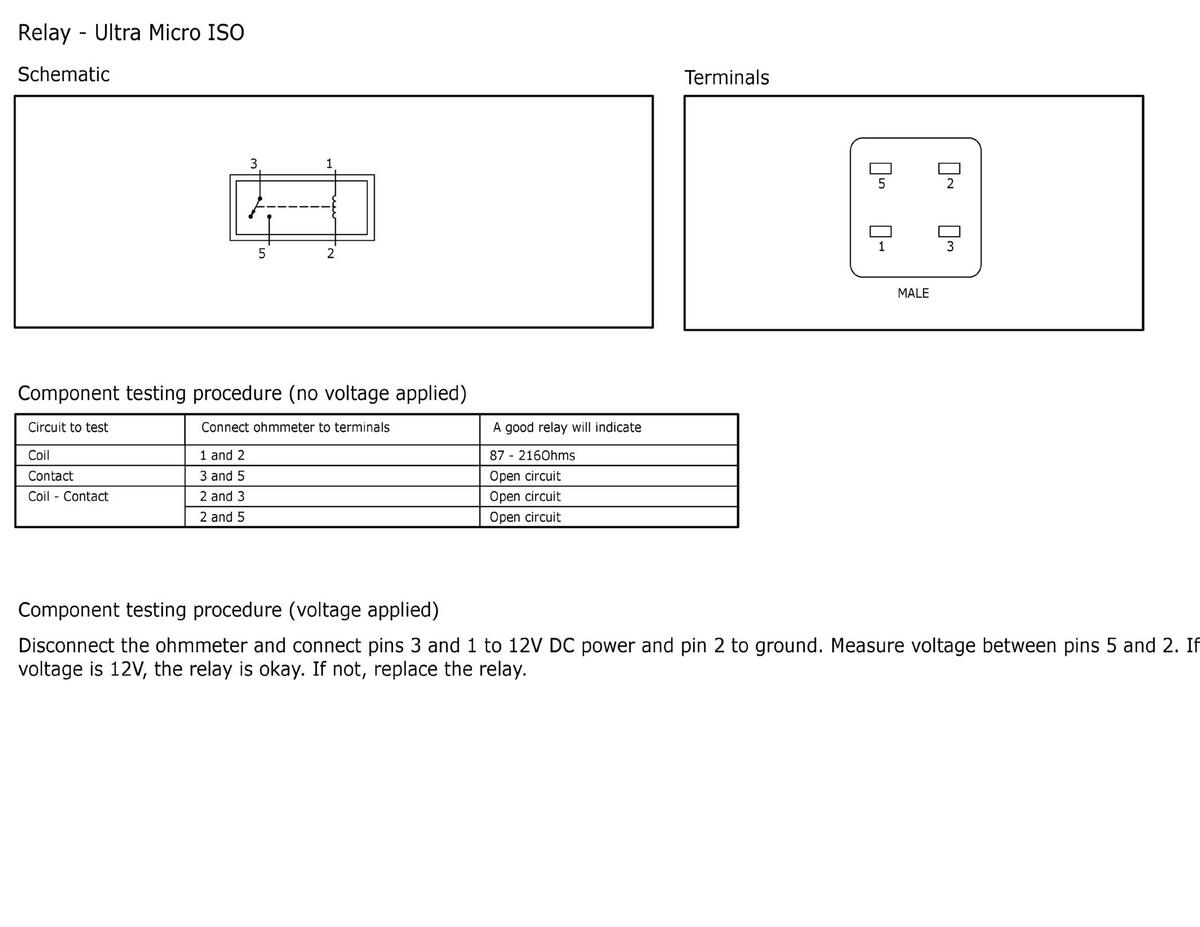

Fig 1: Relay - Ultra Micro ISO Component Testing
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
