Audio System/Navigation

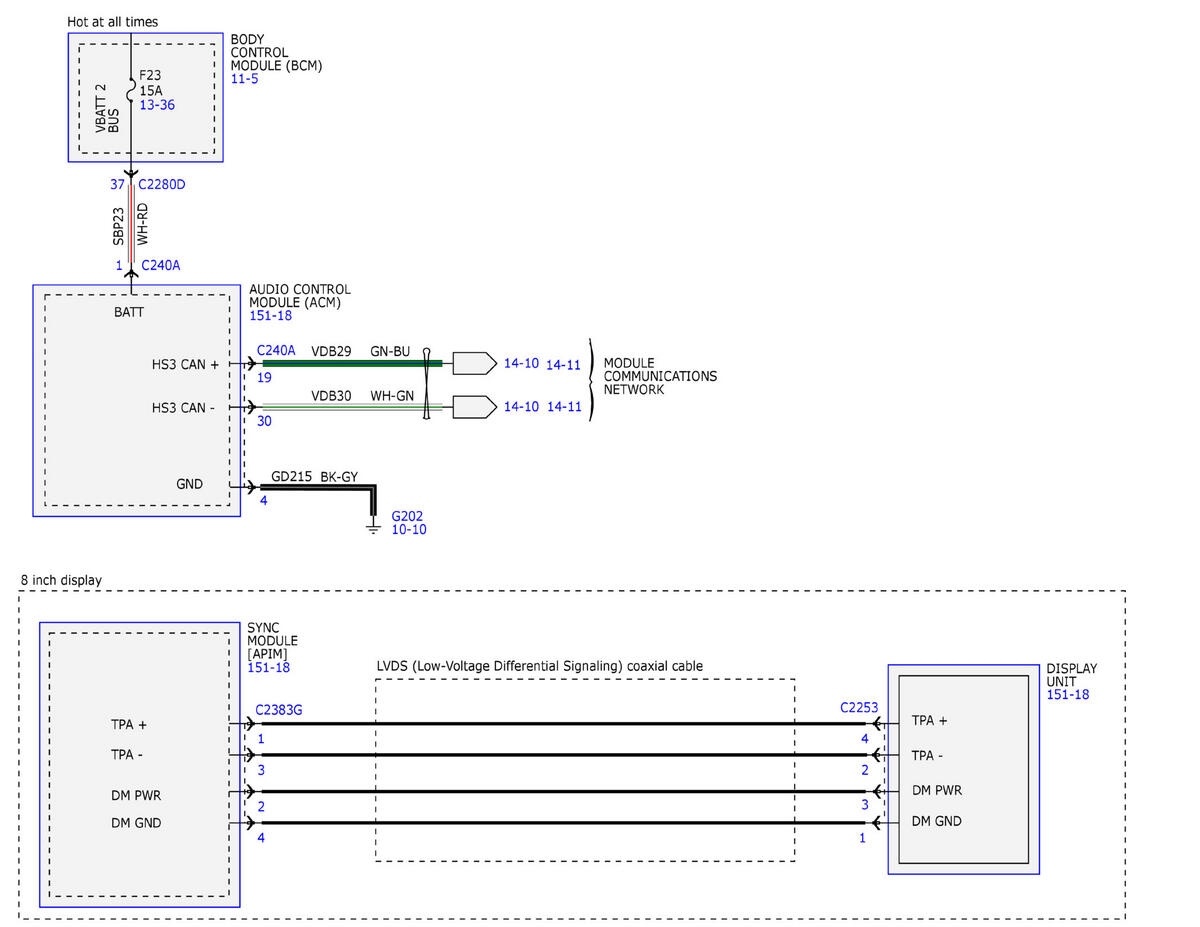

Fig 1: Audio System/Navigation (1 Of 14)

GFDWR231220

Courtesy of FORD MOTOR COMPANY

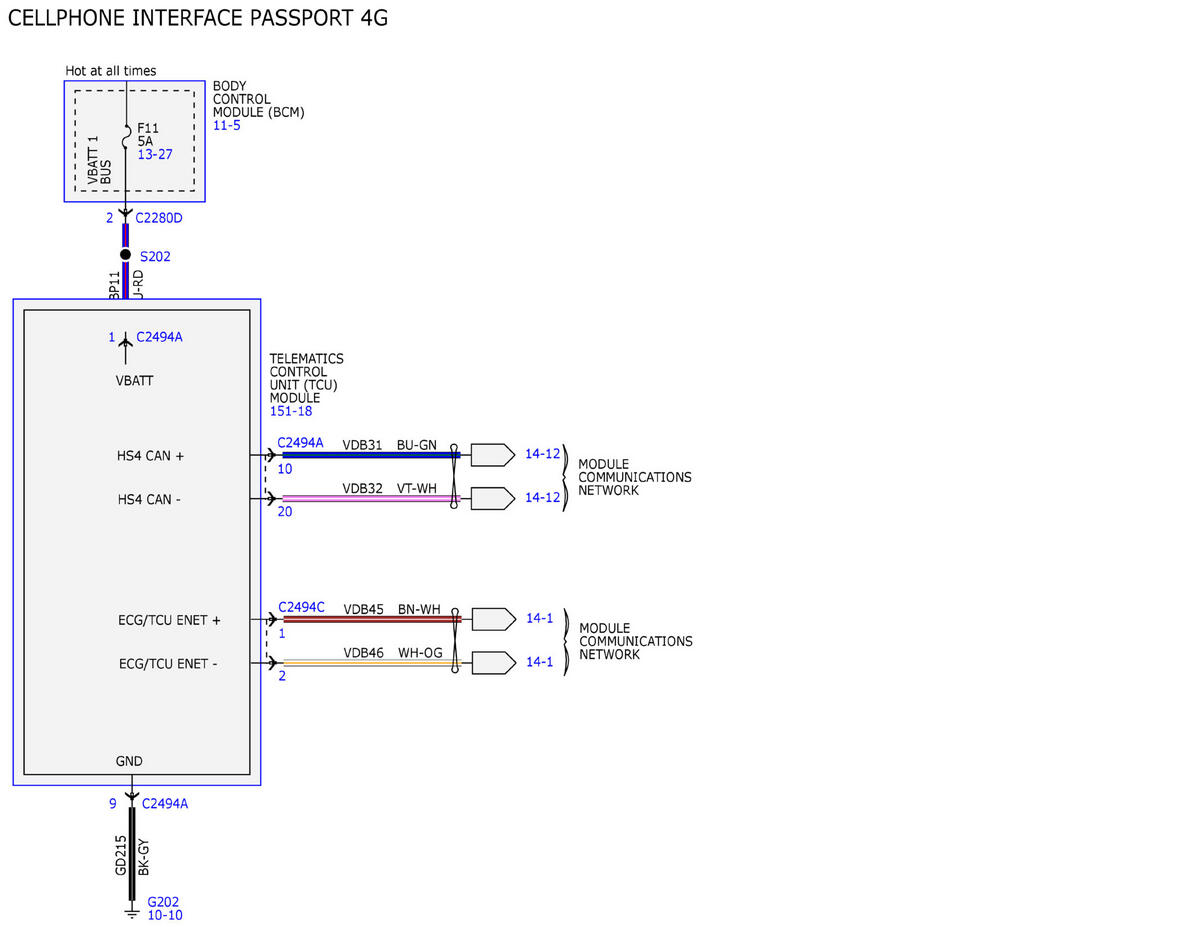

Fig 2: Audio System/Navigation (2 Of 14)

GFDWR231221

Courtesy of FORD MOTOR COMPANY

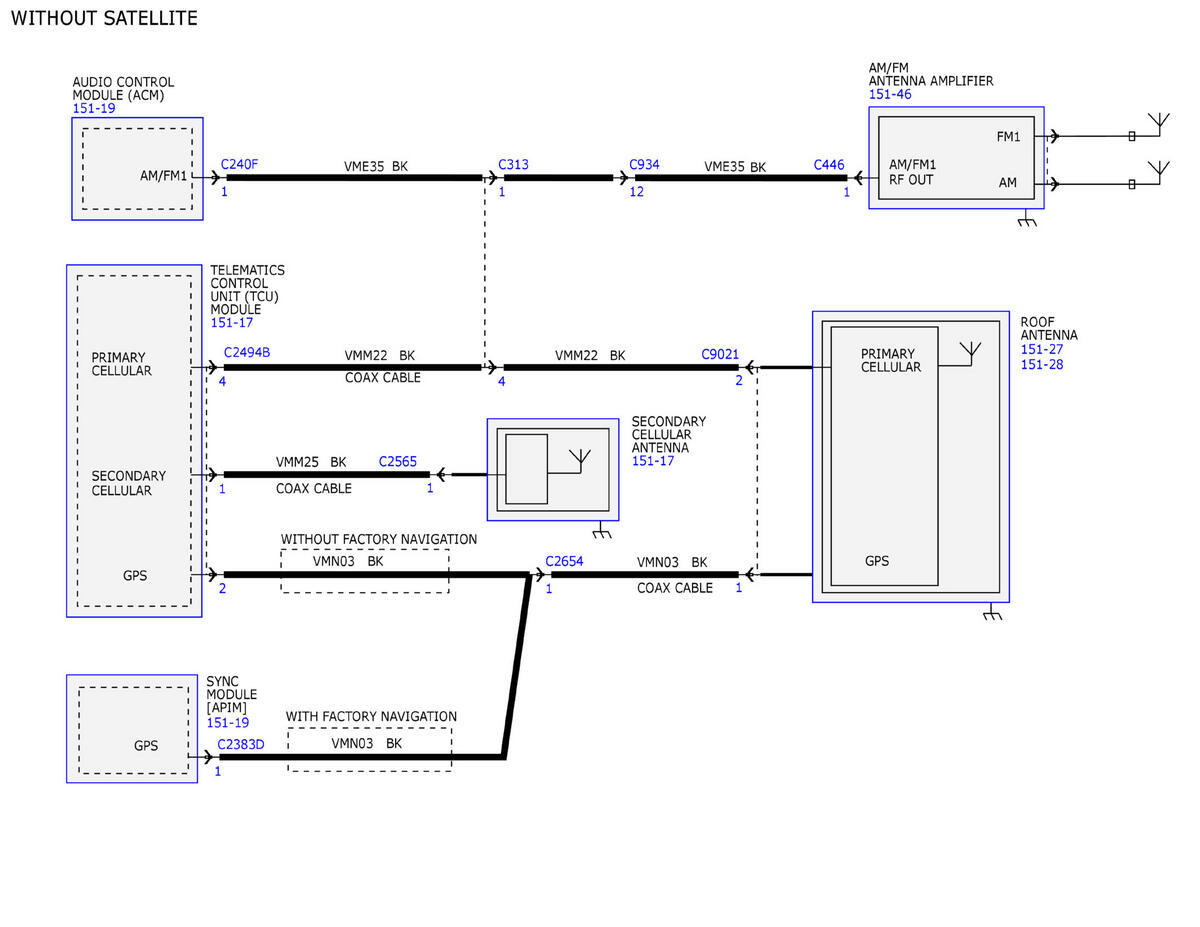

Fig 3: Audio System/Navigation (3 Of 14)

GFDWR231222

Courtesy of FORD MOTOR COMPANY

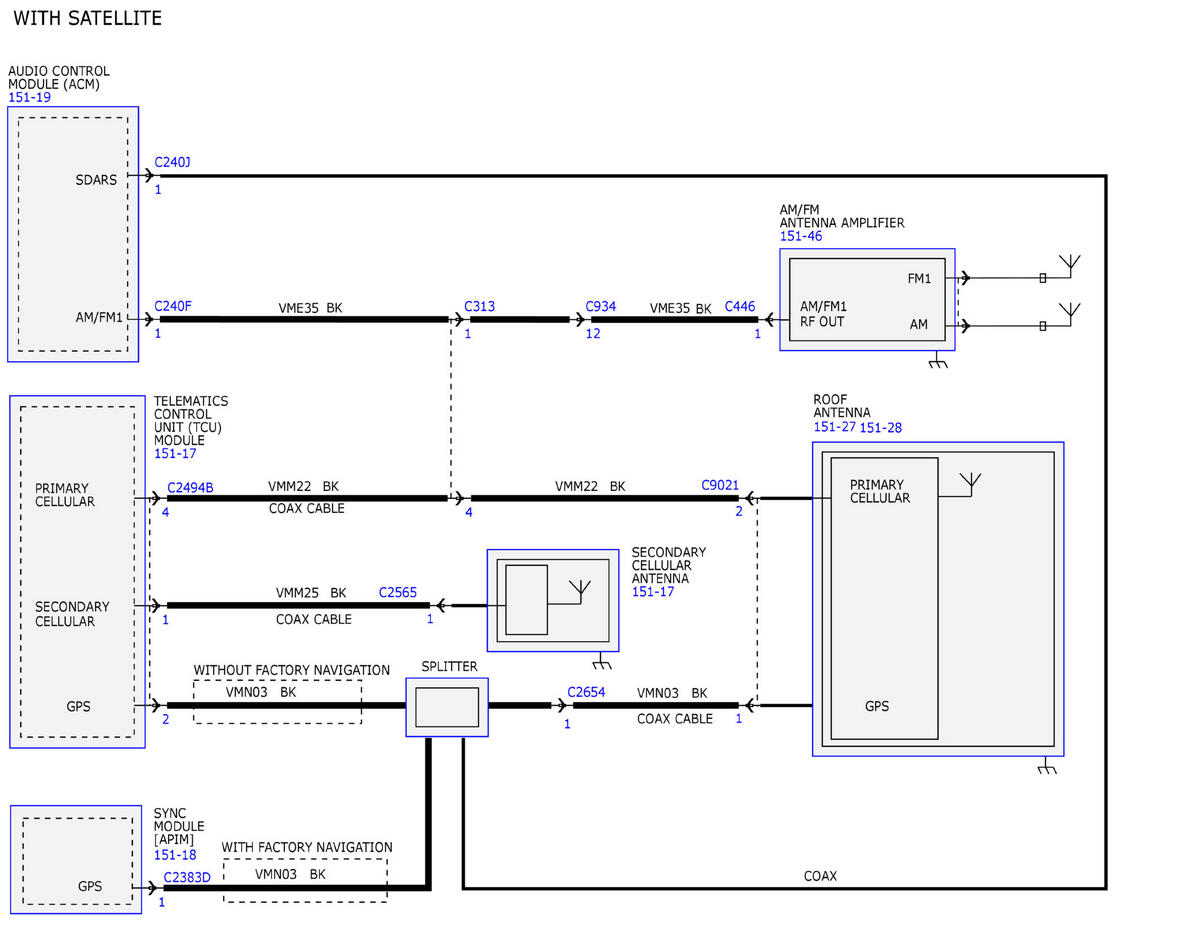

Fig 4: Audio System/Navigation (4 Of 14)

GFDWR231223

Courtesy of FORD MOTOR COMPANY

Fig 5: Audio System/Navigation (5 Of 14)

GFDWR231224

Courtesy of FORD MOTOR COMPANY

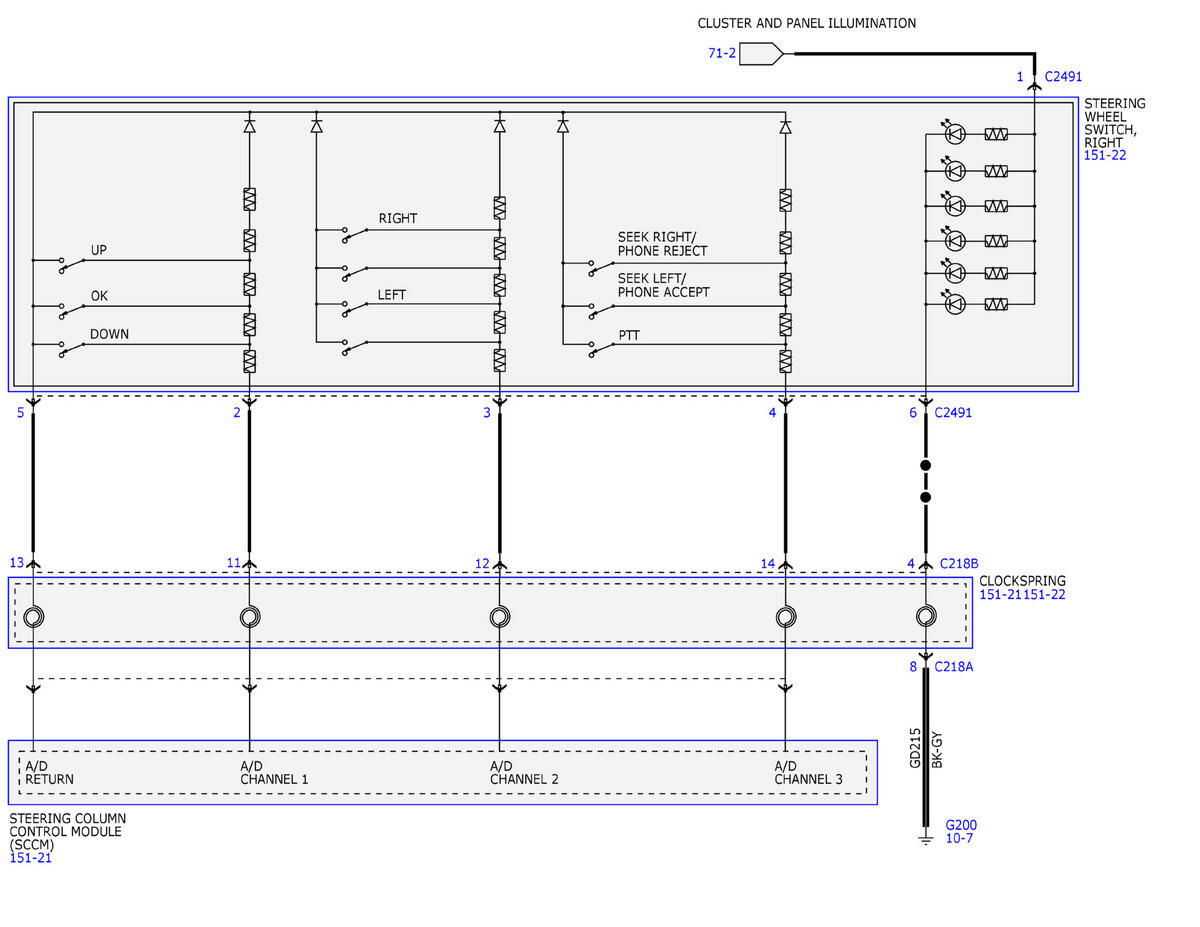

Fig 6: Audio System/Navigation (6 Of 14)

GFDWR231225

Courtesy of FORD MOTOR COMPANY

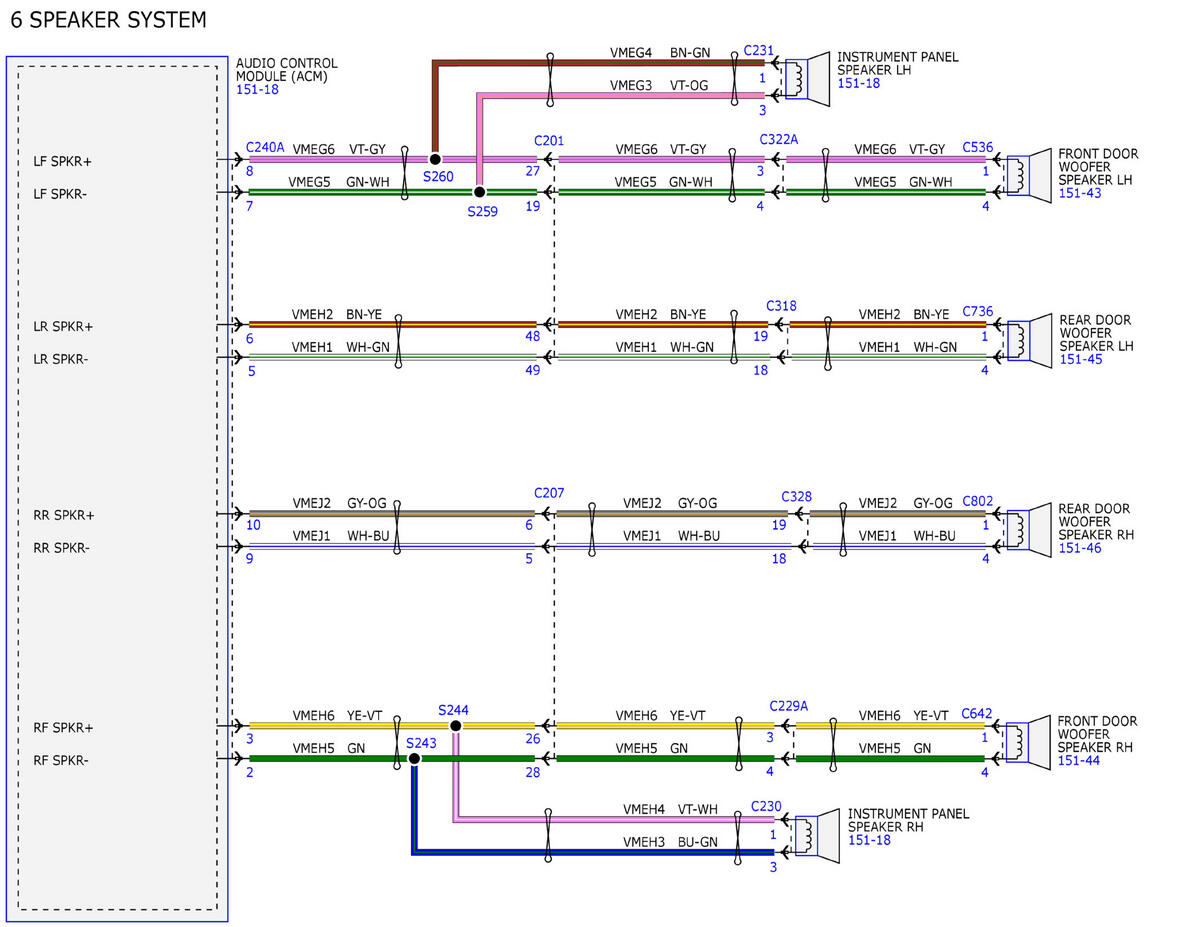

Fig 7: Audio System/Navigation (7 Of 14)

GFDWR231226

Courtesy of FORD MOTOR COMPANY

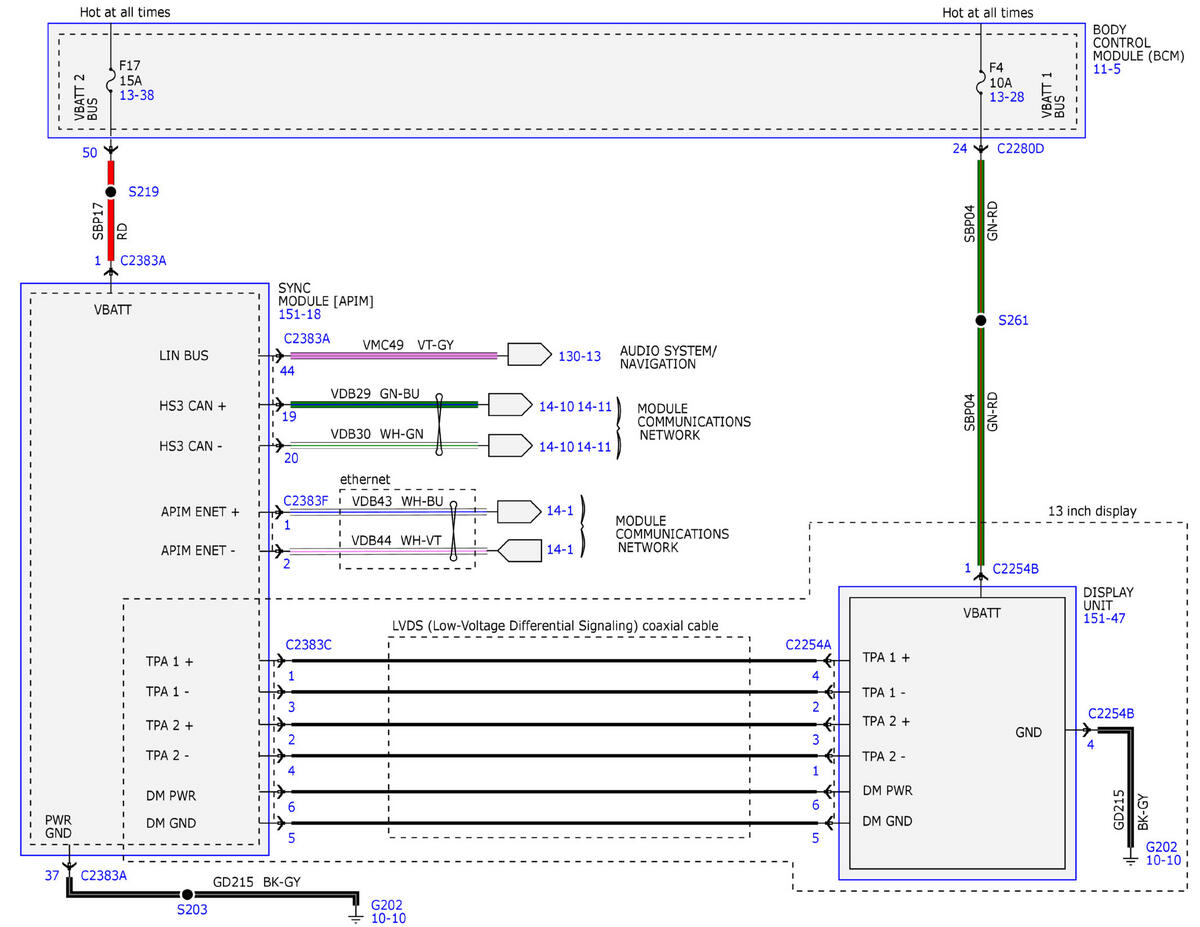

Fig 8: Audio System/Navigation (8 Of 14)

GFDWR231227

Courtesy of FORD MOTOR COMPANY

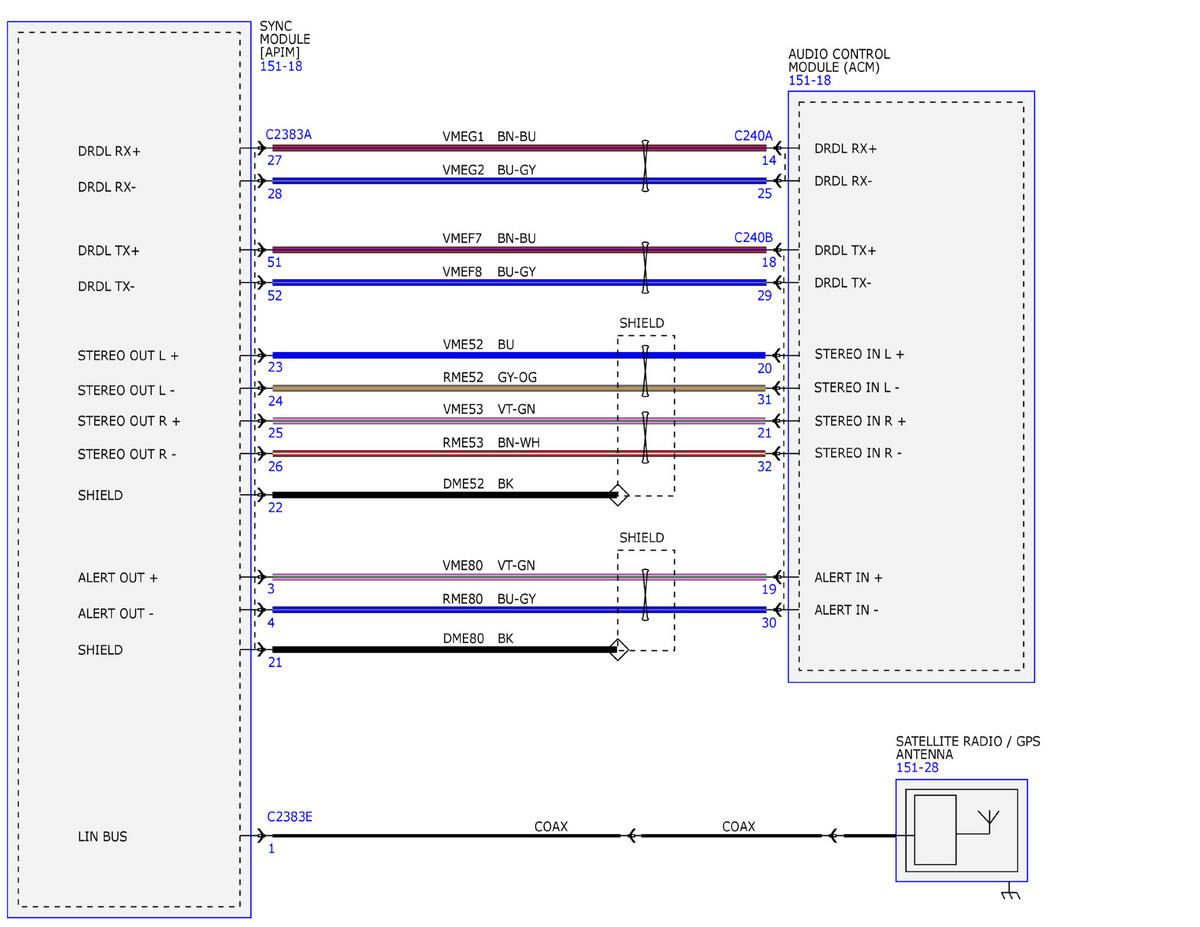

Fig 9: Audio System/Navigation (9 Of 14)

GFDWR231228

Courtesy of FORD MOTOR COMPANY

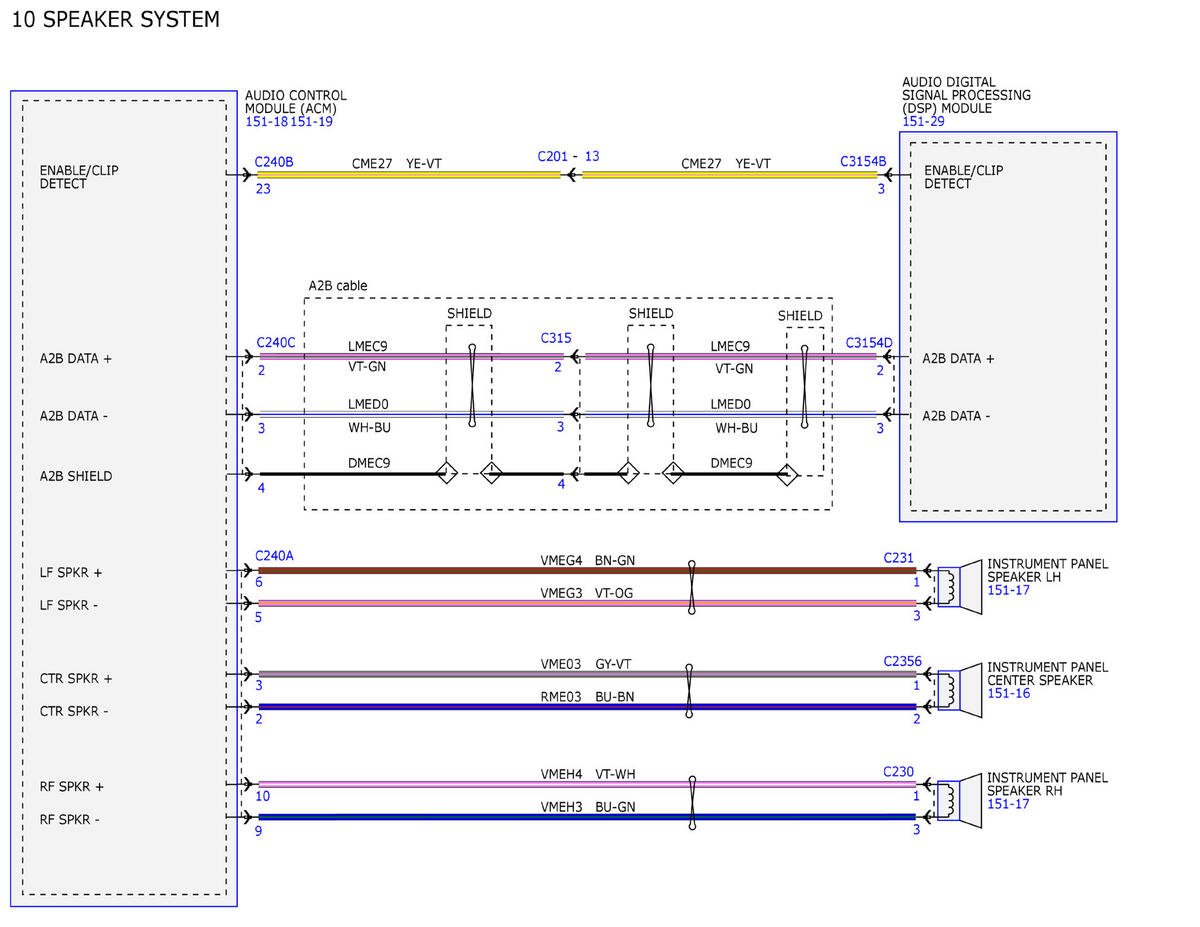

Fig 10: Audio System/Navigation (10 Of 14)

GFDWR231229

Courtesy of FORD MOTOR COMPANY

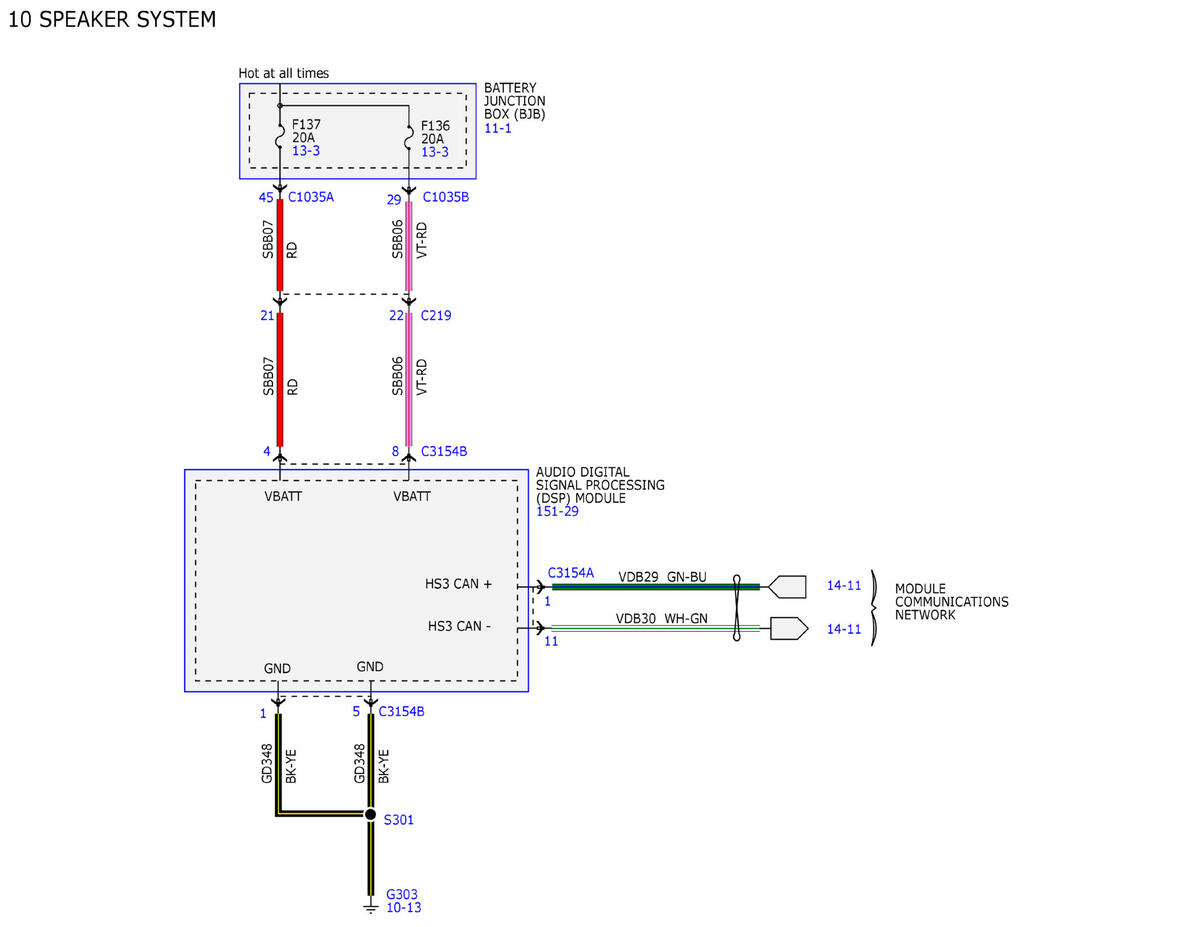

Fig 11: Audio System/Navigation (11 Of 14)

GFDWR231230

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation (12 Of 14)

GFDWR231231

Courtesy of FORD MOTOR COMPANY

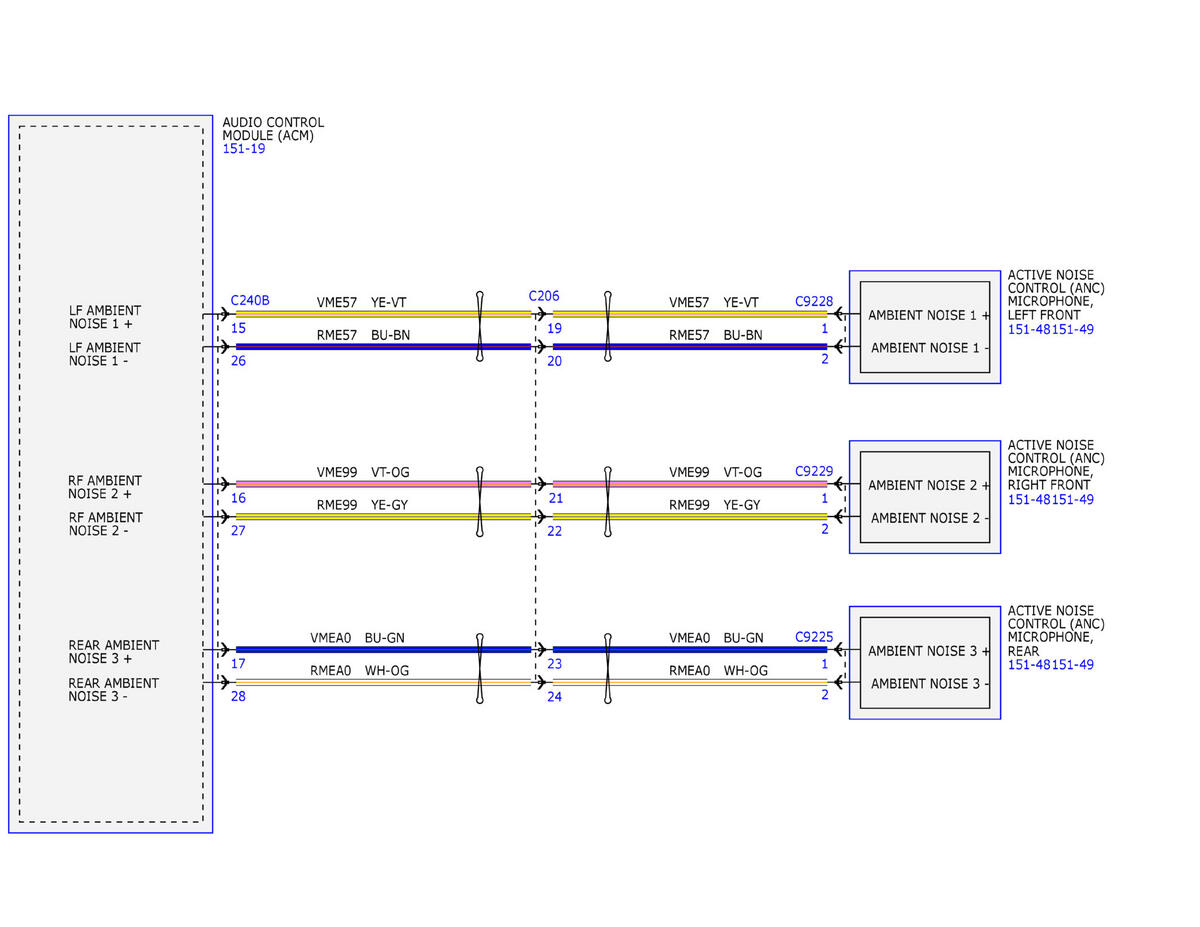

Fig 13: Audio System/Navigation (13 Of 14)

GFDWR231232

Courtesy of FORD MOTOR COMPANY

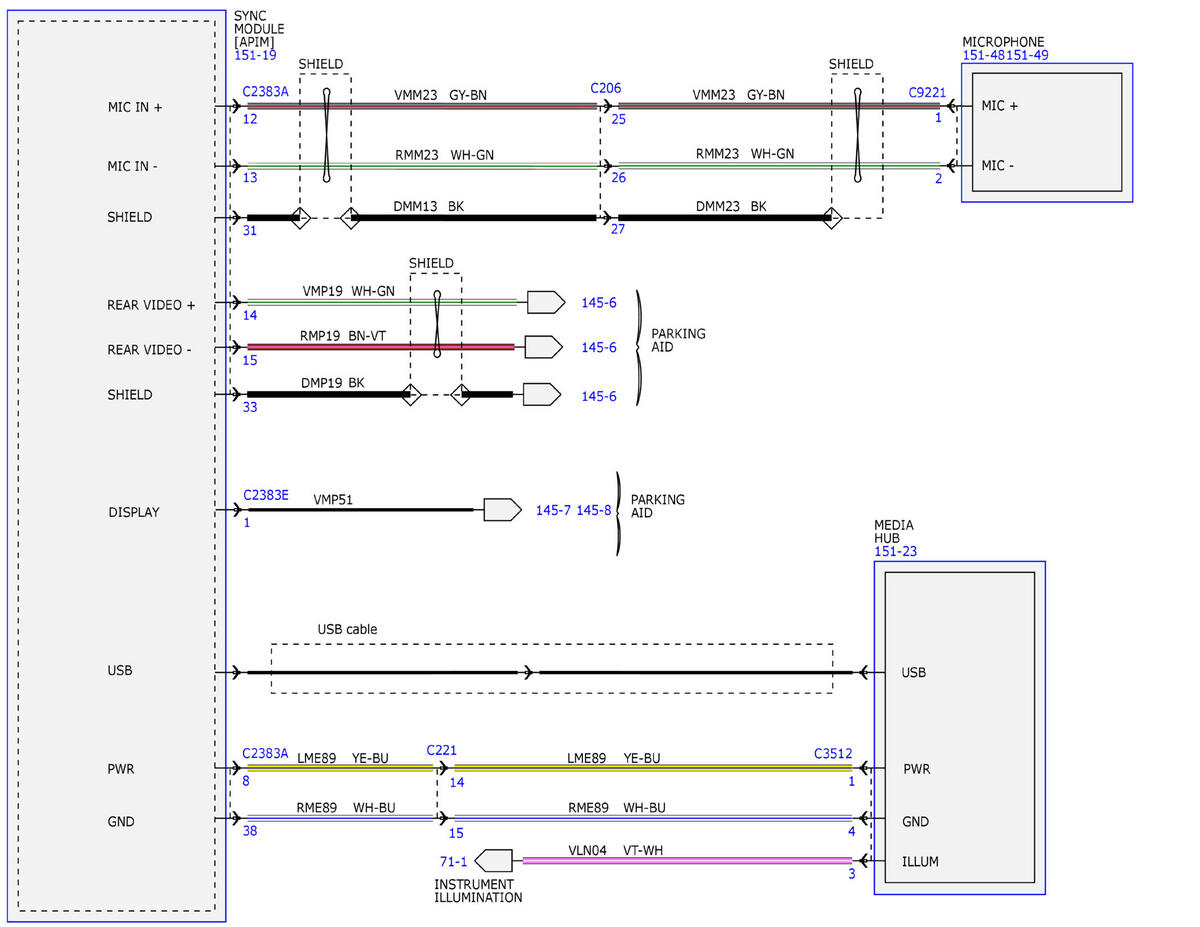

Fig 14: Audio System/Navigation (14 Of 14)

GFDWR231233

Courtesy of FORD MOTOR COMPANY
