Auto-Start-Stop System

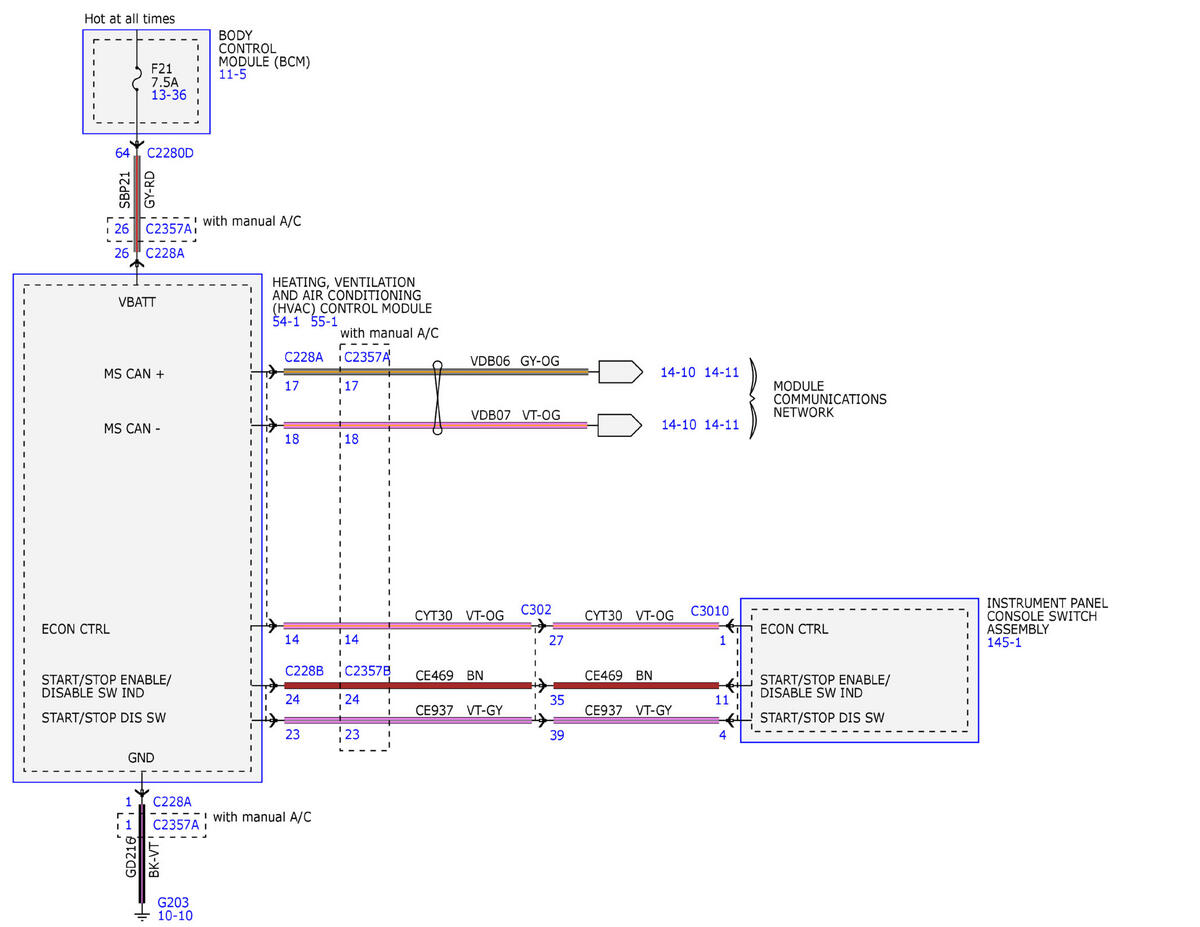

Fig 1: Auto-Start-Stop System (1 Of 2)
GFDWR231234Courtesy of FORD MOTOR COMPANY

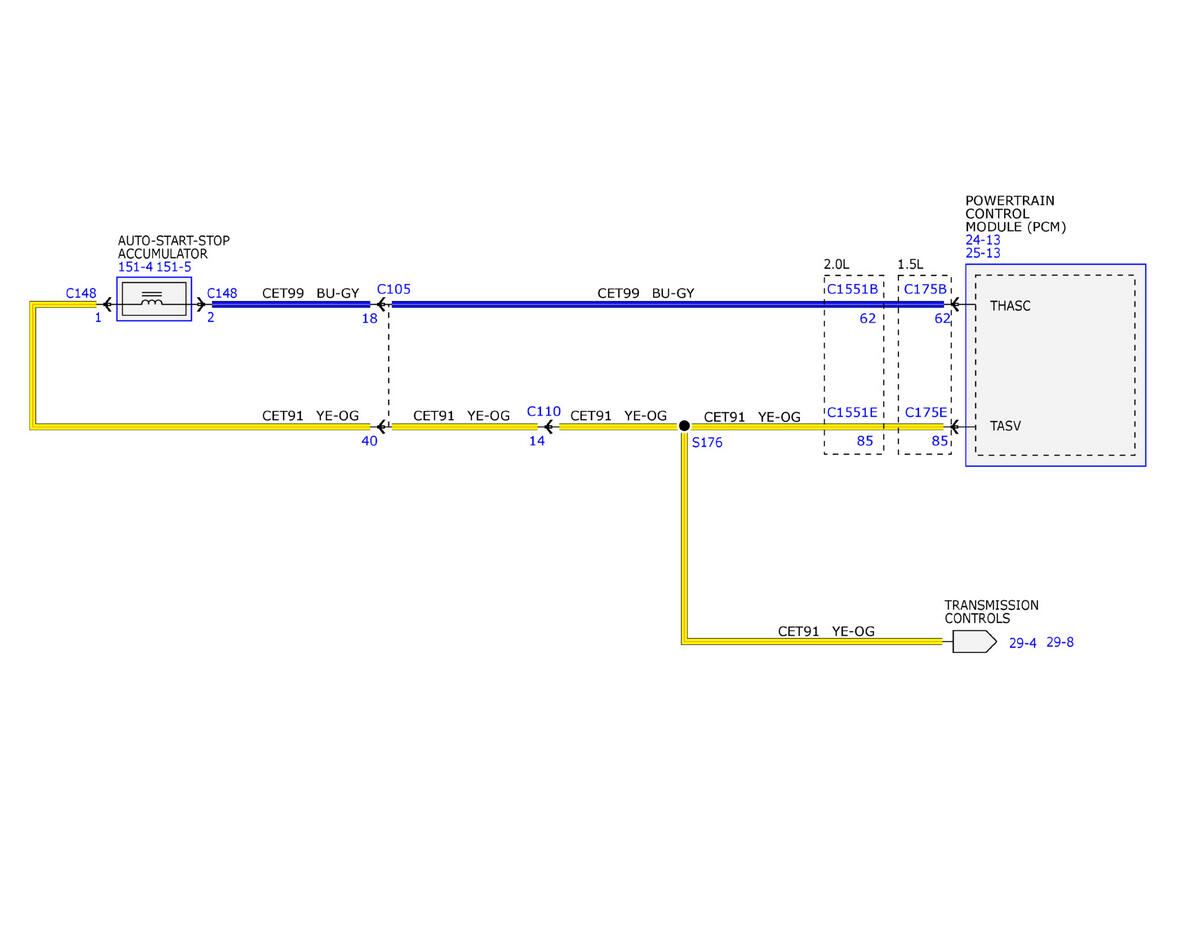

Fig 2: Auto-Start-Stop System (2 Of 2)
GFDWR231235Courtesy of FORD MOTOR COMPANY
