Cruise Control

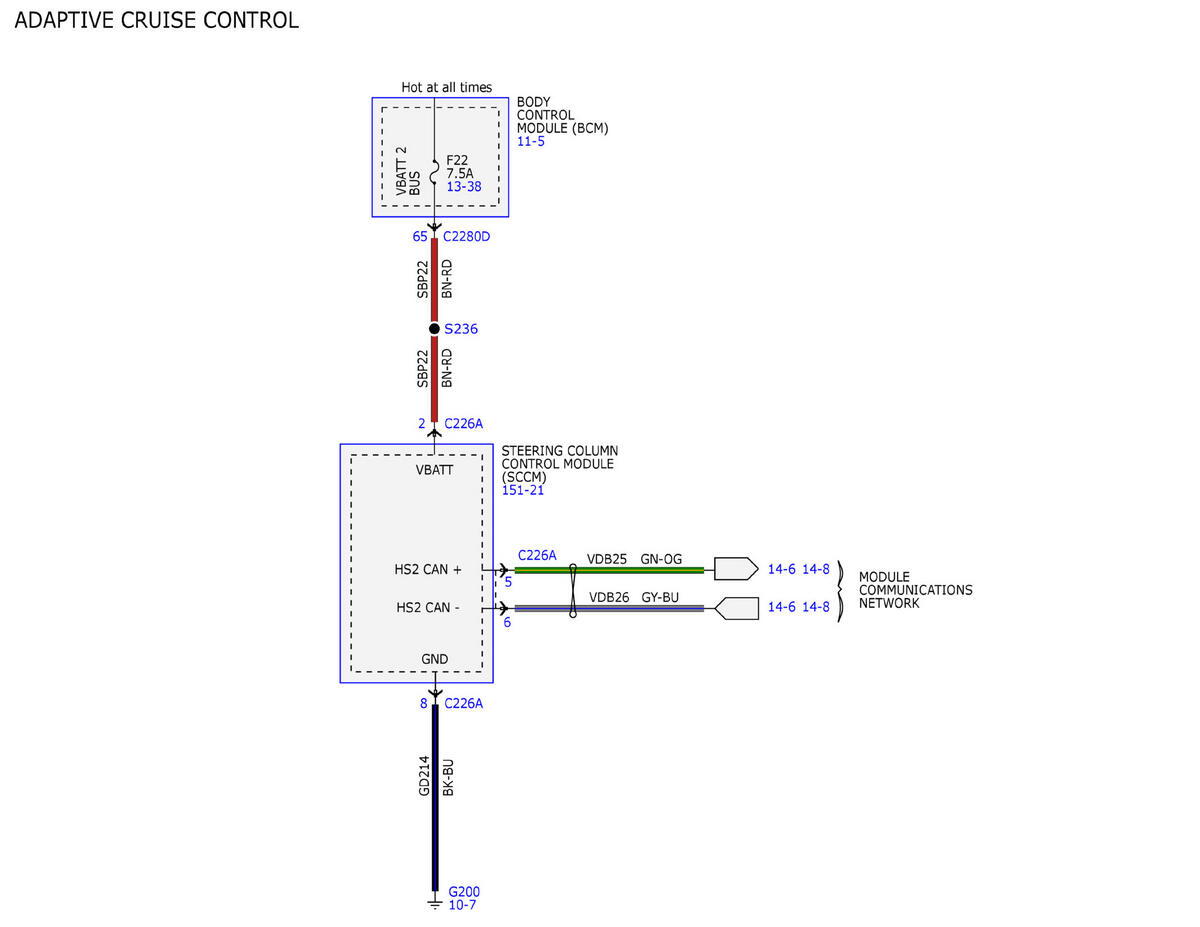

Fig 1: Cruise Control (1 Of 6)
GFDWR231268Courtesy of FORD MOTOR COMPANY

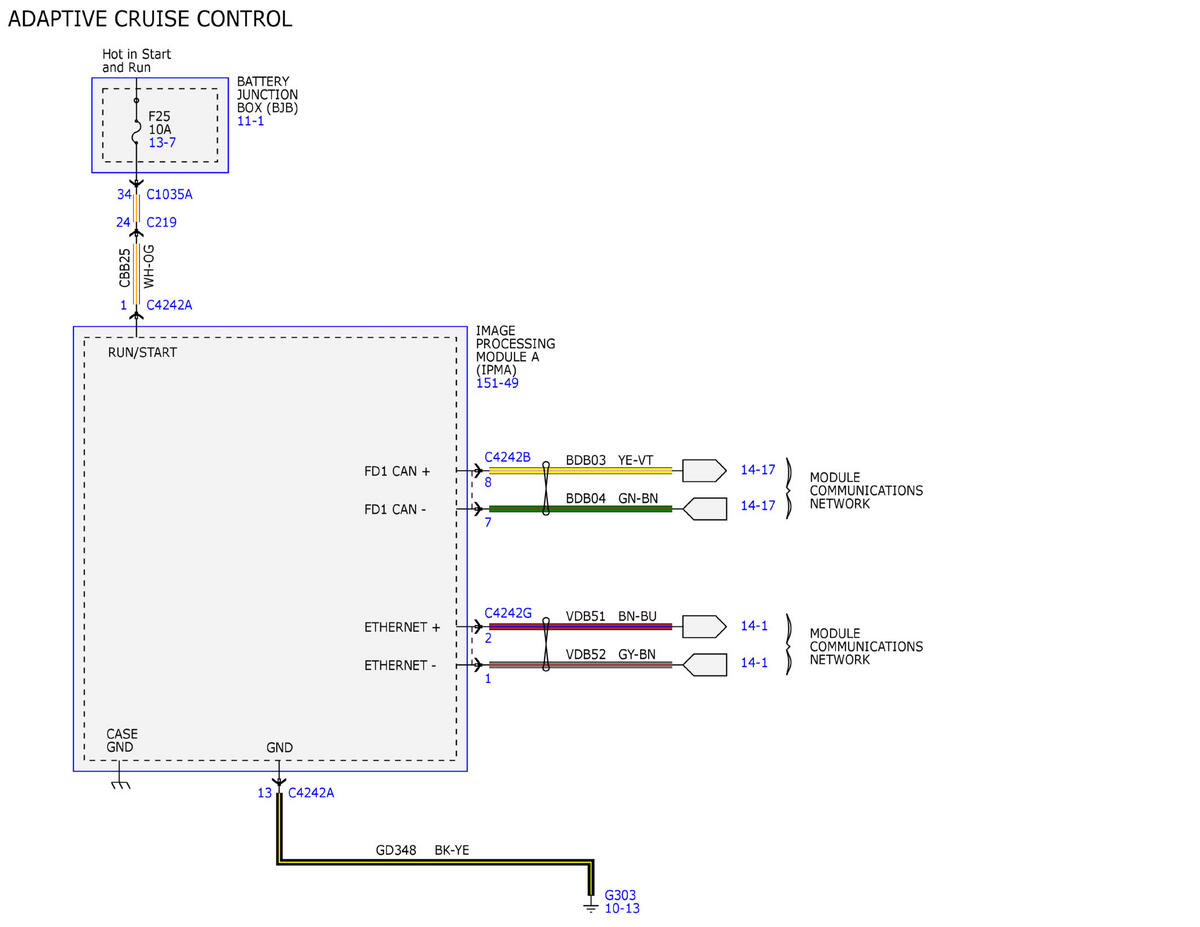

Fig 2: Cruise Control (2 Of 6)
GFDWR231269Courtesy of FORD MOTOR COMPANY

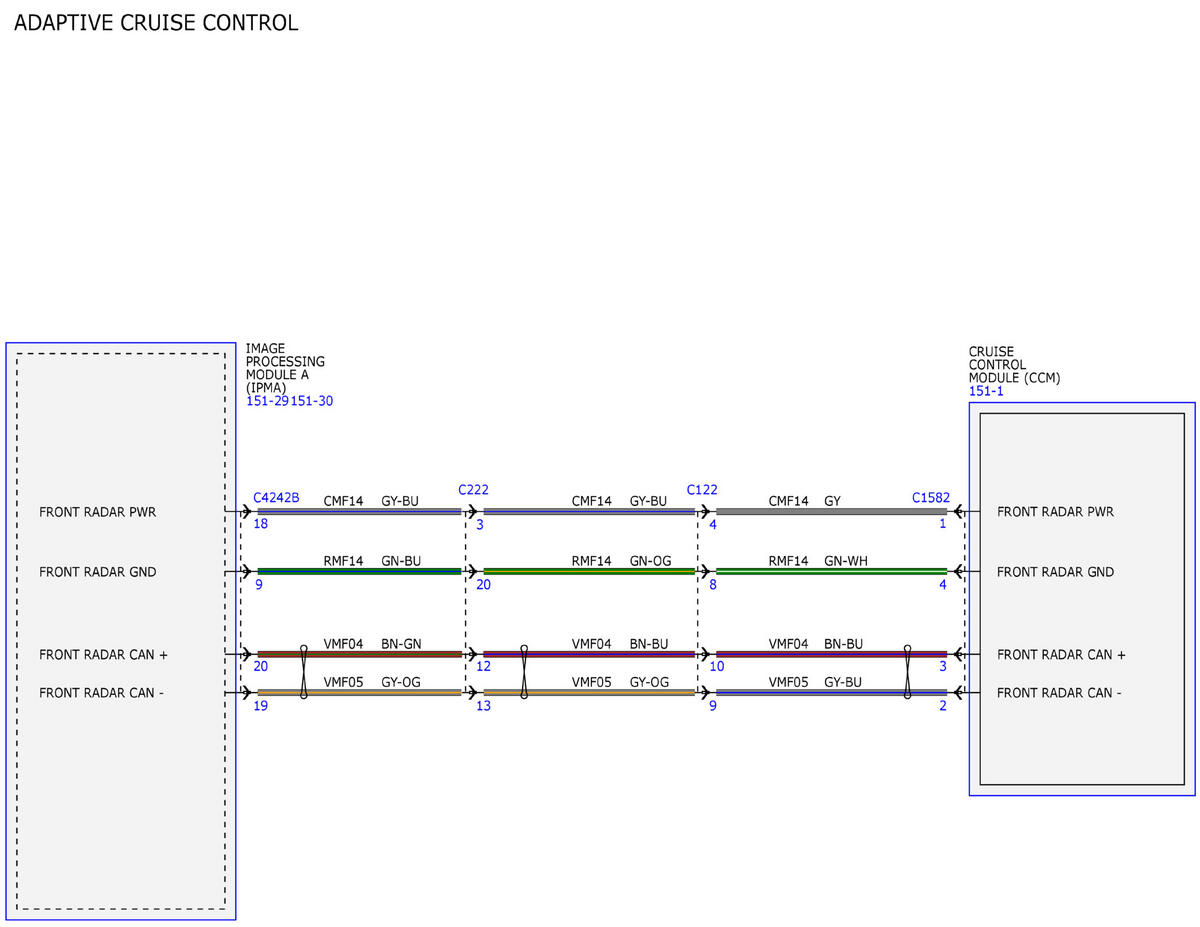

Fig 3: Cruise Control (3 Of 6)
GFDWR231270Courtesy of FORD MOTOR COMPANY

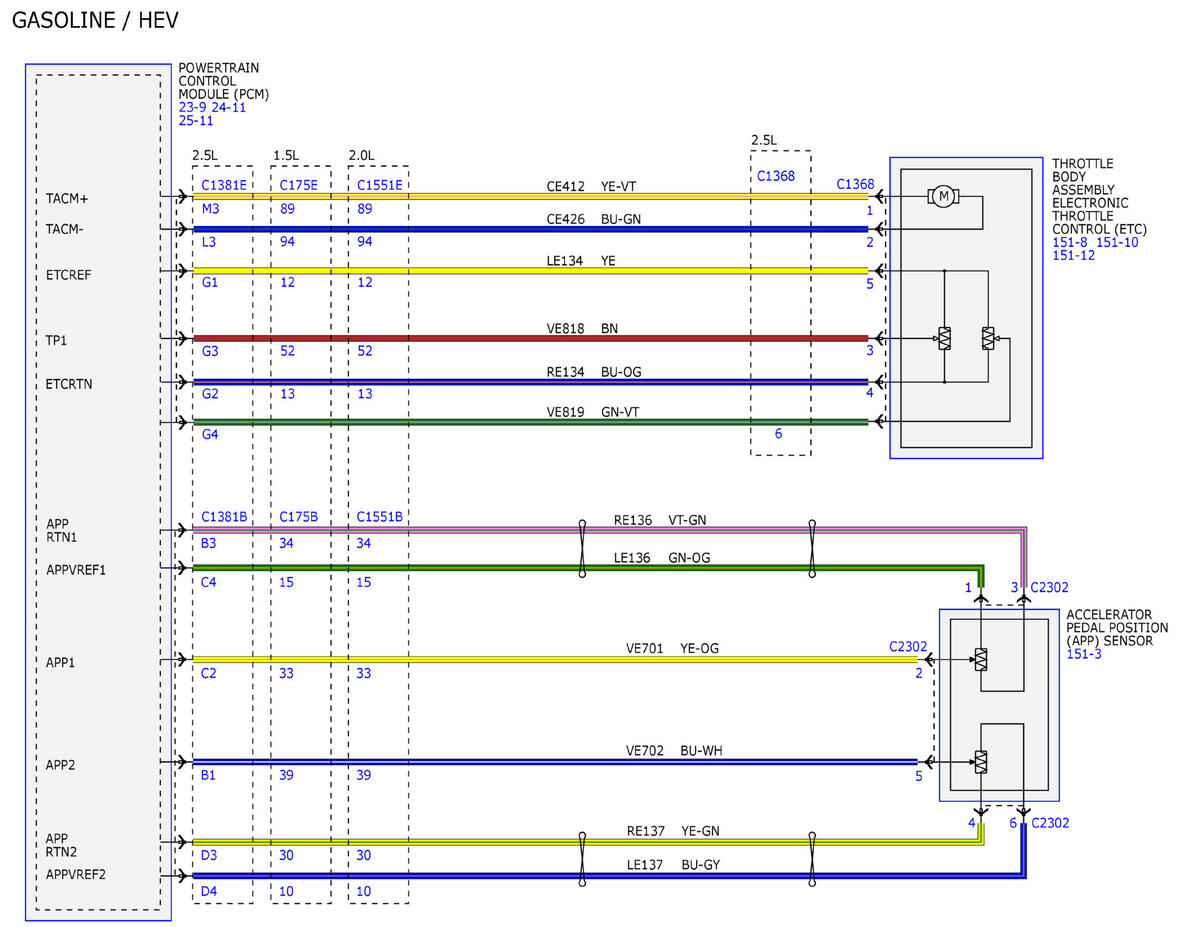

Fig 4: Cruise Control (4 Of 6)
GFDWR231271Courtesy of FORD MOTOR COMPANY

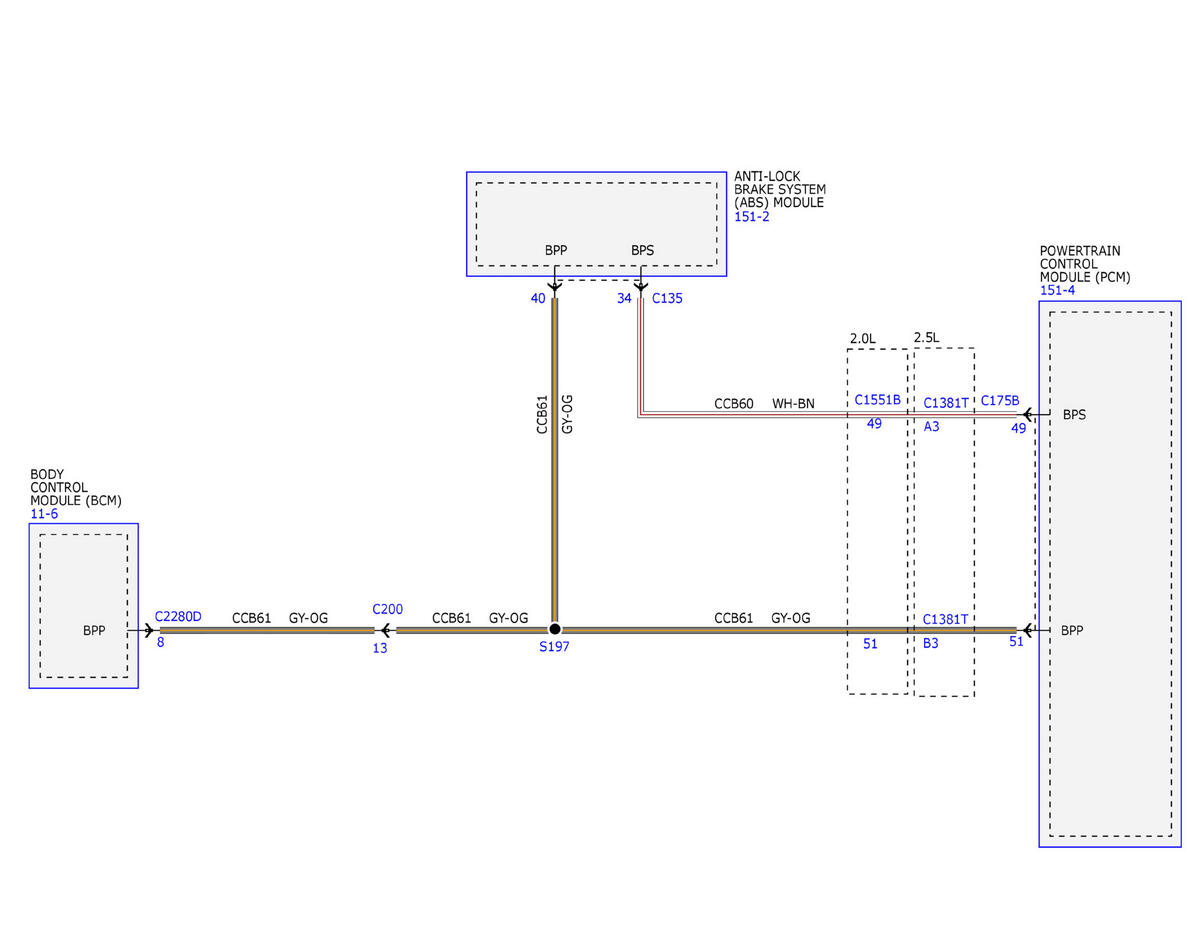

Fig 5: Cruise Control (5 Of 6)
GFDWR231272Courtesy of FORD MOTOR COMPANY

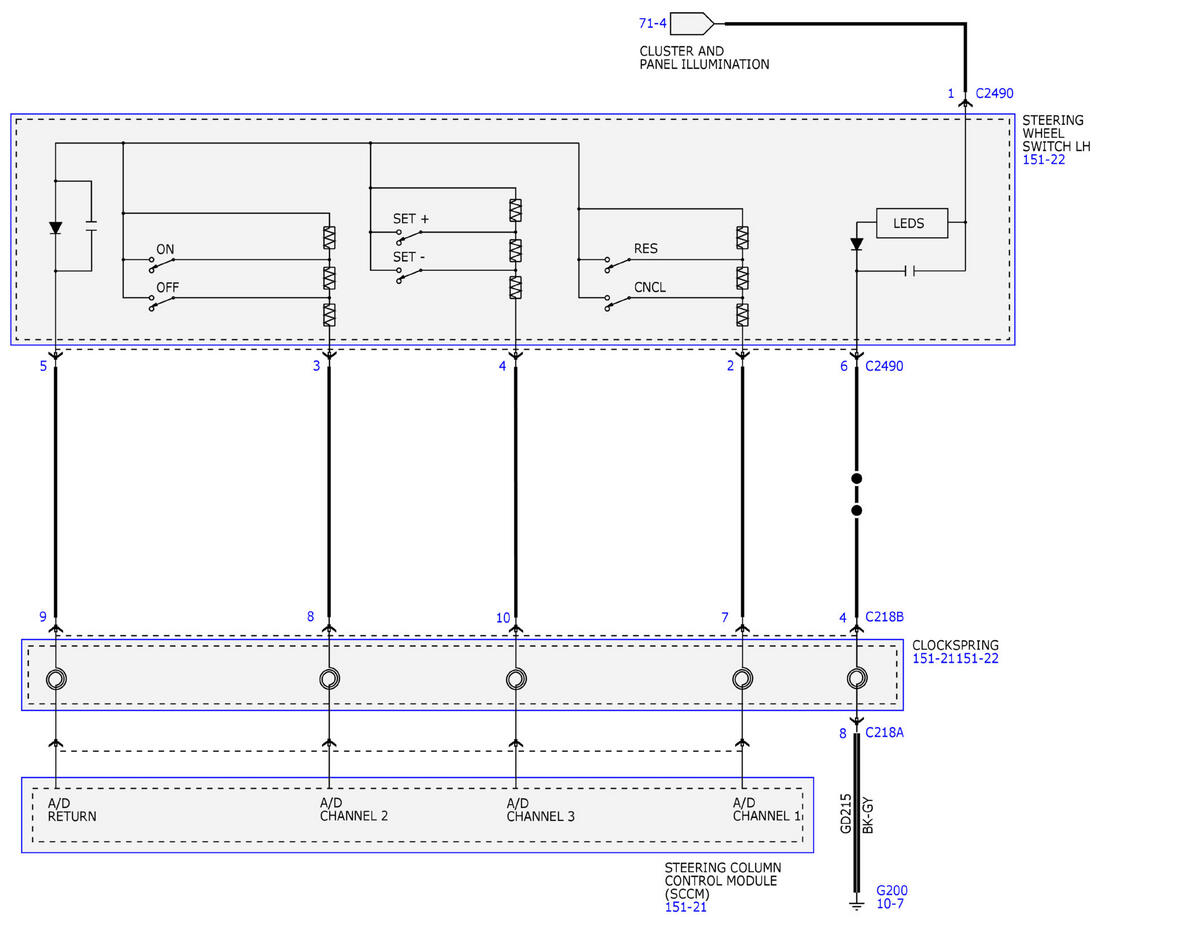

Fig 6: Cruise Control (6 Of 6)
GFDWR231273Courtesy of FORD MOTOR COMPANY
