Manual Climate Control System

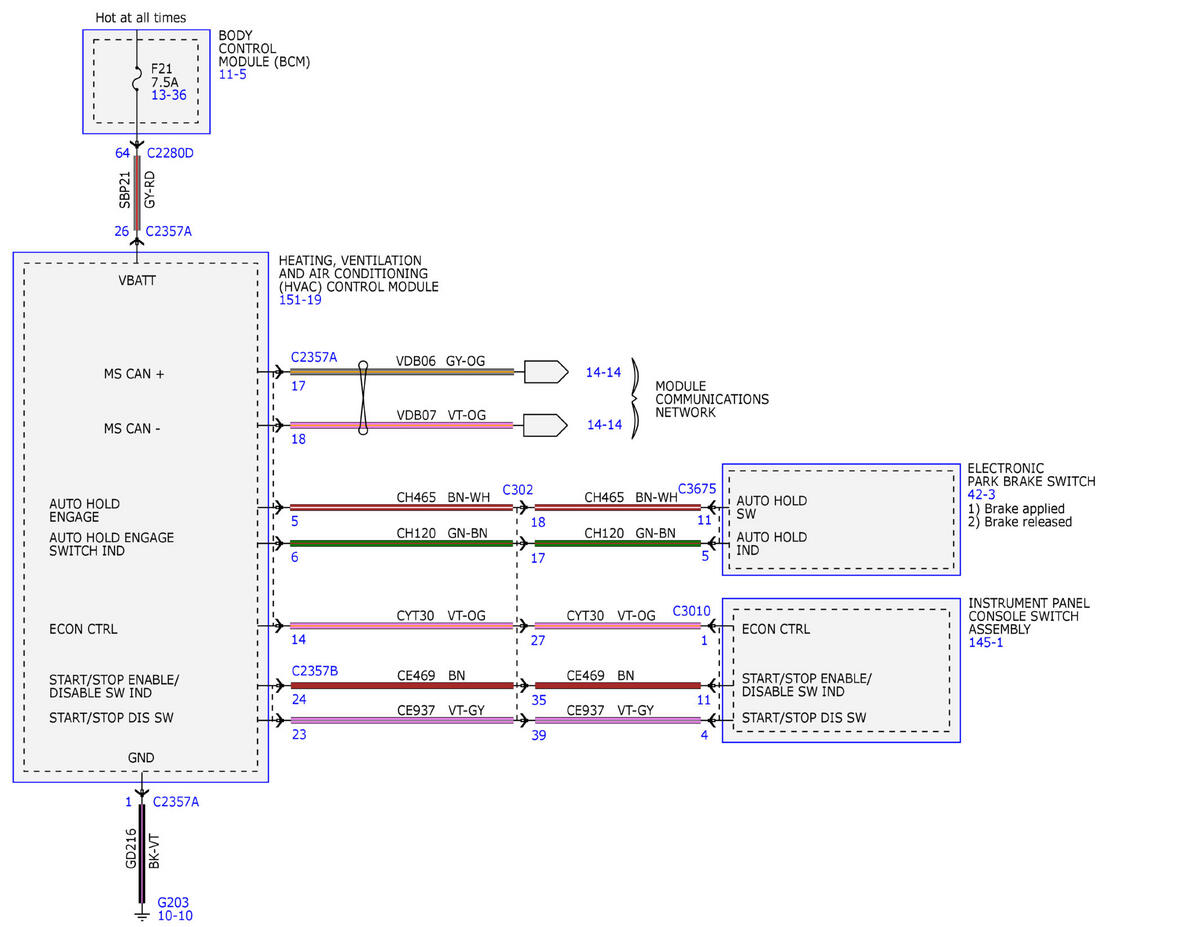

Fig 1: Manual Climate Control System (1 Of 13)

GFDWR231342

Courtesy of FORD MOTOR COMPANY

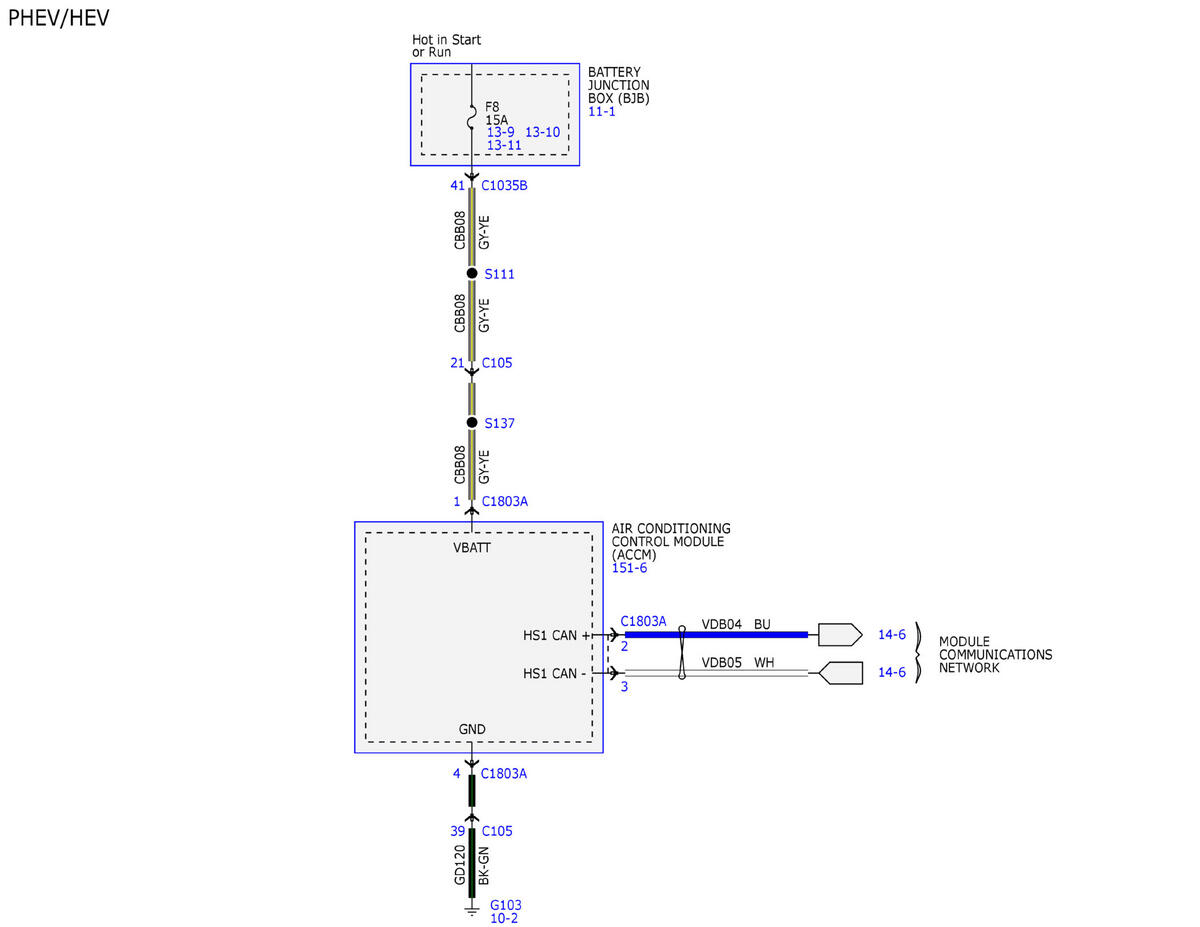

Fig 2: Manual Climate Control System (2 Of 13)

GFDWR231343

Courtesy of FORD MOTOR COMPANY

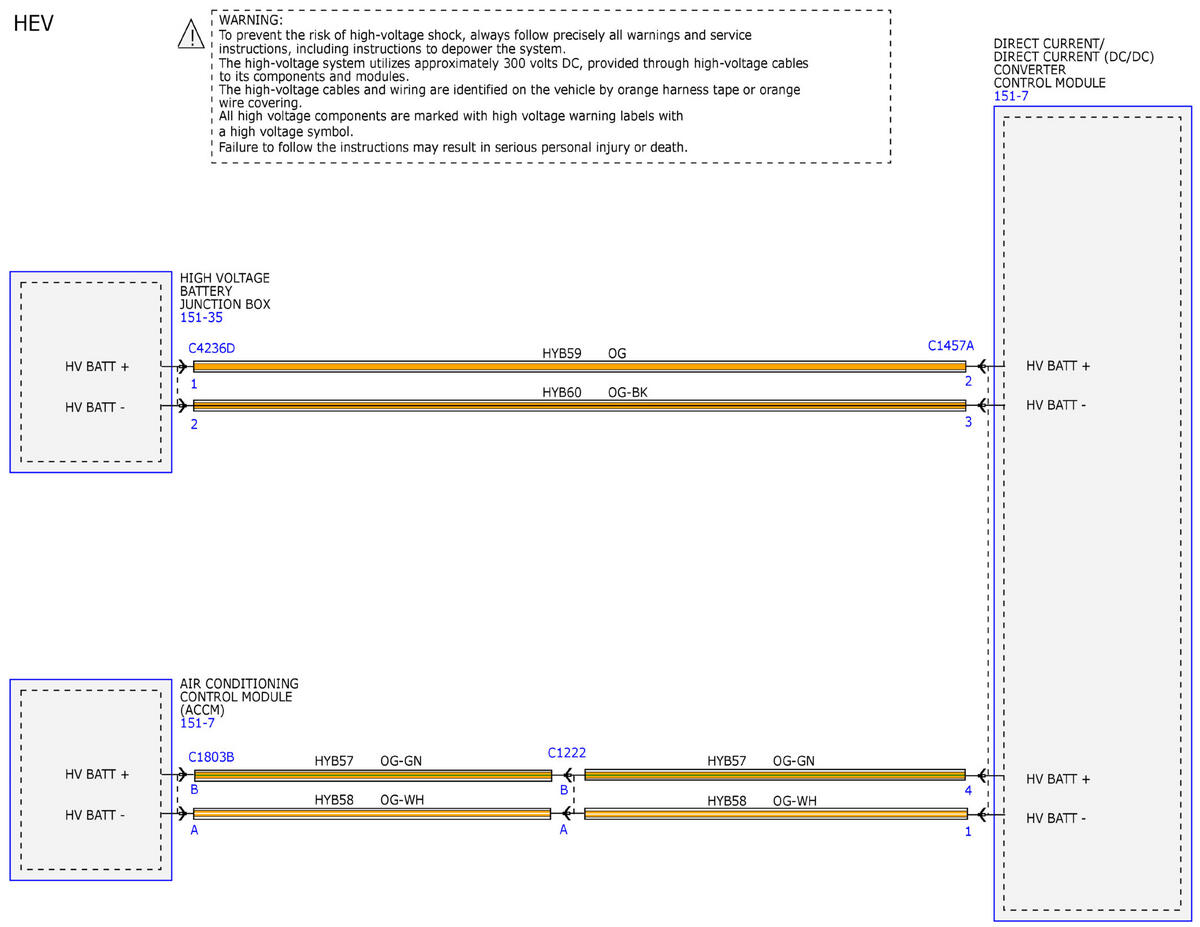

Fig 3: Manual Climate Control System (3 Of 13)

GFDWR231344

Courtesy of FORD MOTOR COMPANY

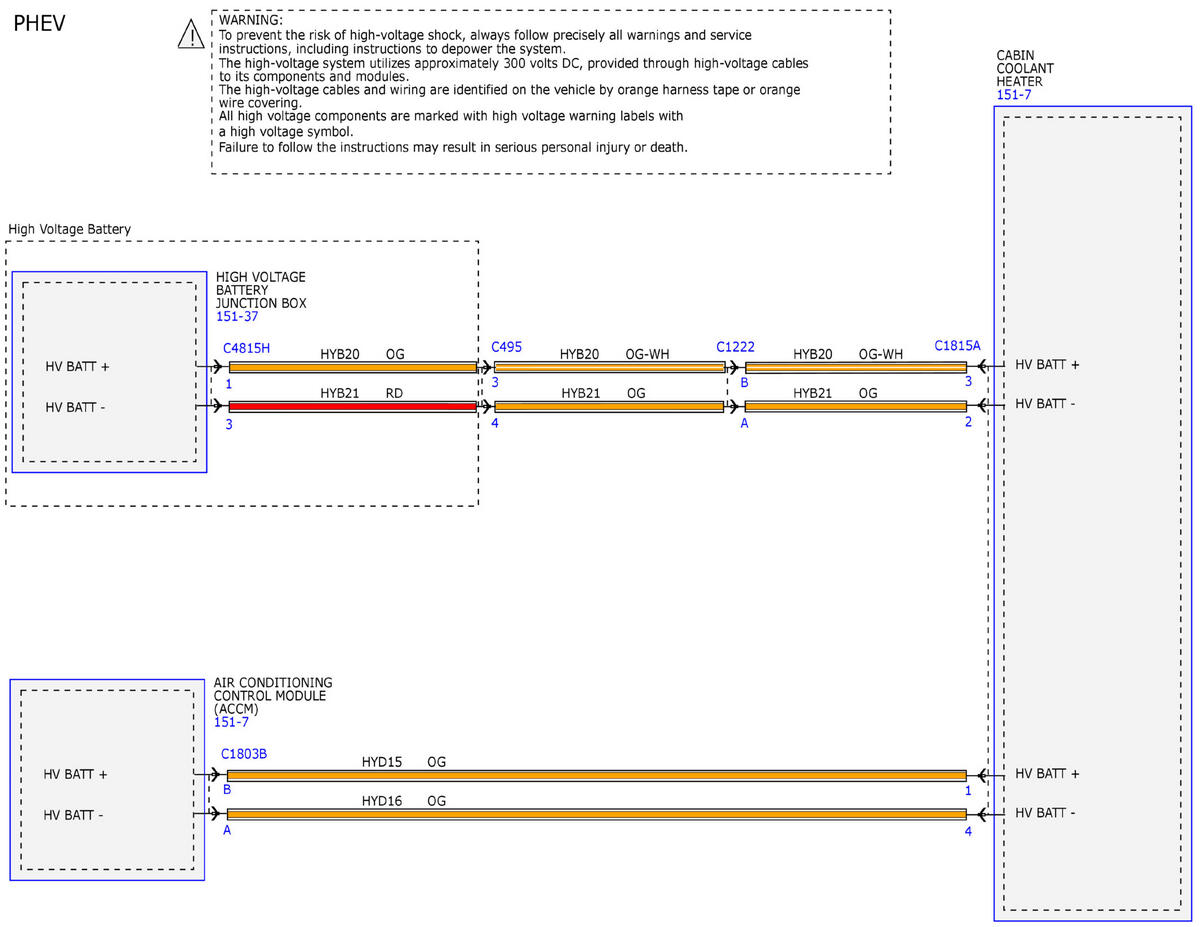

Fig 4: Manual Climate Control System (4 Of 13)

GFDWR231345

Courtesy of FORD MOTOR COMPANY

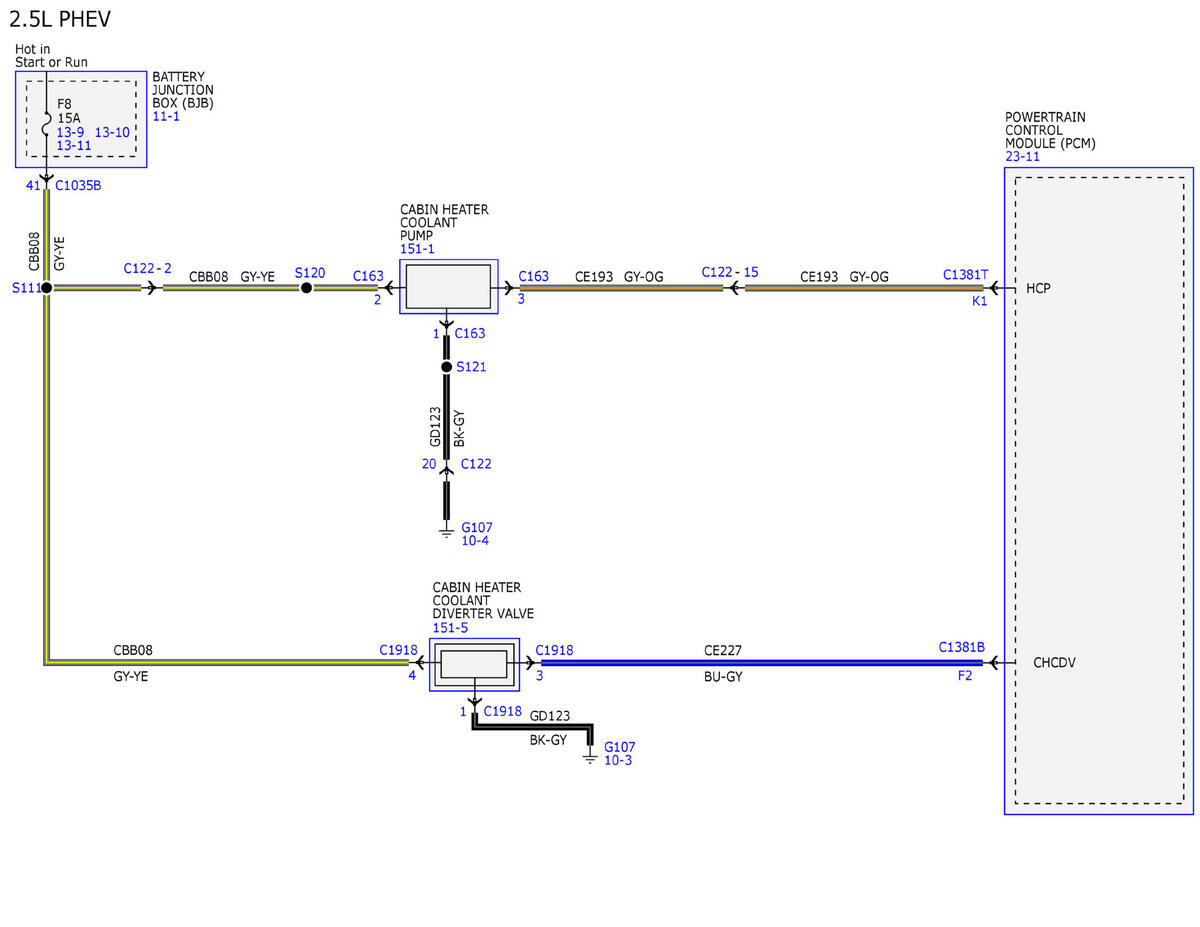

Fig 5: Manual Climate Control System (5 Of 13)

GFDWR231346

Courtesy of FORD MOTOR COMPANY

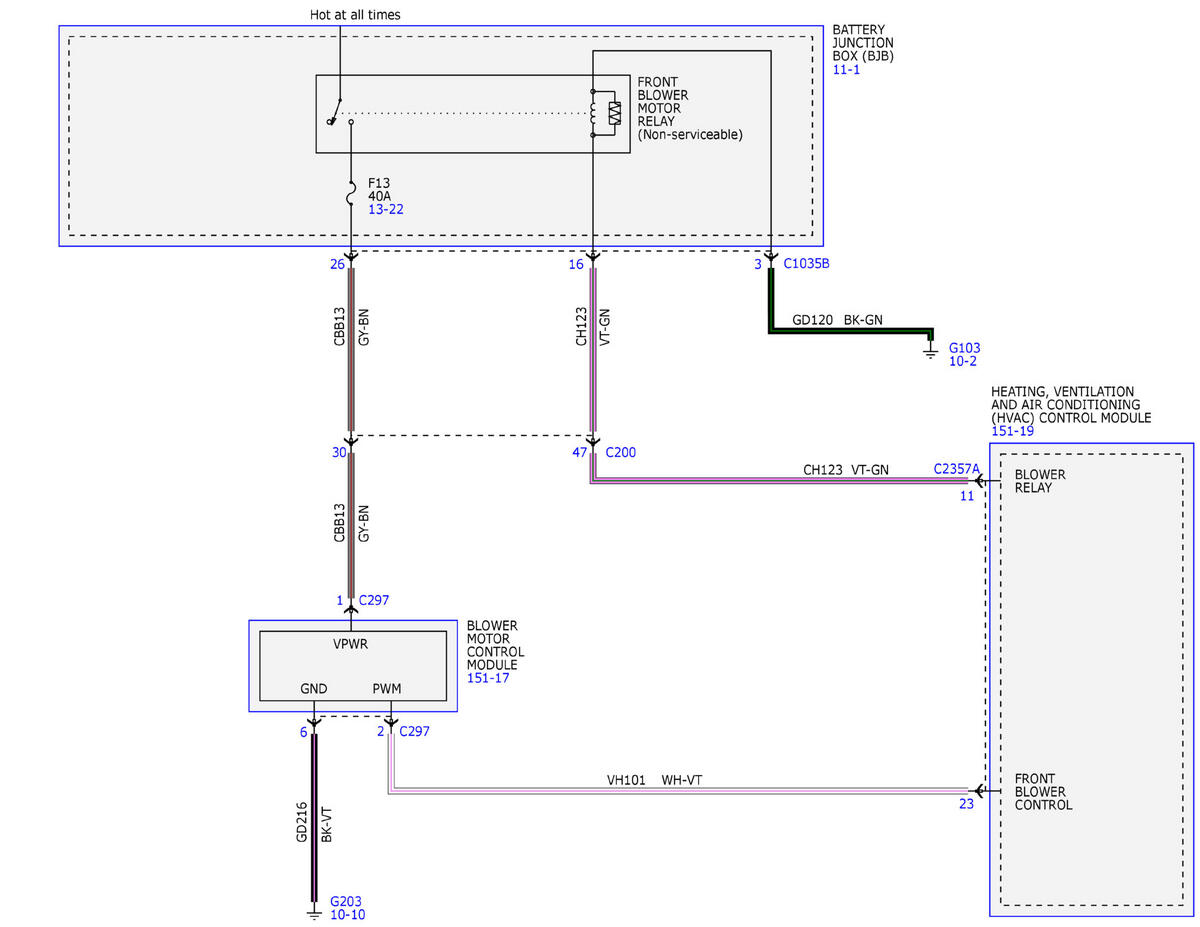

Fig 6: Manual Climate Control System (6 Of 13)

GFDWR231347

Courtesy of FORD MOTOR COMPANY

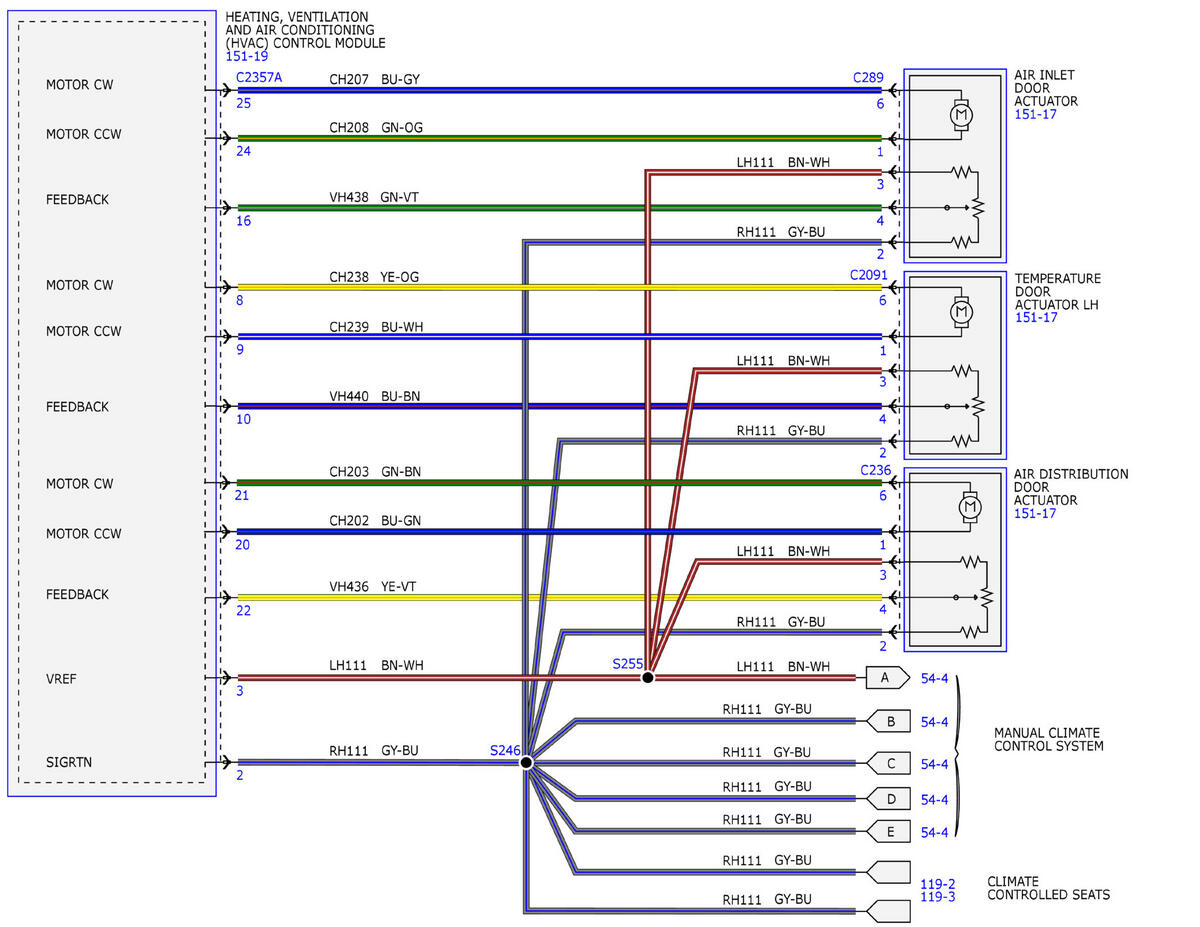

Fig 7: Manual Climate Control System (7 Of 13)

GFDWR231348

Courtesy of FORD MOTOR COMPANY

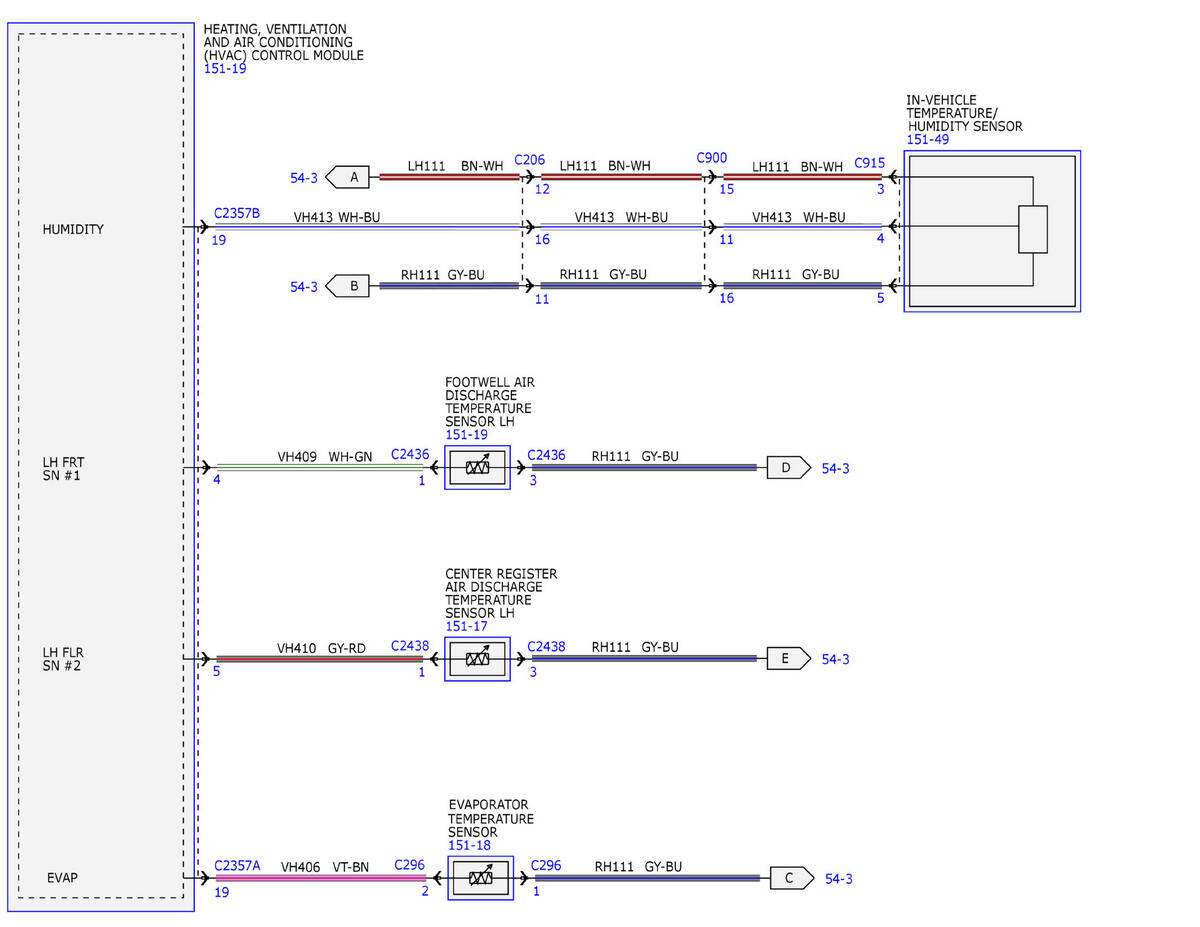

Fig 8: Manual Climate Control System (8 Of 13)

GFDWR231349

Courtesy of FORD MOTOR COMPANY

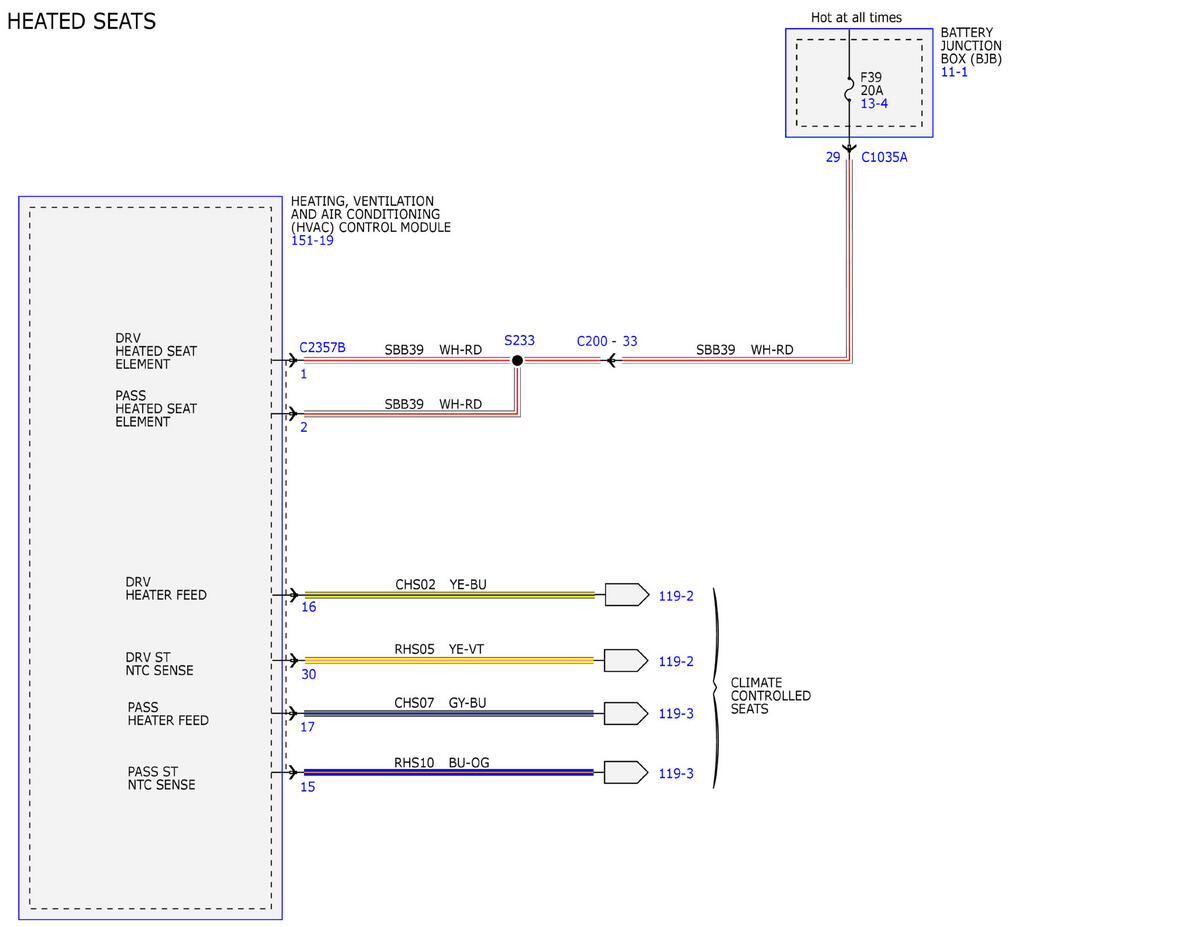

Fig 9: Manual Climate Control System (9 Of 13)

GFDWR231350

Courtesy of FORD MOTOR COMPANY

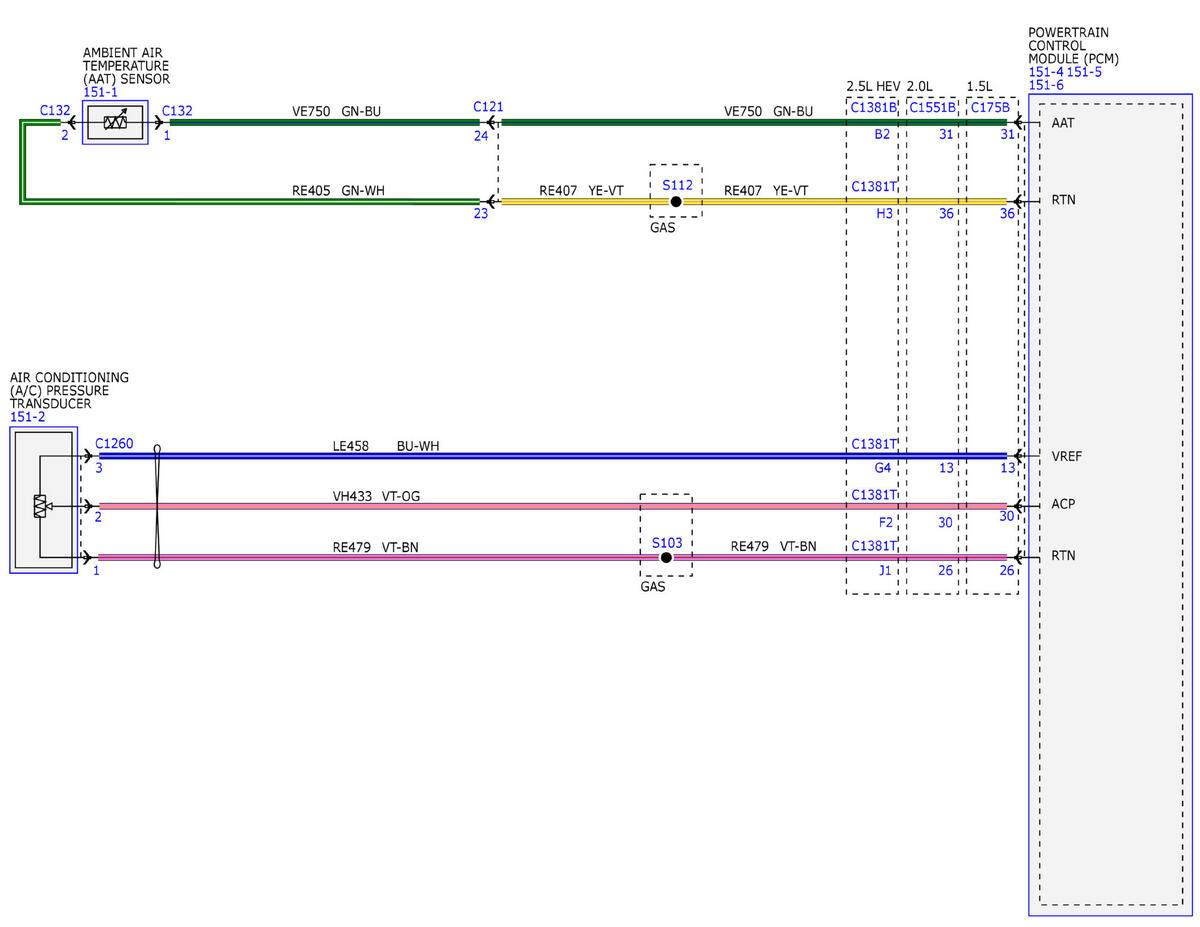

Fig 10: Manual Climate Control System (10 Of 13)

GFDWR231351

Courtesy of FORD MOTOR COMPANY

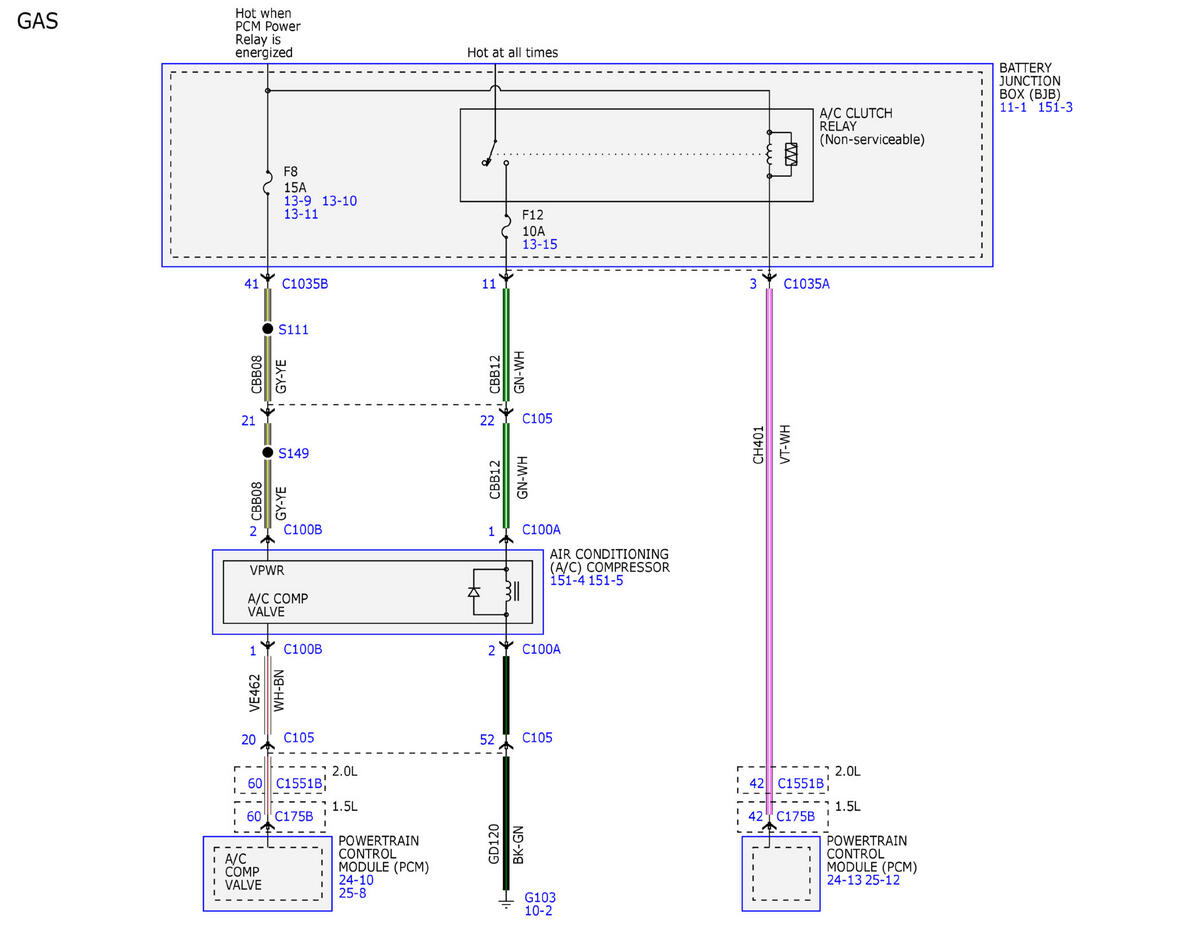

Fig 11: Manual Climate Control System (11 Of 13)

GFDWR231352

Courtesy of FORD MOTOR COMPANY

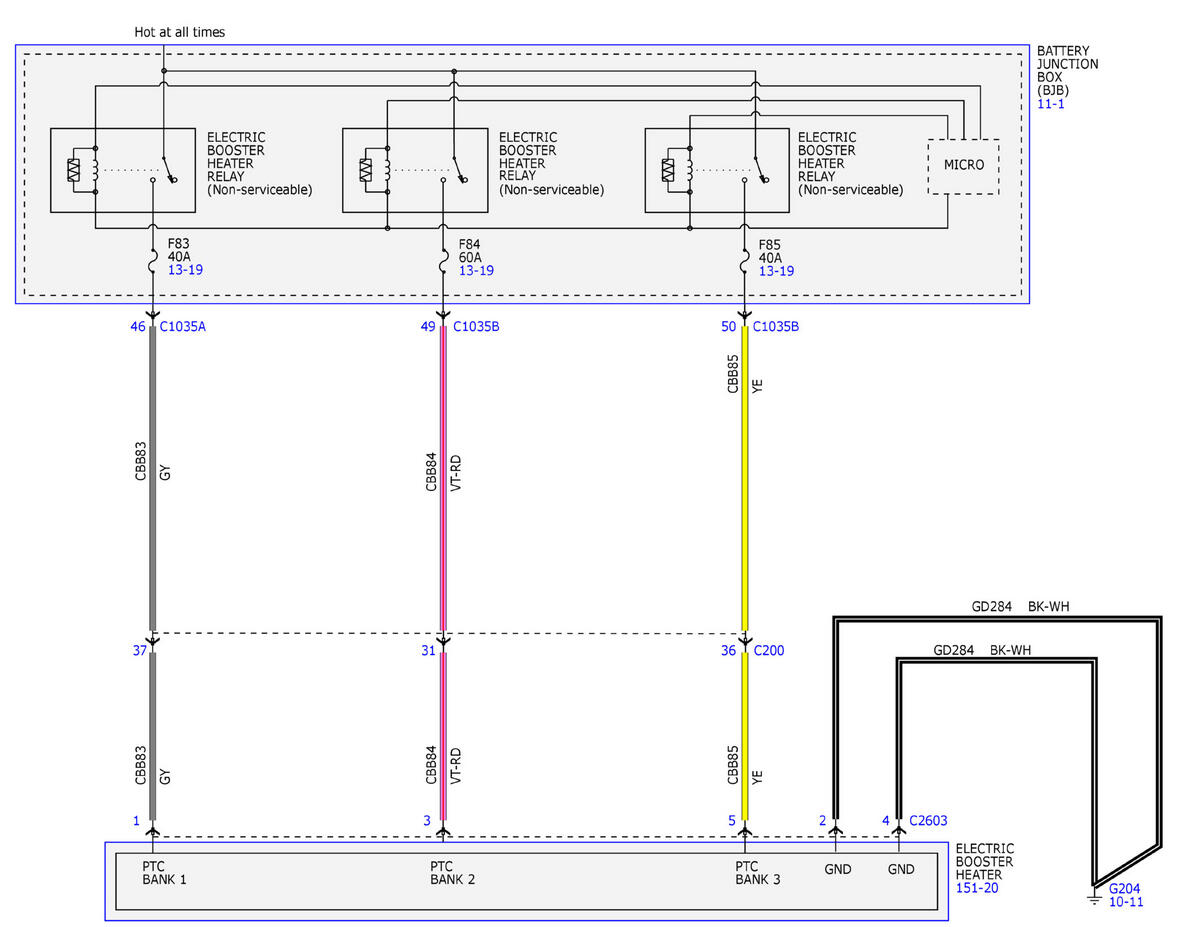

Fig 12: Manual Climate Control System (12 Of 13)

GFDWR231353

Courtesy of FORD MOTOR COMPANY

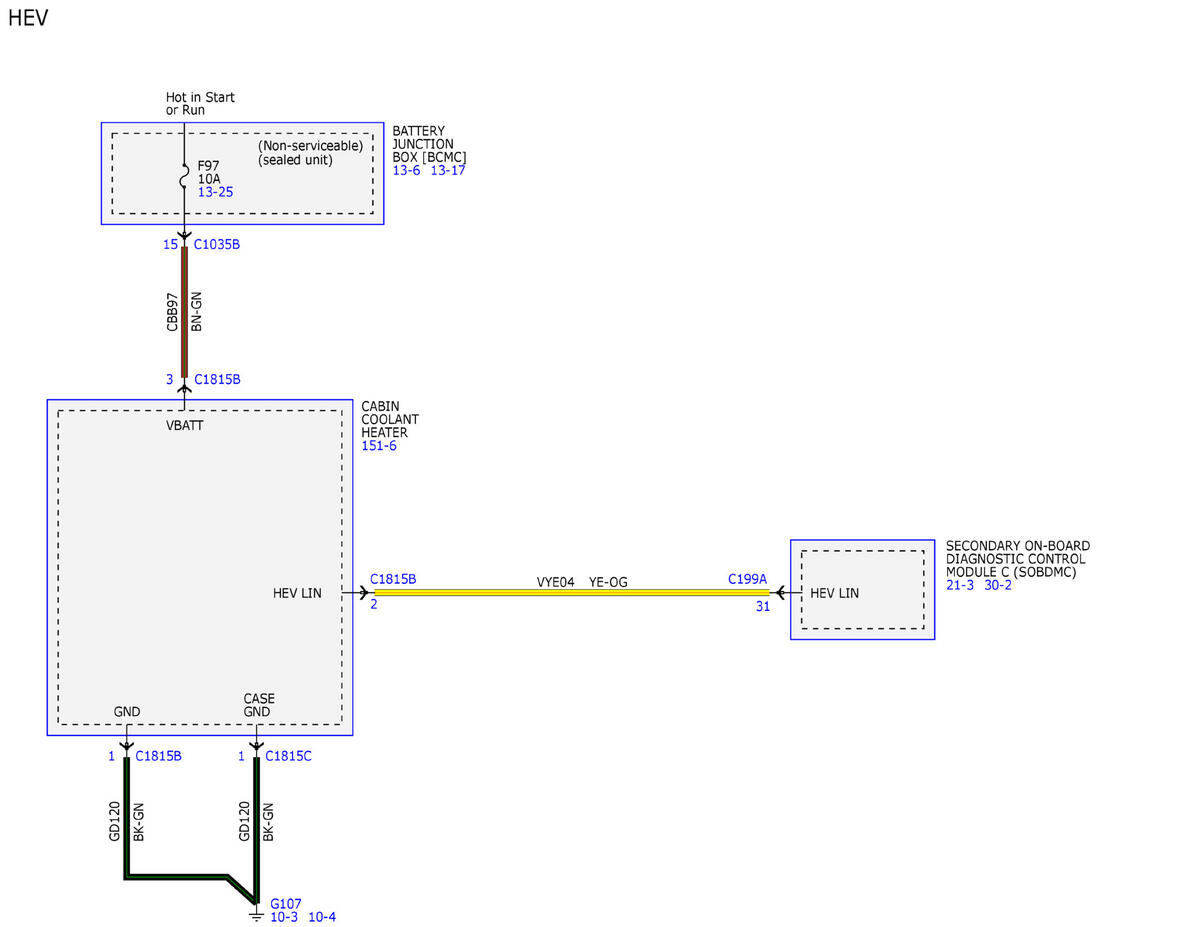

Fig 13: Manual Climate Control System (13 Of 13)

GFDWR231354

Courtesy of FORD MOTOR COMPANY
