Power Distribution/BCM

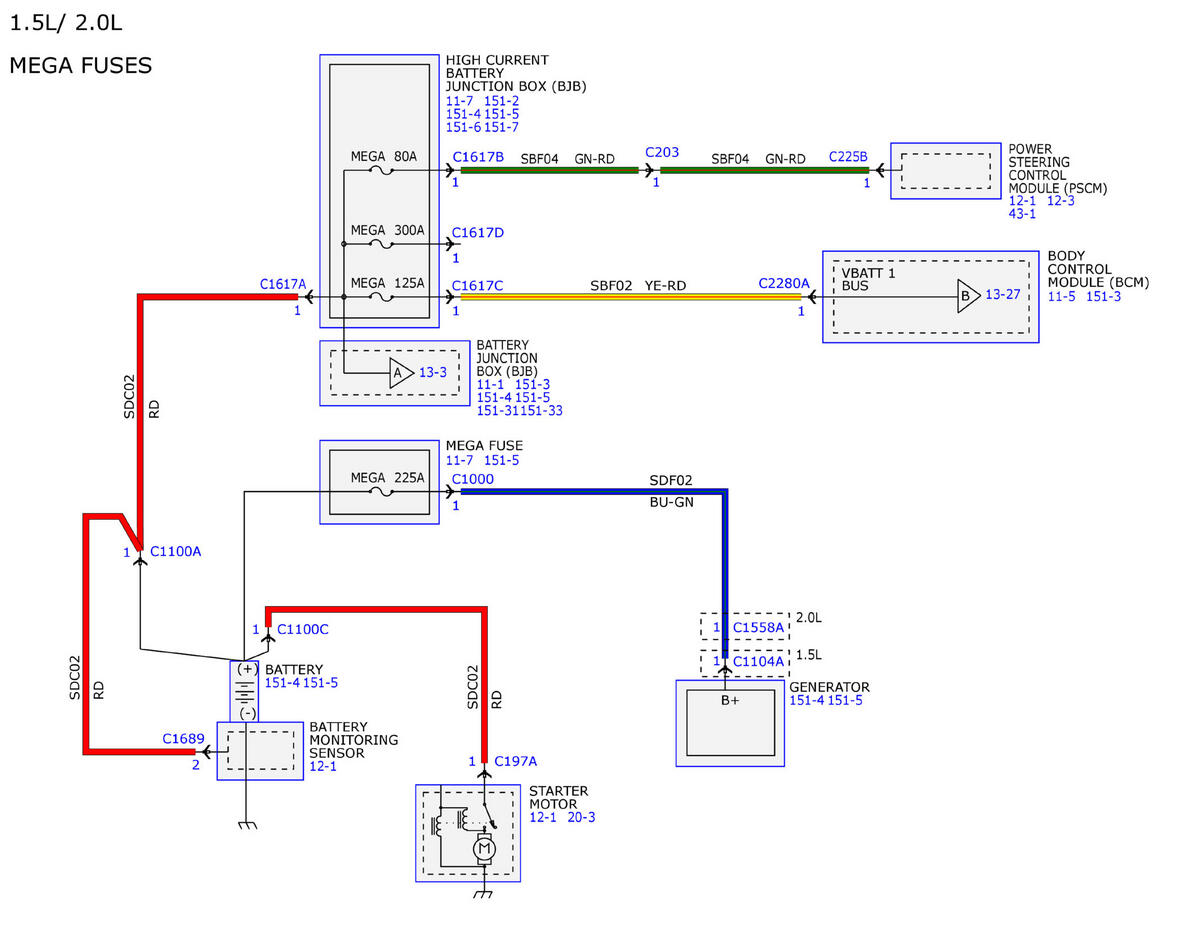

Fig 1: Power Distribution/BCM (1 Of 44)

GFDWR231391

Courtesy of FORD MOTOR COMPANY

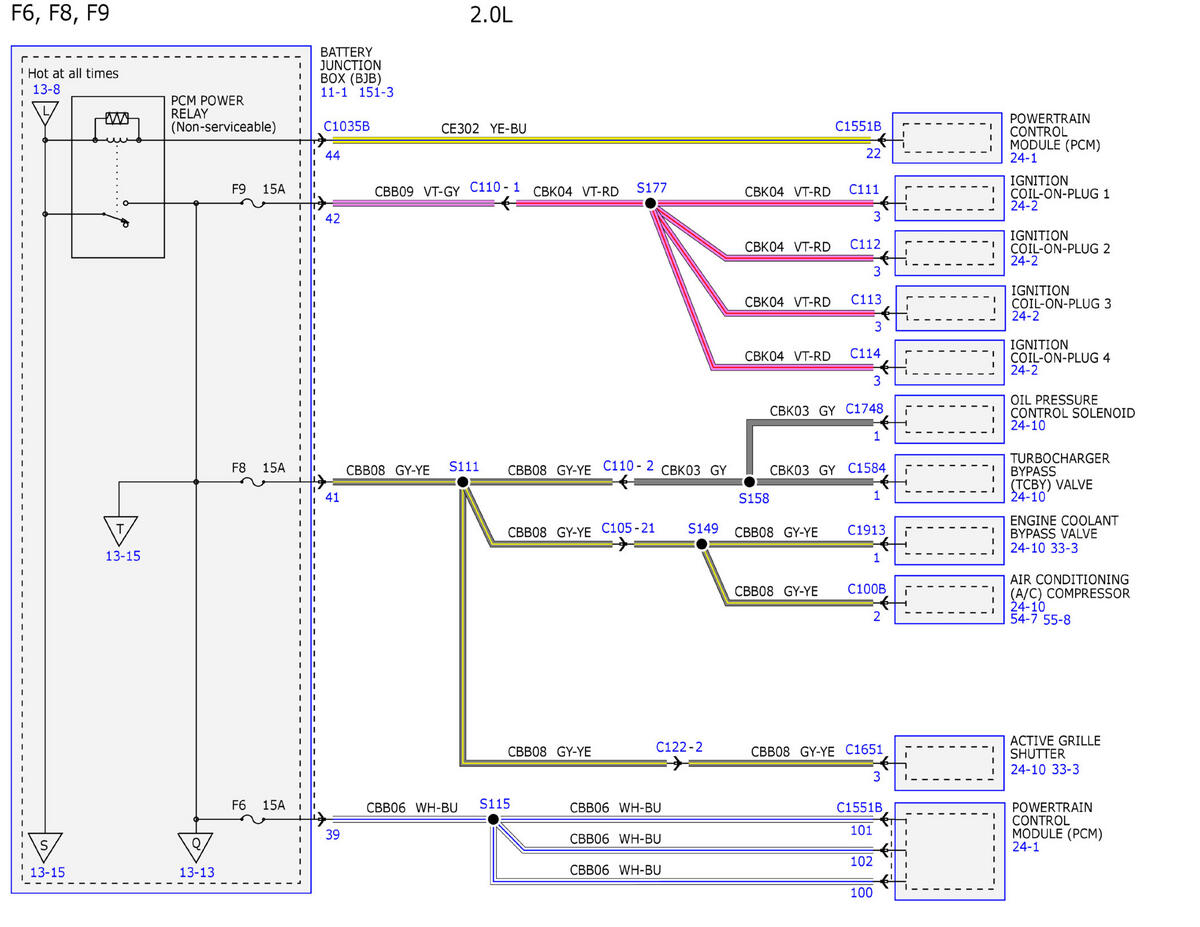

Fig 2: Power Distribution/BCM (2 Of 44)

GFDWR231392

Courtesy of FORD MOTOR COMPANY

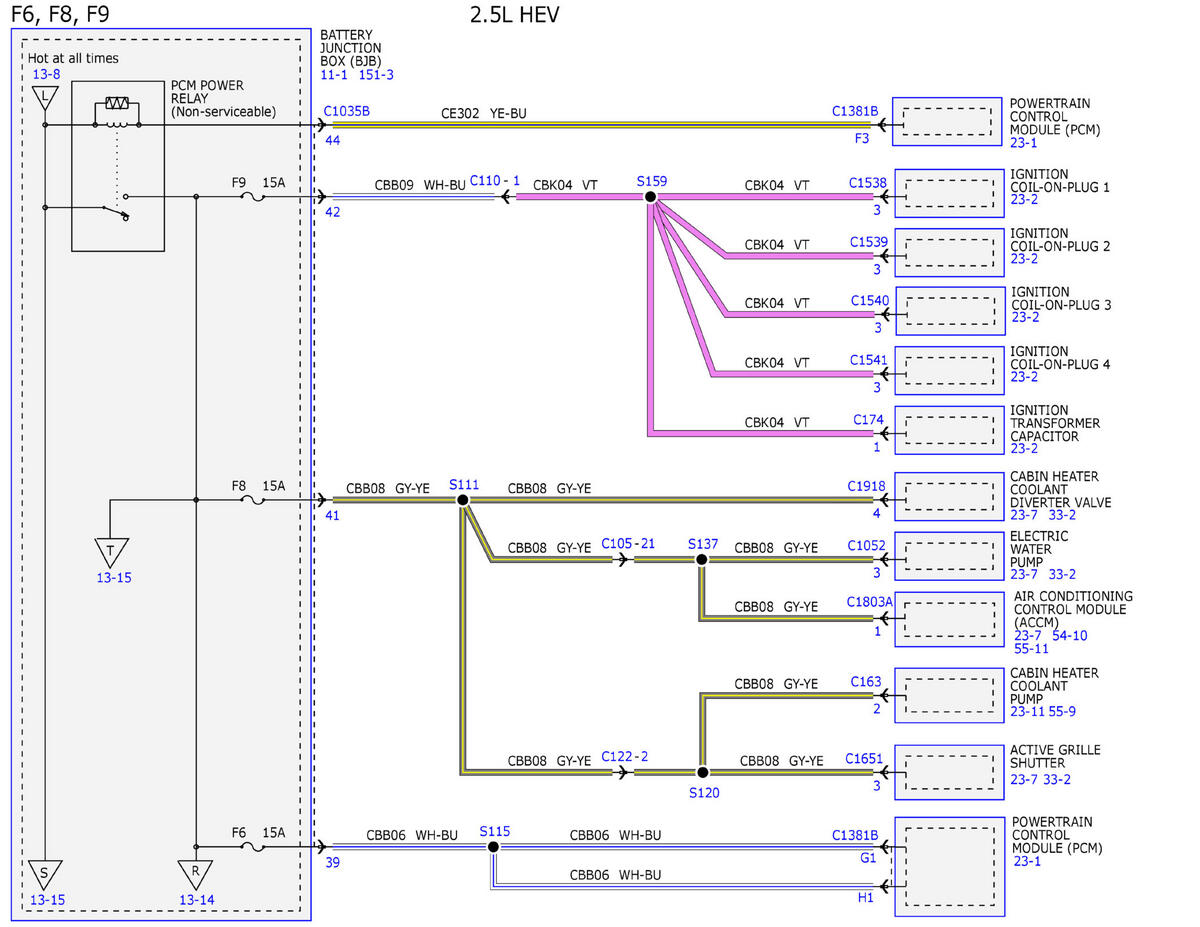

Fig 3: Power Distribution/BCM (3 Of 44)

GFDWR231393

Courtesy of FORD MOTOR COMPANY

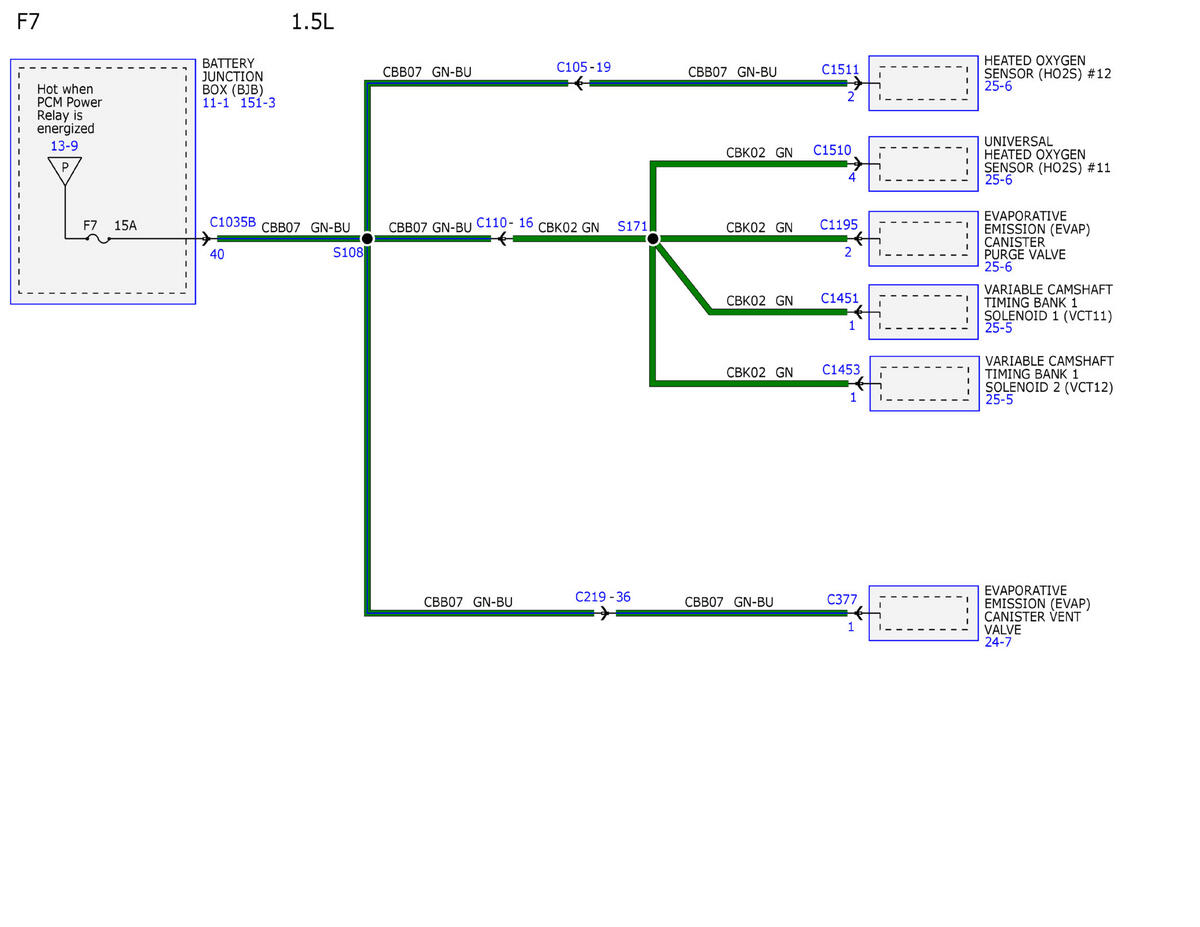

Fig 4: Power Distribution/BCM (4 Of 44)

GFDWR231394

Courtesy of FORD MOTOR COMPANY

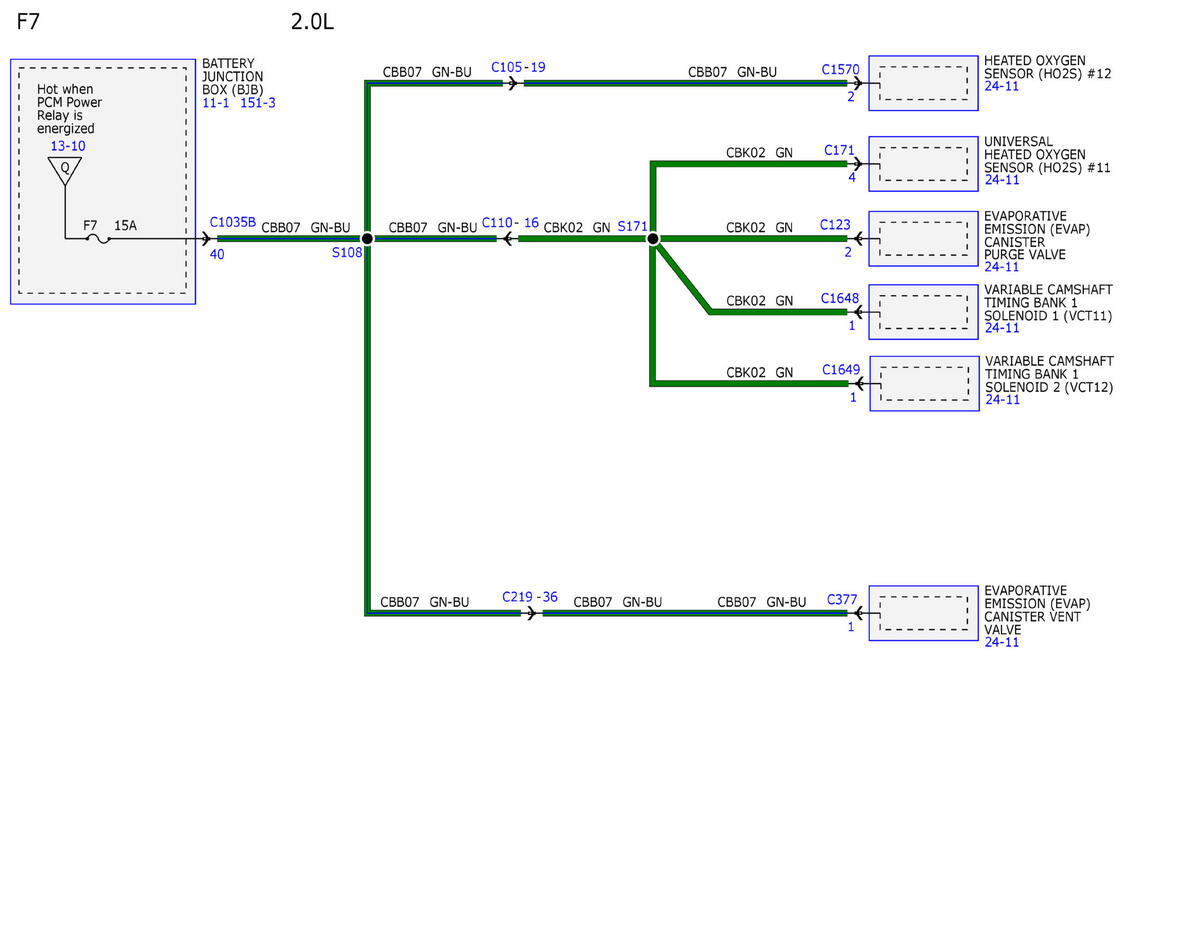

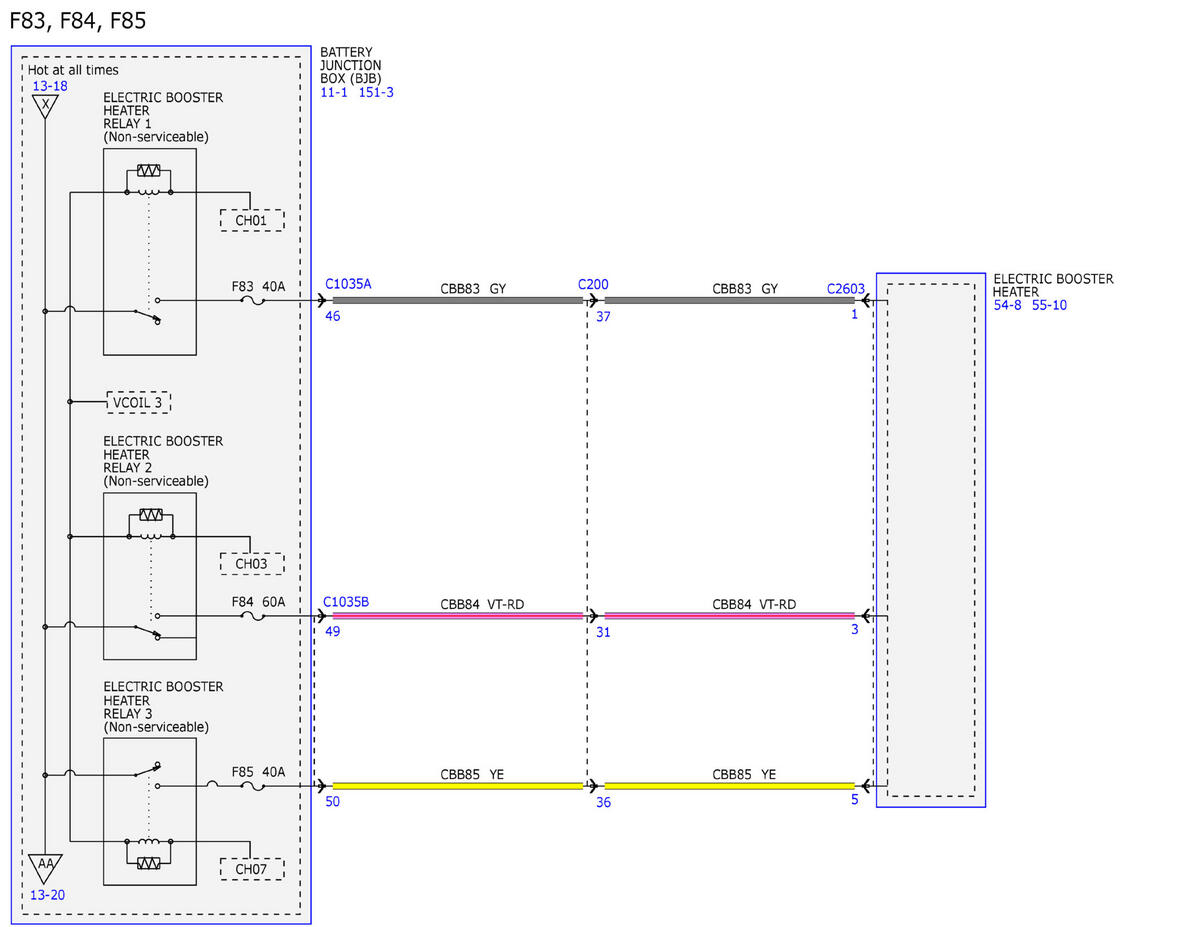

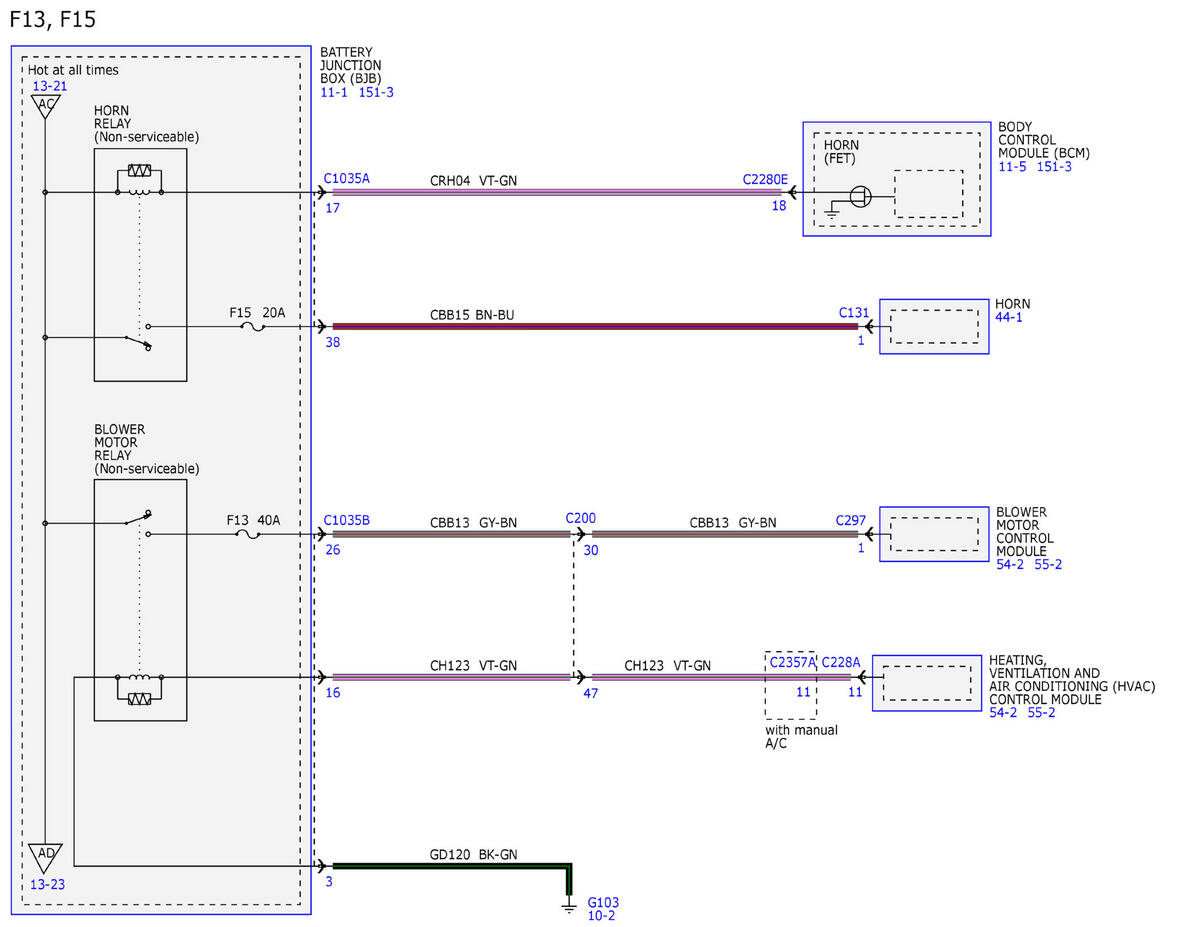

Fig 5: Power Distribution/BCM (5 Of 44)

GFDWR231395

Courtesy of FORD MOTOR COMPANY

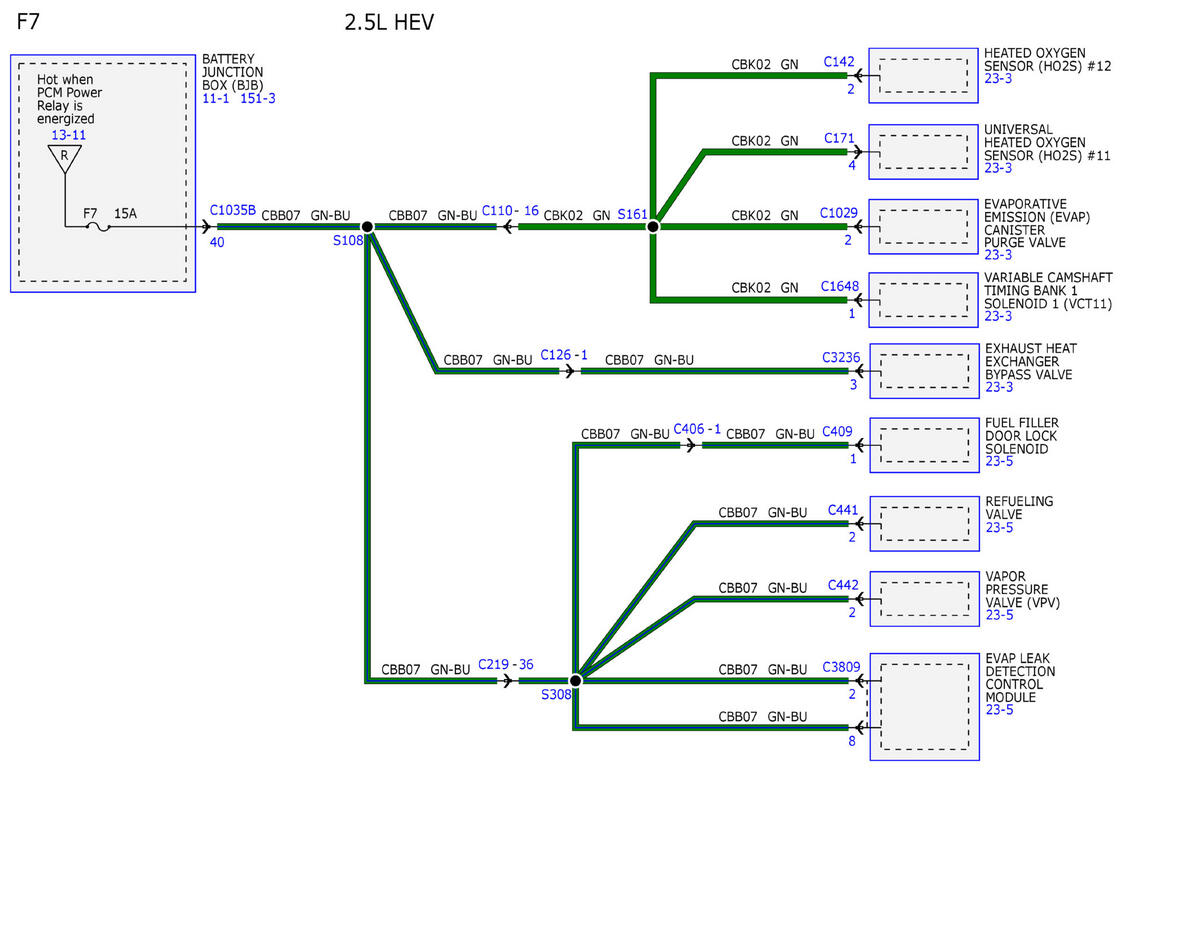

Fig 6: Power Distribution/BCM (6 Of 44)

GFDWR231396

Courtesy of FORD MOTOR COMPANY

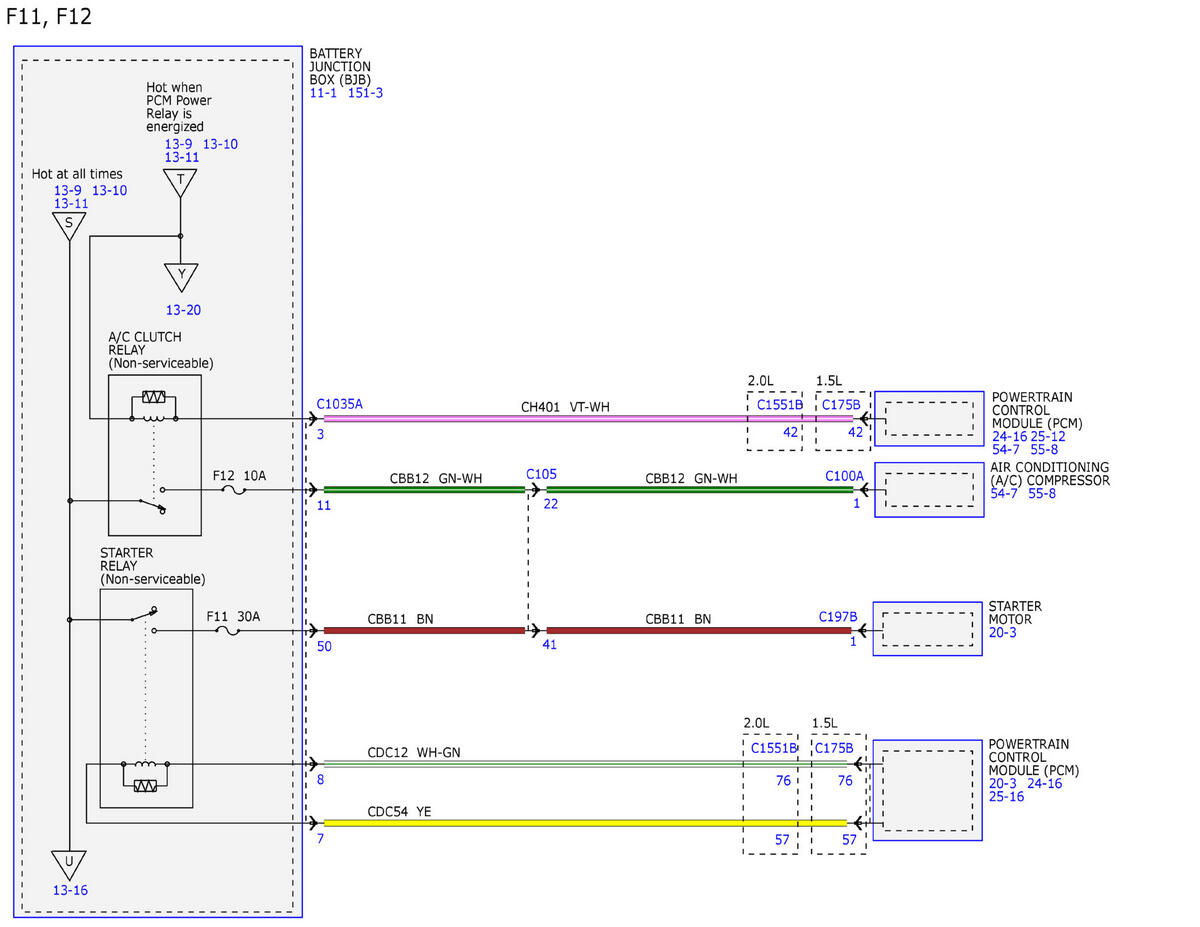

Fig 7: Power Distribution/BCM (7 Of 44)

GFDWR231397

Courtesy of FORD MOTOR COMPANY

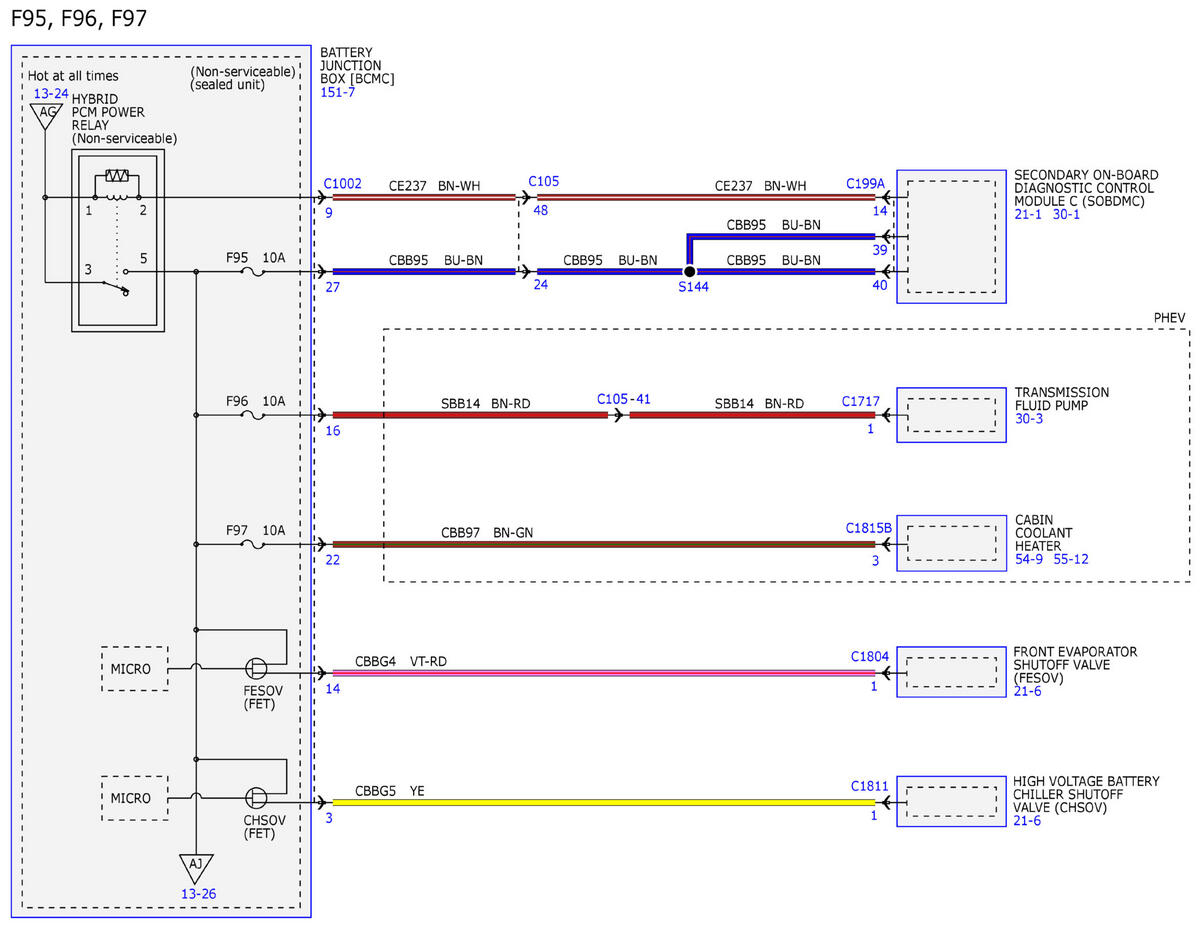

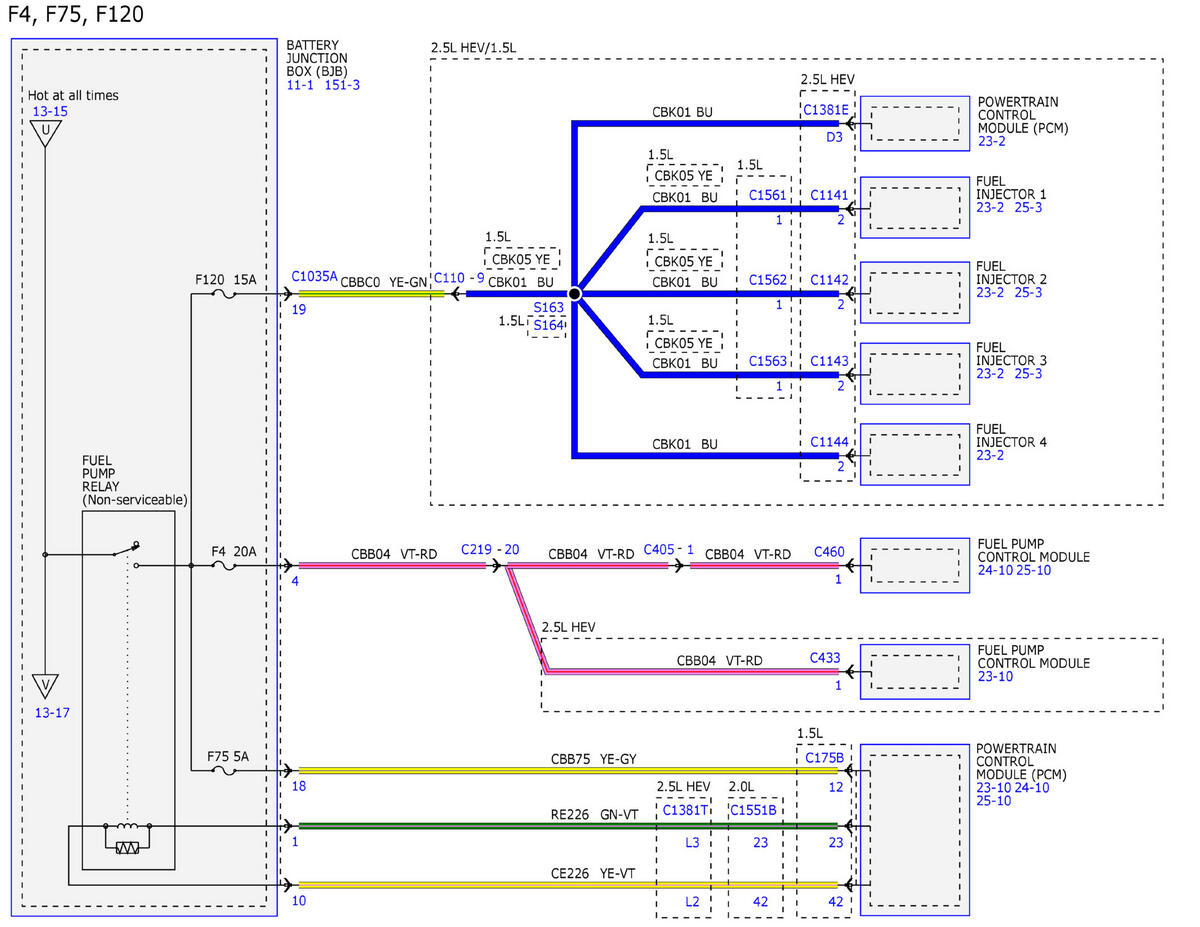

Fig 8: Power Distribution/BCM (8 Of 44)

GFDWR231398

Courtesy of FORD MOTOR COMPANY

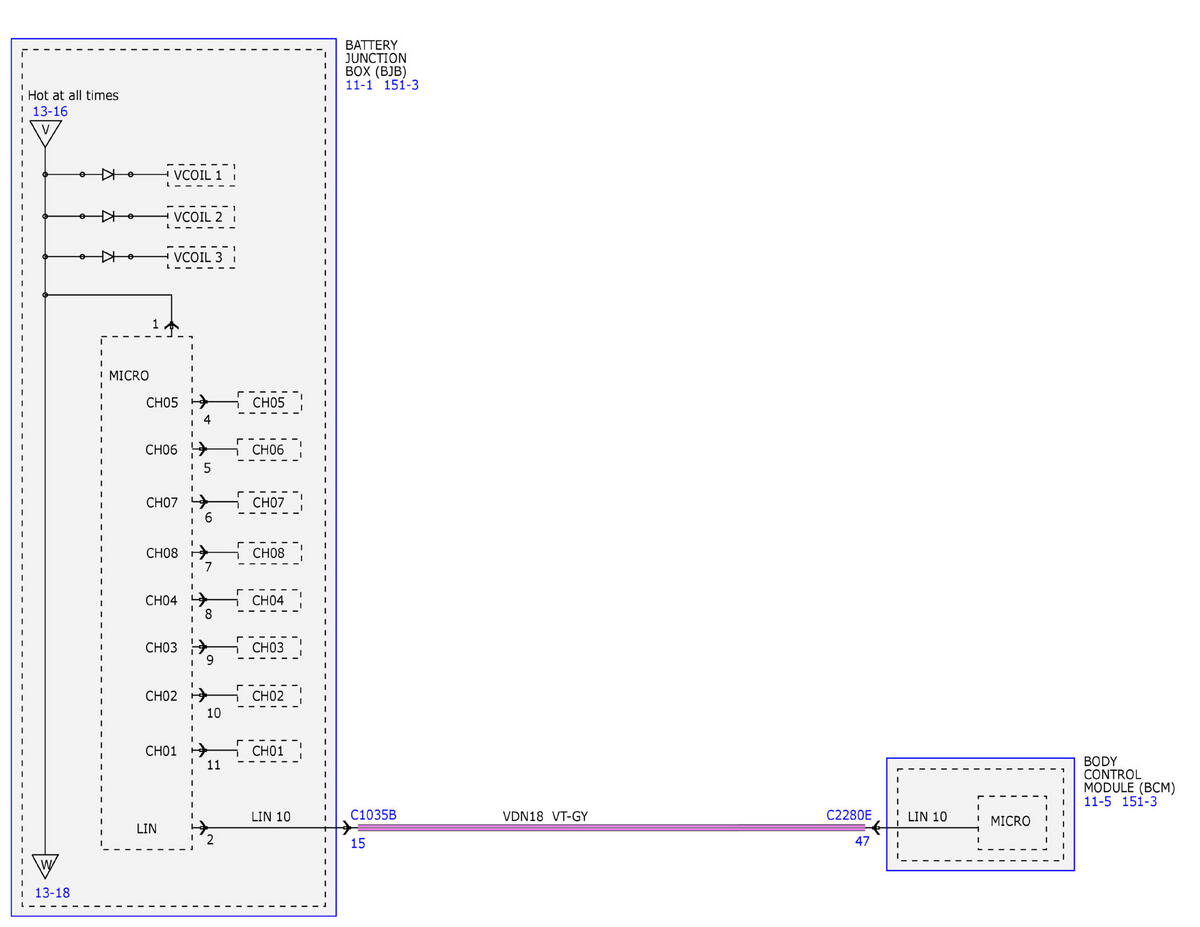

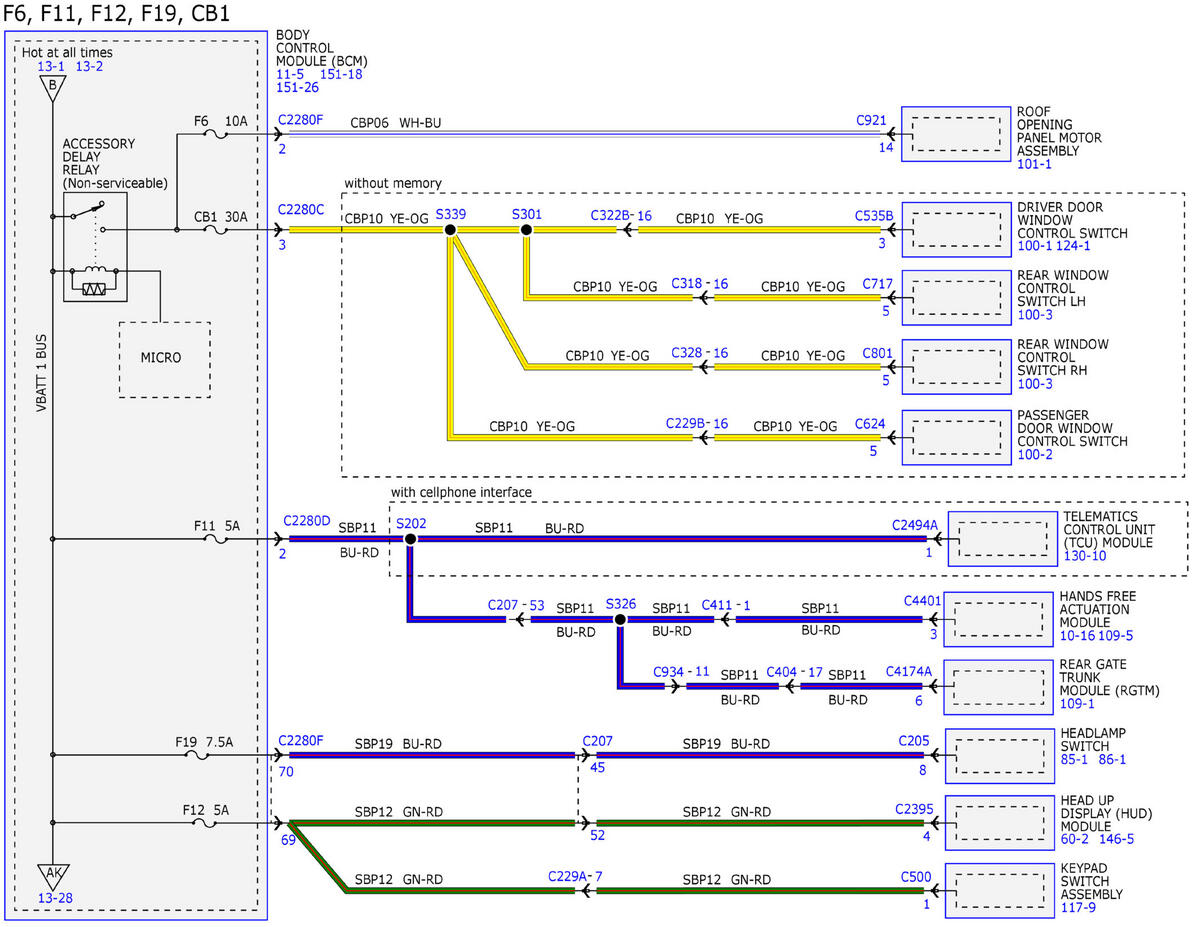

Fig 9: Power Distribution/BCM (9 Of 44)

GFDWR231399

Courtesy of FORD MOTOR COMPANY

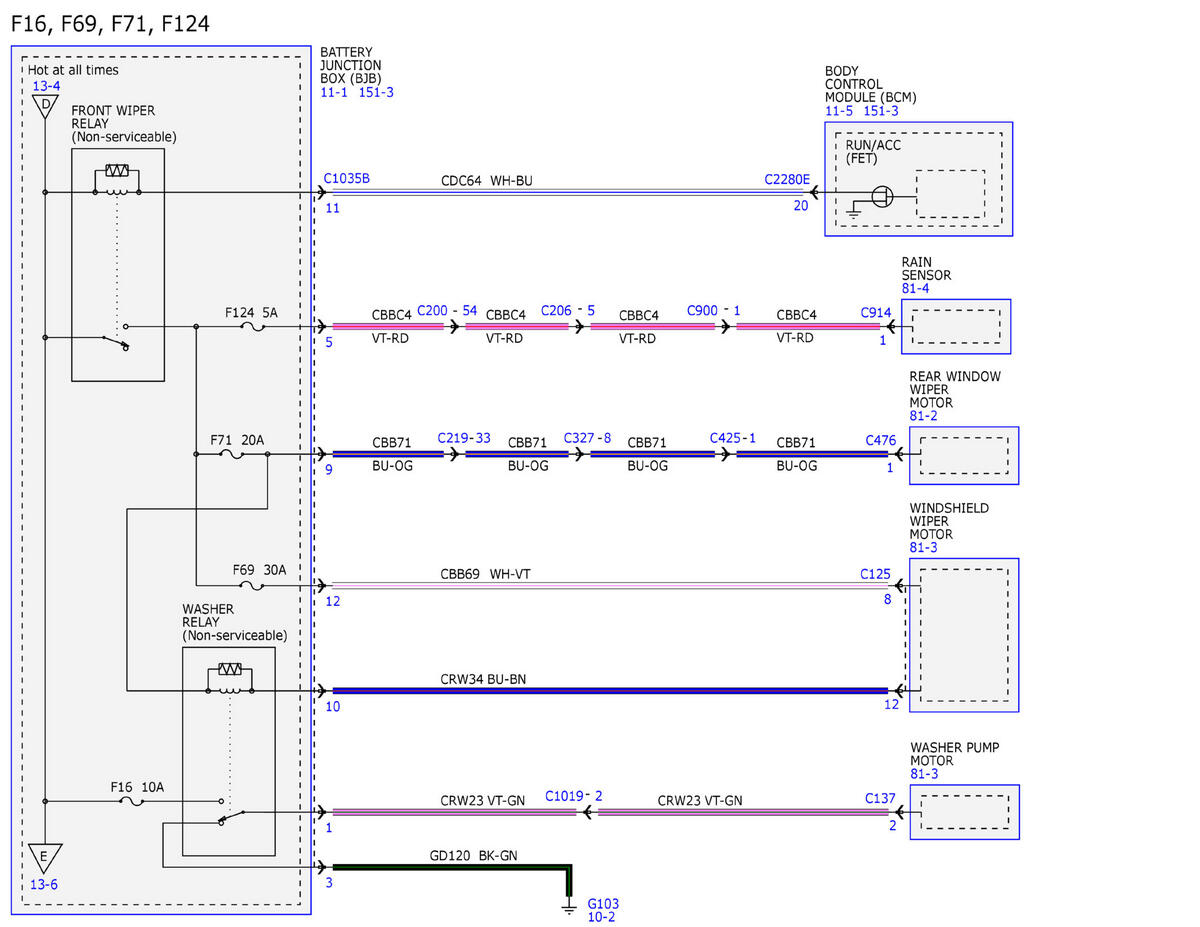

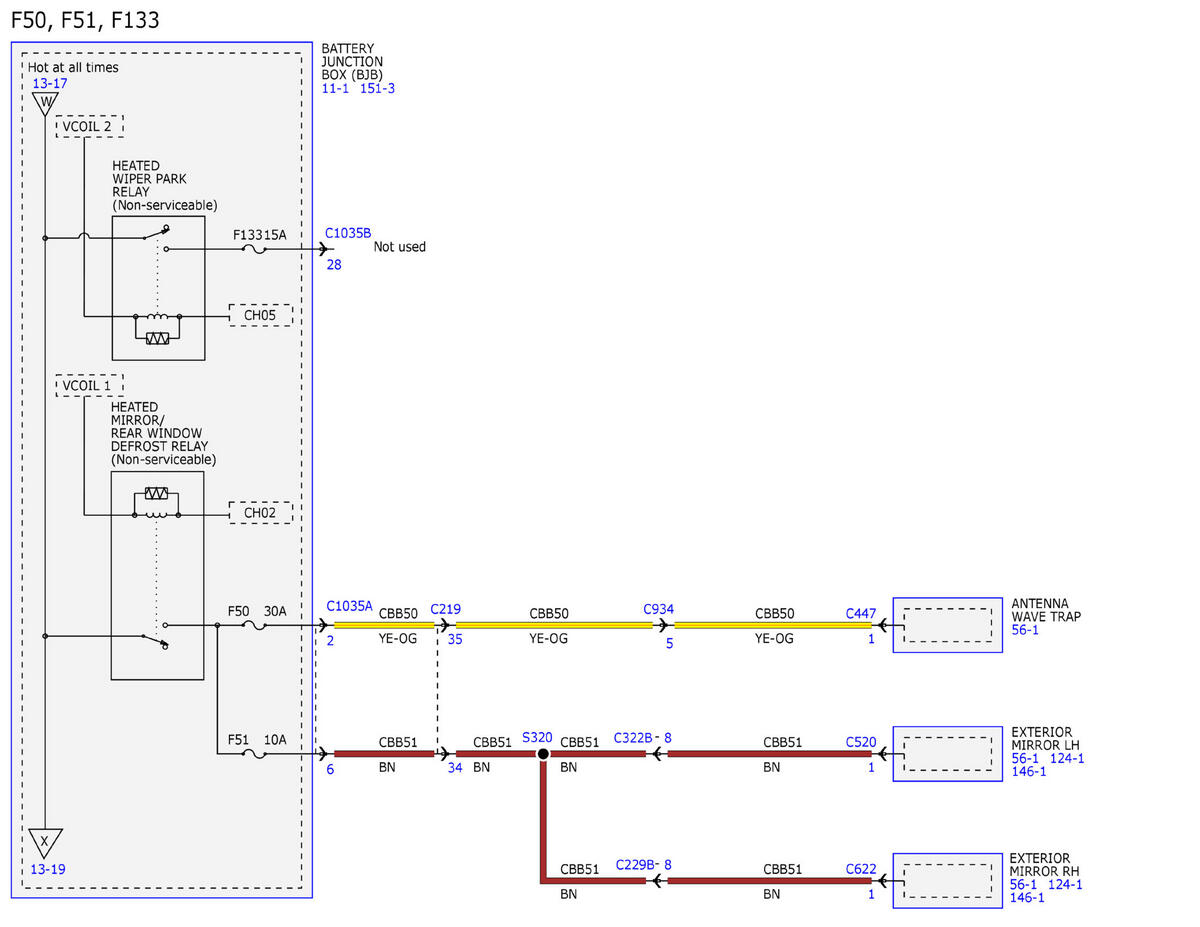

Fig 10: Power Distribution/BCM (10 Of 44)

GFDWR231400

Courtesy of FORD MOTOR COMPANY

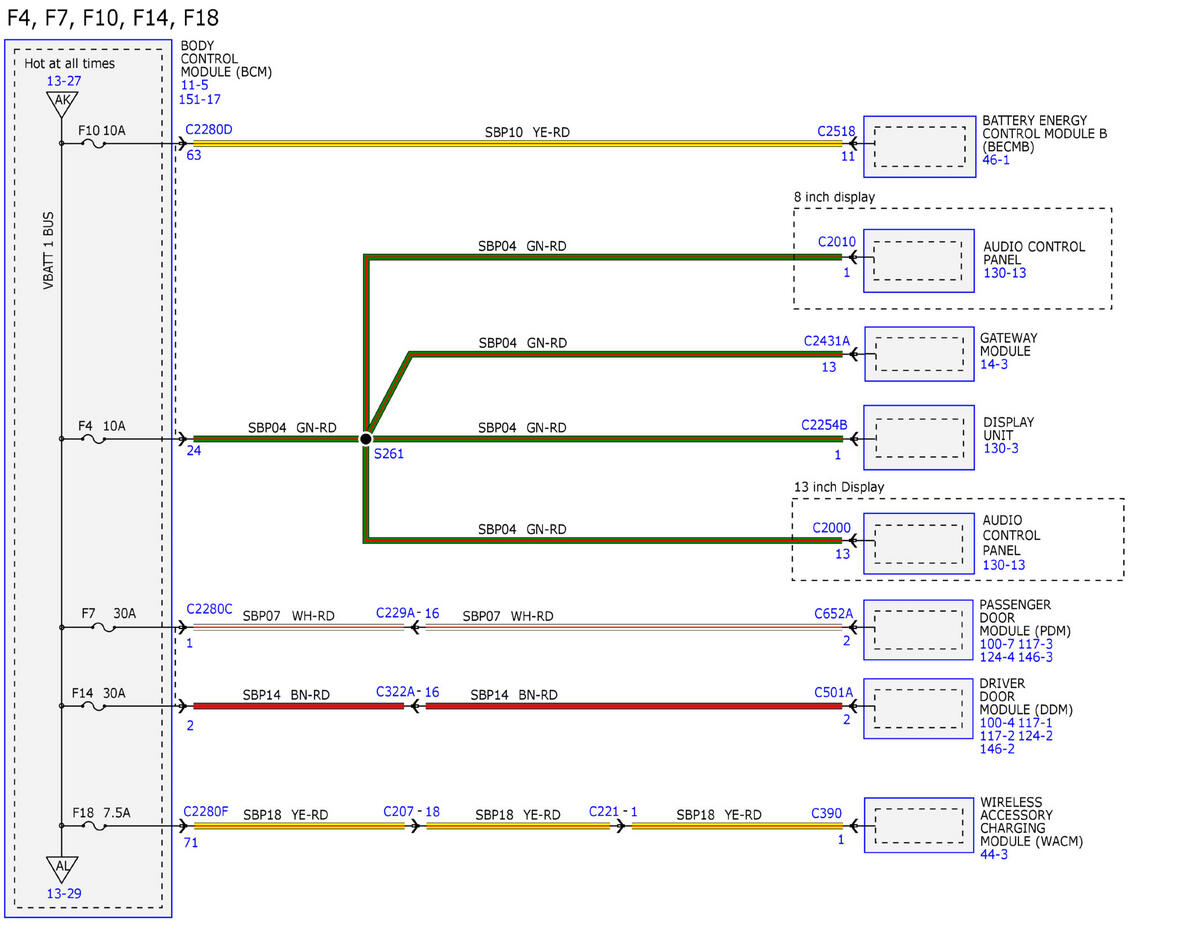

Fig 11: Power Distribution/BCM (11 Of 44)

GFDWR231401

Courtesy of FORD MOTOR COMPANY

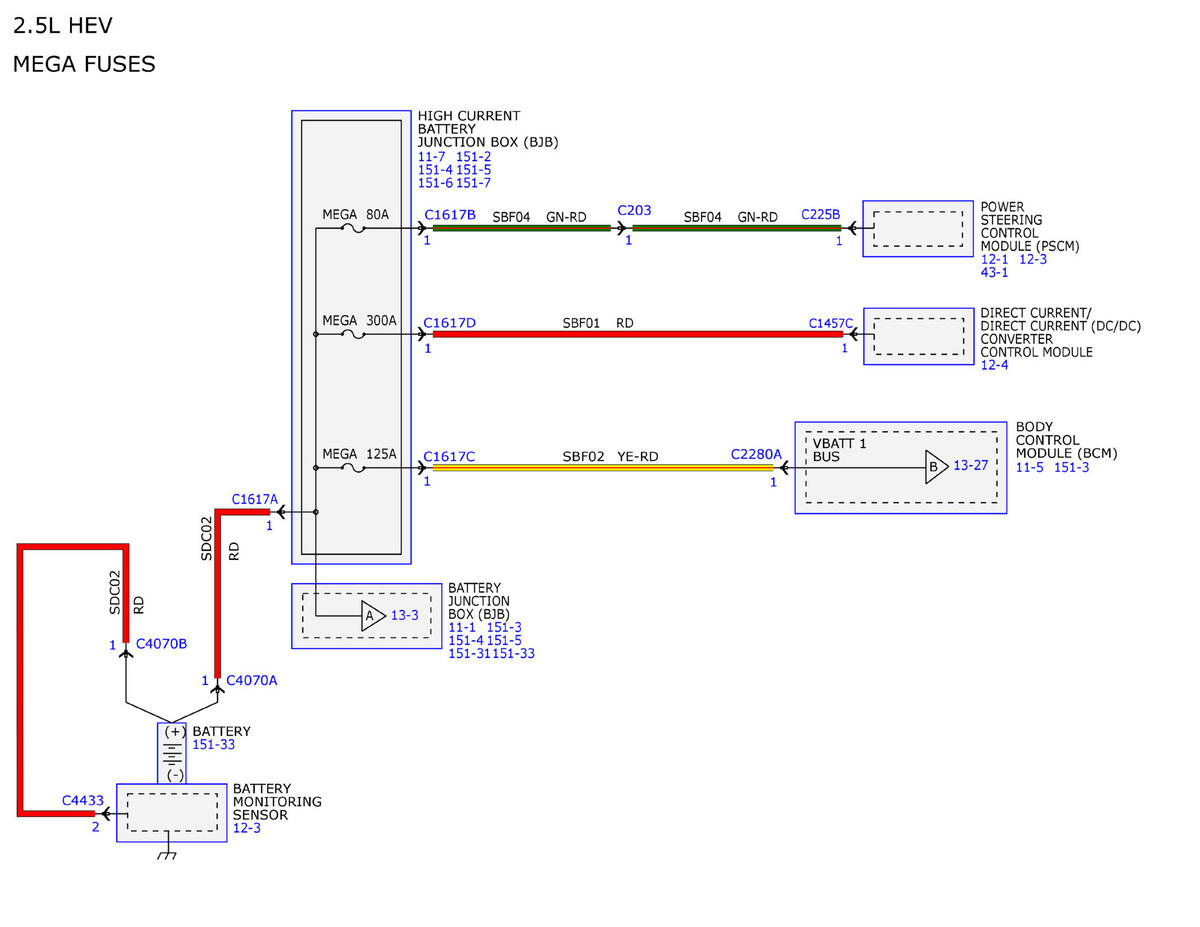

Fig 12: Power Distribution/BCM (12 Of 44)

GFDWR231402

Courtesy of FORD MOTOR COMPANY

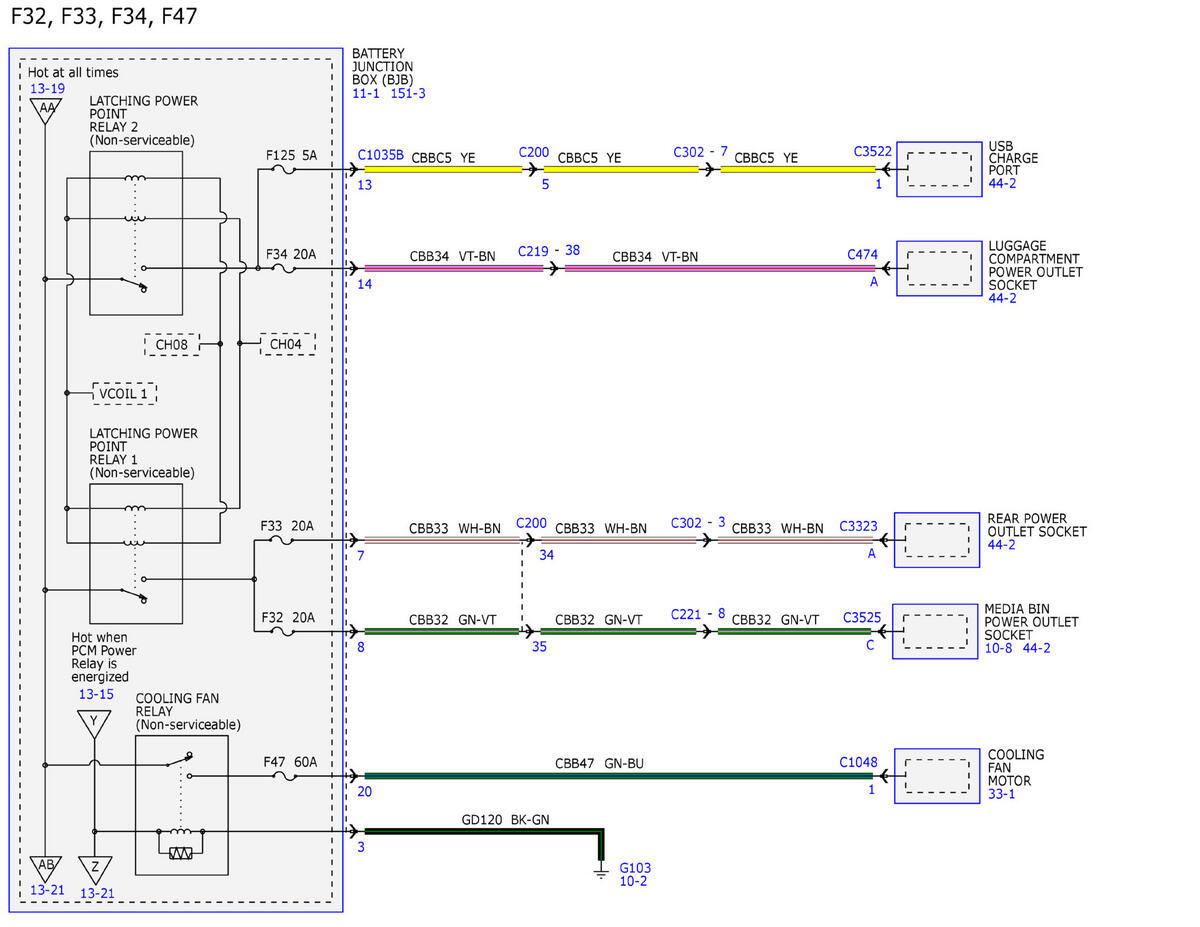

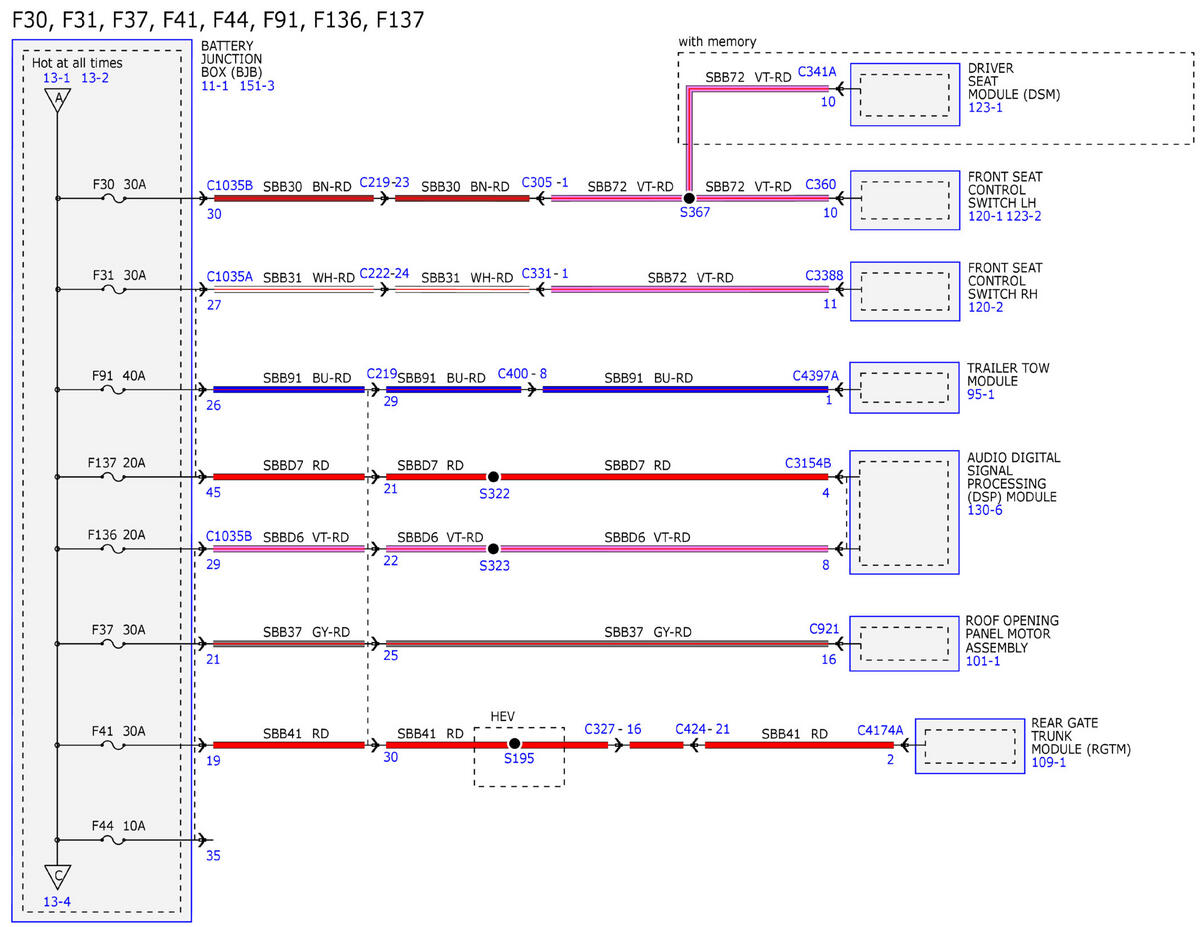

Fig 13: Power Distribution/BCM (13 Of 44)

GFDWR231403

Courtesy of FORD MOTOR COMPANY

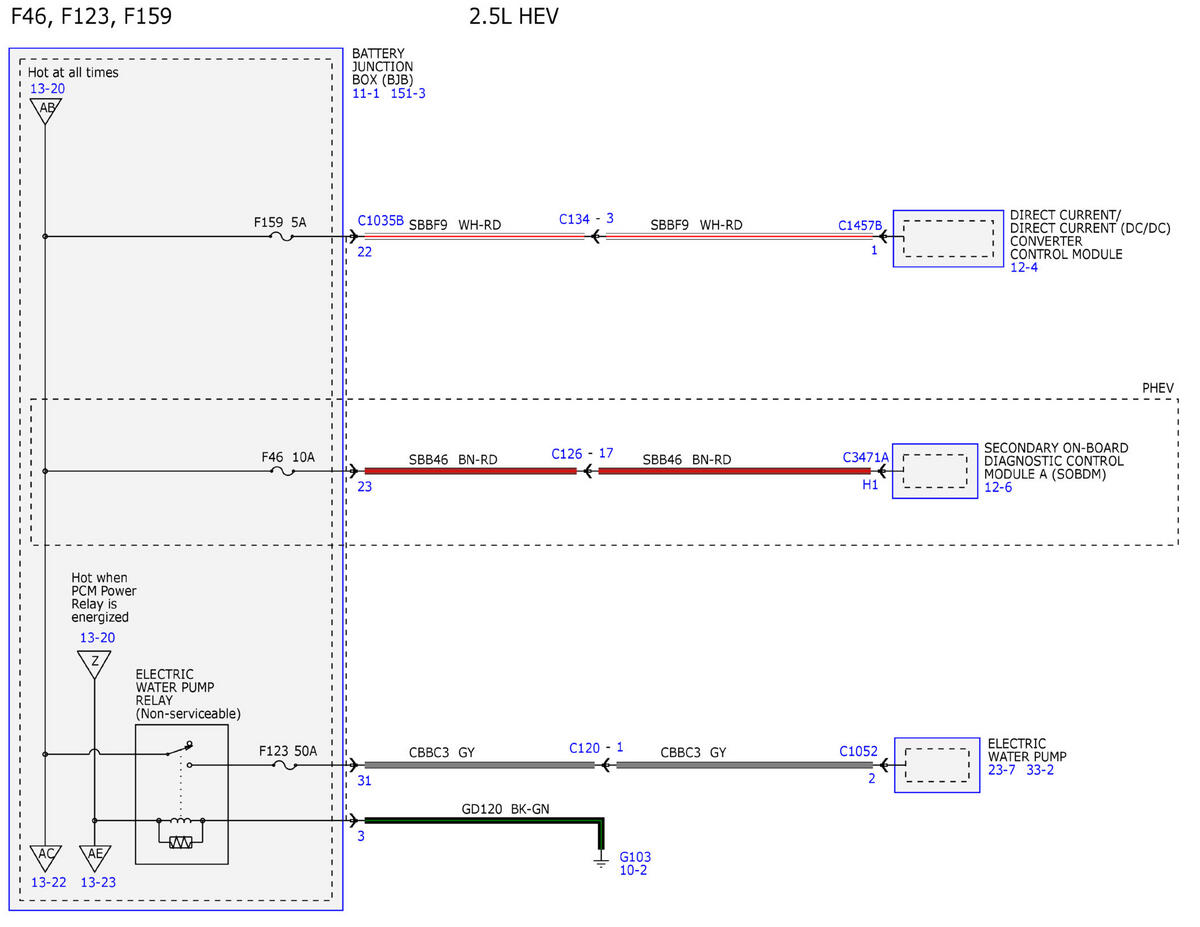

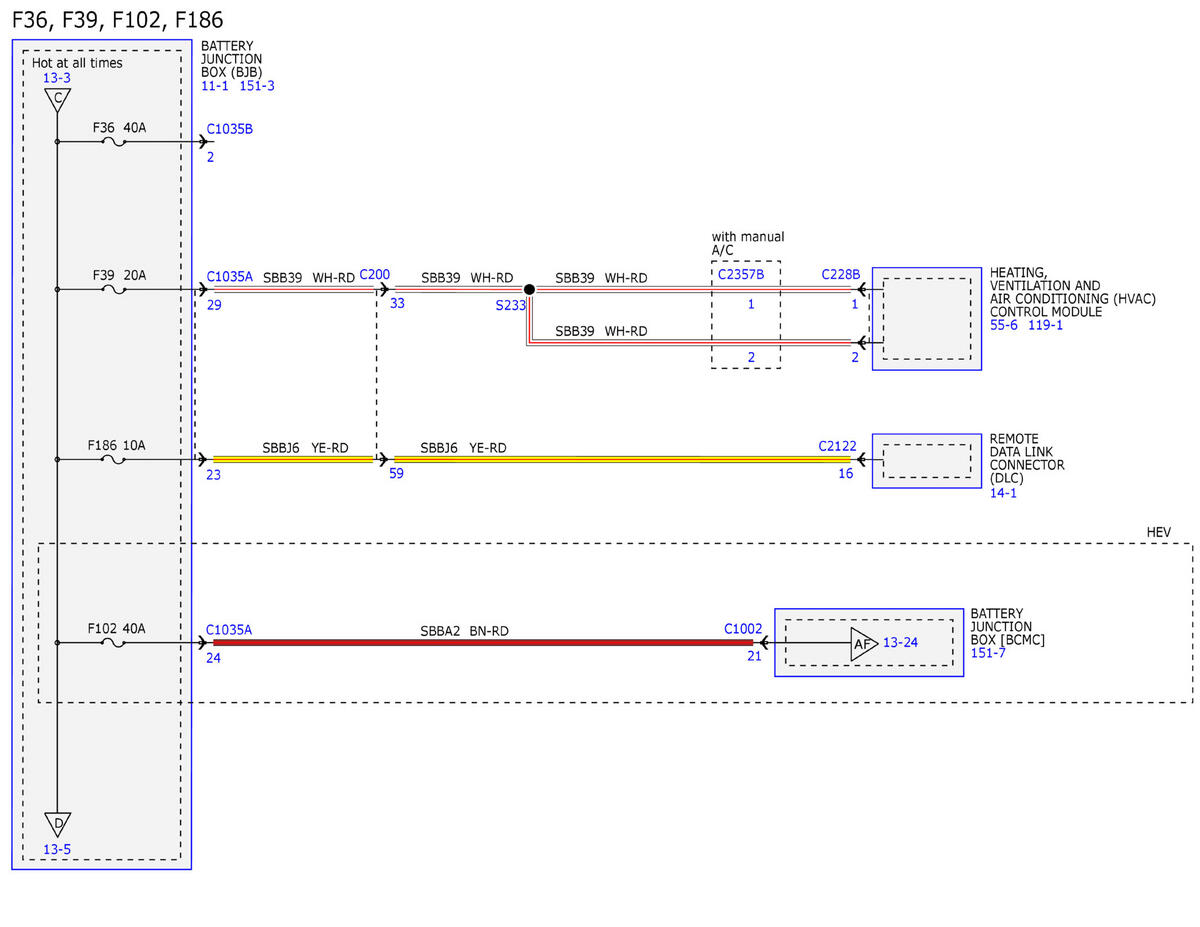

Fig 14: Power Distribution/BCM (14 Of 44)

GFDWR231404

Courtesy of FORD MOTOR COMPANY

Fig 15: Power Distribution/BCM (15 Of 44)

GFDWR231405

Courtesy of FORD MOTOR COMPANY

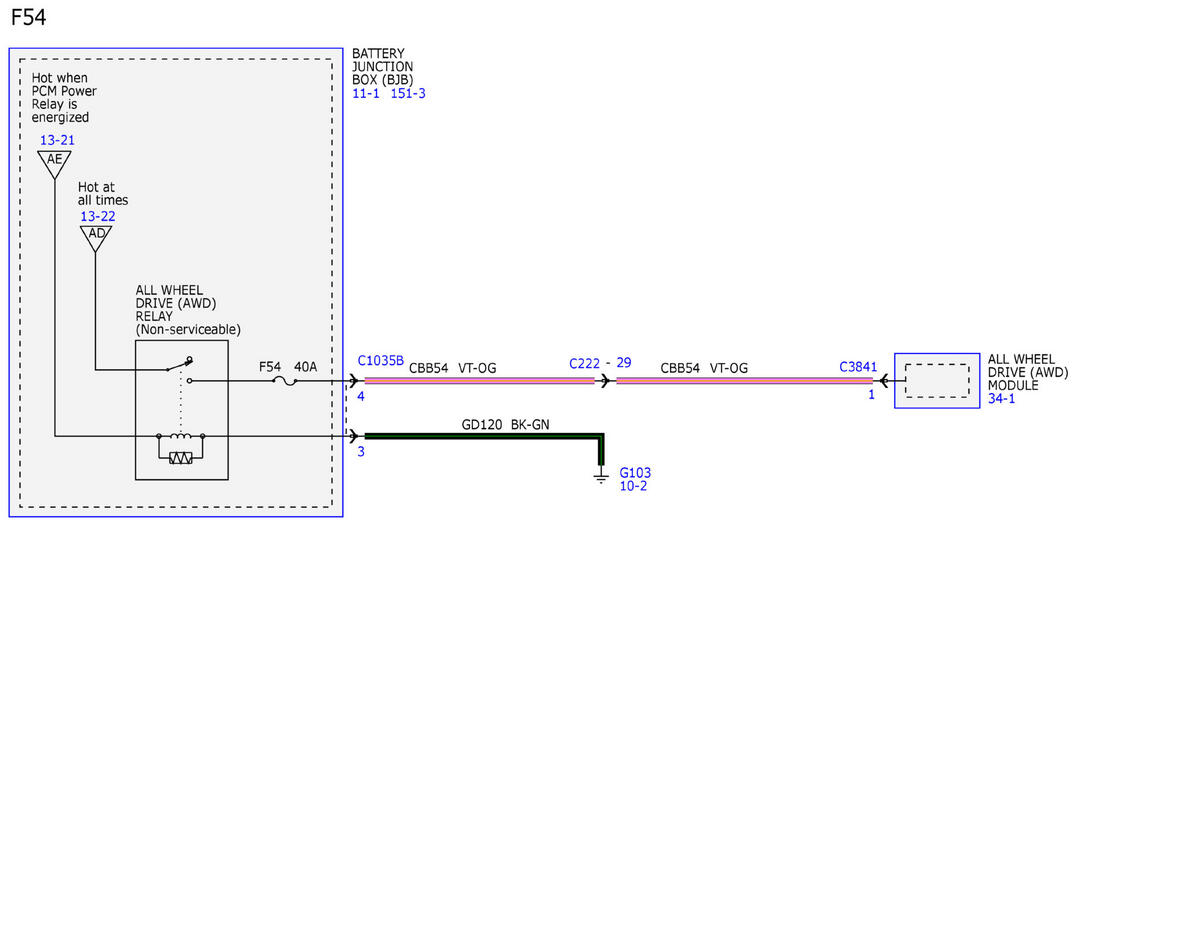

Fig 16: Power Distribution/BCM (16 Of 44)

GFDWR231406

Courtesy of FORD MOTOR COMPANY

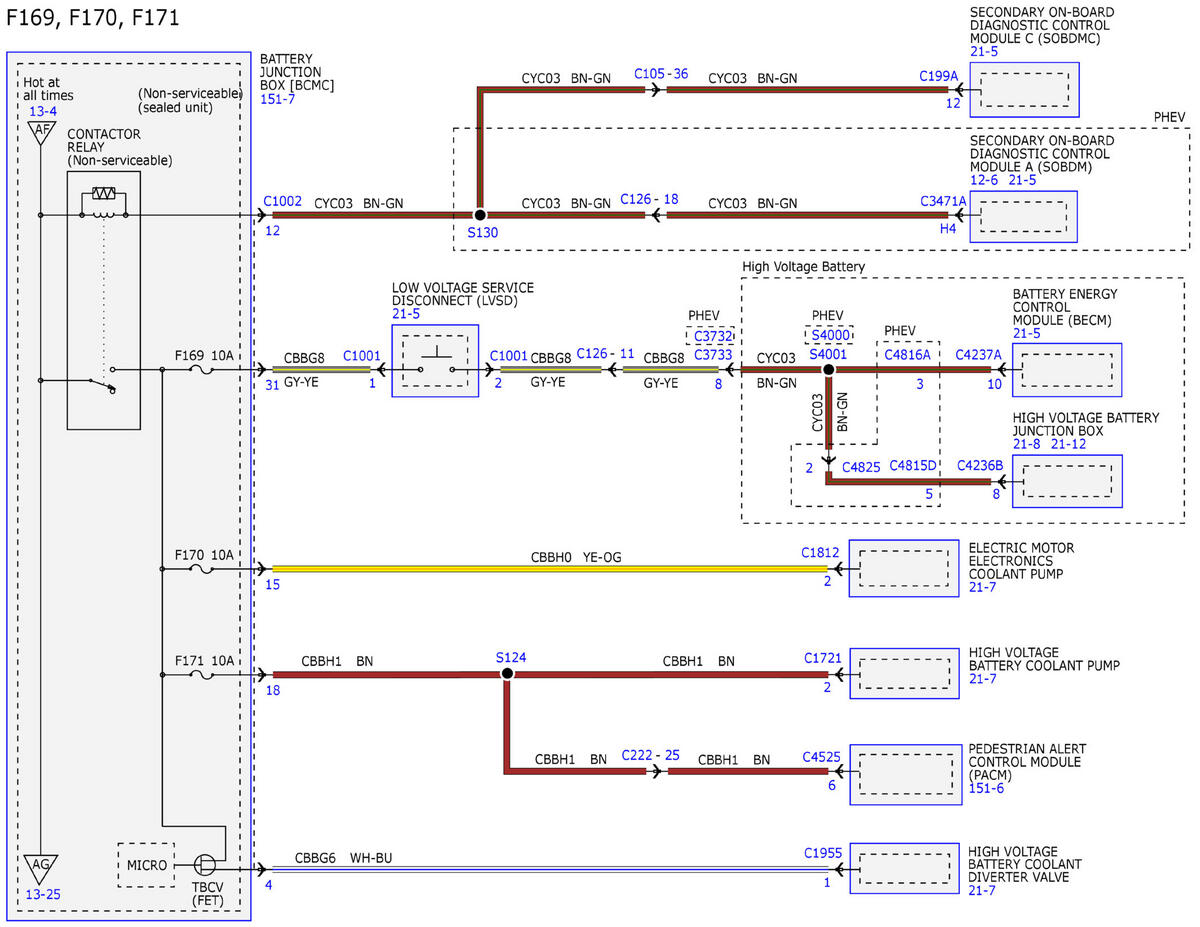

Fig 17: Power Distribution/BCM (17 Of 44)

GFDWR231407

Courtesy of FORD MOTOR COMPANY

Fig 18: Power Distribution/BCM (18 Of 44)

GFDWR231408

Courtesy of FORD MOTOR COMPANY

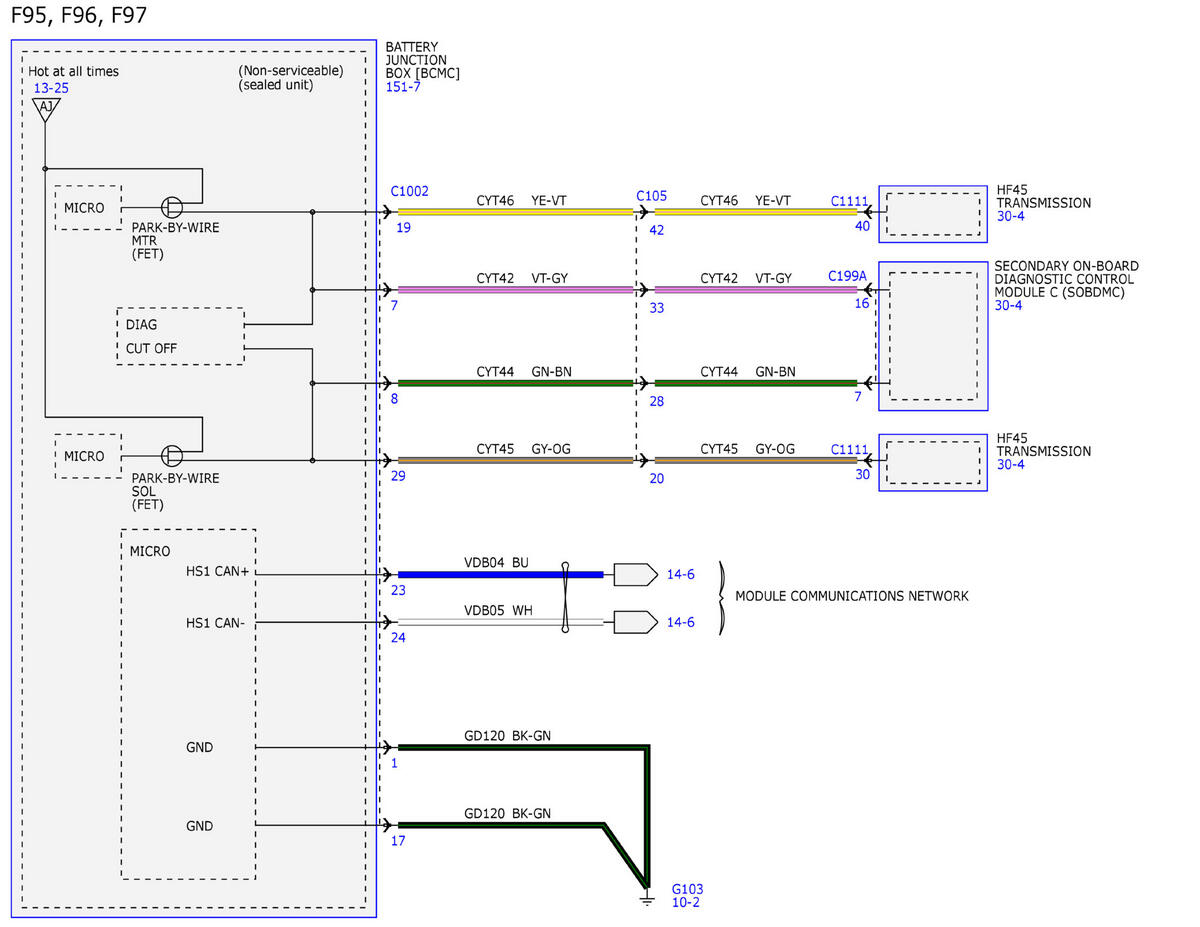

Fig 19: Power Distribution/BCM (19 Of 44)

GFDWR231409

Courtesy of FORD MOTOR COMPANY

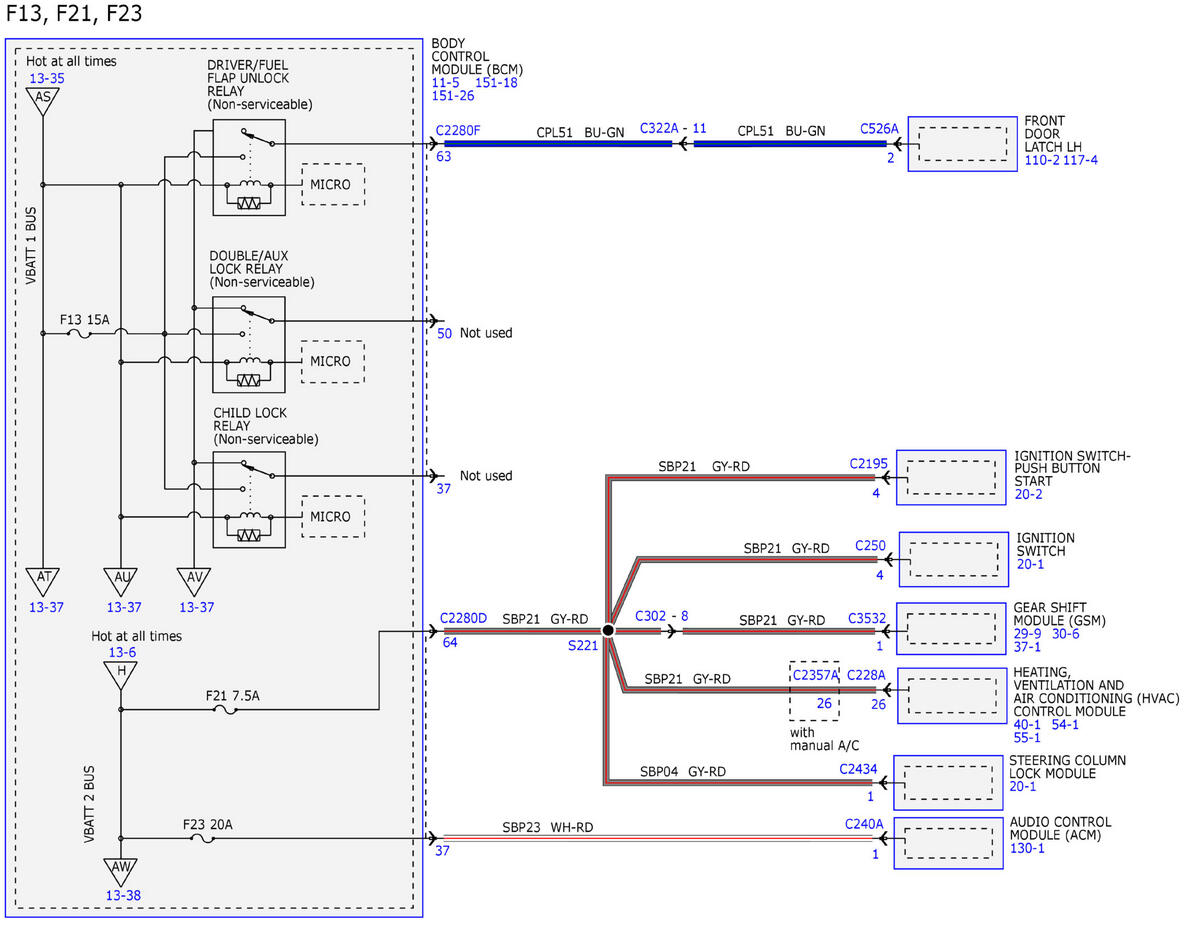

Fig 20: Power Distribution/BCM (20 Of 44)

GFDWR231410

Courtesy of FORD MOTOR COMPANY

Fig 21: Power Distribution/BCM (21 Of 44)

GFDWR231411

Courtesy of FORD MOTOR COMPANY

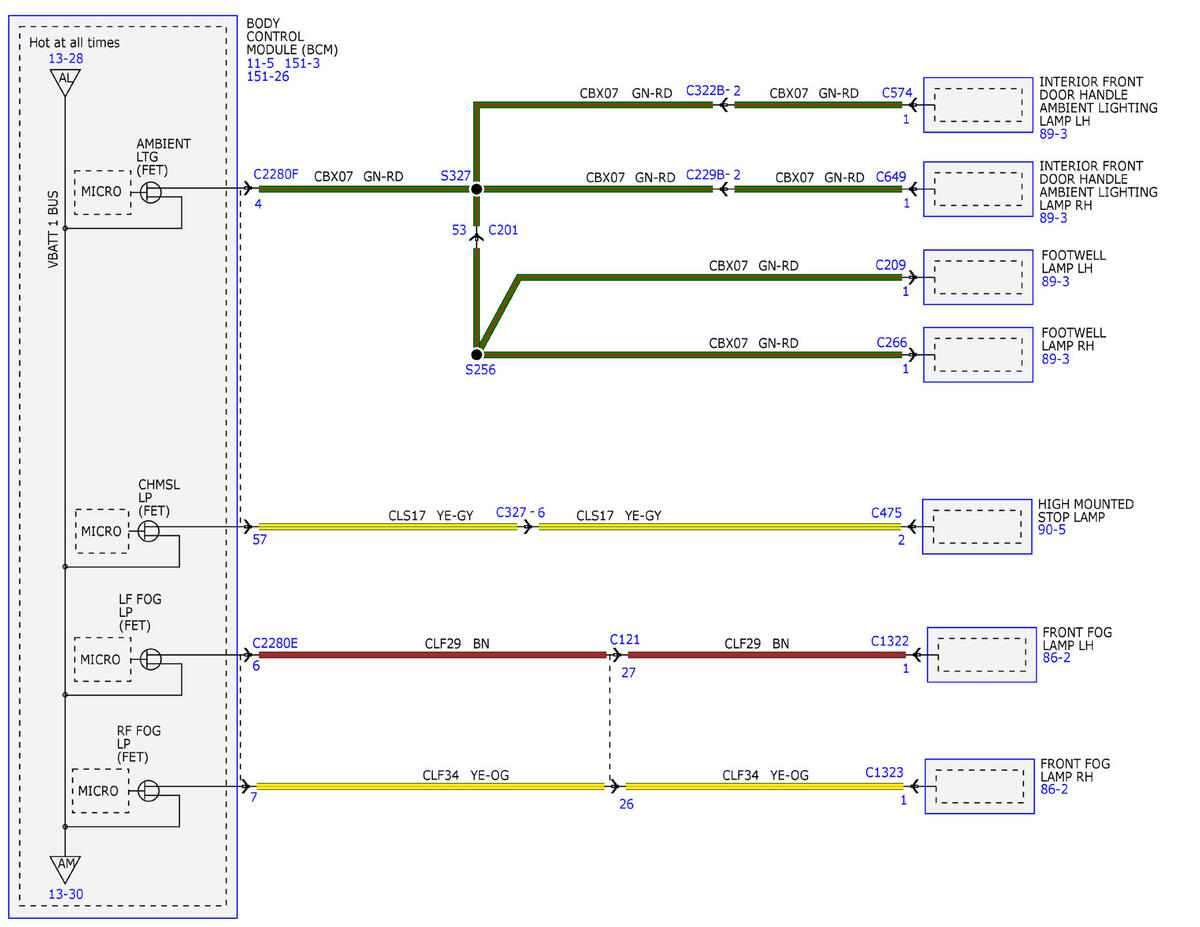

Fig 22: Power Distribution/BCM (22 Of 44)

GFDWR231412

Courtesy of FORD MOTOR COMPANY

Fig 23: Power Distribution/BCM (23 Of 44)

GFDWR231413

Courtesy of FORD MOTOR COMPANY

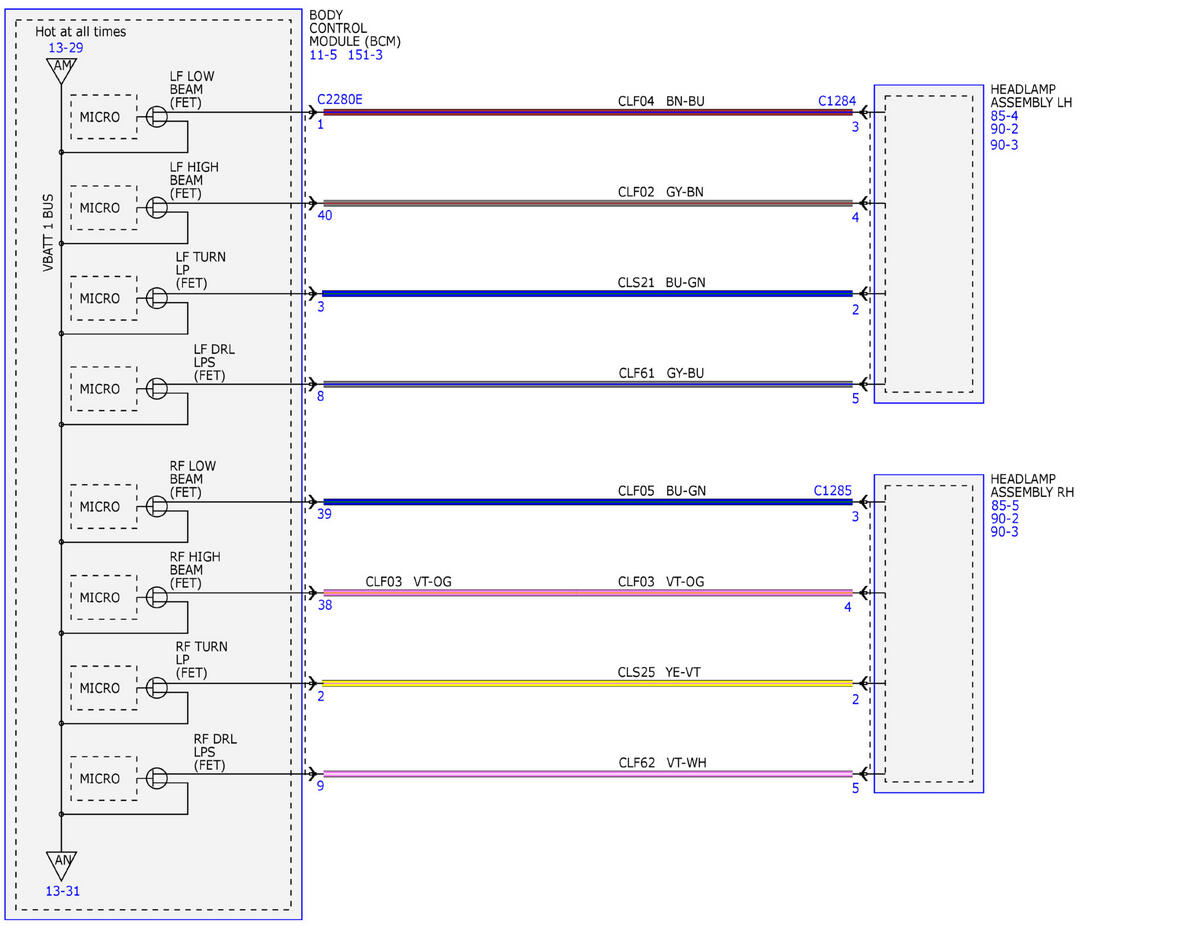

Fig 24: Power Distribution/BCM (24 Of 44)

GFDWR231414

Courtesy of FORD MOTOR COMPANY

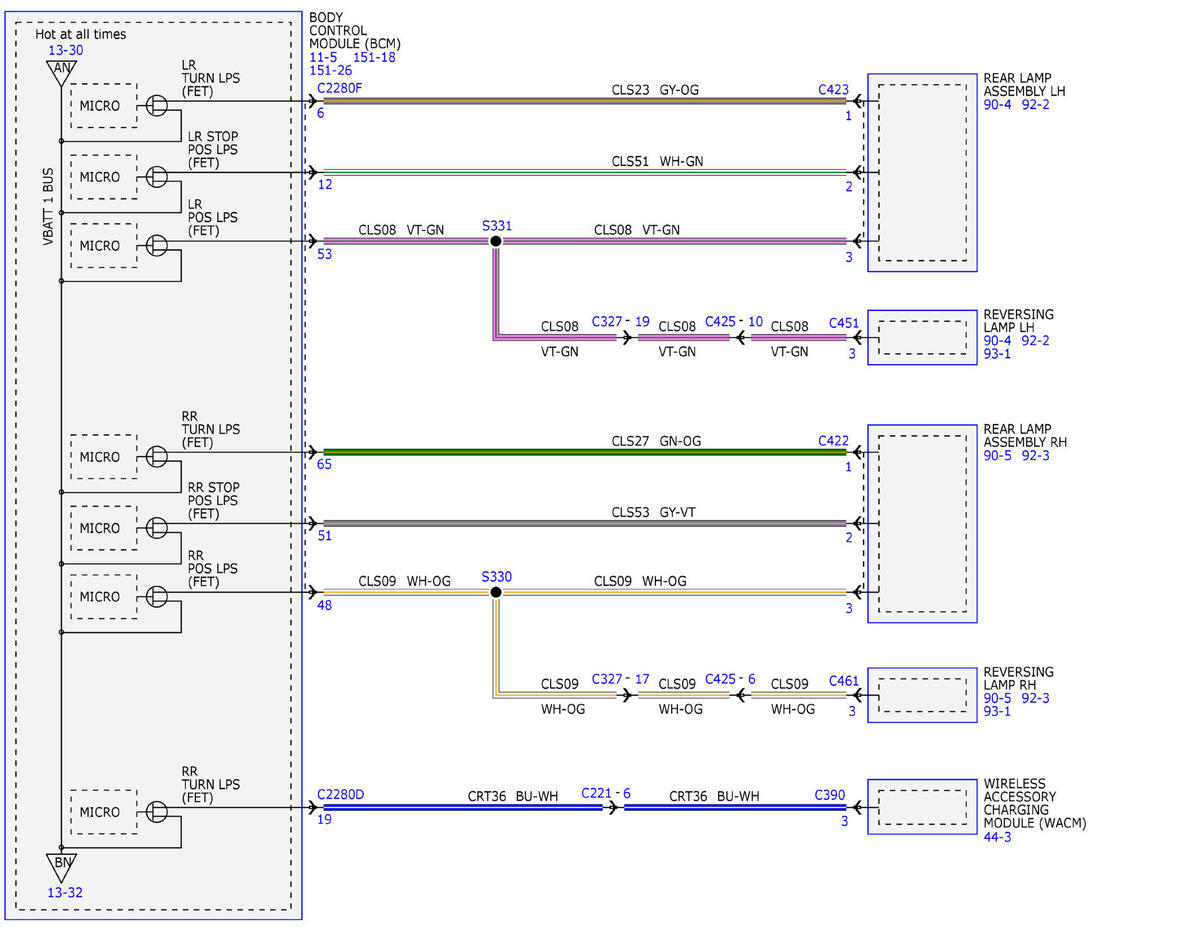

Fig 25: Power Distribution/BCM (25 Of 44)

GFDWR231415

Courtesy of FORD MOTOR COMPANY

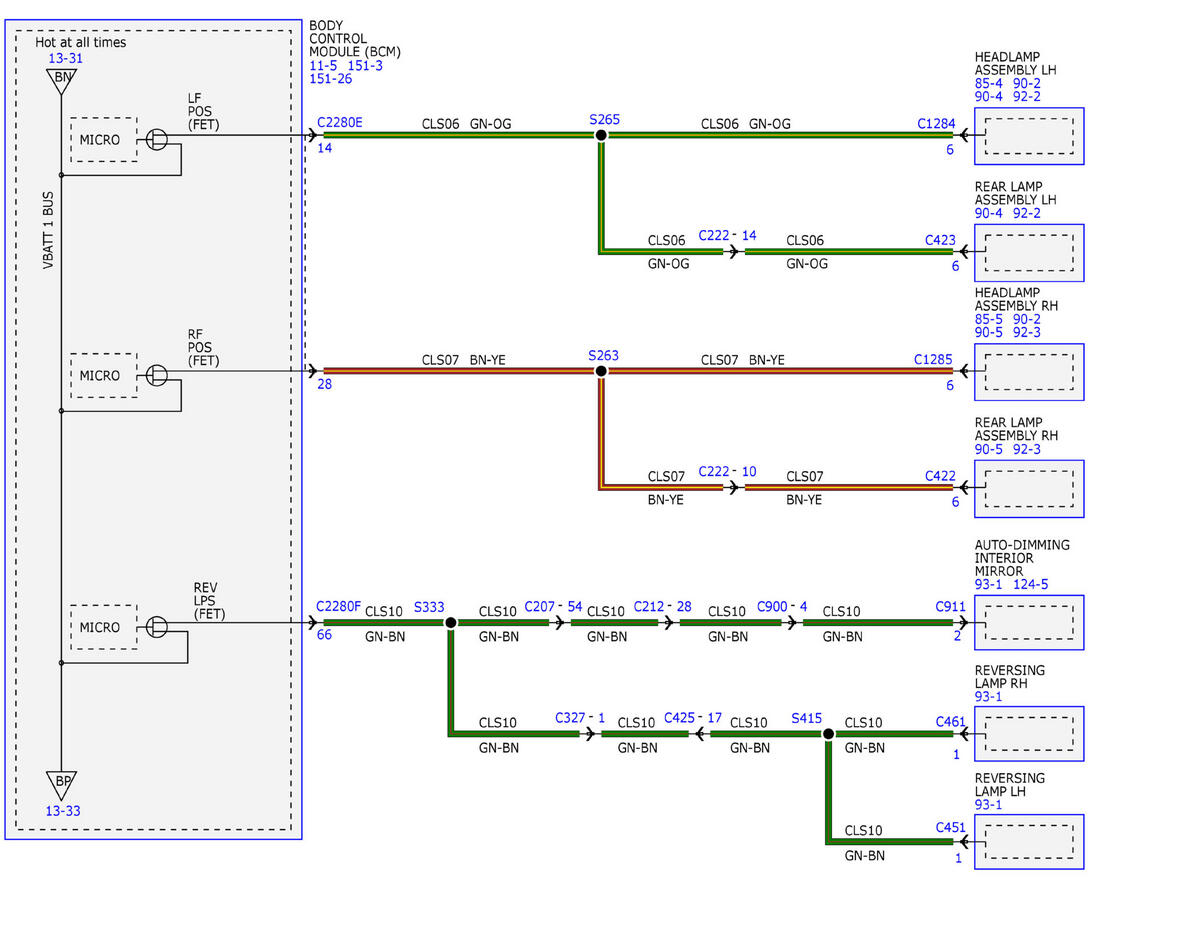

Fig 26: Power Distribution/BCM (26 Of 44)

GFDWR231416

Courtesy of FORD MOTOR COMPANY

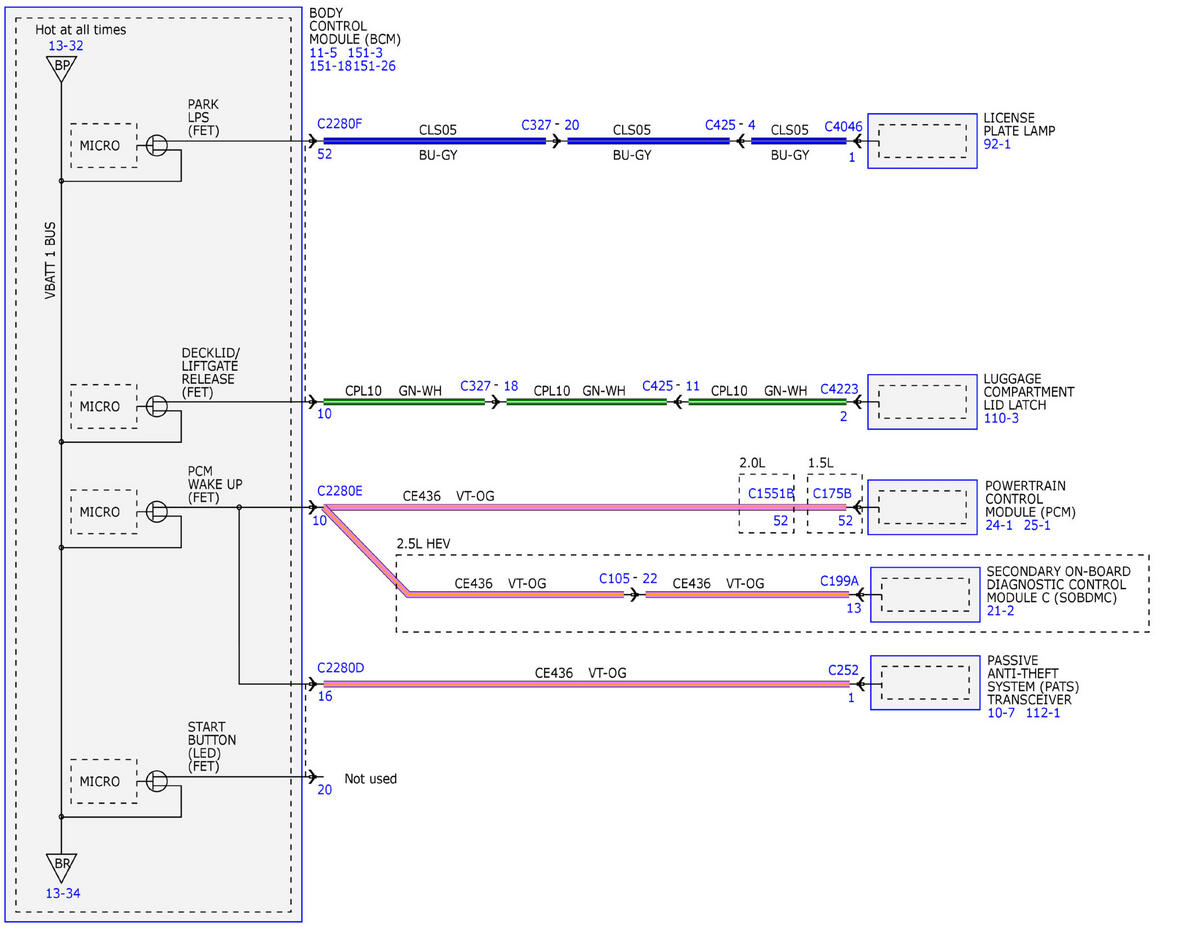

Fig 27: Power Distribution/BCM (27 Of 44)

GFDWR231417

Courtesy of FORD MOTOR COMPANY

Fig 28: Power Distribution/BCM (28 Of 44)

GFDWR231418

Courtesy of FORD MOTOR COMPANY

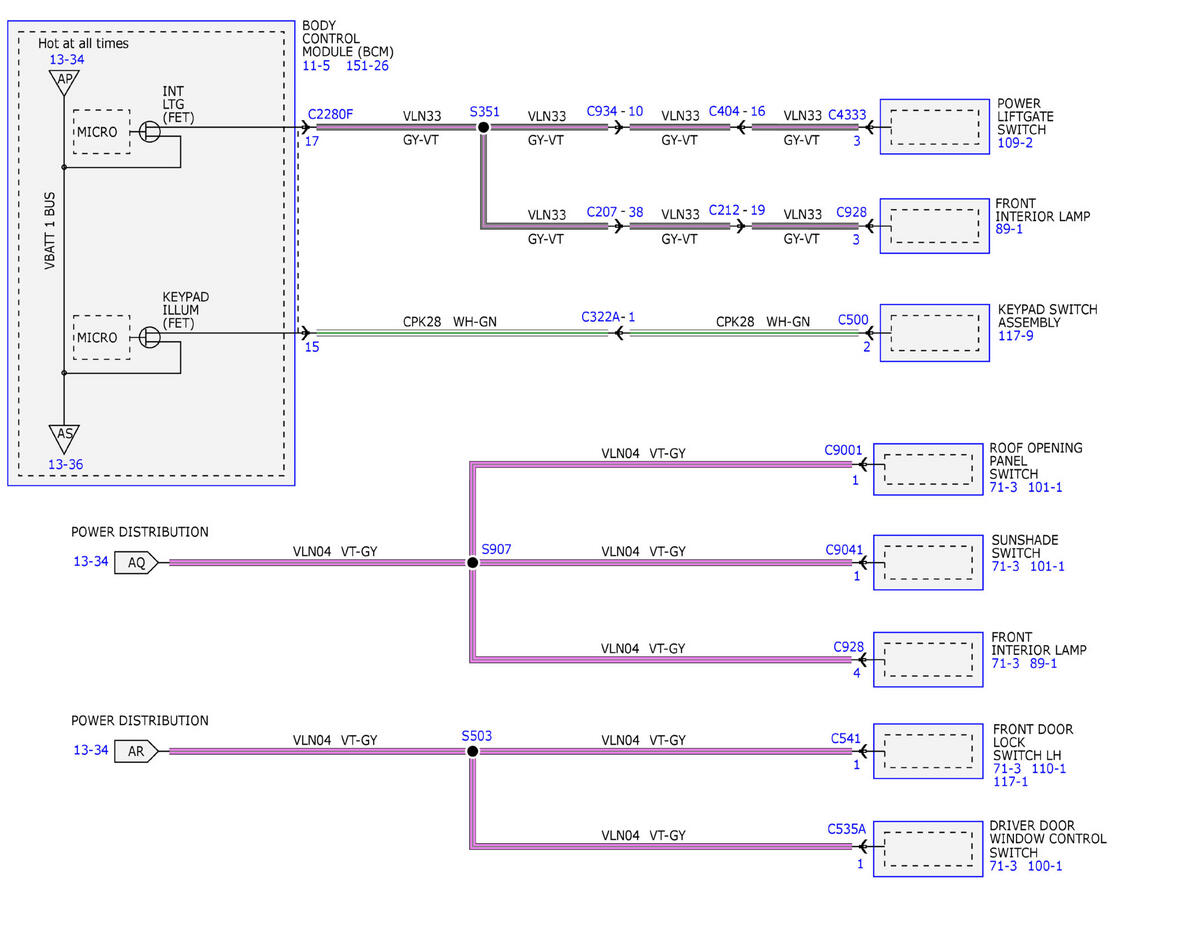

Fig 29: Power Distribution/BCM (29 Of 44)

GFDWR231419

Courtesy of FORD MOTOR COMPANY

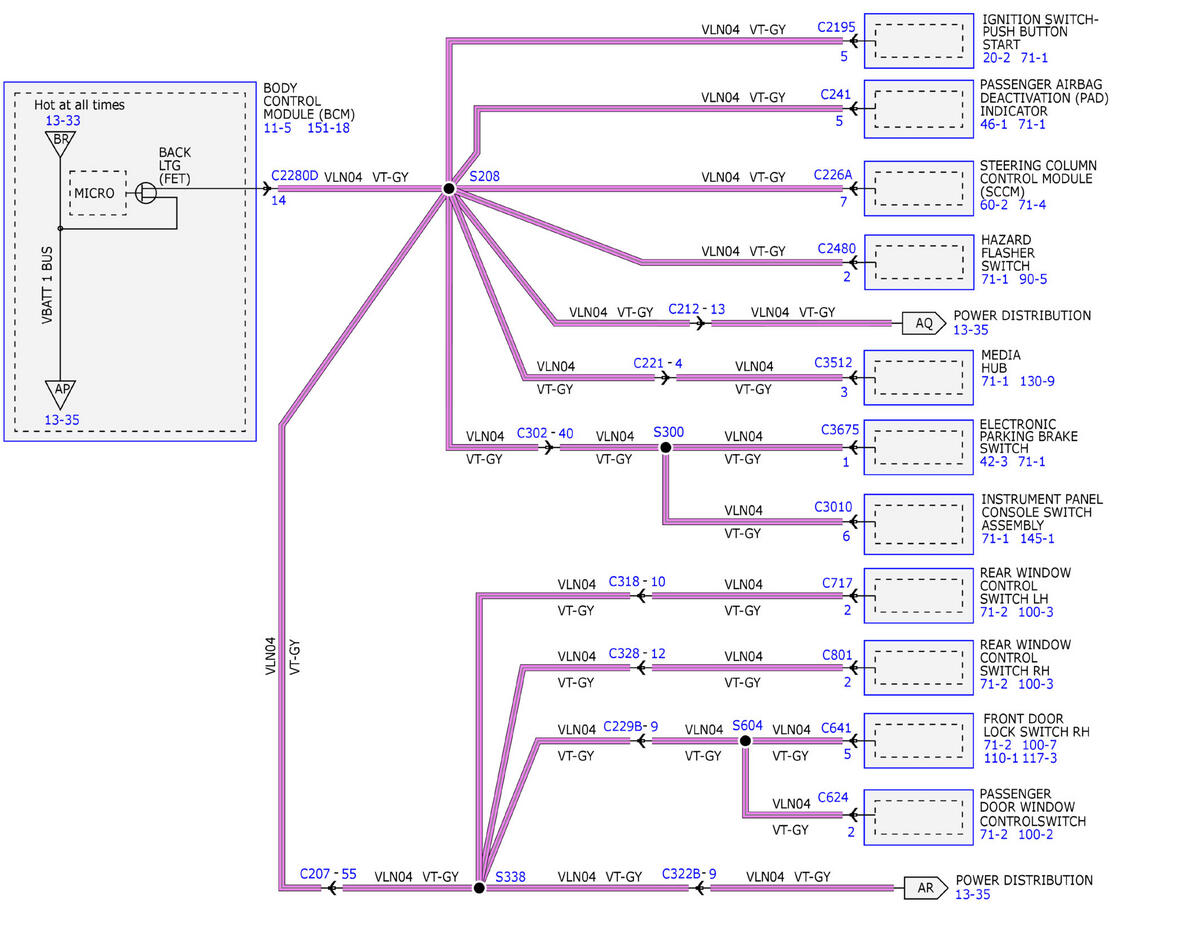

Fig 30: Power Distribution/BCM (30 Of 44)

GFDWR231420

Courtesy of FORD MOTOR COMPANY

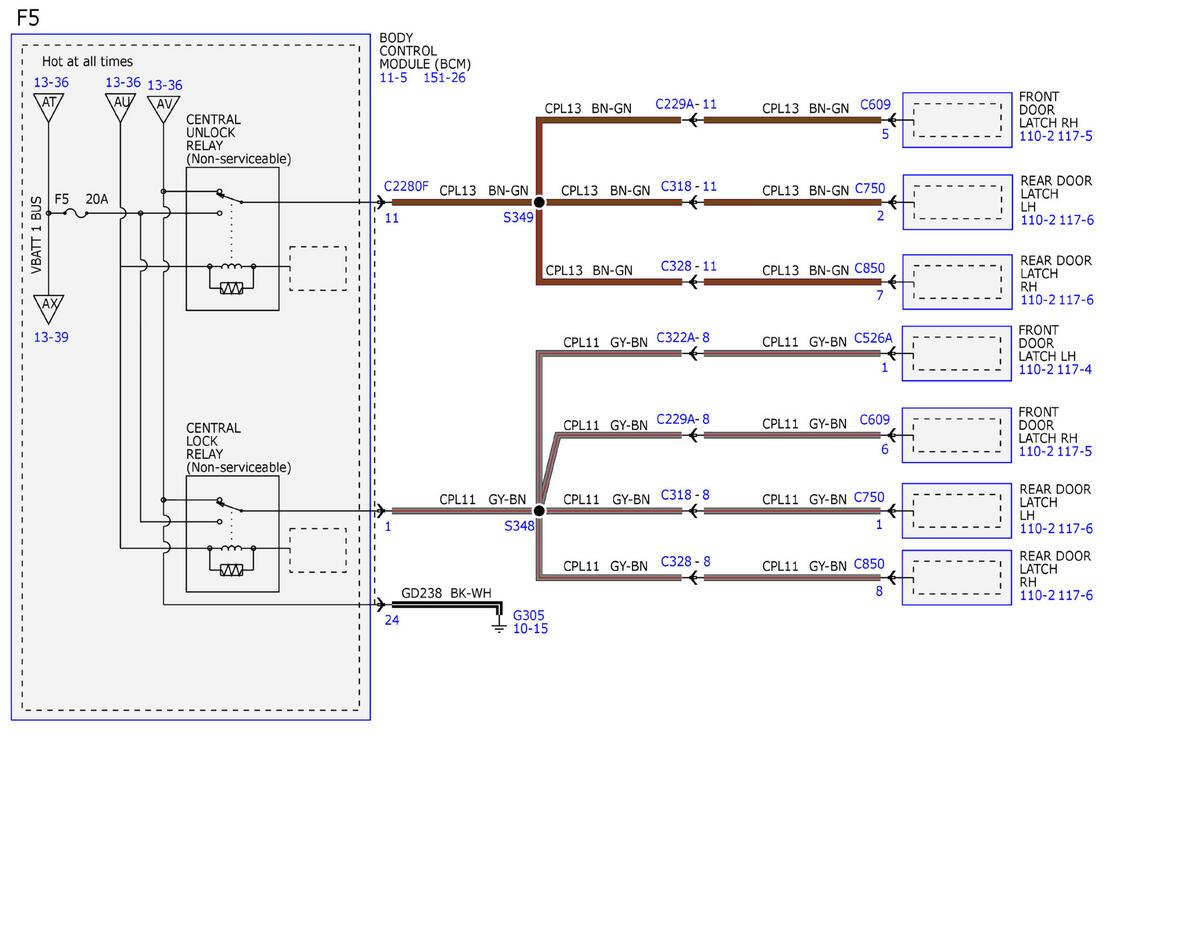

Fig 31: Power Distribution/BCM (31 Of 44)

GFDWR231421

Courtesy of FORD MOTOR COMPANY

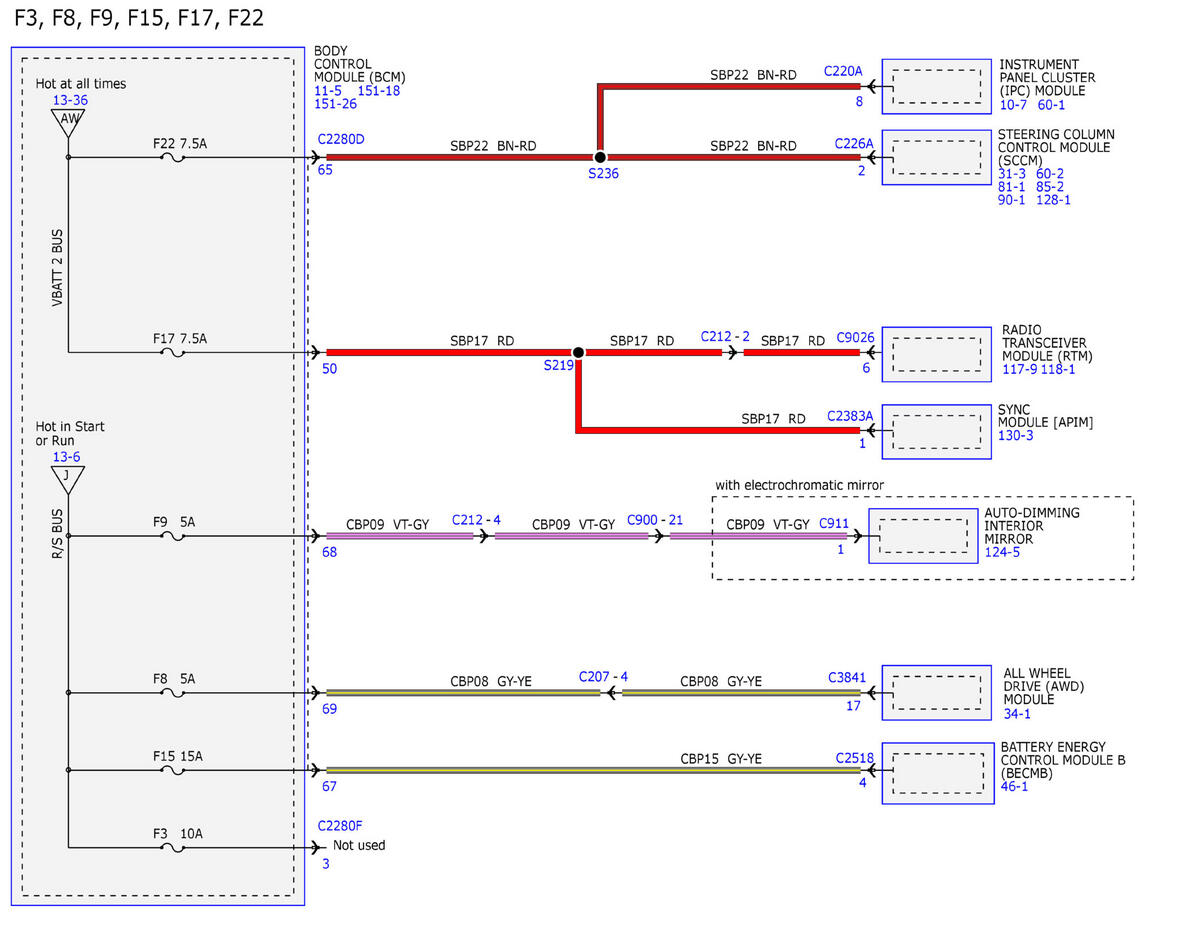

Fig 32: Power Distribution/BCM (32 Of 44)

GFDWR231422

Courtesy of FORD MOTOR COMPANY

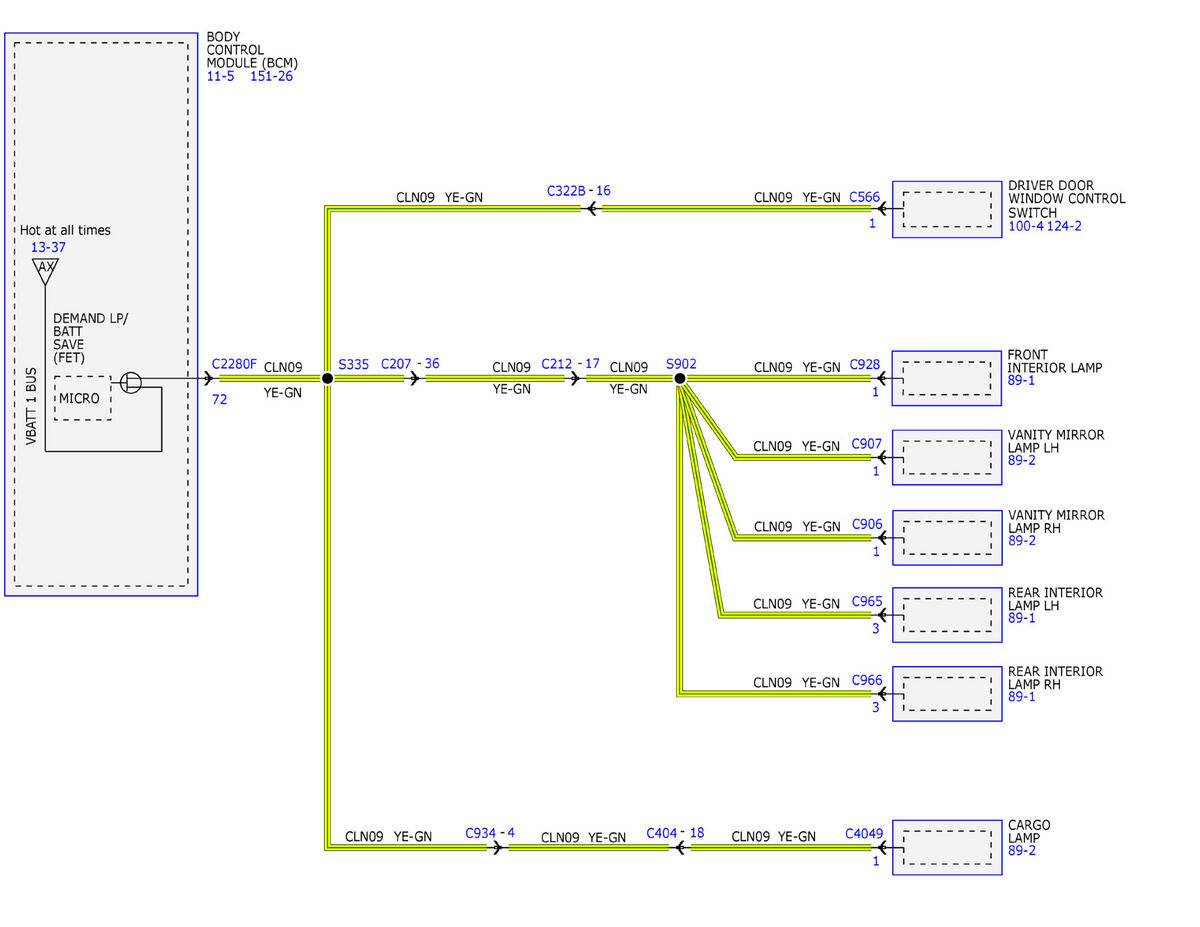

Fig 33: Power Distribution/BCM (33 Of 44)

GFDWR231423

Courtesy of FORD MOTOR COMPANY

Fig 34: Power Distribution/BCM (34 Of 44)

GFDWR231424

Courtesy of FORD MOTOR COMPANY

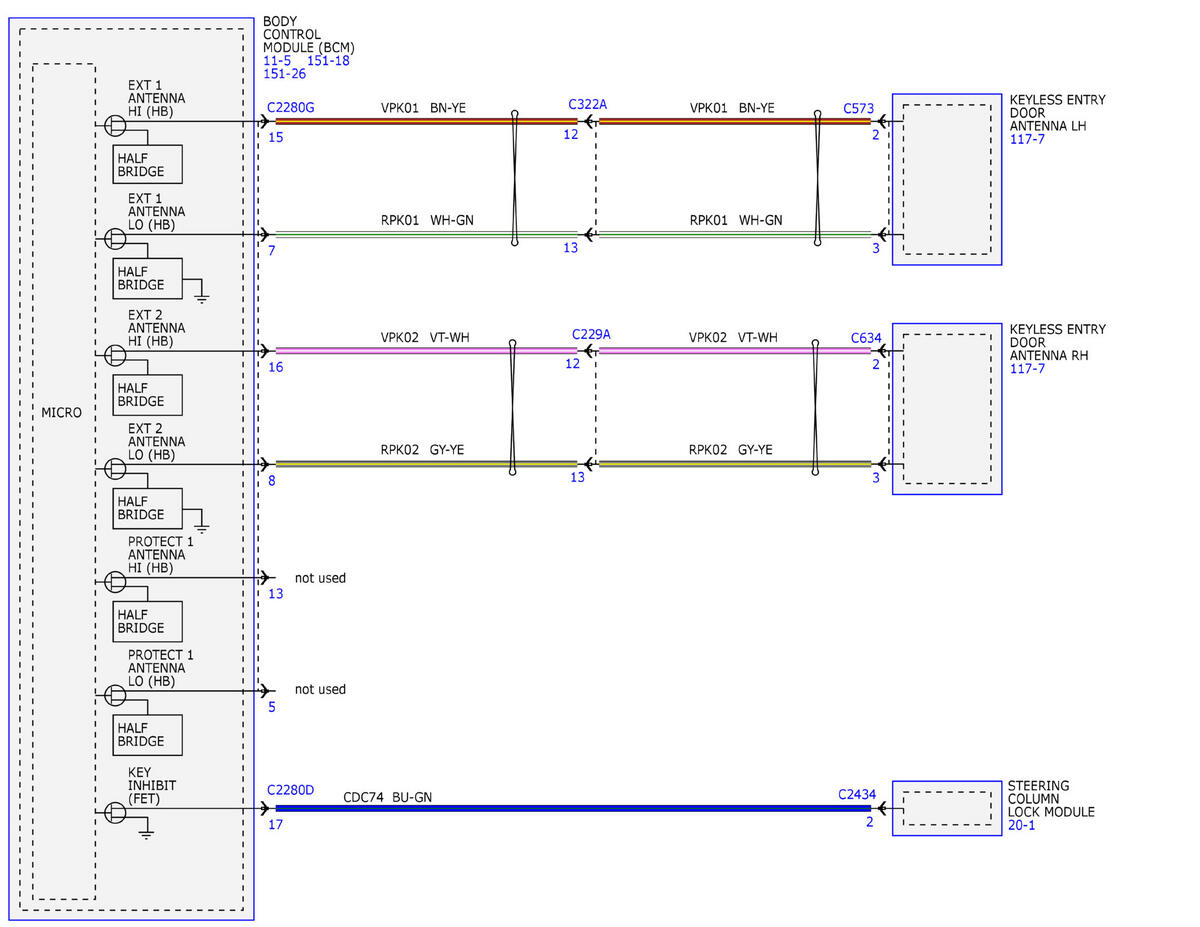

Fig 35: Power Distribution/BCM (35 Of 44)

GFDWR231425

Courtesy of FORD MOTOR COMPANY

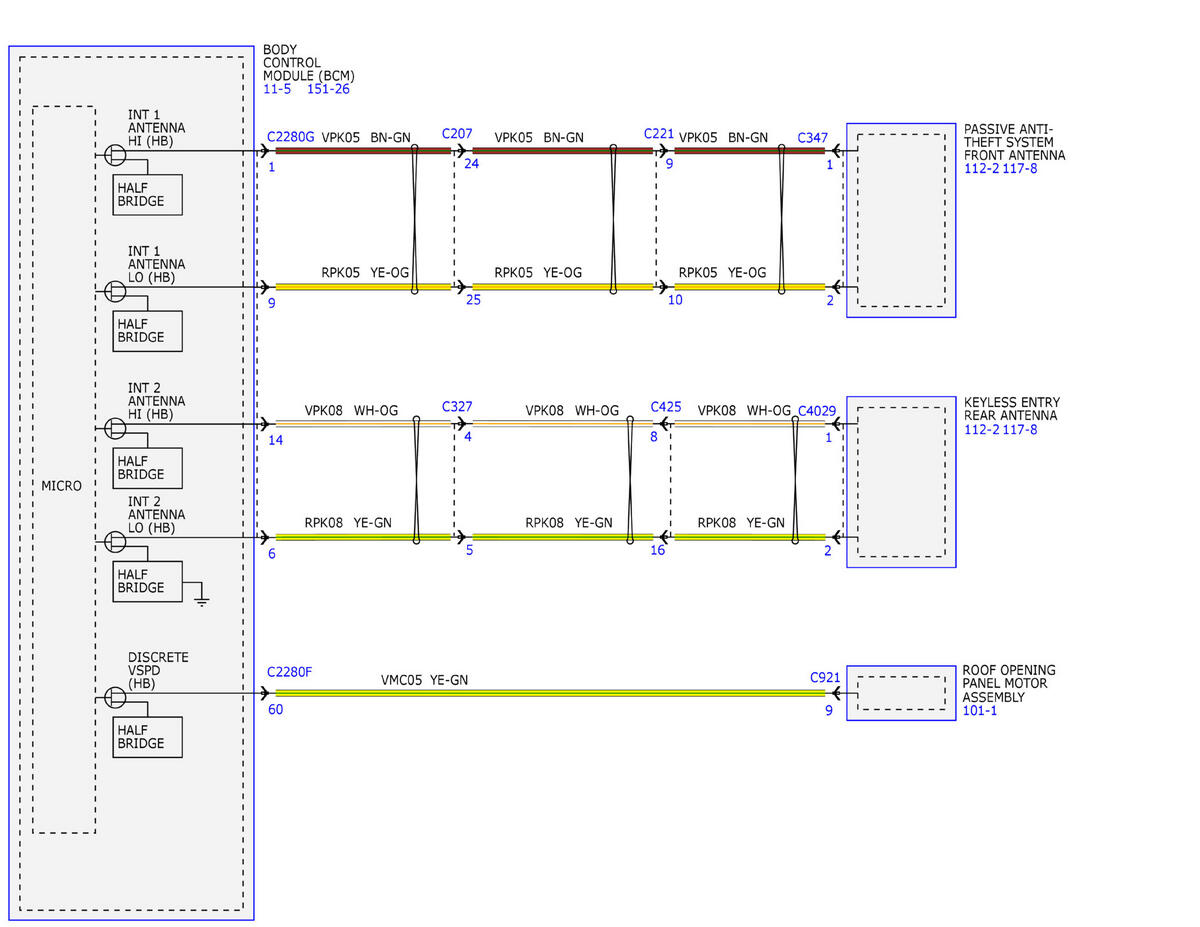

Fig 36: Power Distribution/BCM (36 Of 44)

GFDWR231426

Courtesy of FORD MOTOR COMPANY

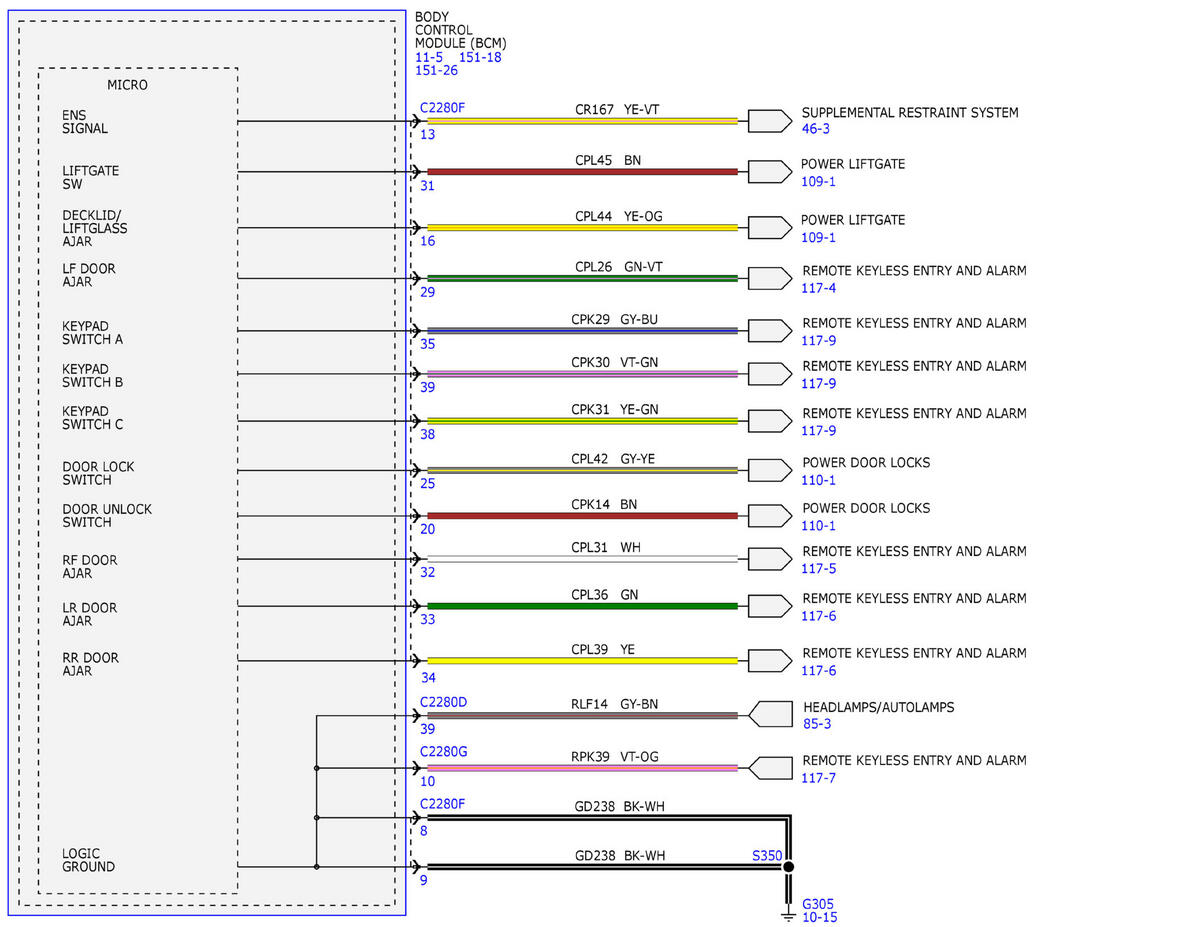

Fig 37: Power Distribution/BCM (37 Of 44)

GFDWR231427

Courtesy of FORD MOTOR COMPANY

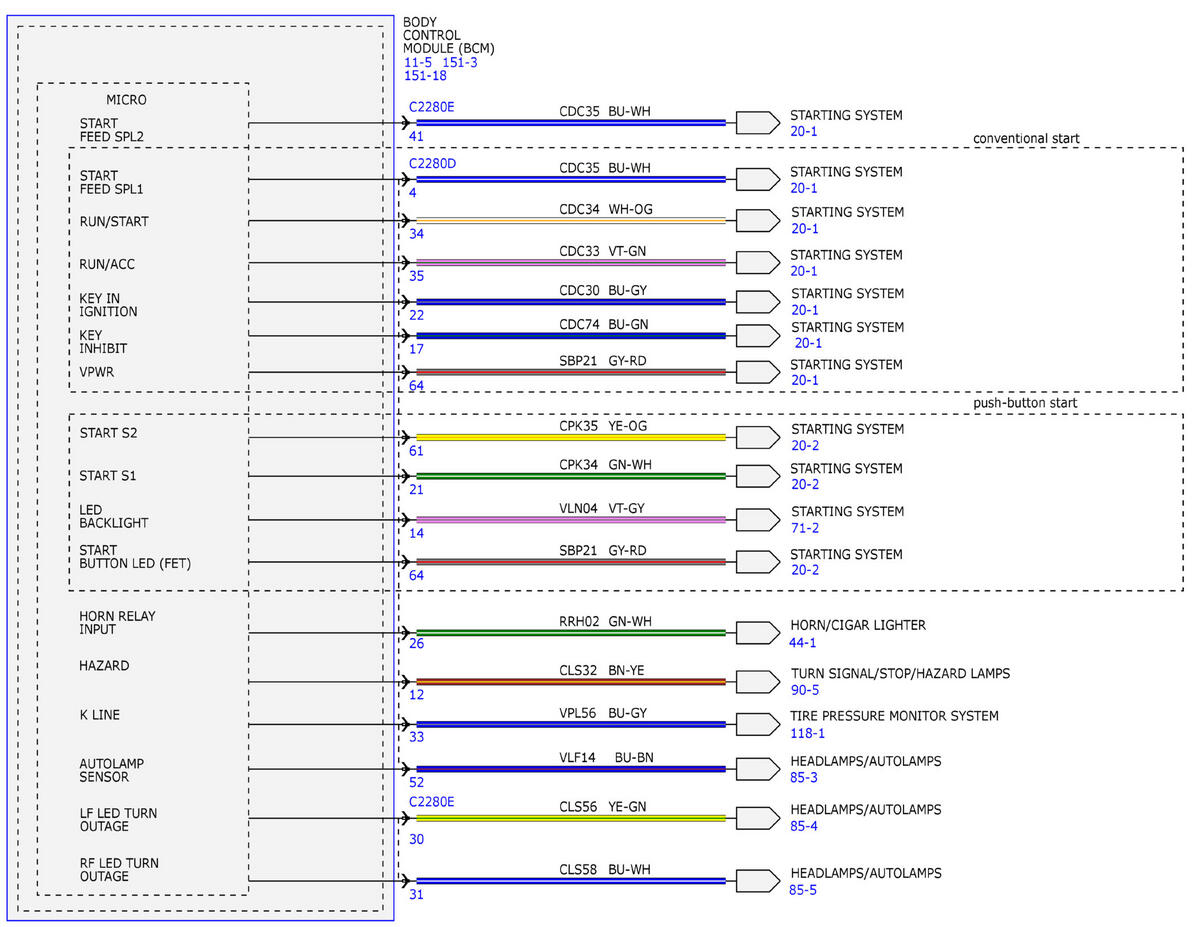

Fig 38: Power Distribution/BCM (38 Of 44)

GFDWR231428

Courtesy of FORD MOTOR COMPANY

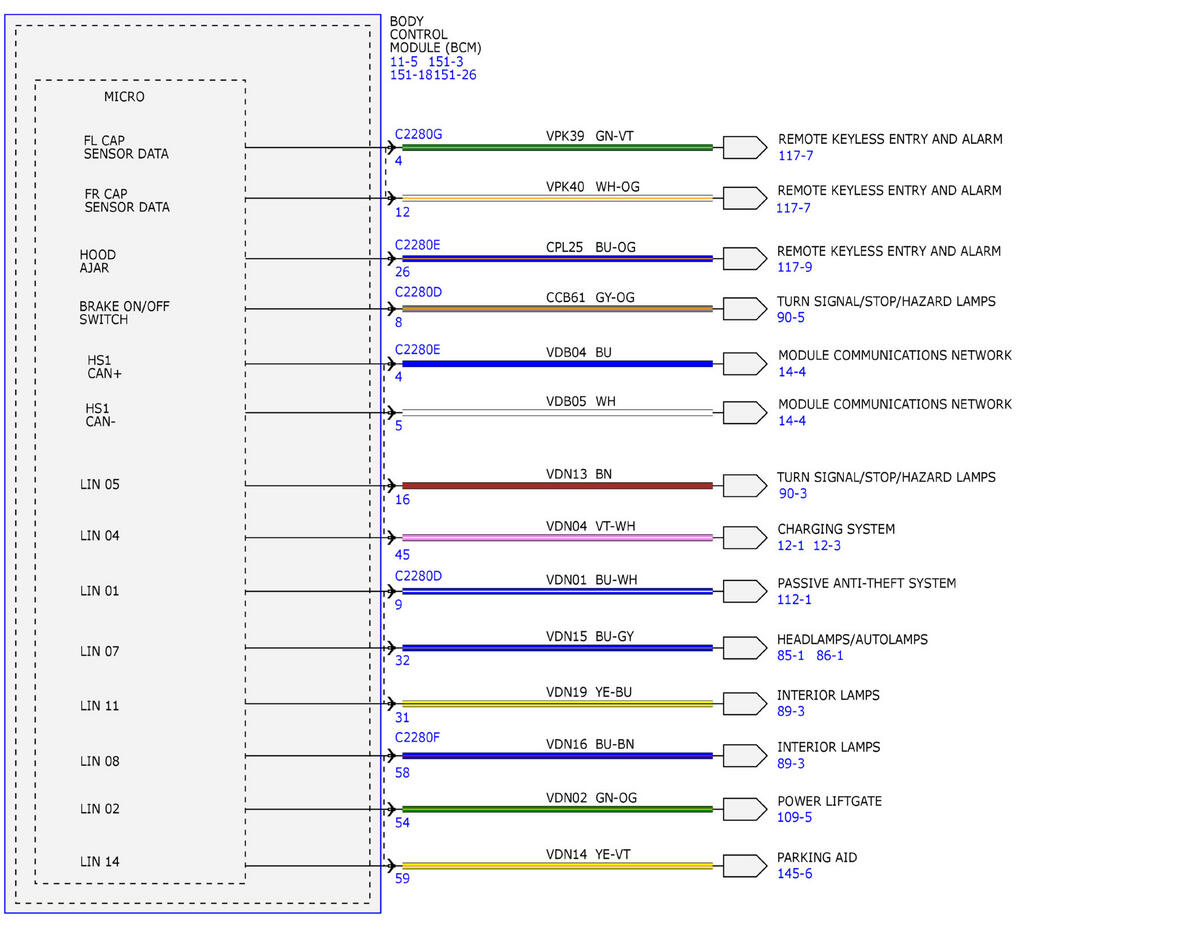

Fig 39: Power Distribution/BCM (39 Of 44)

GFDWR231429

Courtesy of FORD MOTOR COMPANY

Fig 40: Power Distribution/BCM (40 Of 44)

GFDWR231430

Courtesy of FORD MOTOR COMPANY

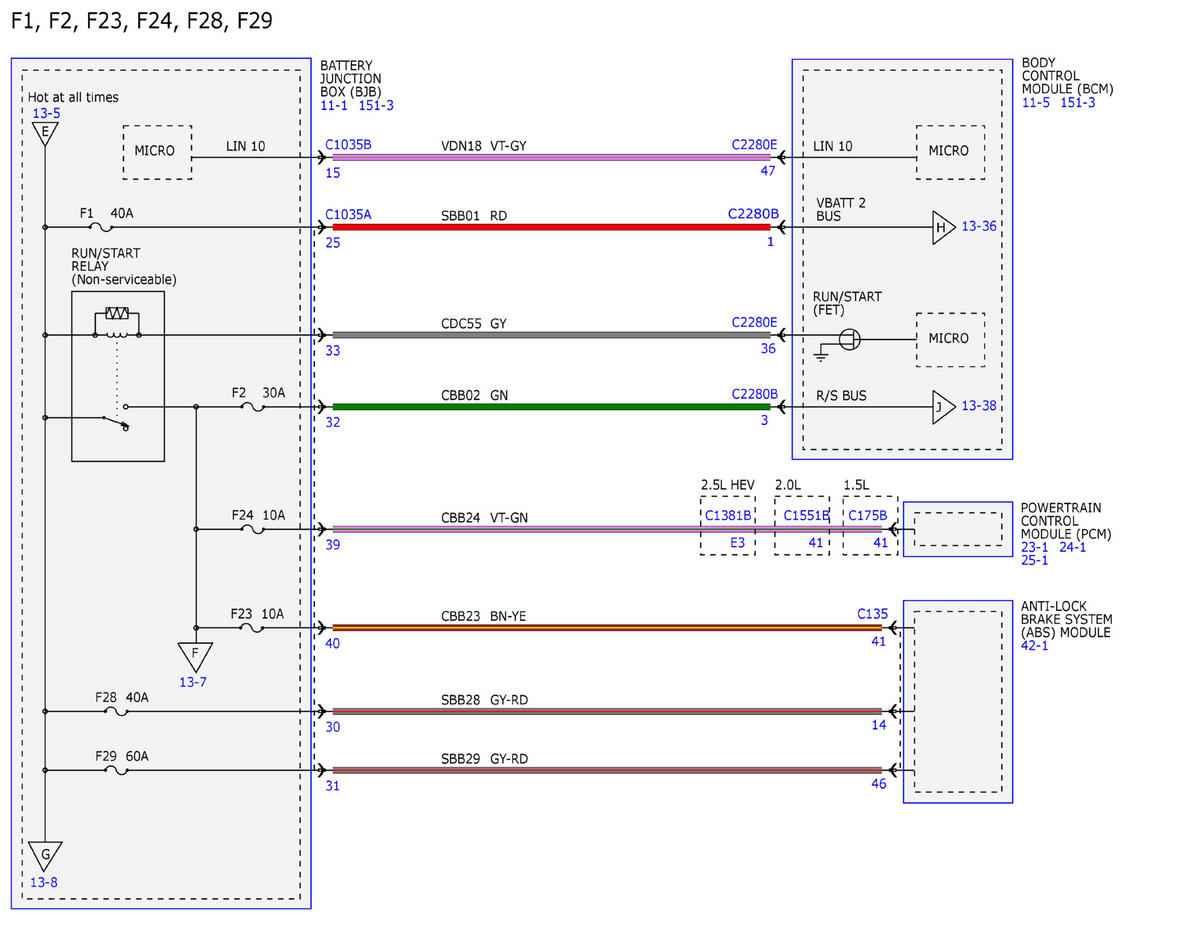

Fig 41: Power Distribution/BCM (41 Of 44)

GFDWR231431

Courtesy of FORD MOTOR COMPANY

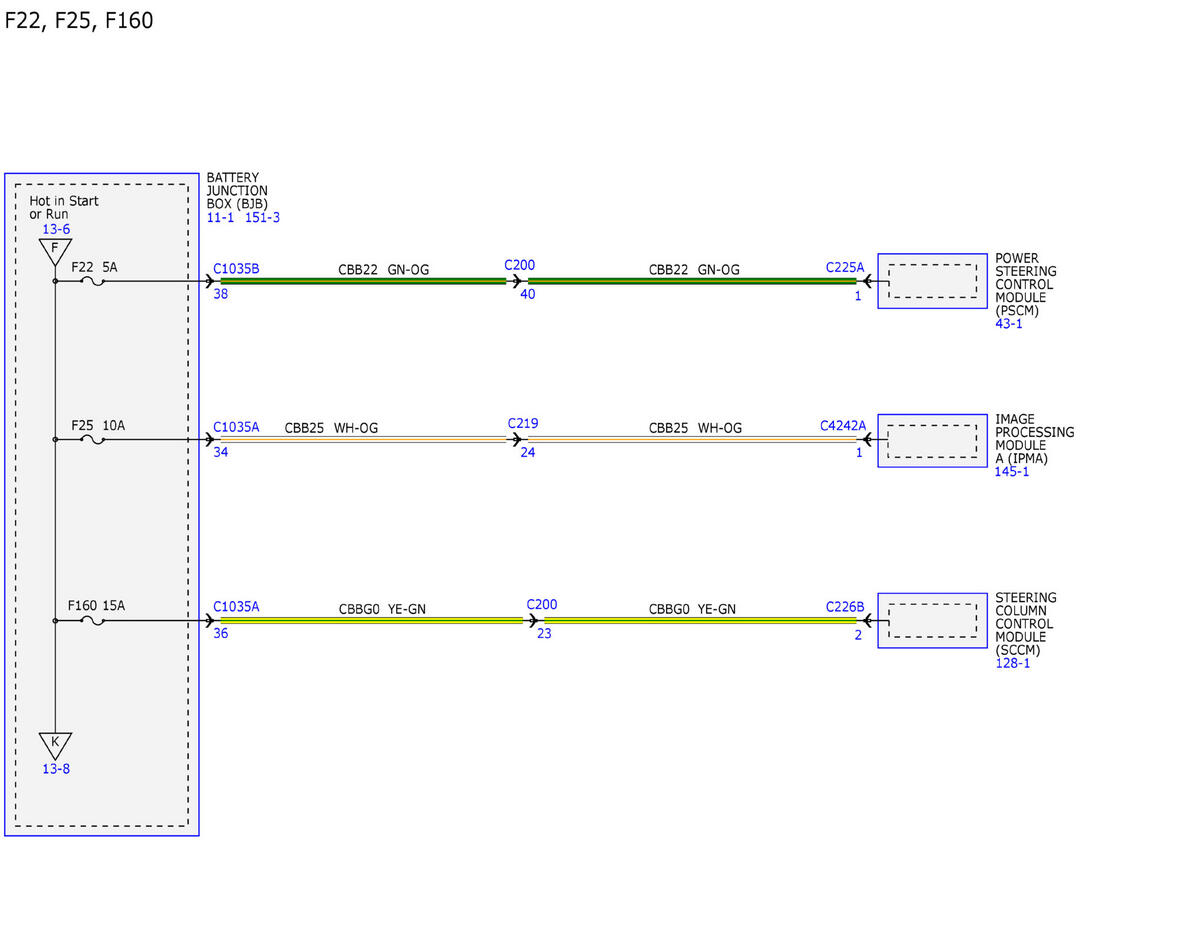

Fig 42: Power Distribution/BCM (42 Of 44)

GFDWR231432

Courtesy of FORD MOTOR COMPANY

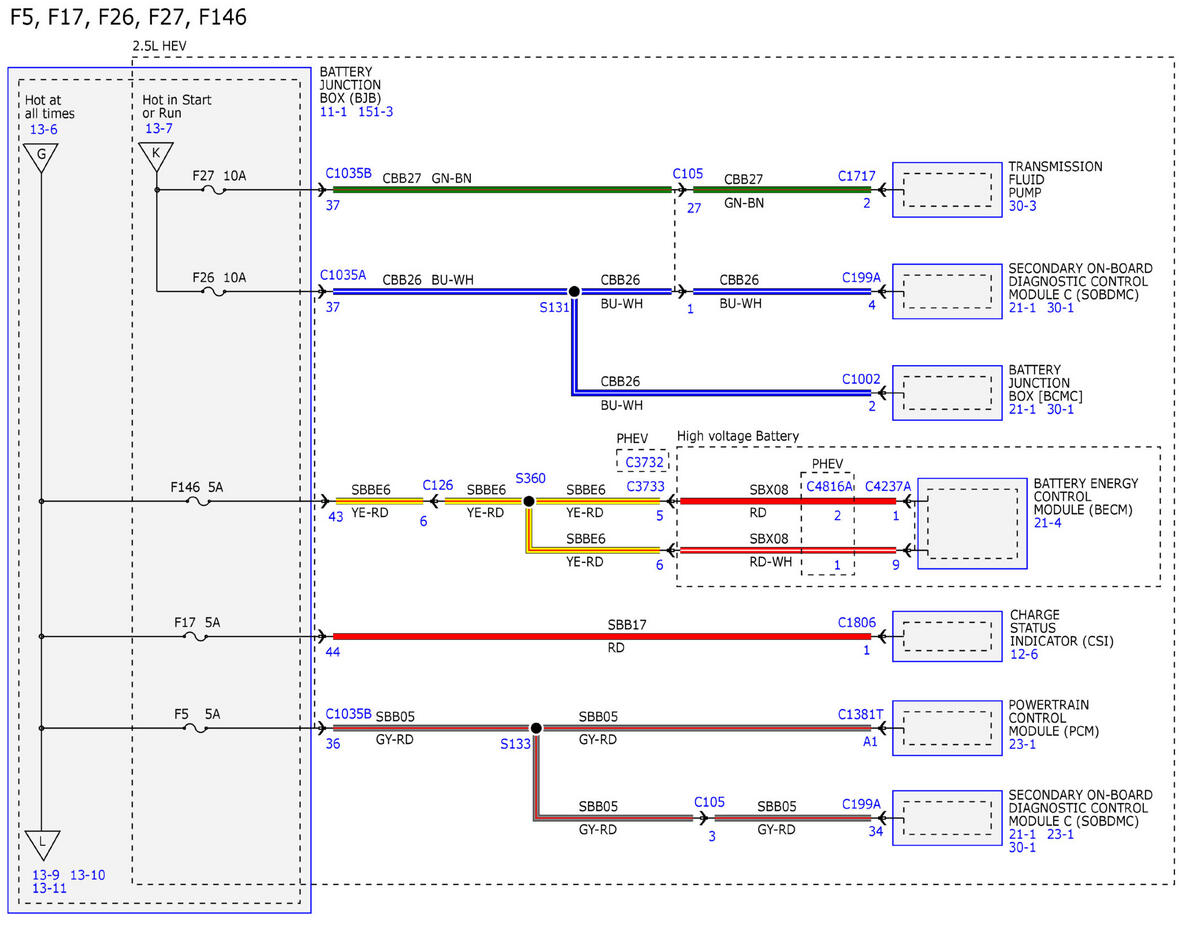

Fig 43: Power Distribution/BCM (43 Of 44)

GFDWR231433

Courtesy of FORD MOTOR COMPANY

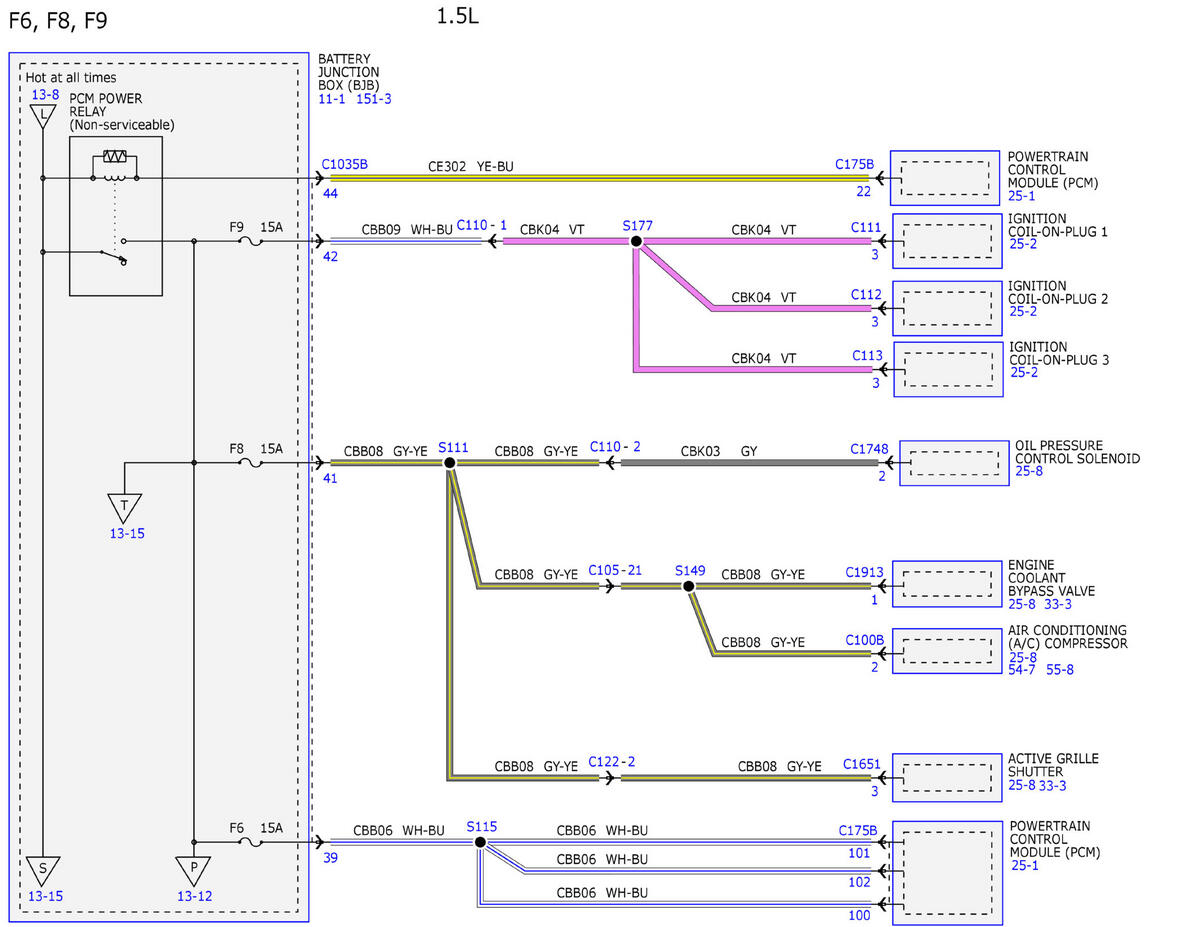

Fig 44: Power Distribution/BCM (44 Of 44)

GFDWR231434

Courtesy of FORD MOTOR COMPANY
