Power Liftgate

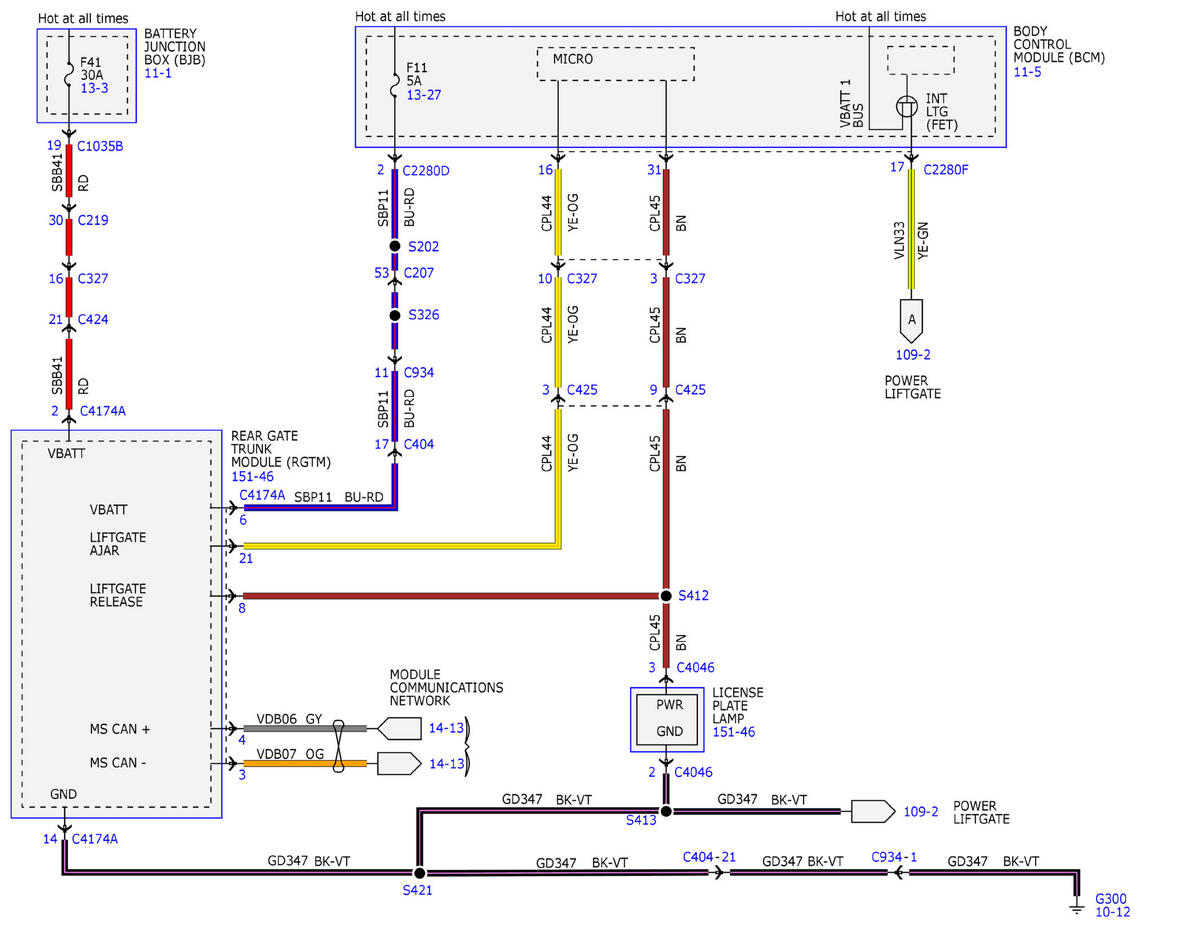

Fig 1: Power Liftgate (1 Of 5)
GFDWR231438Courtesy of FORD MOTOR COMPANY

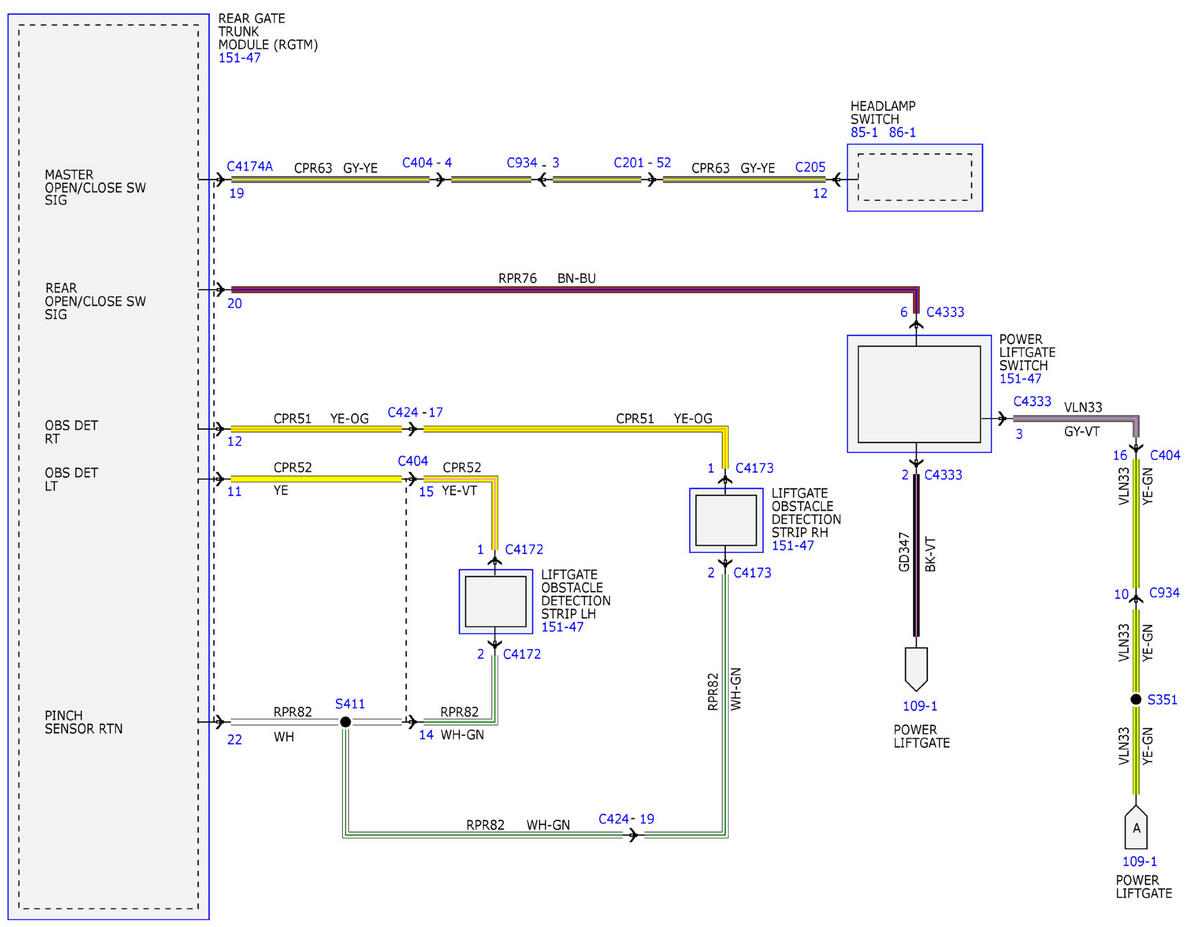

Fig 2: Power Liftgate (2 Of 5)
GFDWR231439Courtesy of FORD MOTOR COMPANY

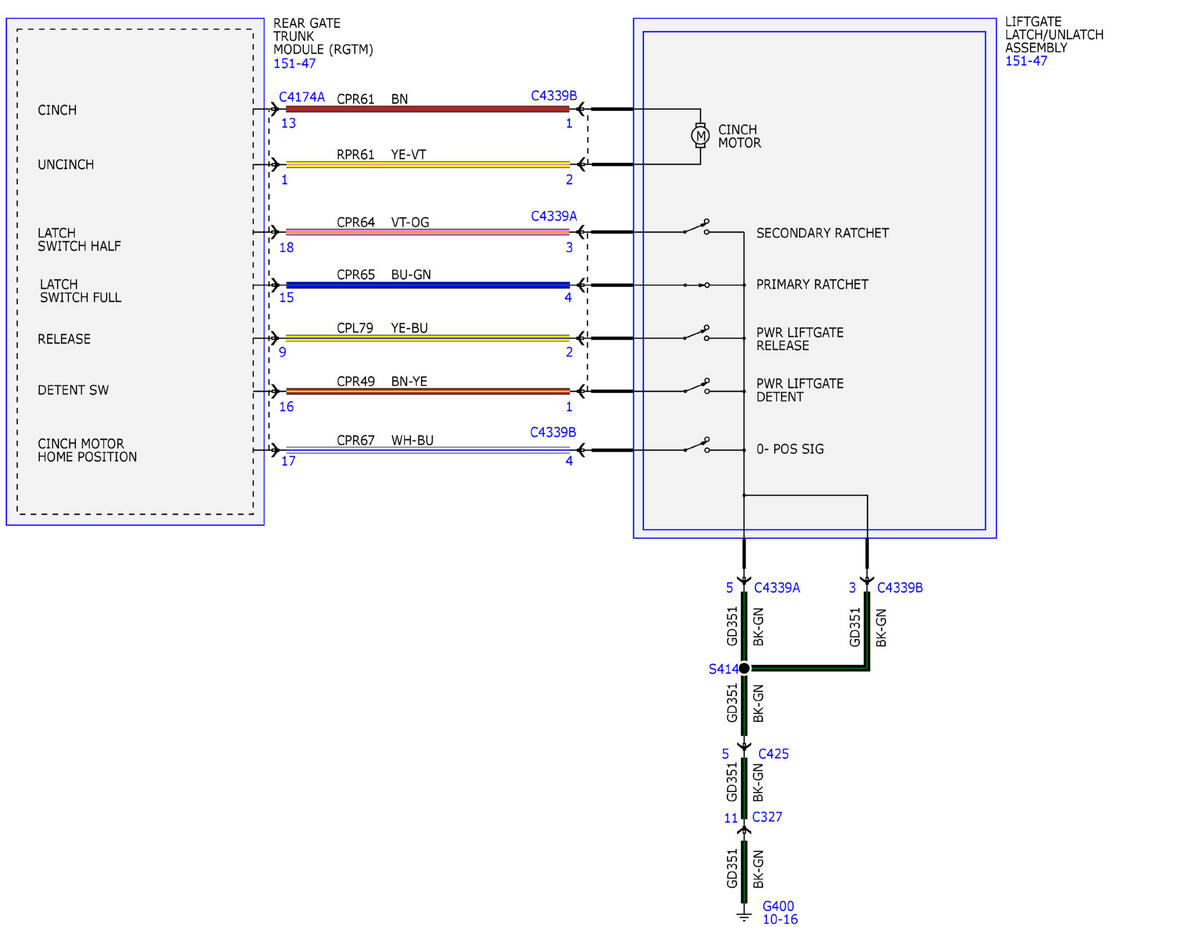

Fig 3: Power Liftgate (3 Of 5)
GFDWR231440Courtesy of FORD MOTOR COMPANY

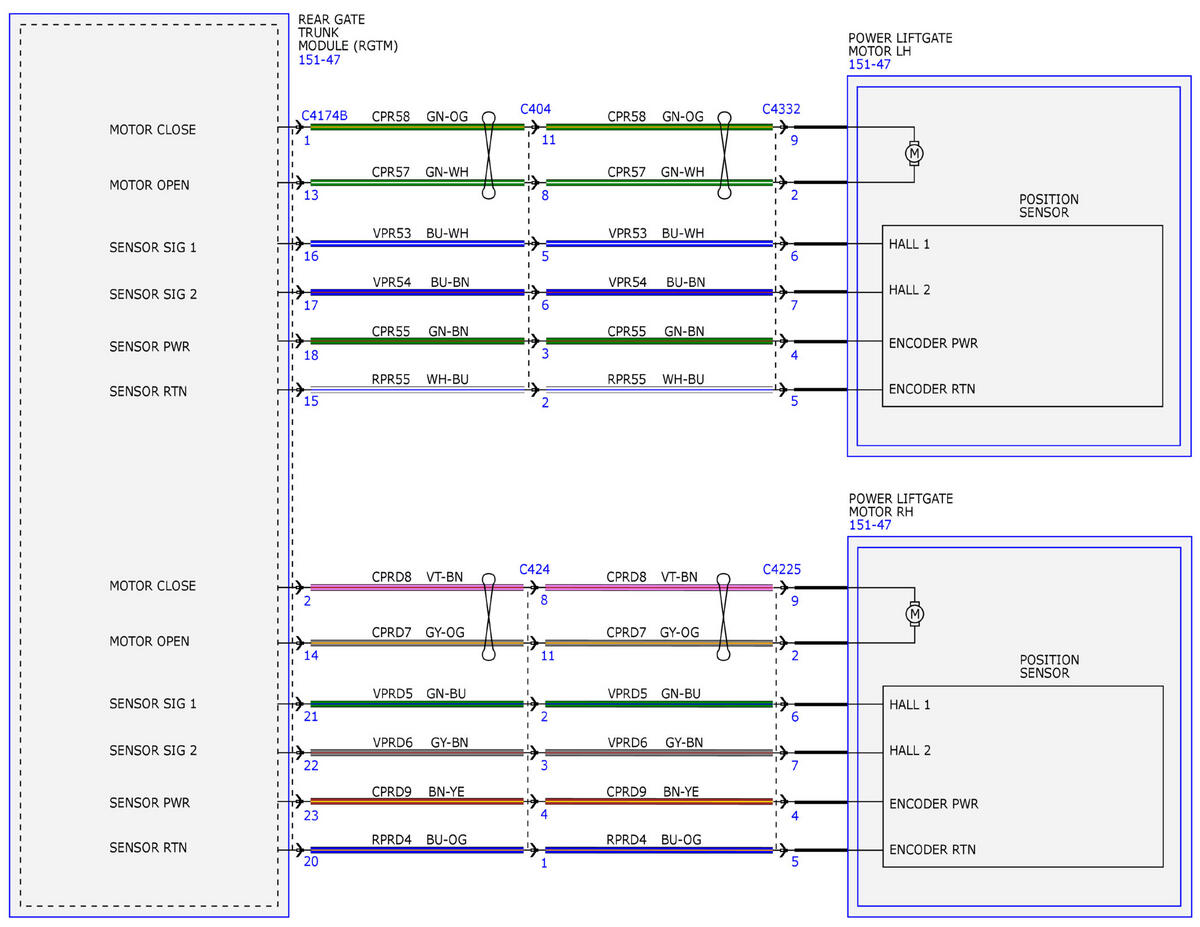

Fig 4: Power Liftgate (4 Of 5)
GFDWR231441Courtesy of FORD MOTOR COMPANY
Fig 5: Power Liftgate (5 Of 5)
GFDWR231442Courtesy of FORD MOTOR COMPANY
