Power Windows

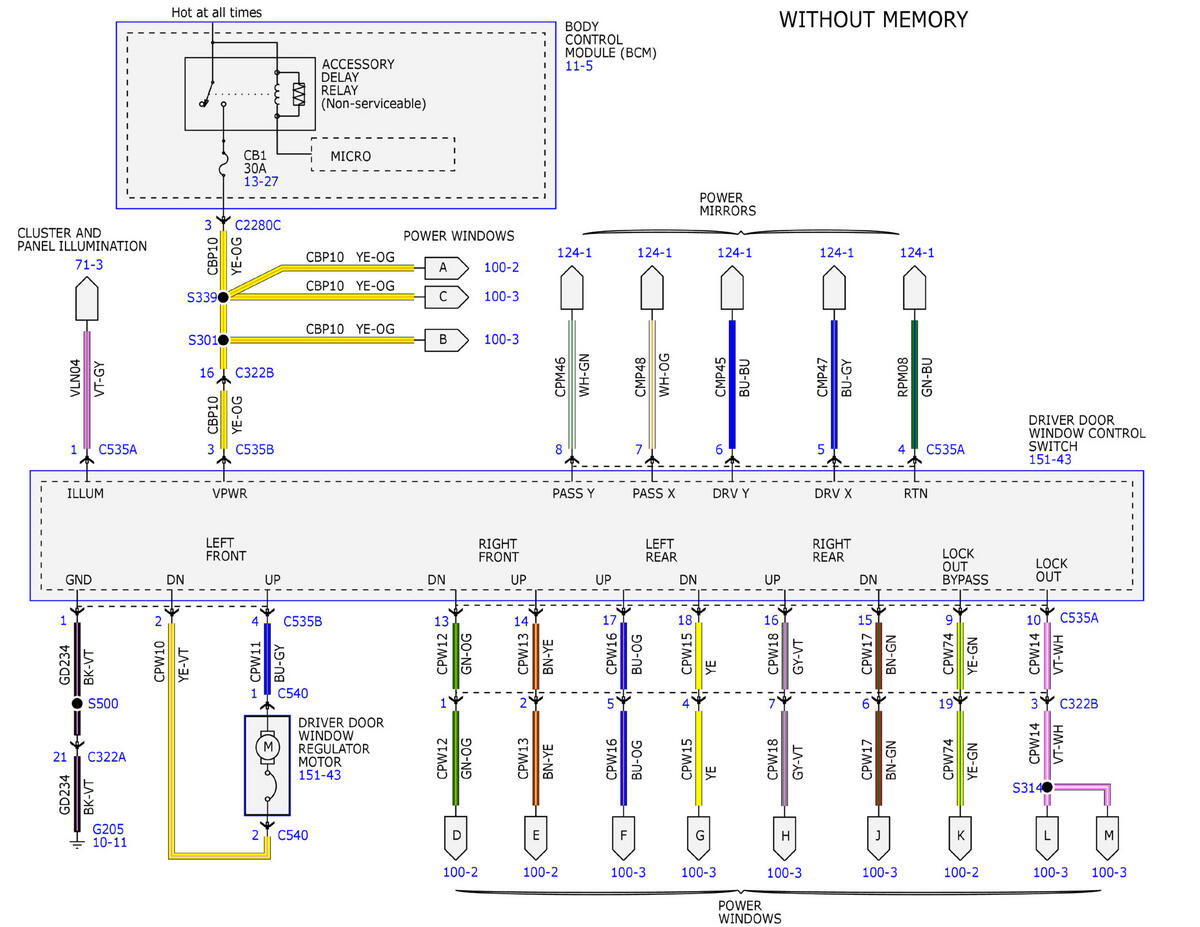

Fig 1: Power Windows (1 Of 9)

GFDWR231451

Courtesy of FORD MOTOR COMPANY

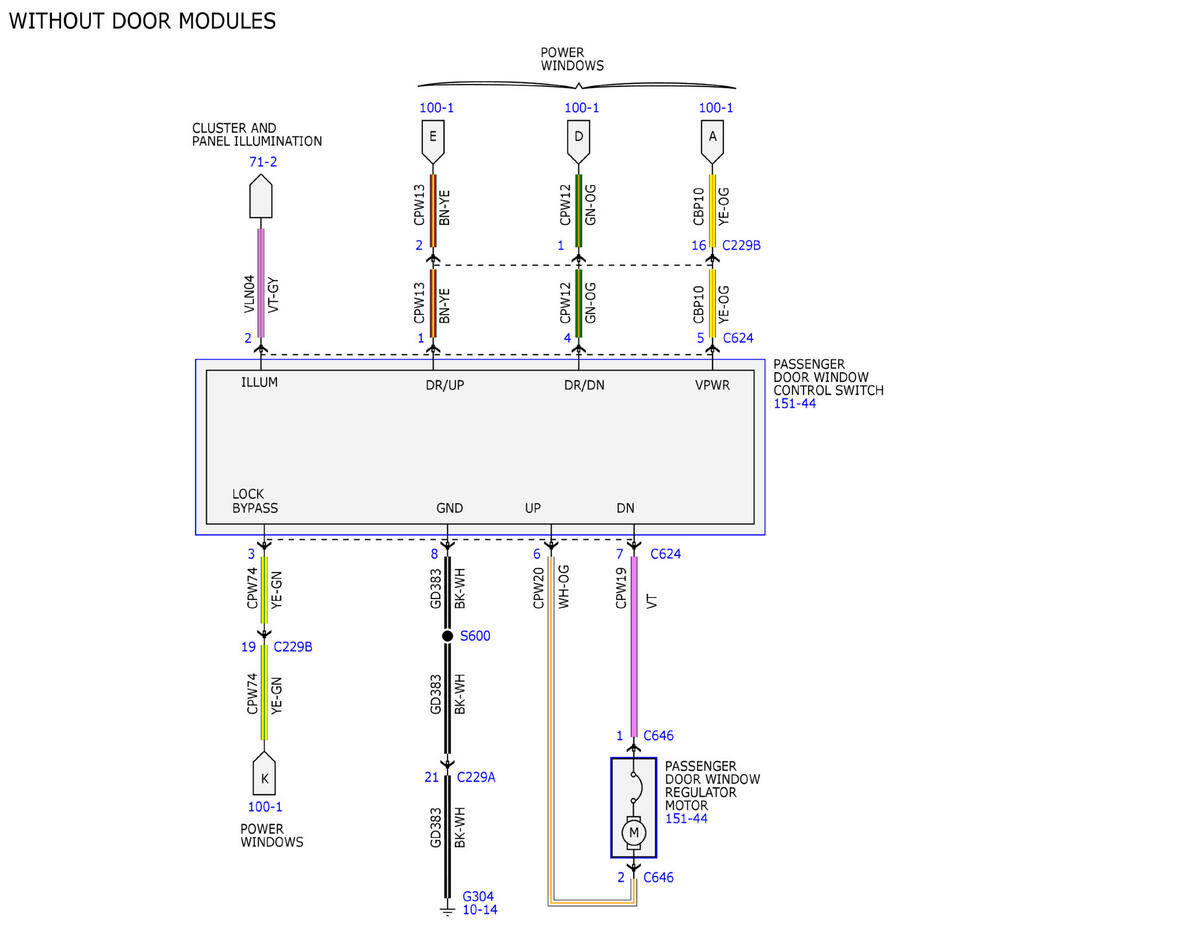

Fig 2: Power Windows (2 Of 9)

GFDWR231452

Courtesy of FORD MOTOR COMPANY

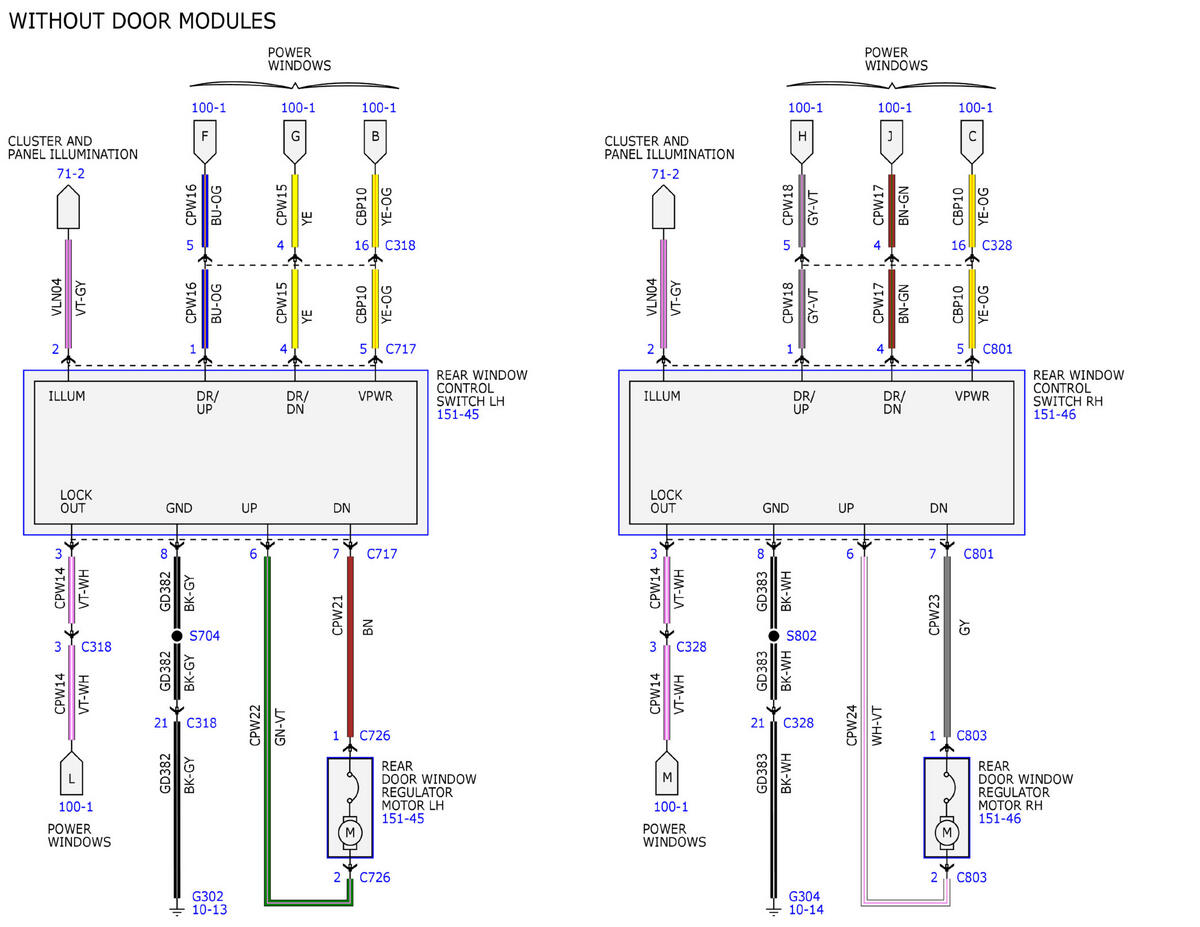

Fig 3: Power Windows (3 Of 9)

GFDWR231453

Courtesy of FORD MOTOR COMPANY

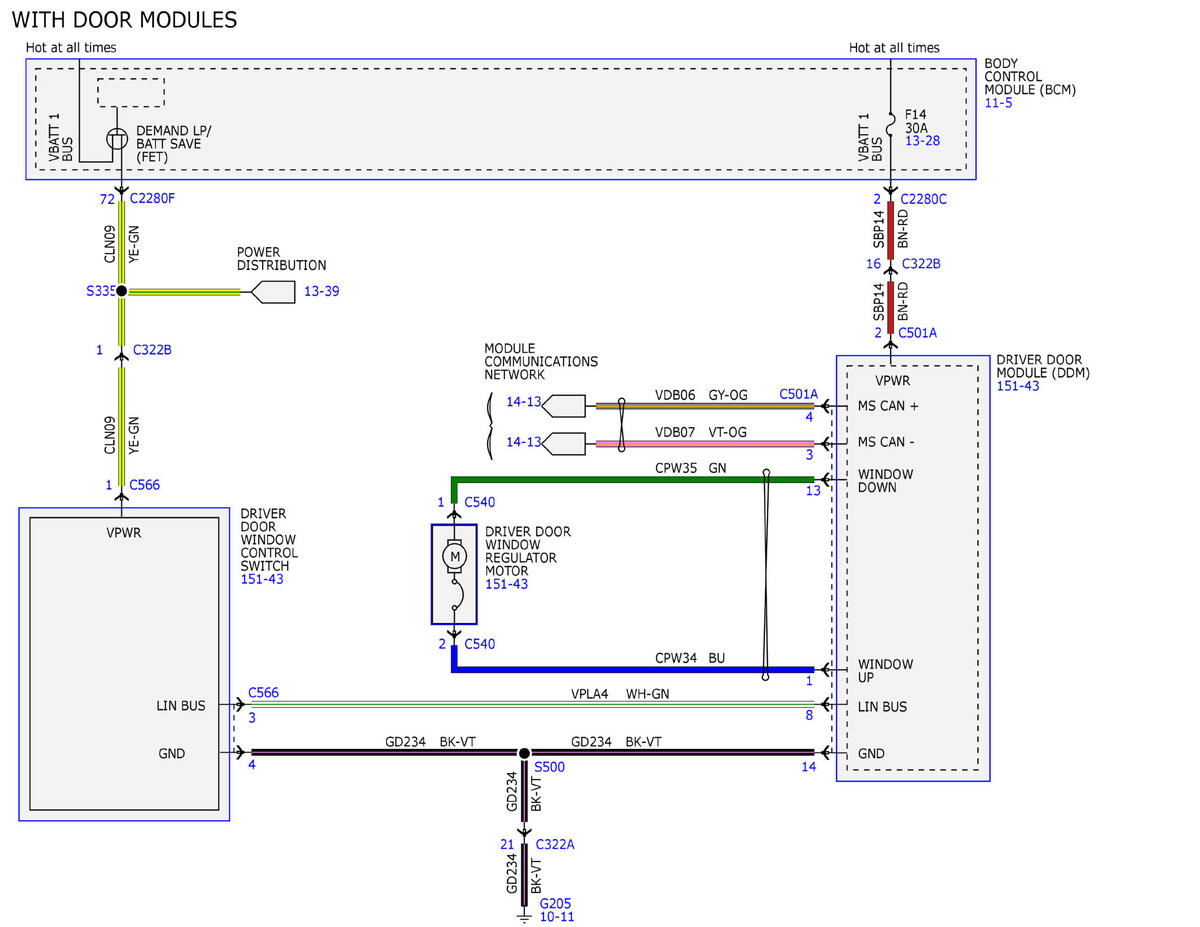

Fig 4: Power Windows (4 Of 9)

GFDWR231454

Courtesy of FORD MOTOR COMPANY

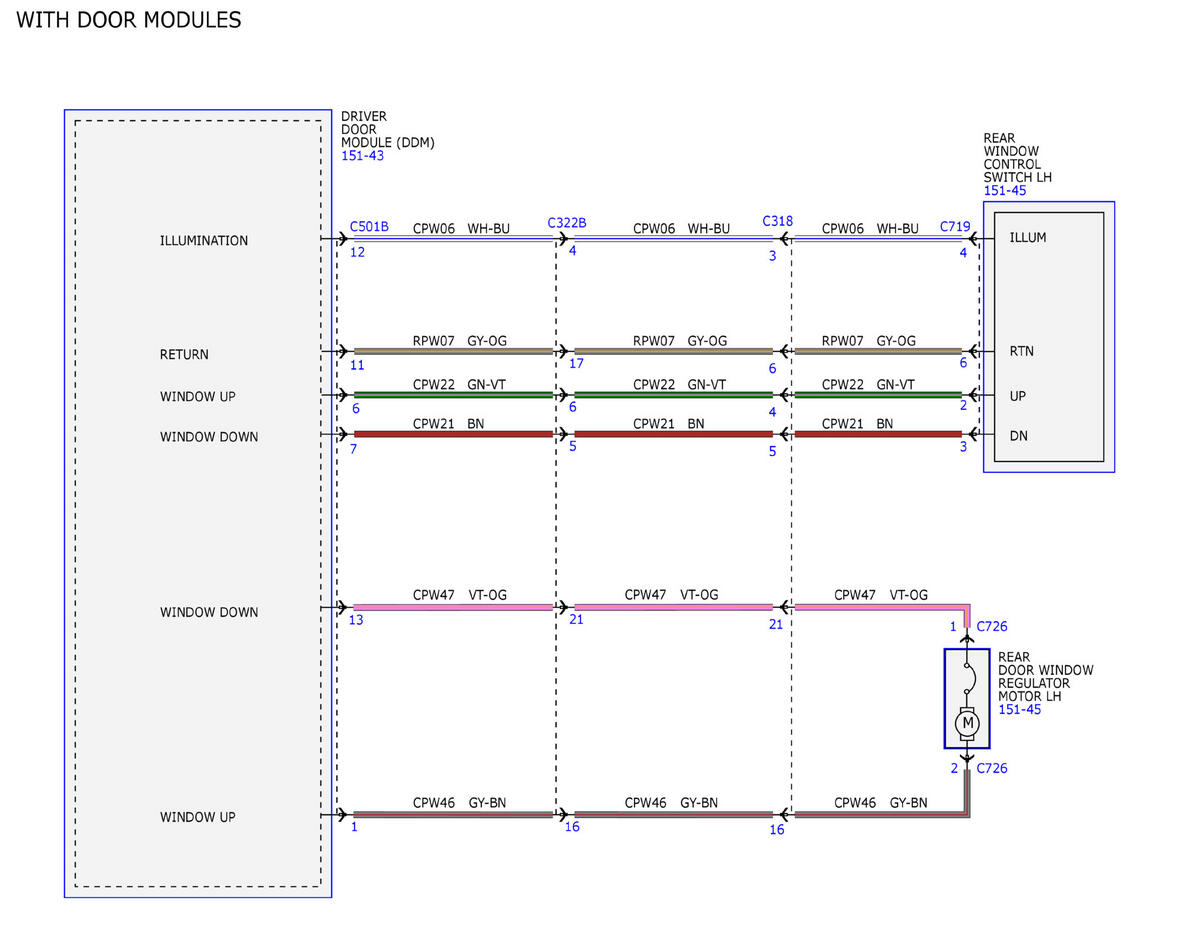

Fig 5: Power Windows (5 Of 9)

GFDWR231455

Courtesy of FORD MOTOR COMPANY

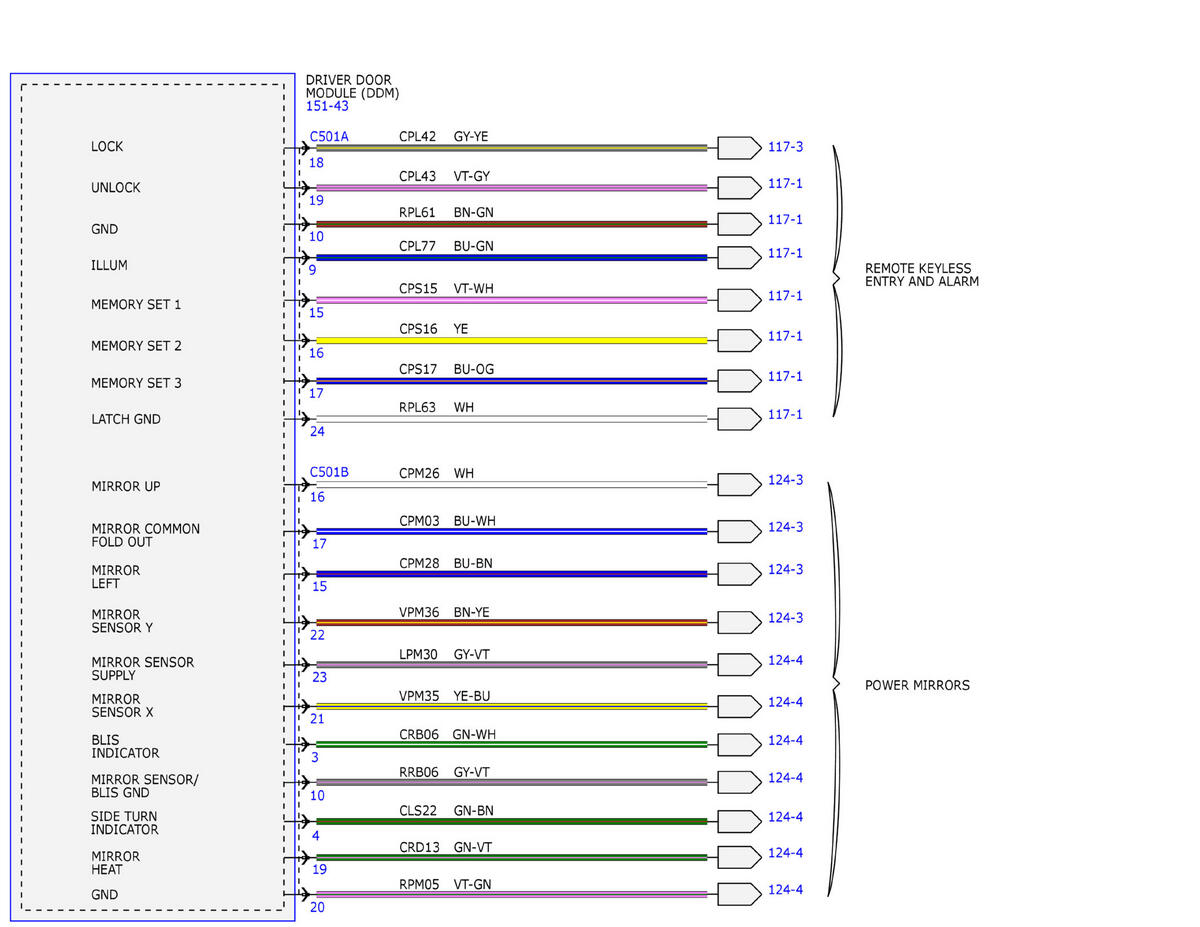

Fig 6: Power Windows (6 Of 9)

GFDWR231456

Courtesy of FORD MOTOR COMPANY

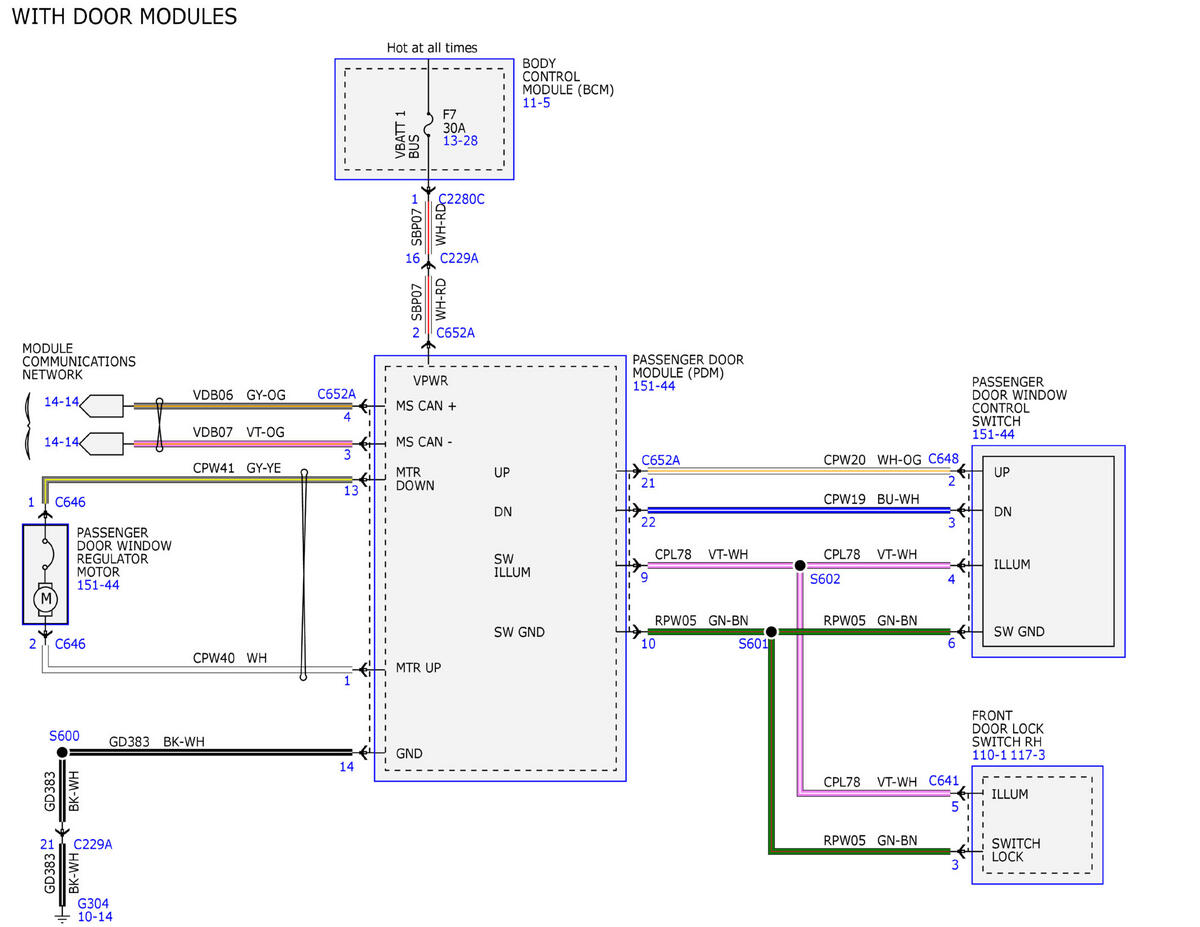

Fig 7: Power Windows (7 Of 9)

GFDWR231457

Courtesy of FORD MOTOR COMPANY

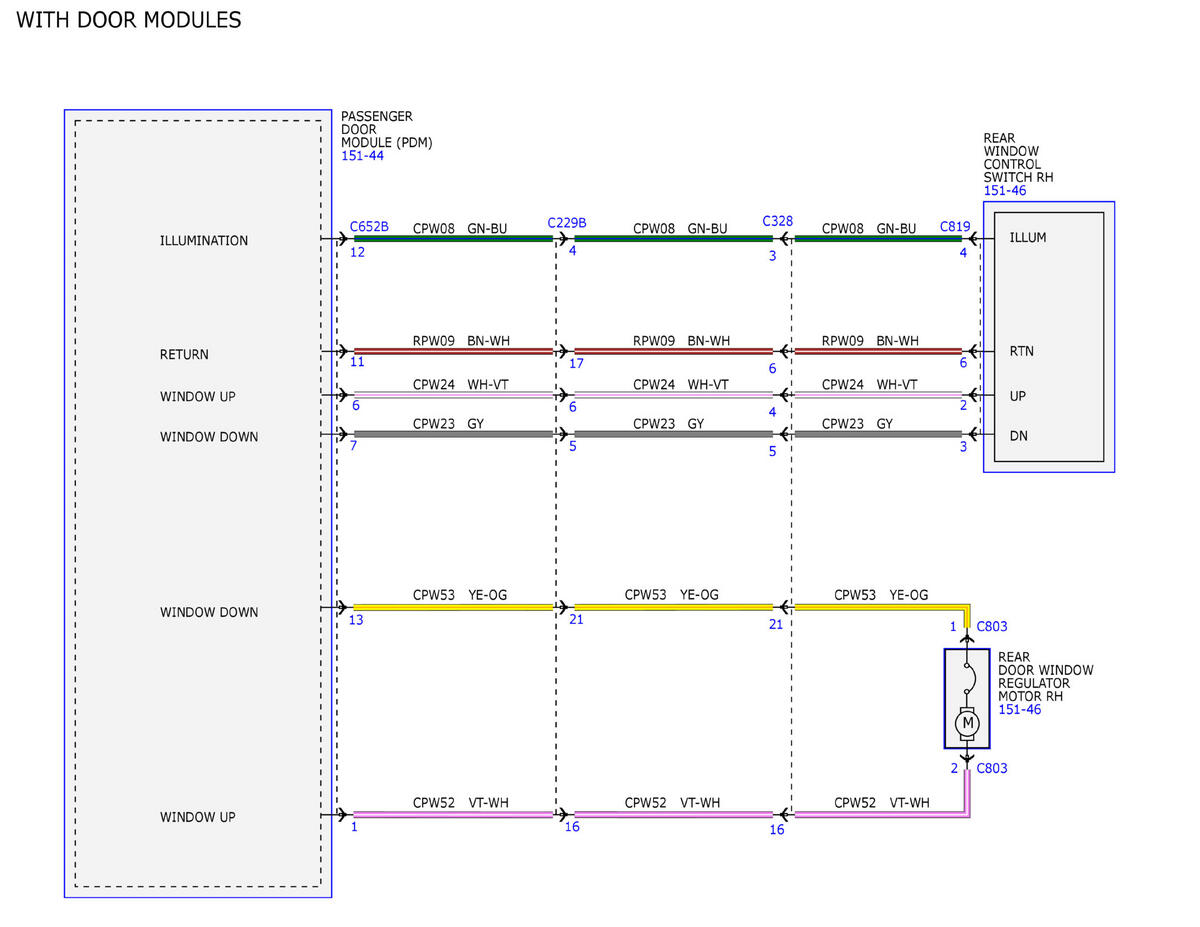

Fig 8: Power Windows (8 Of 9)

GFDWR231458

Courtesy of FORD MOTOR COMPANY

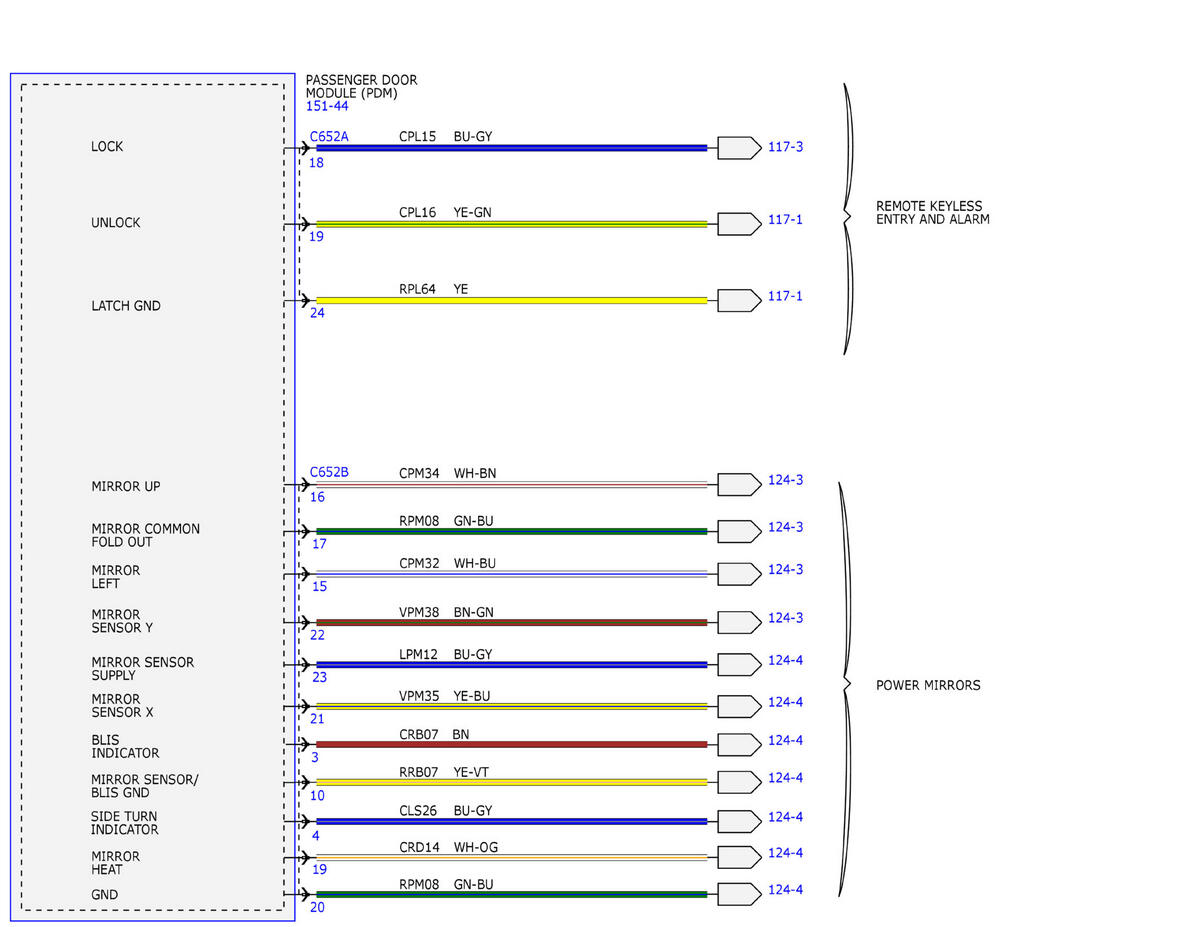

Fig 9: Power Windows (9 Of 9)

GFDWR231459

Courtesy of FORD MOTOR COMPANY
