Starting System
Starting System

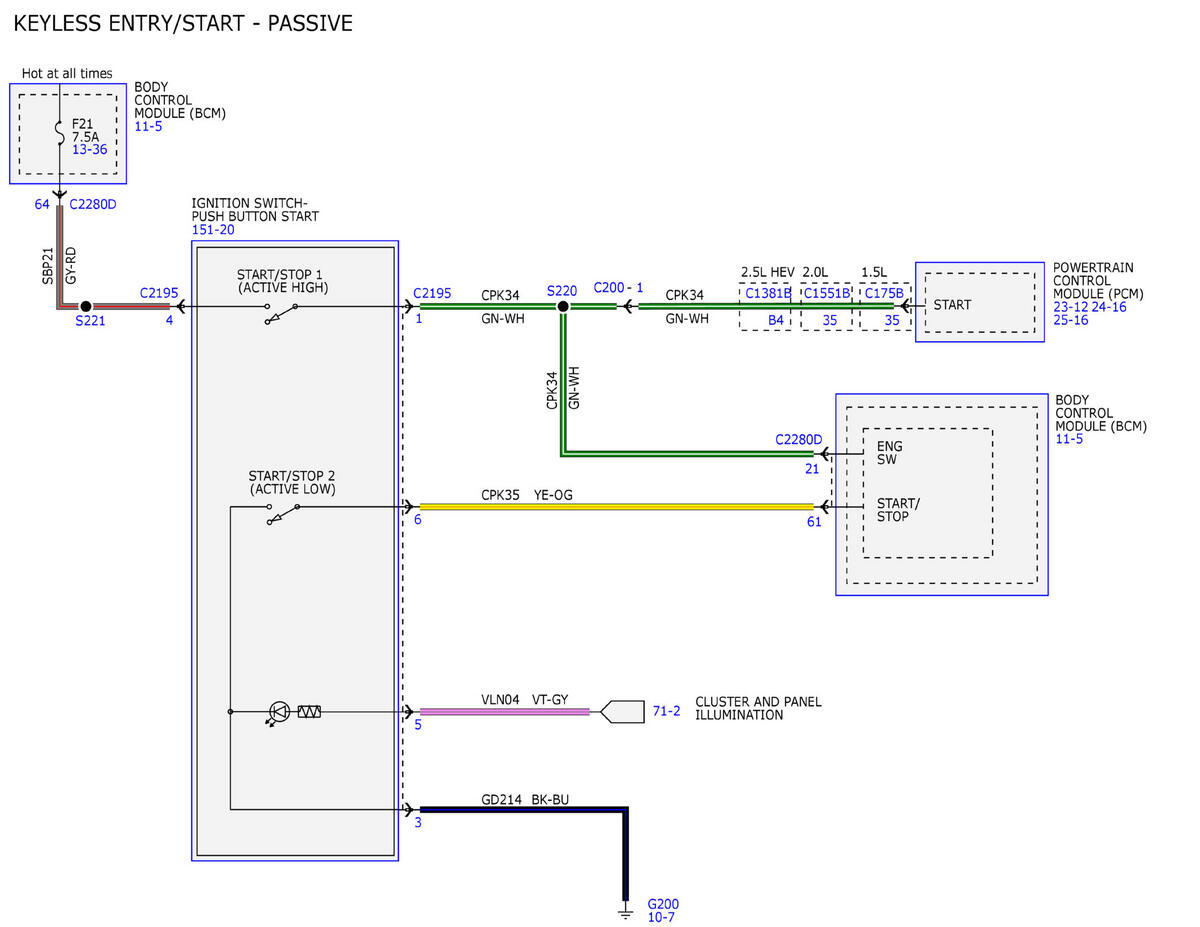

Fig 1: Starting System (1 Of 3)
Courtesy of FORD MOTOR COMPANY

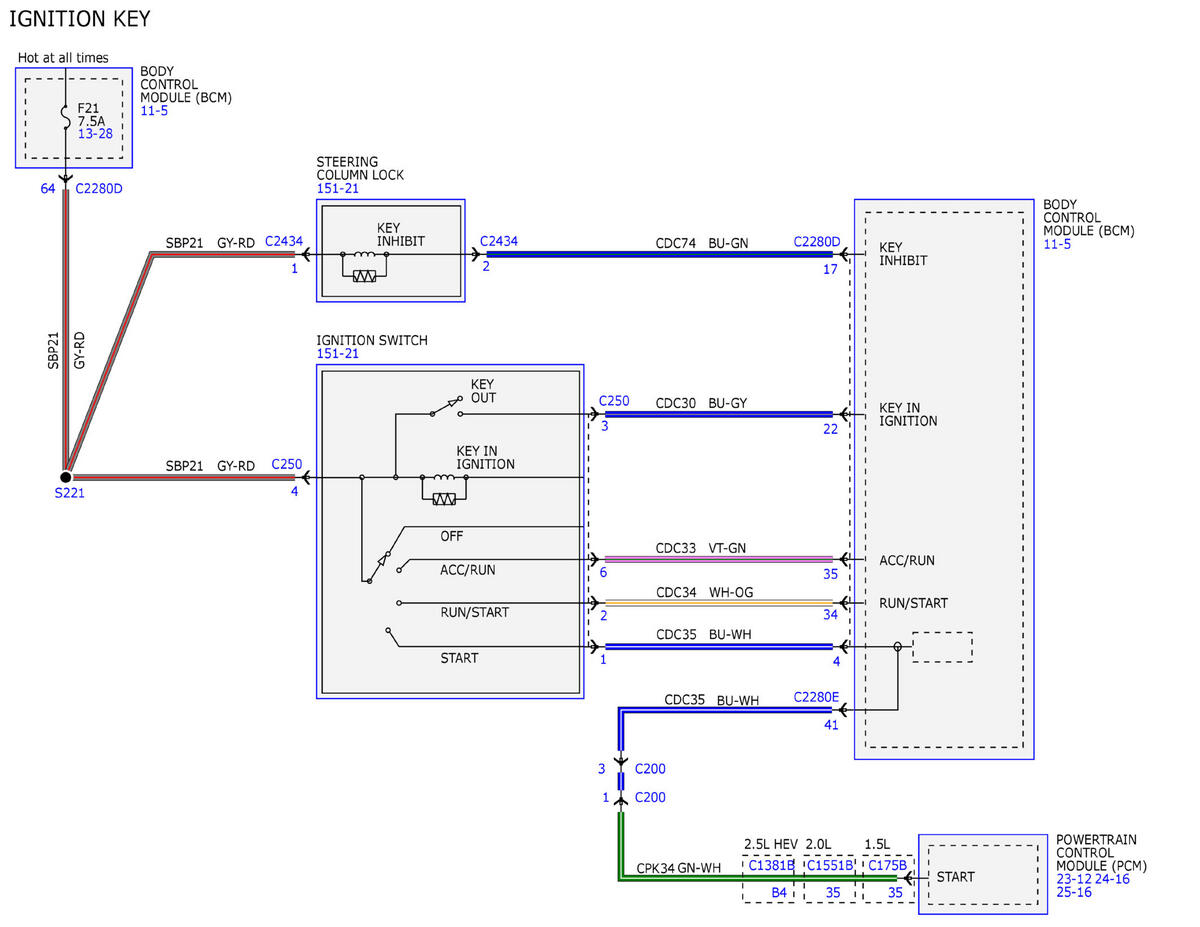

Fig 2: Starting System (2 Of 3)
Courtesy of FORD MOTOR COMPANY

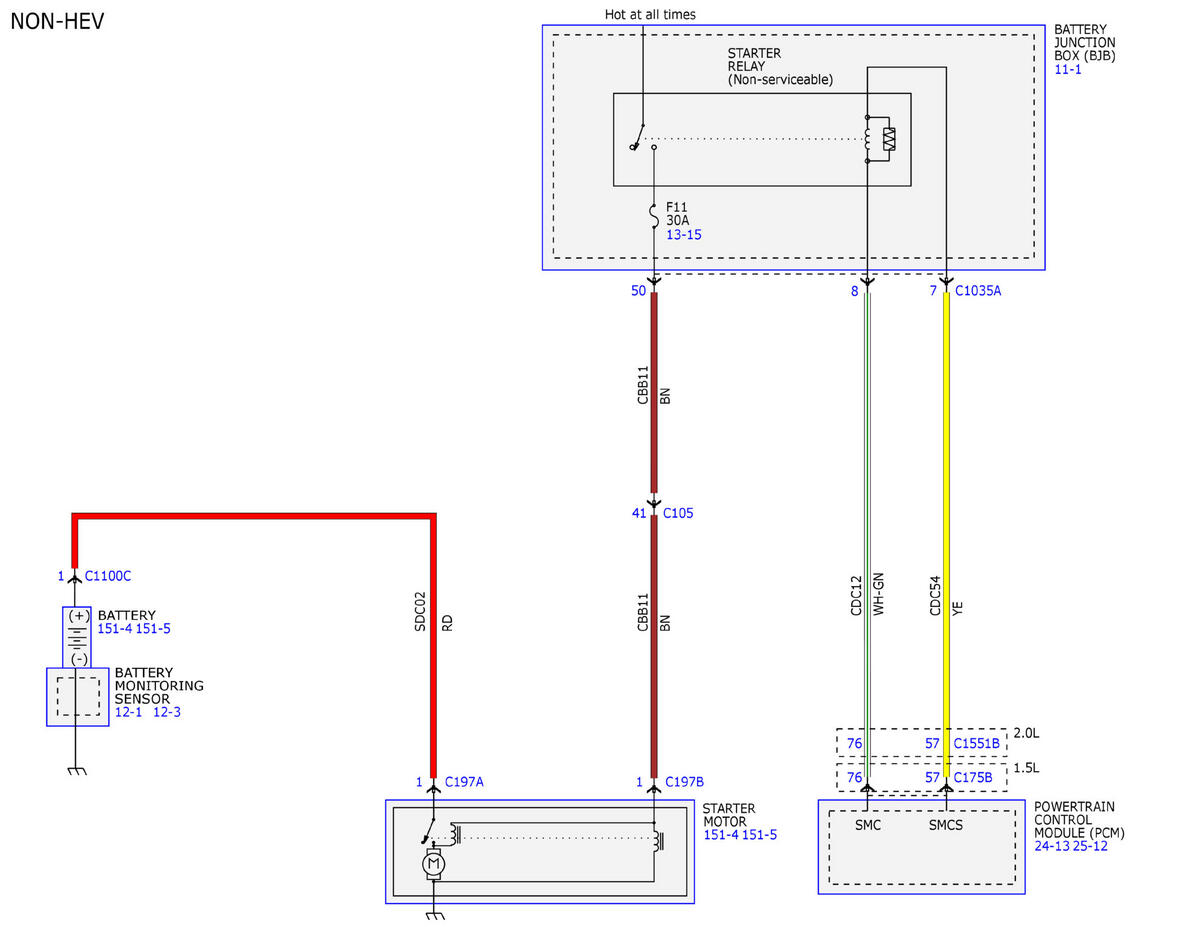

Fig 3: Starting System (3 Of 3)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
