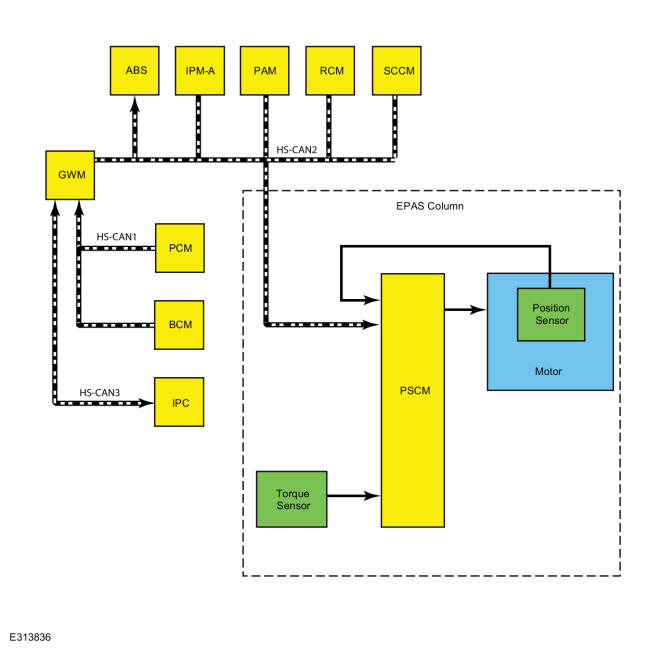

System Diagram

GFD826658

Courtesy of FORD MOTOR COMPANY

Item	Description
1	EPAS Column
2	Motor
3	Position sensor
4	Torque sensor
5	PSCM
6	GWM
7	PCM
8	IPC
9	BCM
10	RCM
11	ABS module
12	IPMA
13	PAM
14	SCCM
