Steering Gear: Removal

Remove the front subframe. Refer to: FRONT SUBFRAME .

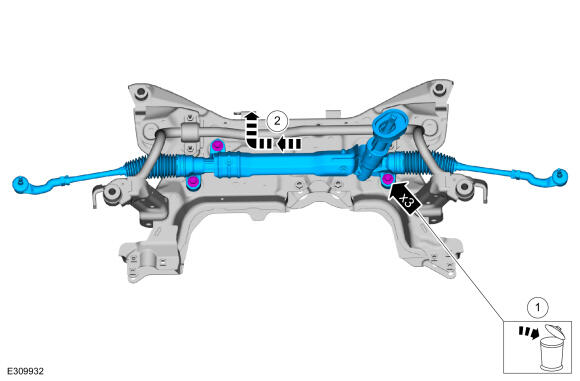

1. Remove and discard the steering gear retainers.
2. Position the steering gear to the RH side then remove it from the front subframe.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

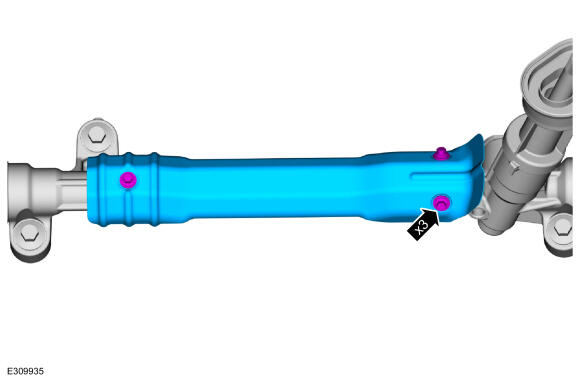

Remove the retainers and the steering gear shield.

Courtesy of FORD MOTOR COMPANY
