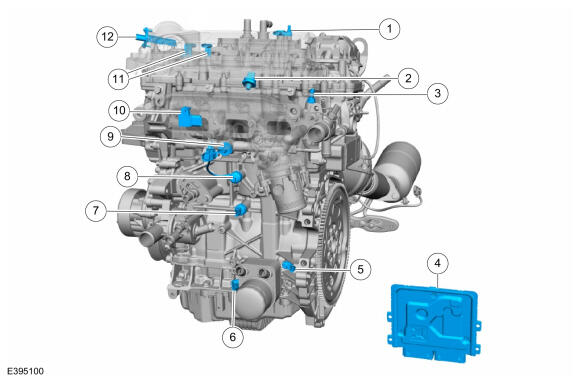

Engine Front

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Crankcase pressure sensor
2	FRP and temperature sensor
3	ECT sensor
4	PCM
5	CKP sensor
6	Oil pressure control solenoid
7	EOP sensor
8	KS
9	FRP sensor
10	MAPT sensor
11	CMP sensors
12	Mass Air Flow (MAF) and Intake Air Temperature (IAT) sensor
