Driver Front Seat Module (DSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

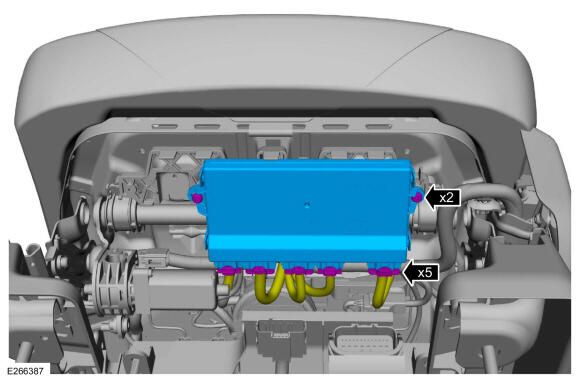

Remove the screws, disconnect the electrical connectors and remove the DSM.
Torque: 5 Nm

Courtesy of FORD MOTOR COMPANY
