Front Seat Control Switch: Removal

NOTE: Driver seat shown, passenger seat similar.

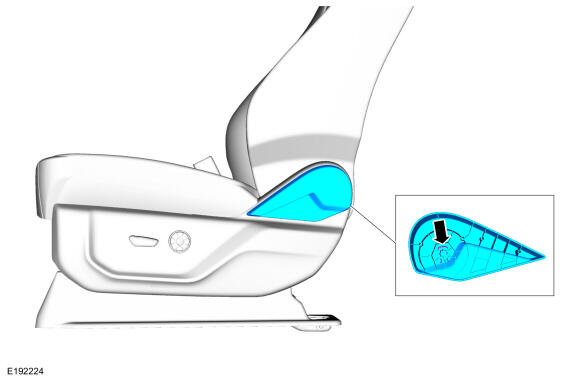

  1. If equipped. Remove the clip and the recline handle.
    GFD861913Courtesy of FORD MOTOR COMPANY

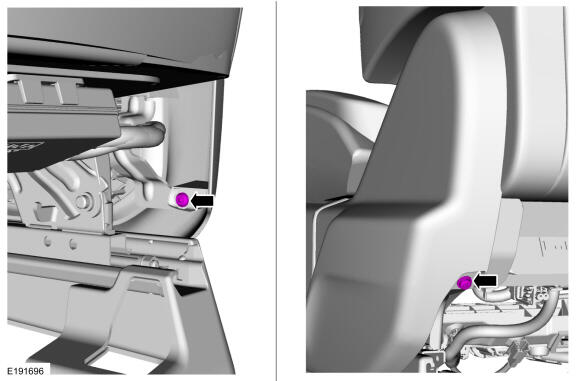

  2. Remove the side shield screws.
    GFD861914Courtesy of FORD MOTOR COMPANY

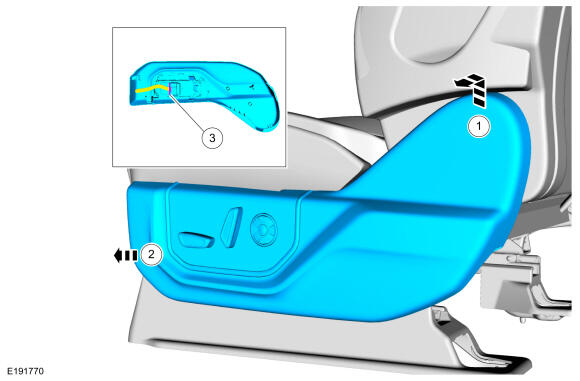

  3. NOTE: Side shield with power recline seat shown, all others similar.

    Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD861915Courtesy of FORD MOTOR COMPANY

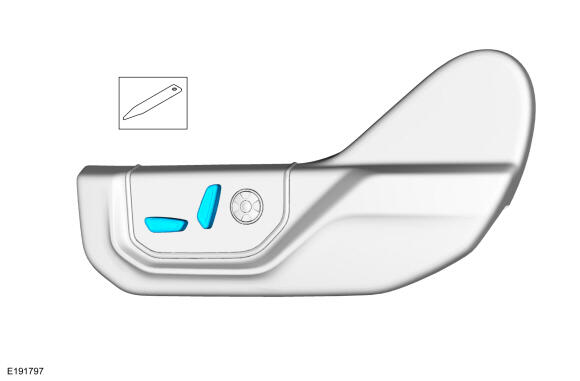

  4. Remove the seat control switch knob(s).
    GFD861916Courtesy of FORD MOTOR COMPANY

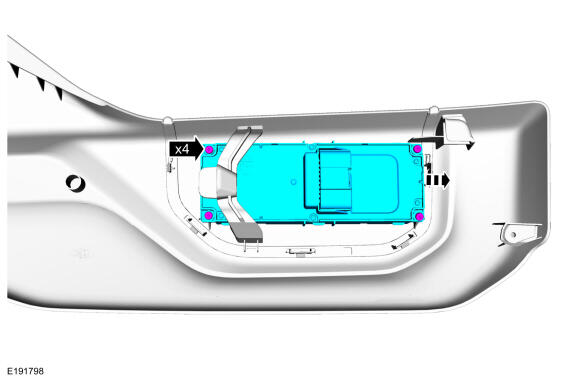

  5. Remove the screws and the front seat control switch.
GFD861917Courtesy of FORD MOTOR COMPANY
