Engine Upper

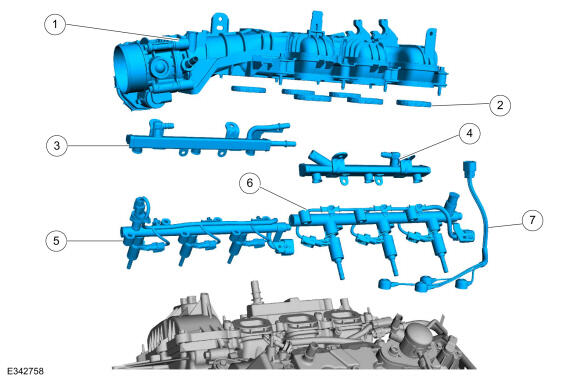

GFD858952Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 9424 Intake manifold
2 9H486 Intake manifold gasket
3 9F792 Port injection fuel rail RH
4 9F792 Port injection fuel rail LH
5 9F797 Direct injection fuel rail RH
6 9F797 Direct injection fuel rail LH
7 12A699 Knock Sensor (KS)
