Valve Cover RH: Installation

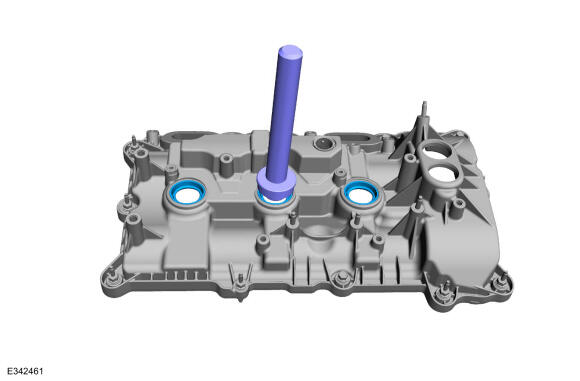

  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the spark plug tube seals.Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

    GFD859348Courtesy of FORD MOTOR COMPANY

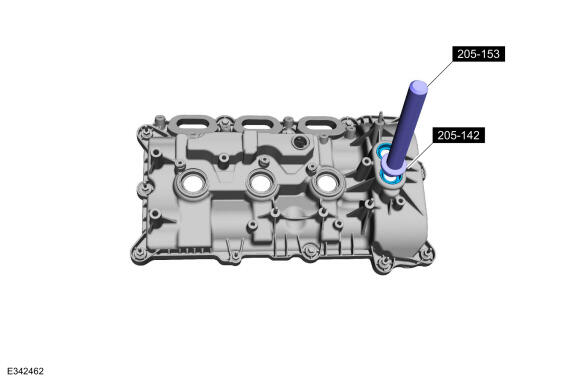

  2. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the VCT oil control solenoid seals.Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

    GFD859349Courtesy of FORD MOTOR COMPANY

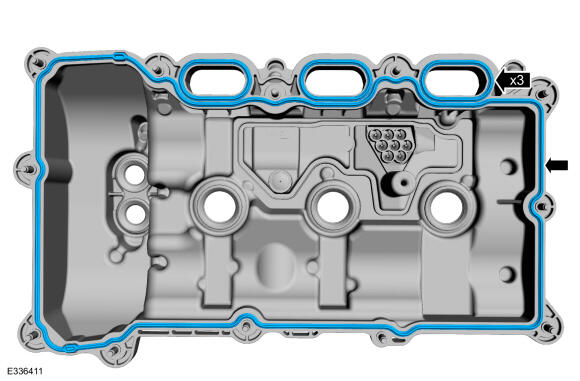

  3. Install the new valve cover and intake port gaskets.
    GFD859350Courtesy of FORD MOTOR COMPANY

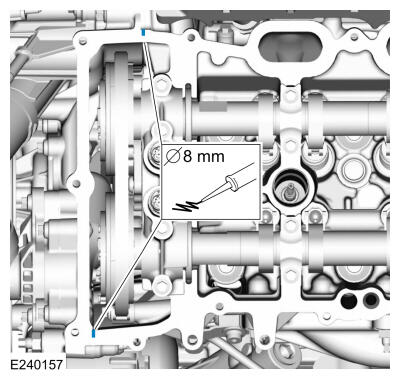

  4. NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

    Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: metal cleaner

    Material: gasket remover

    Material: RTV silicone sealant (WSE-M4G323-A6)

    GFD859351Courtesy of FORD MOTOR COMPANY

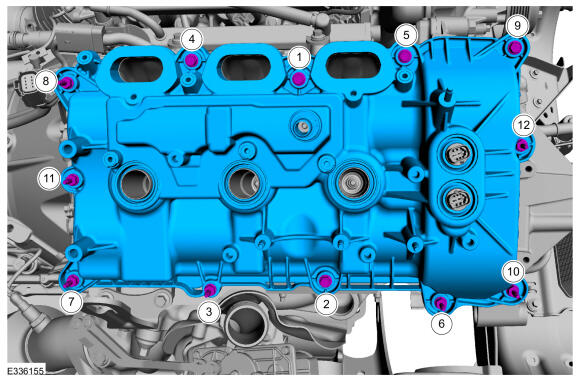

  5. Install the valve cover and tighten the studbolts, bolts in the sequence shown below.

    Torque: 10 Nm

    GFD859352Courtesy of FORD MOTOR COMPANY

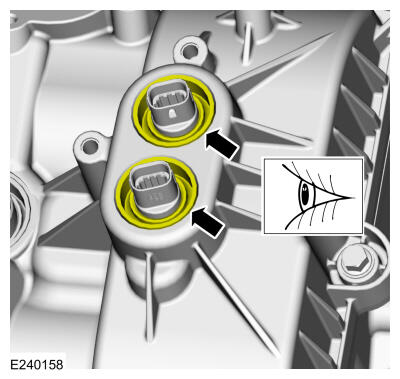

  6. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
    GFD859353Courtesy of FORD MOTOR COMPANY

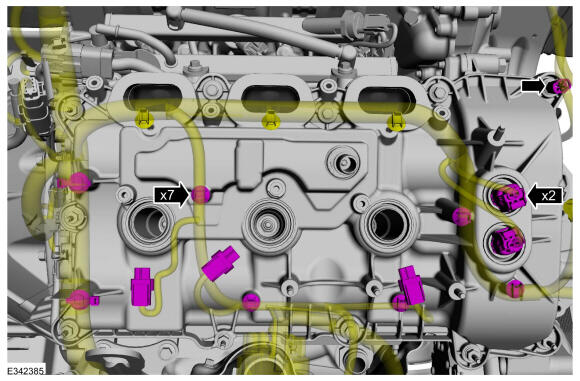

    • Connect the VCT solenoid electrical connectors.

    • Attach the wiring harness retainers.

    GFD859343Courtesy of FORD MOTOR COMPANY

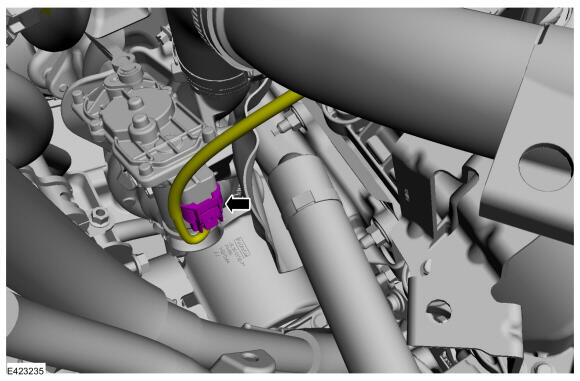

  8. Connect the RHTC electrical connector.
    GFD859341Courtesy of FORD MOTOR COMPANY

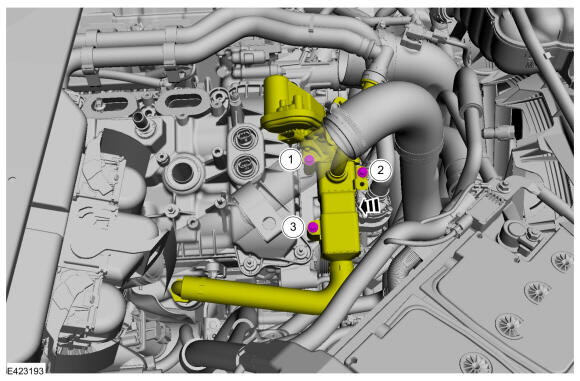

  9. Position back the EGR and hand start the fasteners.
    GFD859354Courtesy of FORD MOTOR COMPANY

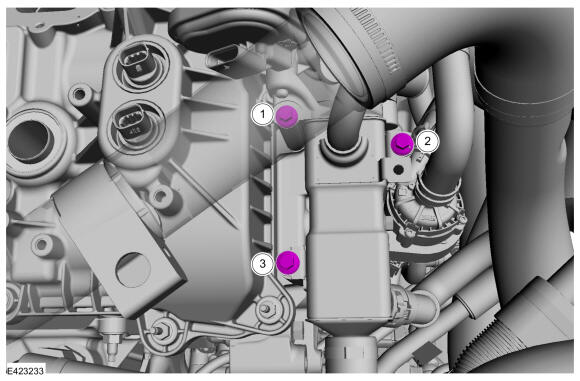

  10. Tighten the EGR per the sequence.

    Torque: 10 Nm

    GFD859355Courtesy of FORD MOTOR COMPANY

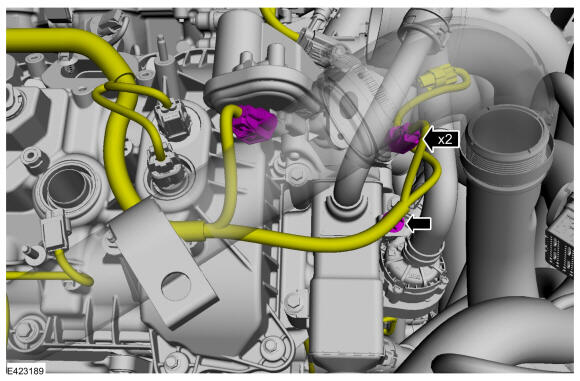

  11. Connect the electrical connectors and attach the pin-type retainer.
    GFD859339Courtesy of FORD MOTOR COMPANY
  12. Loosen the clamp and remove the RH air cleaner outlet pipe.

    Torque: One: 8 Nm Two: 6 Nm

    GFD859356Courtesy of FORD MOTOR COMPANY

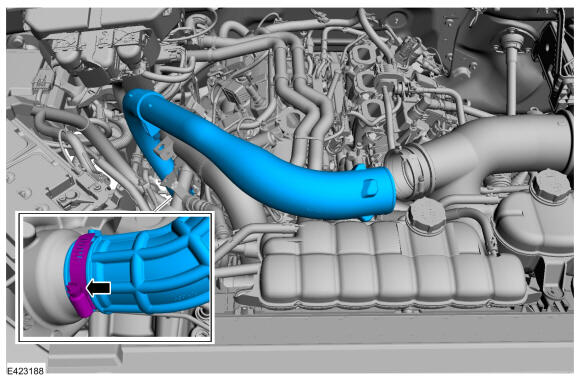

  13. Install the RH air cleaner outlet pipe and tighten the clamp.

    Torque: 5 Nm

    GFD859337Courtesy of FORD MOTOR COMPANY

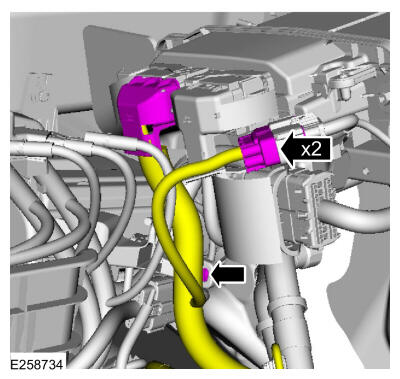

  14. Connect the PCM electrical connectors and the pin-type retainer.
    GFD859342Courtesy of FORD MOTOR COMPANY
  15. Install the RH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
  16. Install the intake manifold. Refer to: Intake Manifold .
