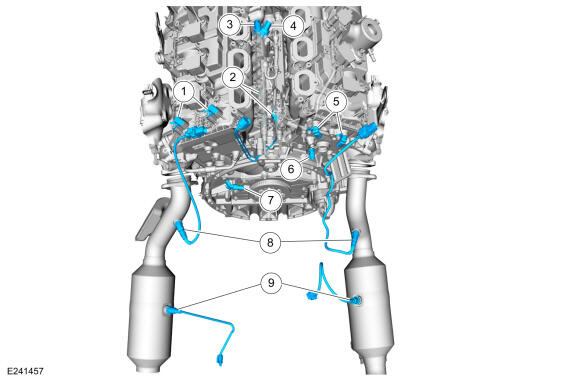

Electronic Engine Controls - Rear

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Left hand CMP sensors
2	KS
3	FRP sensor
4	FRP and temperature sensor
5	Right hand CMP sensors
6	CHT sensor
7	CKP sensor
8	HO2S
9	Catalyst monitor sensors
