Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
NOTE:
Removal steps in this procedure may contain installation details.
RH
- Remove the RH valve cover. Refer to: Valve Cover Rh .
- Remove the bolts and the RHVCT oil control solenoids.
Torque: 10 Nm
LH
- Remove the LH valve cover. Refer to: Valve Cover LH .

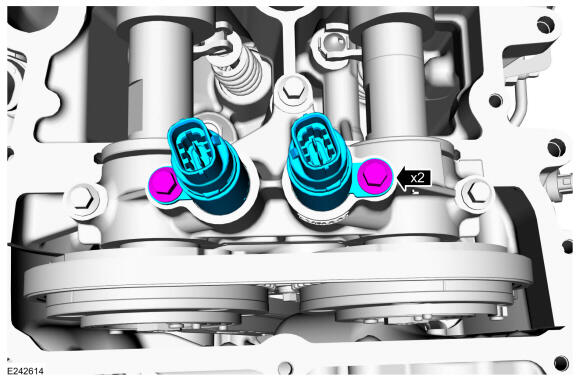

- Remove the bolts and the LHVCT oil control solenoids.
Torque: 10 Nm
