Fuel Charging And Controls - Component Location
›
Fuel Pump Driver Module

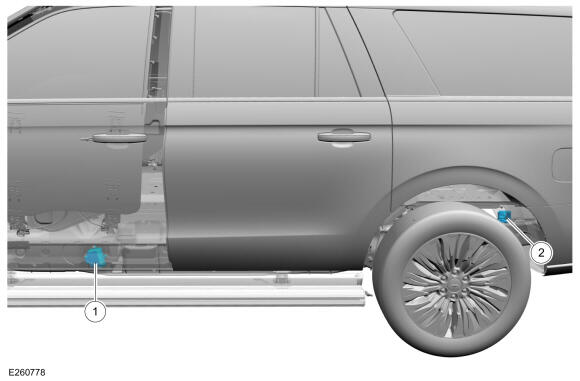

Fuel Pump Driver Module
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Side Frame Mounted Fuel Pump Driver Module.
2
Top Frame Mounted Fuel Pump Driver Module.
