Fuel Tank Draining

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	292-00004 Fuel Tanker 100 GPM

Activation

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Disconnect the battery ground cable. Refer to: Battery Disconnect And Connect .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting
WARNING: Before beginning any service procedure, refer to Health And Safety Precautions within service information. Failure to follow this instruction may result in serious personal injury.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

NOTE: Only use the specified general equipment.

NOTE: Be prepared to collect escaping fluid.

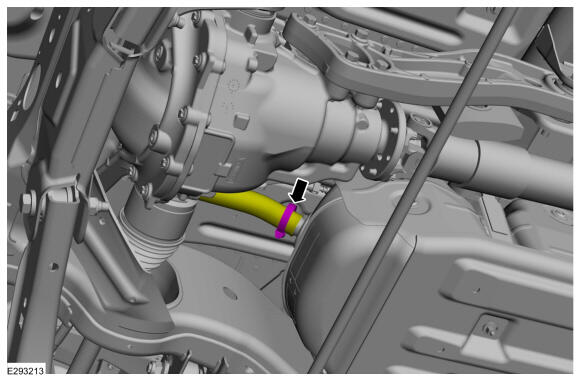

Loosen the clamp and disconnect the hose. Position the hose aside.

Torque: 4 Nm

: 4 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the open end of the hose is secured above the fluid level in the reservoir.

NOTE: Use suitable paper to absorb any escaping fluid.

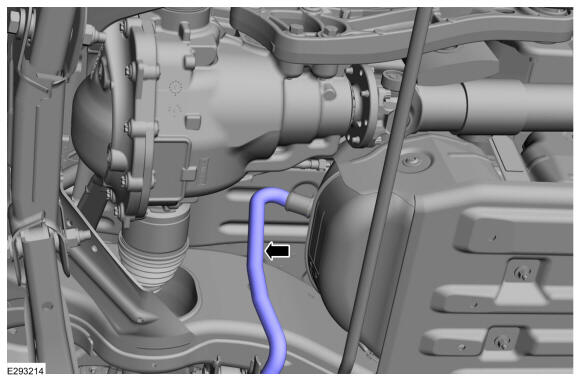

Insert the hose from the fuel storage tanker and siphon the fuel through the hose. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the clamp is installed to the same orientation as when removed.

Torque: 4 Nm

: 4 Nm

Courtesy of FORD MOTOR COMPANY
