OEM Ground Distribution: Grounds

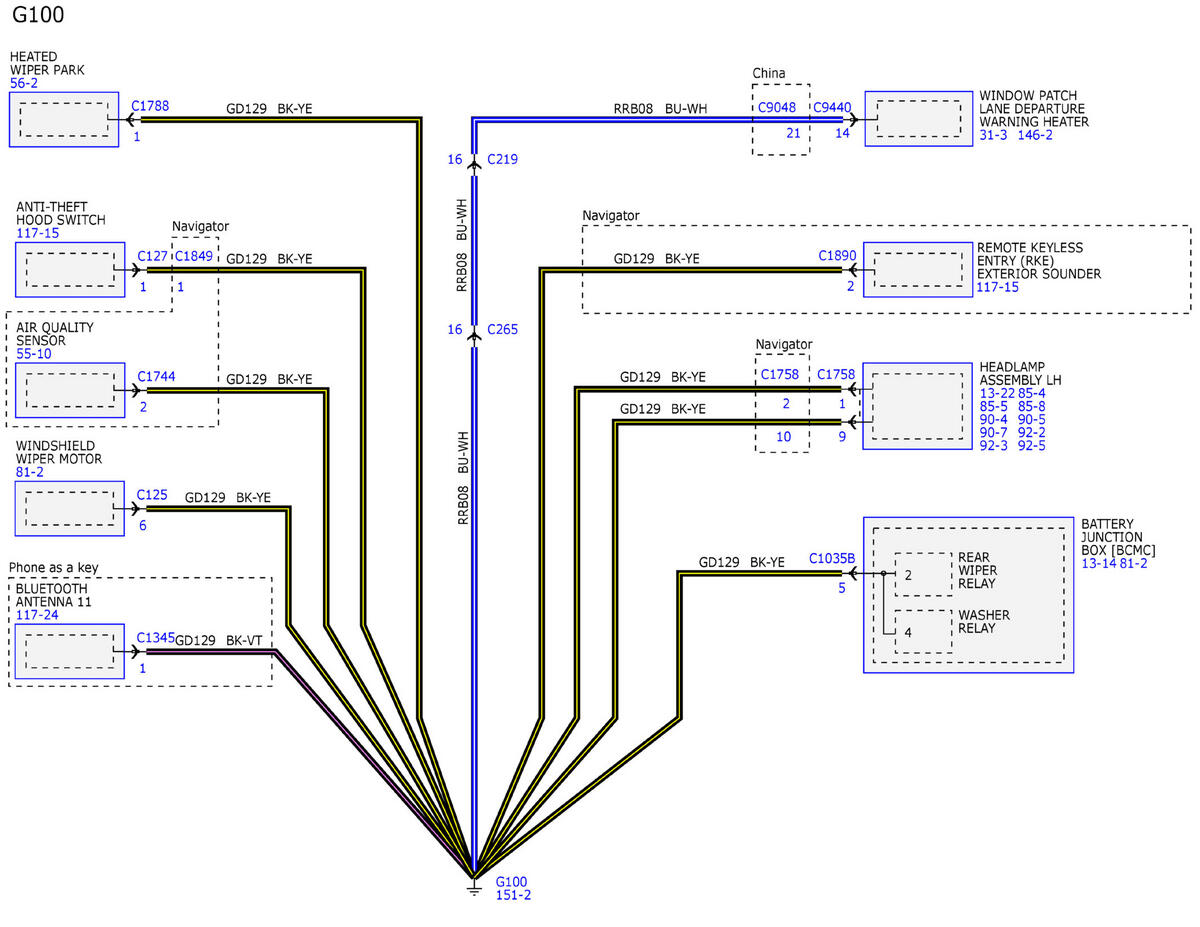

GFDWR247211Courtesy of FORD MOTOR COMPANY

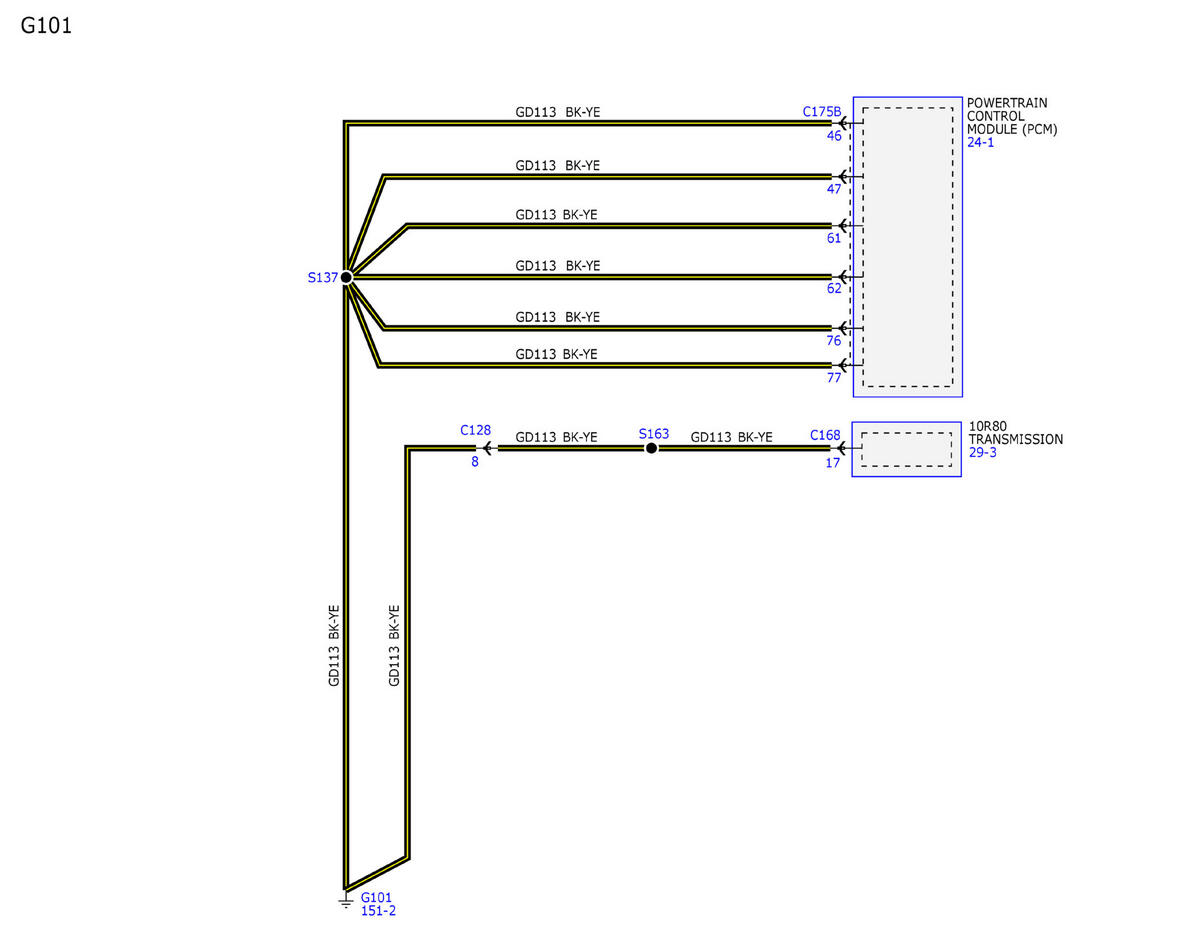

GFDWR247222Courtesy of FORD MOTOR COMPANY

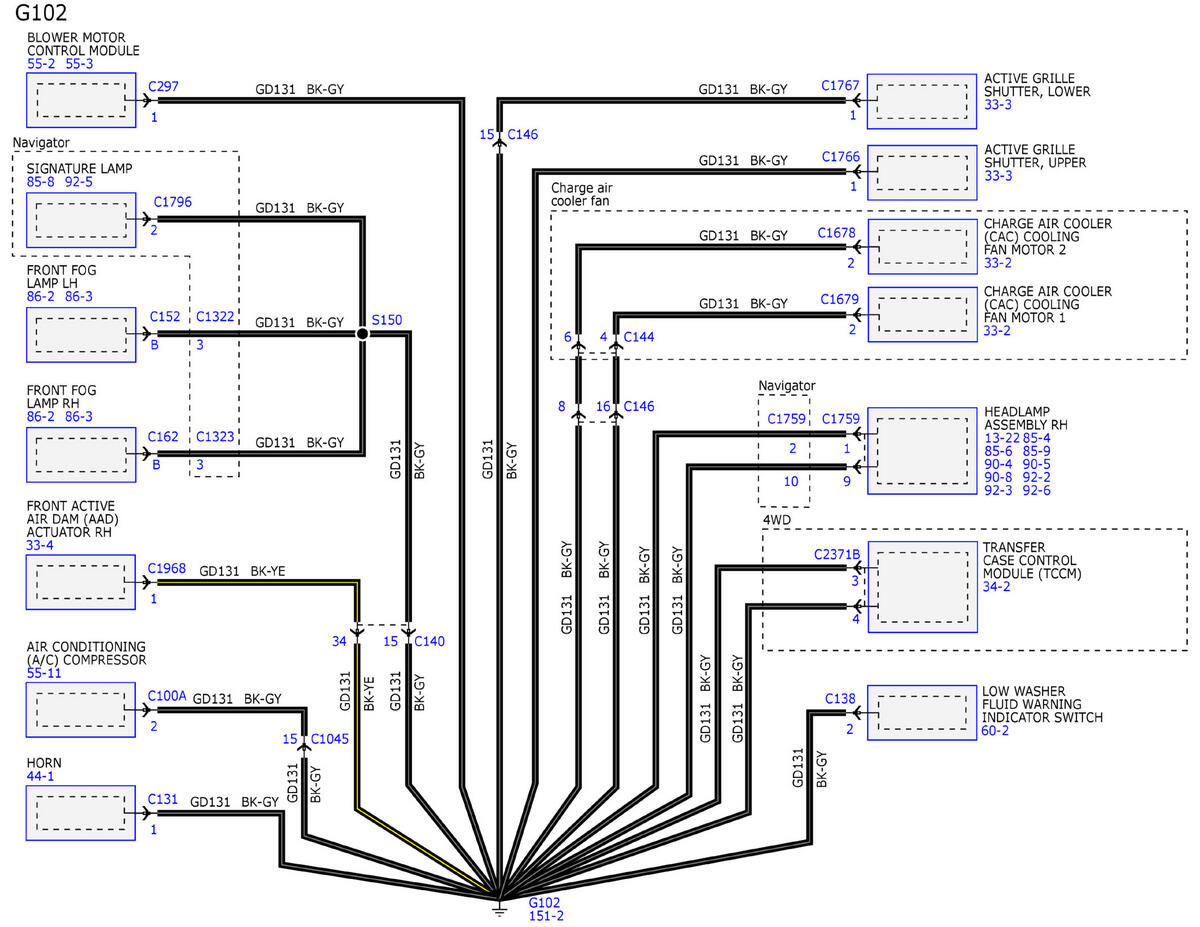

GFDWR247227Courtesy of FORD MOTOR COMPANY

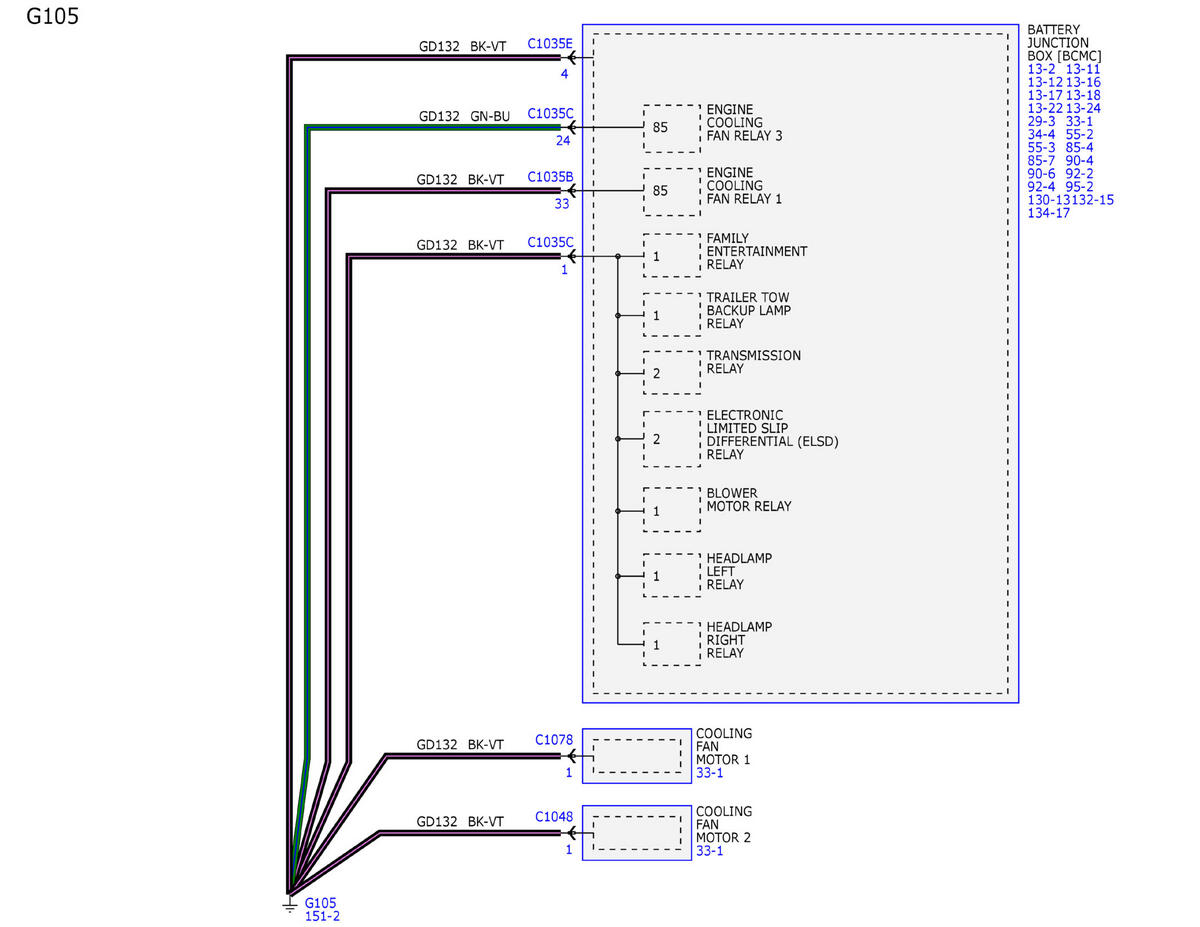

GFDWR247228Courtesy of FORD MOTOR COMPANY

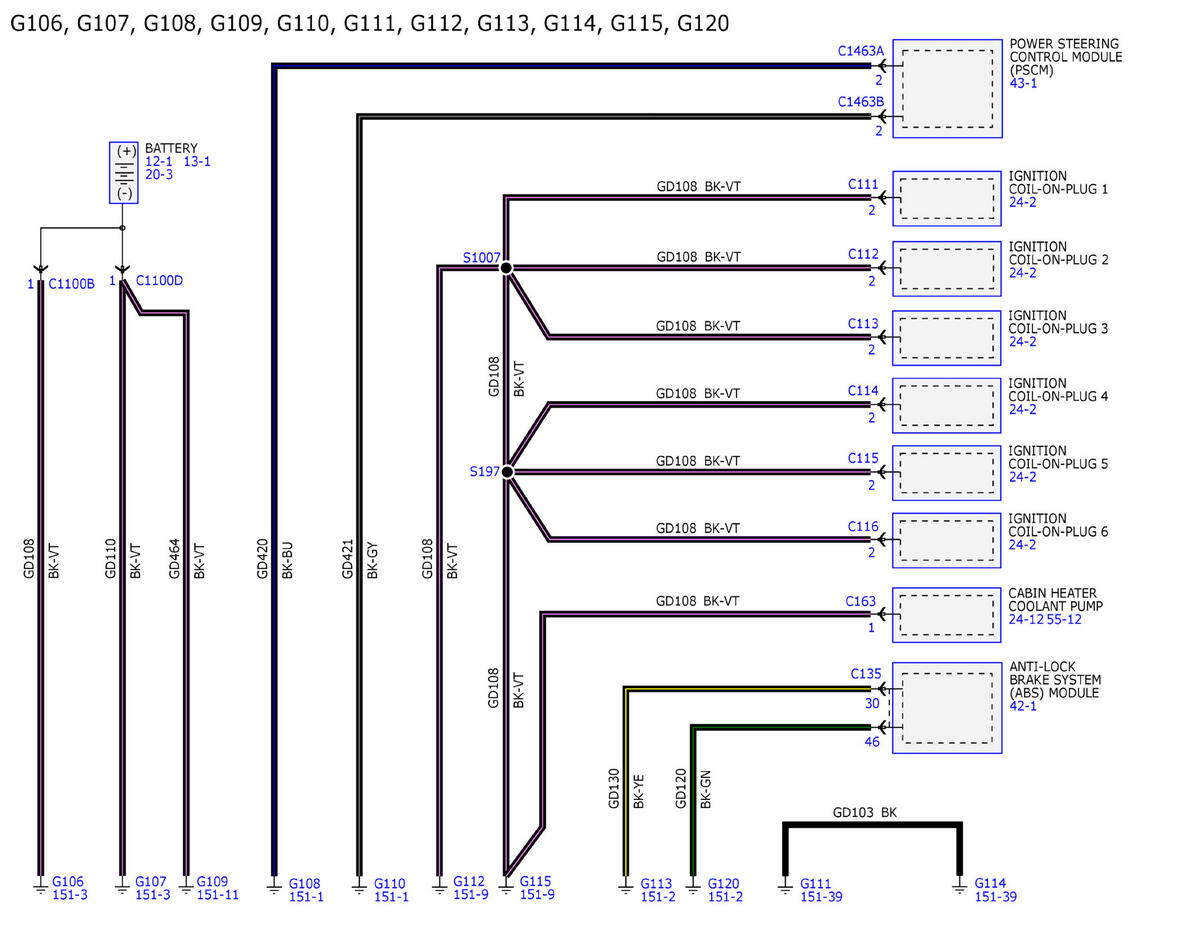

GFDWR247229Courtesy of FORD MOTOR COMPANY

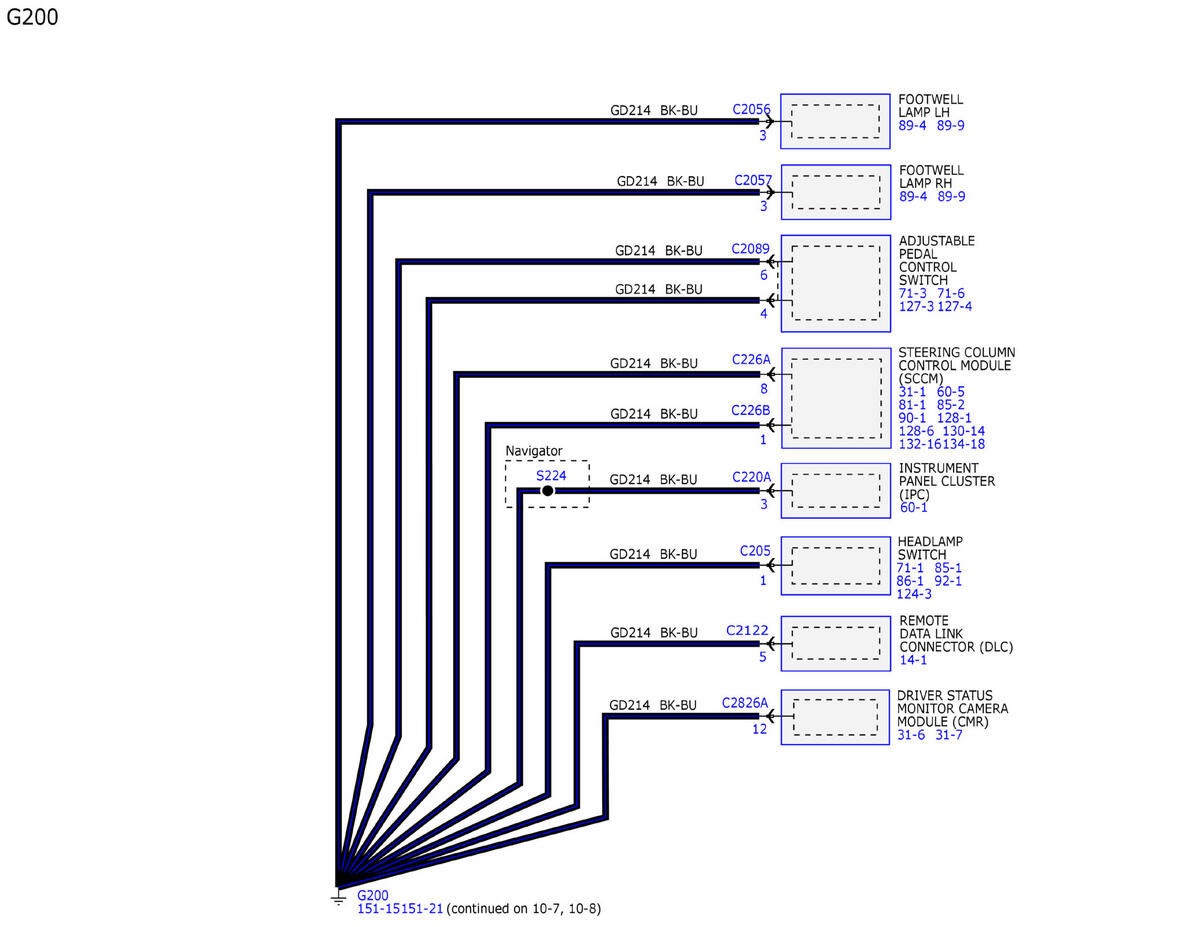

GFDWR247230Courtesy of FORD MOTOR COMPANY

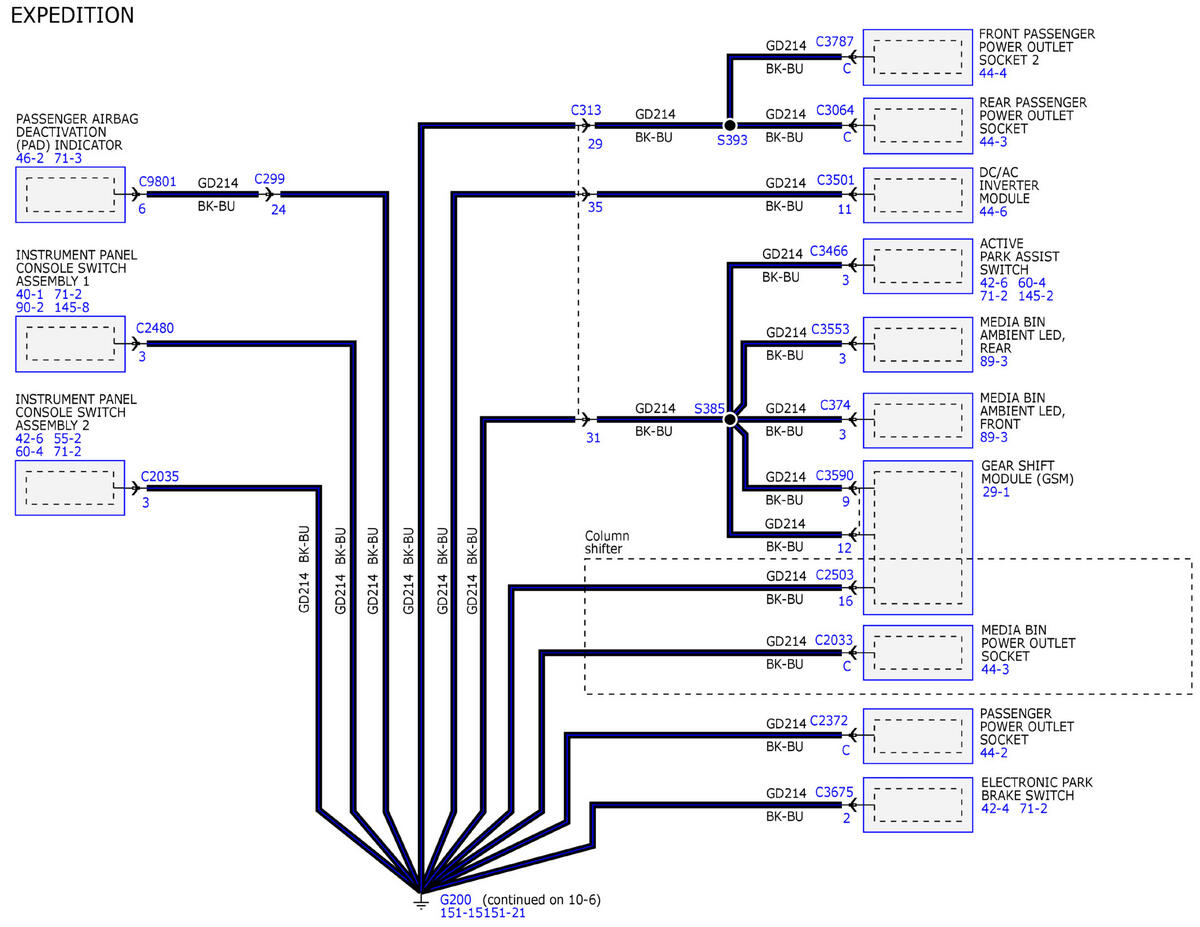

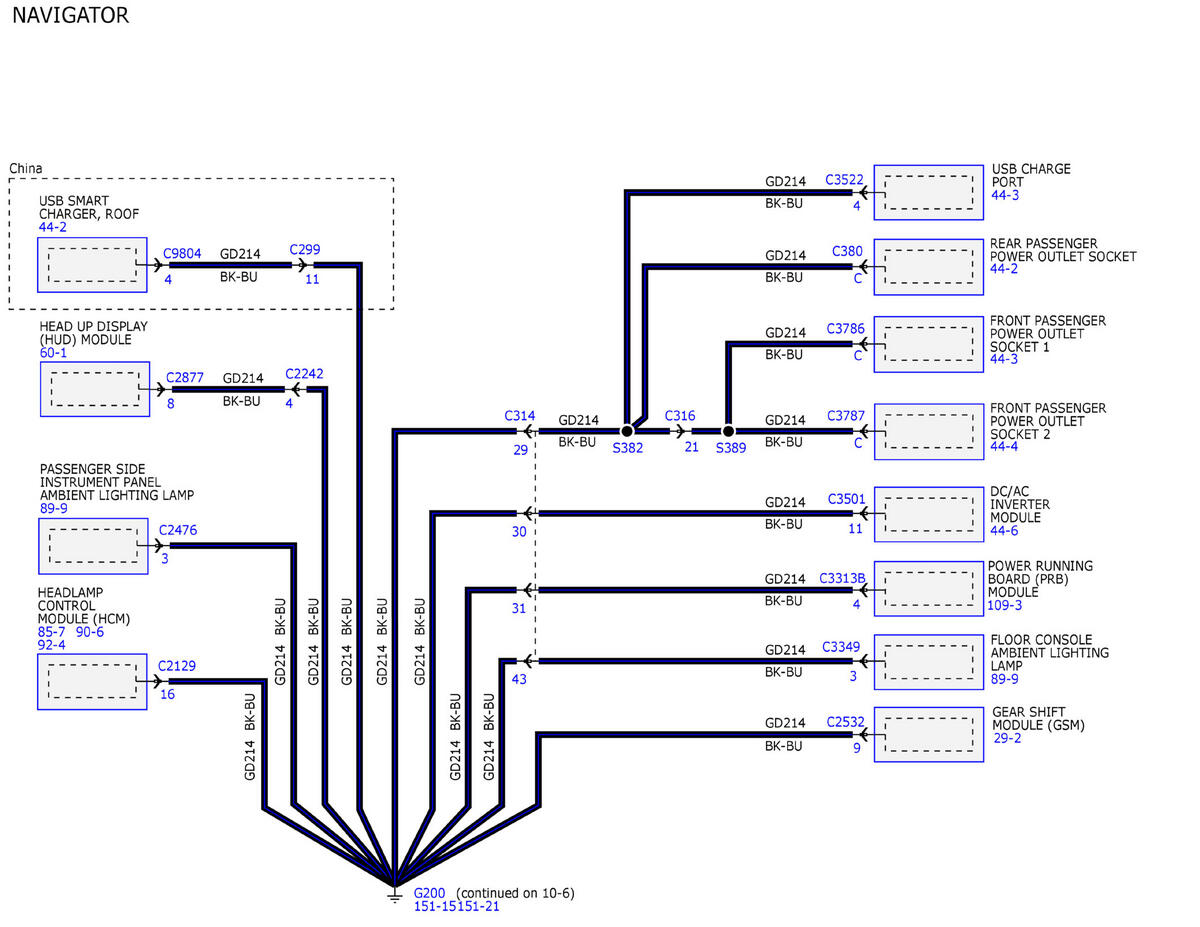

GFDWR247231Courtesy of FORD MOTOR COMPANY

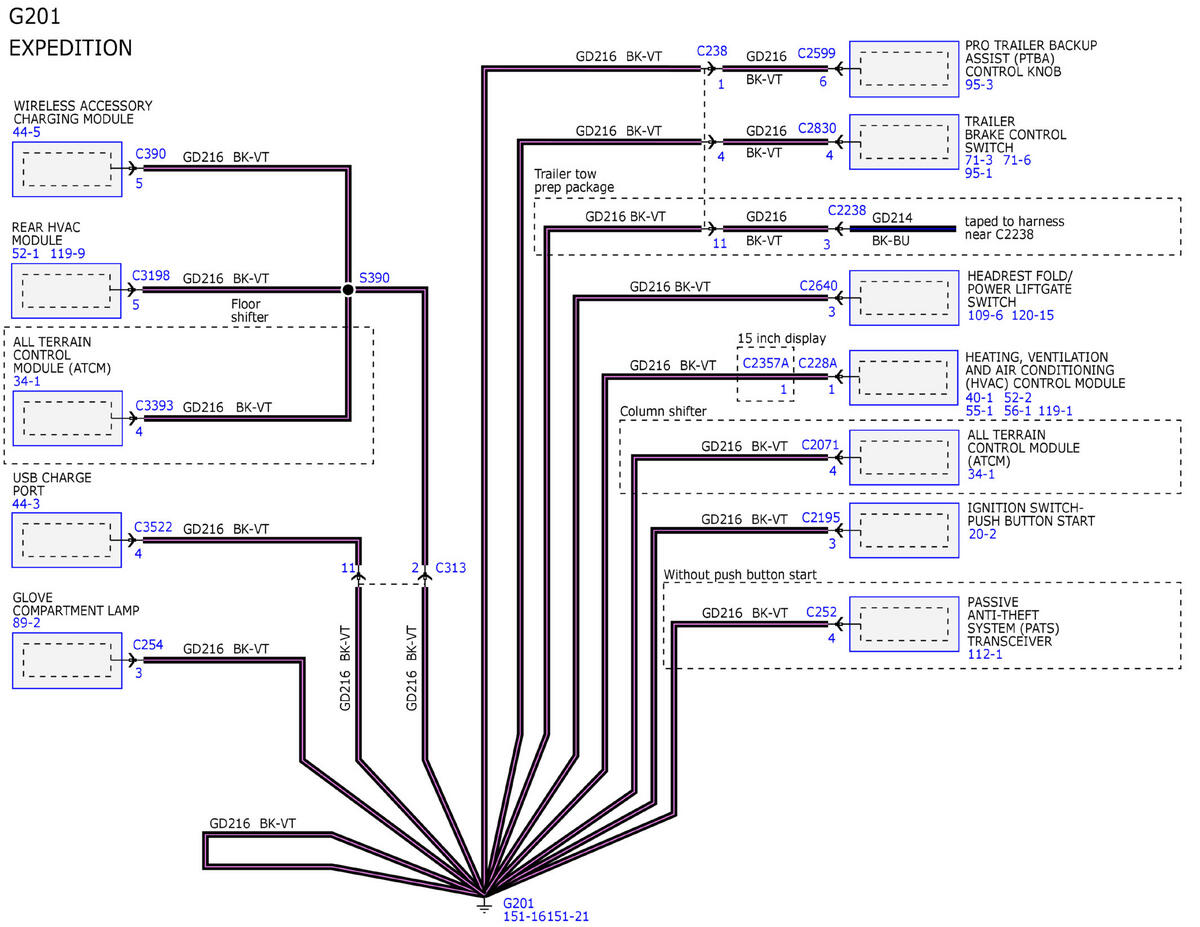

GFDWR247232Courtesy of FORD MOTOR COMPANY
GFDWR247233Courtesy of FORD MOTOR COMPANY

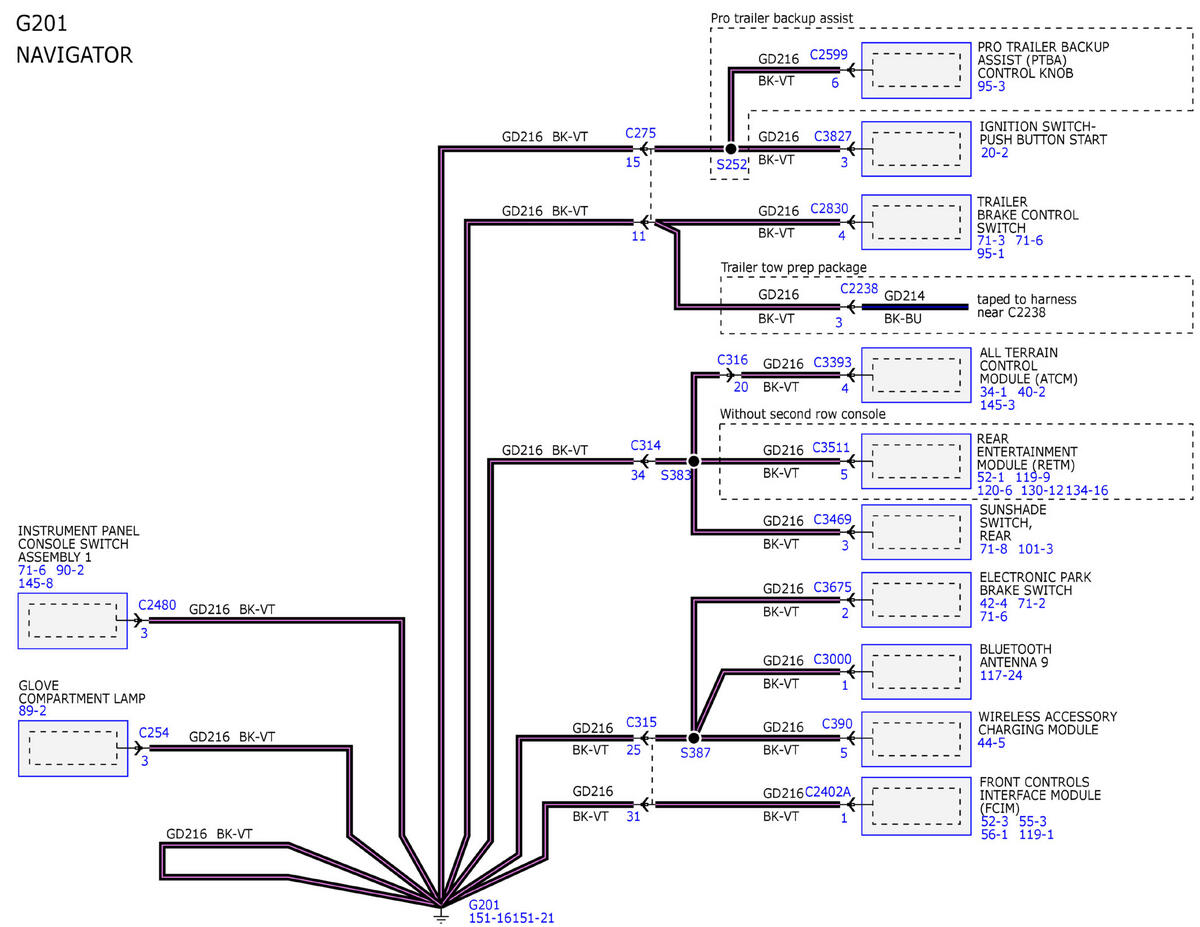

GFDWR247212Courtesy of FORD MOTOR COMPANY

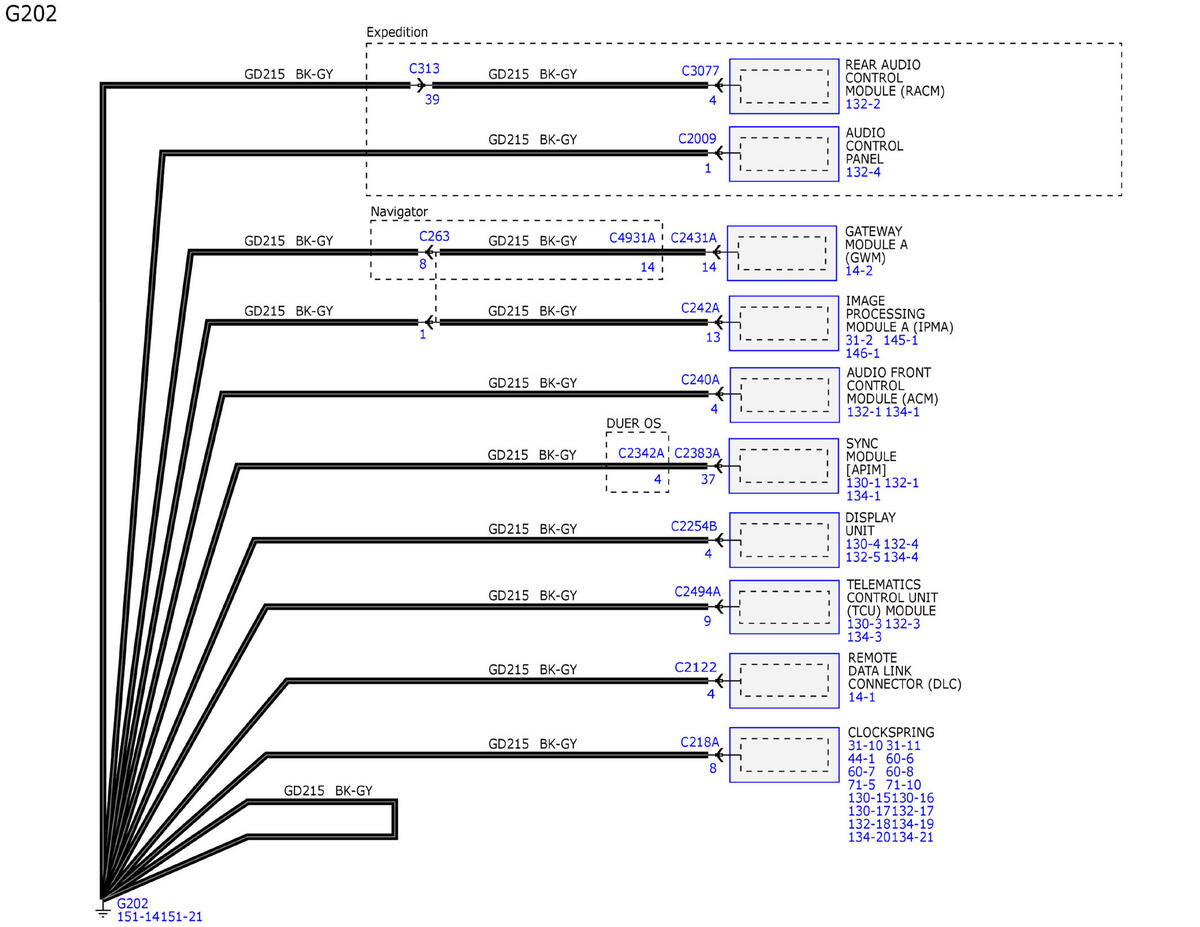

GFDWR247213Courtesy of FORD MOTOR COMPANY

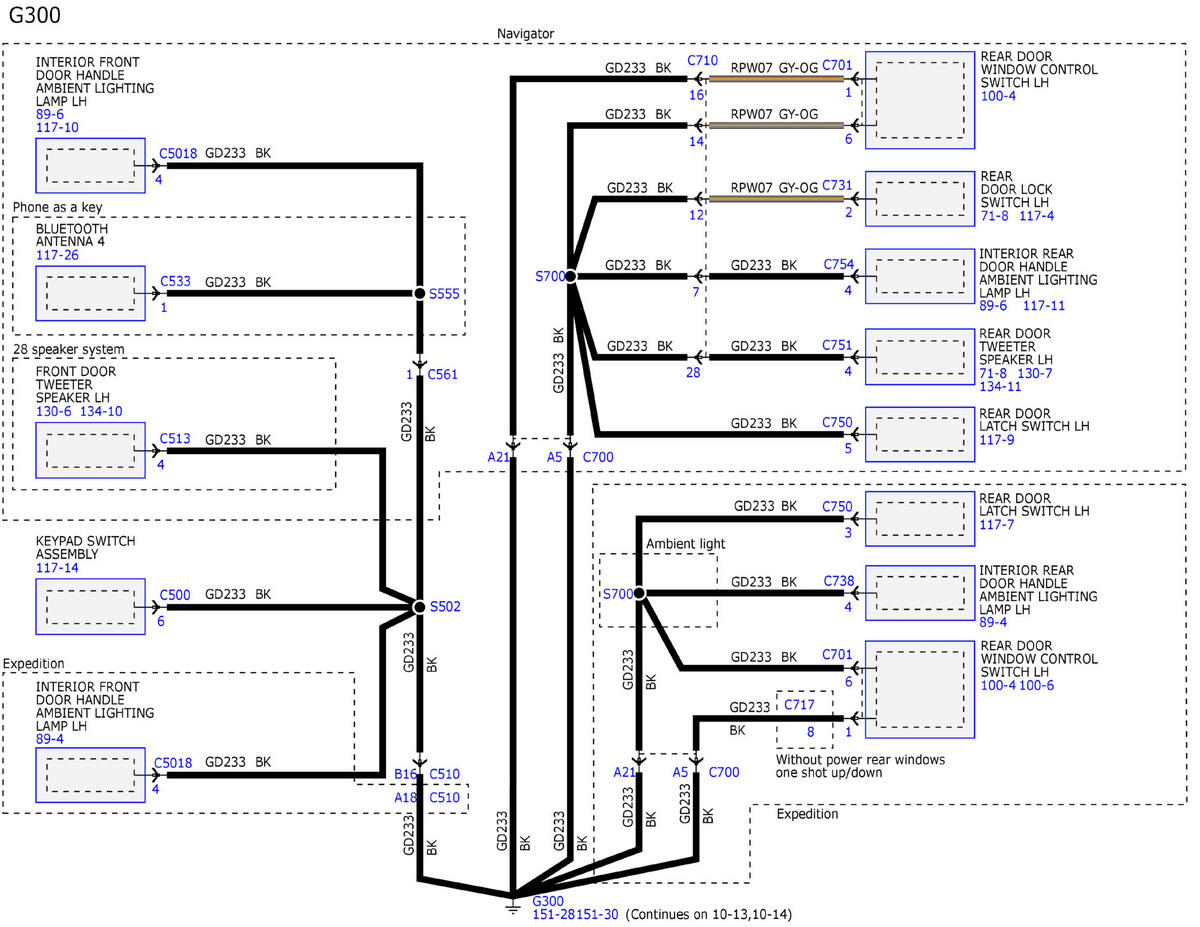

GFDWR247214Courtesy of FORD MOTOR COMPANY

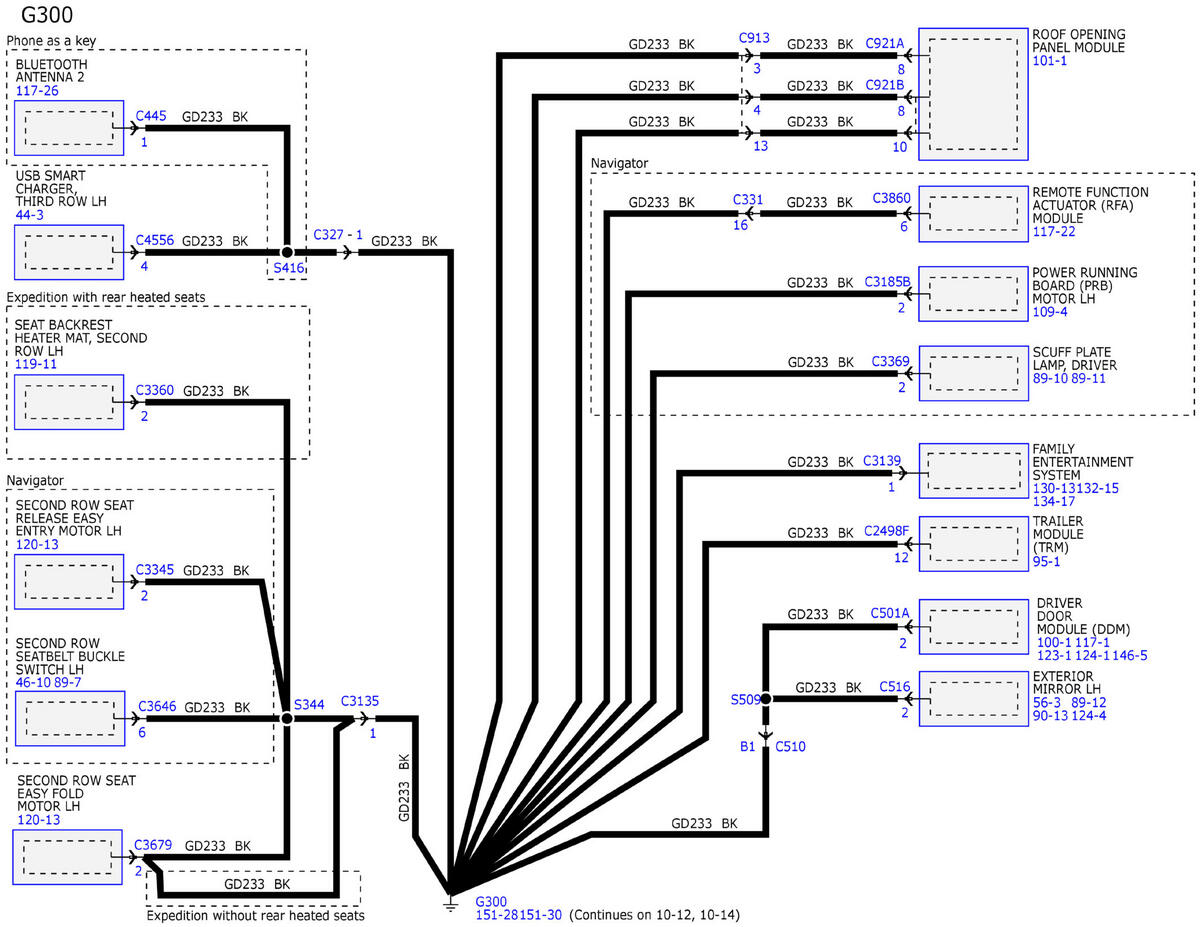

GFDWR247215Courtesy of FORD MOTOR COMPANY

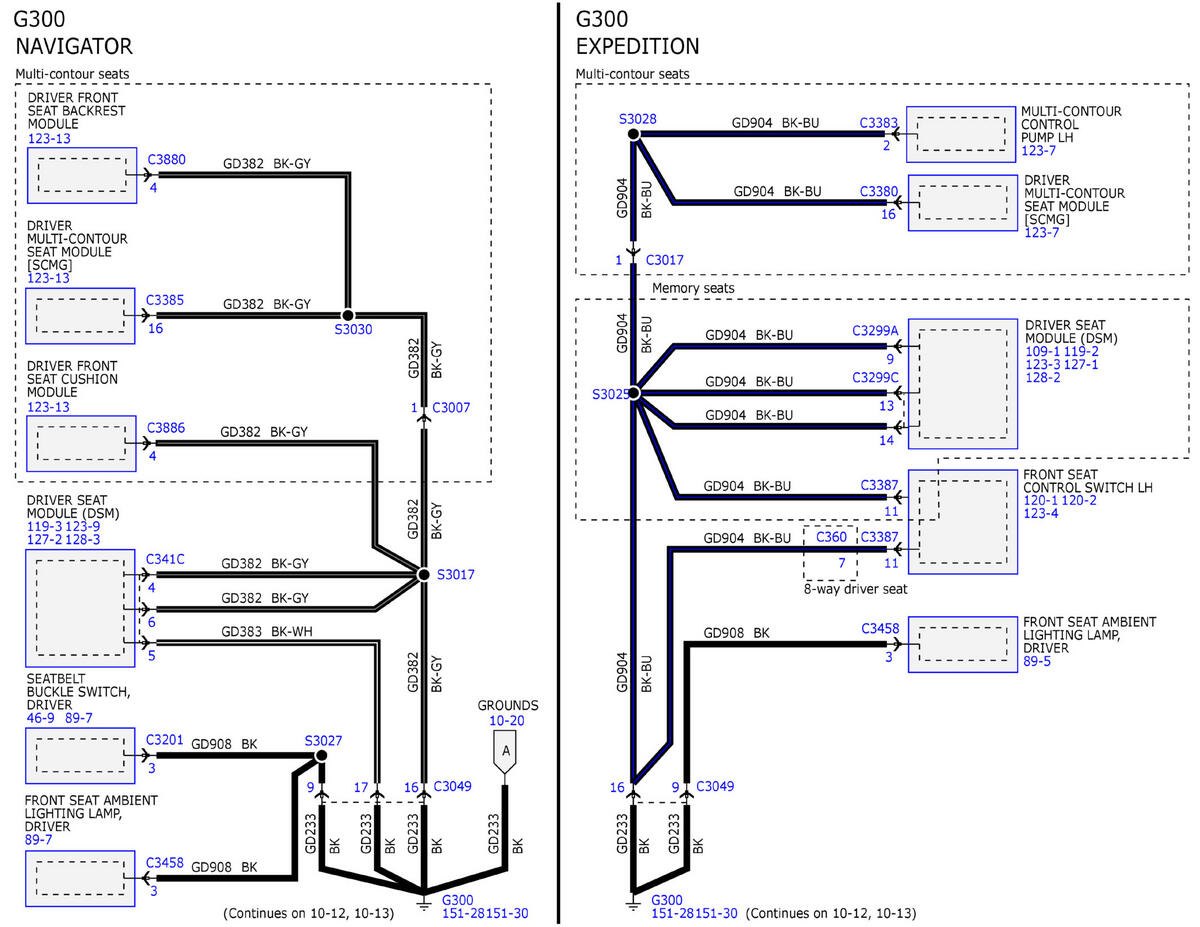

GFDWR247216Courtesy of FORD MOTOR COMPANY

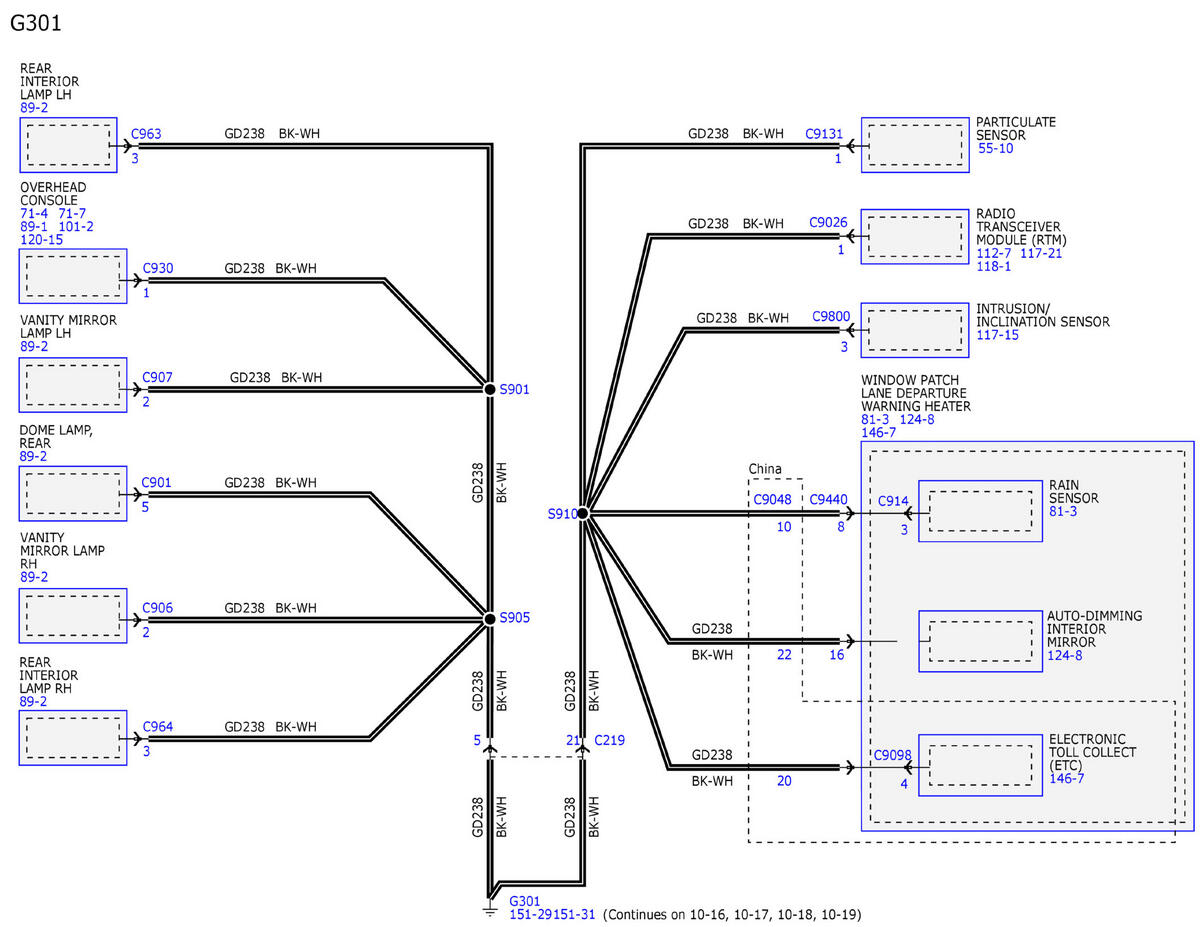

GFDWR247217Courtesy of FORD MOTOR COMPANY

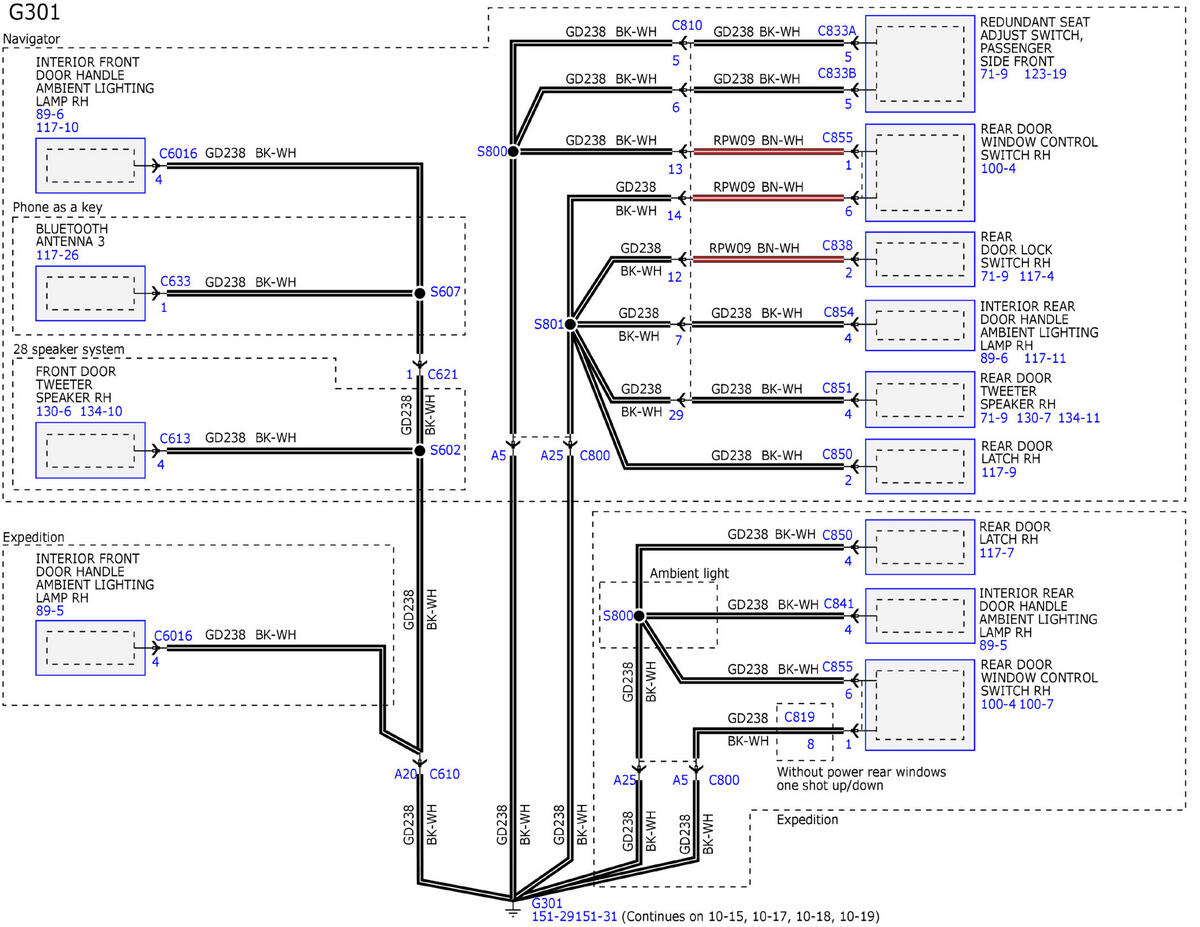

GFDWR247218Courtesy of FORD MOTOR COMPANY

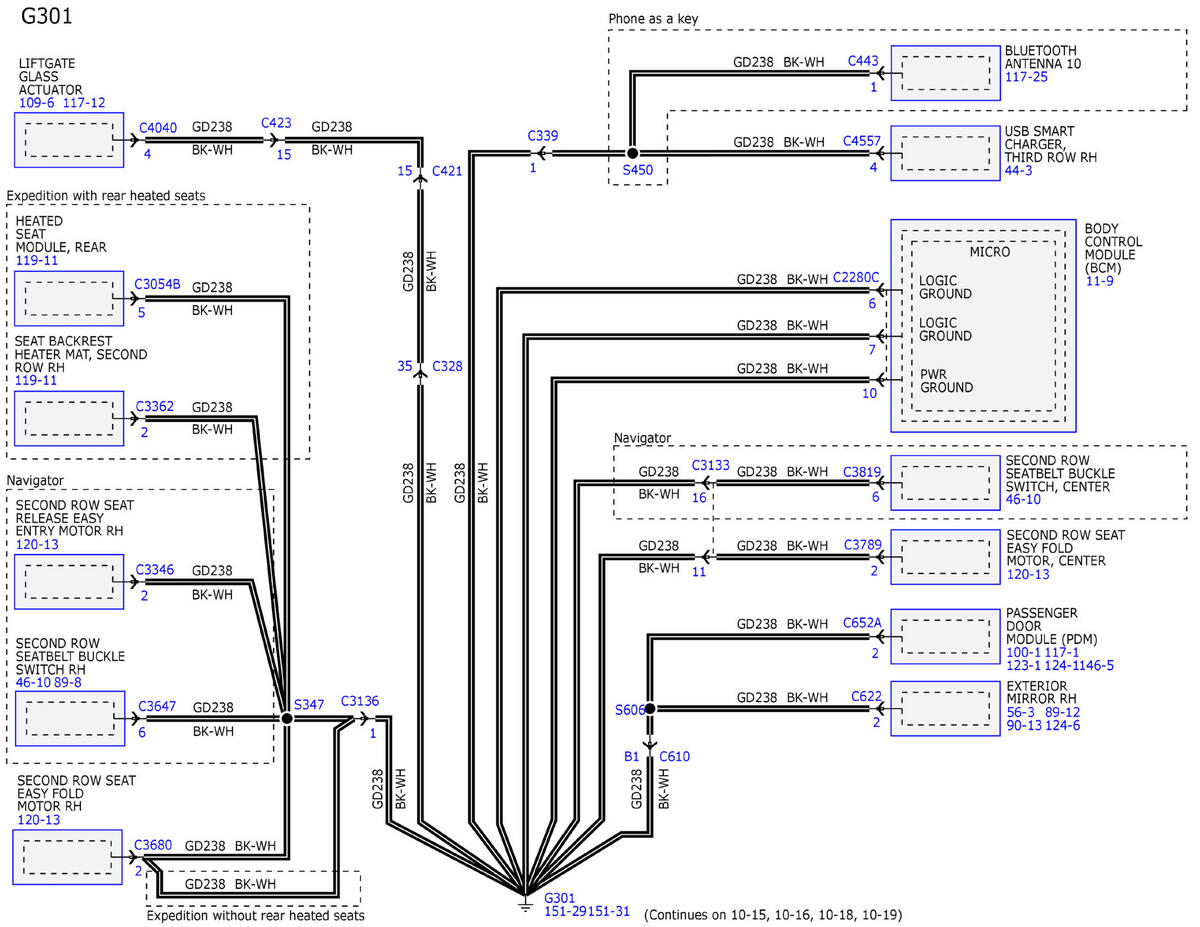

GFDWR247219Courtesy of FORD MOTOR COMPANY

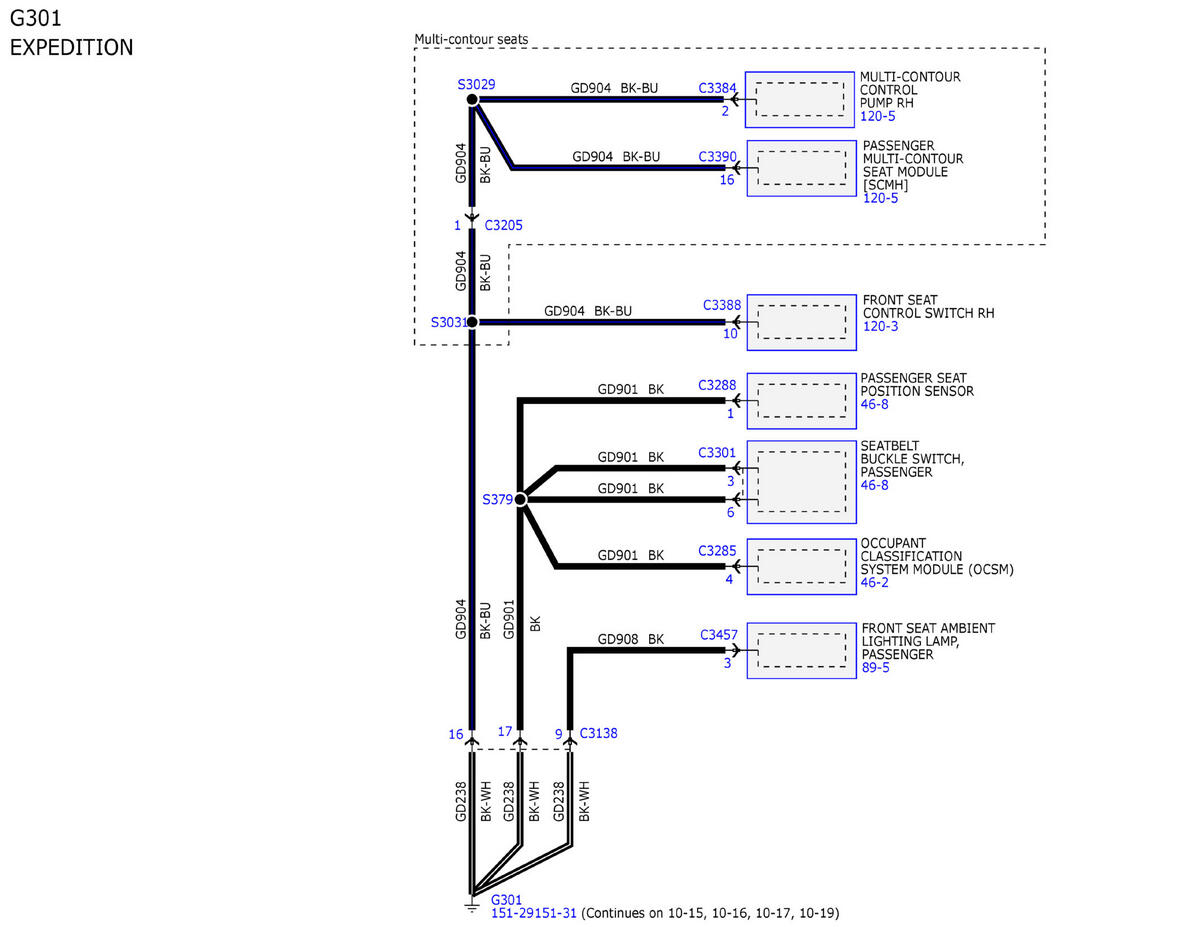

GFDWR247220Courtesy of FORD MOTOR COMPANY

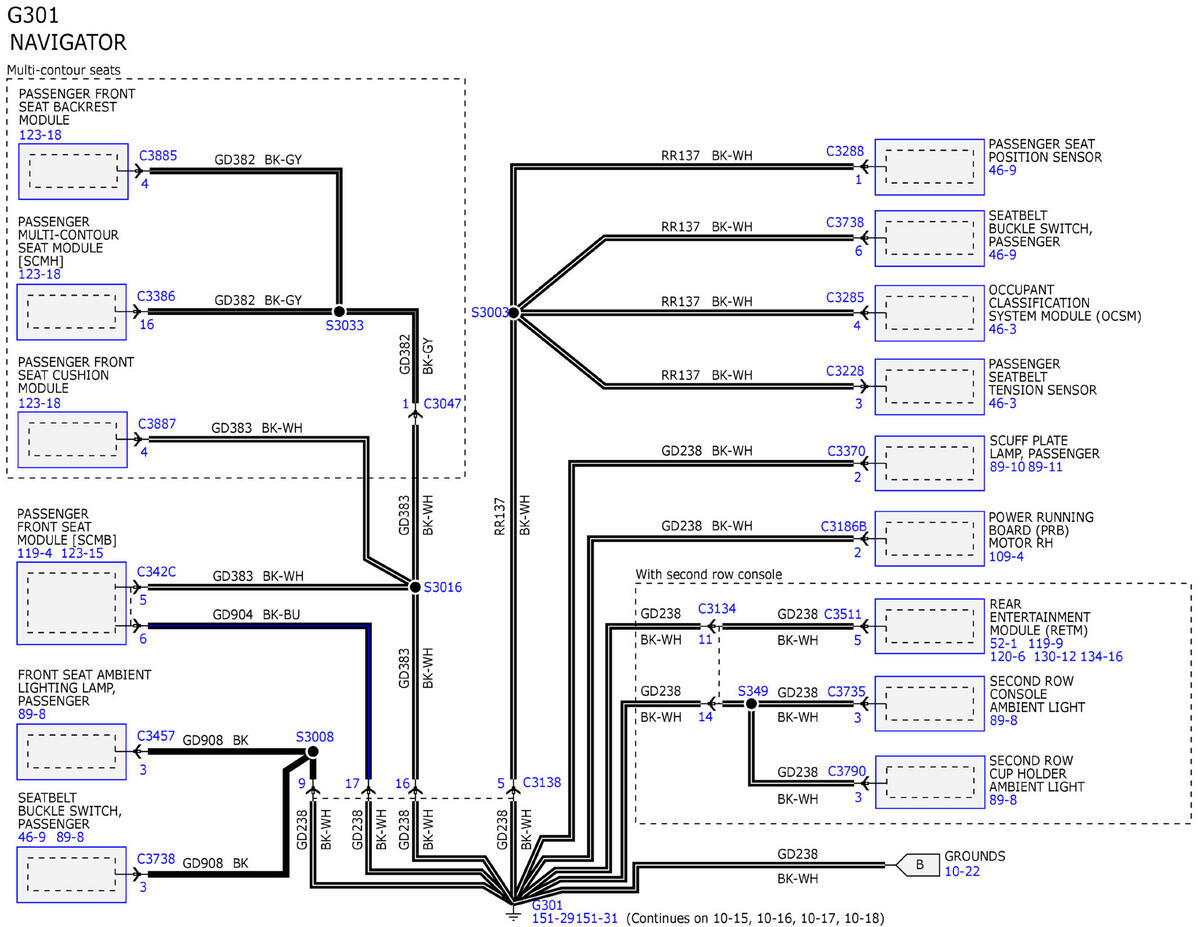

GFDWR247221Courtesy of FORD MOTOR COMPANY

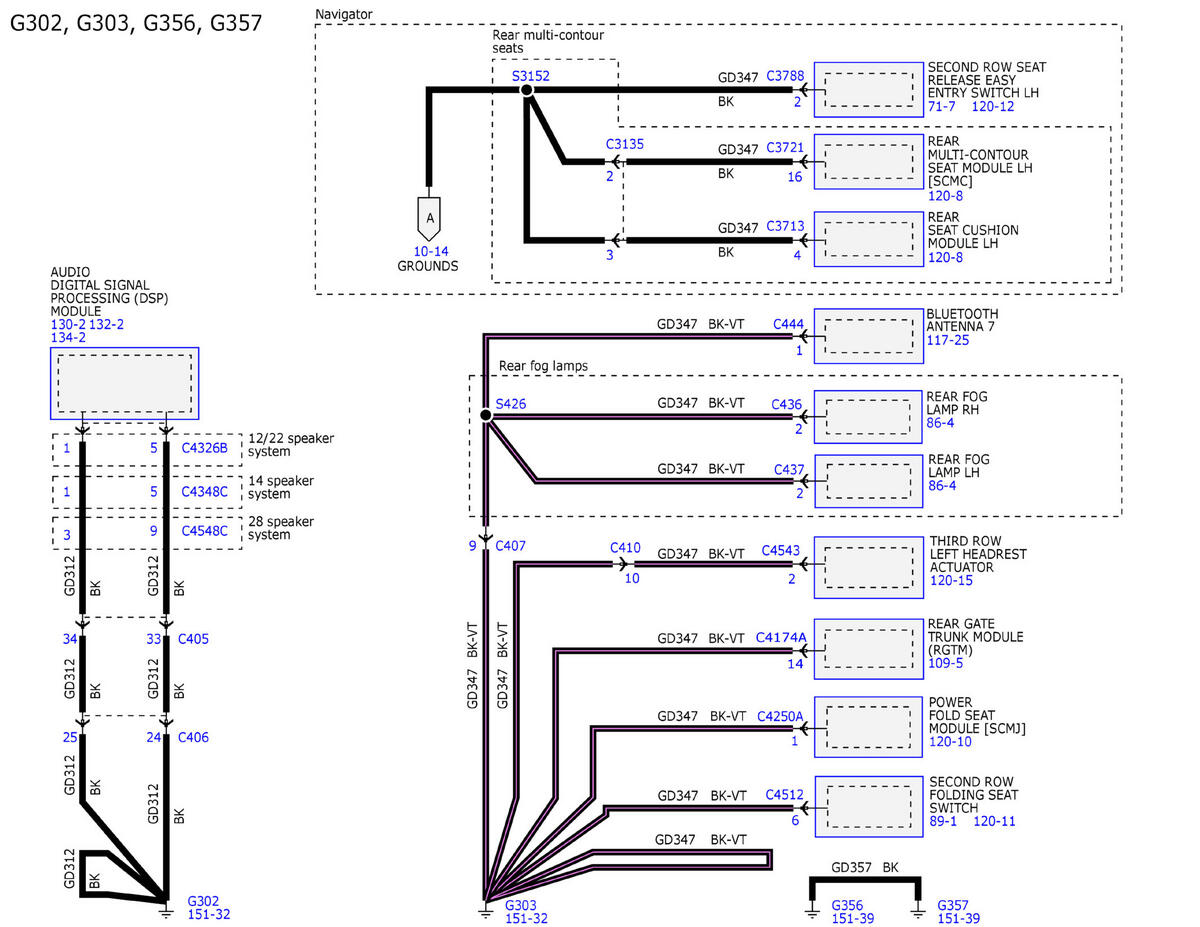

GFDWR247223Courtesy of FORD MOTOR COMPANY

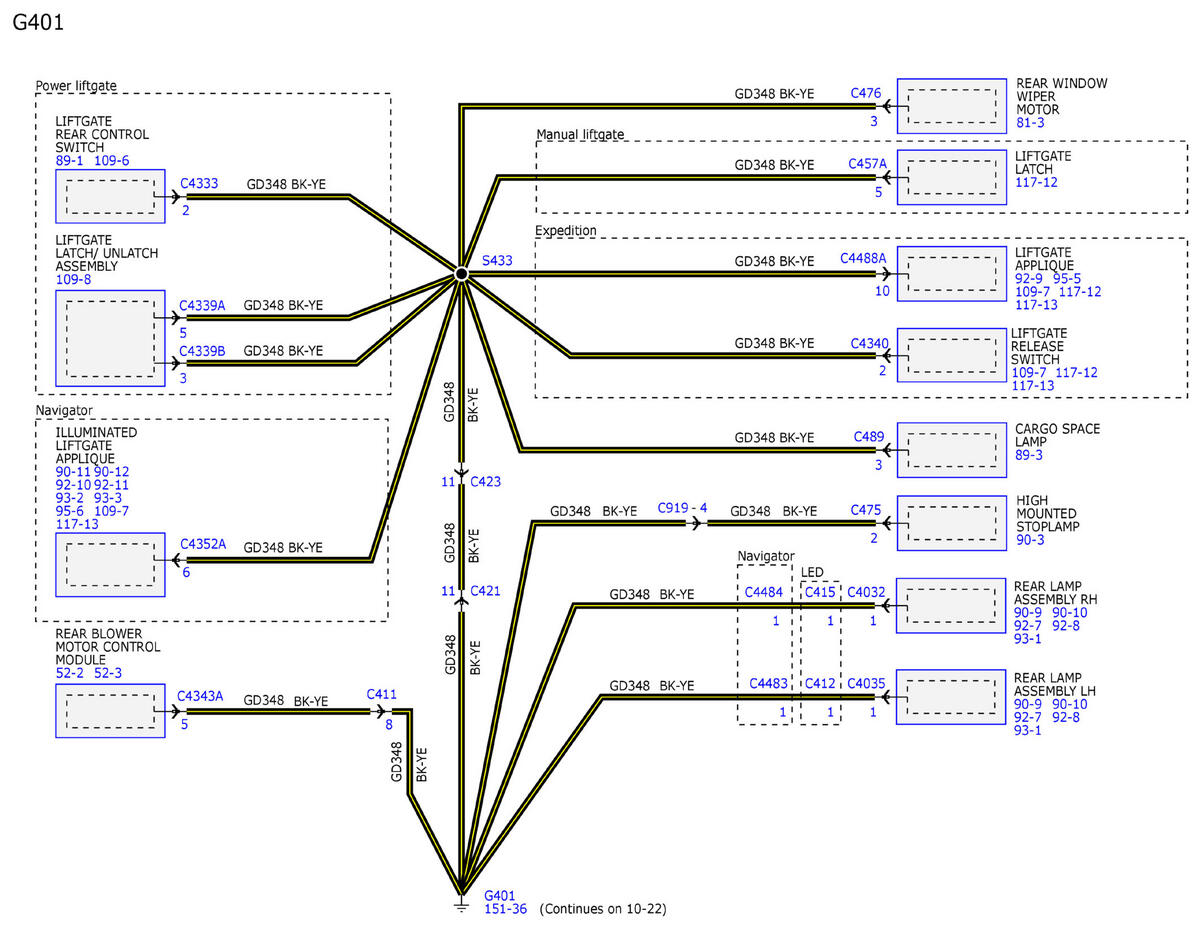

GFDWR247224Courtesy of FORD MOTOR COMPANY

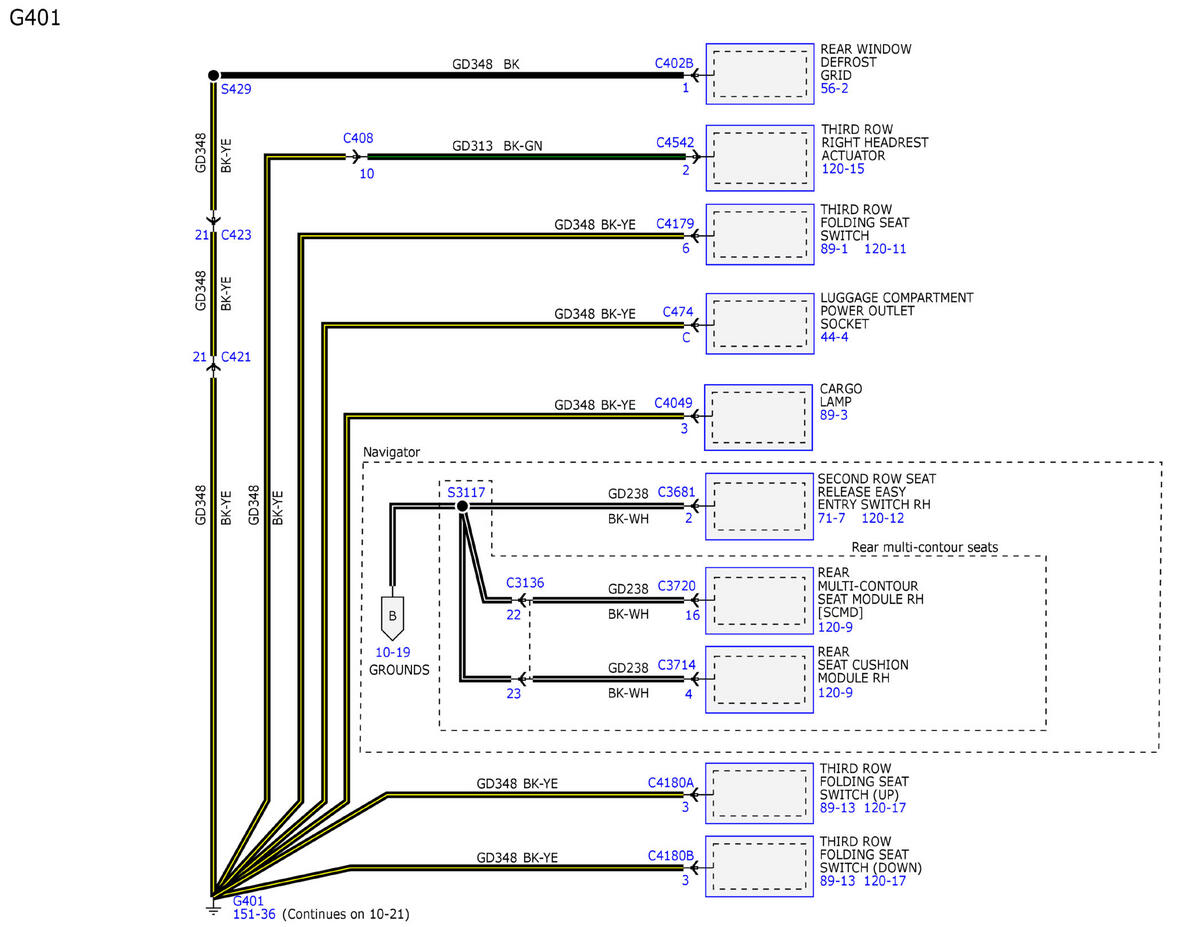

GFDWR247225Courtesy of FORD MOTOR COMPANY

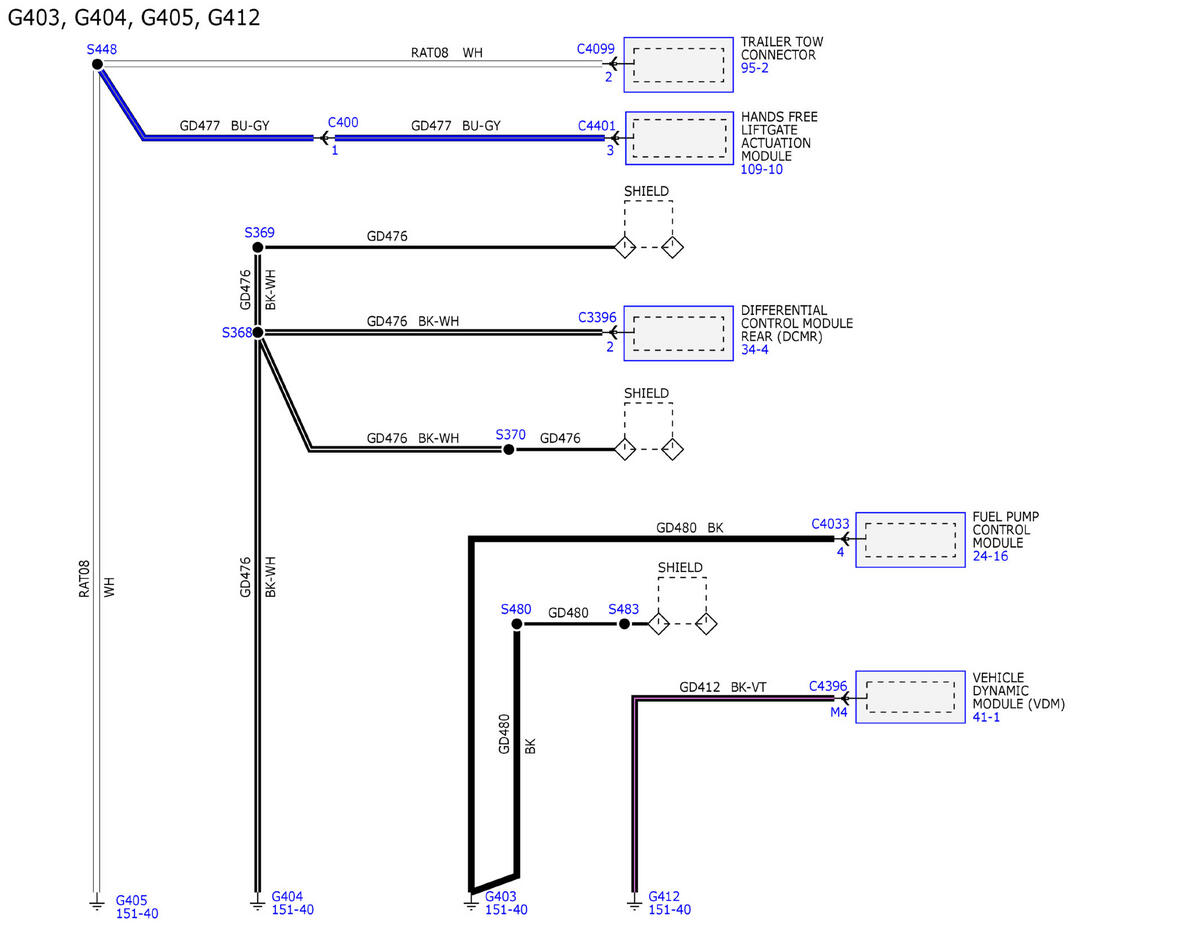

GFDWR247226Courtesy of FORD MOTOR COMPANY
