Transmission Control Systems
›
Automatic Transmission External Controls
›
Description And Operation
›
External Controls - System Operation and Component Description
›

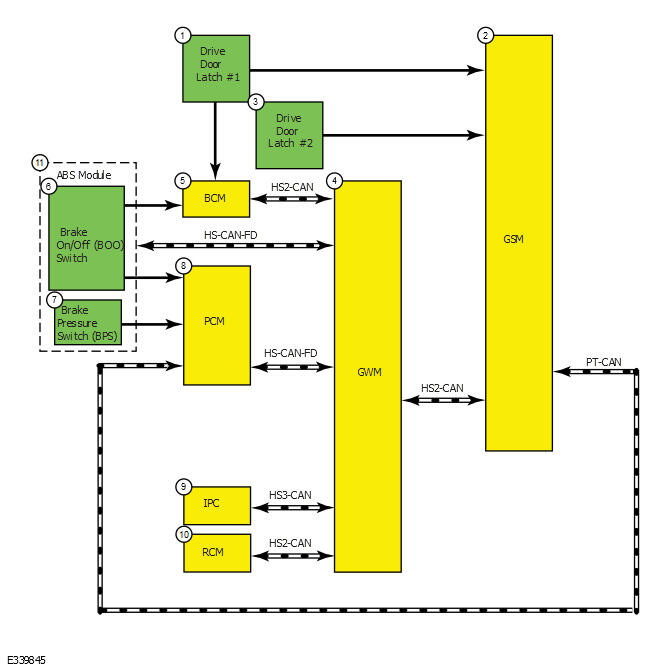

System Diagram
System Diagram
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Drivers Door Latch #1
2
GSM
3
Drivers Door Latch #2
4
GWM
5
BCM
6
Brake On/Off (BOO) Switch
7
Brake Pressure Switch (BPS)
8
PCM
9
IPC
10
RCM
11
ABS Module
