Steering Column Tilt Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the steering column. Refer to: Steering Column
NOTE: Note the position of the component before removal.

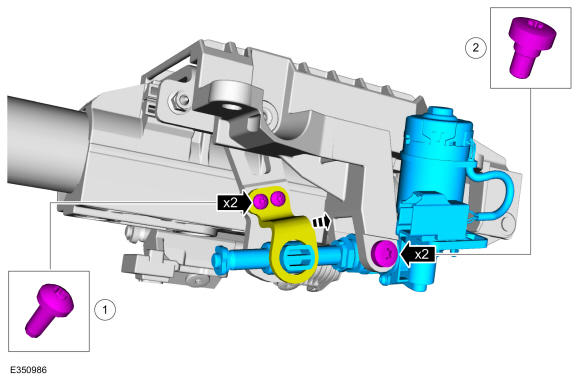

Remove the tilt motor.
1. Remove the trunnion bracket retainers and bracket.
2. Remove the tilt motor retainers and remove the tilt motor.

GFD655519

Courtesy of FORD MOTOR COMPANY
