Gear Shift Module (GSM): Installation

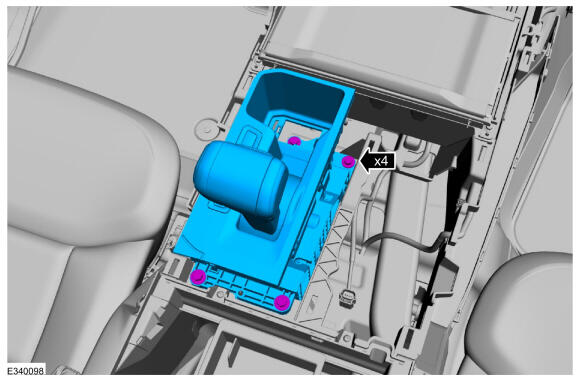

  1. Install the GSM and the bolts.

    Torque: 4.5 Nm

    GFD822348Courtesy of FORD MOTOR COMPANY

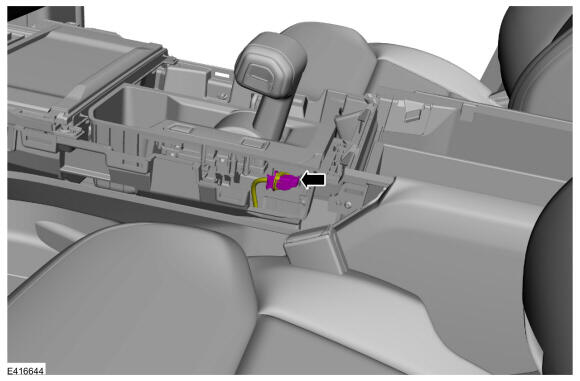

  2. Connect the GSM electrical connector.
    GFD822347Courtesy of FORD MOTOR COMPANY

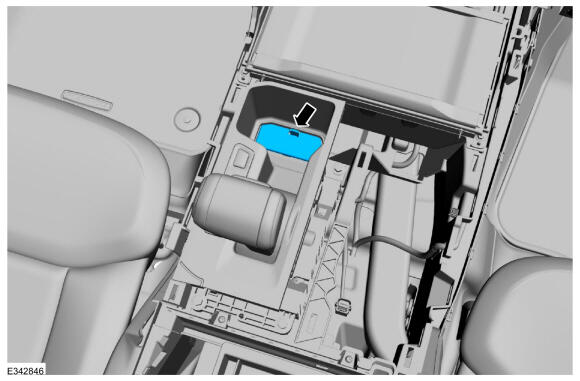

  3. Install the GSM bolt access panel.
    GFD822346Courtesy of FORD MOTOR COMPANY

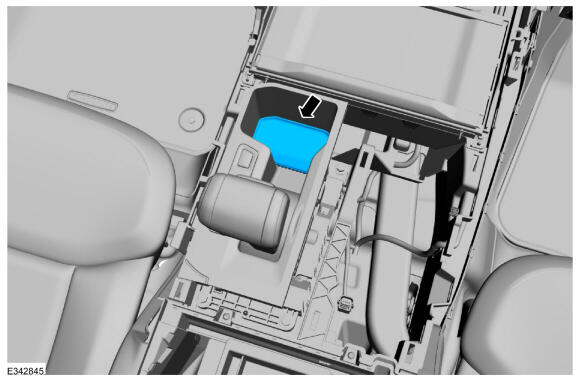

  4. Install the GSM stow mat.
    GFD822345Courtesy of FORD MOTOR COMPANY

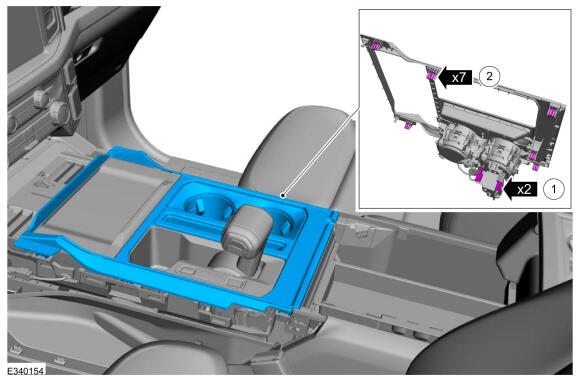

  5. Install the floor console top trim panel.

    1. Connect the electrical connectors.
    2. Attach the top floor console trim panel clips.

    GFD822349Courtesy of FORD MOTOR COMPANY

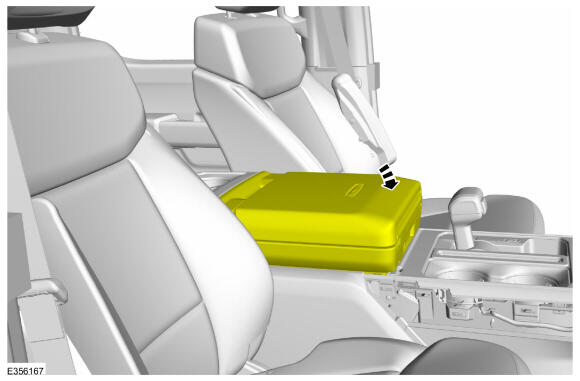

  6. Close the floor console door.
    GFD822350Courtesy of FORD MOTOR COMPANY

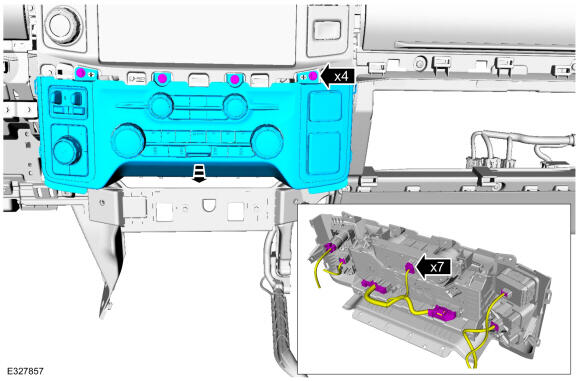

  7. Install the FCIM and bolts.

    1. Connect the electrical connectors.
    2. Torque

      : 2.5 Nm

    GFD822342Courtesy of FORD MOTOR COMPANY

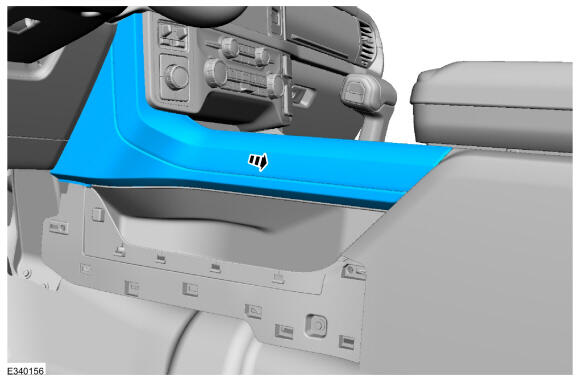

  8. Install the floor console upper LH trim panel.
    GFD822351Courtesy of FORD MOTOR COMPANY

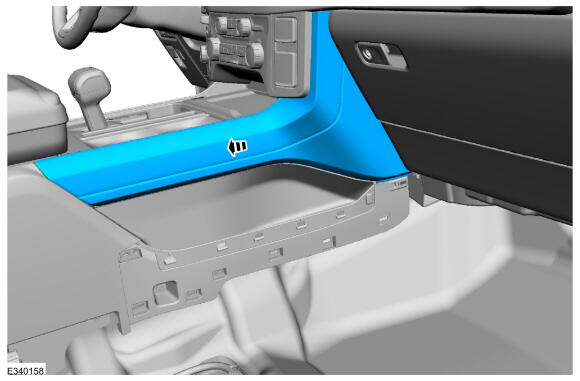

  9. Install the floor console upper RH trim panel.
    GFD822352Courtesy of FORD MOTOR COMPANY

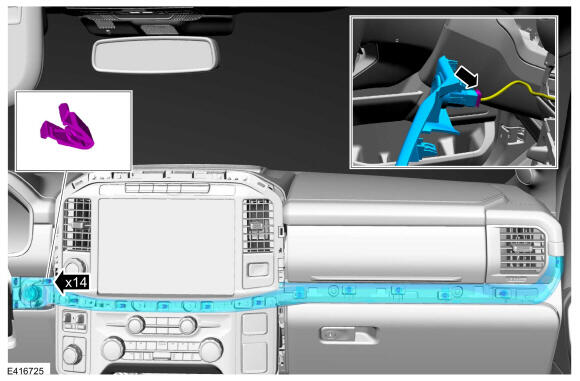

  10. Install the center finish trim.

    • Connect the electrical connector.

    GFD822353Courtesy of FORD MOTOR COMPANY

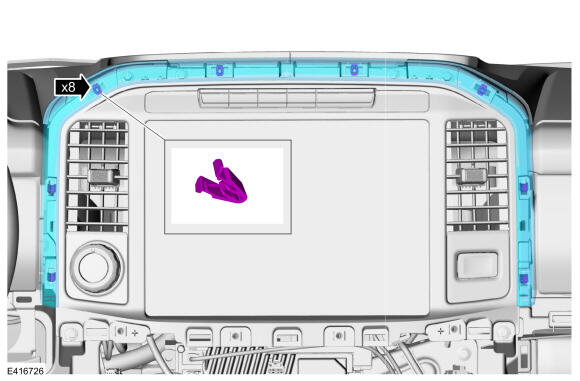

  11. NOTE: 12 inch screen shown below, 10 inch screen is similar.

    Install the upper centerstack bezel.

    GFD822354Courtesy of FORD MOTOR COMPANY
  12. NOTE: This step is only necessary when installing a new component.

    Using the scan tool, carryout the PMI procedure to install the latest strategy files. Refer to: MODULE PROGRAMMING
