Connector Repair Procedures

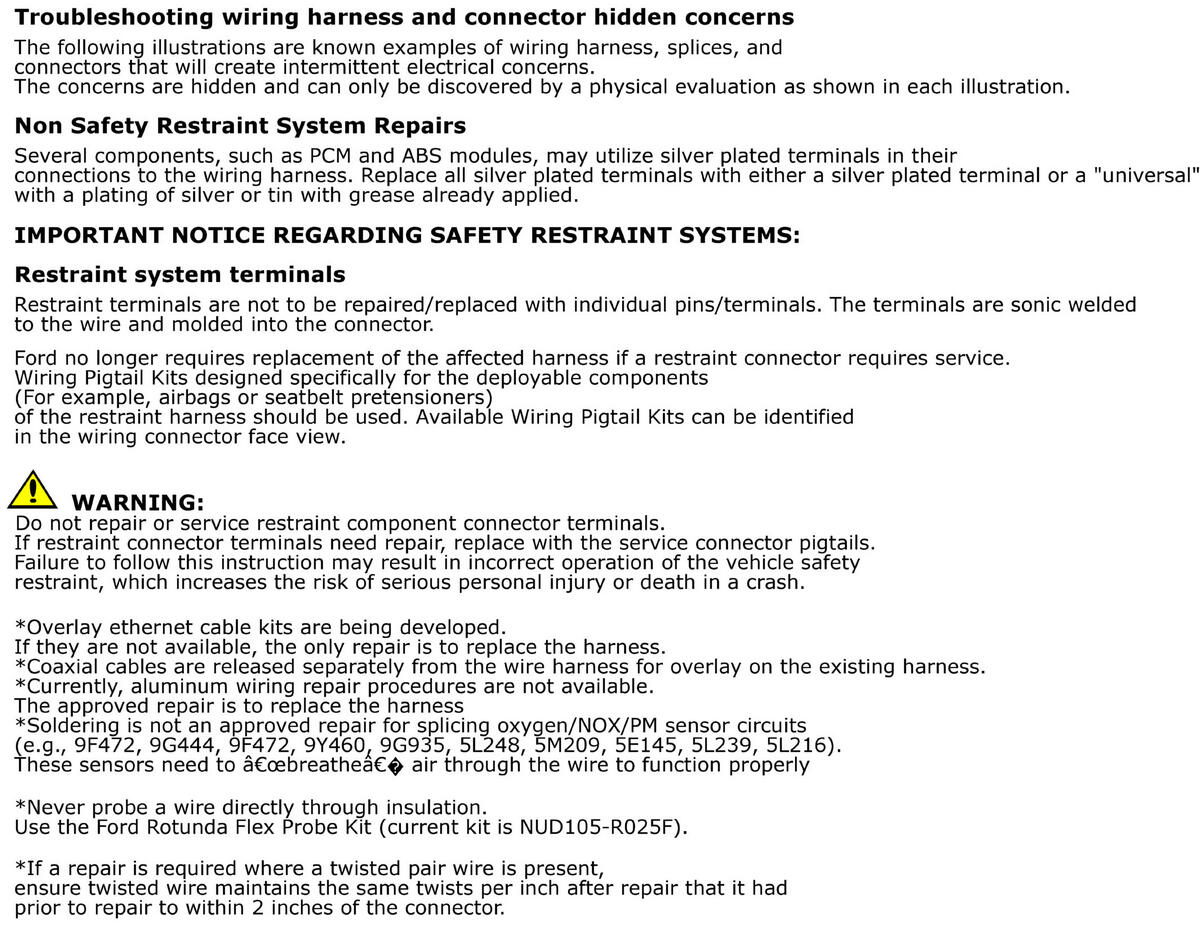

GFDWR228806Courtesy of FORD MOTOR COMPANY

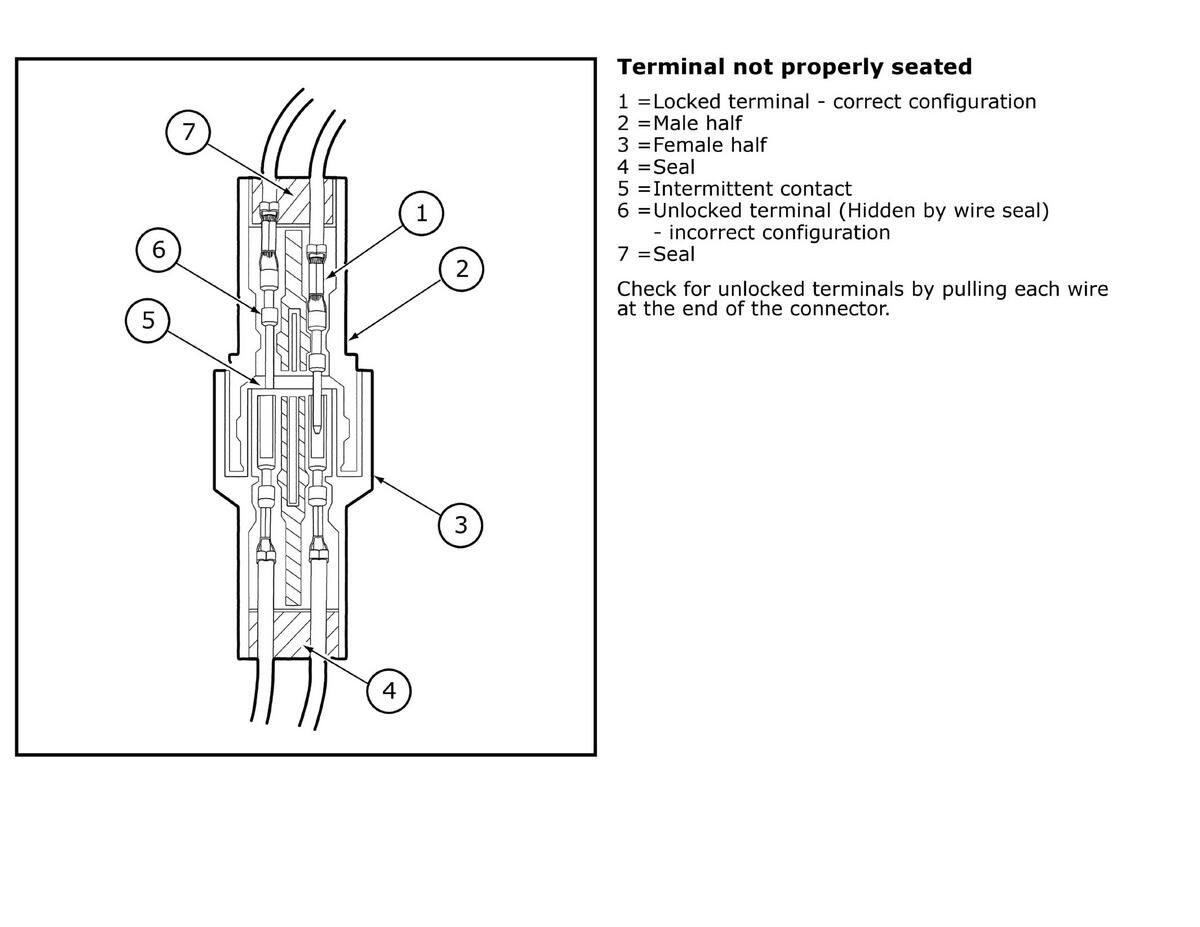

GFDWR228807Courtesy of FORD MOTOR COMPANY

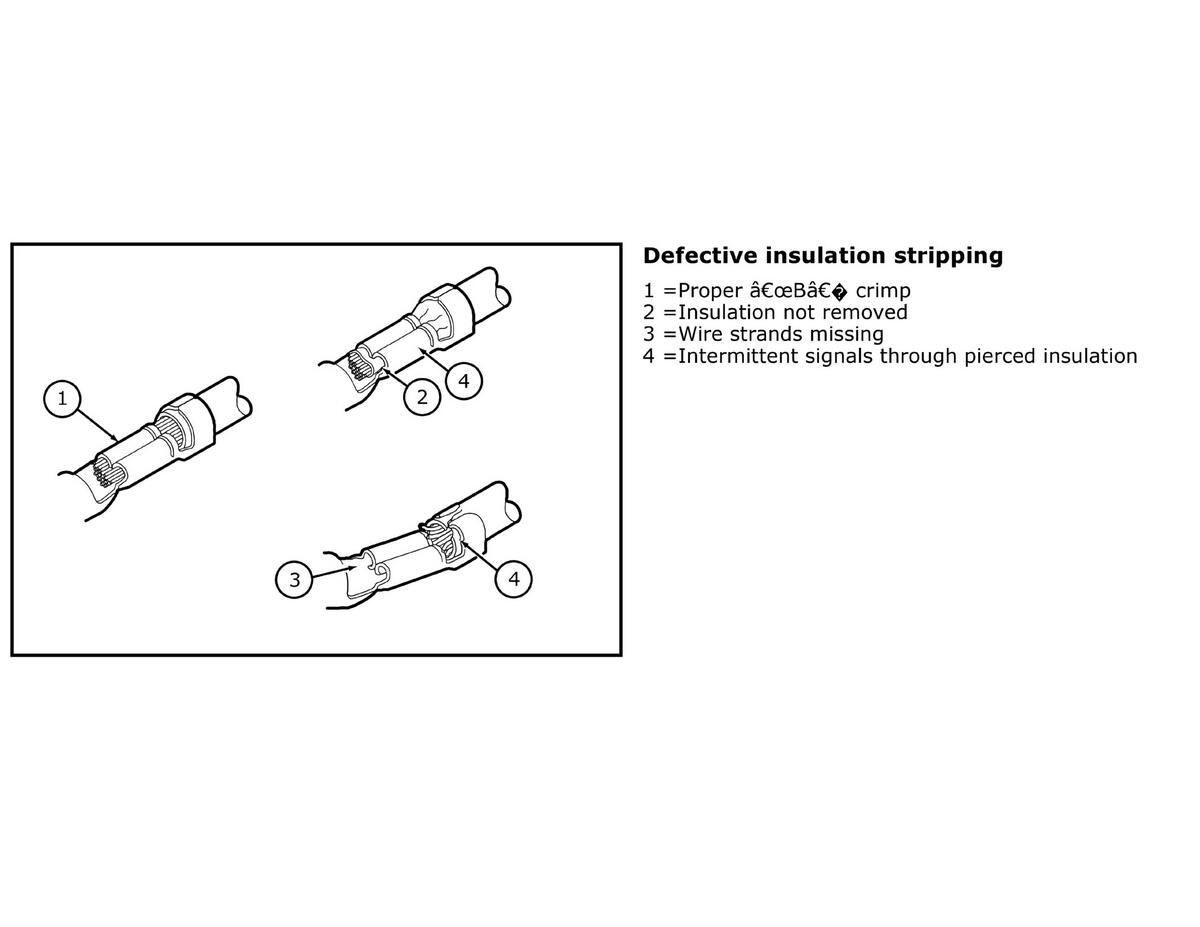

GFDWR228808Courtesy of FORD MOTOR COMPANY

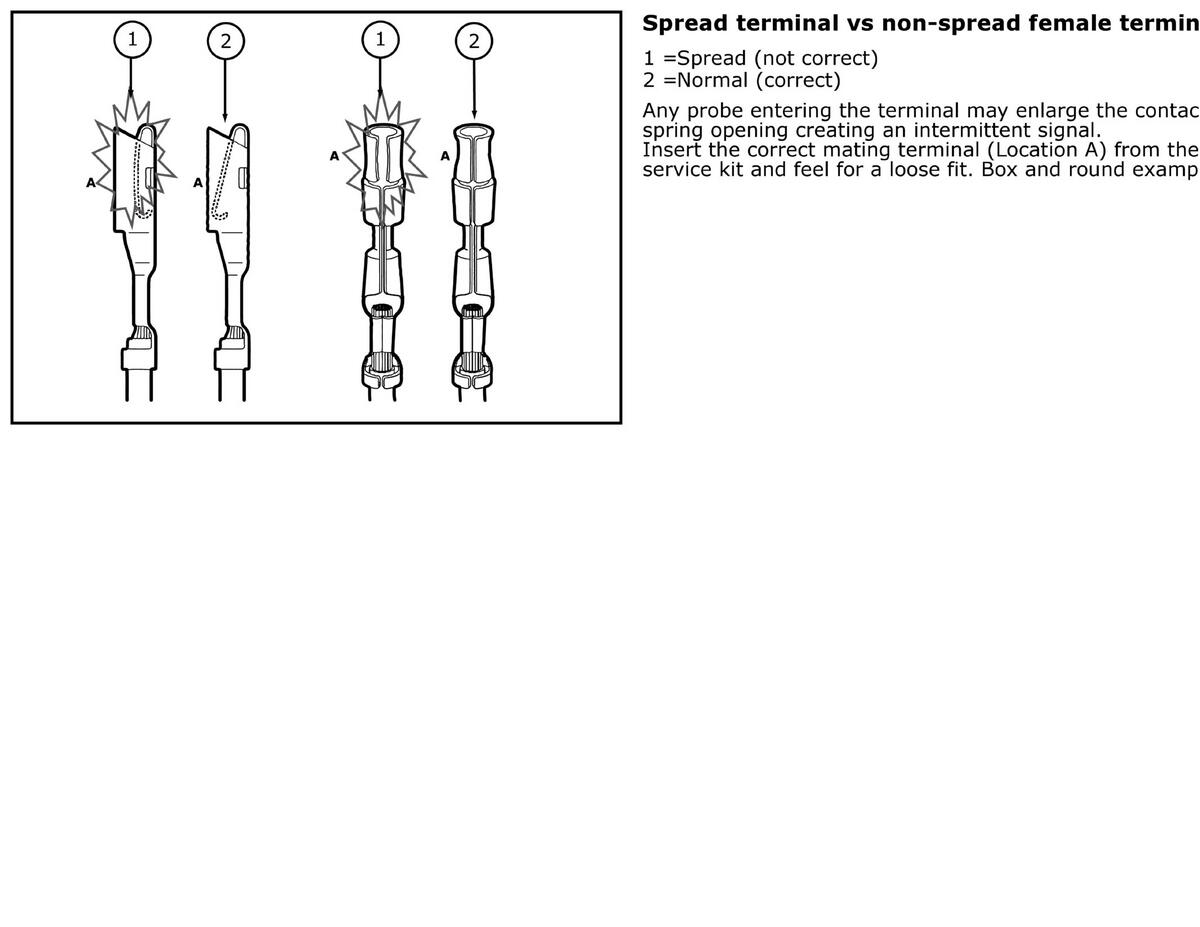

GFDWR228809Courtesy of FORD MOTOR COMPANY

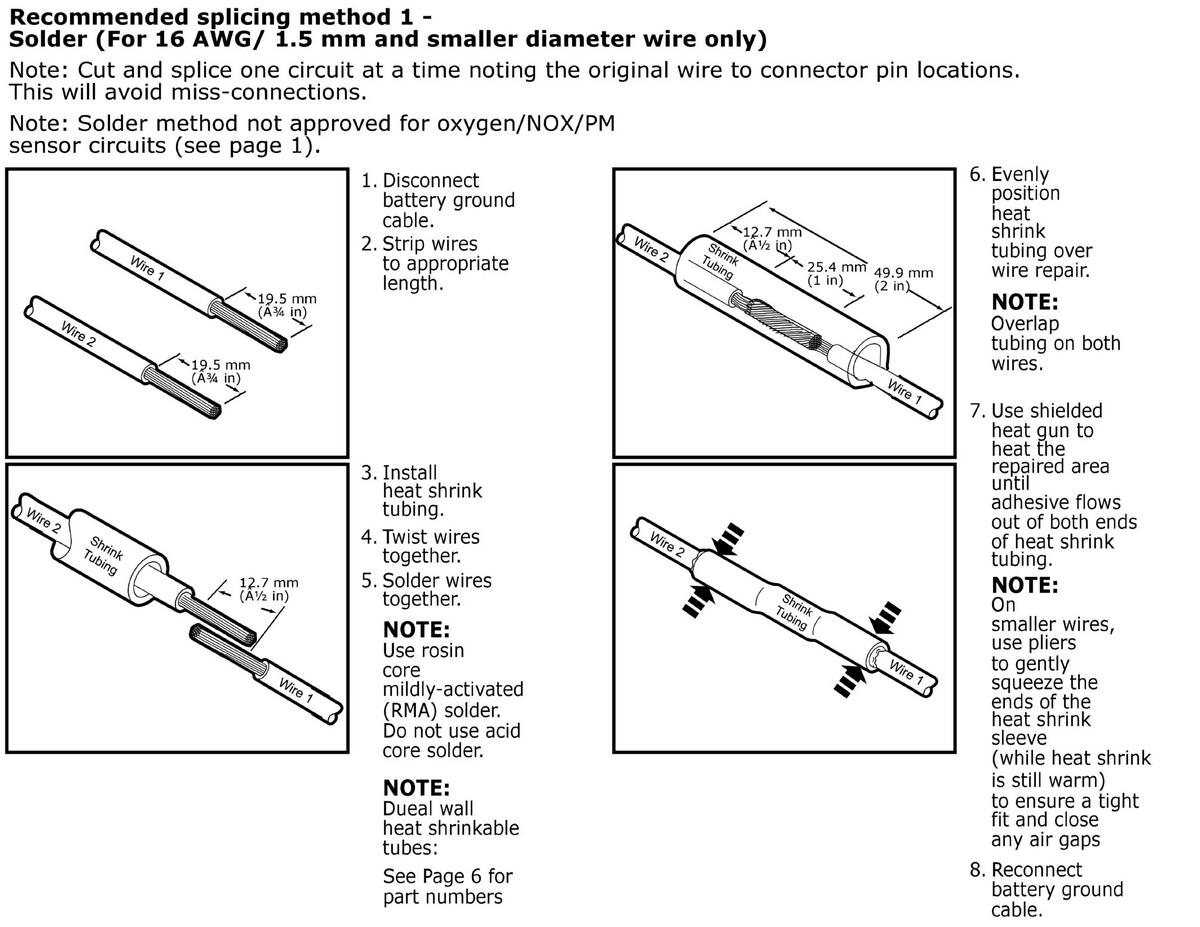

GFDWR228810Courtesy of FORD MOTOR COMPANY

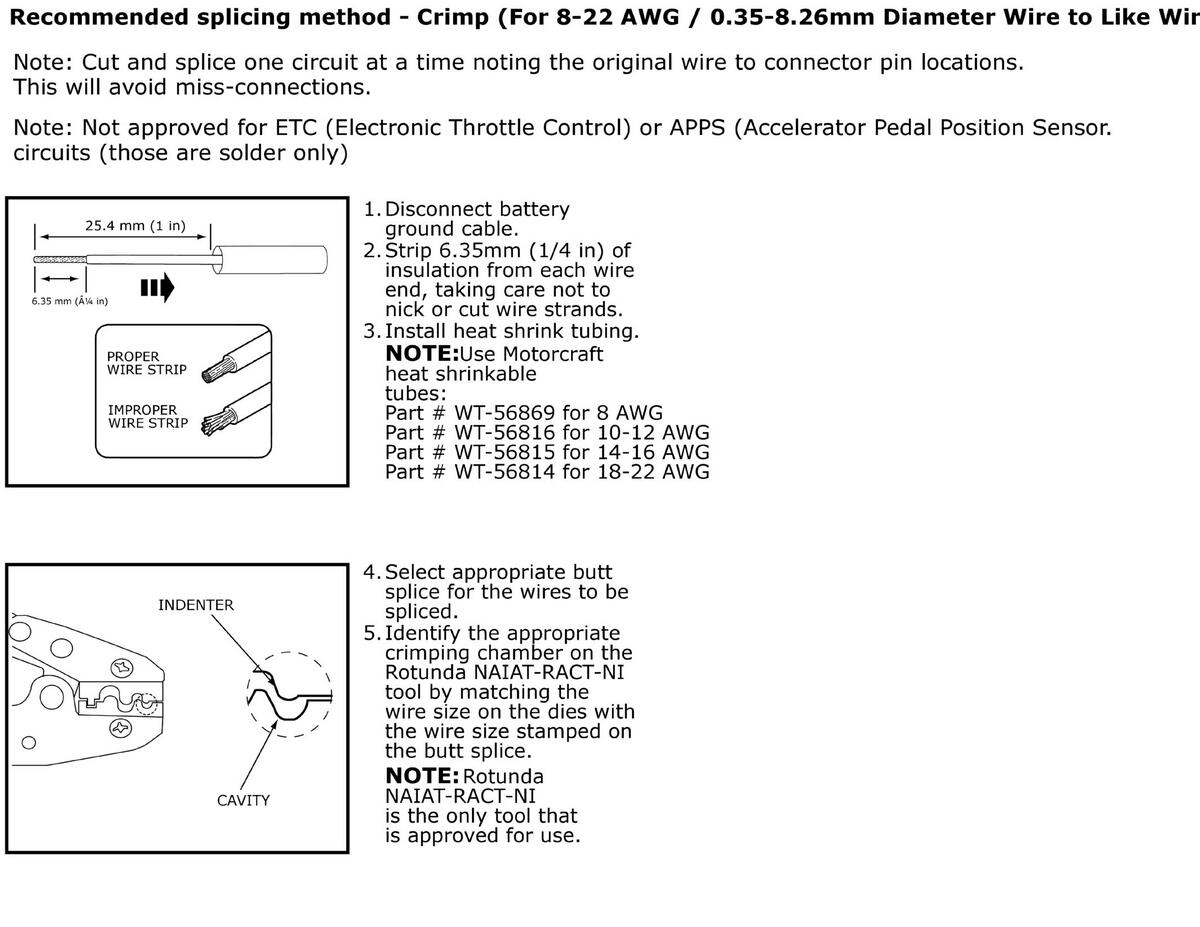

GFDWR228811Courtesy of FORD MOTOR COMPANY

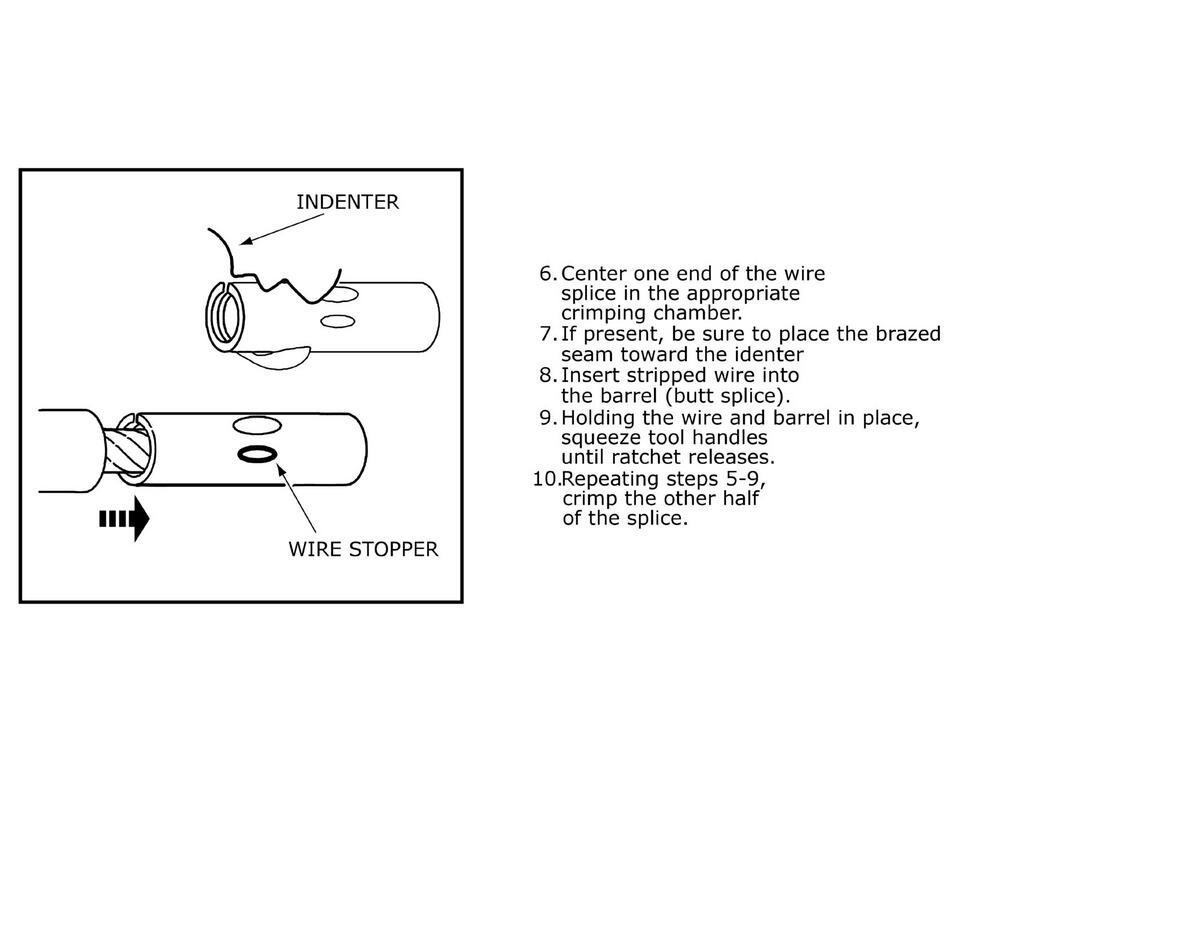

GFDWR228812Courtesy of FORD MOTOR COMPANY

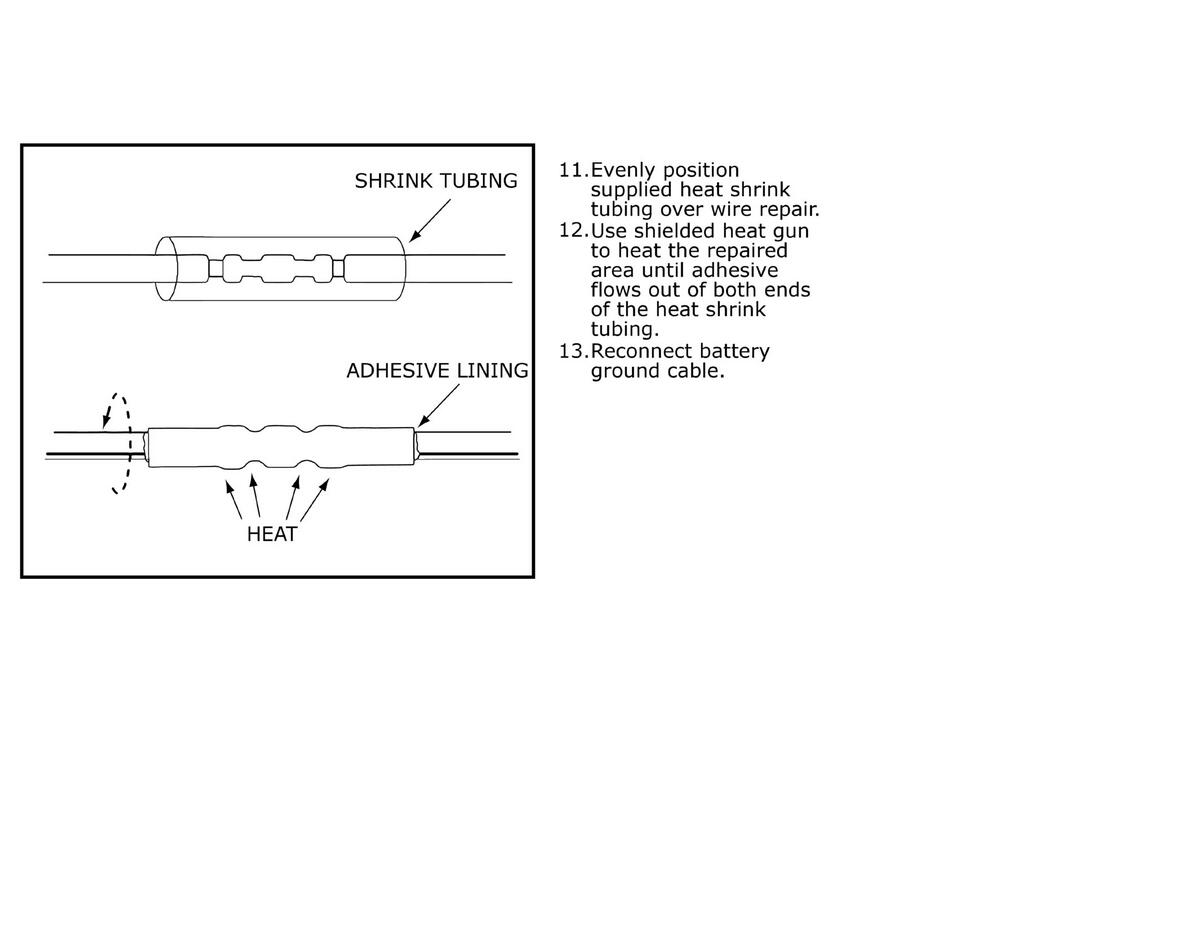

GFDWR228813Courtesy of FORD MOTOR COMPANY

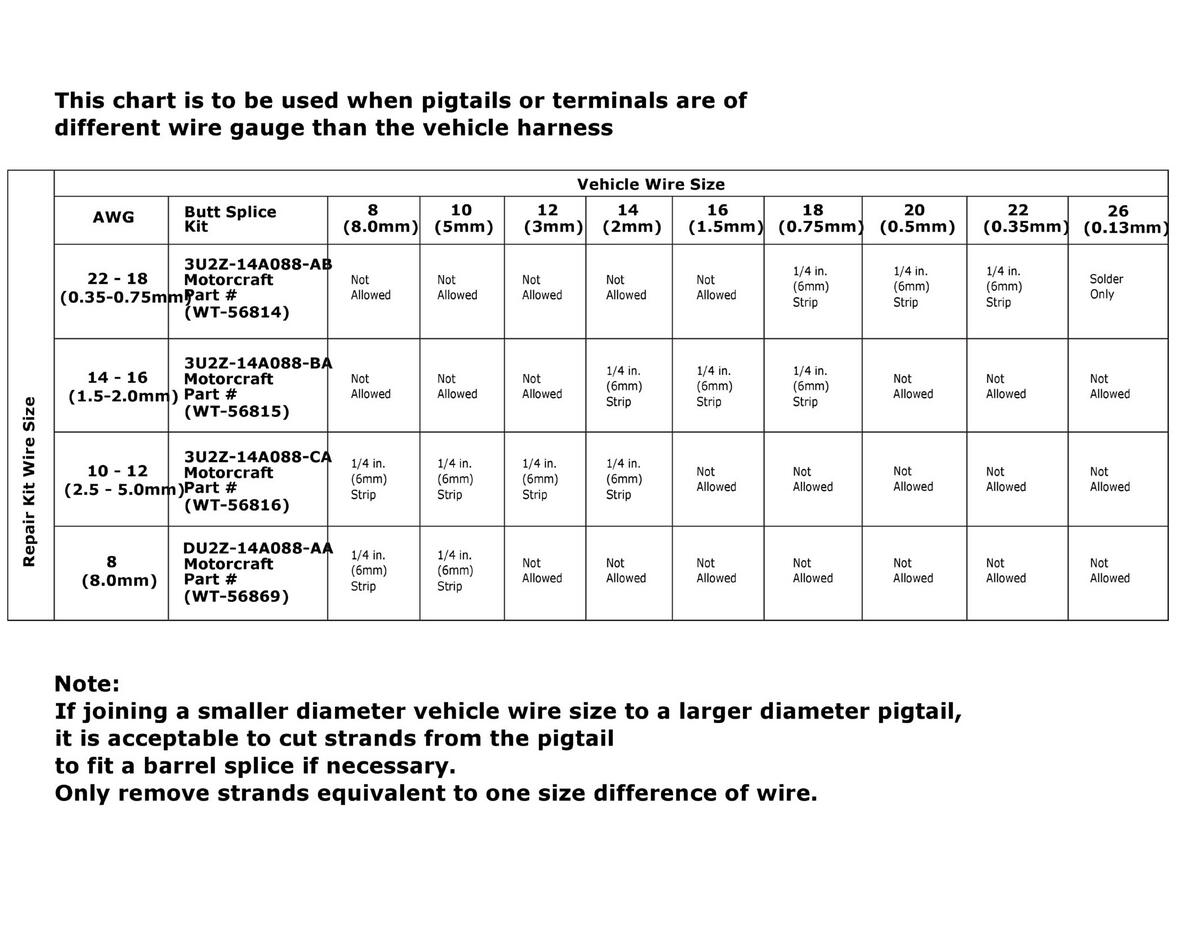

GFDWR228814Courtesy of FORD MOTOR COMPANY
