Ethernet Module Communications Network - Component Location
NOTE:
Crew Cab configuration is shown, other cab configurations are similar.

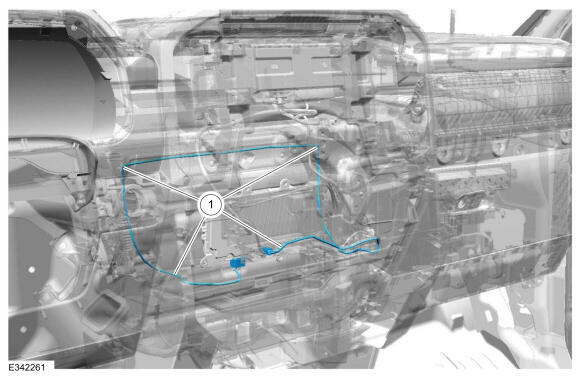

IPMA Ethernet Cable
| Item | Description |
|---|---|
| 1 | IPMA Ethernet cable |

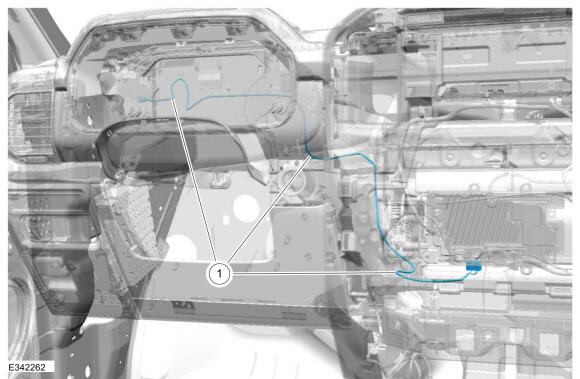

APIM Ethernet Cable
| Item | Description |
|---|---|
| 1 | APIM Ethernet cable |

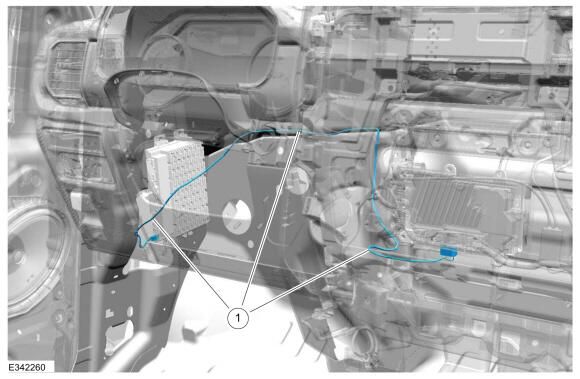

IPC Ethernet Cable
| Item | Description |
|---|---|
| 1 | IPC Ethernet cable |

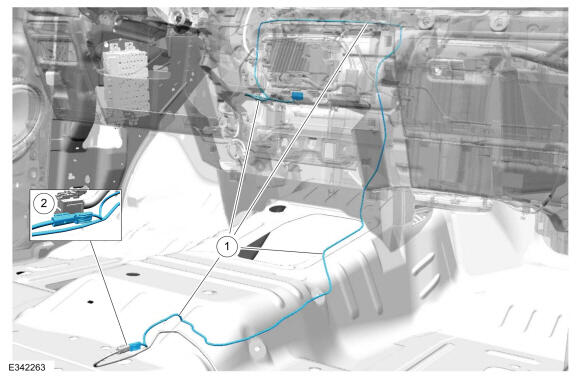

TCU Front Ethernet Cable
| Item | Description |
|---|---|
| 1 | TCU front Ethernet cable |
| 2 | Ethernet cable in-line connection |

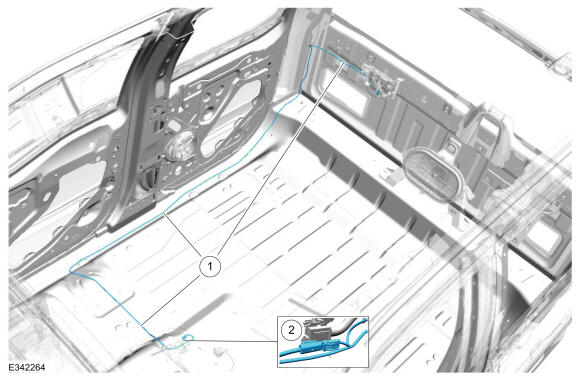

TCU Rear Ethernet Cable
| Item | Description |
|---|---|
| 1 | TCU rear Ethernet cable |
| 2 | Ethernet cable in-line connection |
