OEM Ground Distribution: Grounds

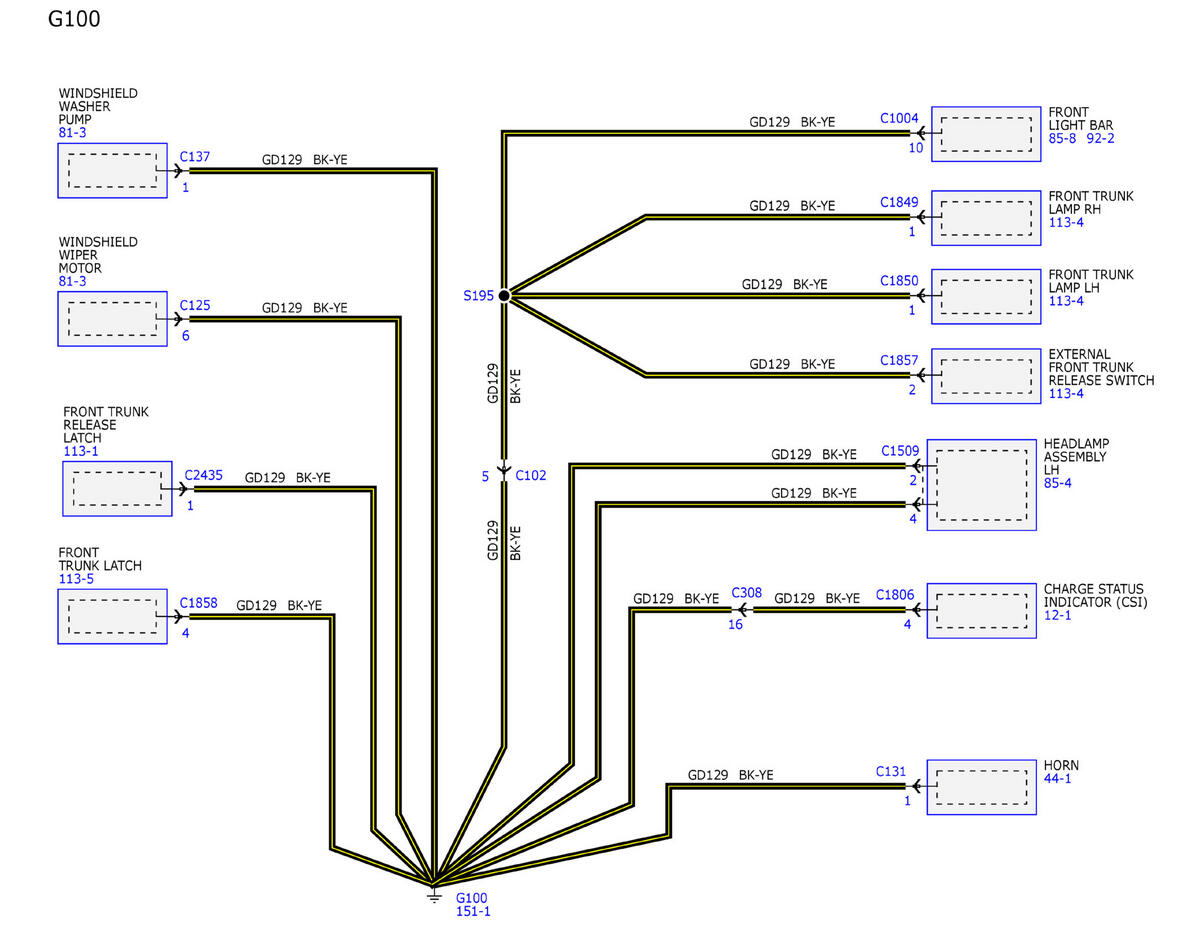

GFDWR228833Courtesy of FORD MOTOR COMPANY

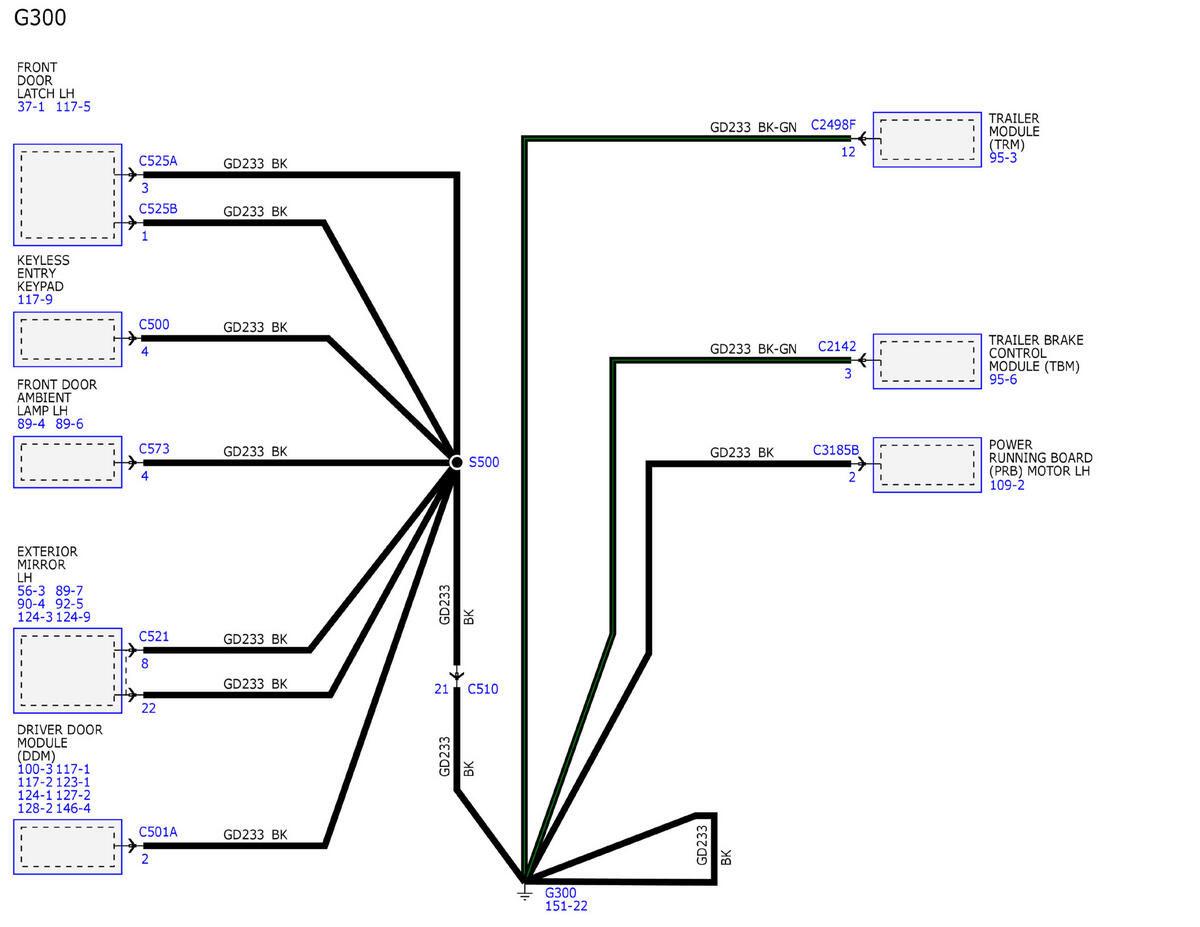

GFDWR228834Courtesy of FORD MOTOR COMPANY

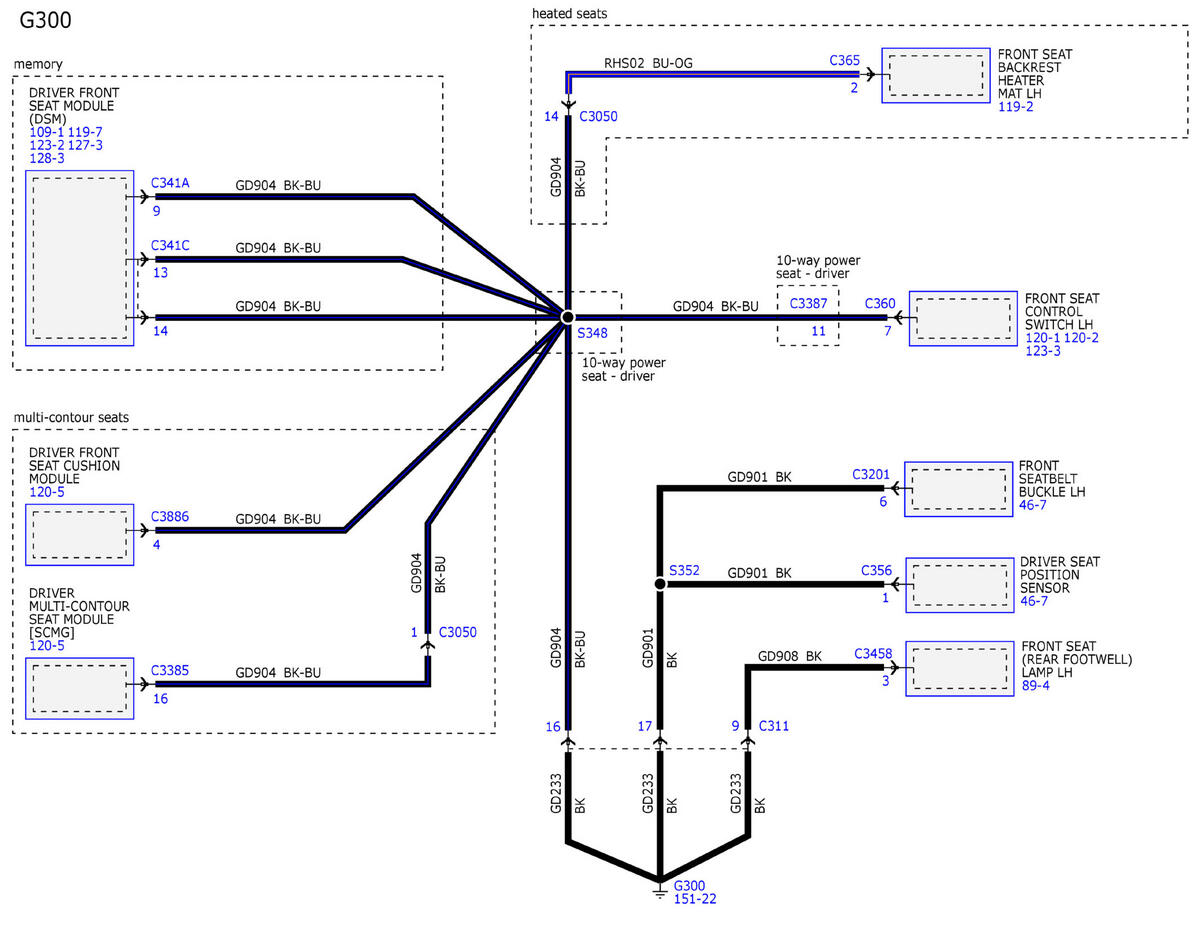

GFDWR228835Courtesy of FORD MOTOR COMPANY

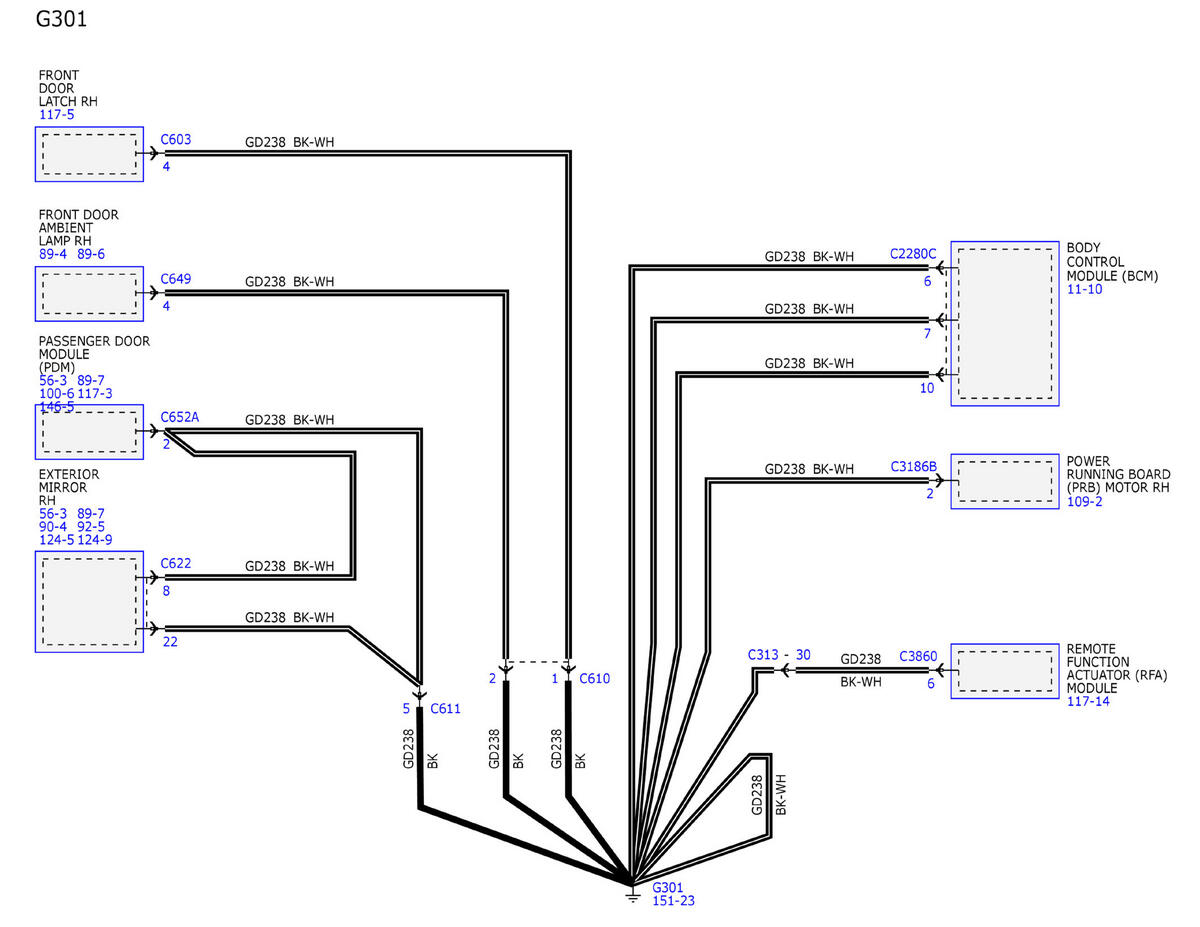

GFDWR228836Courtesy of FORD MOTOR COMPANY

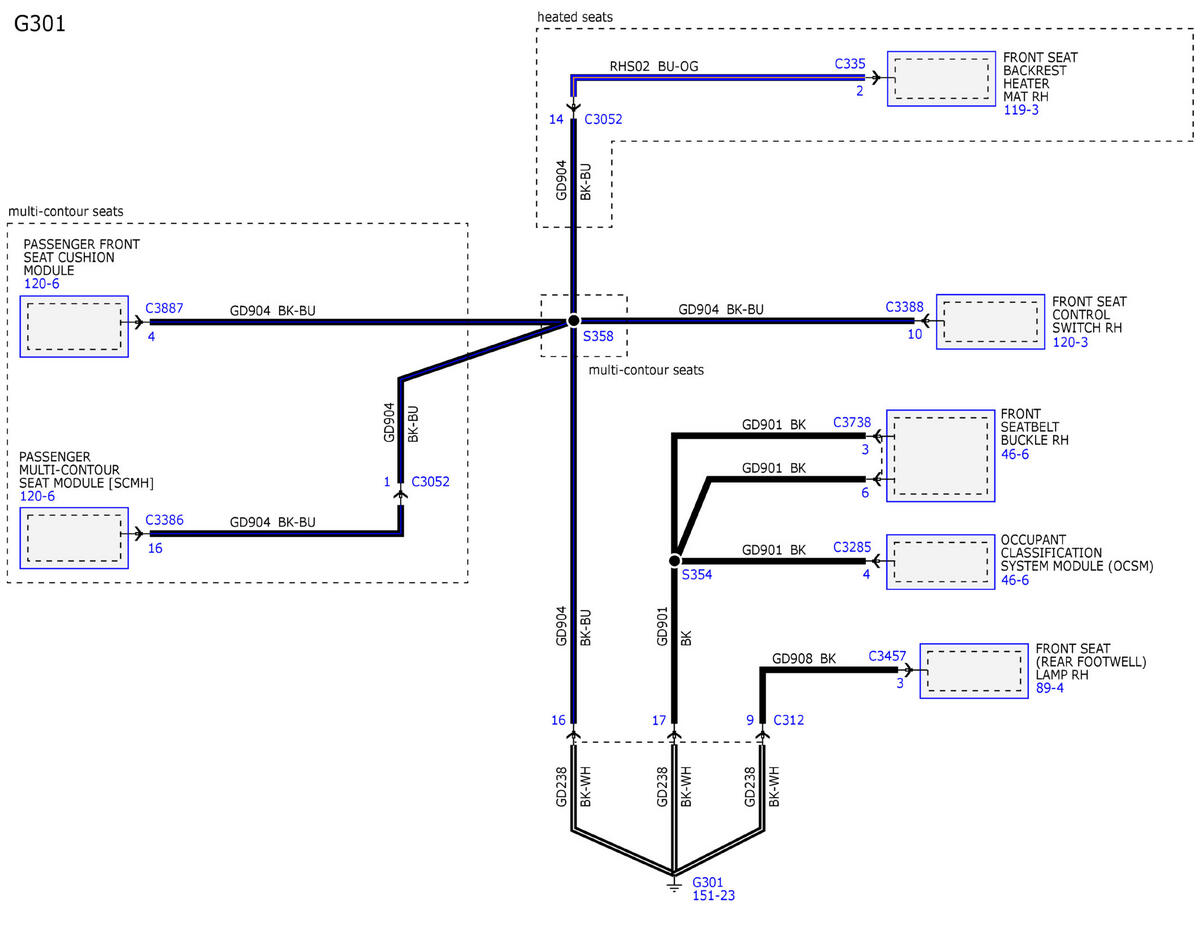

GFDWR228837Courtesy of FORD MOTOR COMPANY

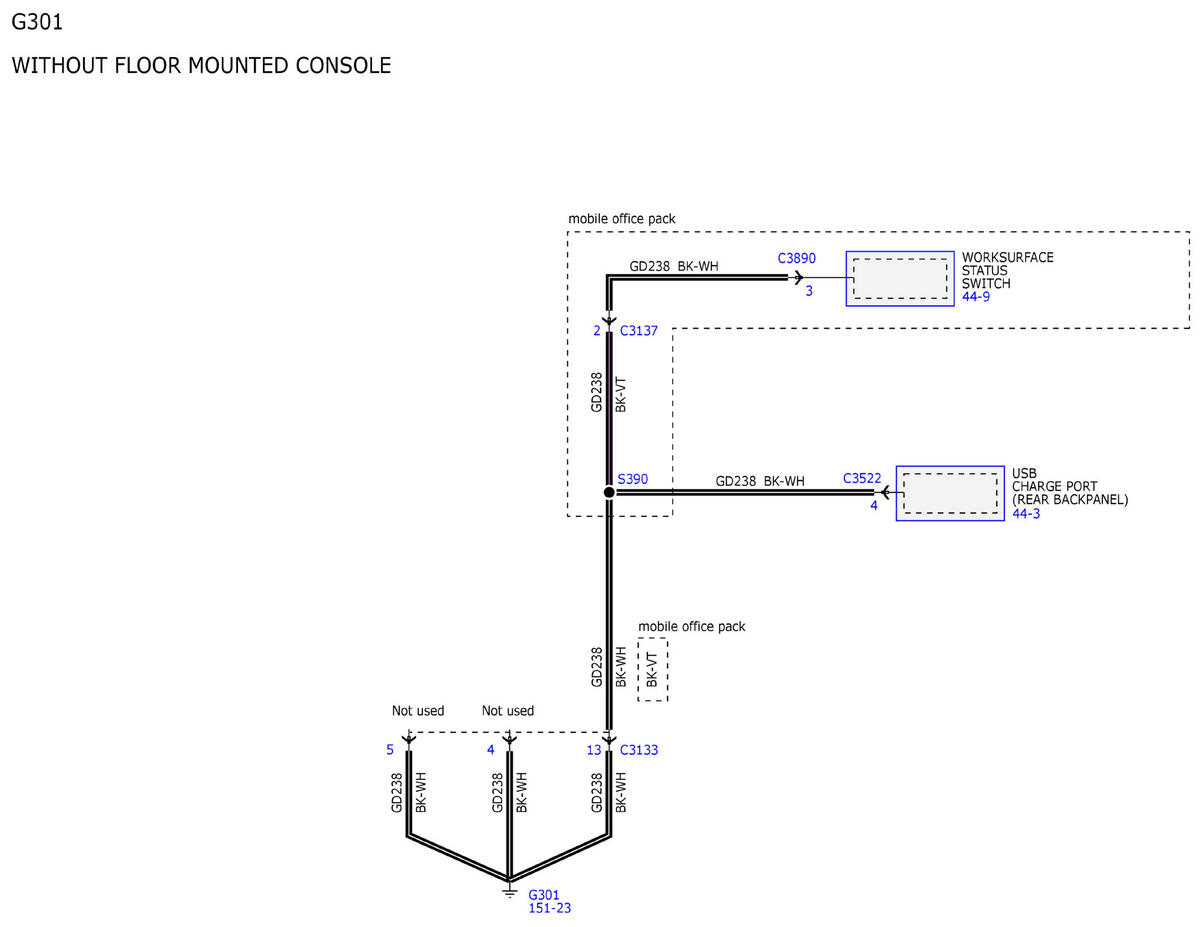

GFDWR228838Courtesy of FORD MOTOR COMPANY

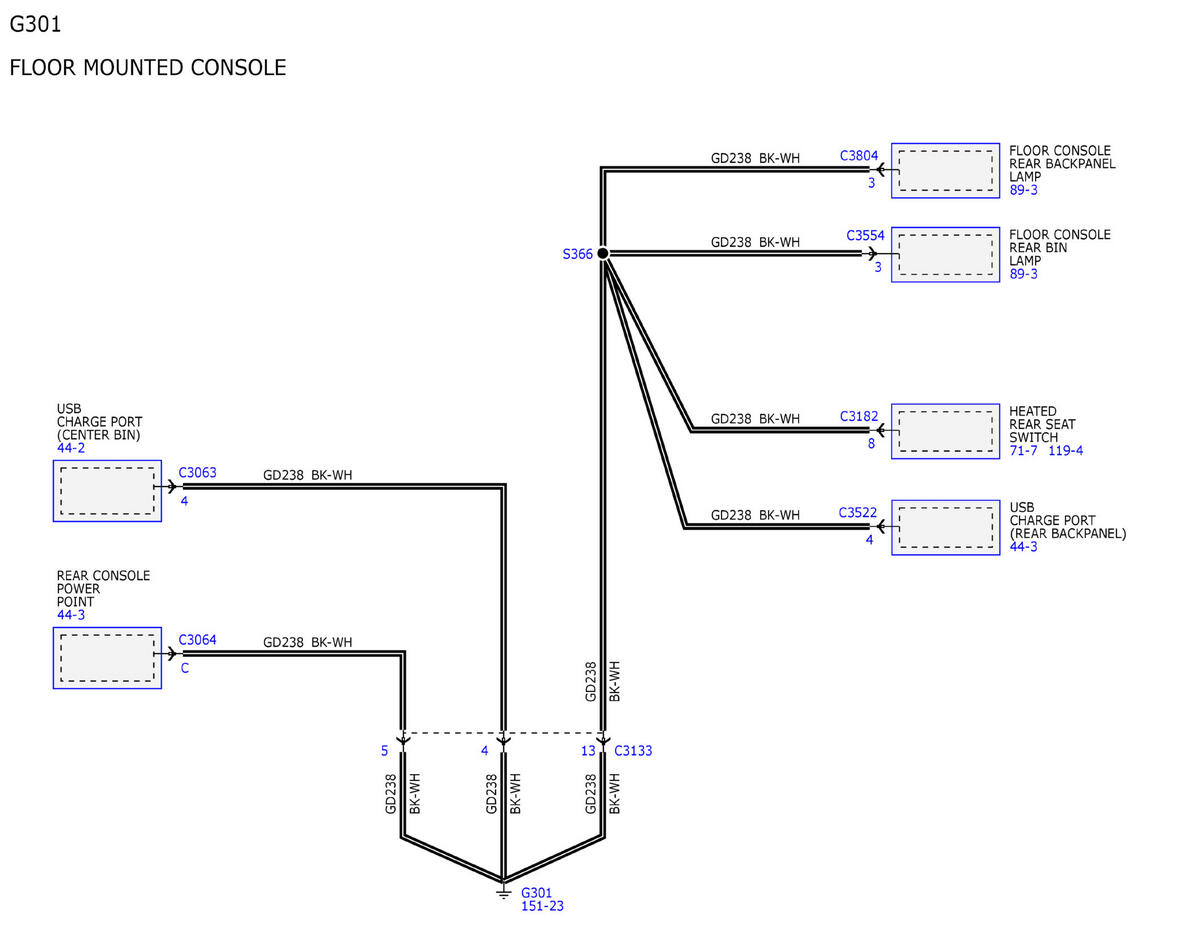

GFDWR228839Courtesy of FORD MOTOR COMPANY

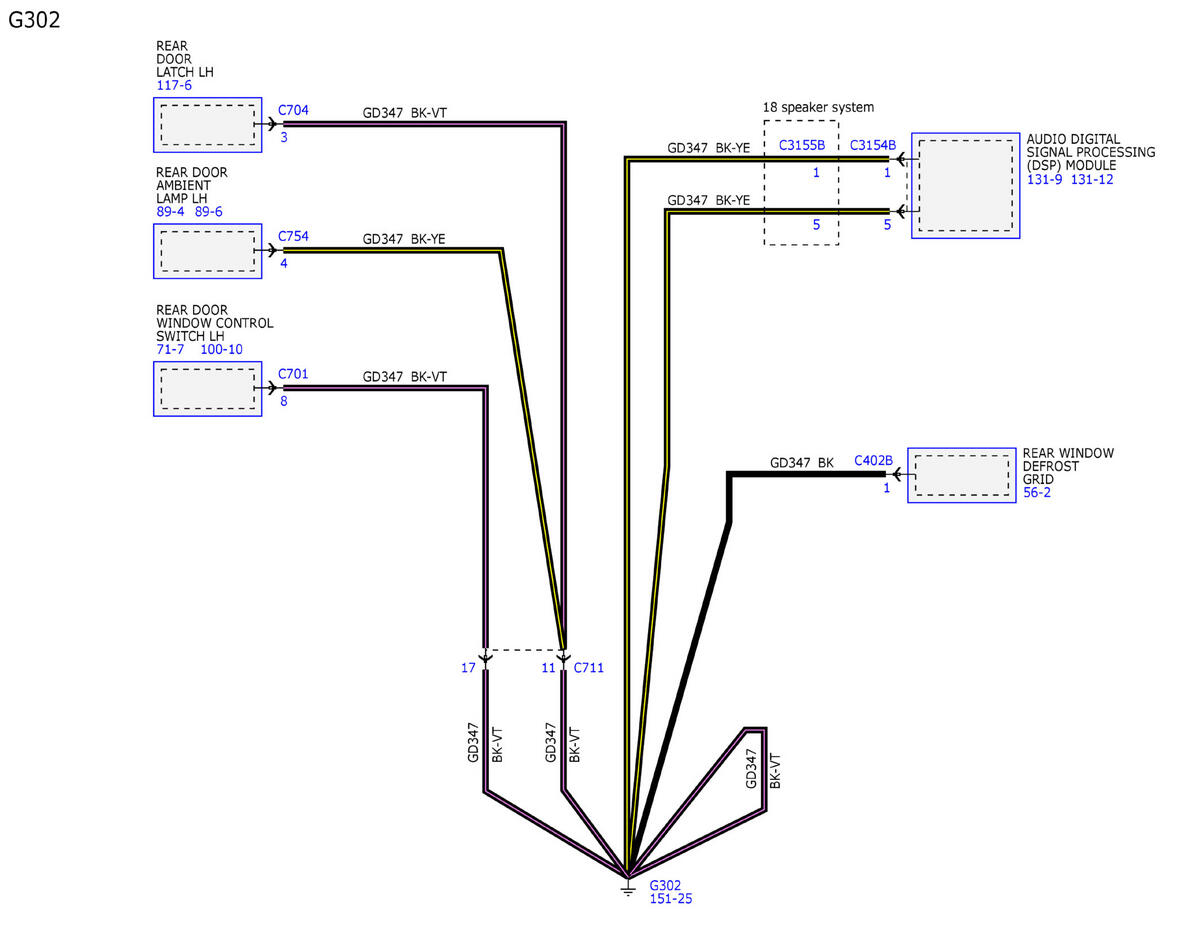

GFDWR228840Courtesy of FORD MOTOR COMPANY

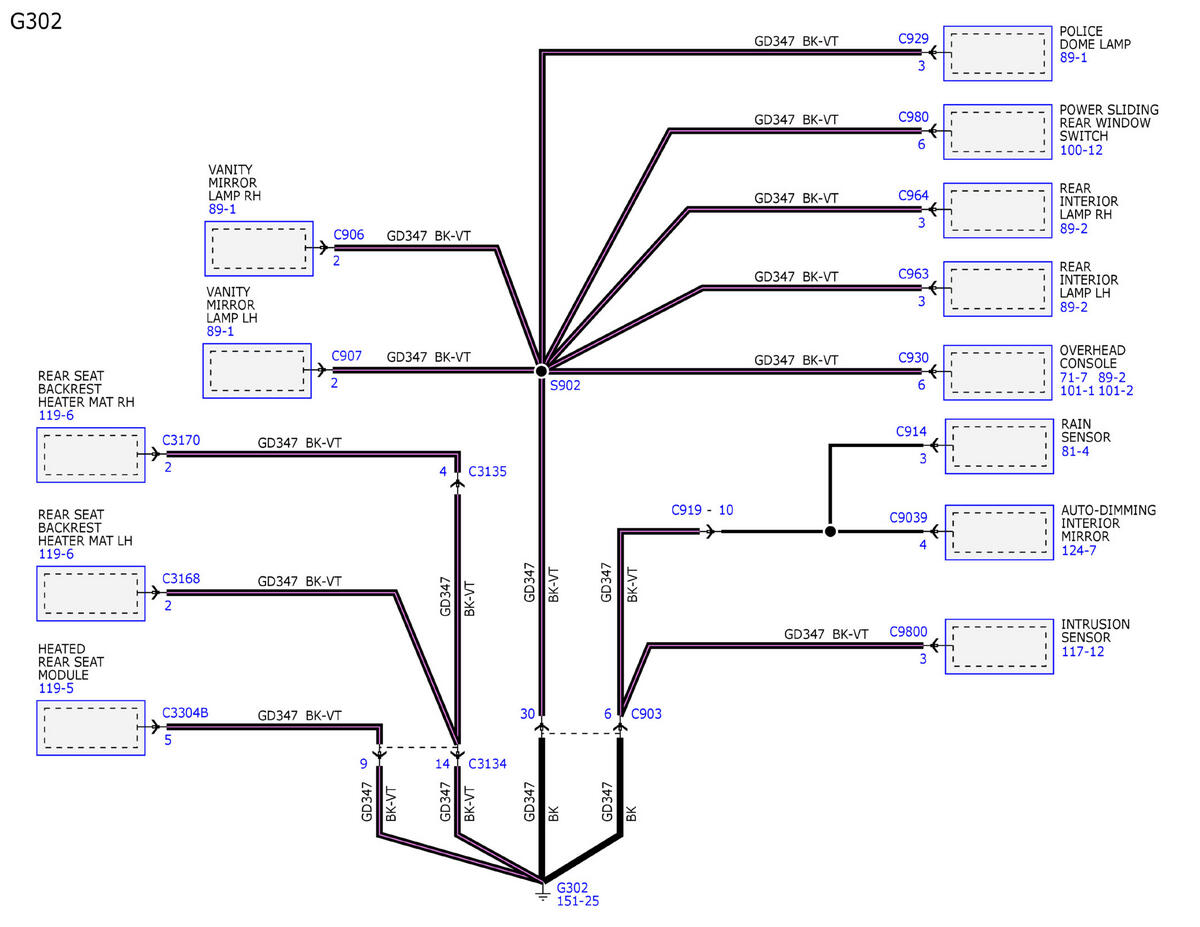

GFDWR228841Courtesy of FORD MOTOR COMPANY

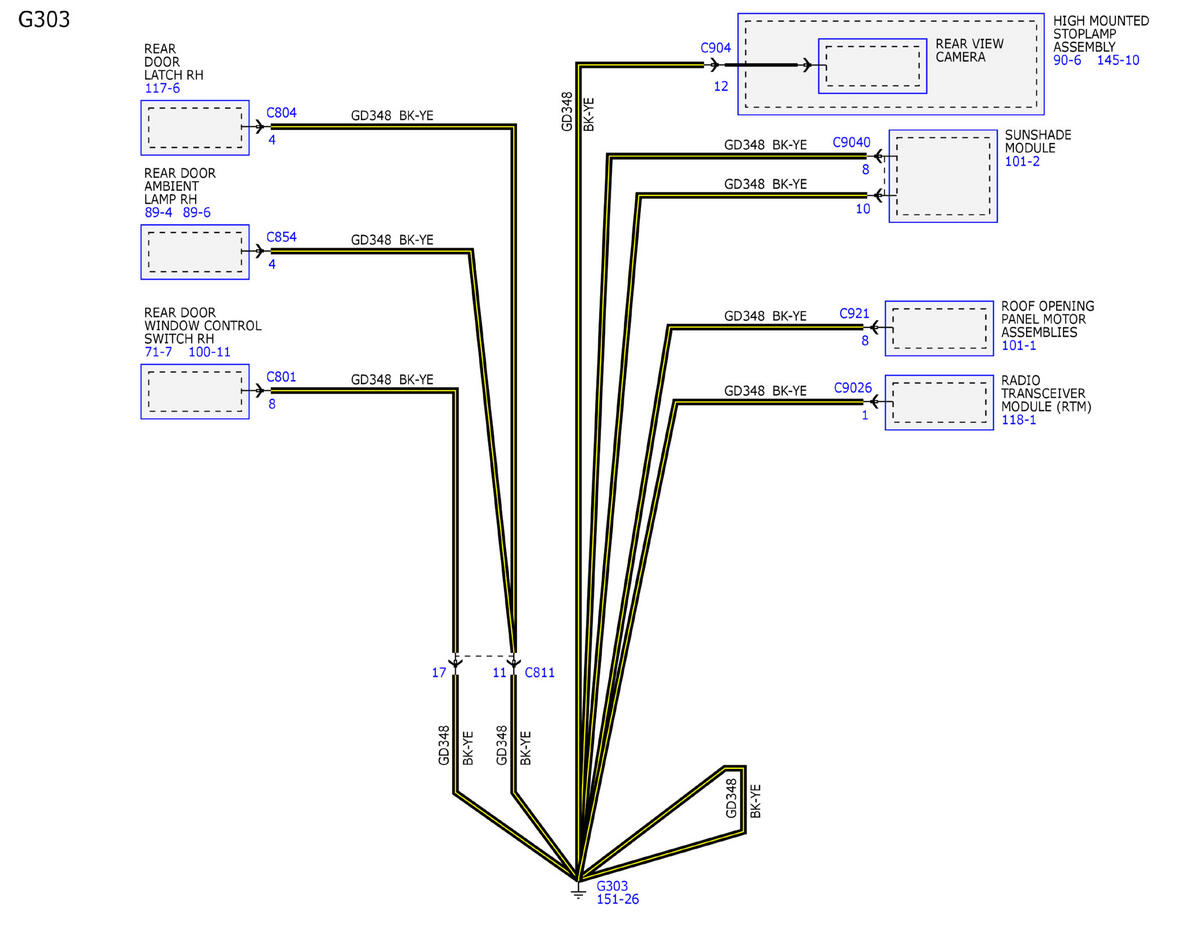

GFDWR228842Courtesy of FORD MOTOR COMPANY

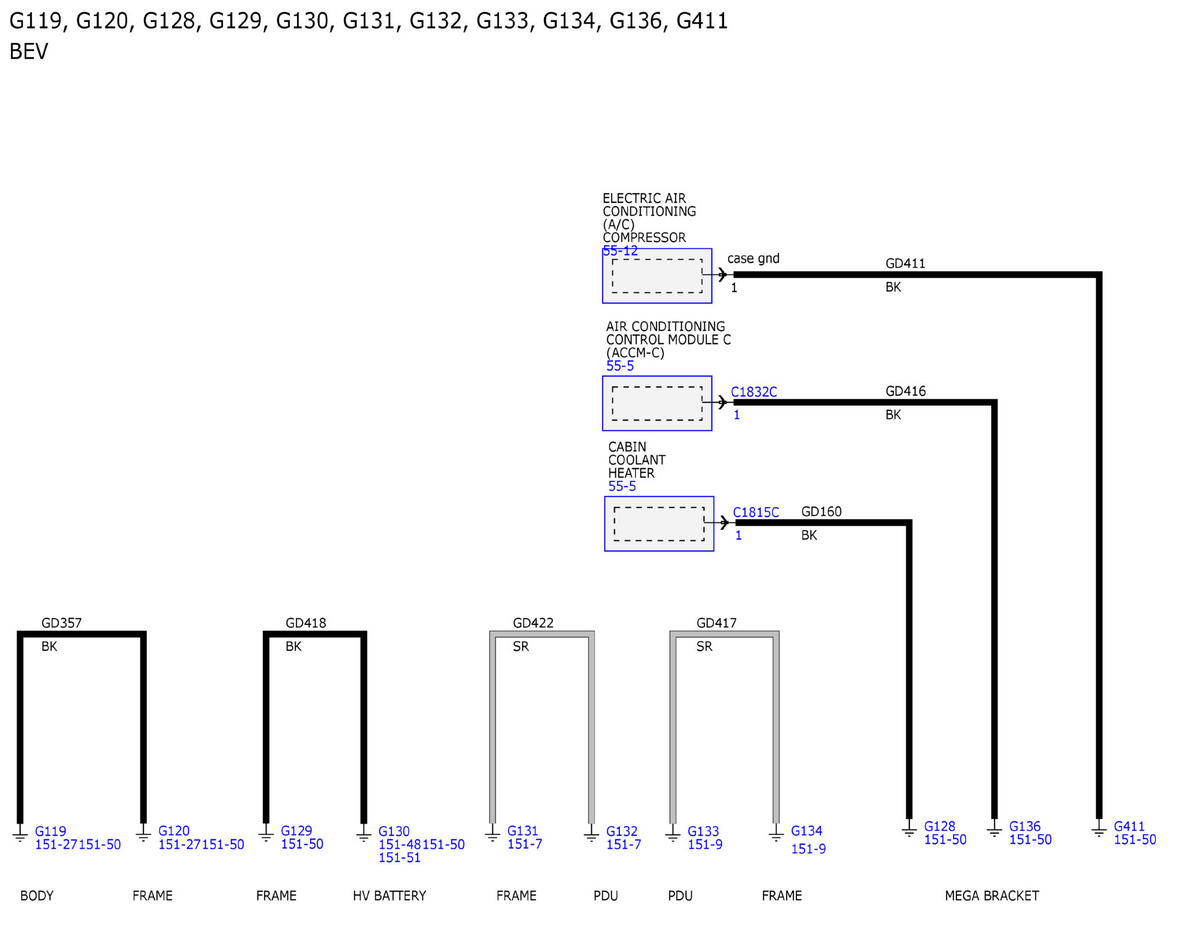

GFDWR228843Courtesy of FORD MOTOR COMPANY

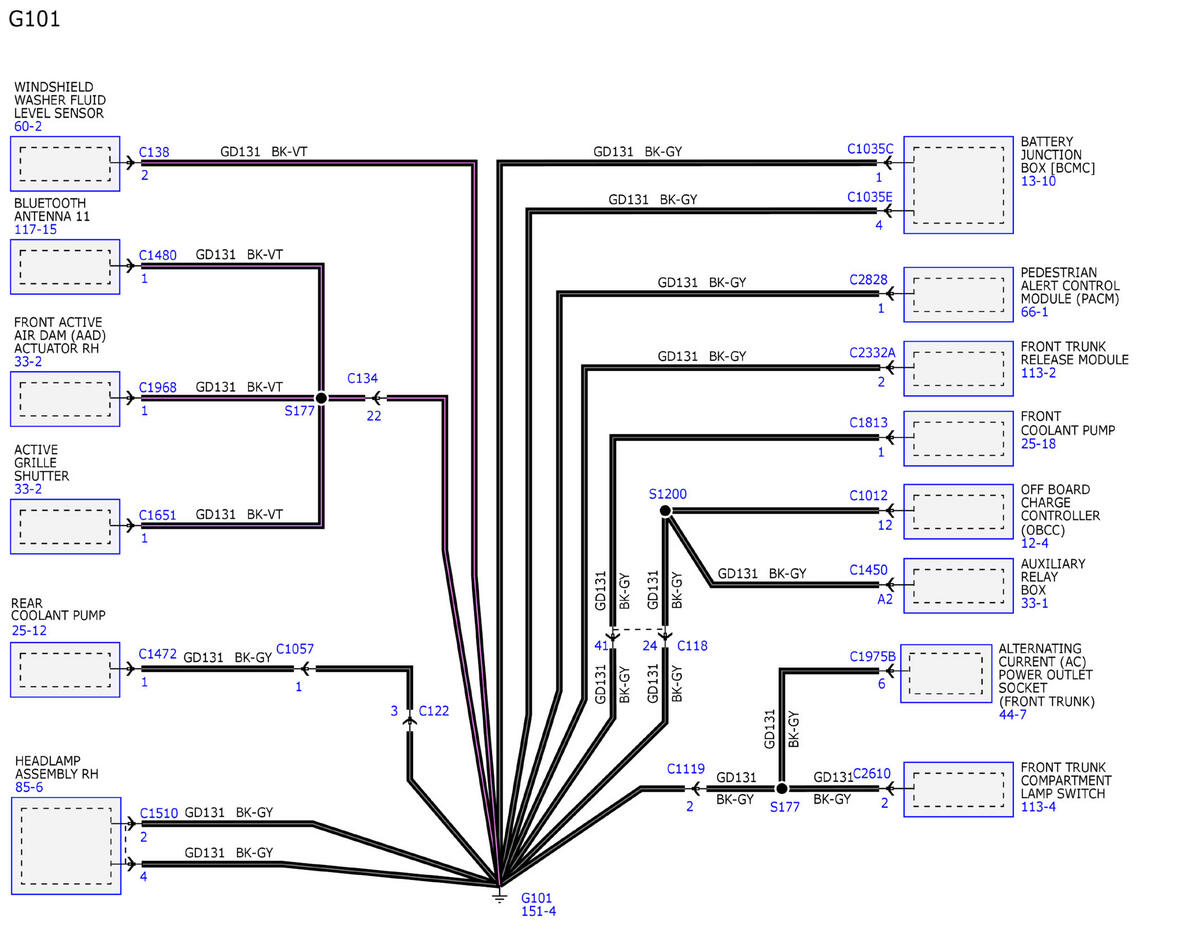

GFDWR228844Courtesy of FORD MOTOR COMPANY

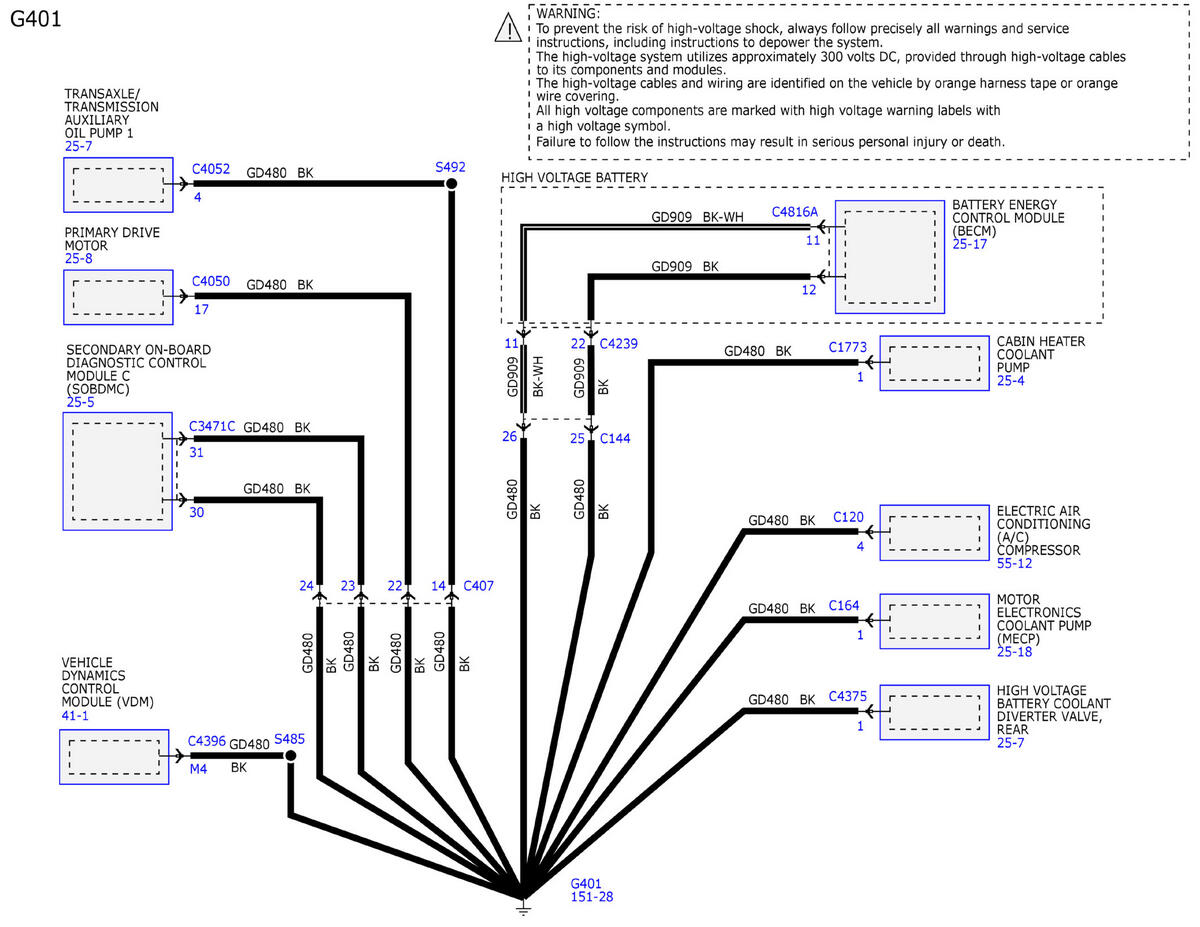

GFDWR228845Courtesy of FORD MOTOR COMPANY

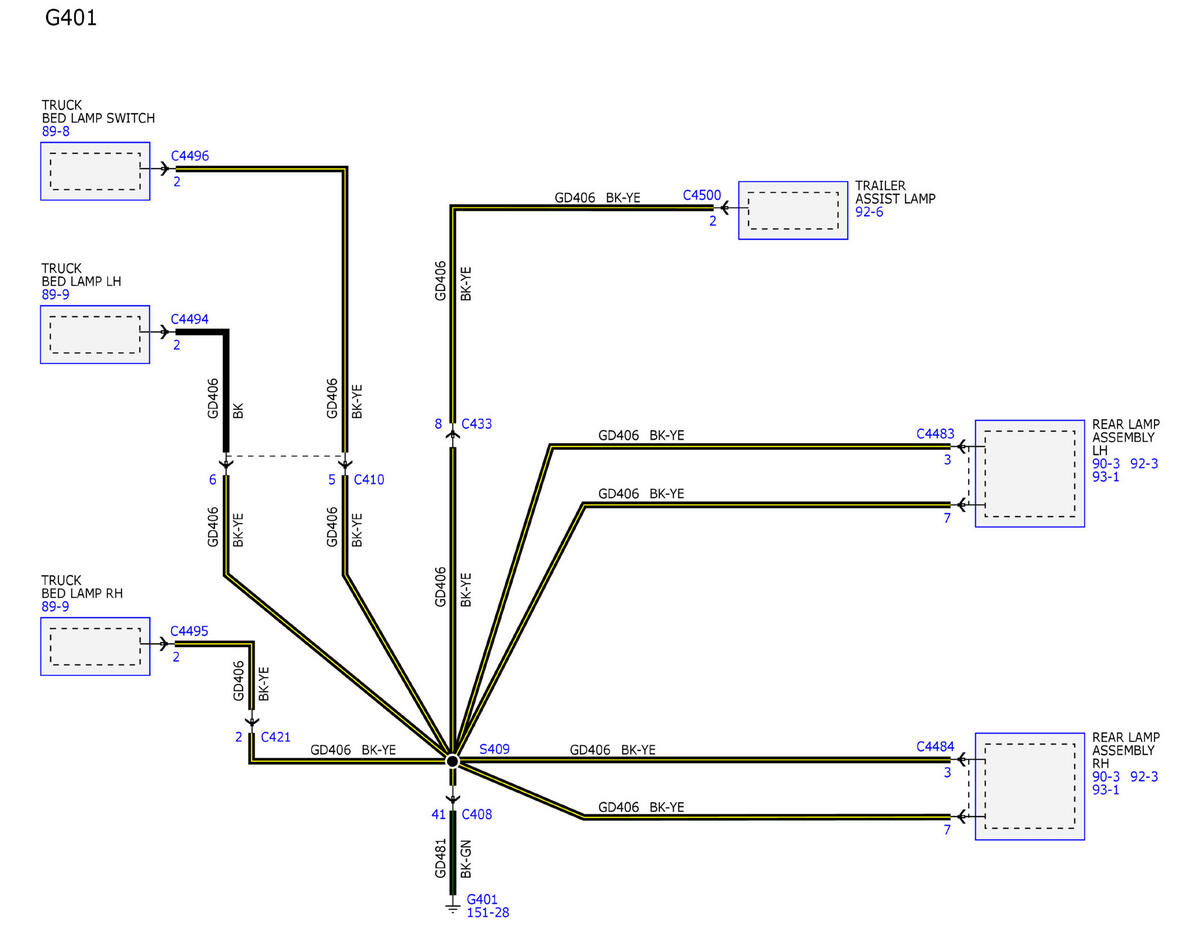

GFDWR228846Courtesy of FORD MOTOR COMPANY

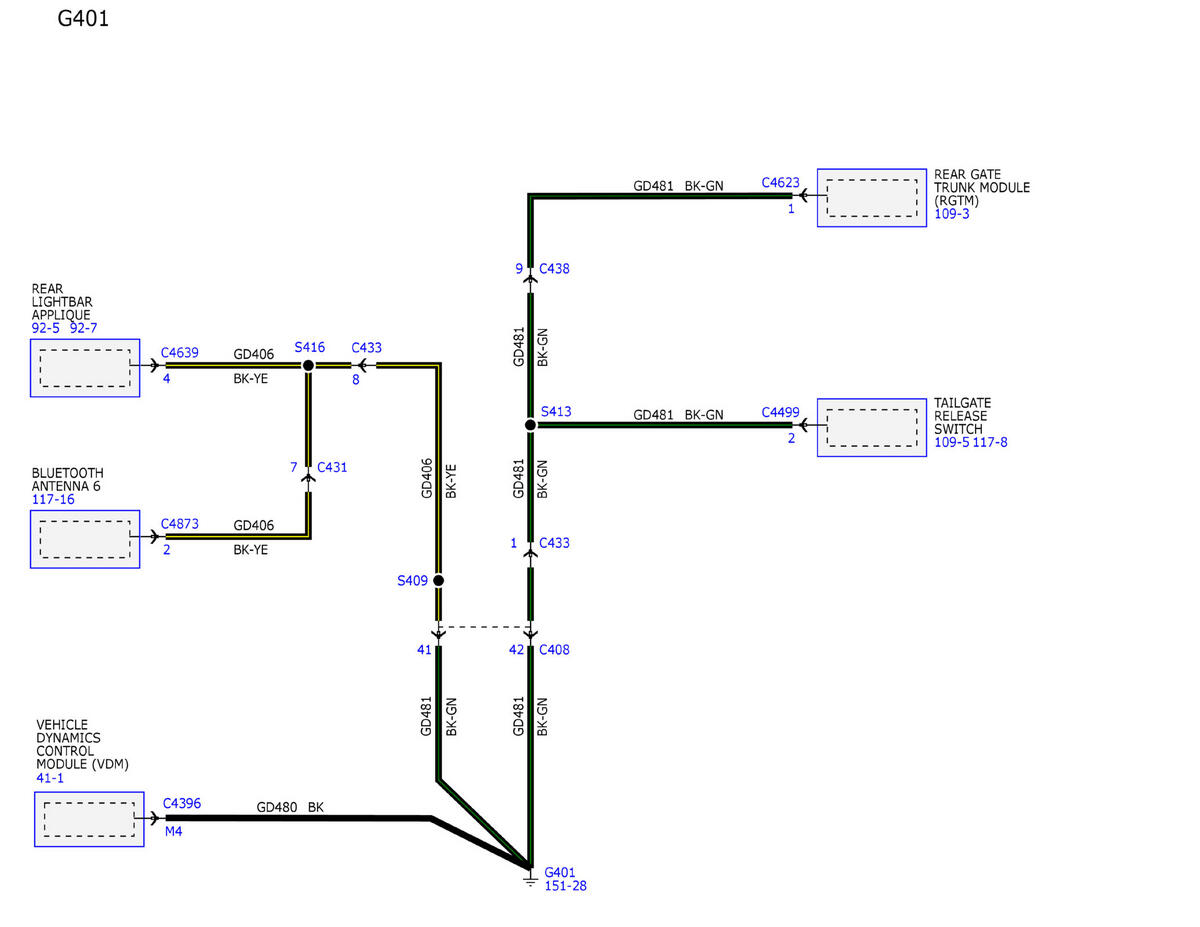

GFDWR228847Courtesy of FORD MOTOR COMPANY

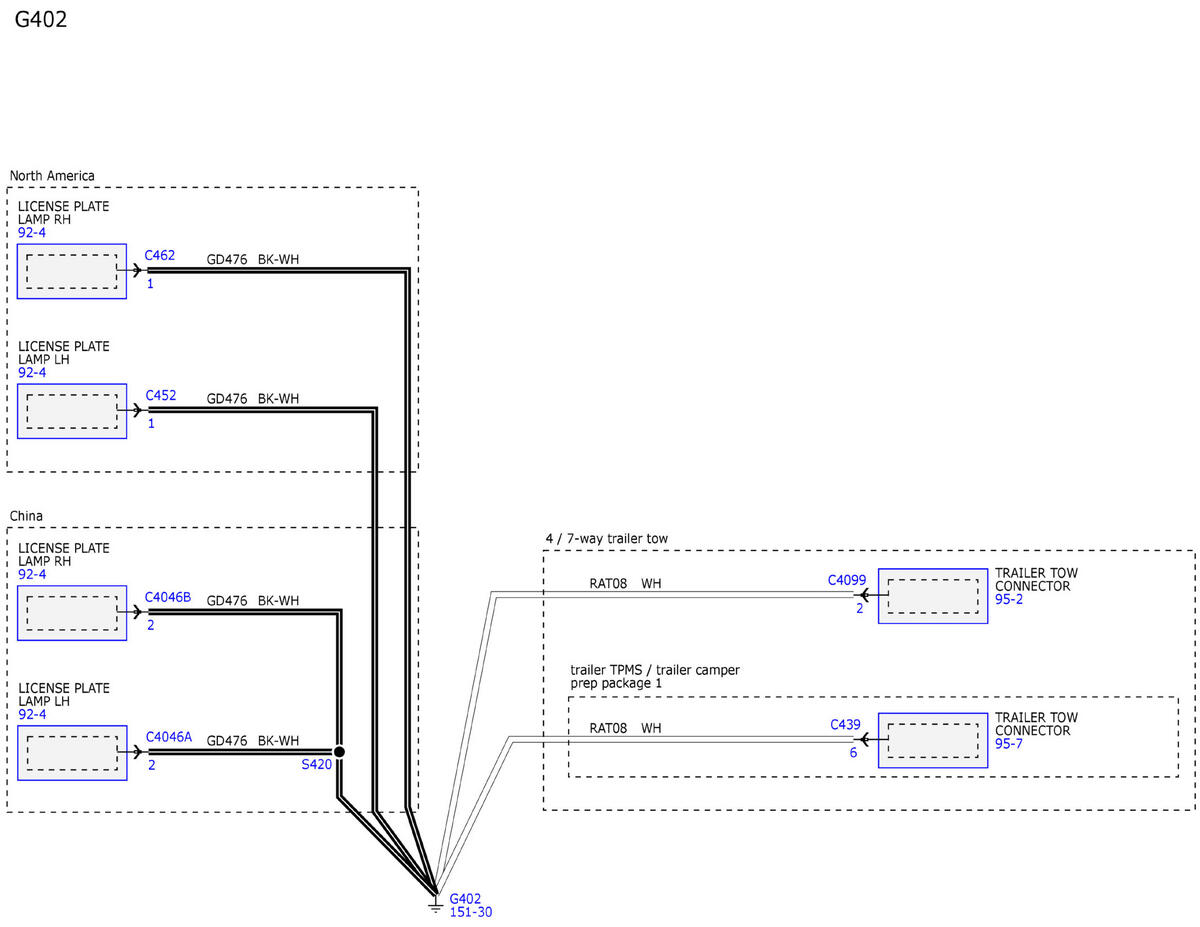

GFDWR228848Courtesy of FORD MOTOR COMPANY

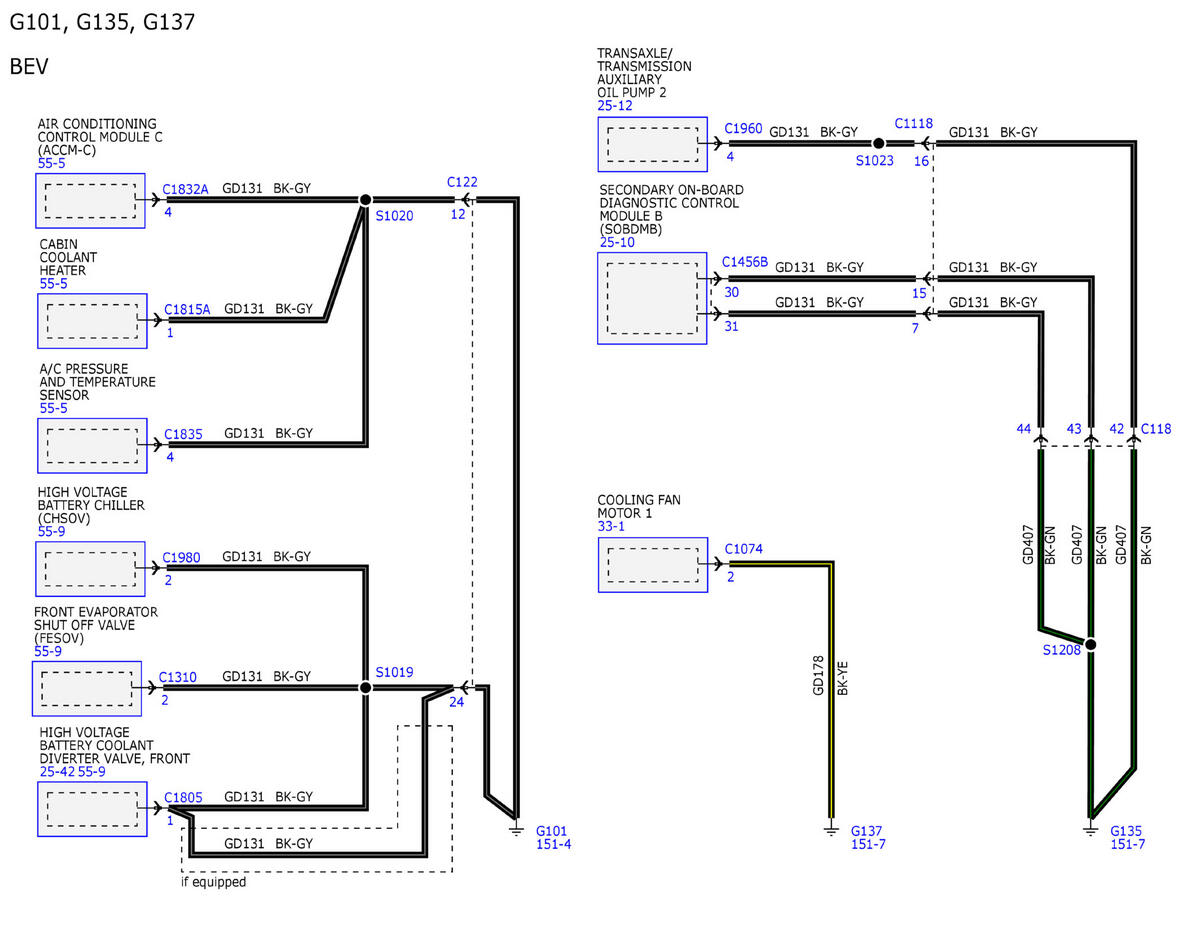

GFDWR228849Courtesy of FORD MOTOR COMPANY

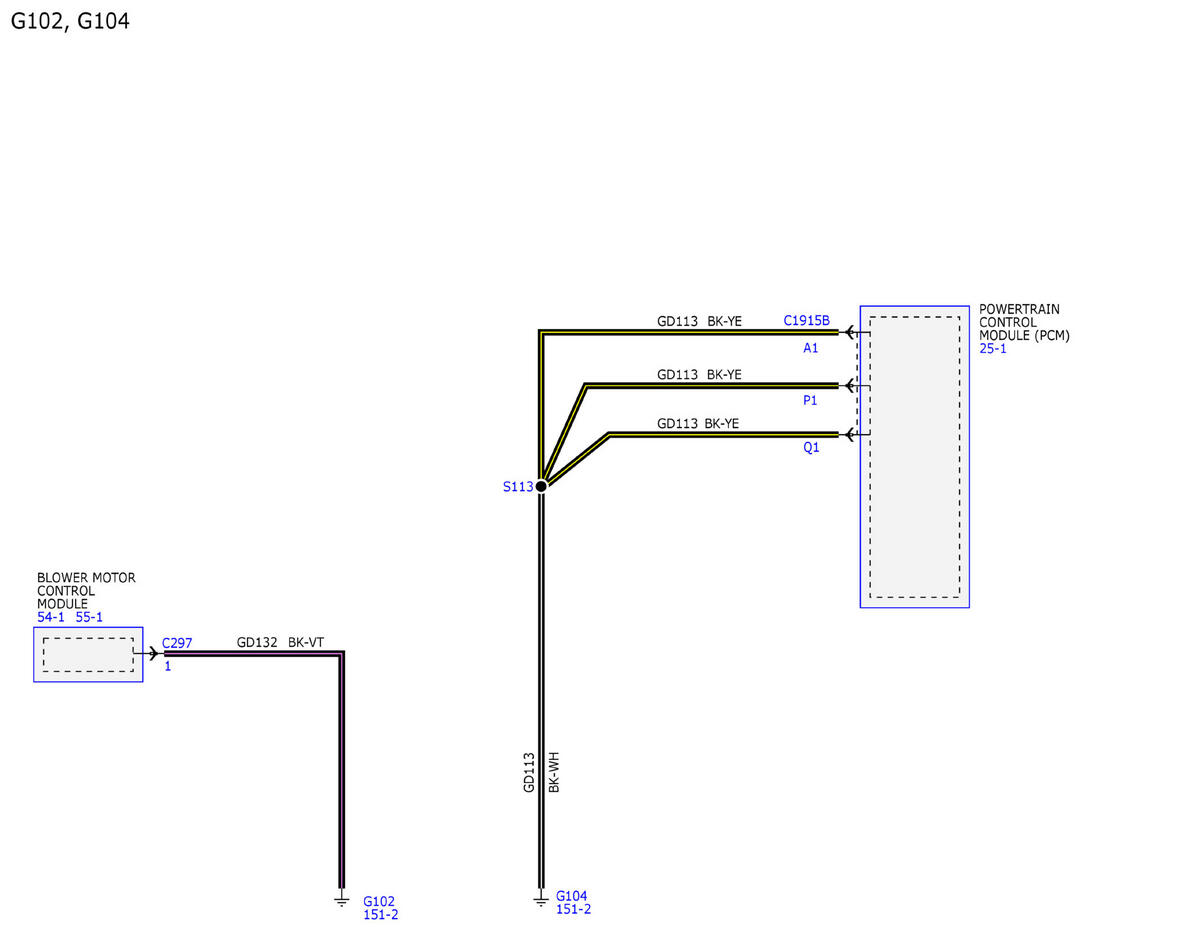

GFDWR228850Courtesy of FORD MOTOR COMPANY

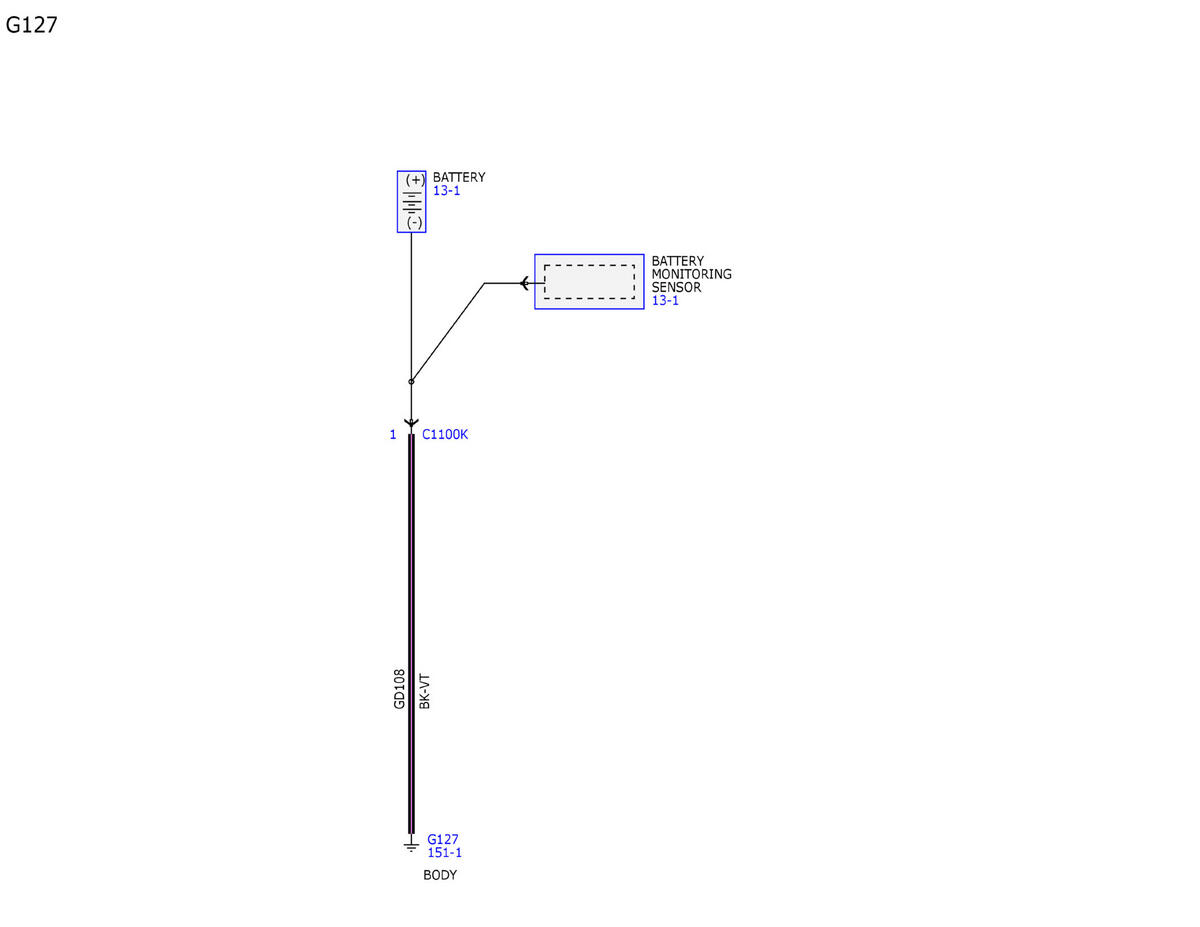

GFDWR228851Courtesy of FORD MOTOR COMPANY

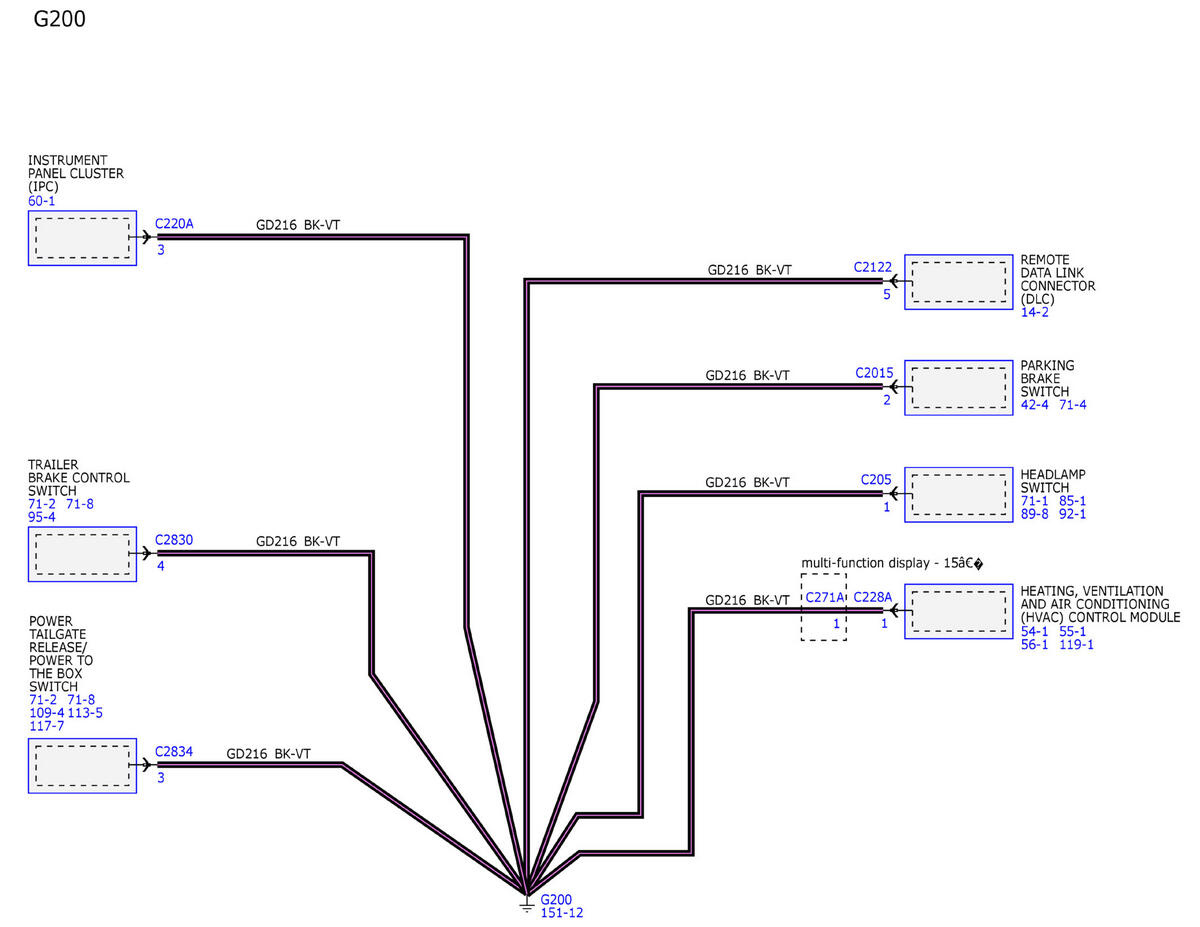

GFDWR228852Courtesy of FORD MOTOR COMPANY

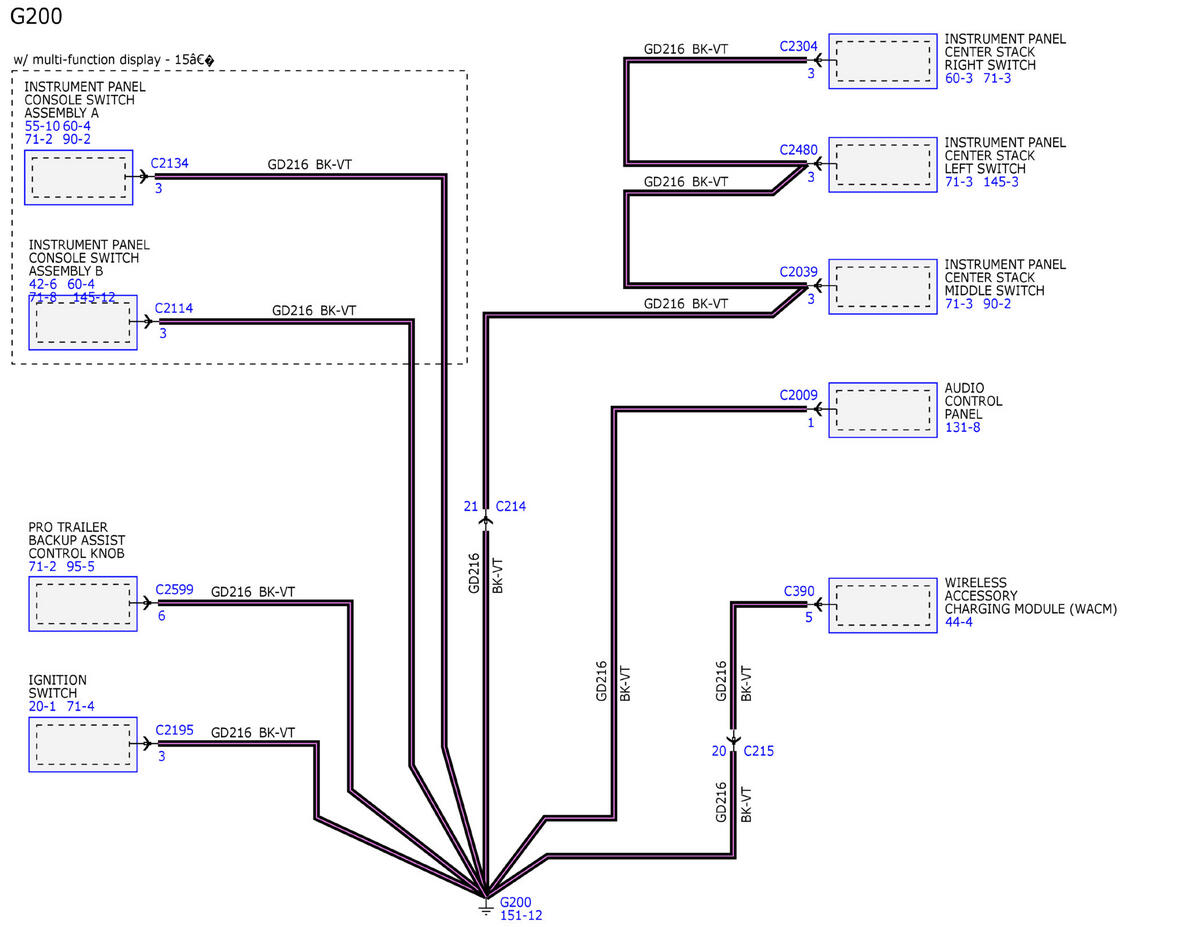

GFDWR228853Courtesy of FORD MOTOR COMPANY

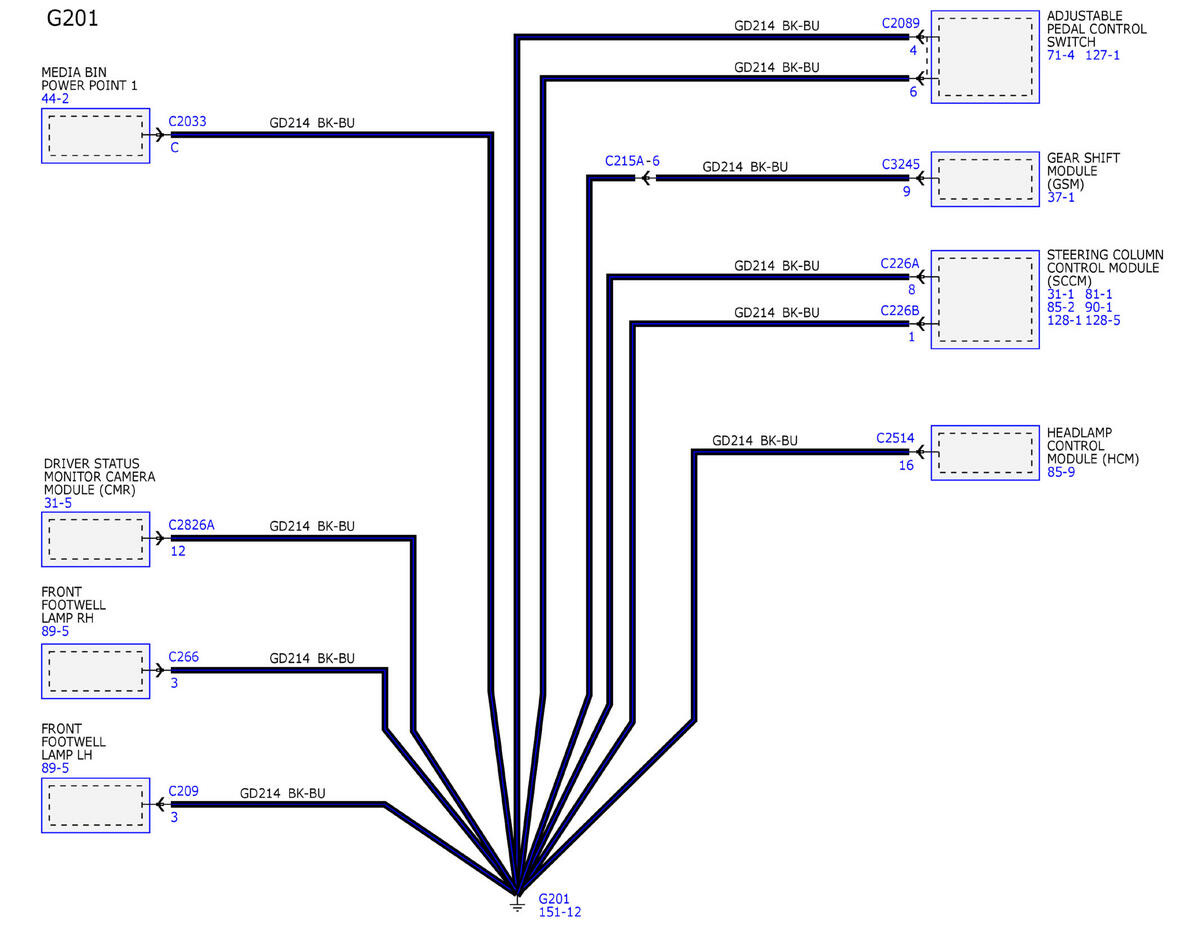

GFDWR228854Courtesy of FORD MOTOR COMPANY

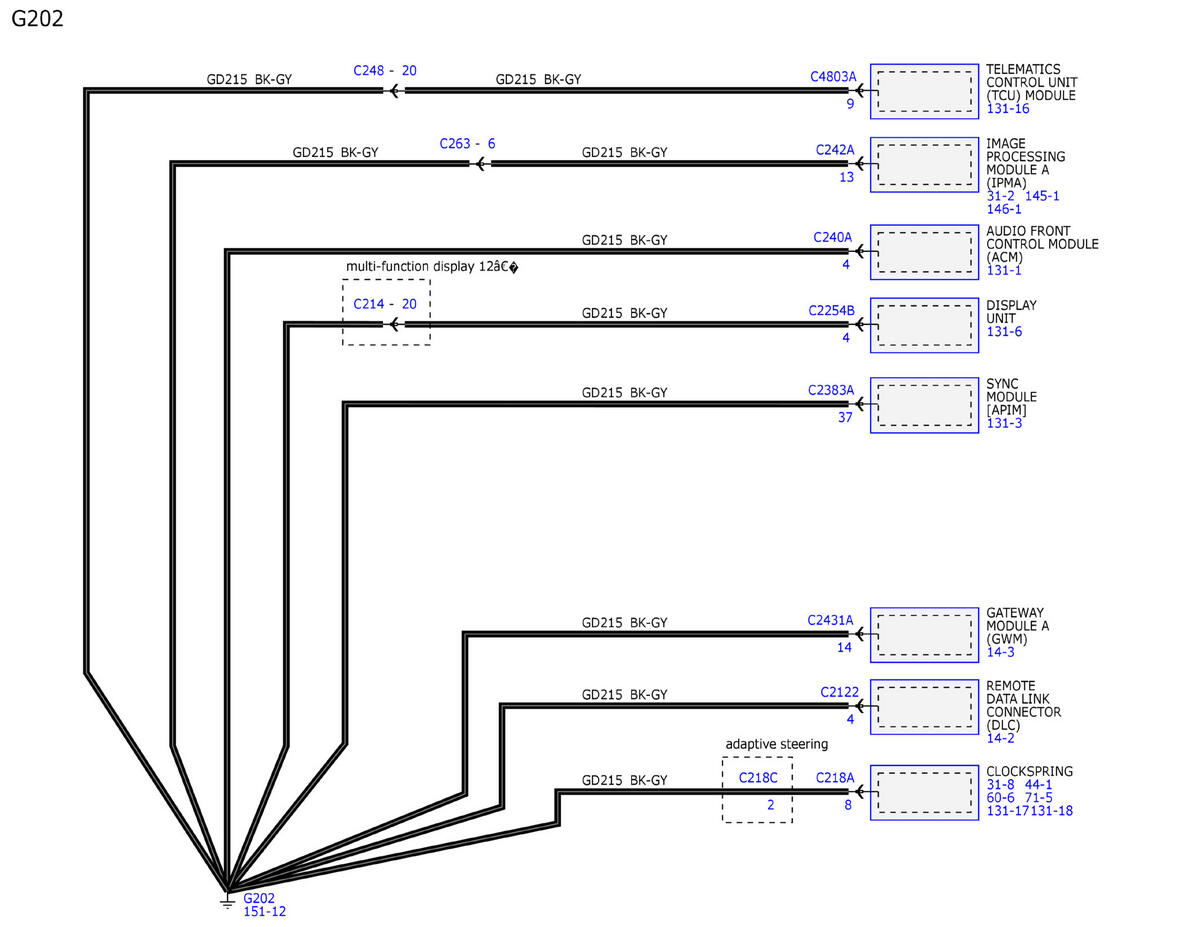

GFDWR228855Courtesy of FORD MOTOR COMPANY
