Ford
›
2024
›
F-150 Lightning Pro
›
Repair and Diagnosis
›
Electrical
›
Component Locations
›
OEM Component Harness Location Views
›

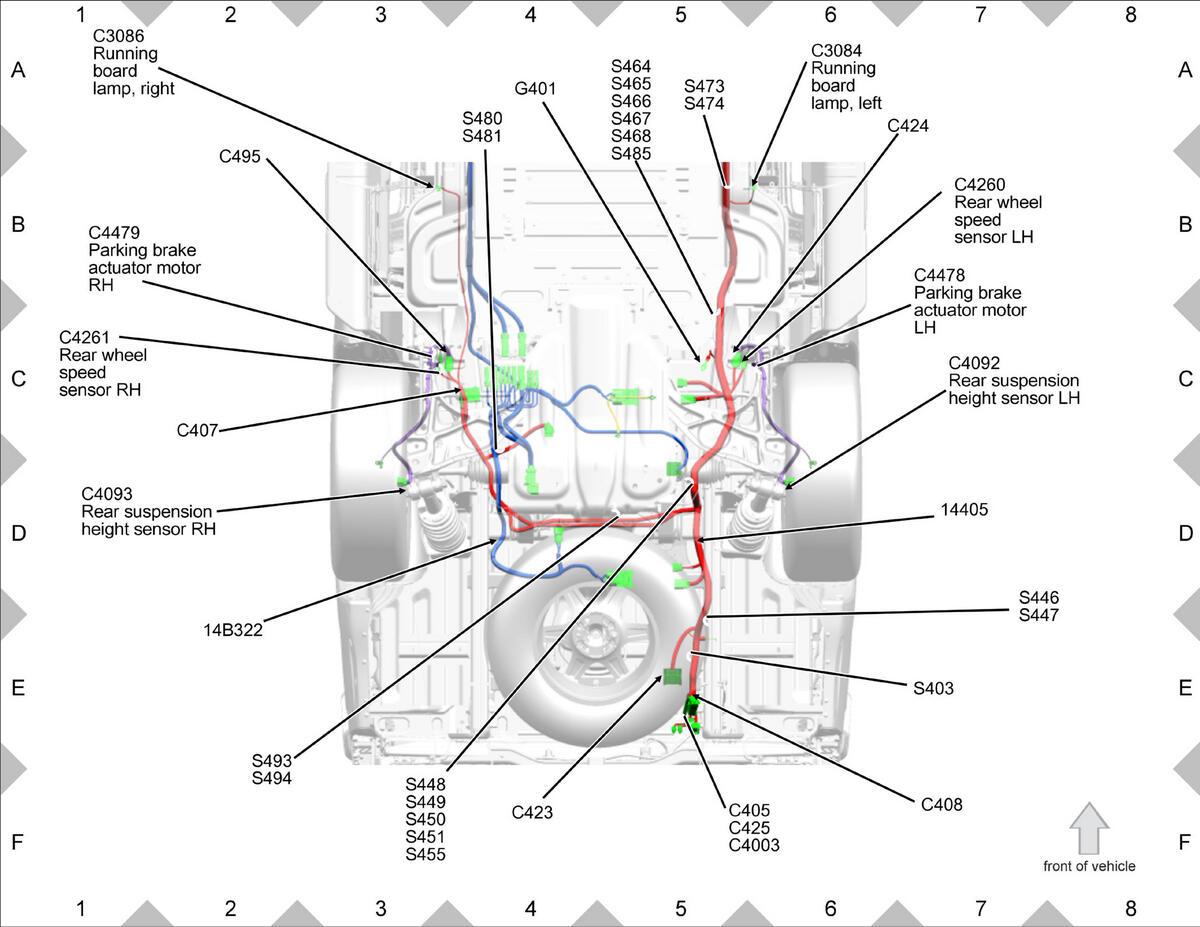

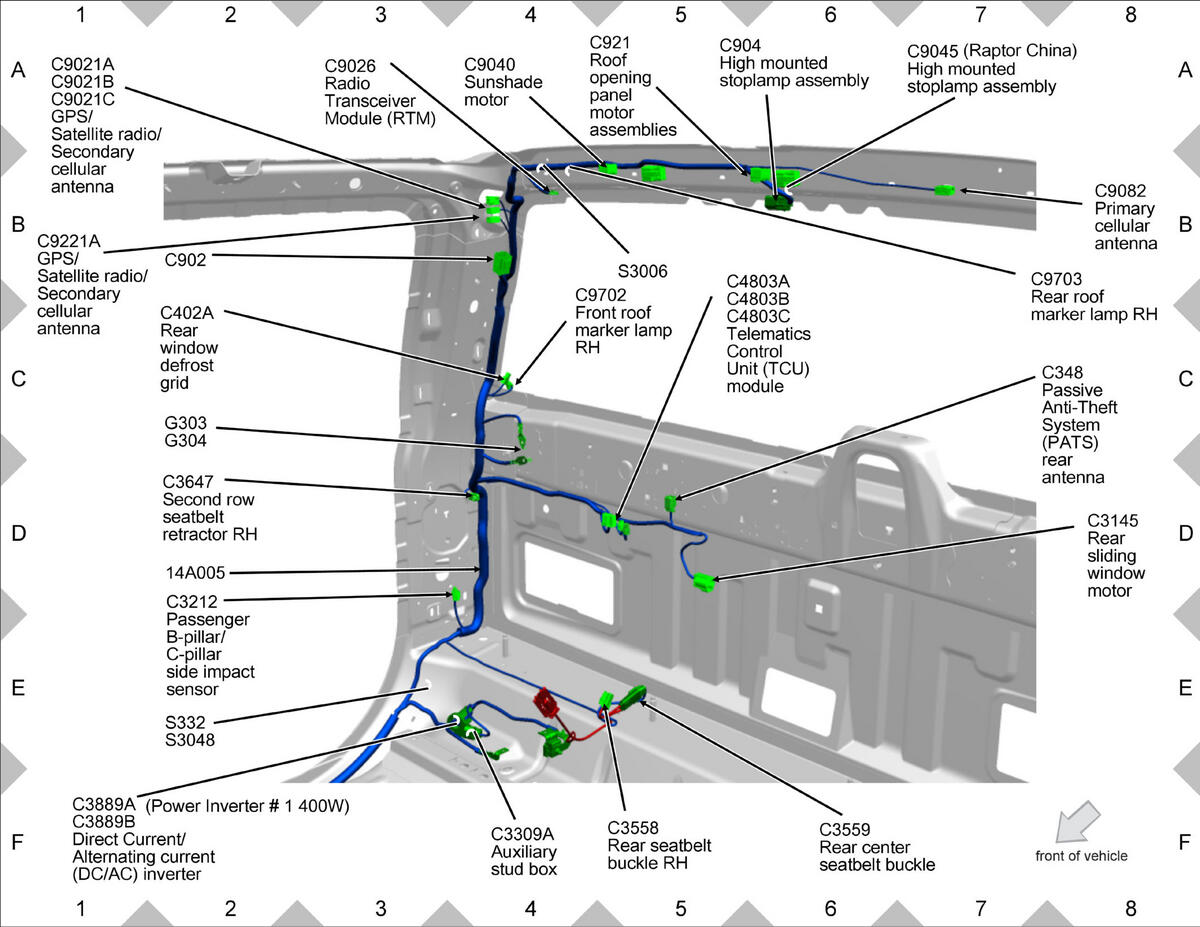

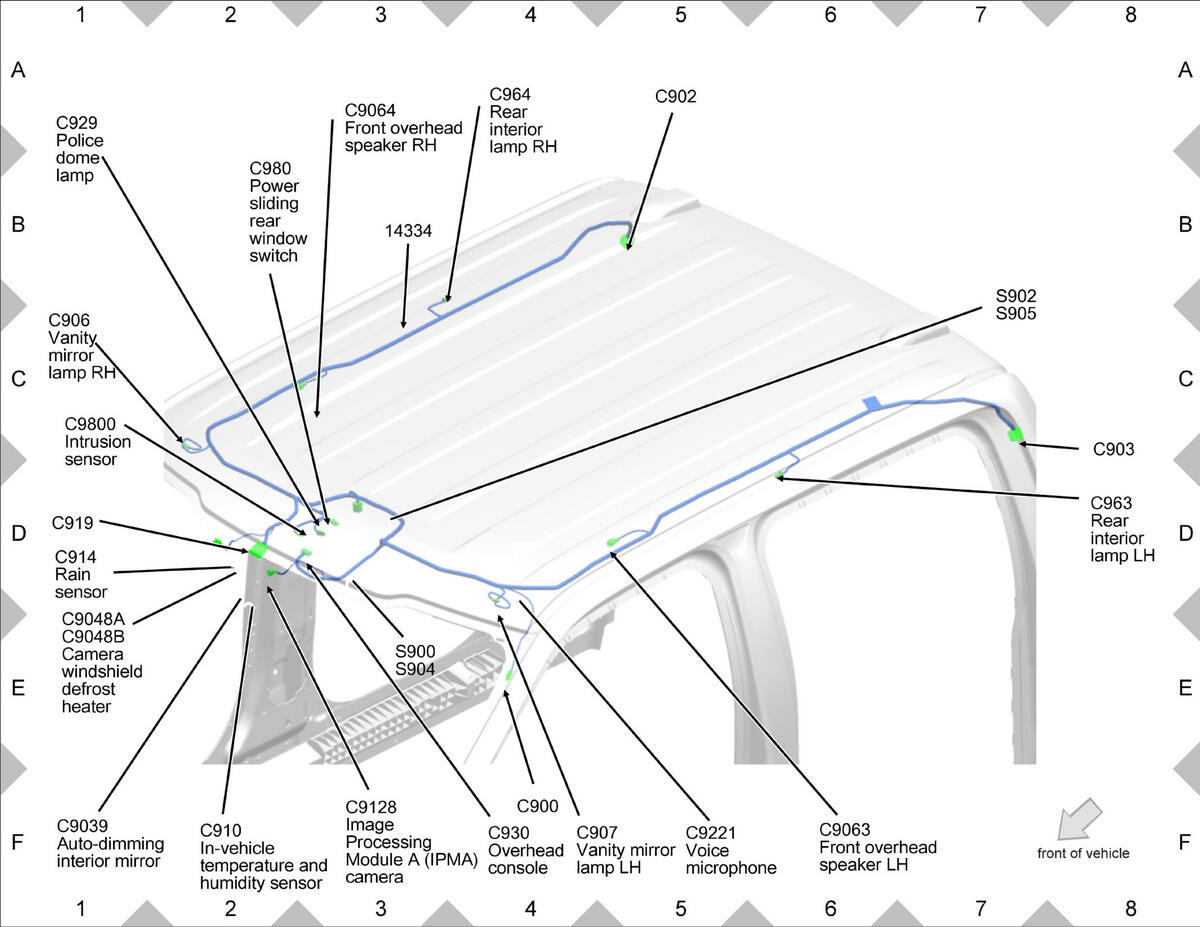

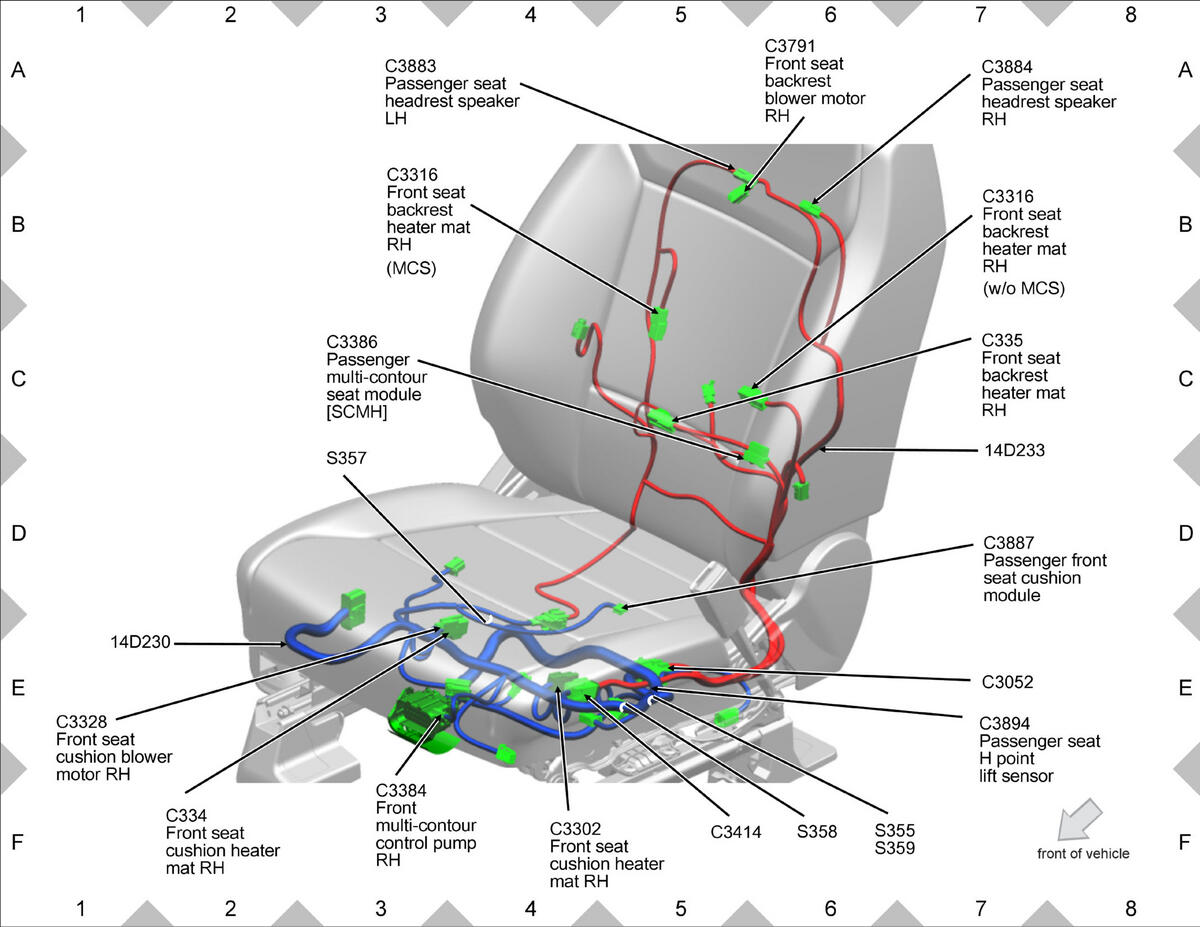

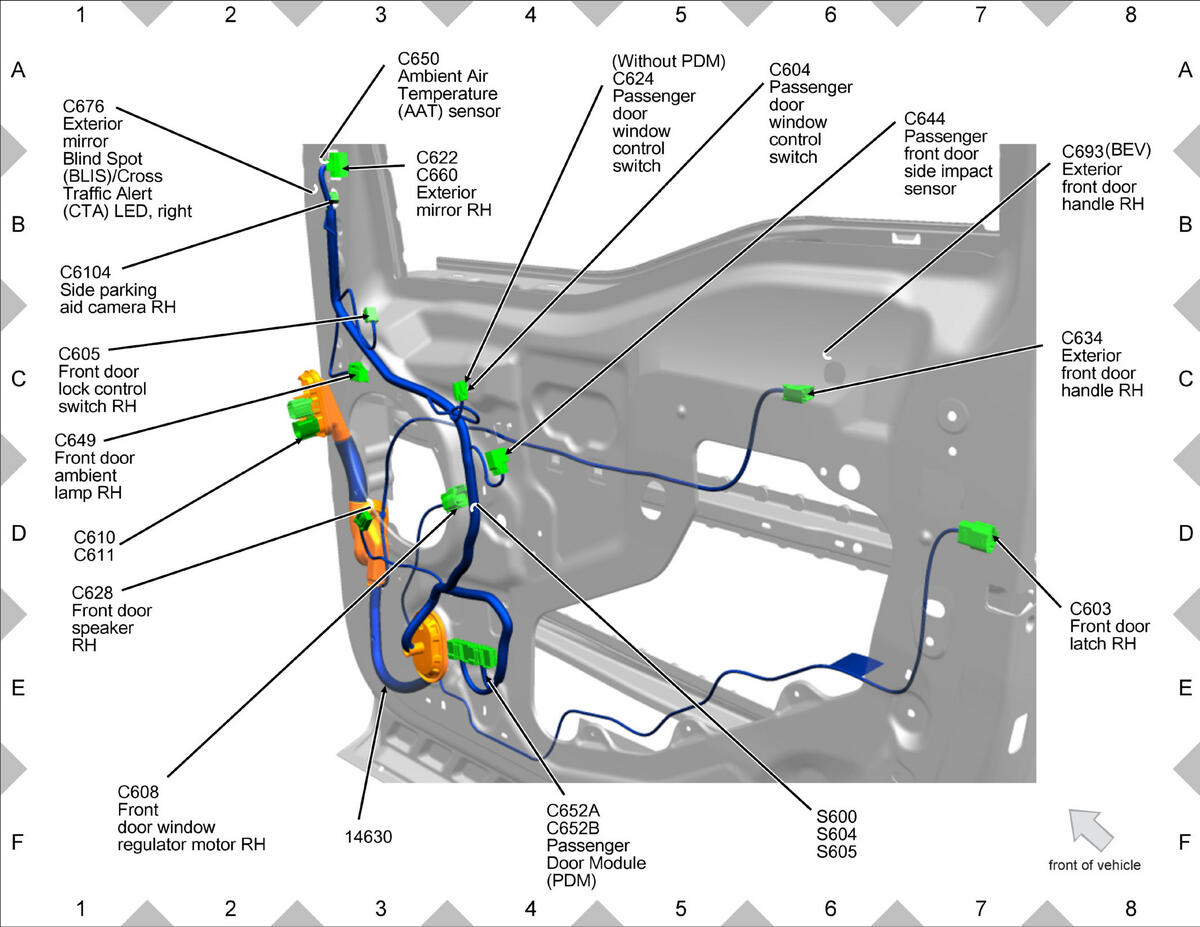

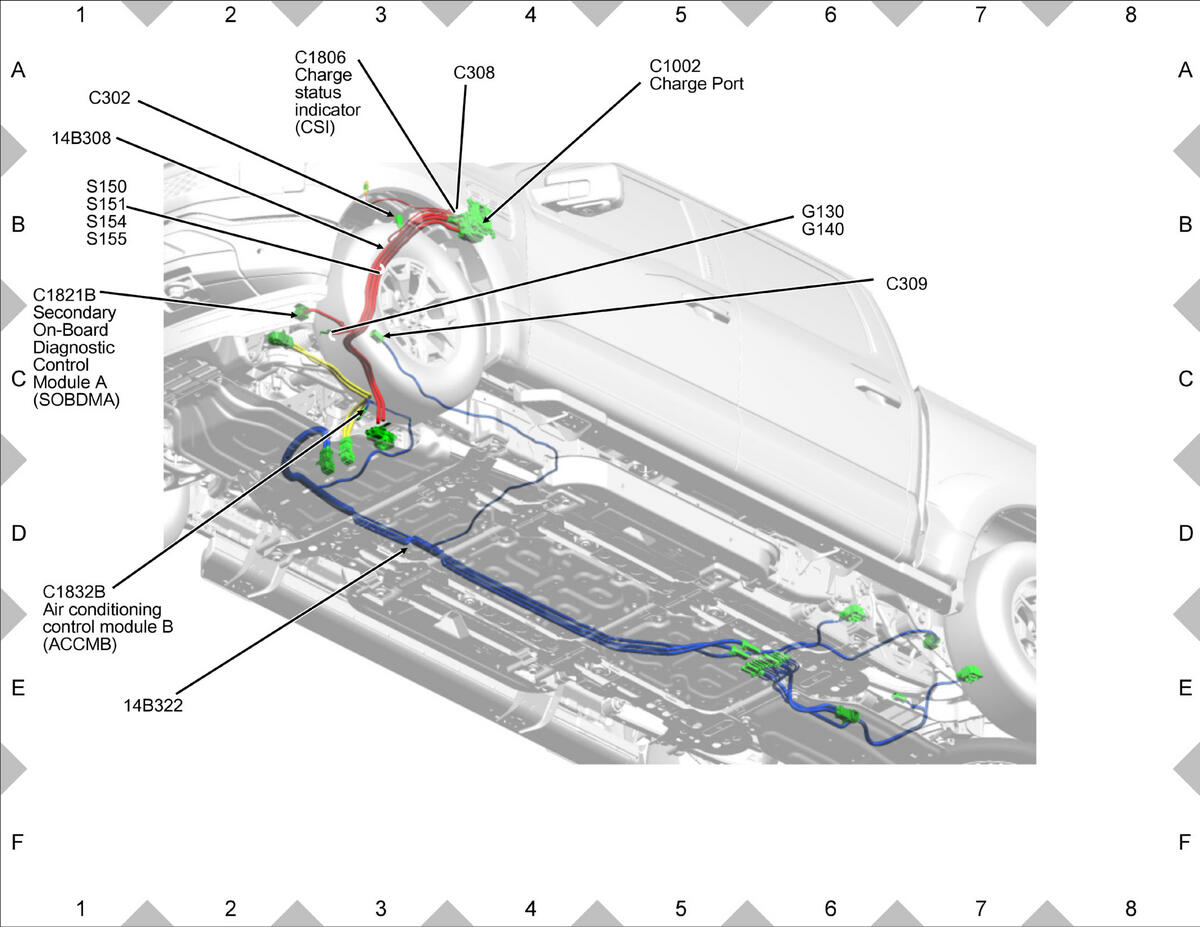

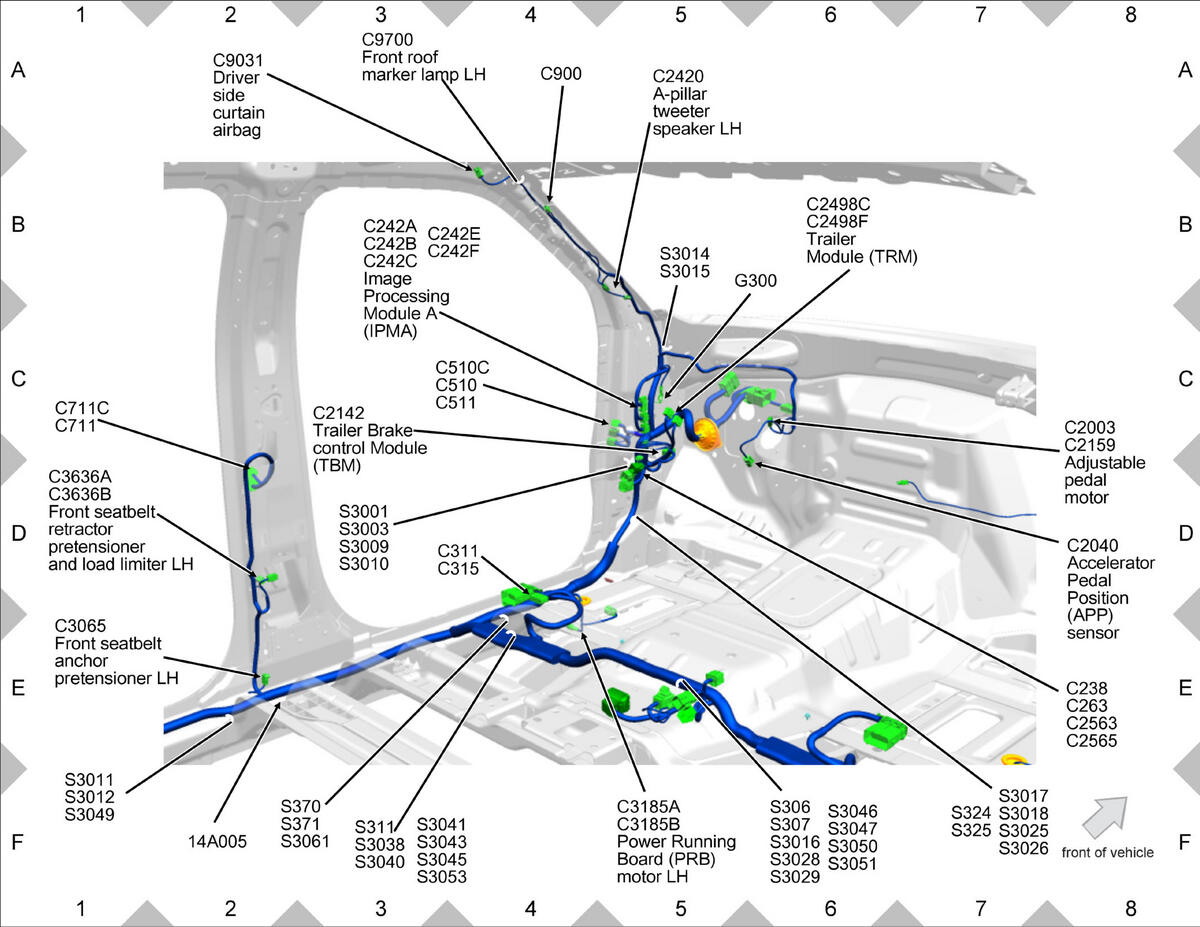

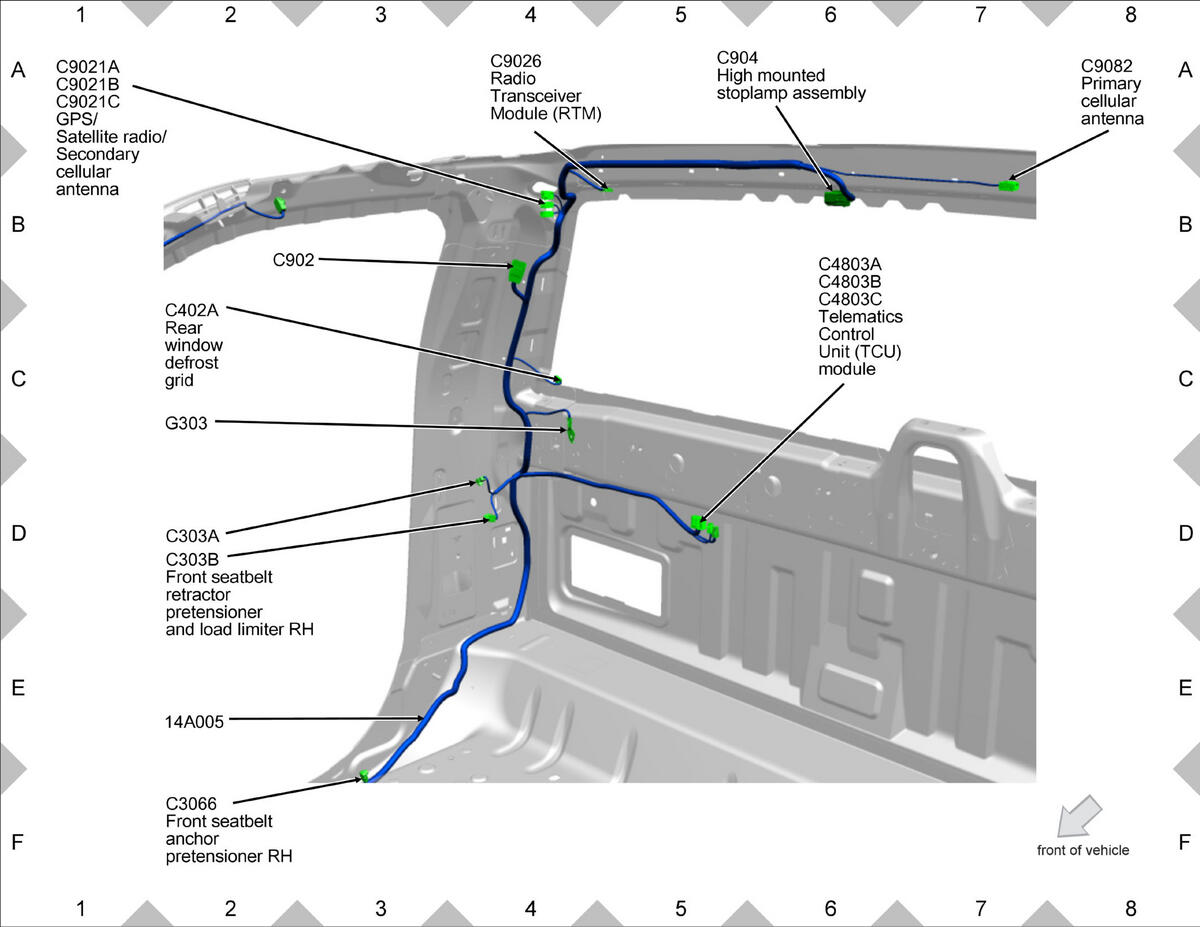

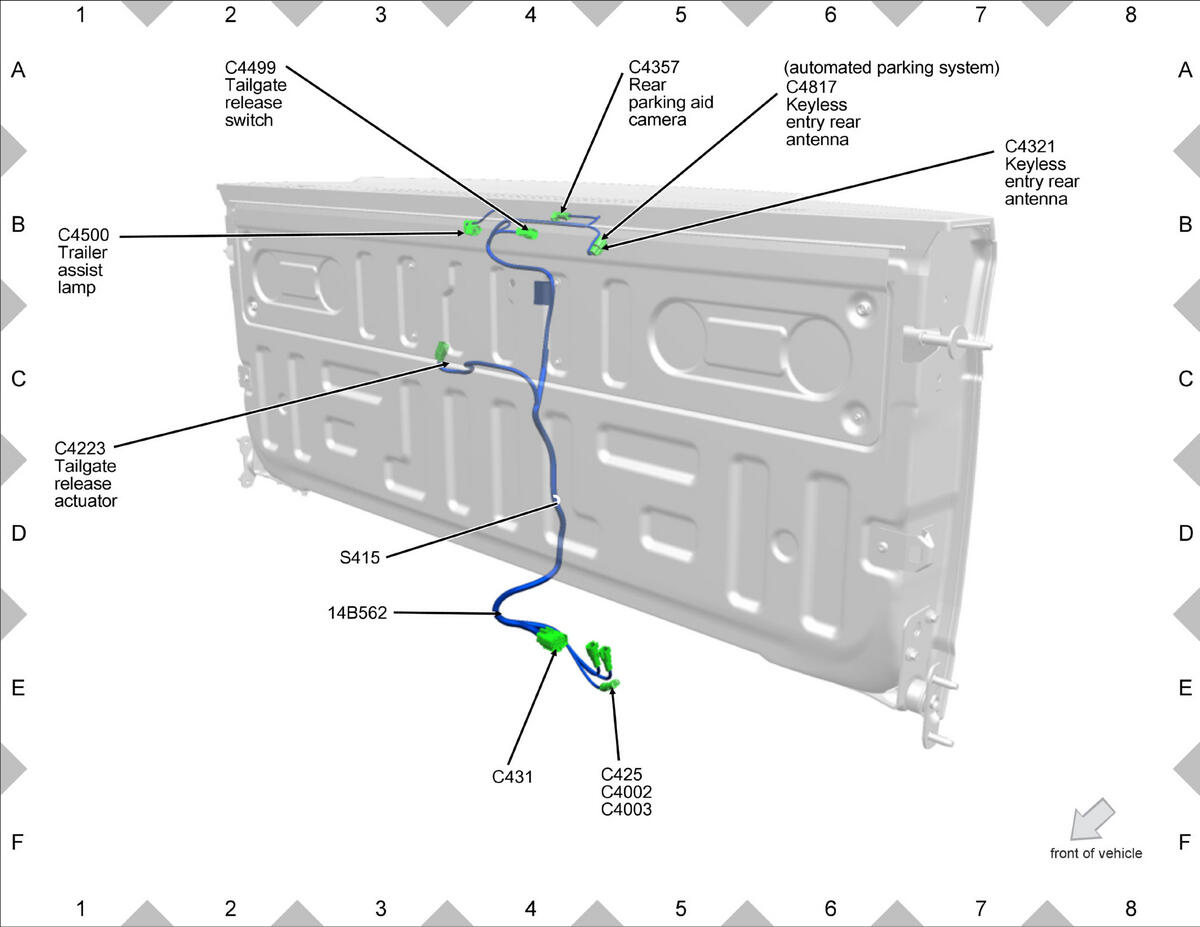

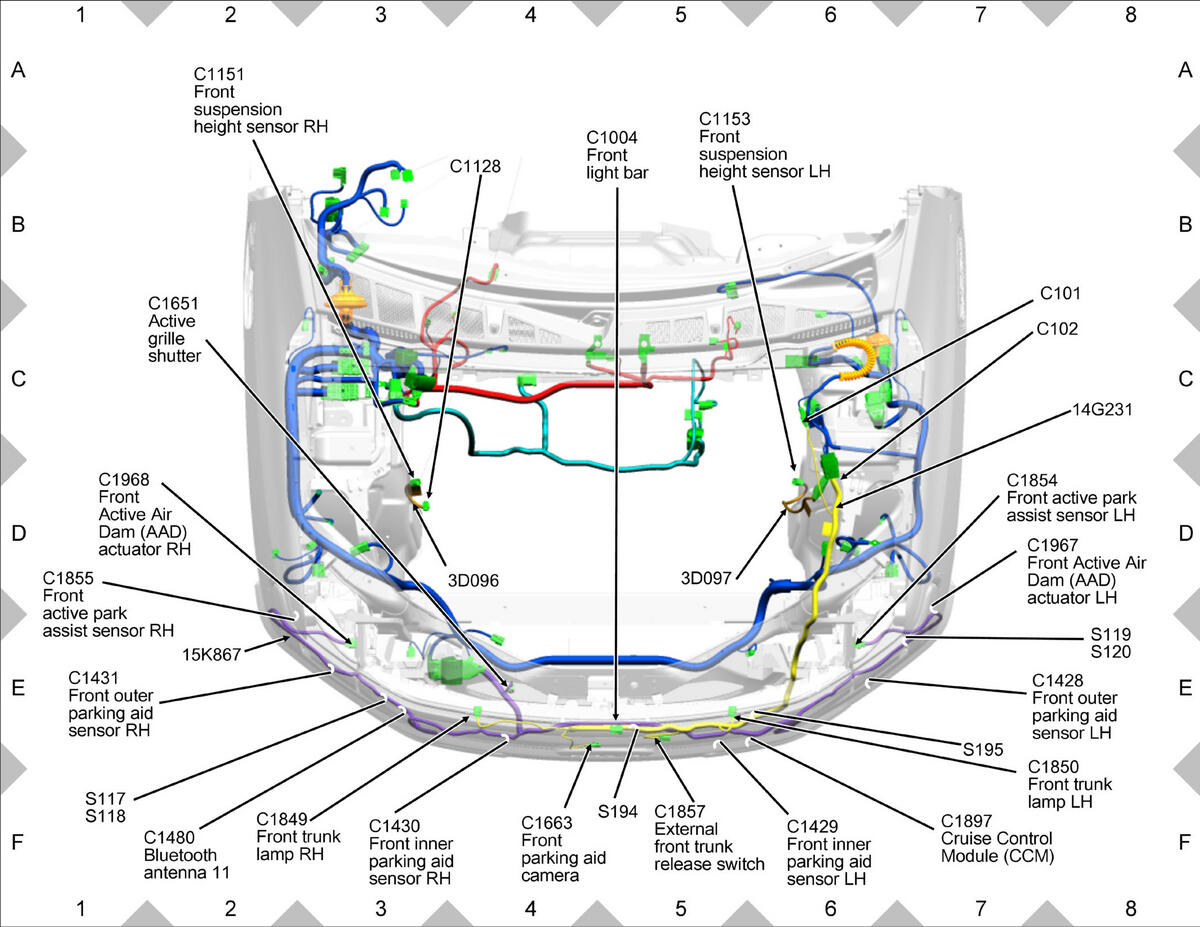

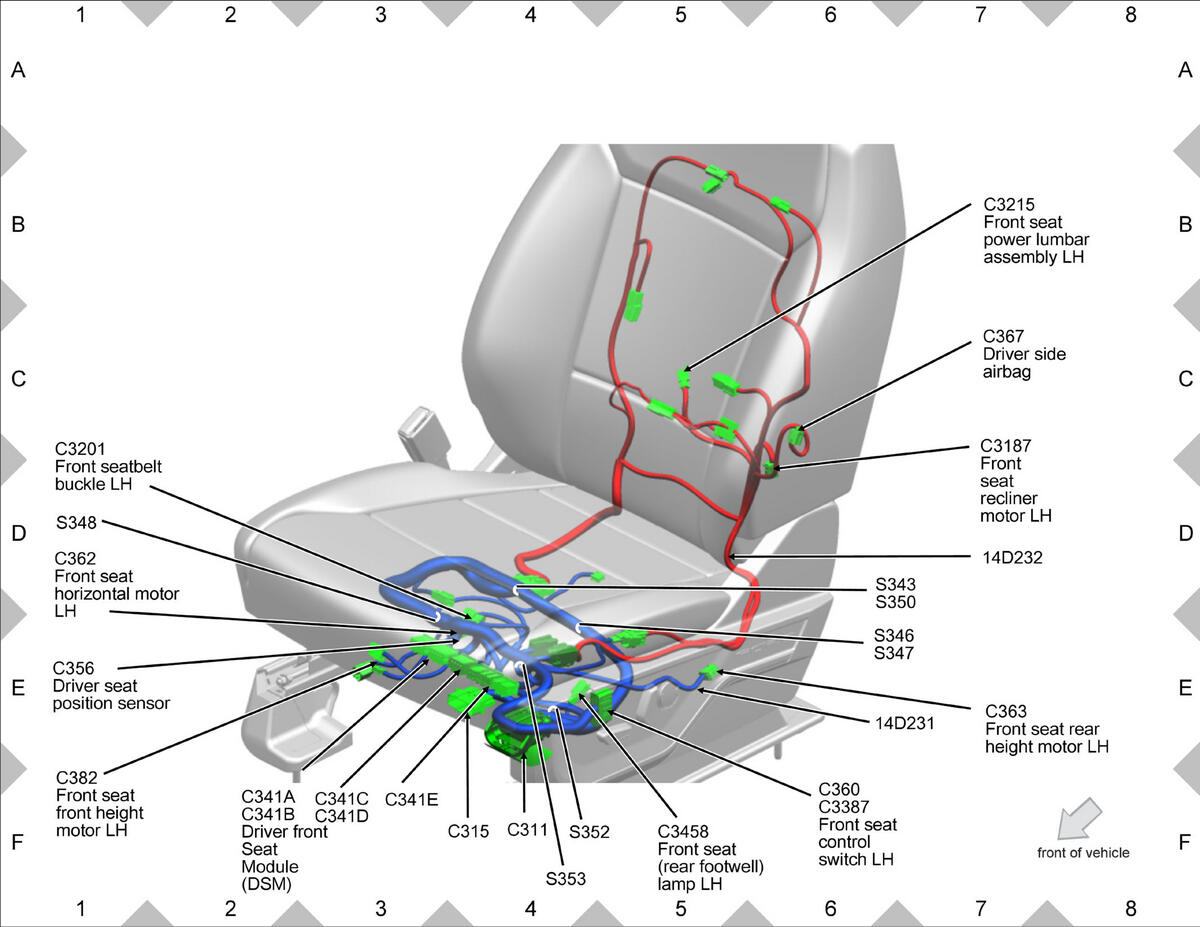

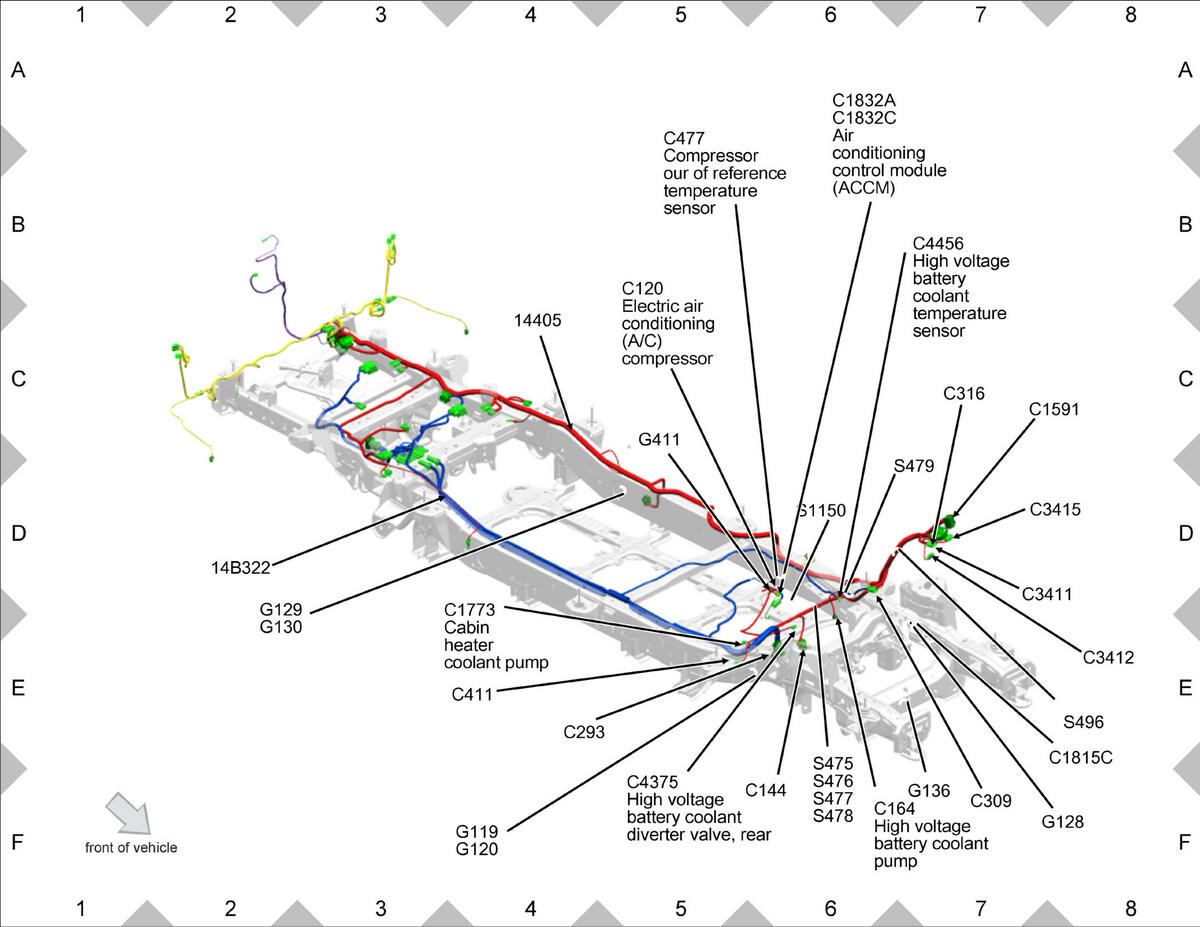

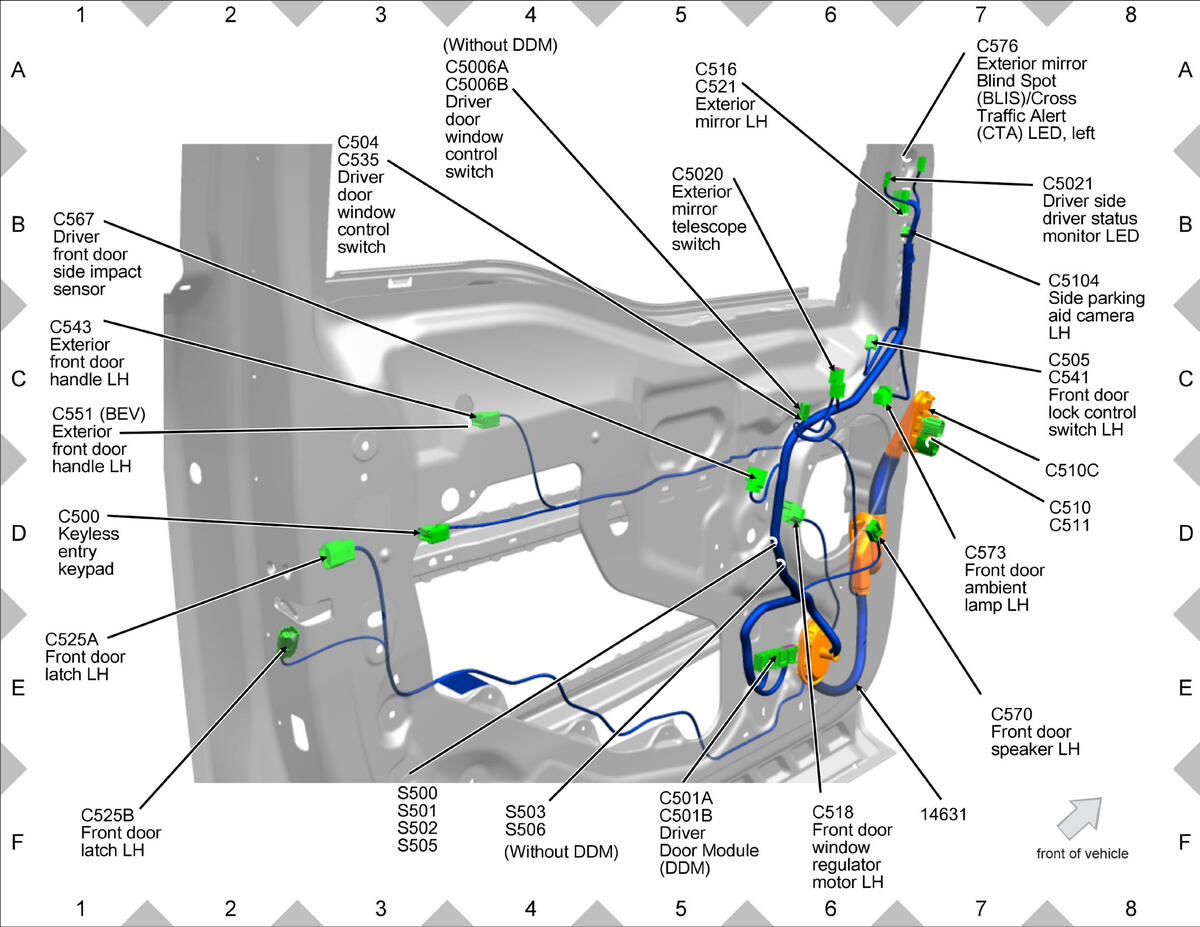

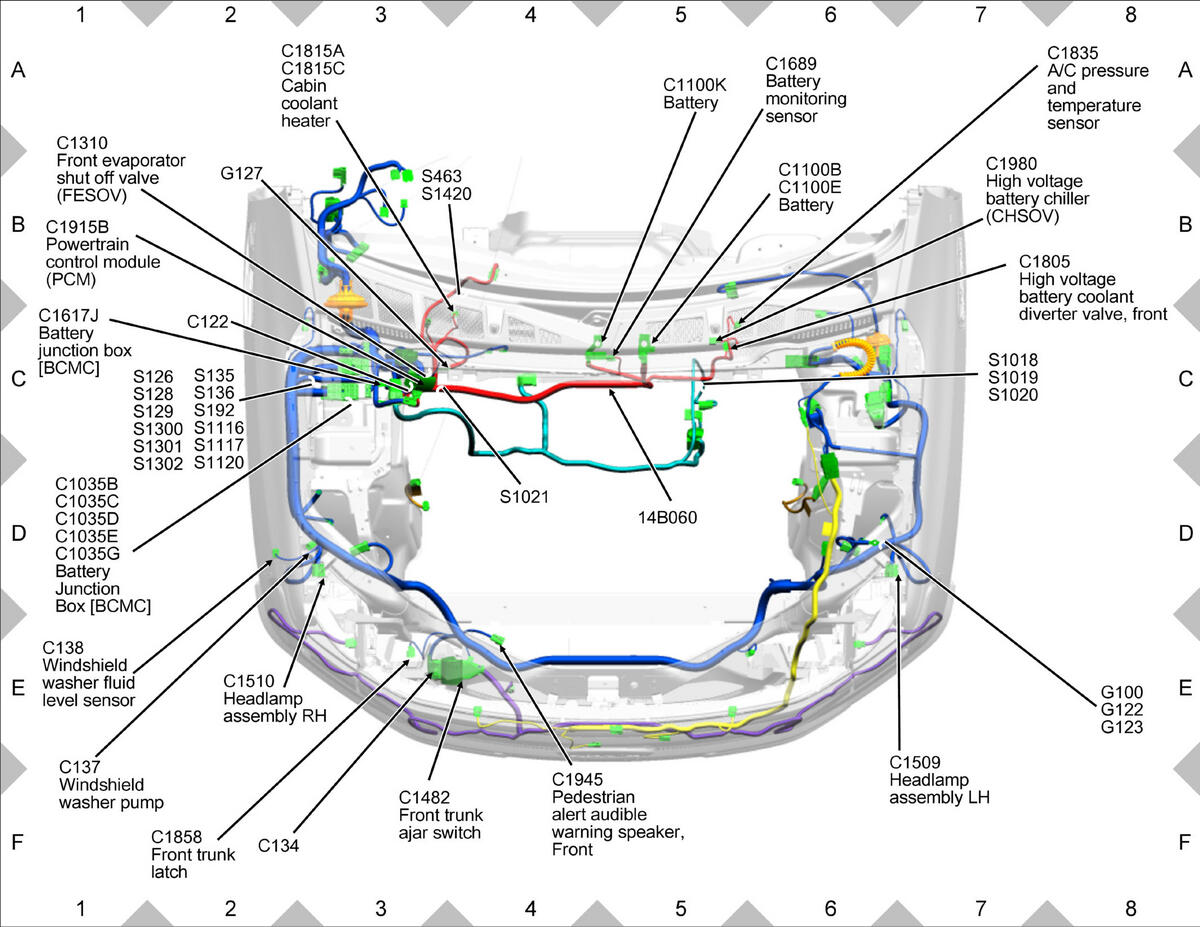

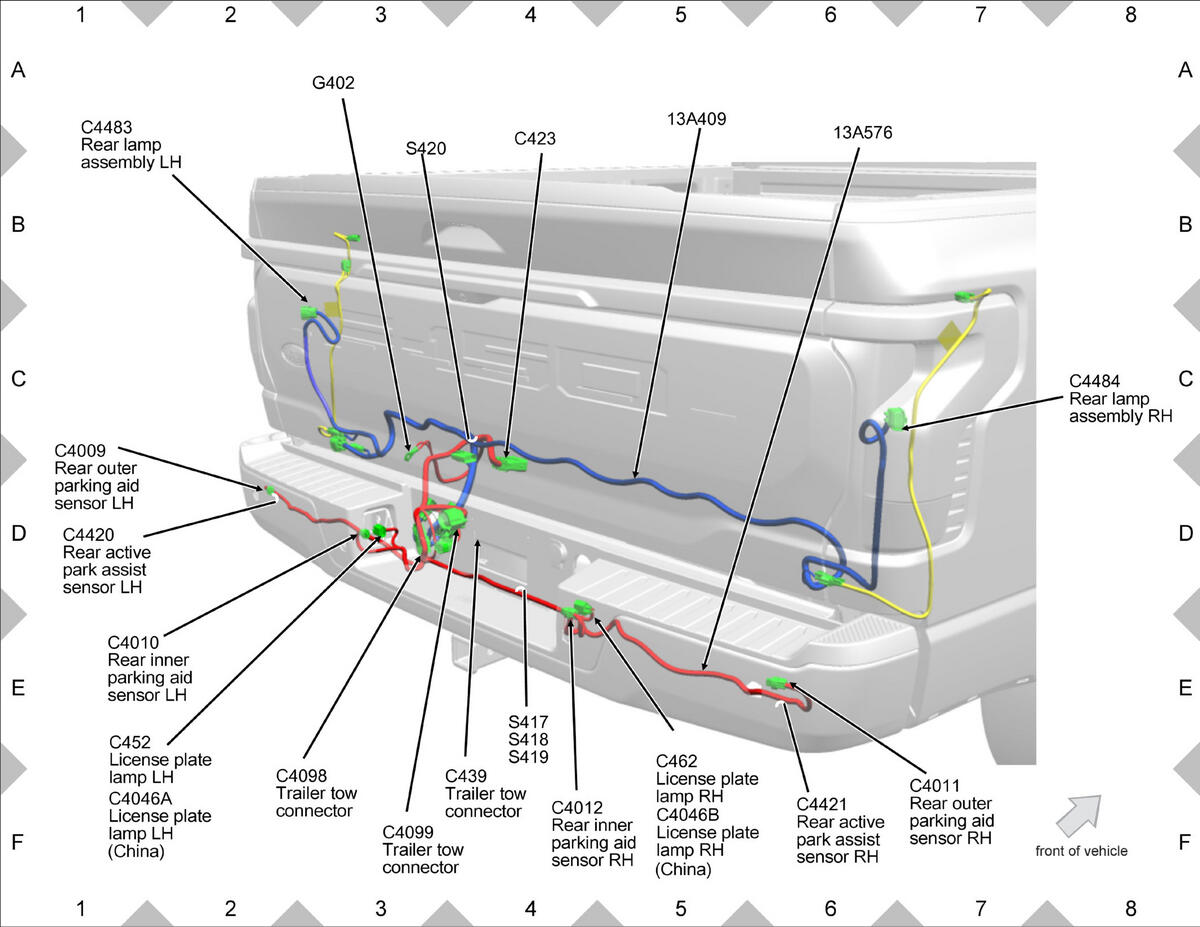

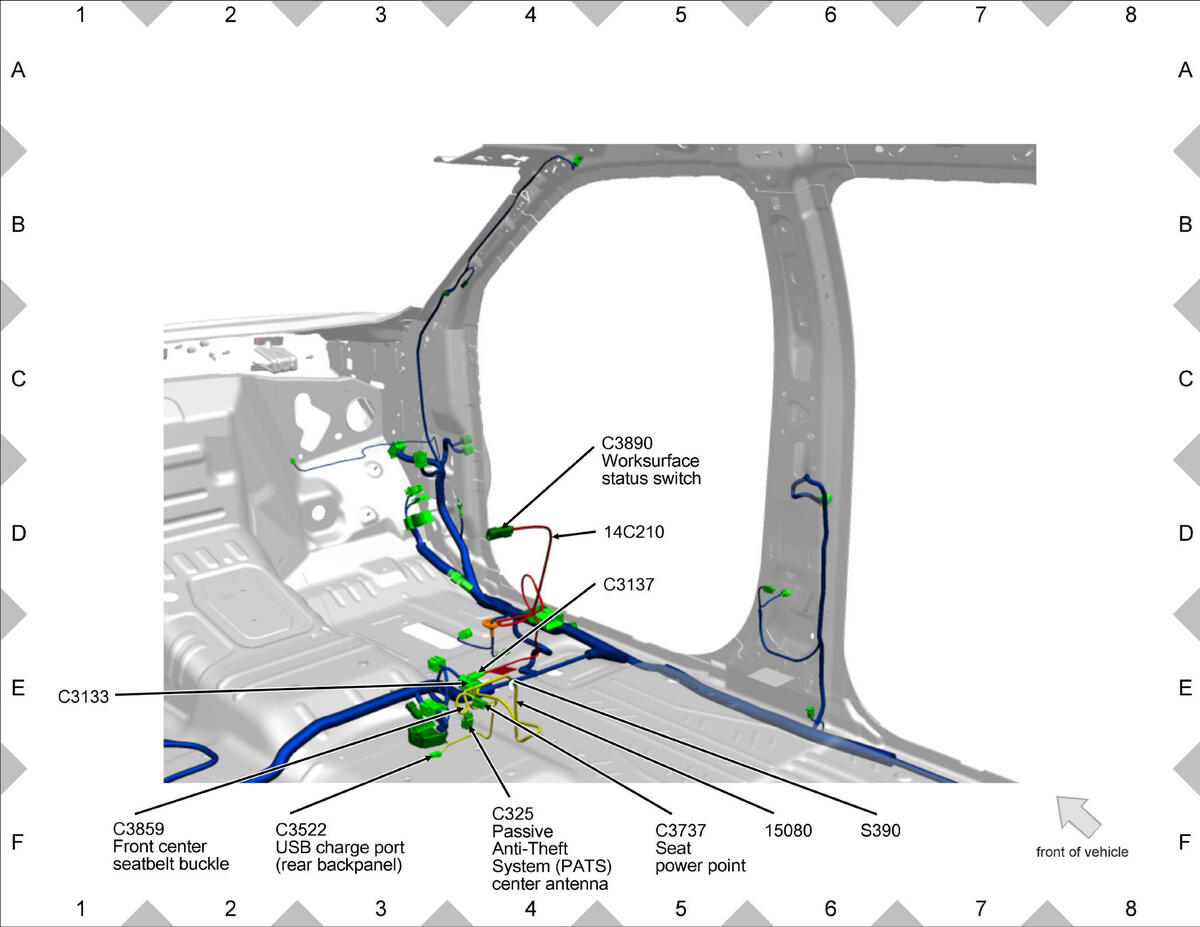

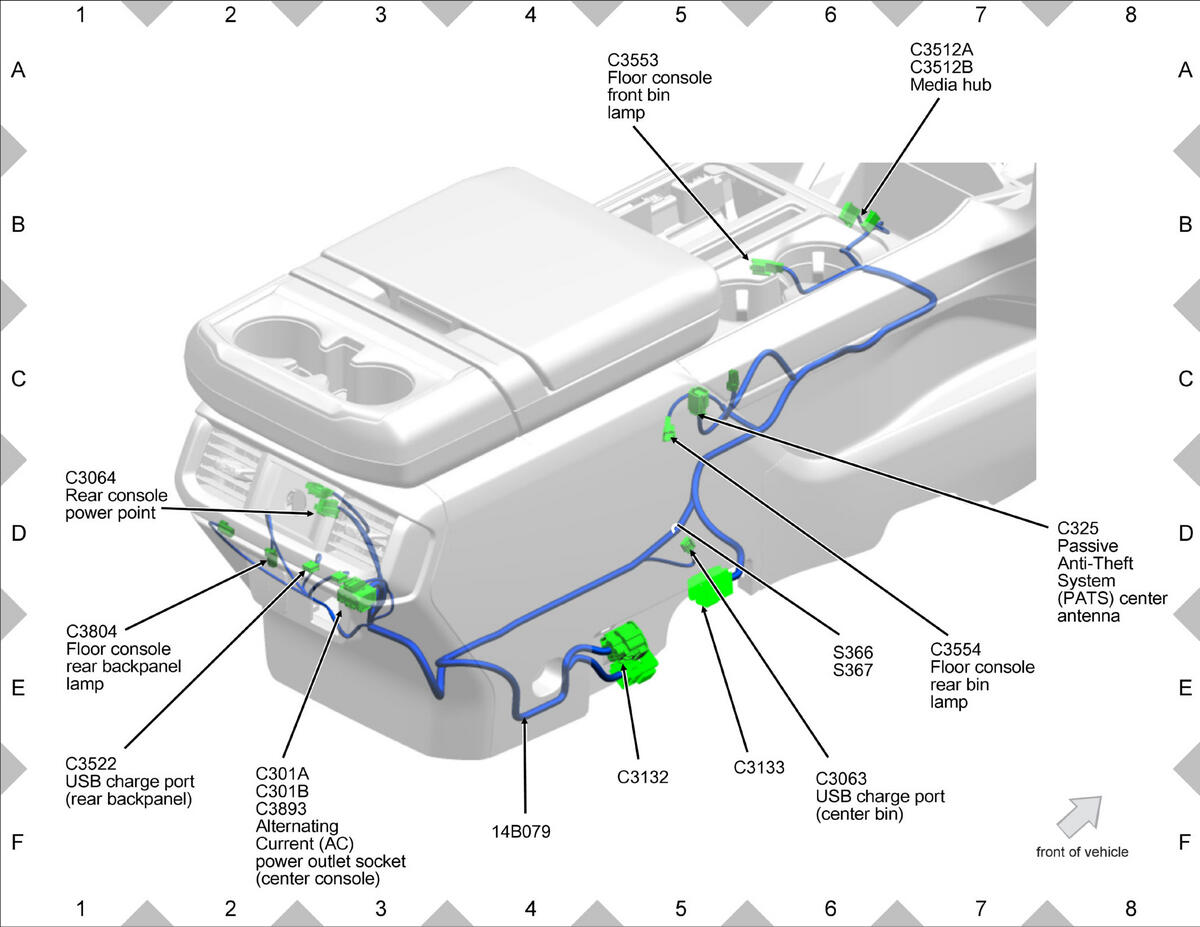

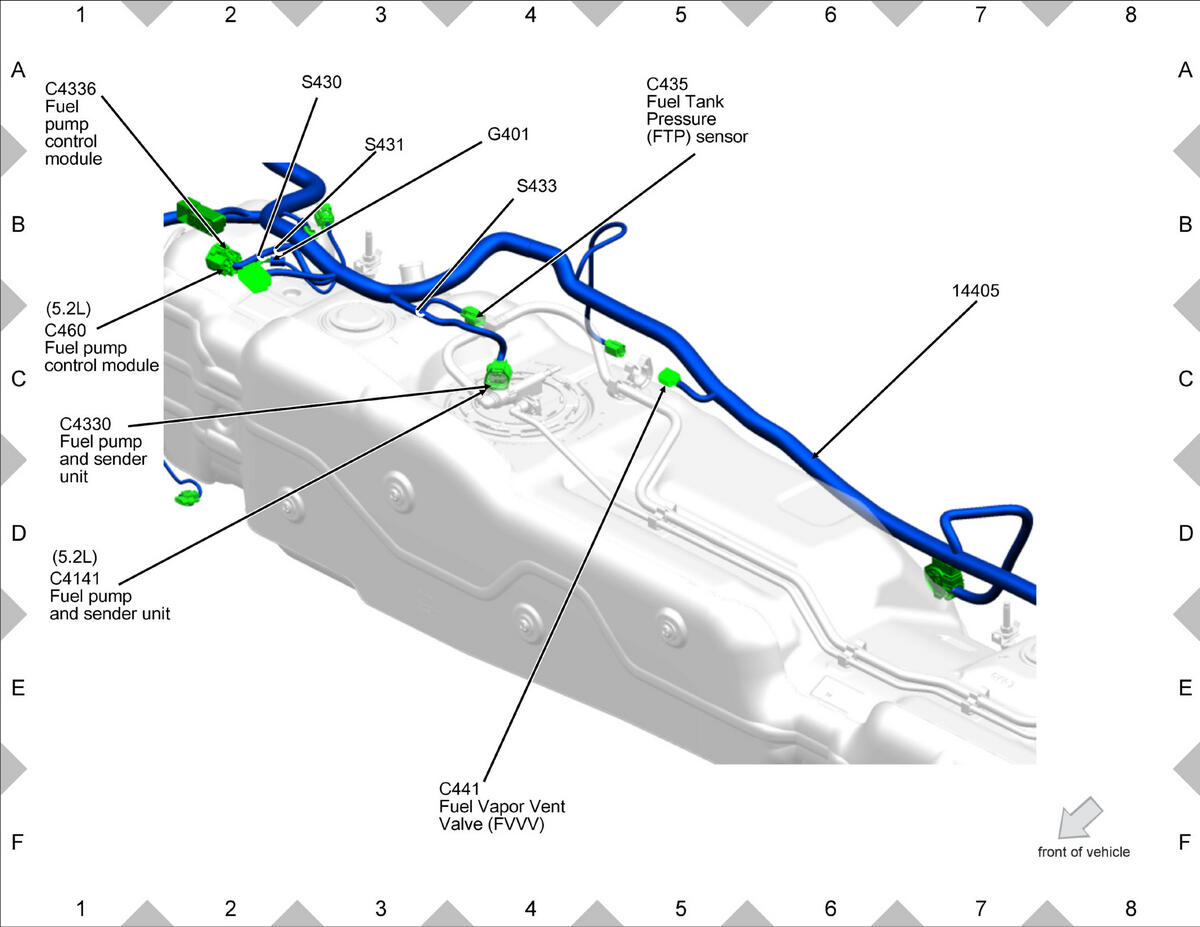

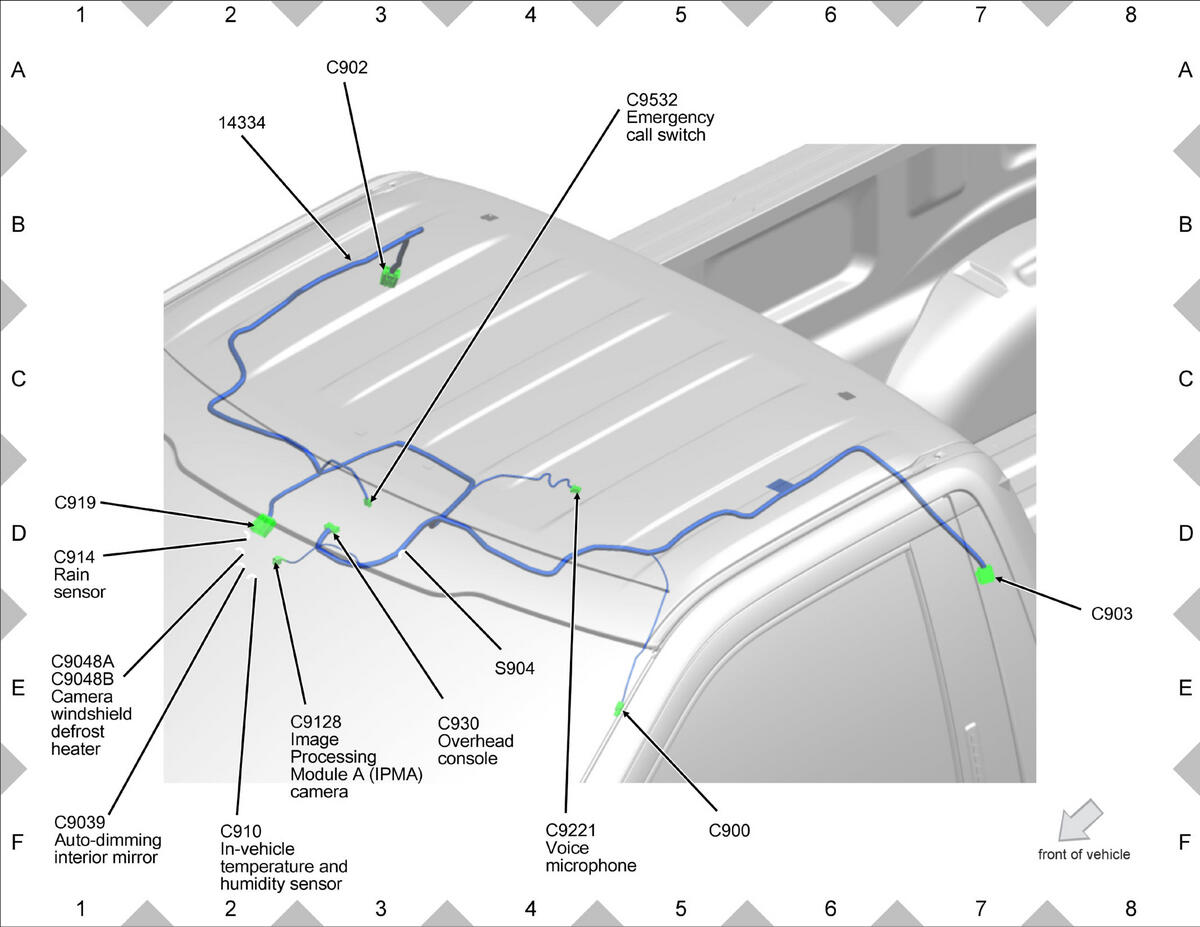

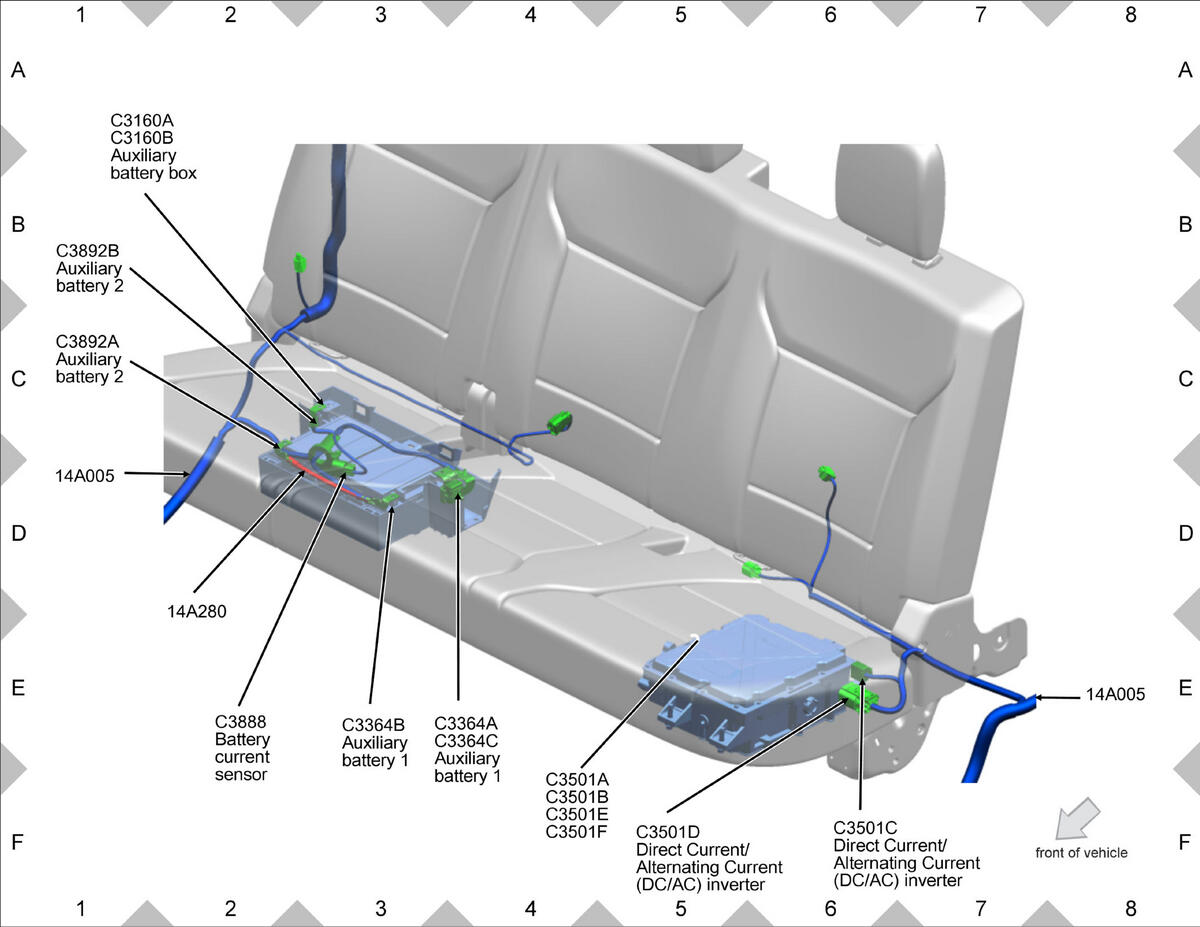

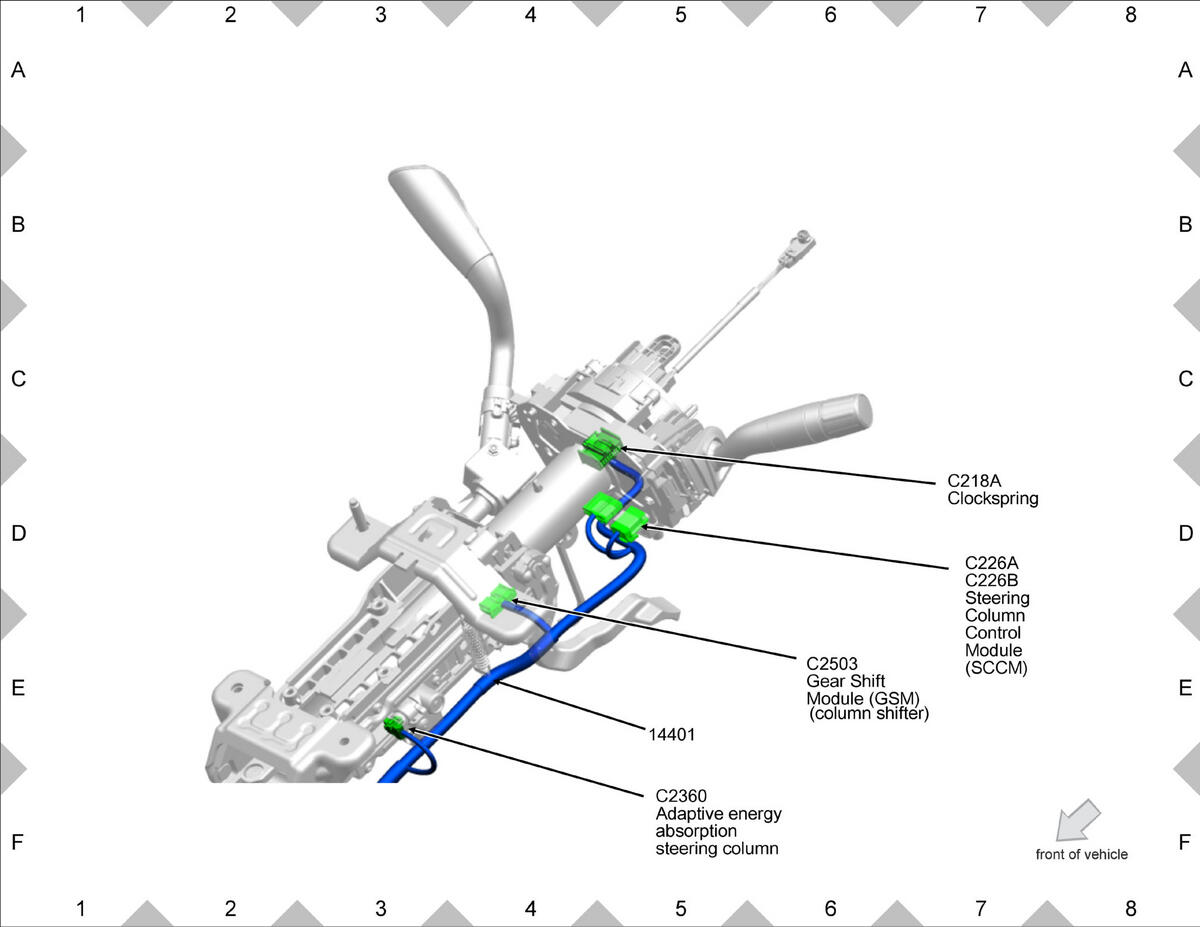

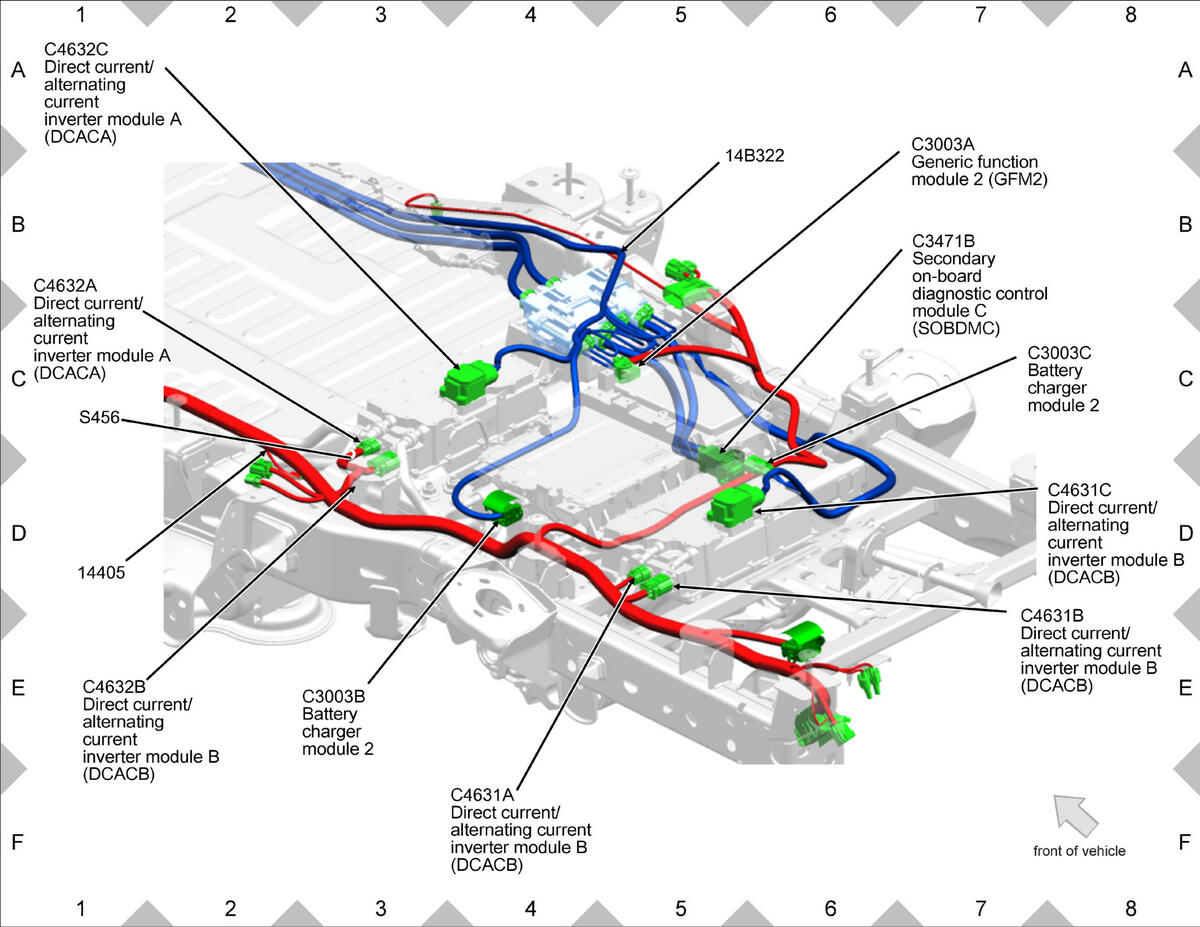

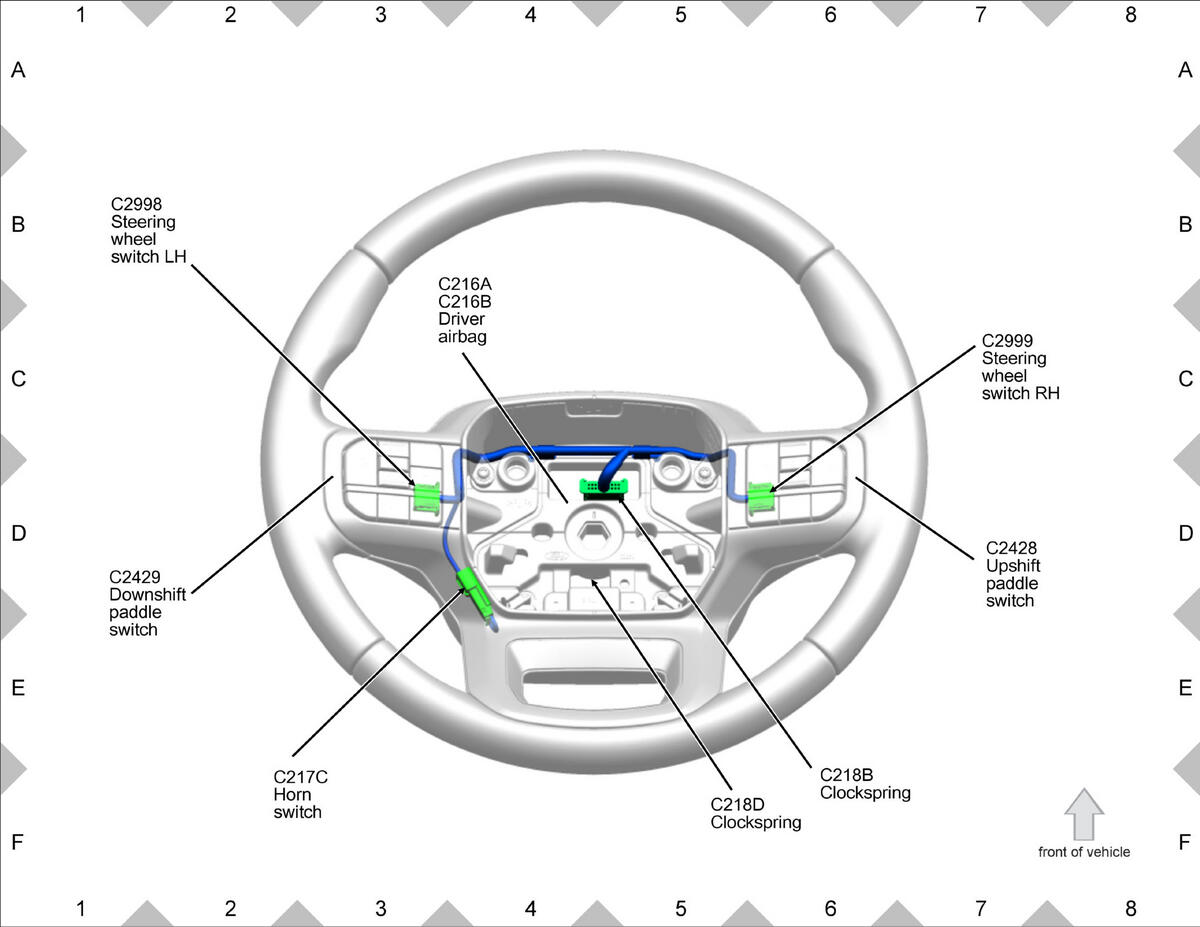

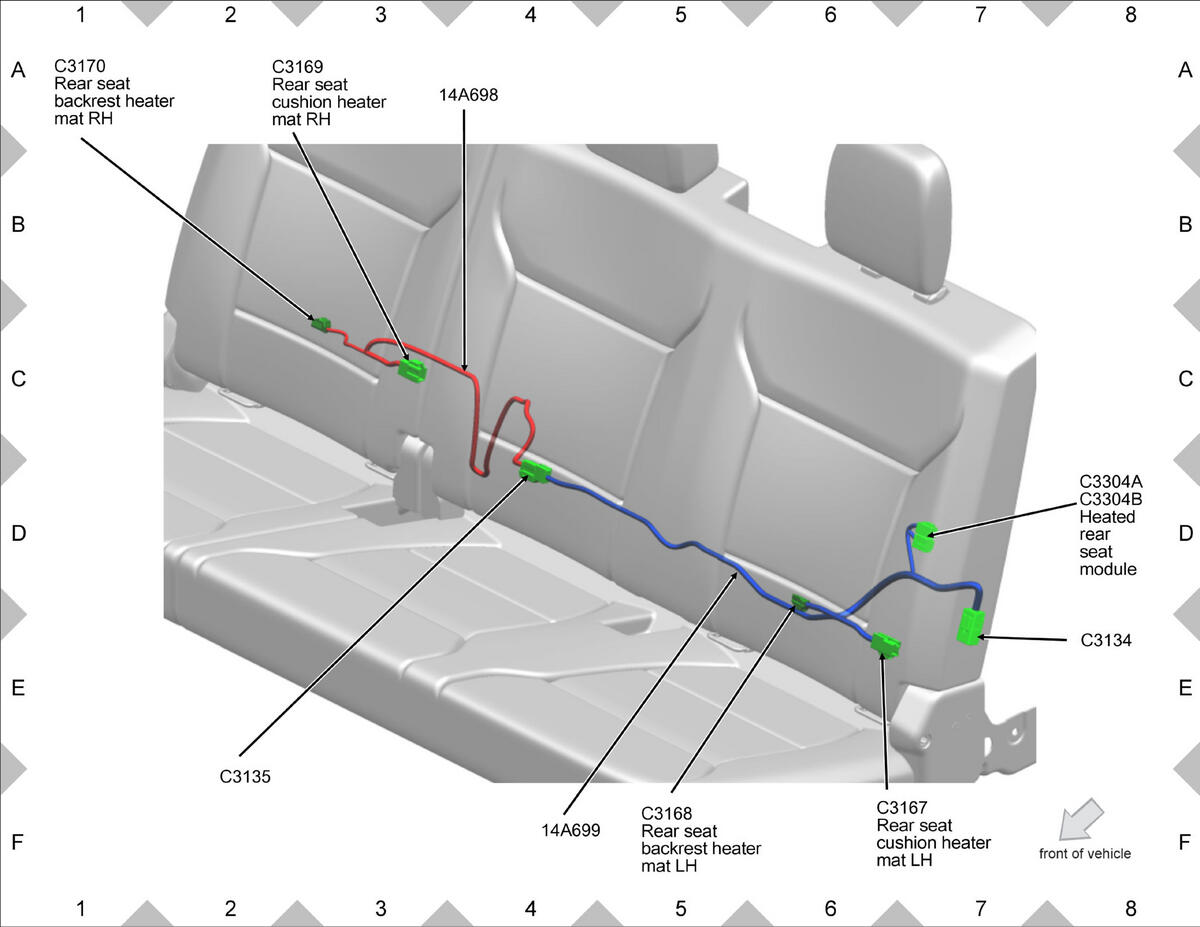

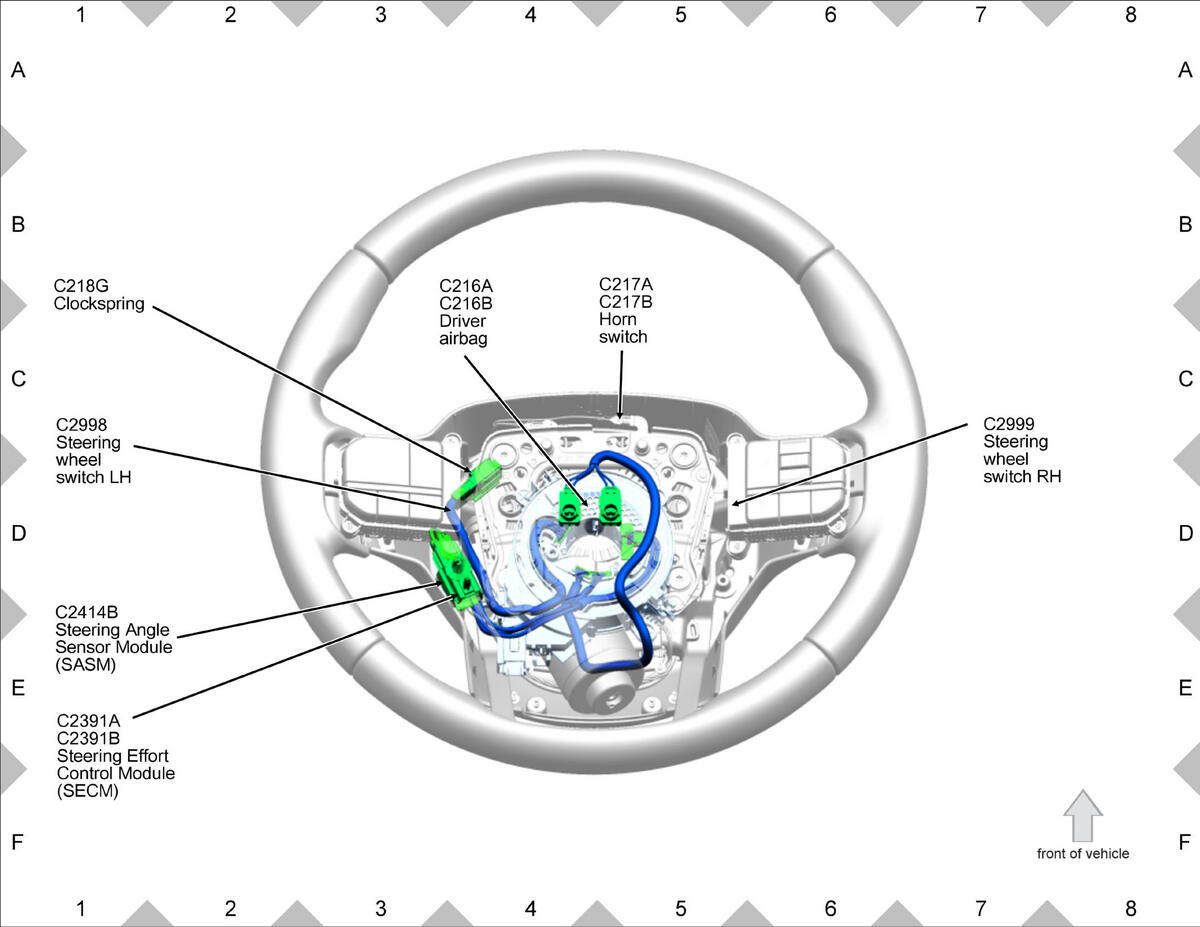

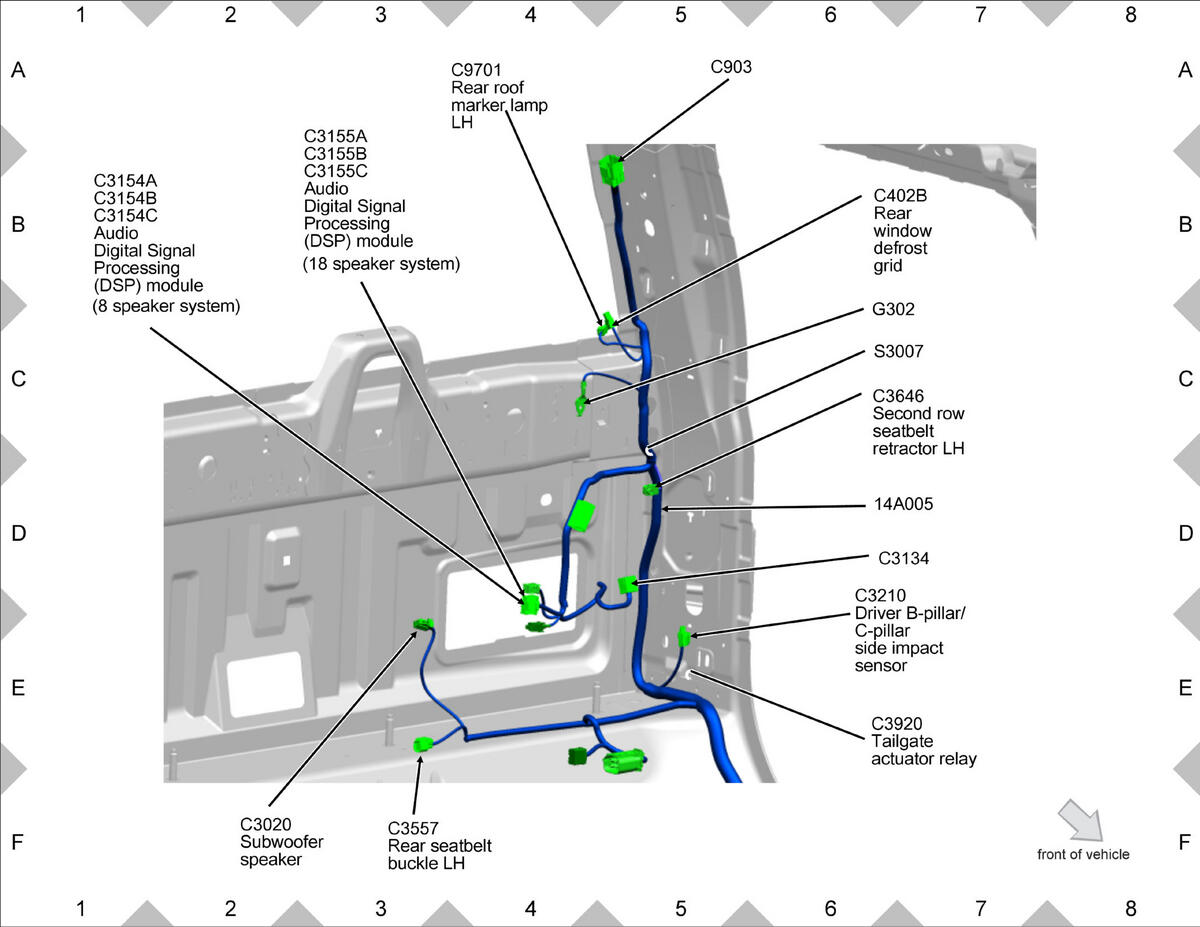

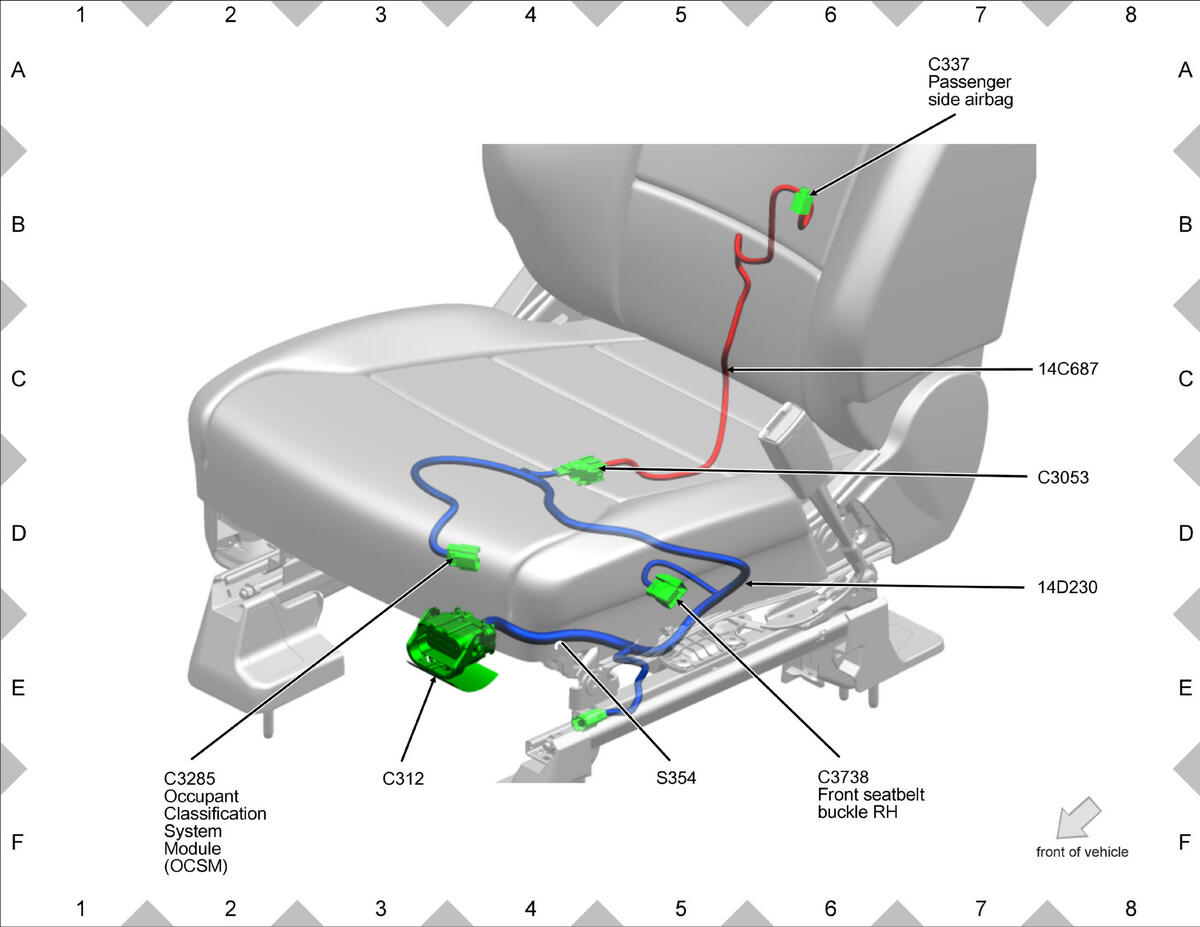

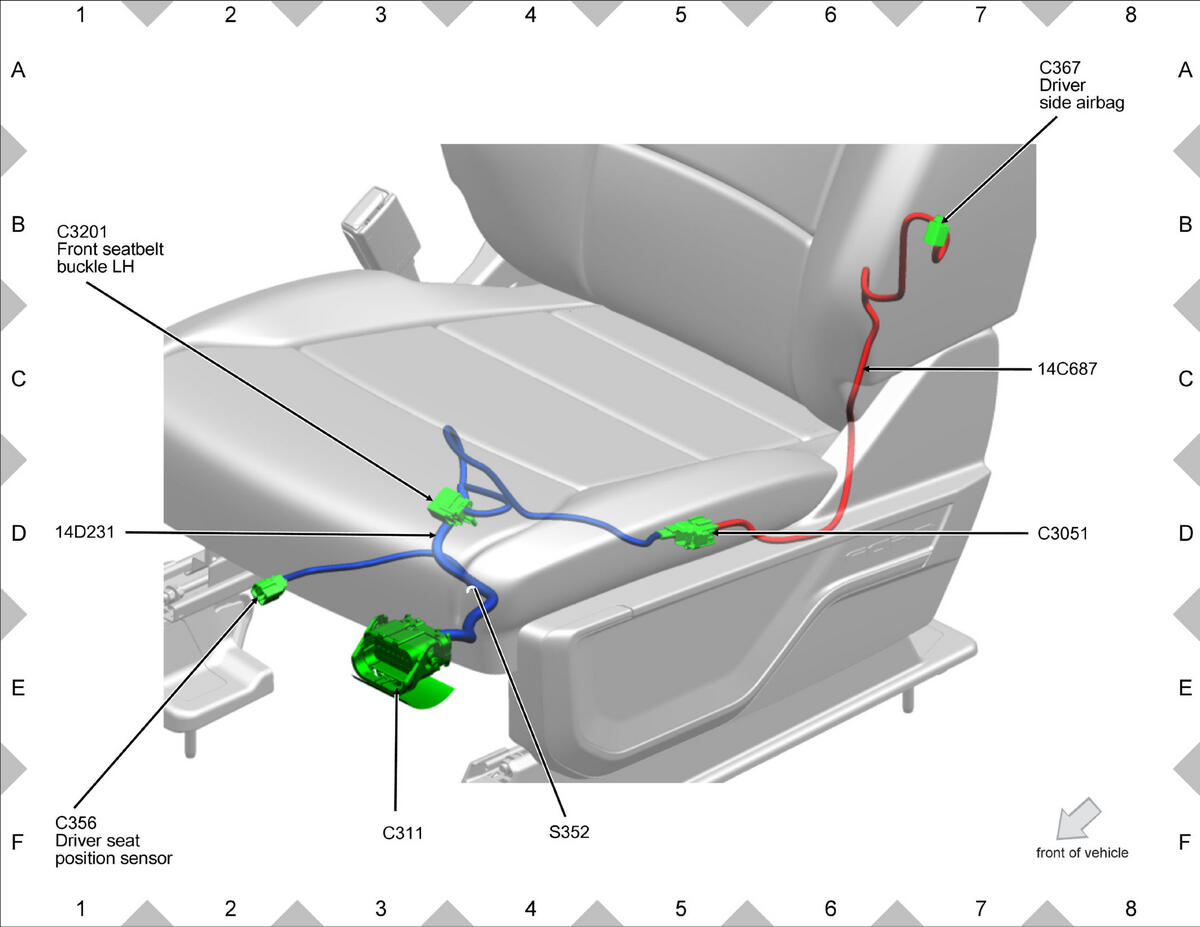

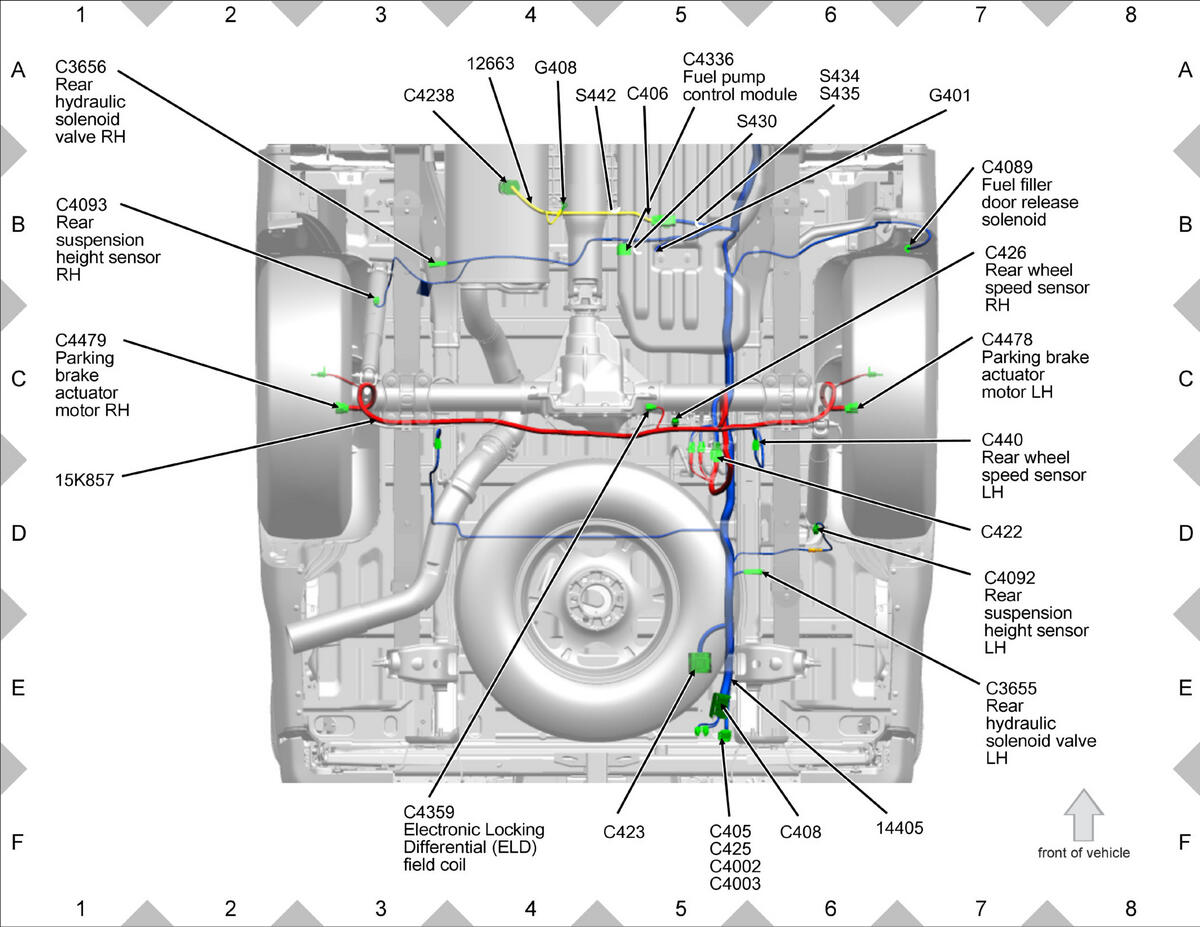

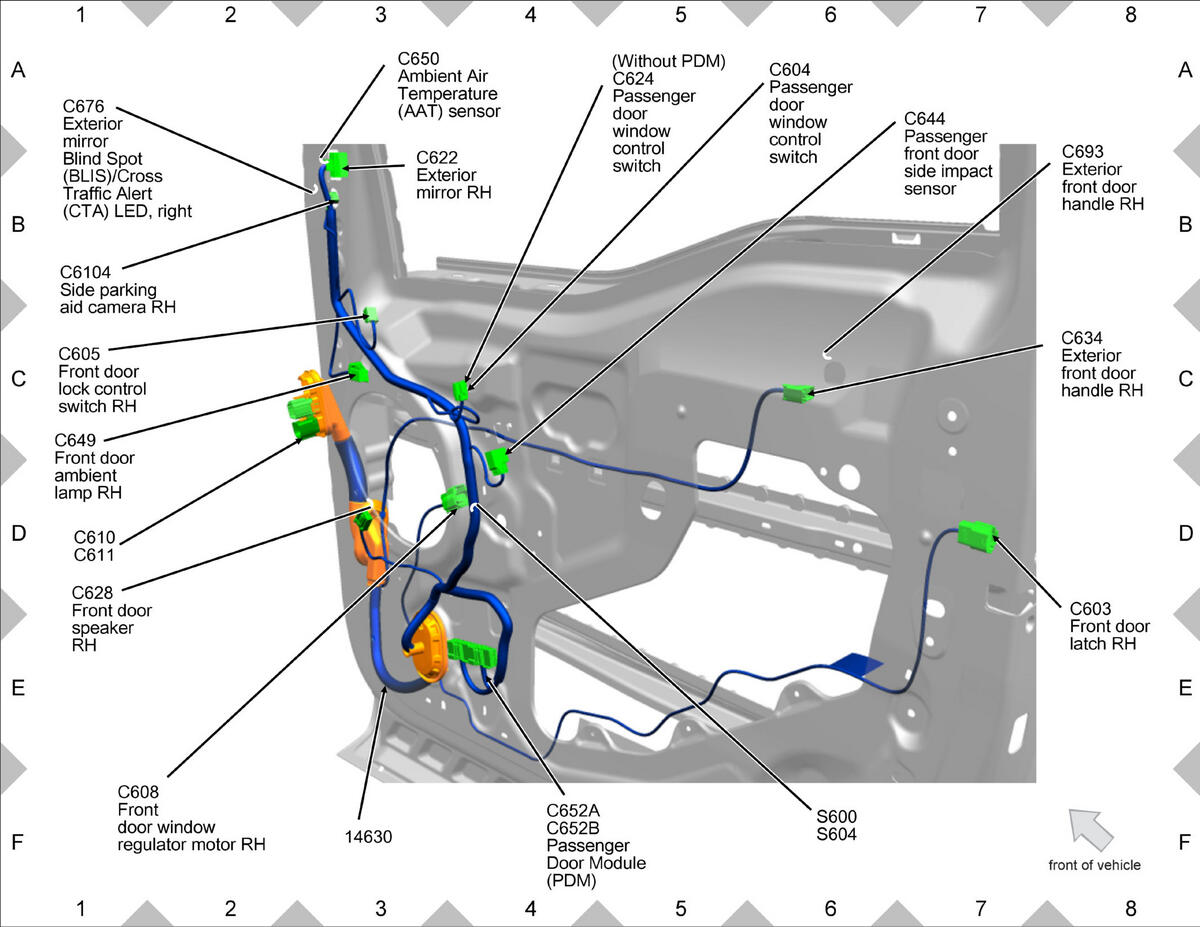

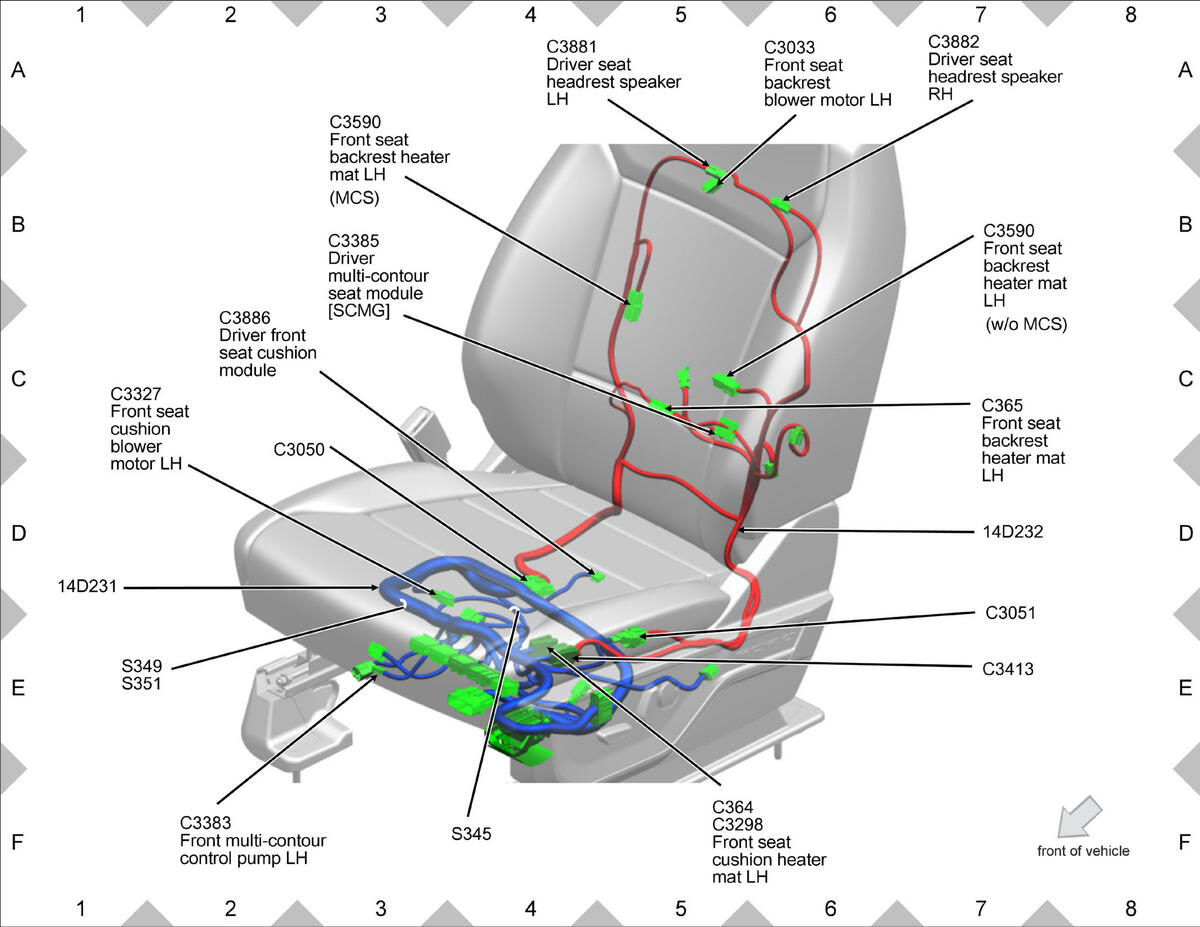

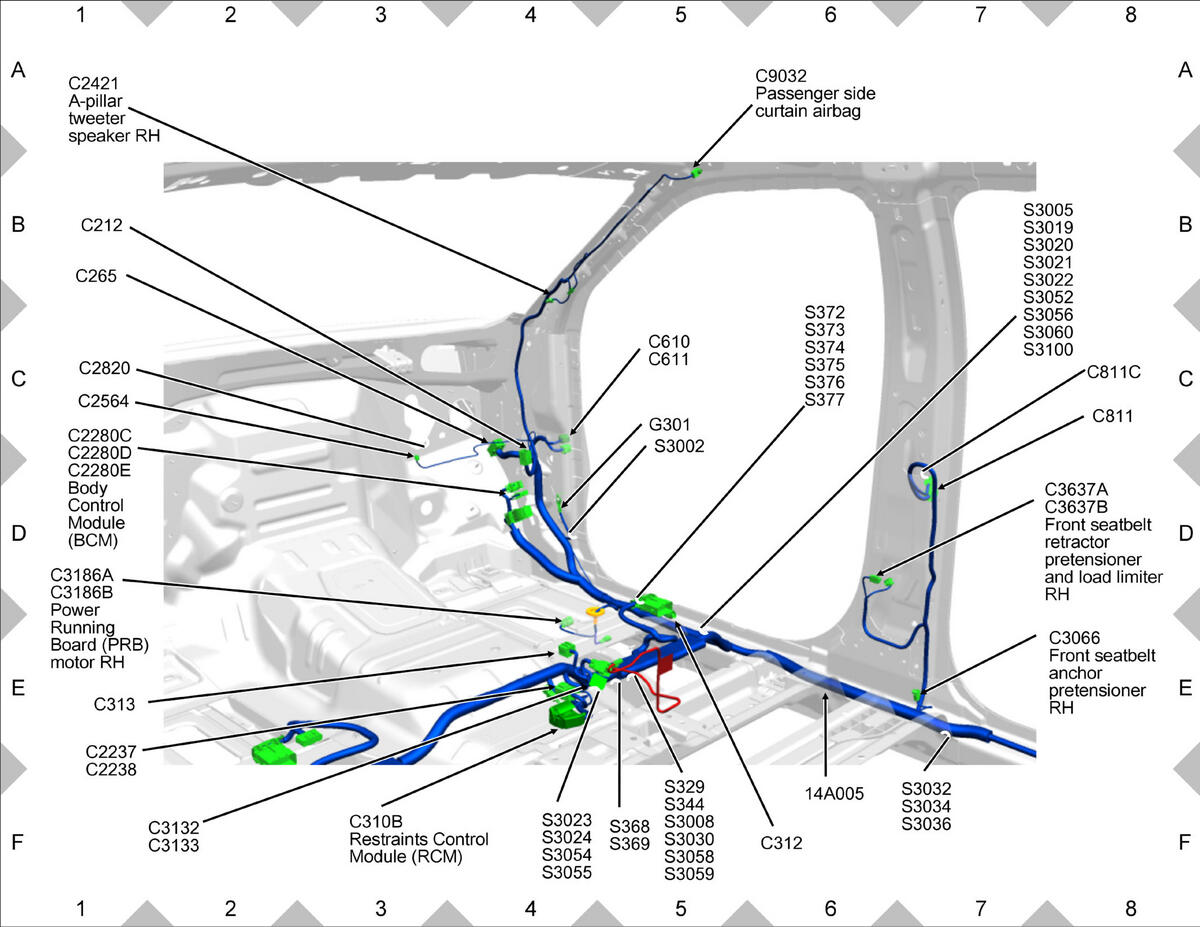

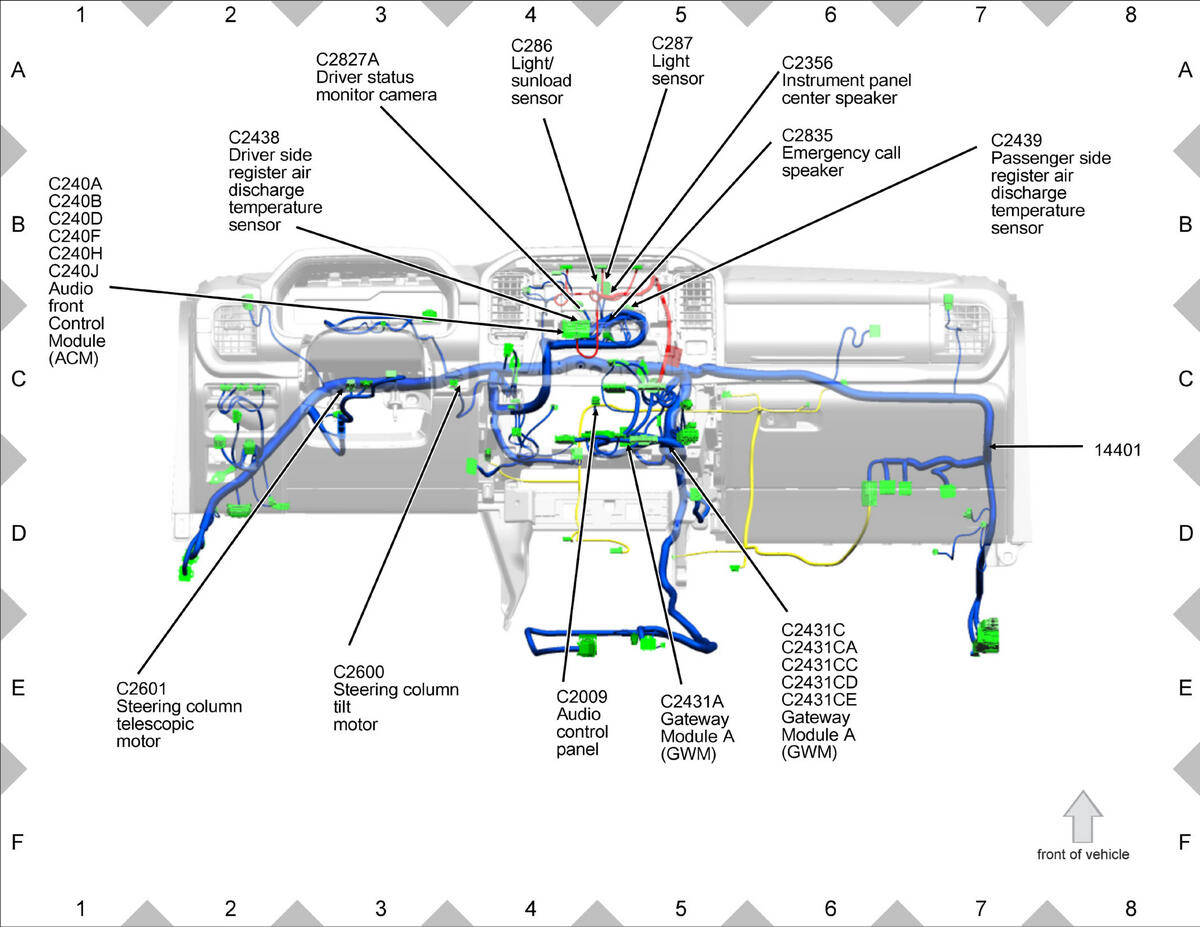

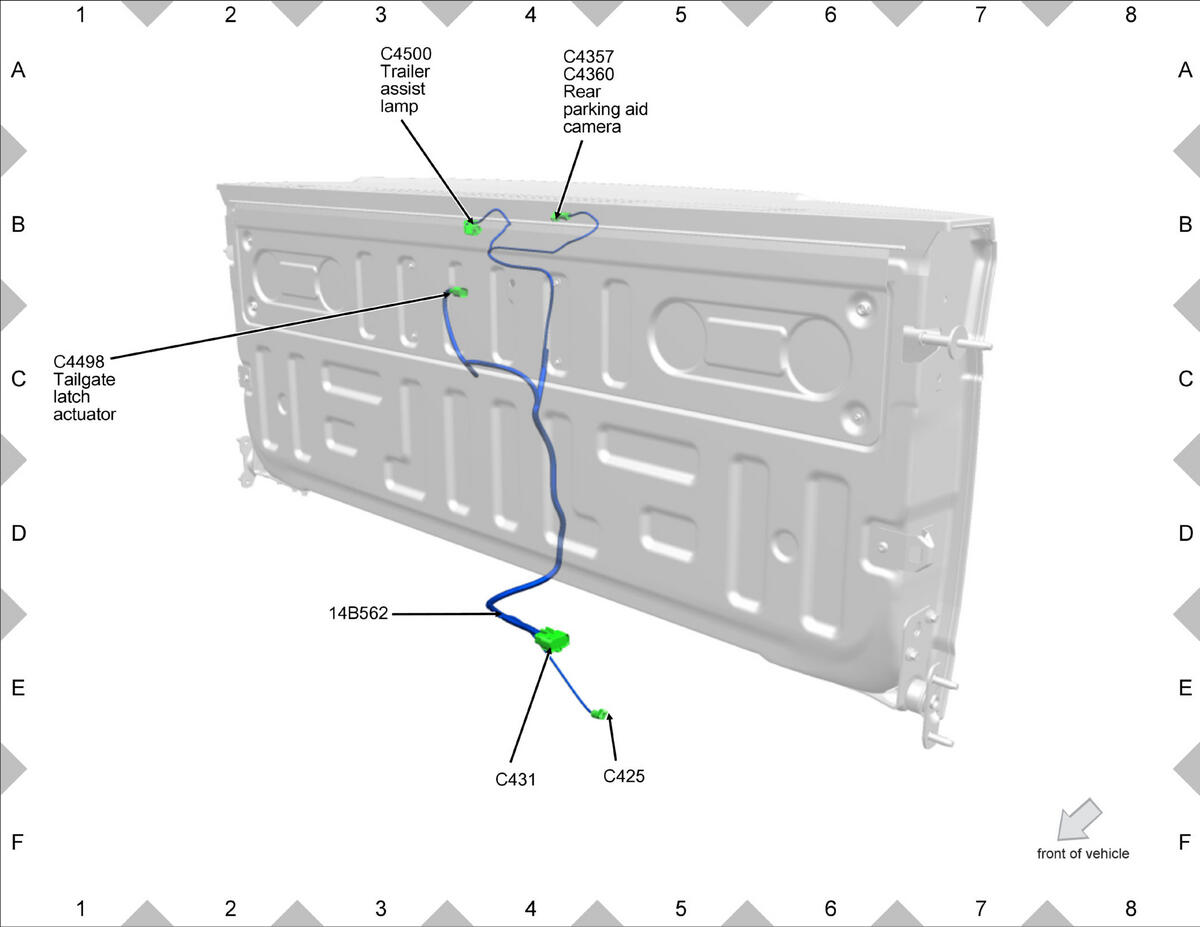

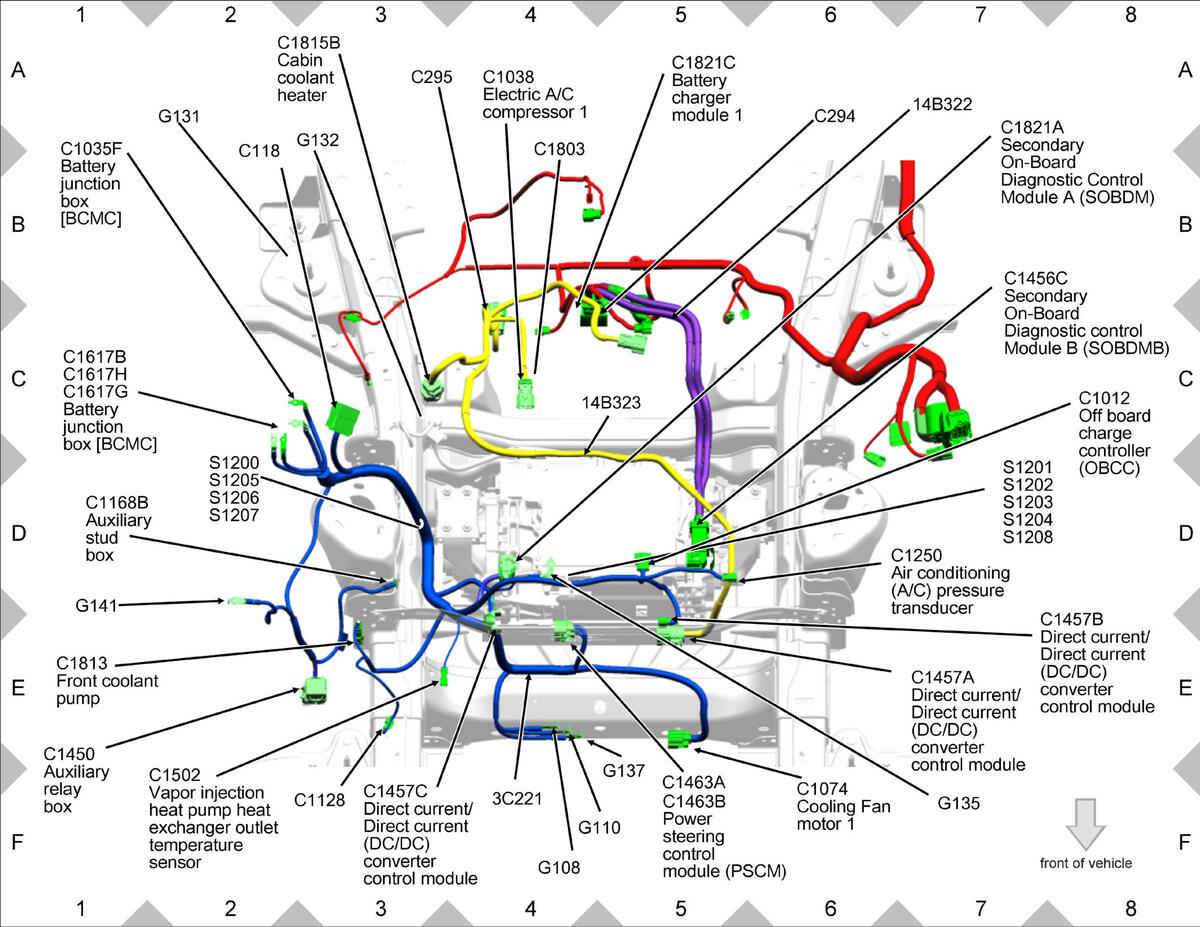

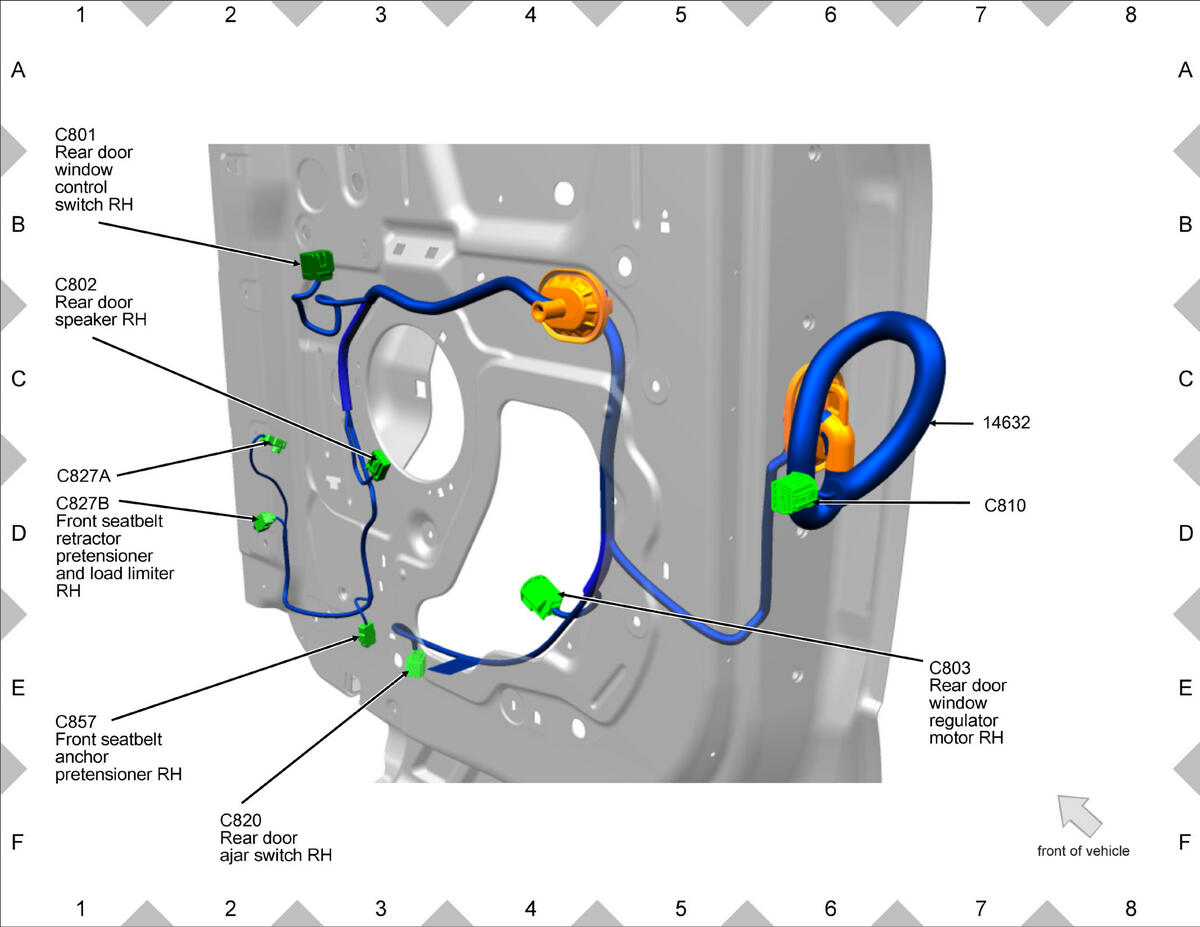

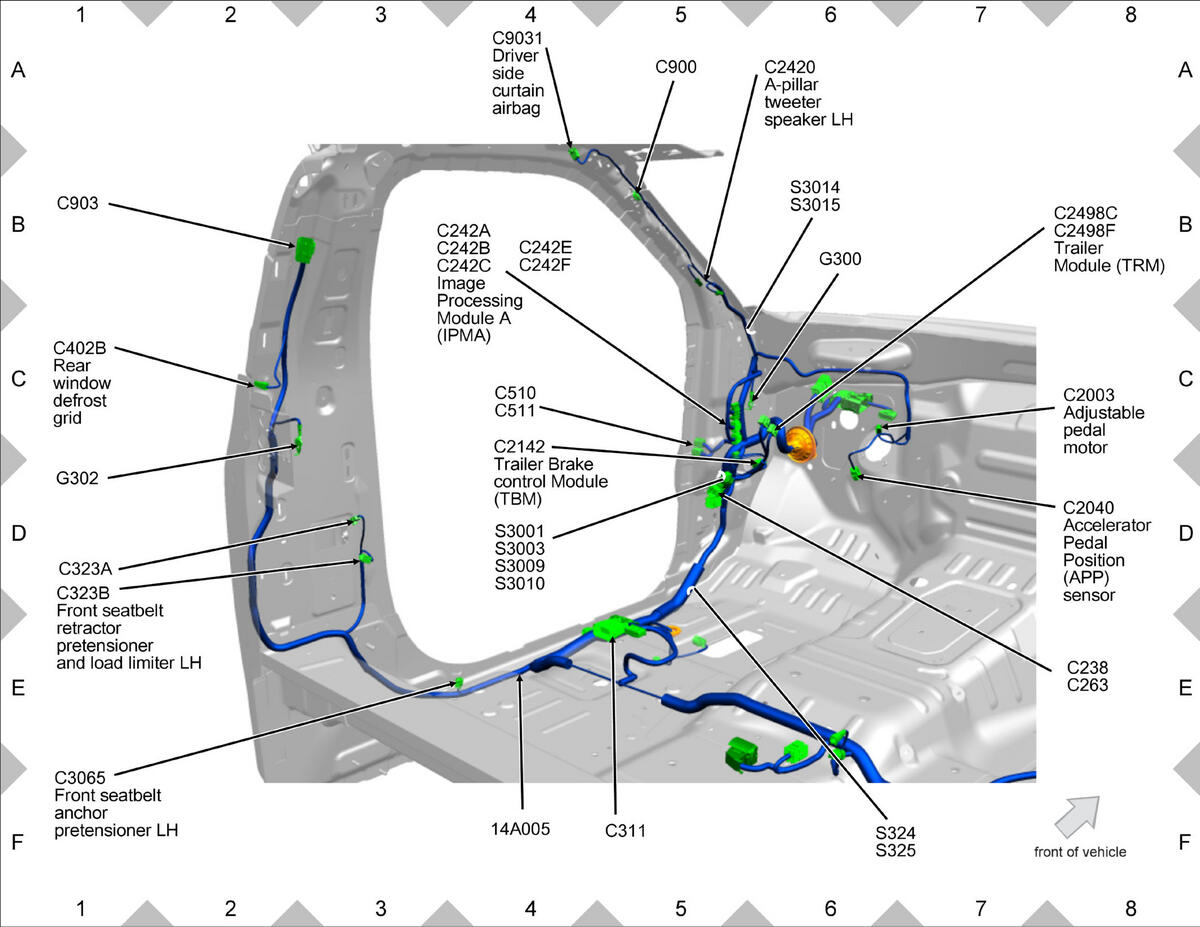

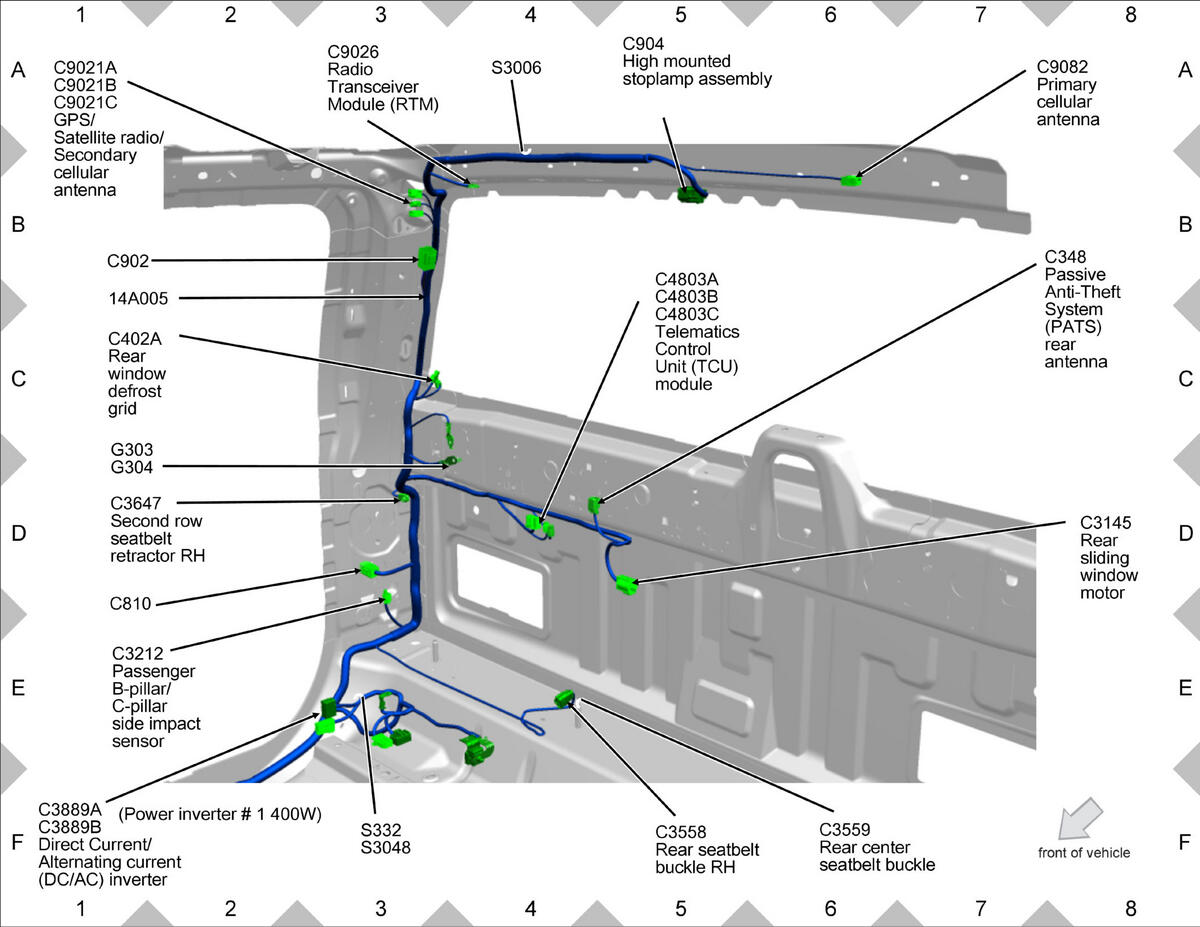

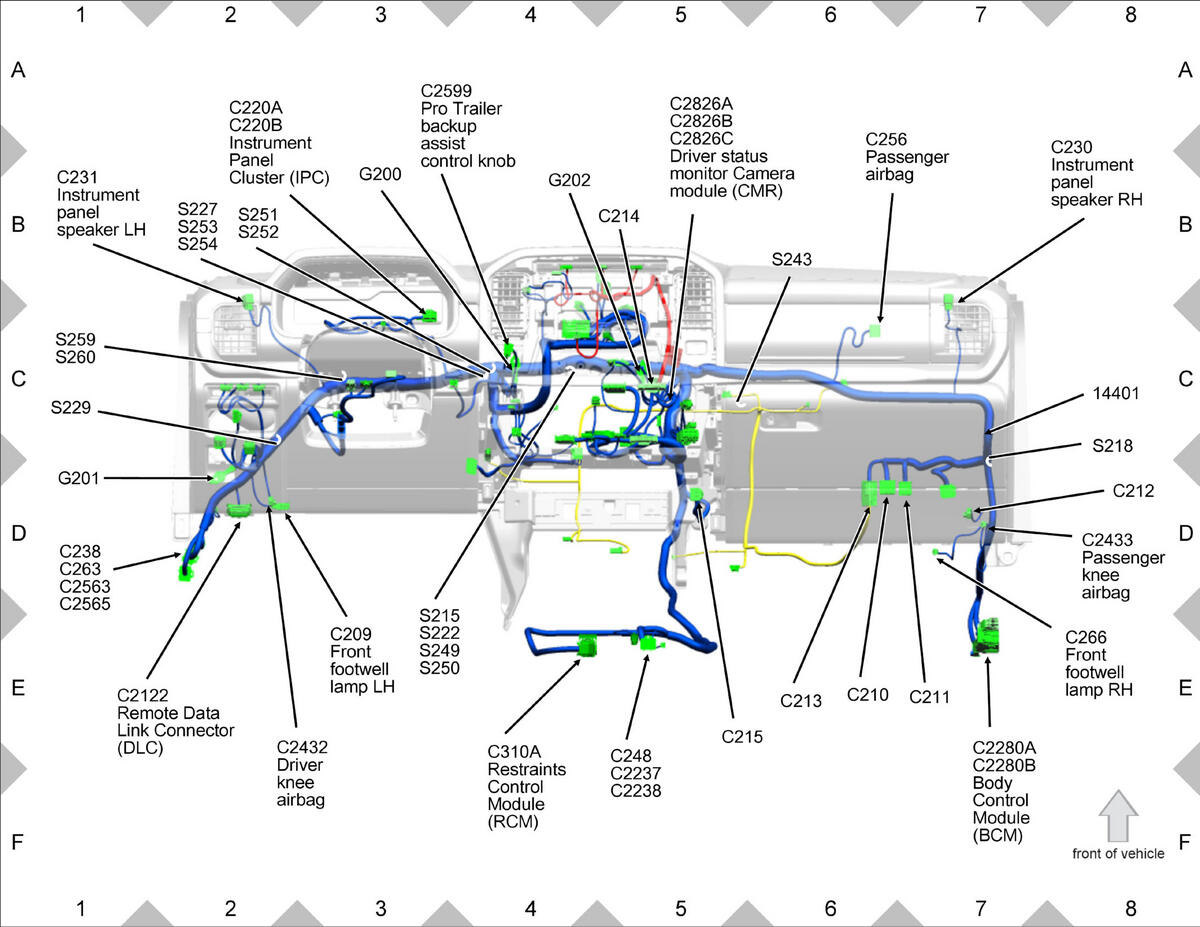

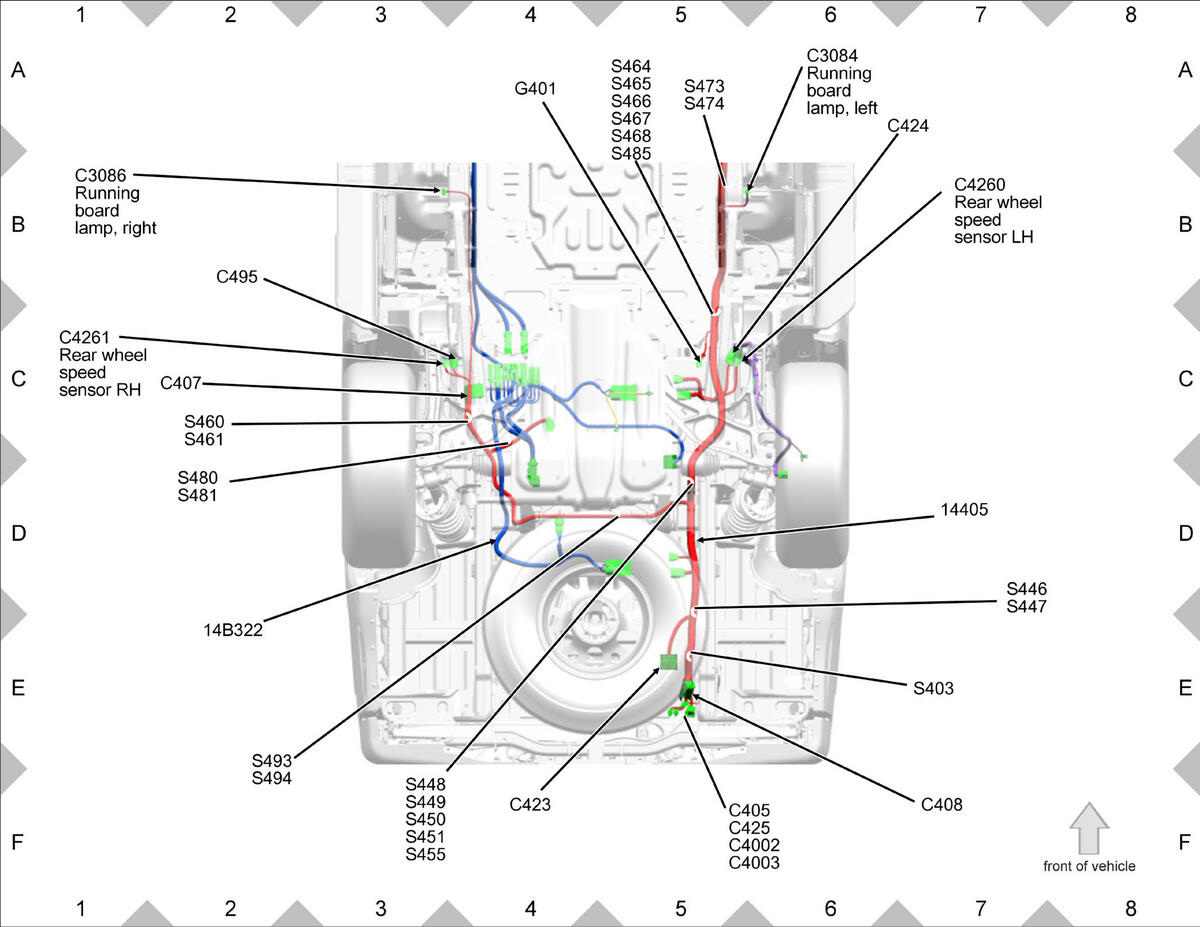

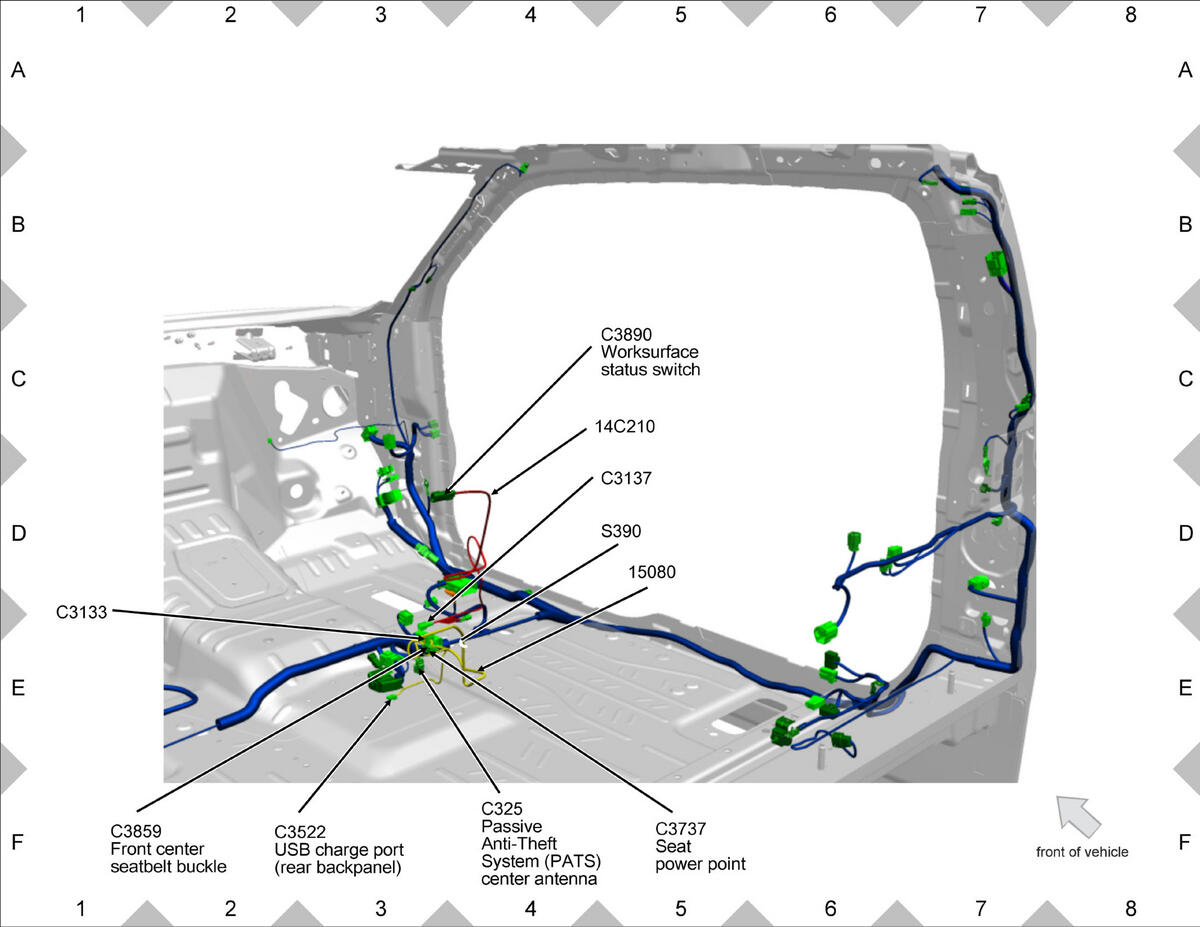

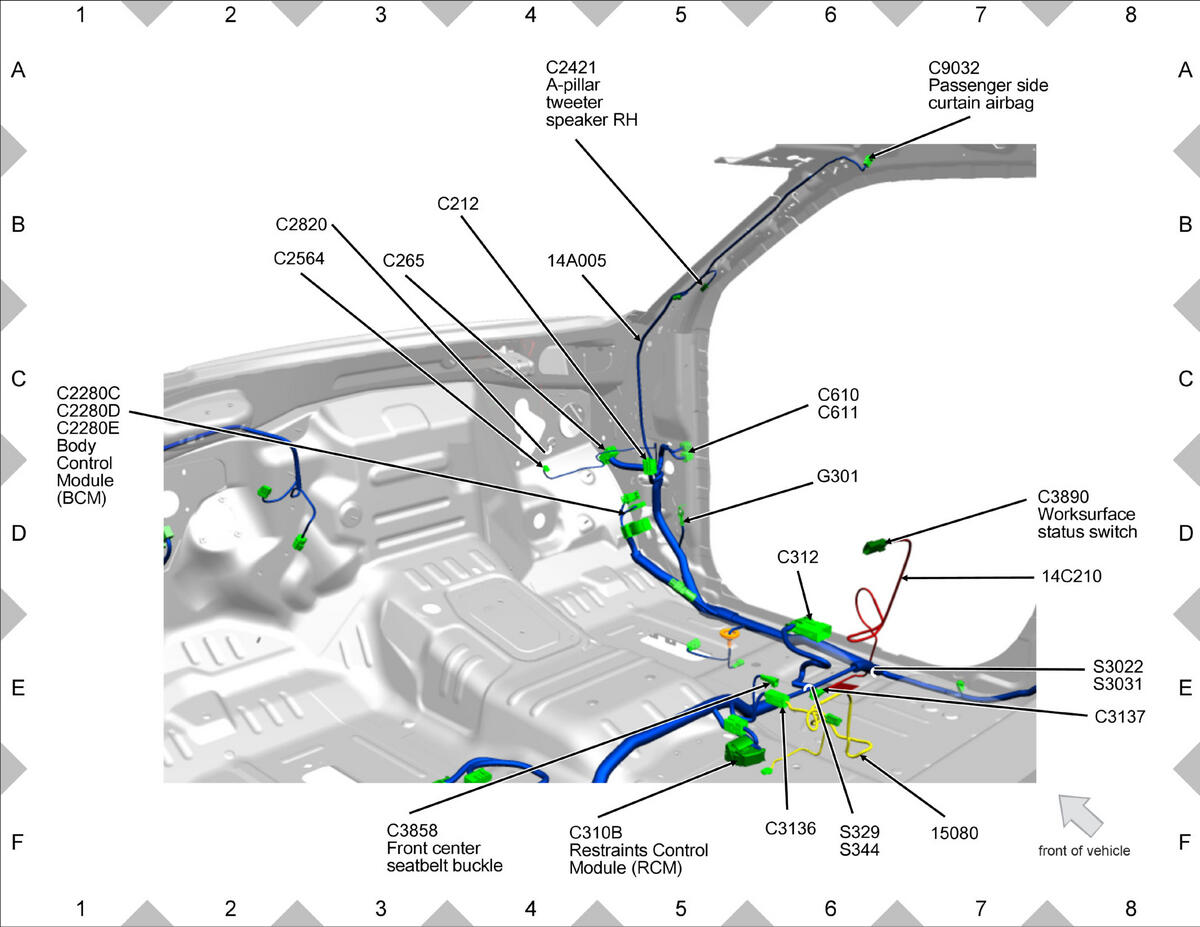

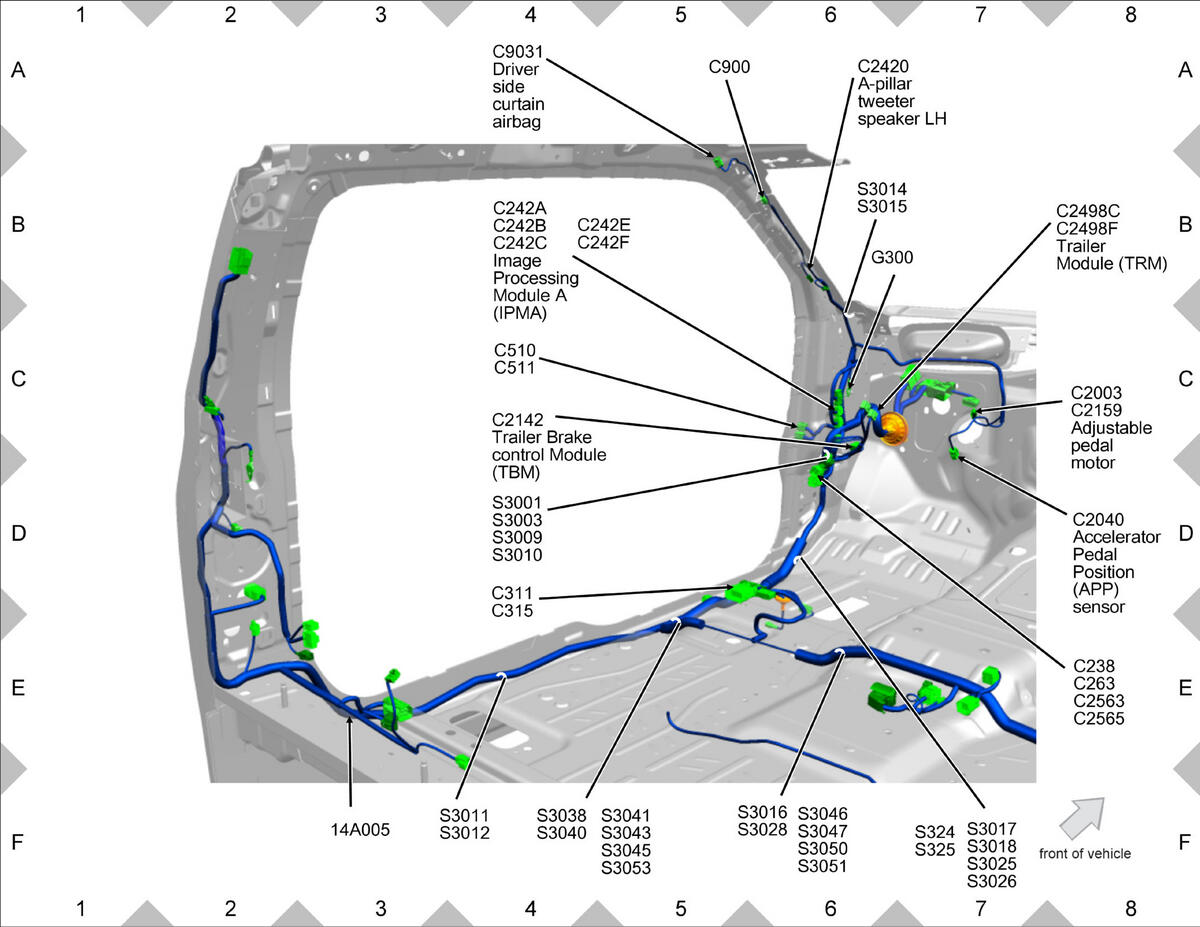

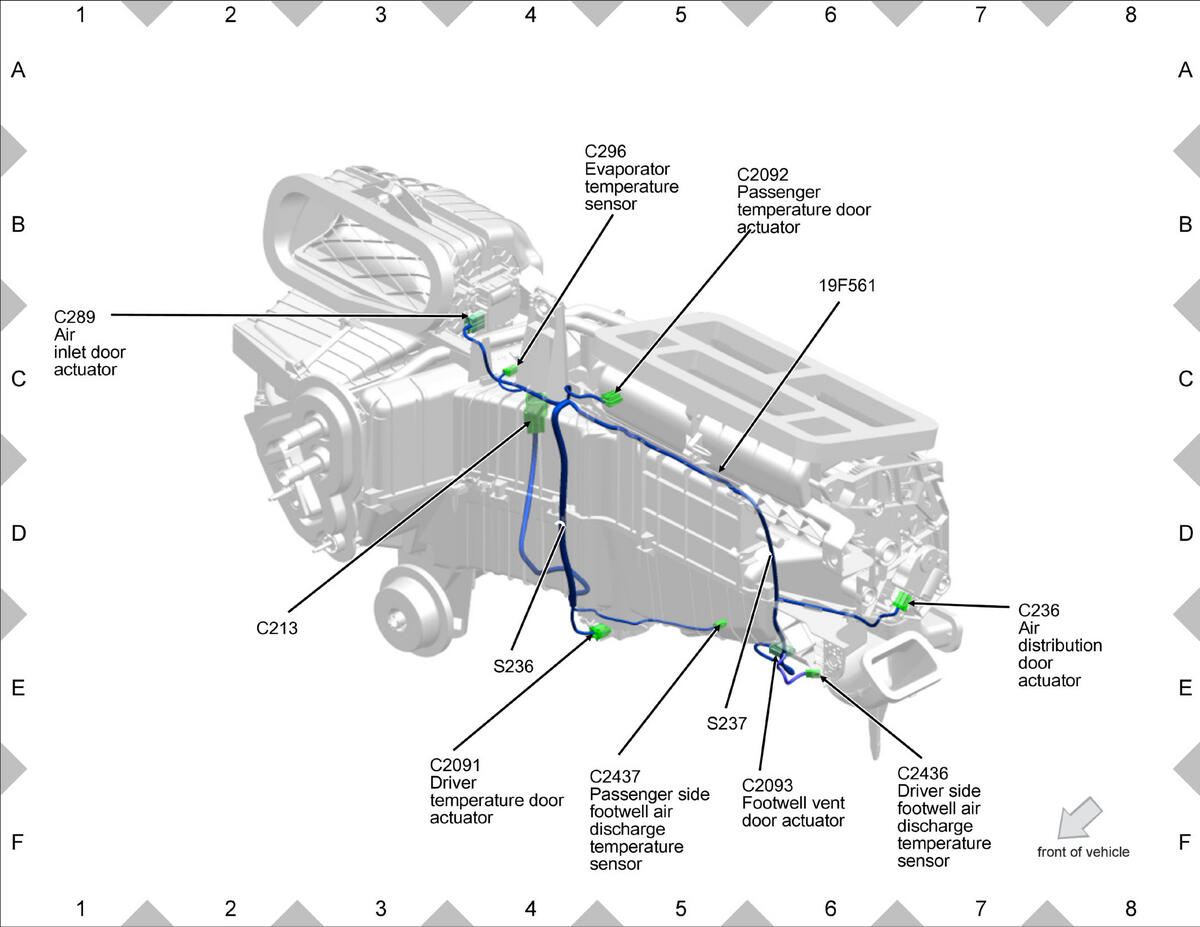

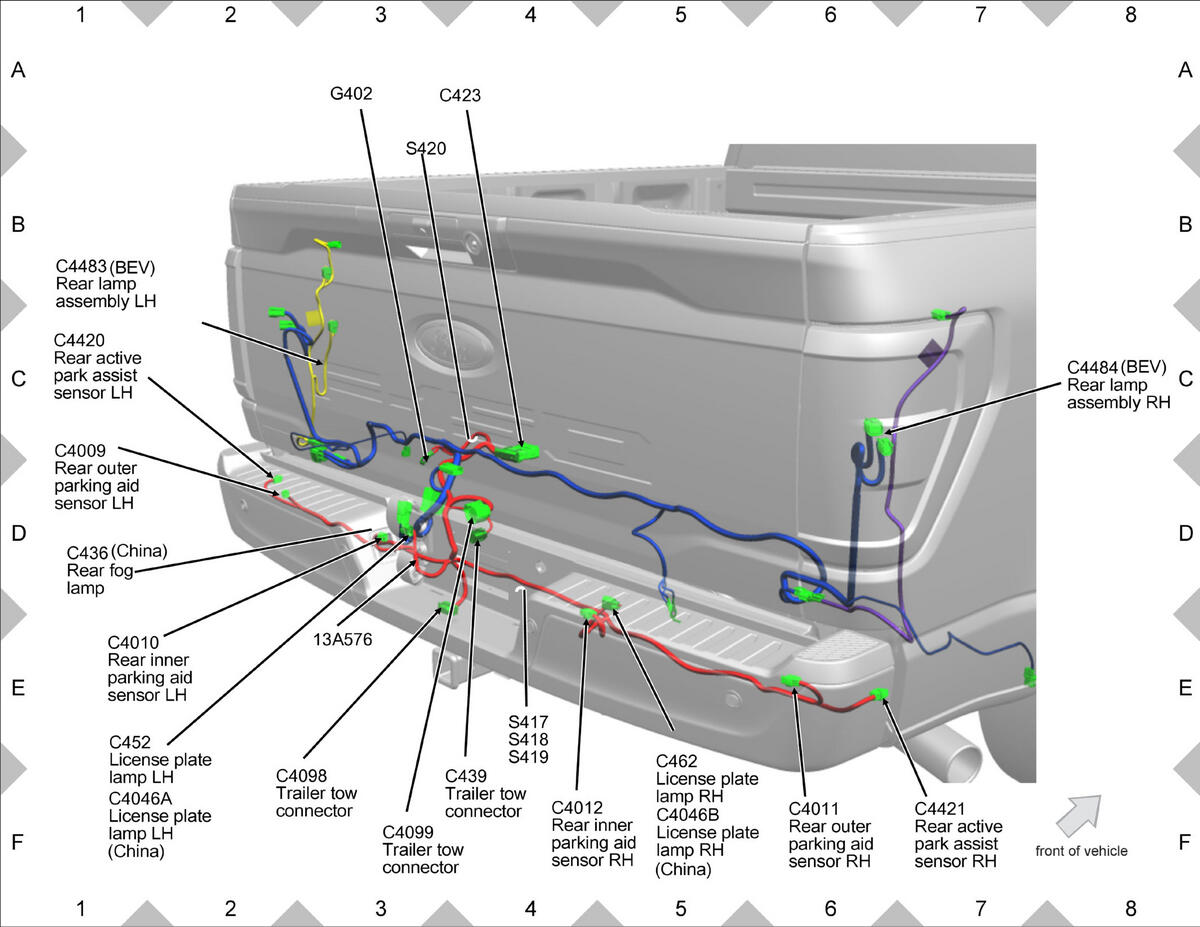

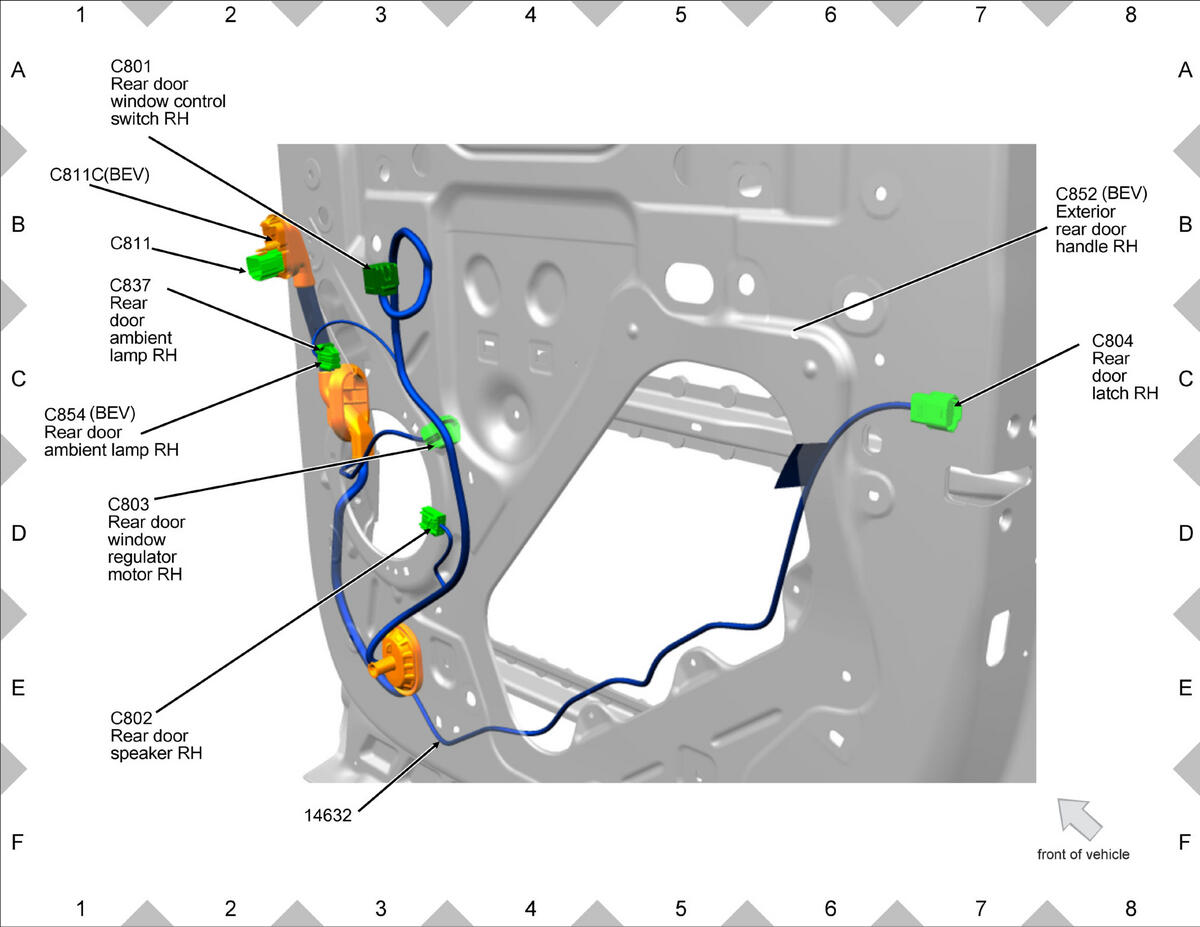

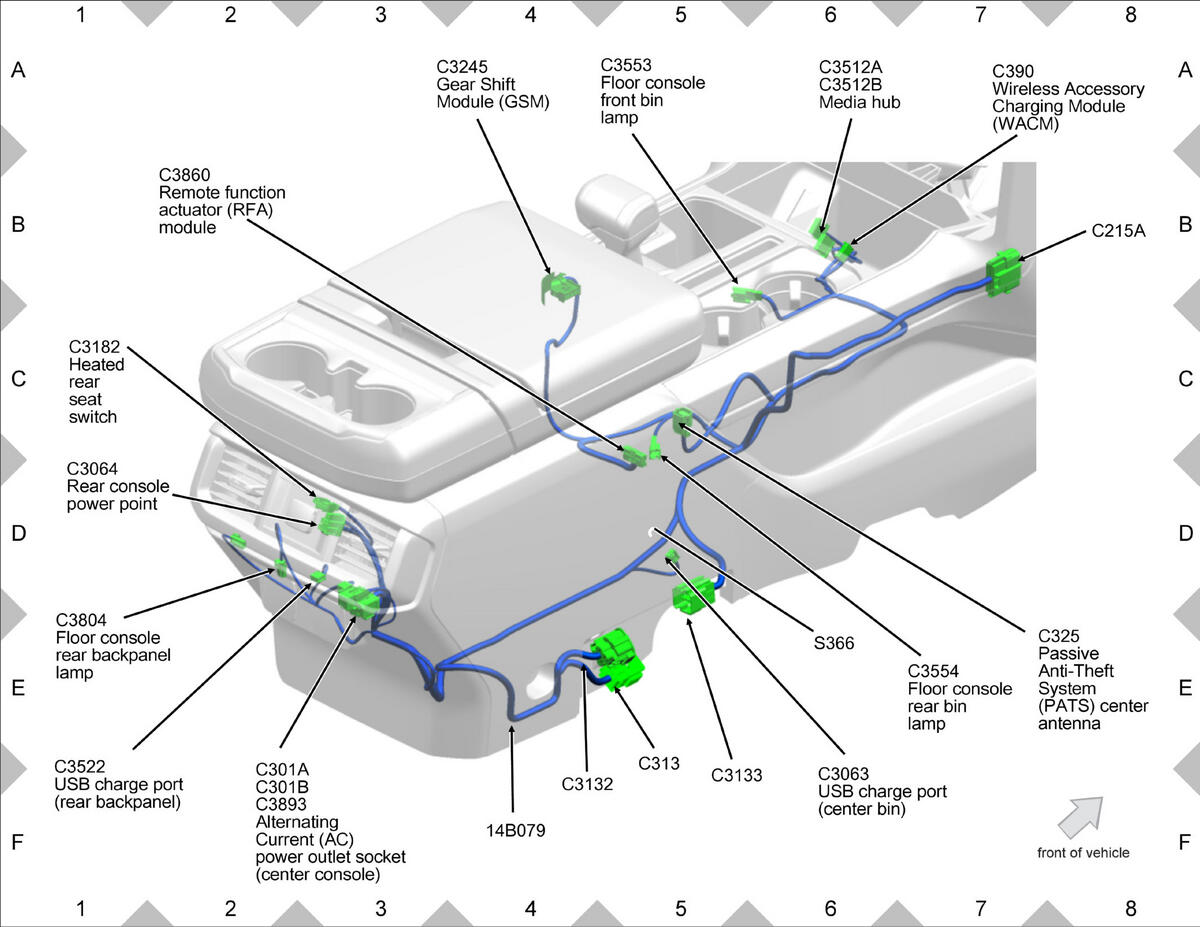

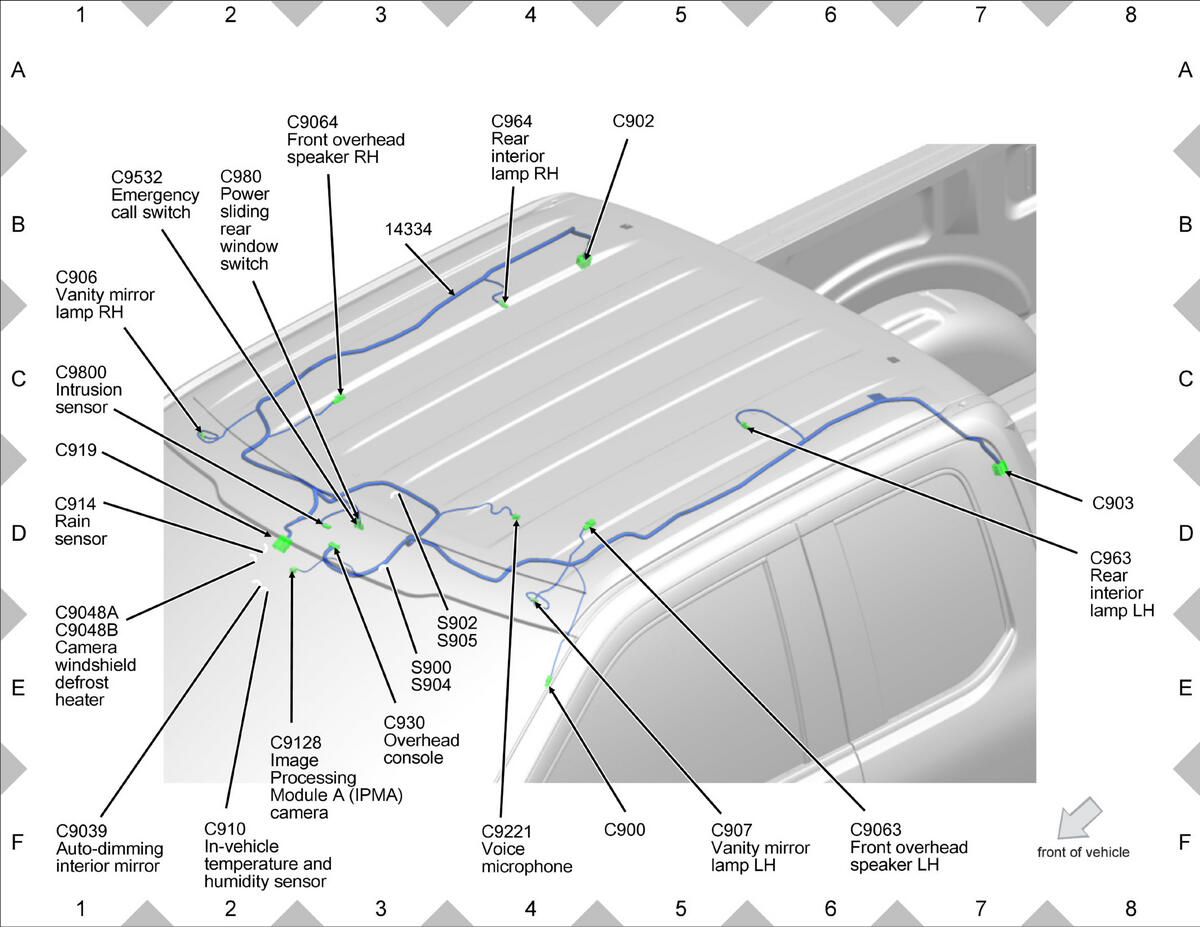

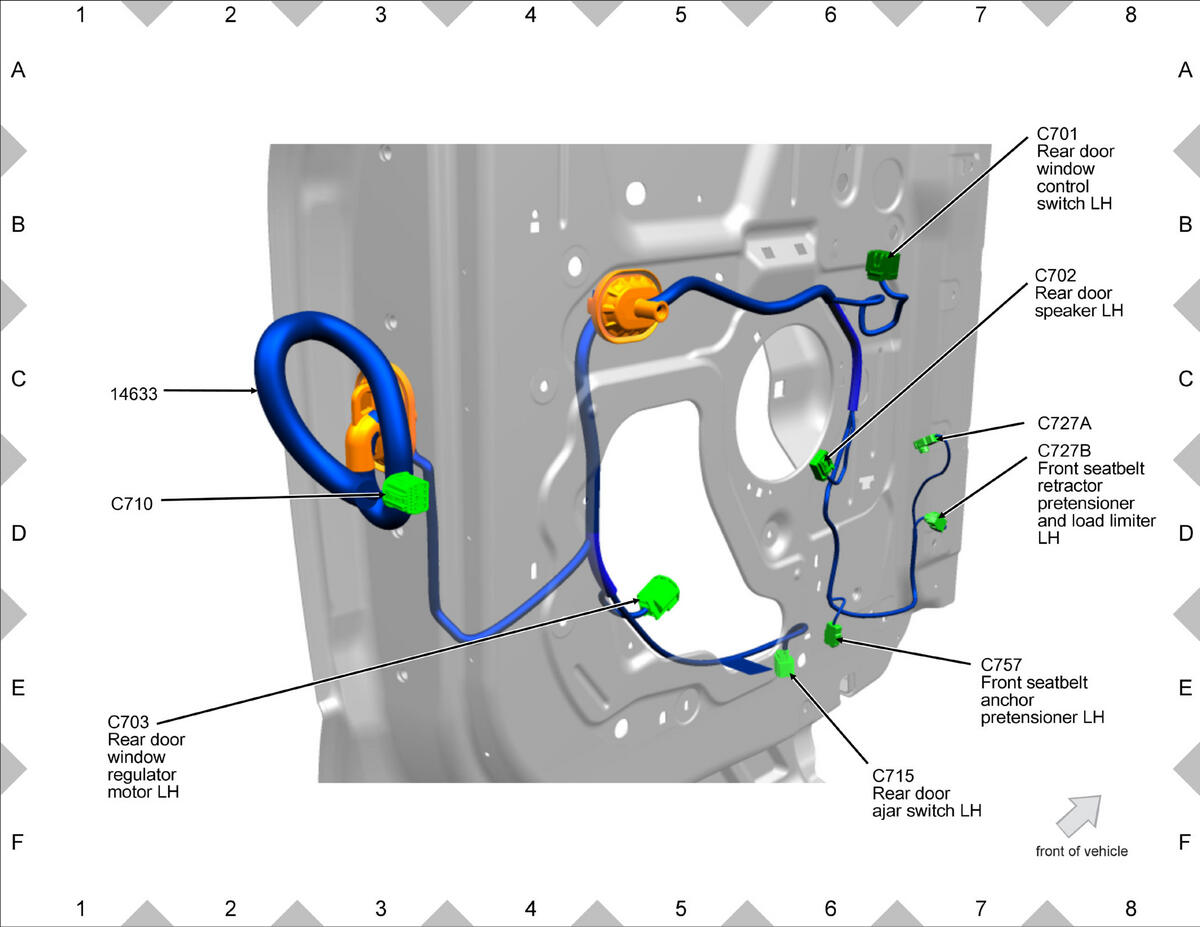

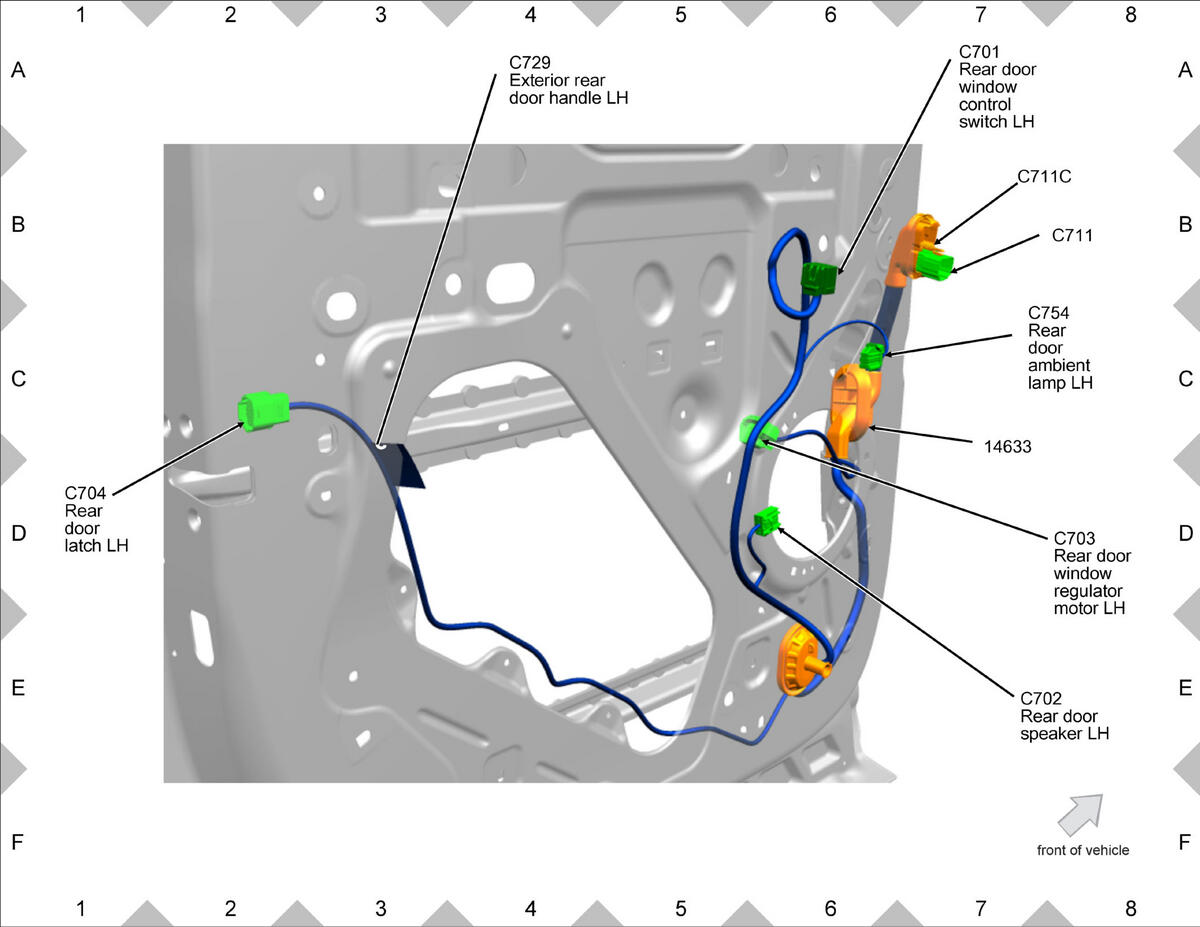

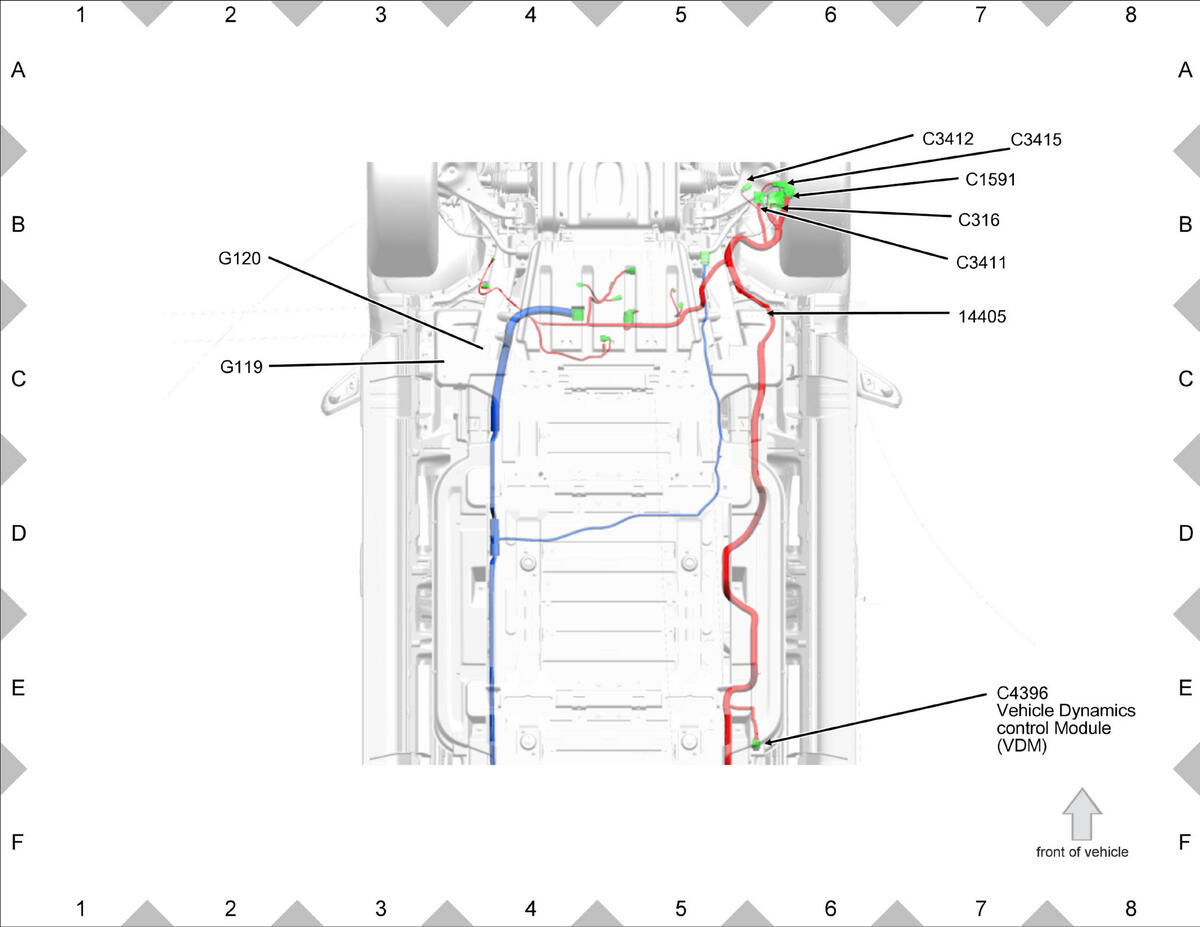

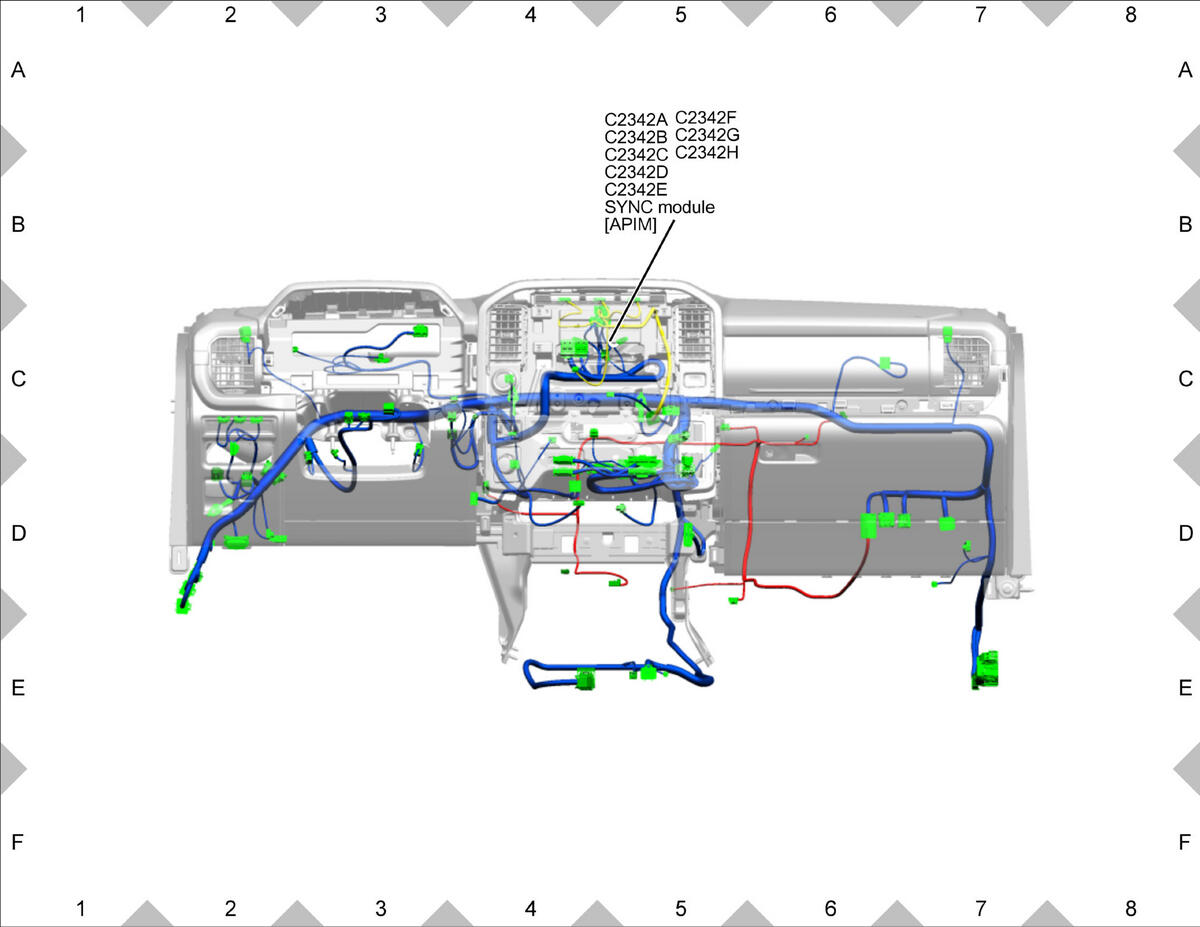

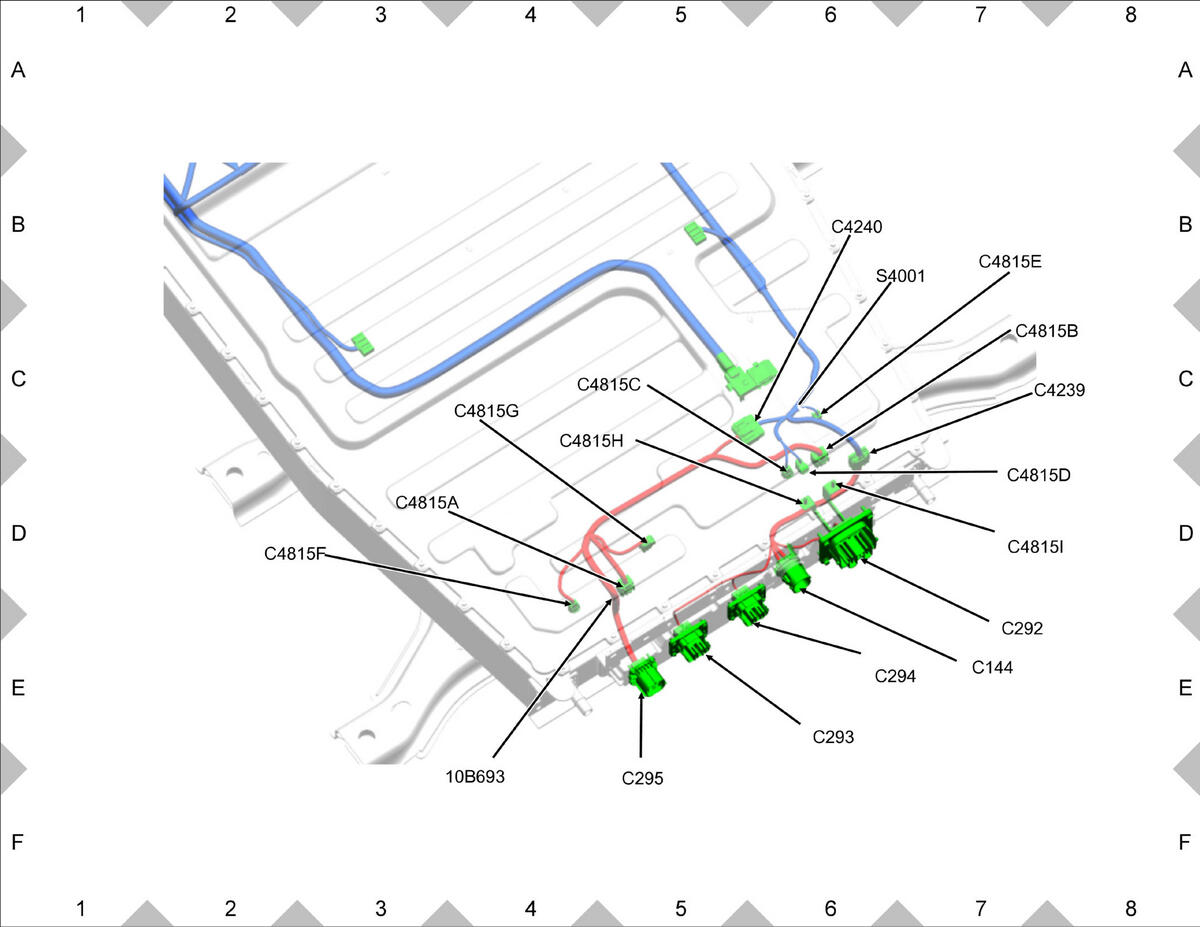

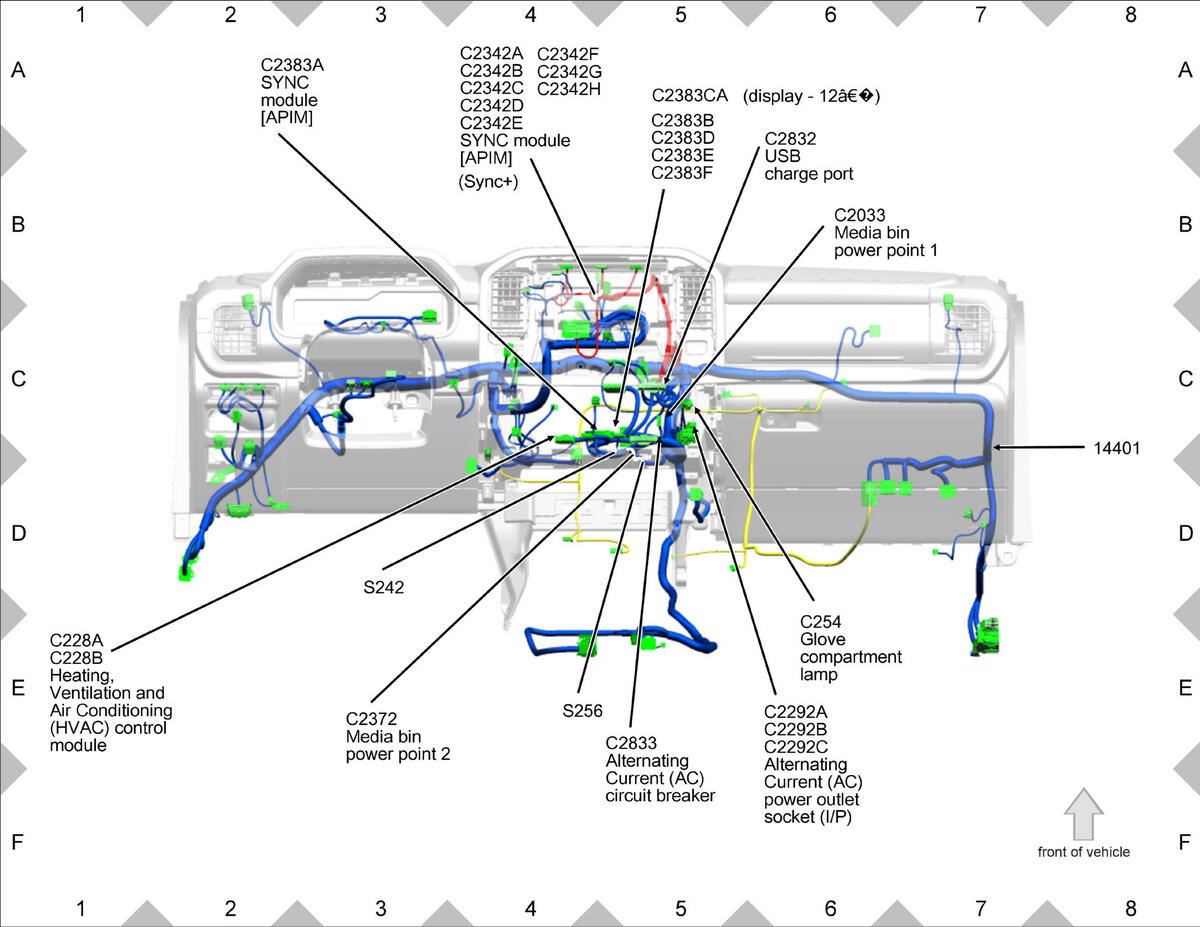

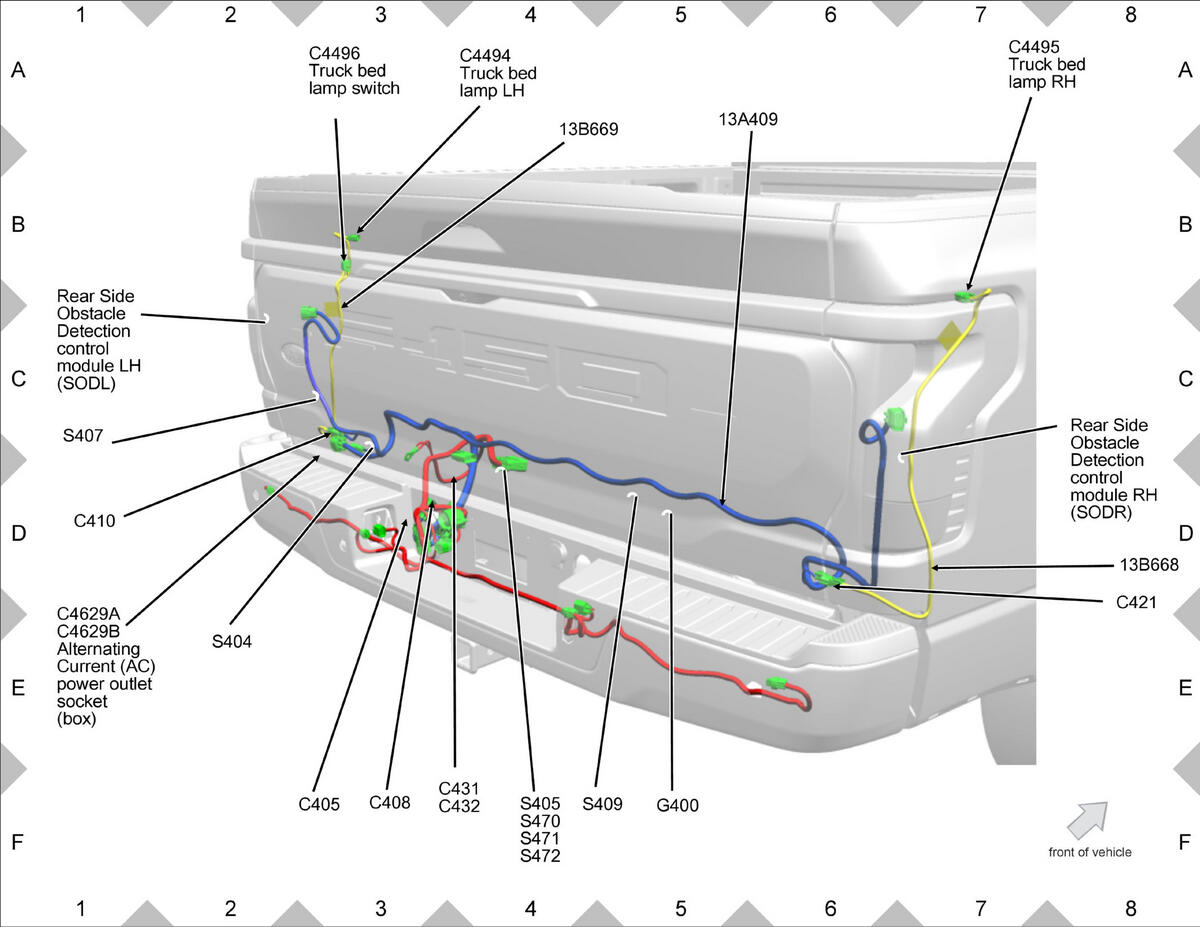

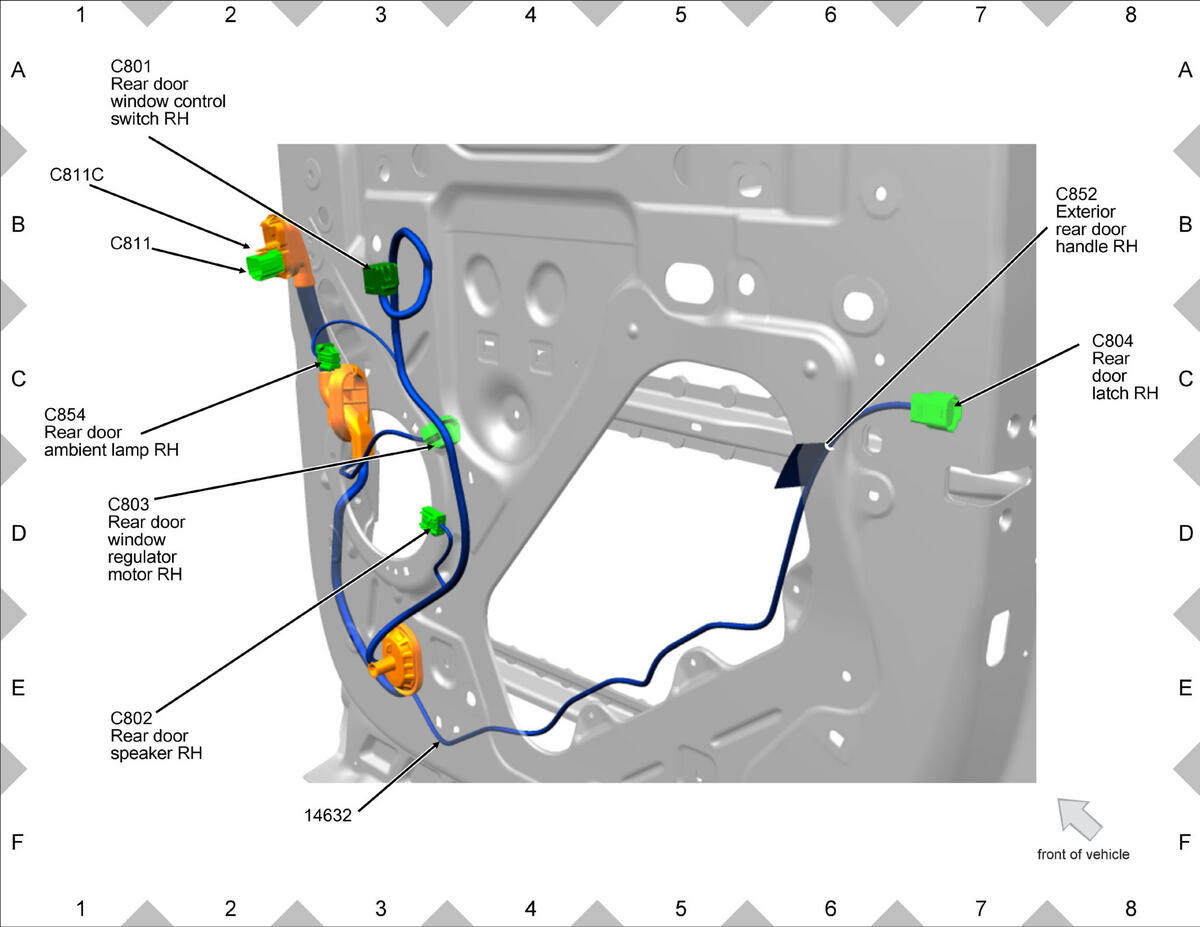

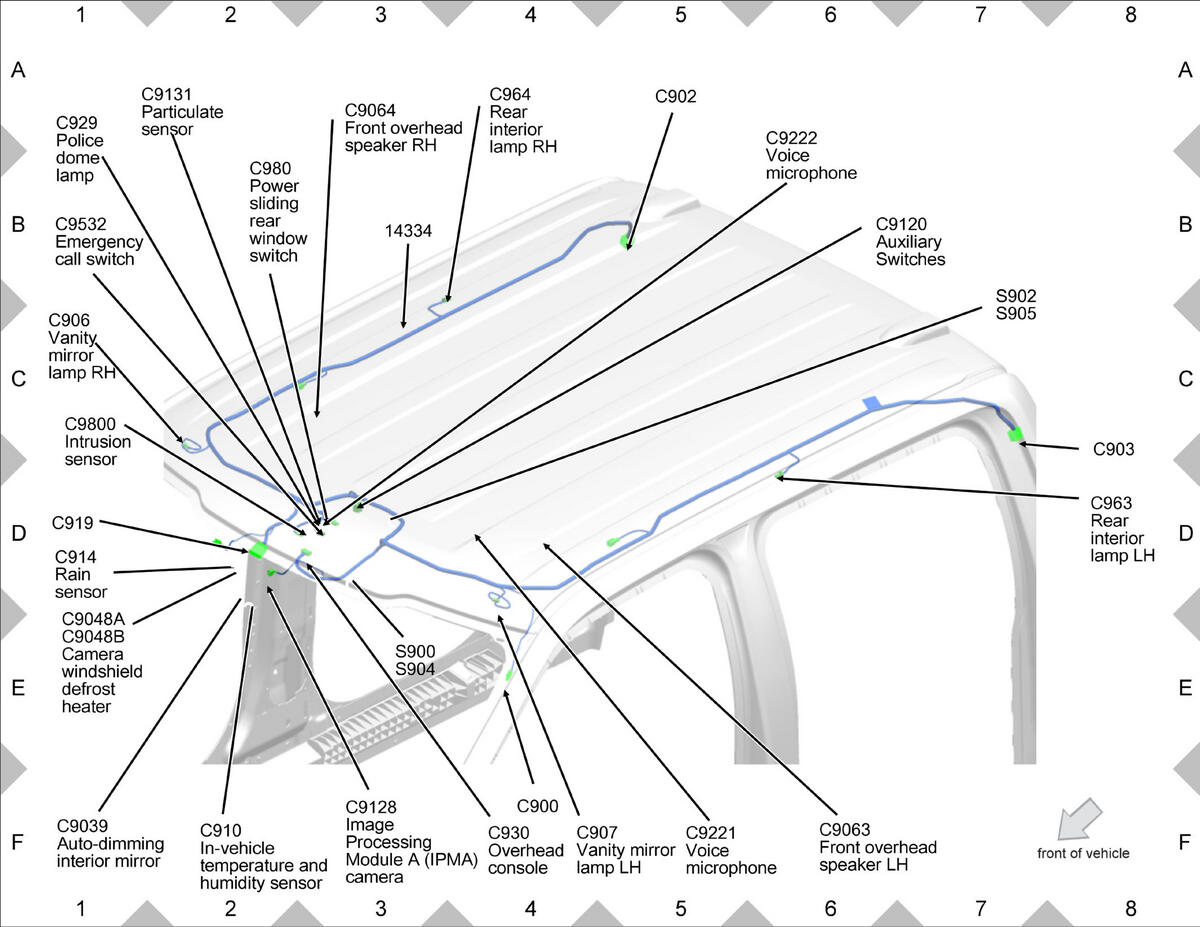

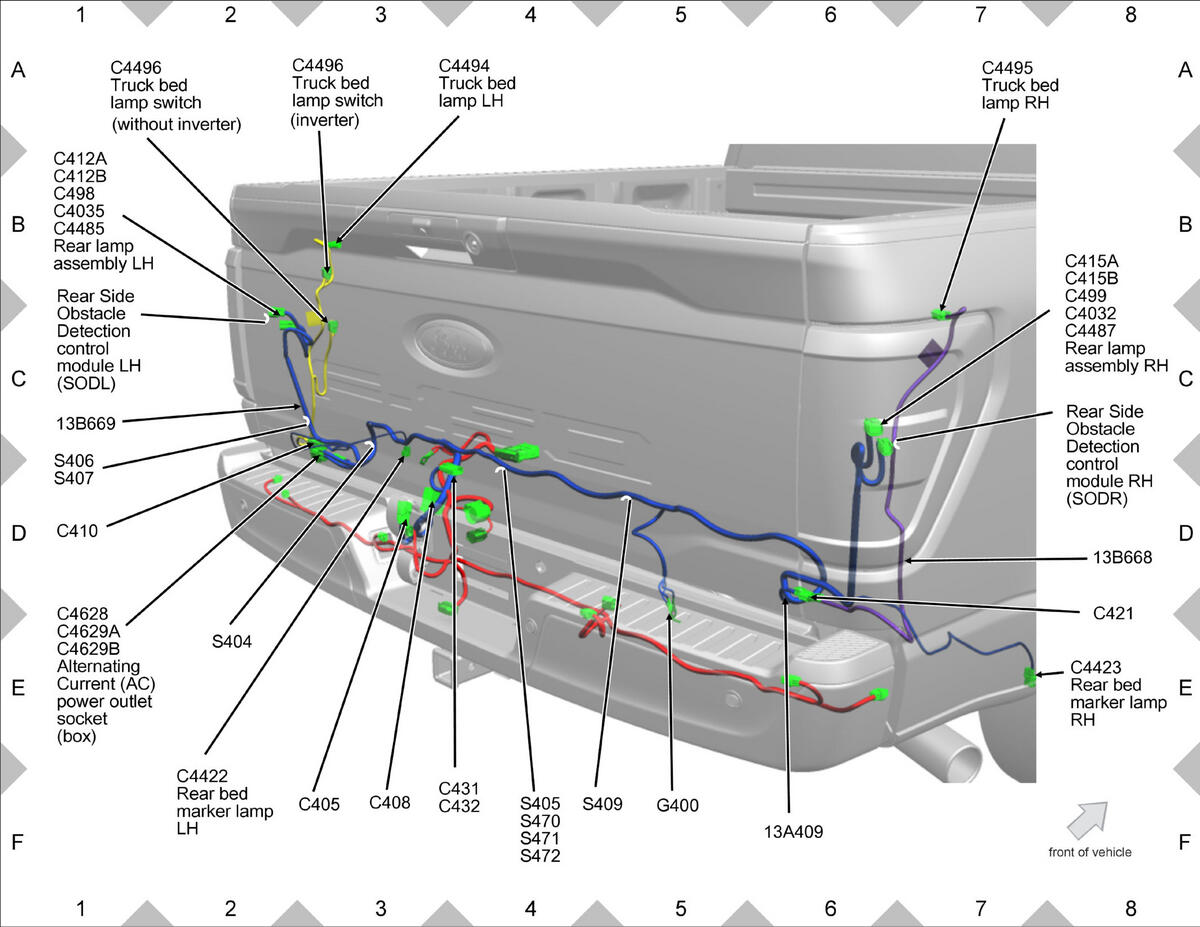

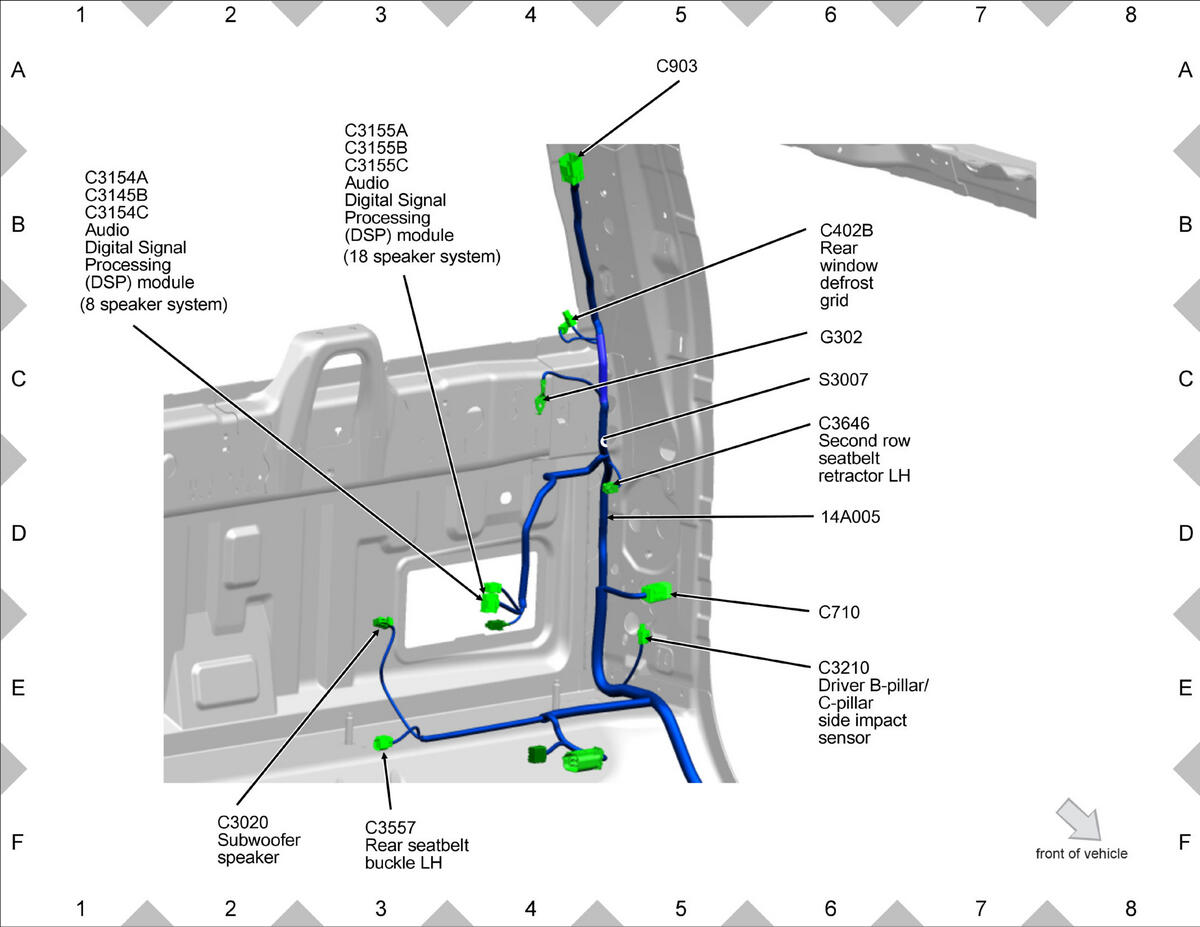

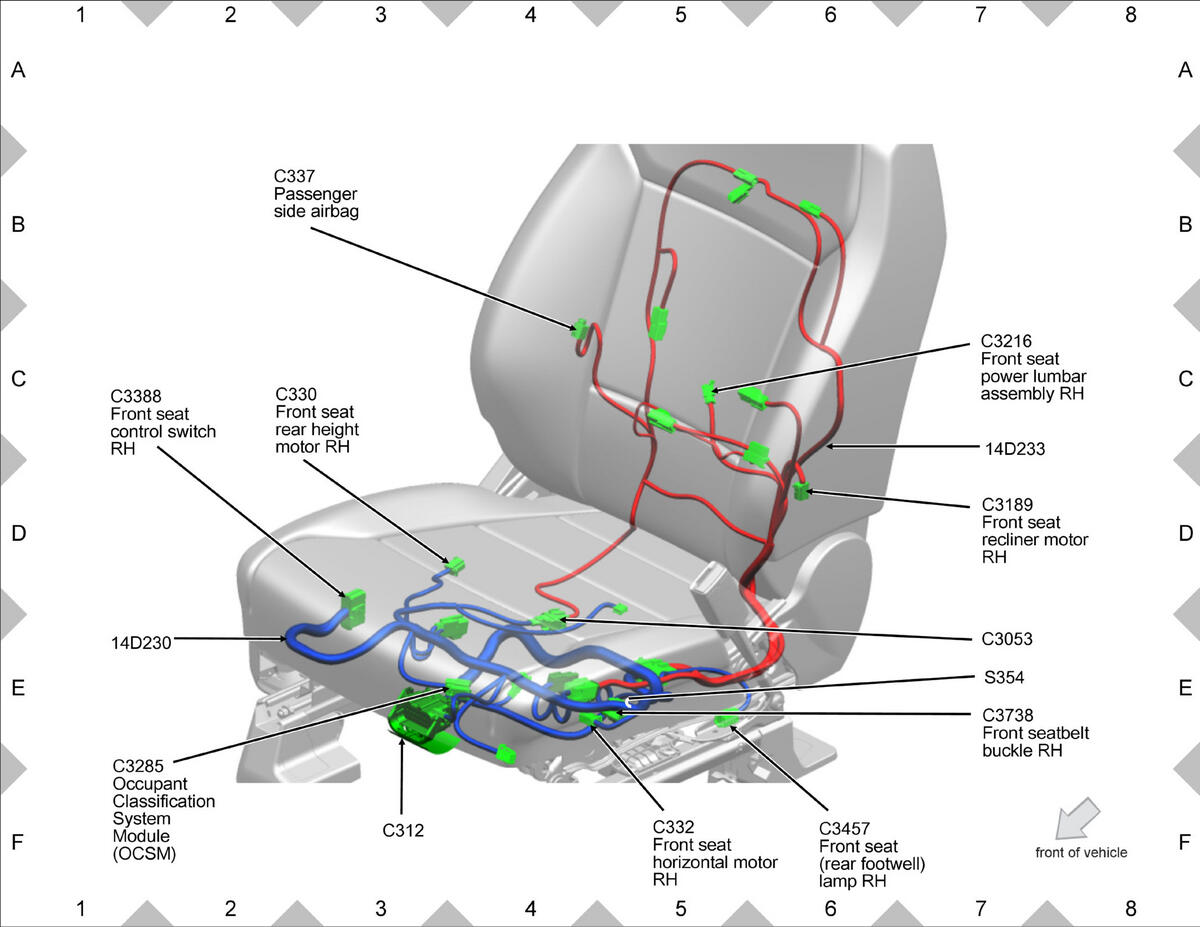

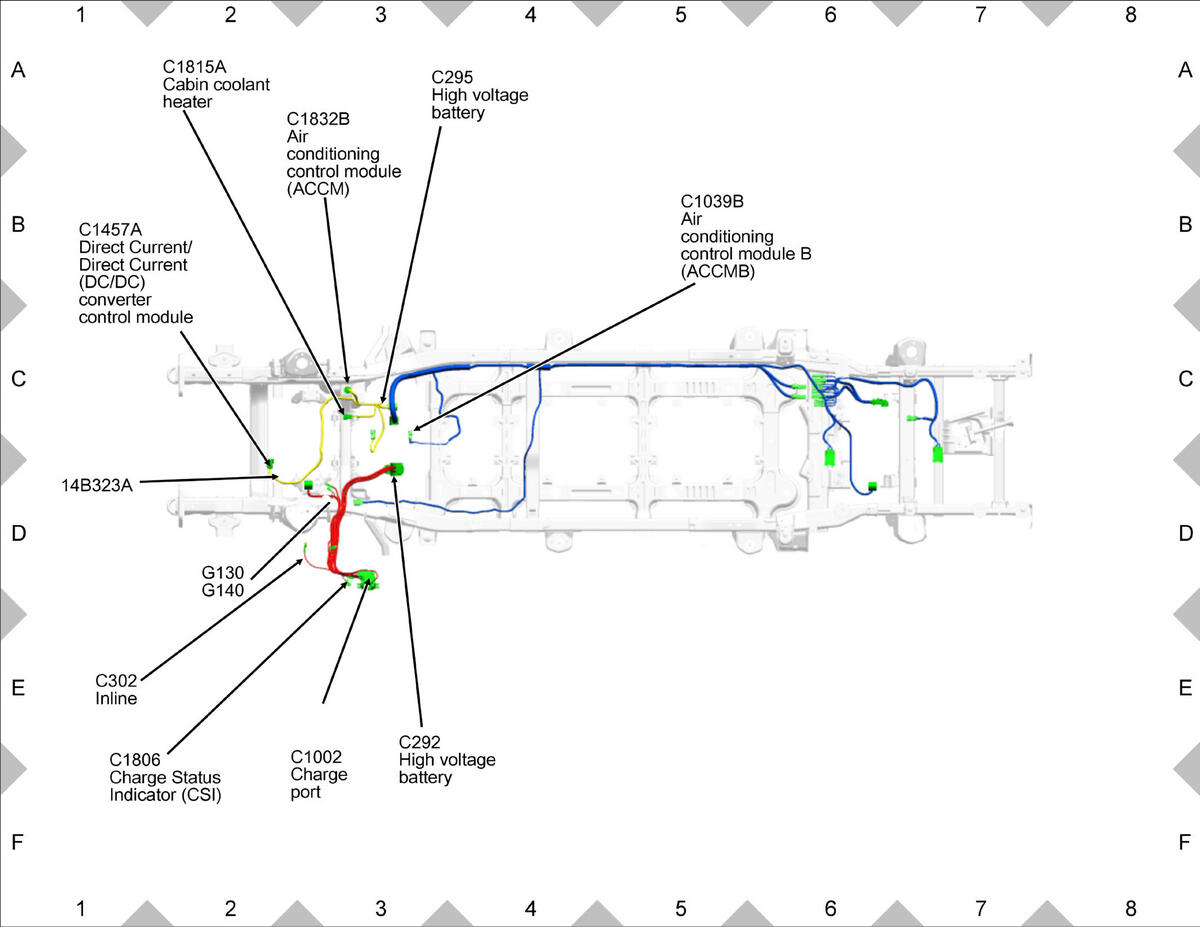

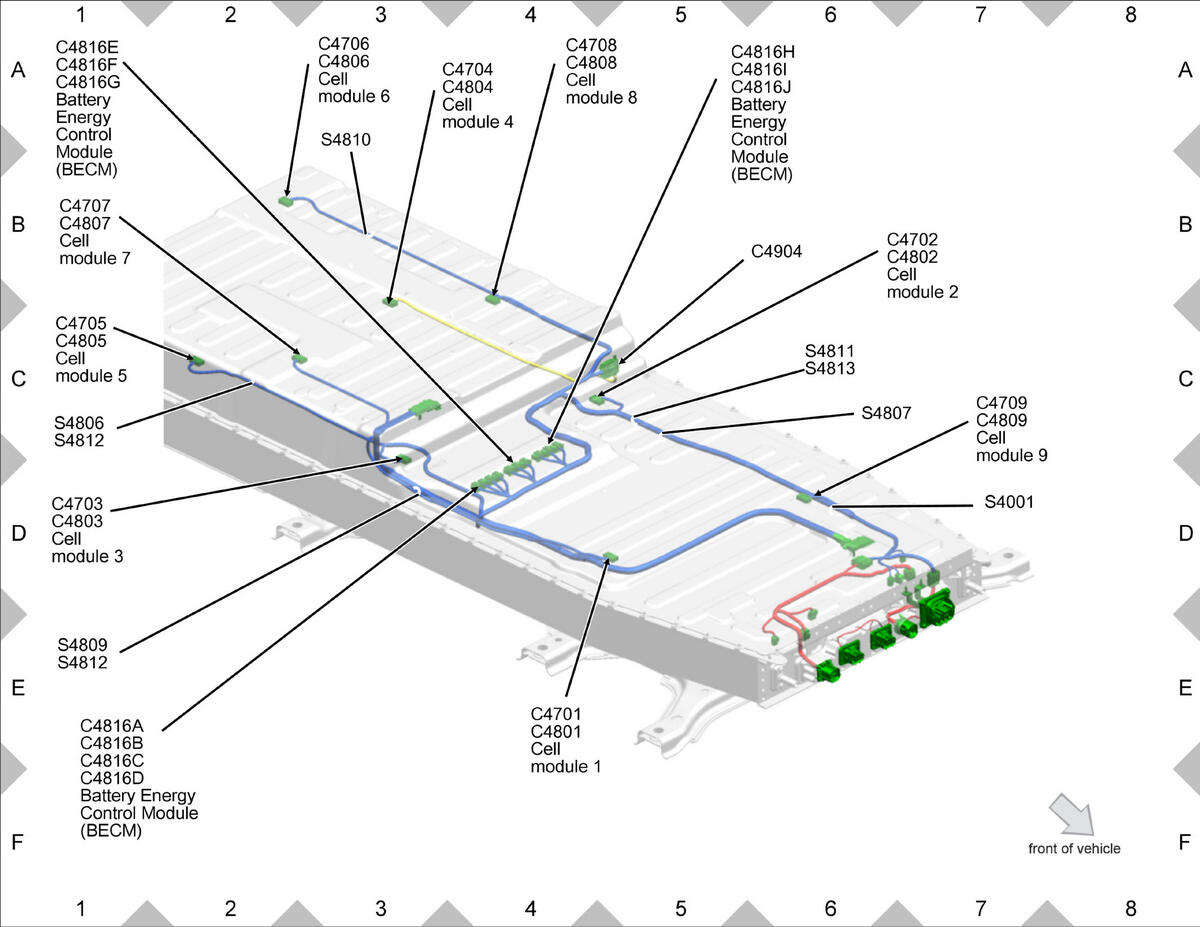

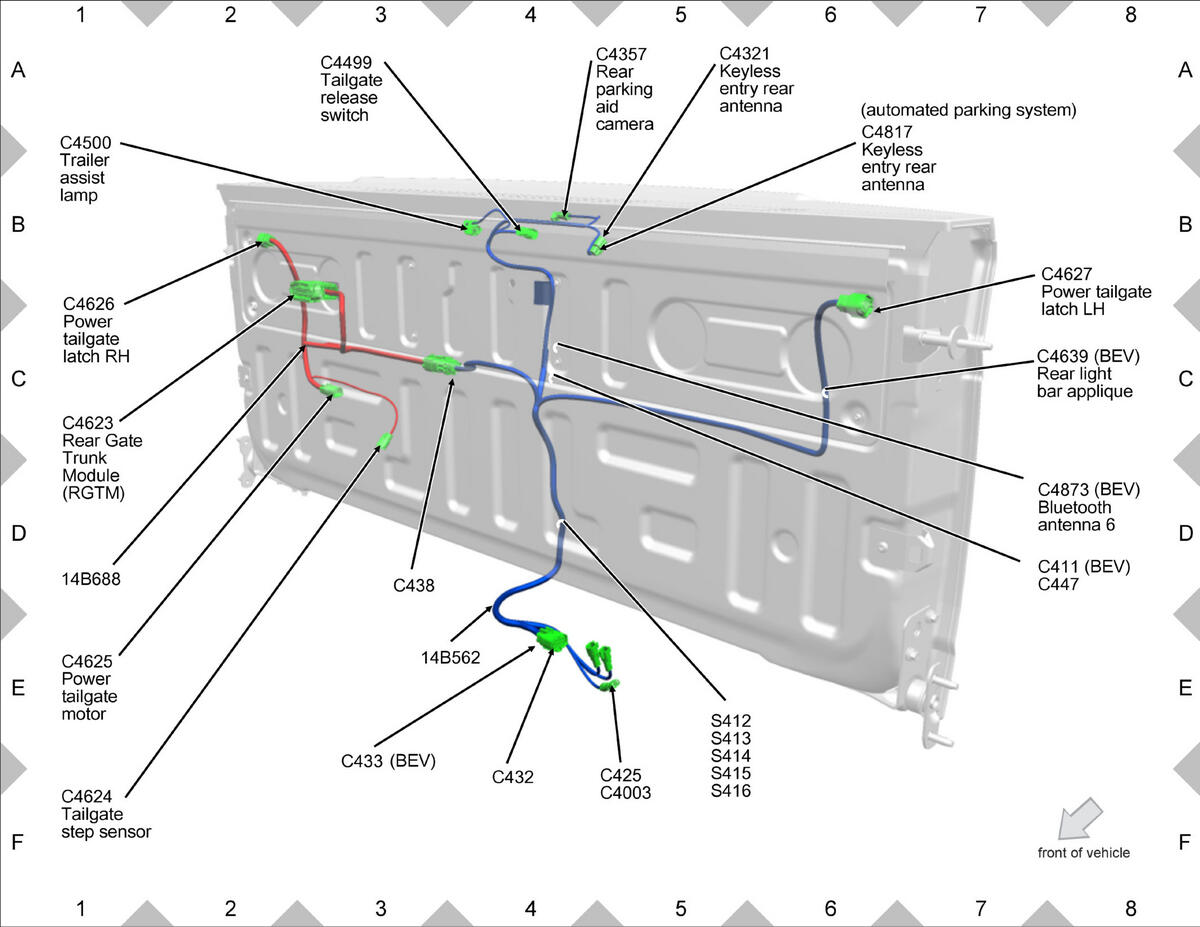

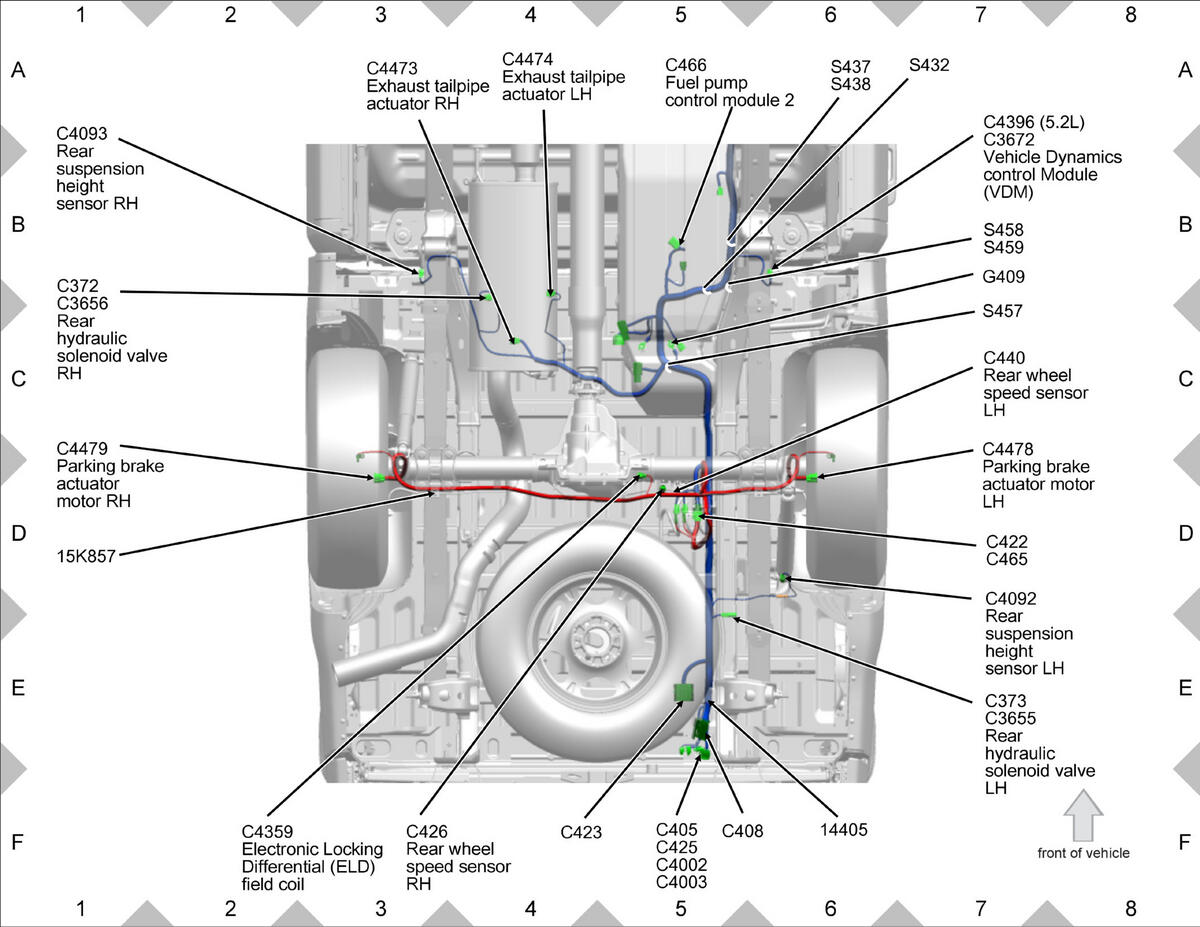

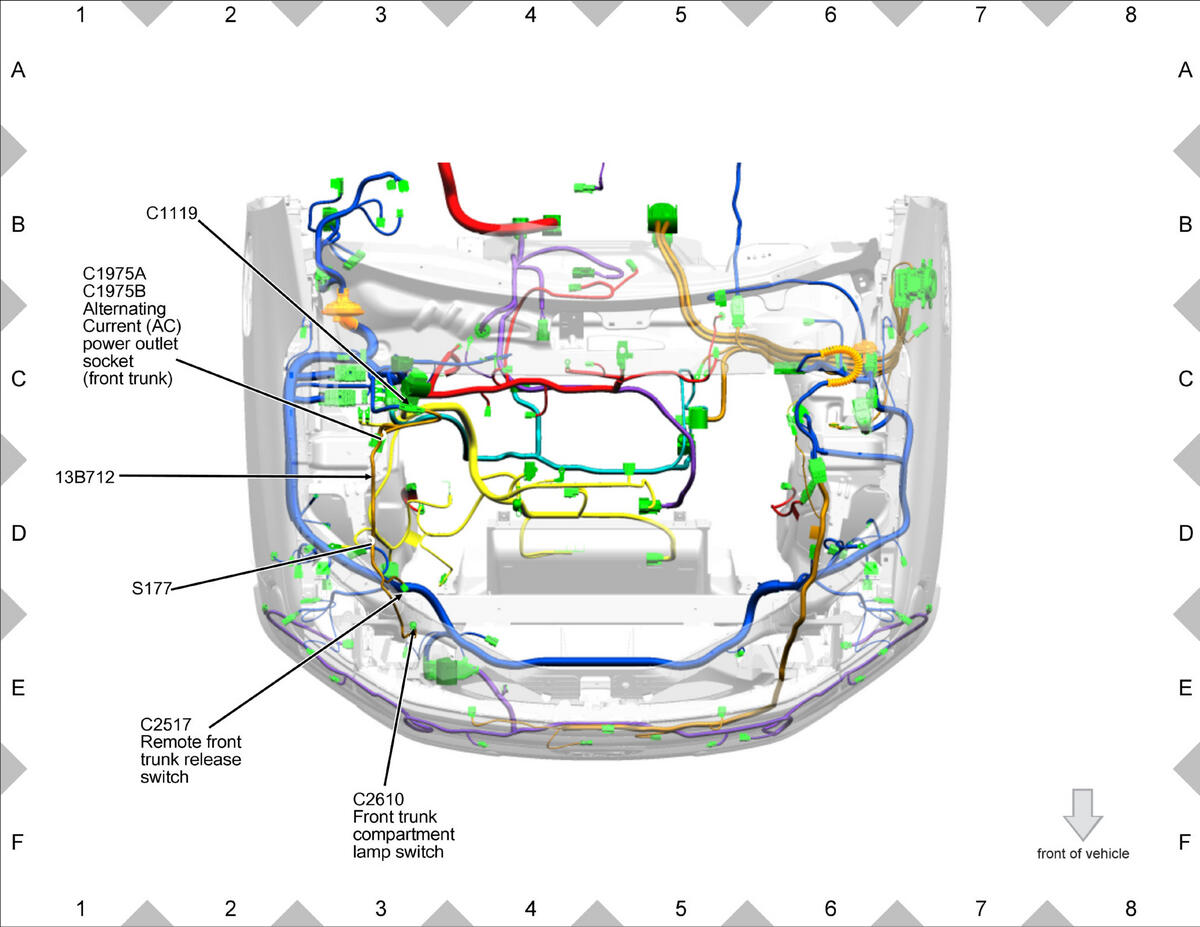

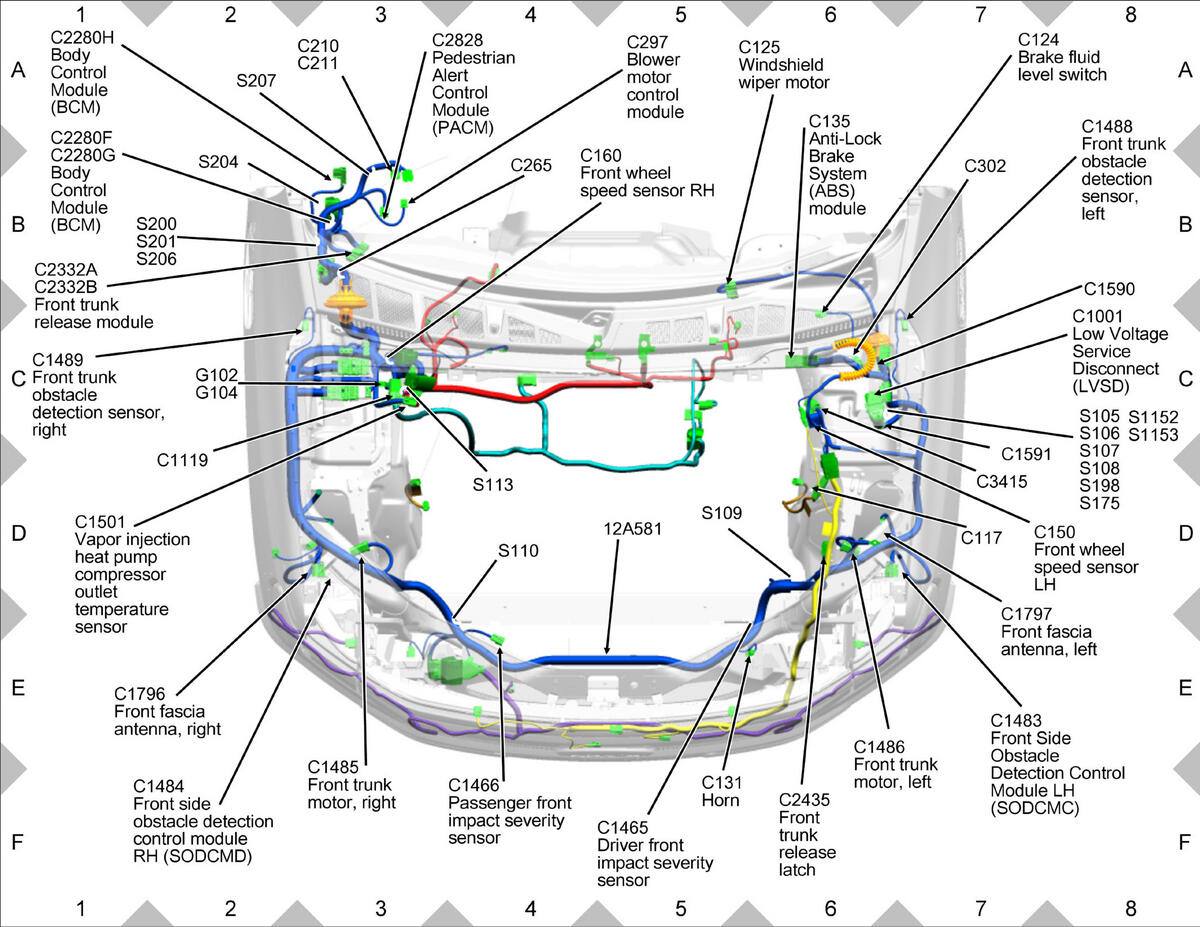

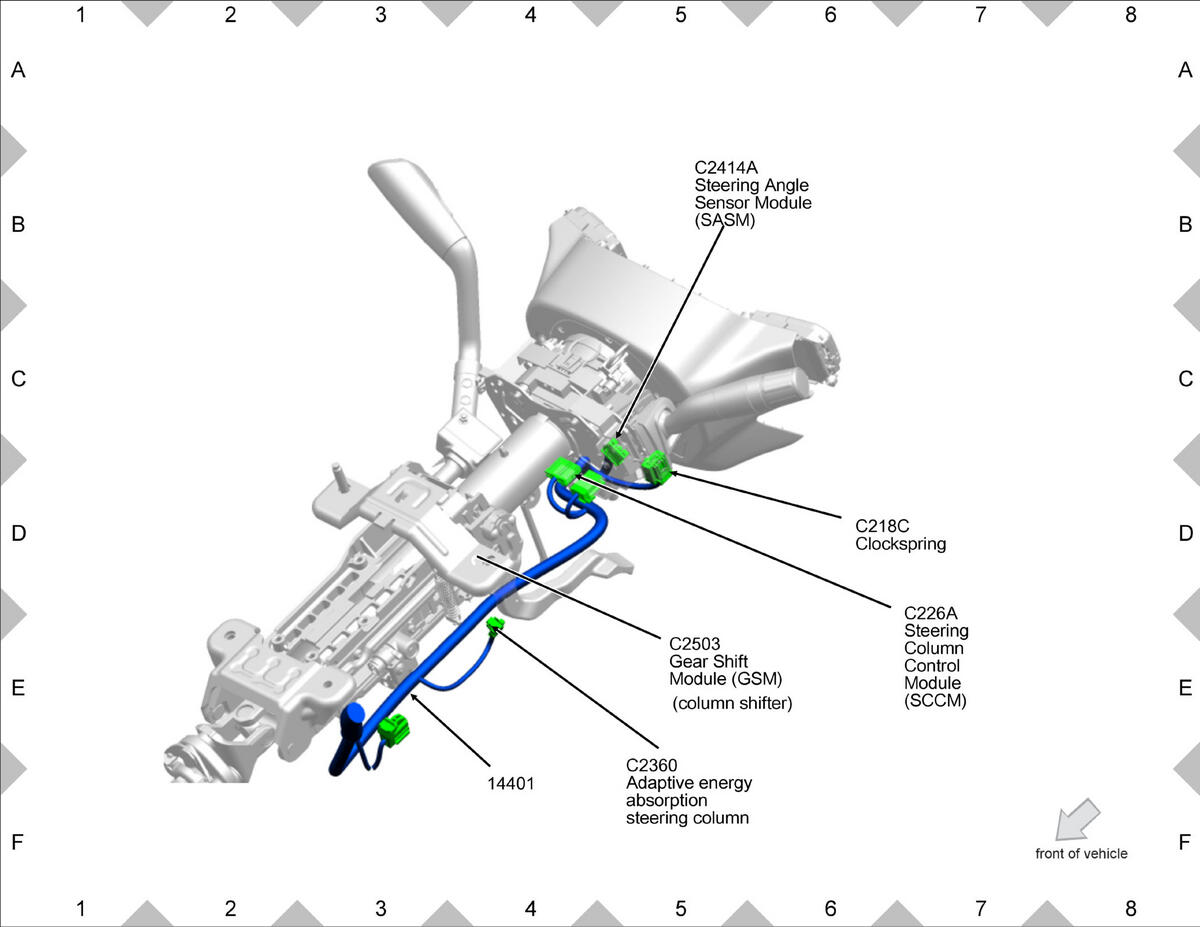

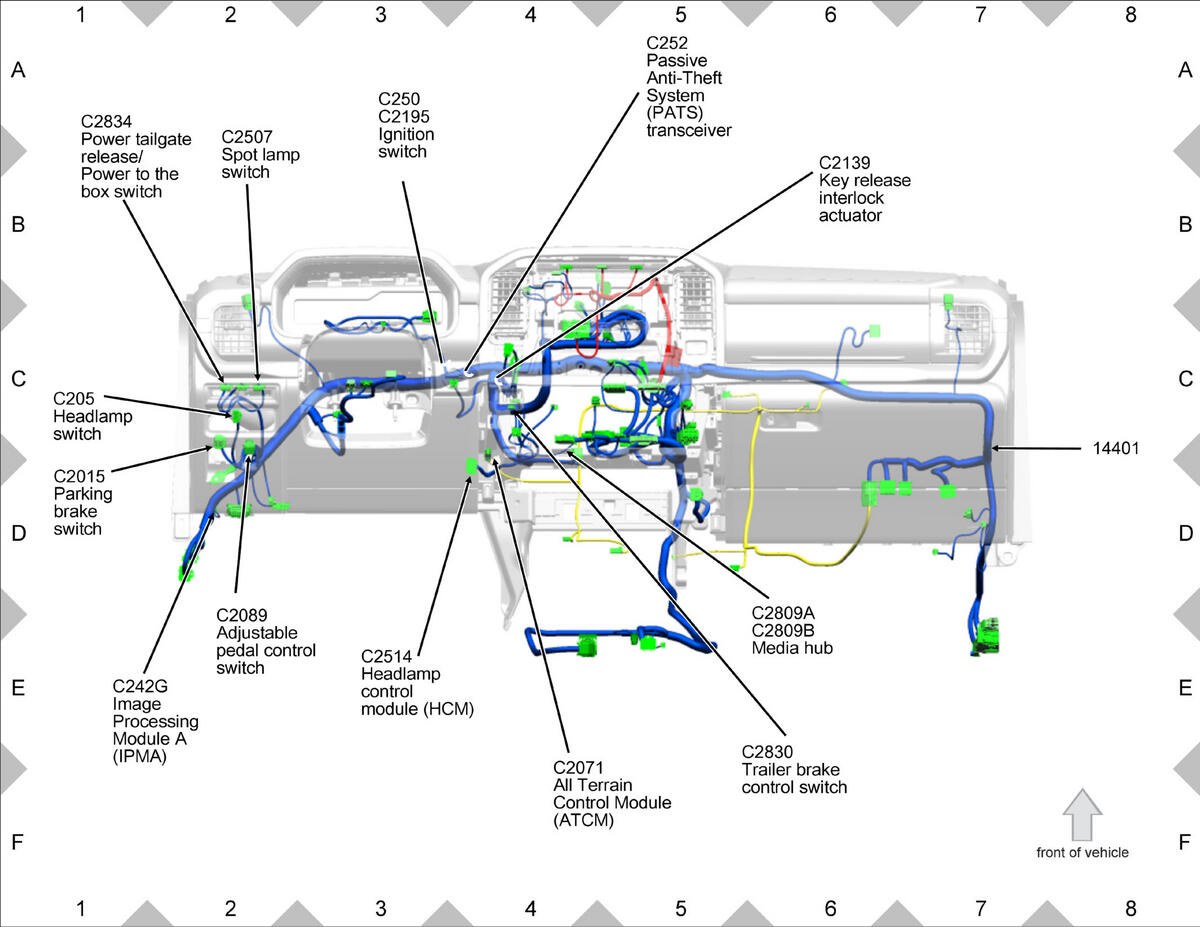

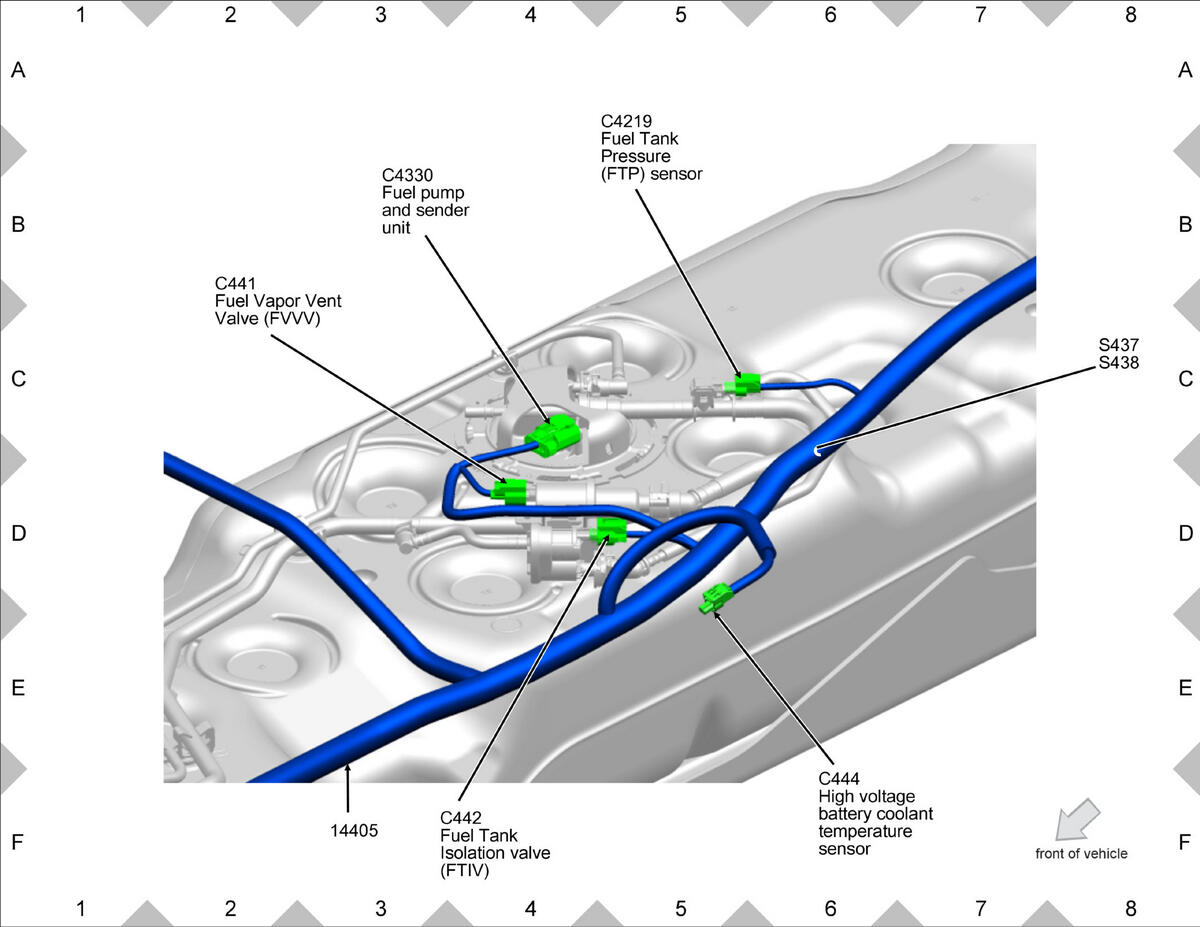

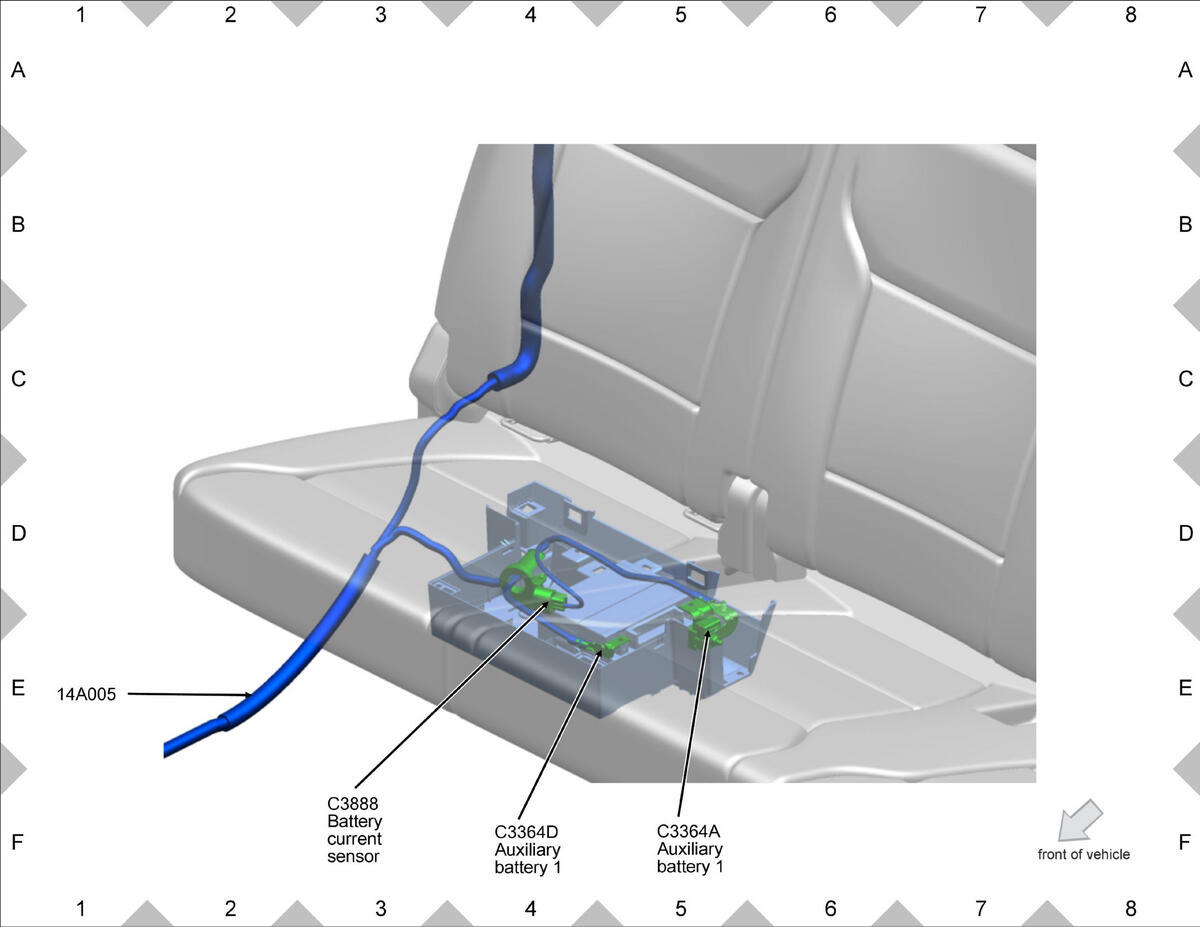

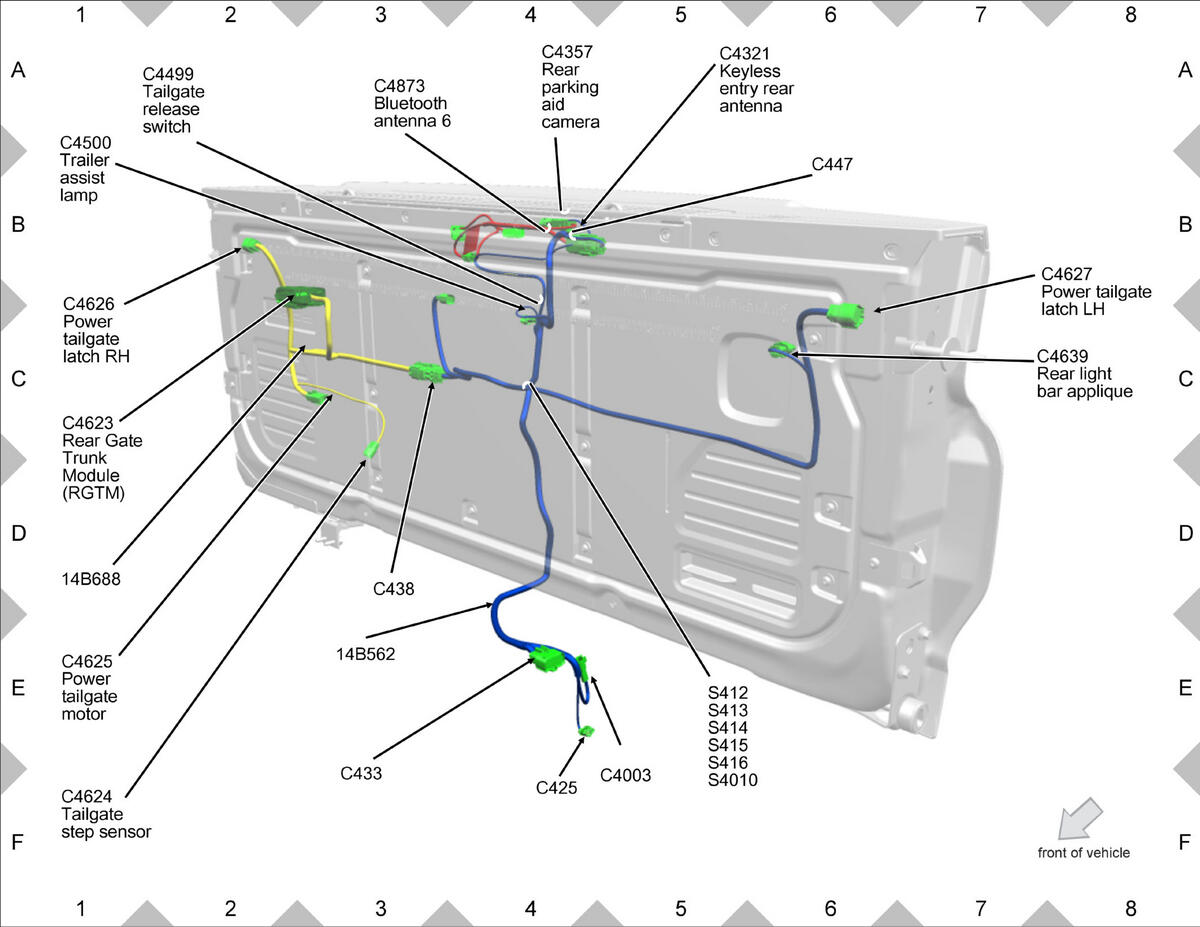

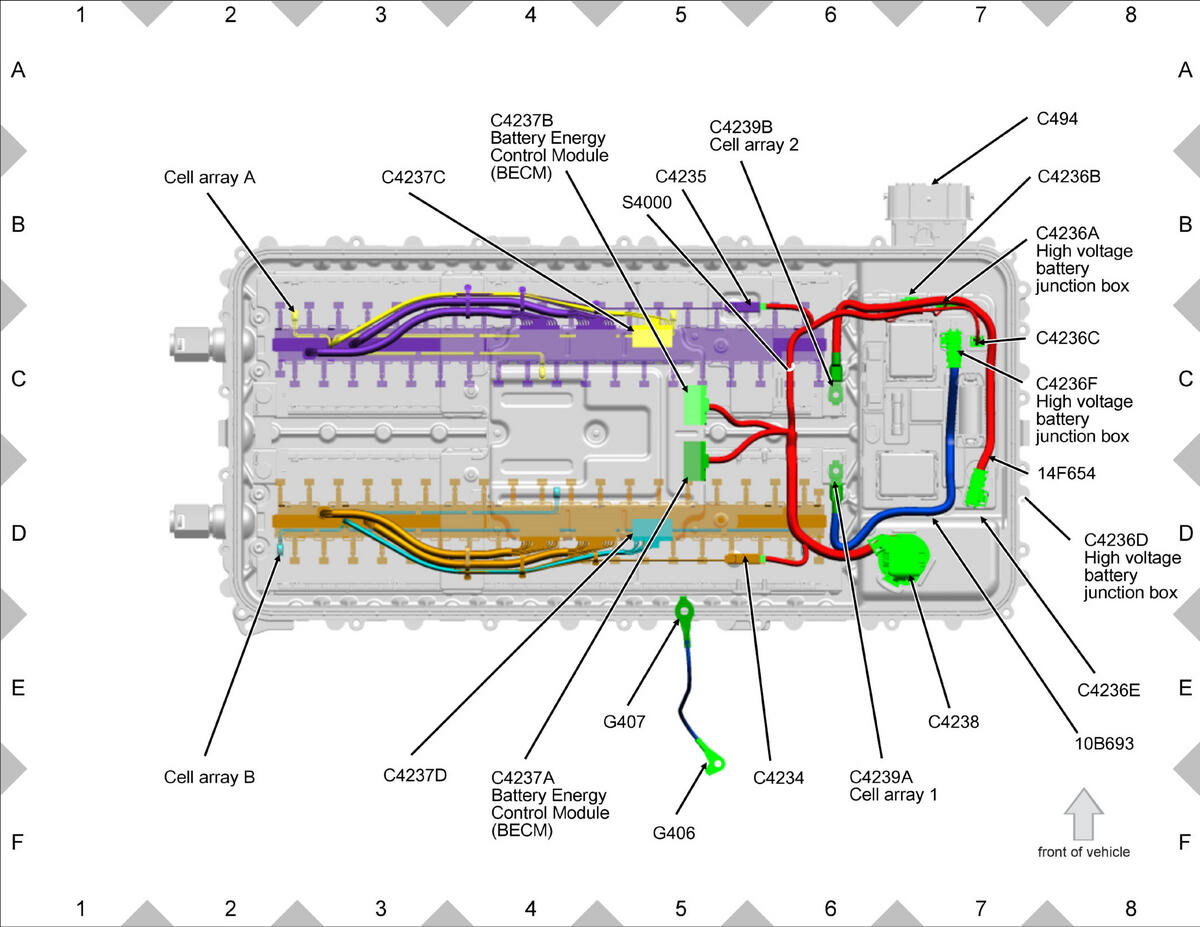

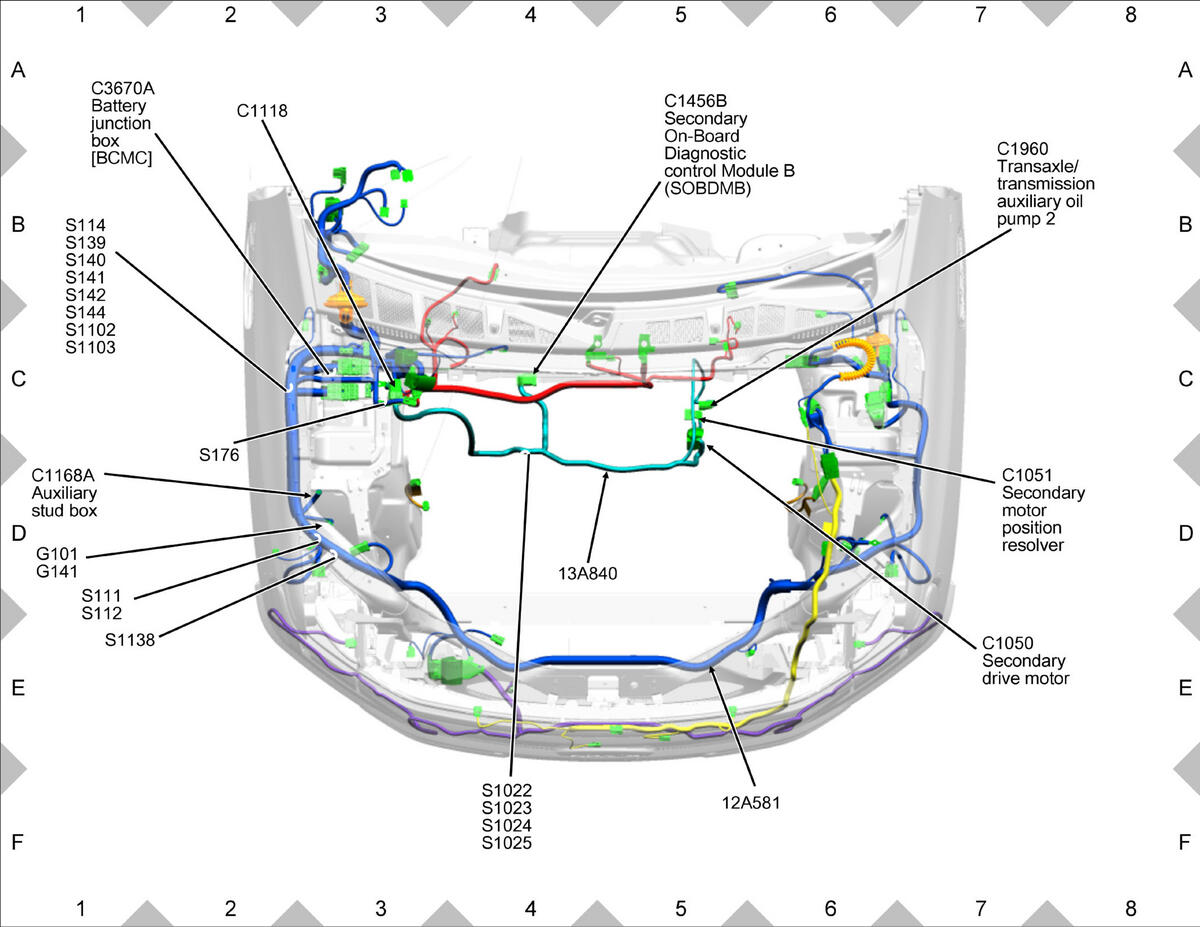

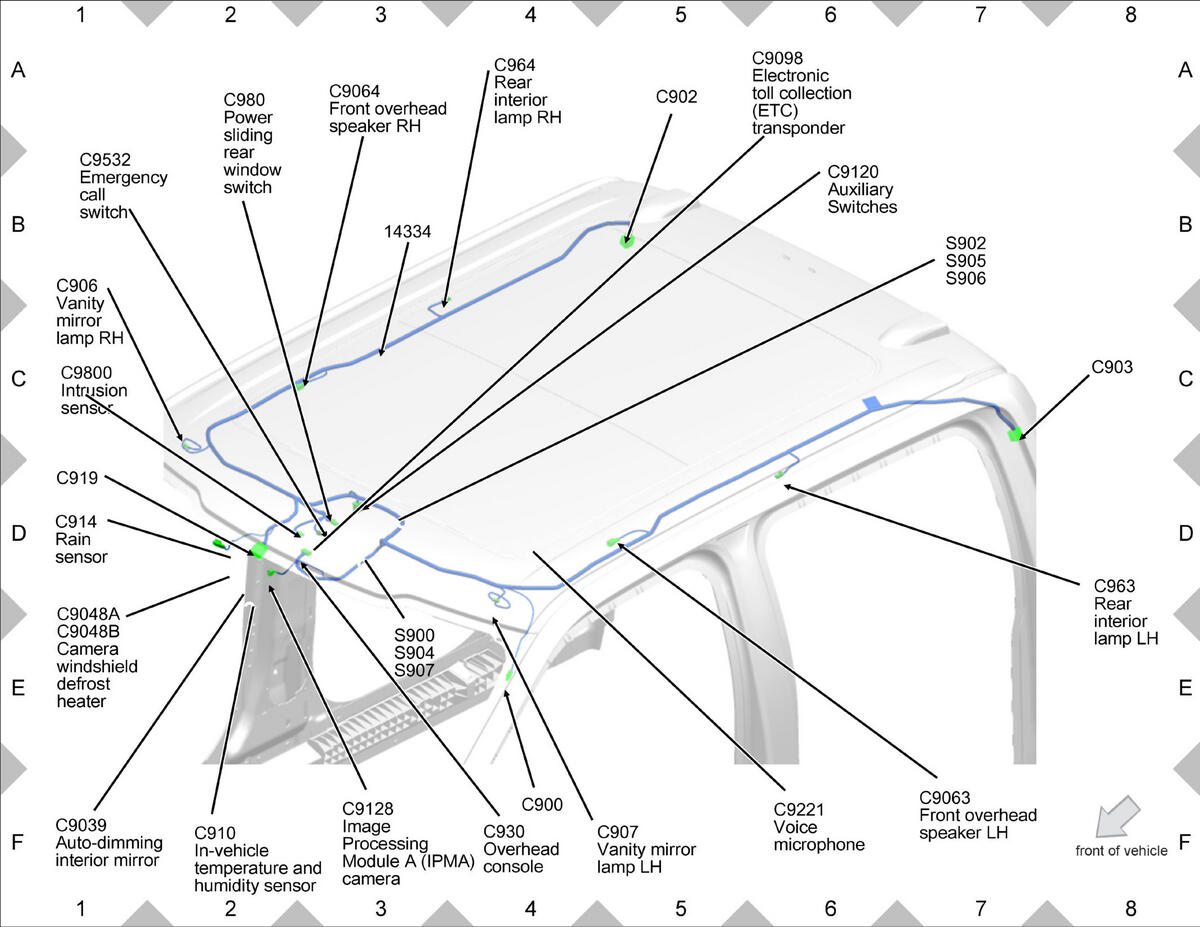

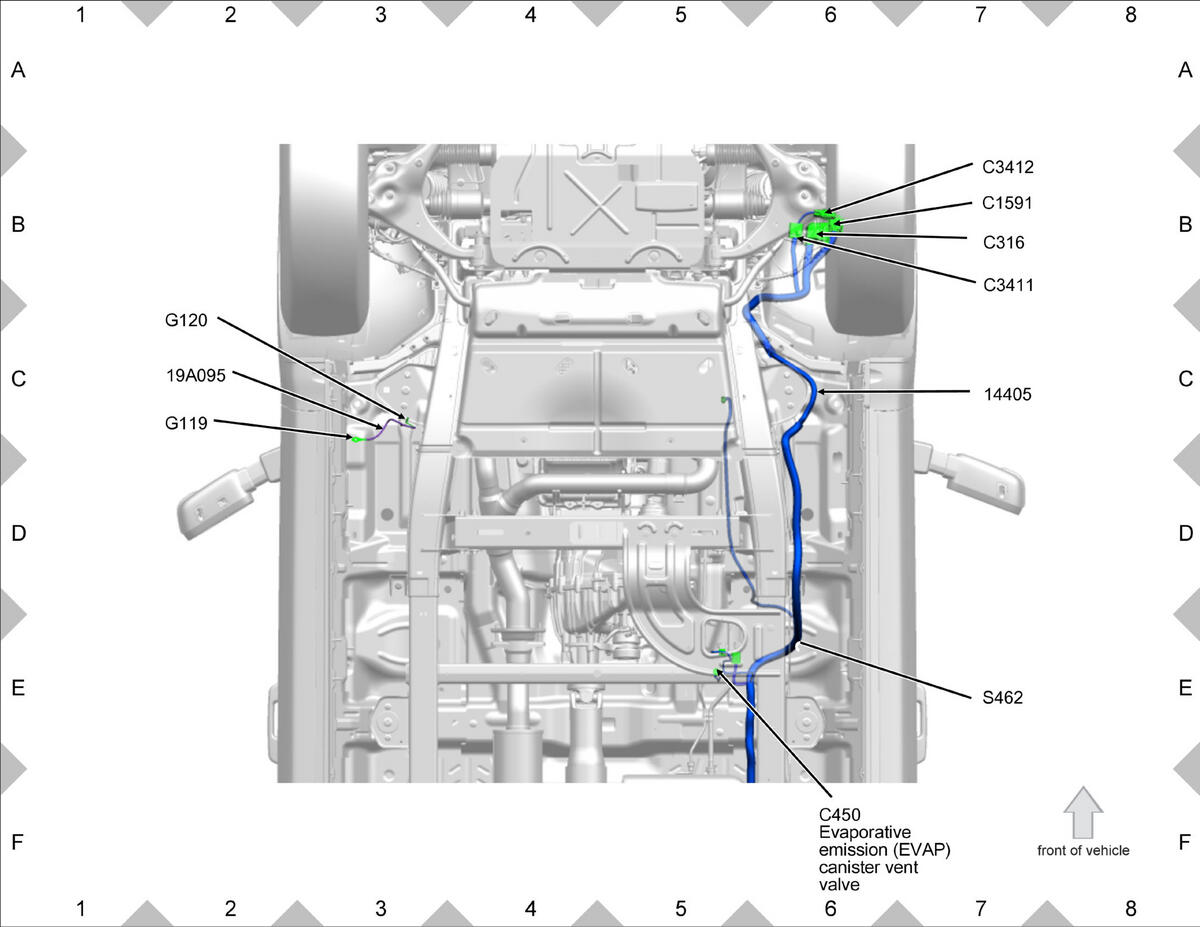

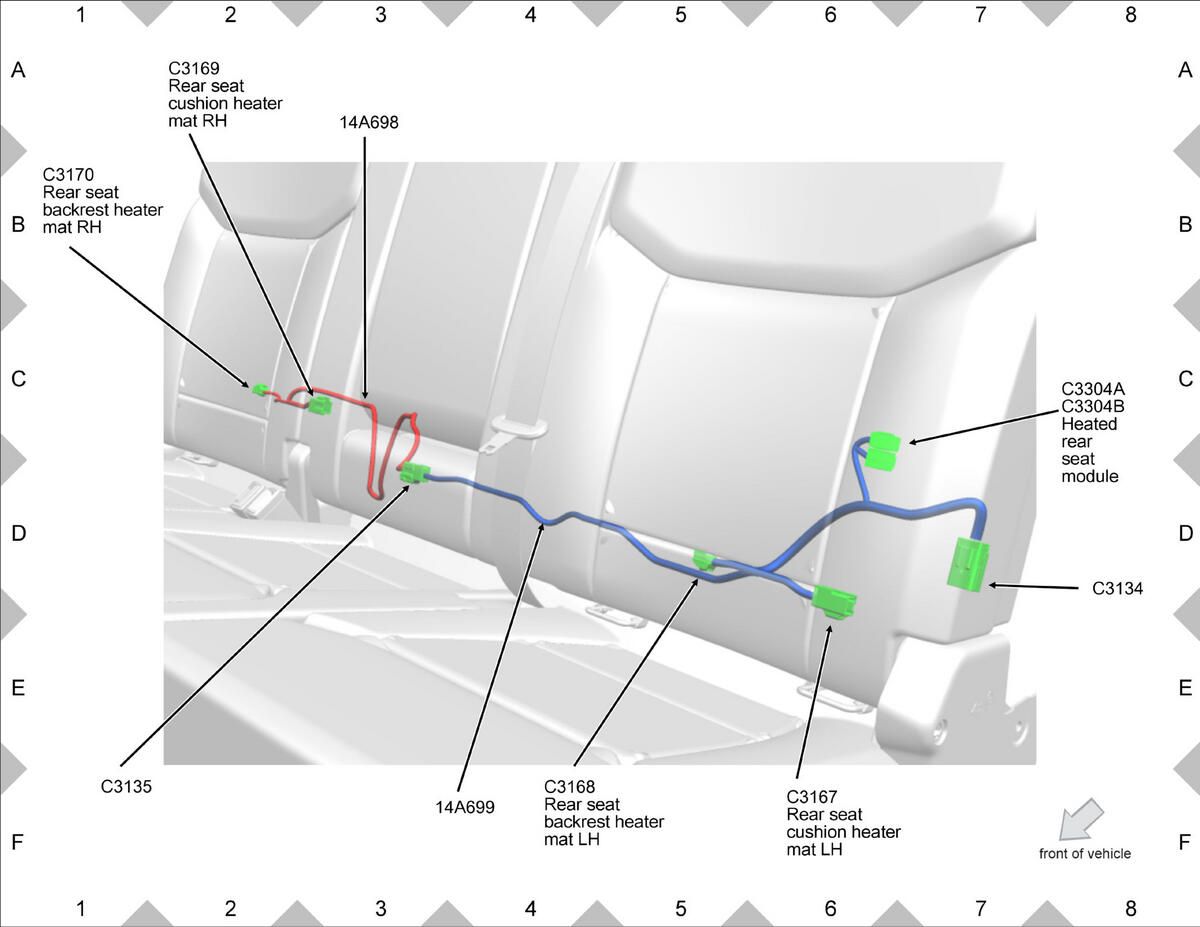

Component Location Views

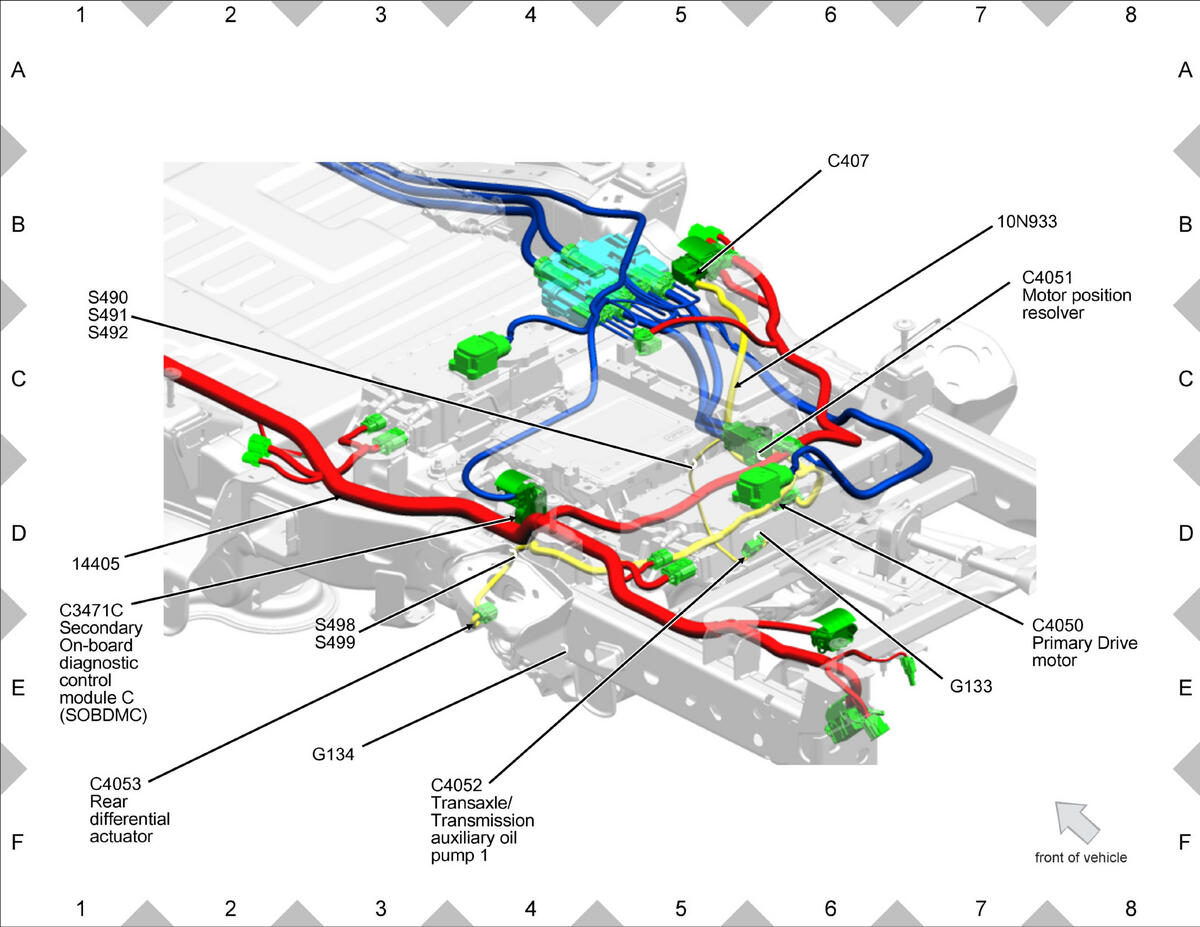

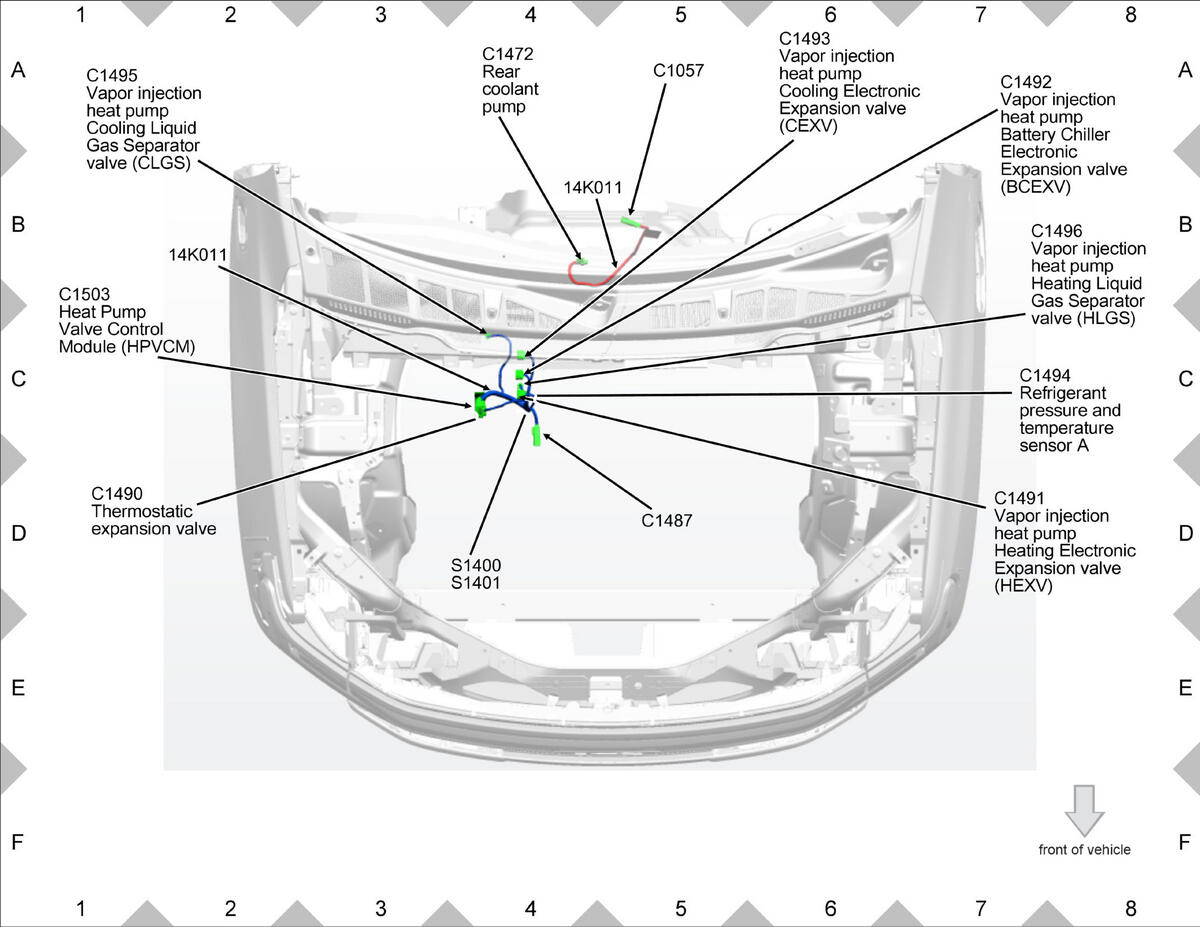

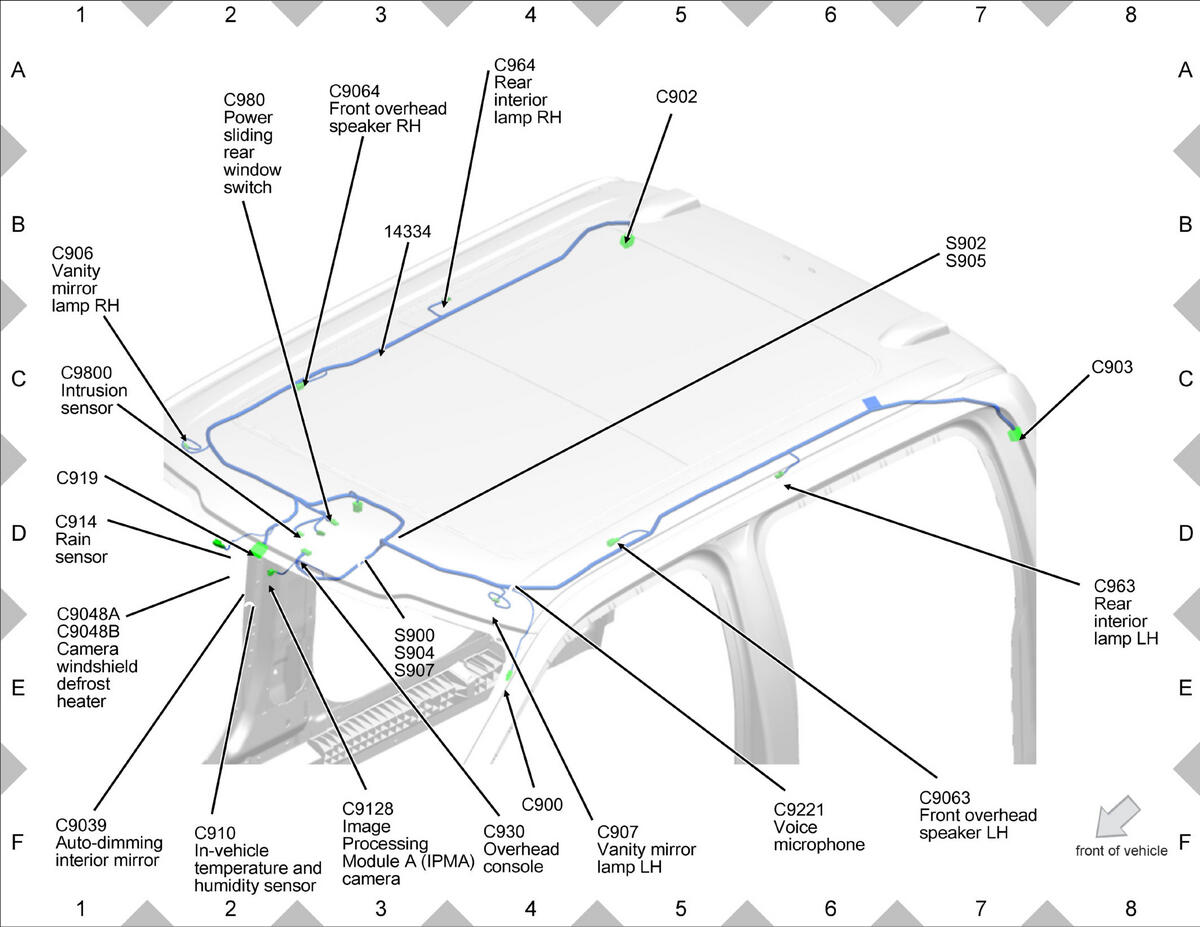

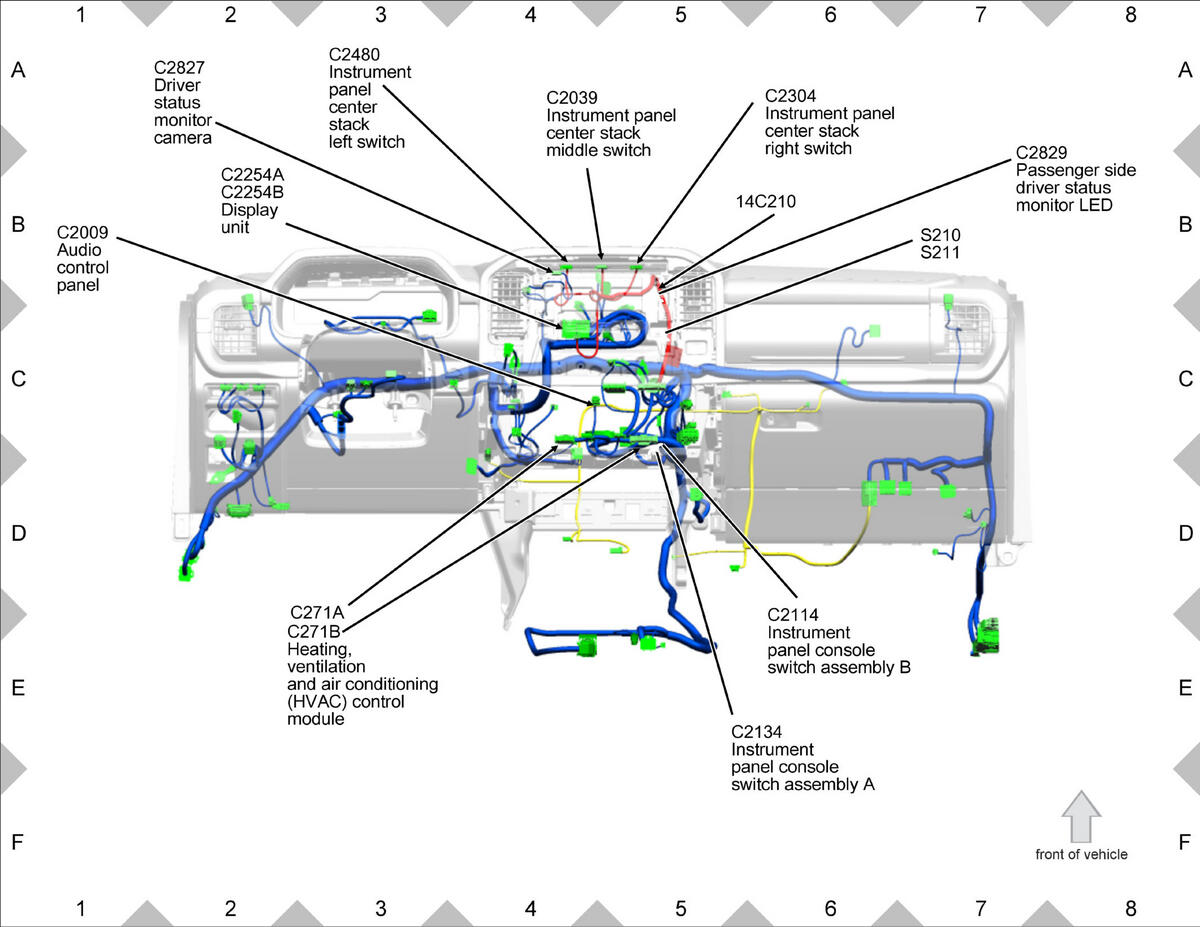

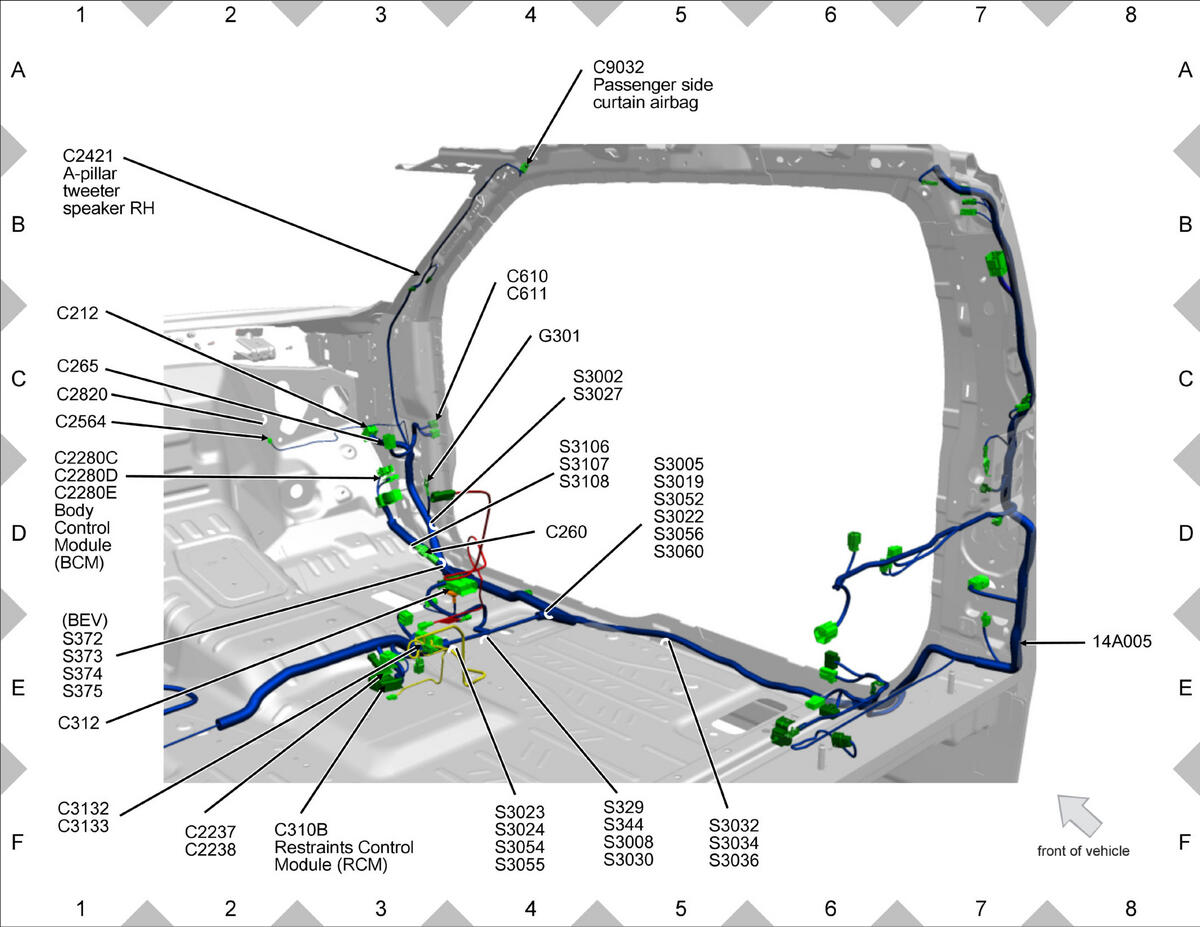

Component Location Views
