Pedestrian Alert Control Module (PACM): Removal

WARNING: This page is about a different car, the 2022 Ford F-150 Lightning and 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

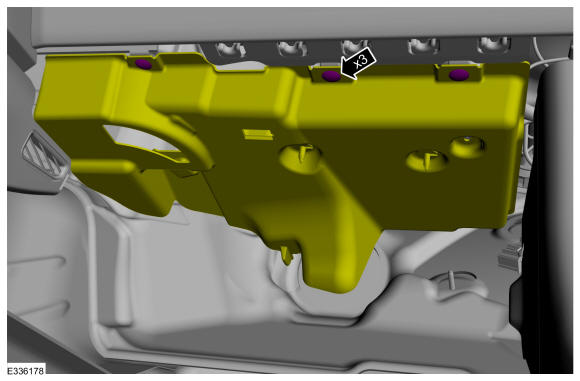

  1. Remove the pin-type retainers and position aside the RH lower instrument panel closeout trim panel.
    GFD685555Courtesy of FORD MOTOR COMPANY

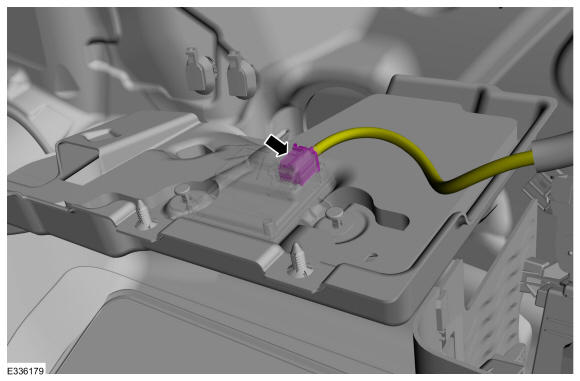

  2. Disconnect the electrical connector.
    GFD685556Courtesy of FORD MOTOR COMPANY

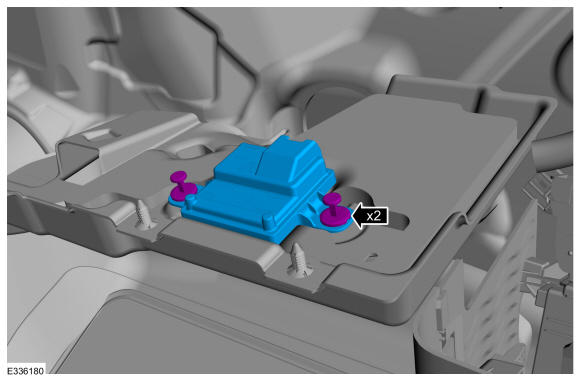

  3. Remove the push pins and the PACM.
GFD685557Courtesy of FORD MOTOR COMPANY
